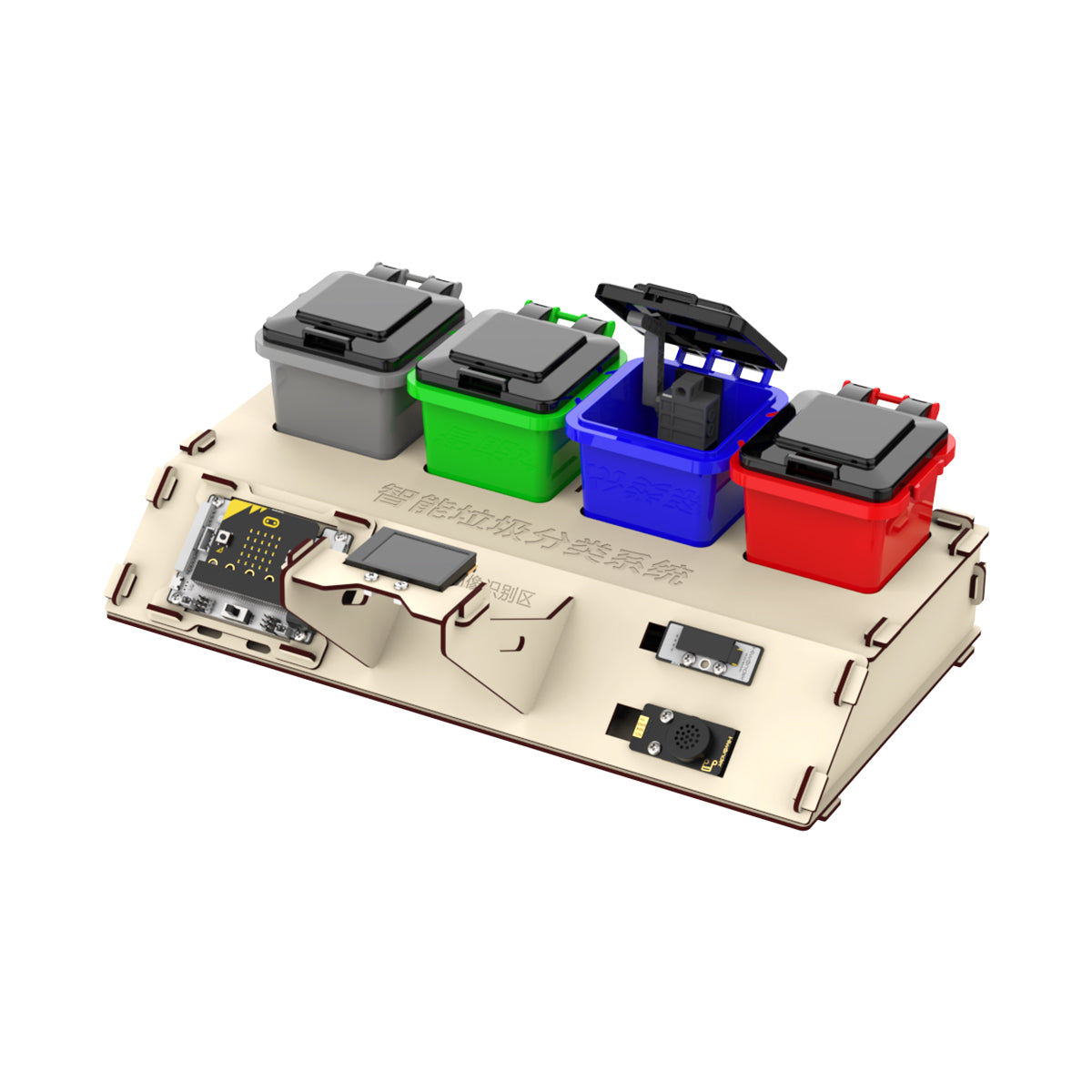

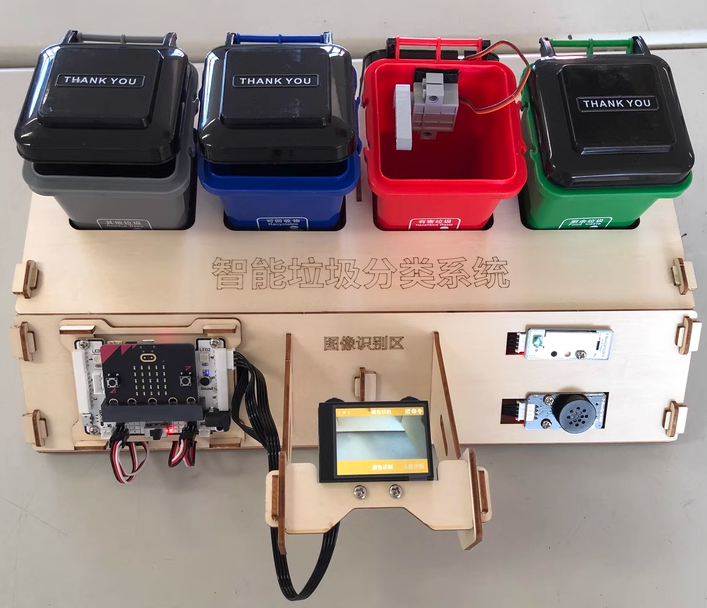

Waste Sorting Robot Kit: Hiwonder AI Vision Waste Classification Kit with Audio Broadcast Powered by micro:bit
- Powered by micro:bit
- Loaded with Hiwonder WonderCam vision camera

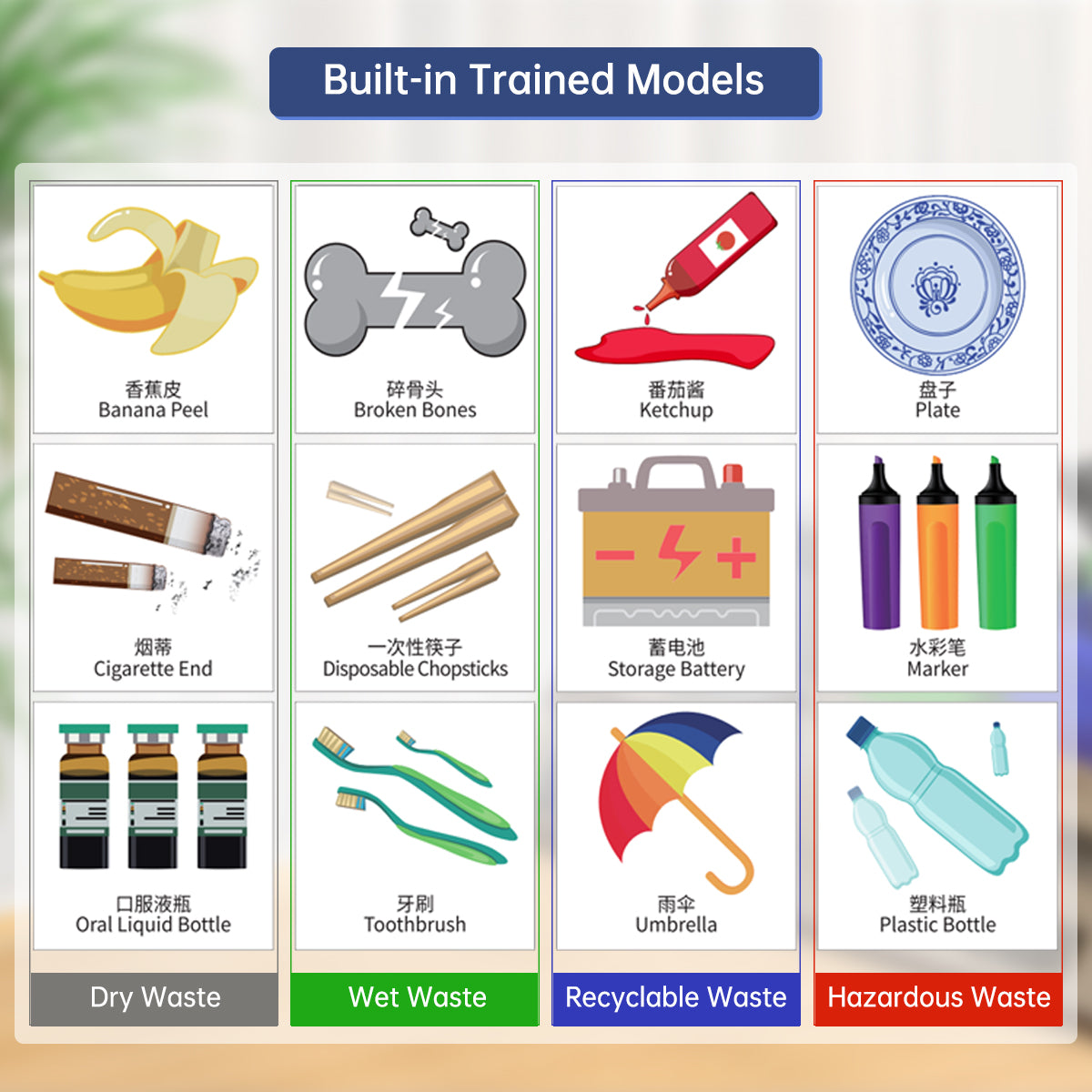

- Involve 12 built-in trained models of waste sorting
- Classification result will be broadcast by MP3 module and displayed on OLED
| Size | 395*288*132mm |
| Weight | about 0.9kg |
| Power supply | 3.7V 18650 battery (1200mAh) |
| Camera | WonderCam AI Vision Module |
| Control system | micro:bit |
| Processor | Kendryte K210 |
| Camera | 2 megapixel |
| Image sensor | 0V2640 (2 megapixel) |
| Supply voltage | 5.0V |
| Working current | 300mA (Typical working condition: facial recognition,100% backlight, fill light off) |
| Connectors | I2C |
| Display | 2.0IPS, resolution 320x240 |
| Built-in function | Facial recognition, image classification, feature learning, color recognition, vision line following, tag recognition, number recognition and landmark recognition. |
| Dimension | 52mmx50mm |
| Display dimension | 41mmx31mm |
| Product weight | 24g |
| Item | Specification |

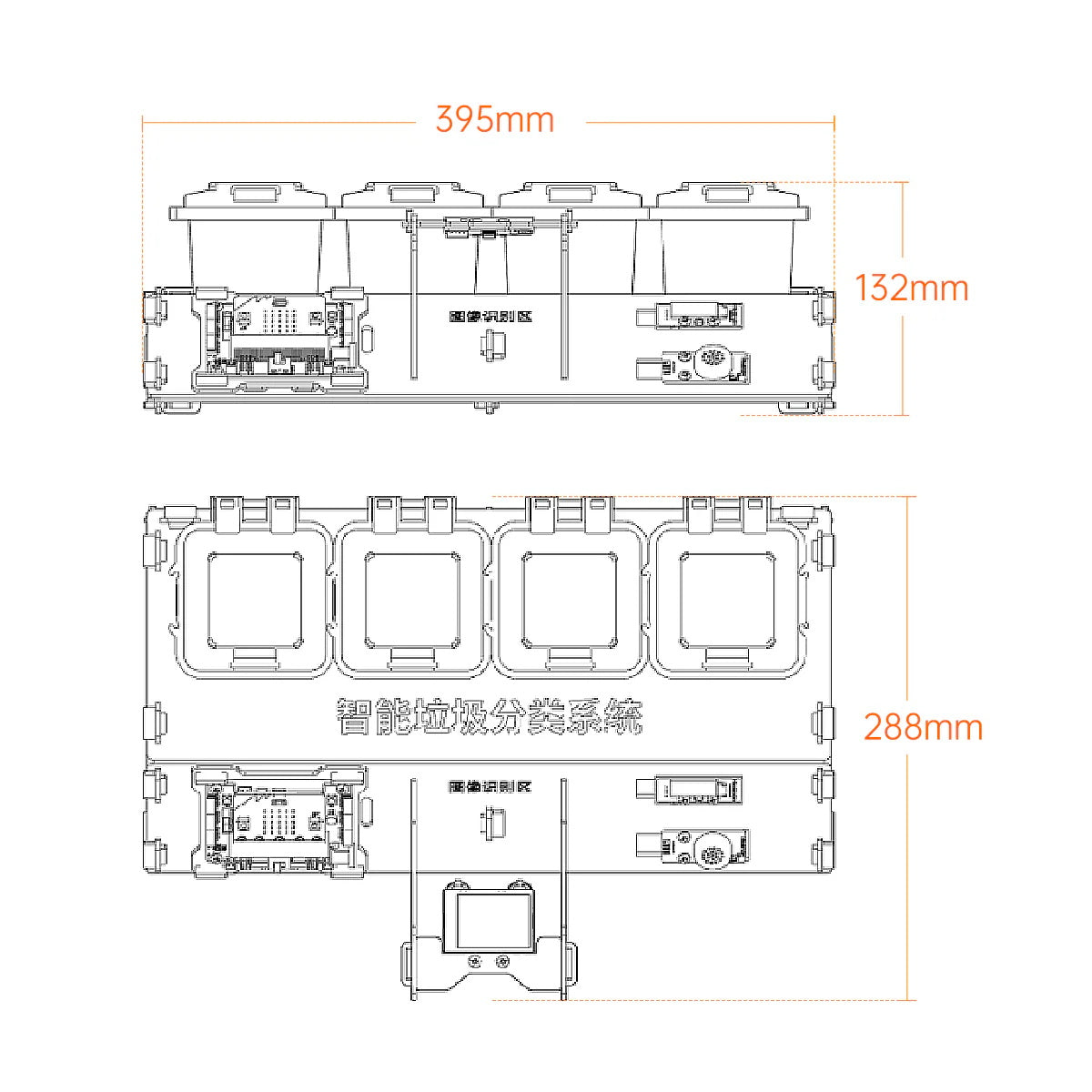

| Size after assembling | 395x288x132 mm |
| Weight | about 0.9kg |
| Power | 18650 Lipo battery |
| Visual module | WonderCam camera |
| WonderCam processor | Kendryte K210 |
| WonderCam camera | 2 megapixel |
| WonderCam image sensor | 0V2640 (2 megapixel) |
| WonderCam supply voltage | 5.0V |
| WonderCam working current | 300mA (Typical working condition: facial recognition, 100% backlight, fill light off) |
| WonderCam connectors | I2C |
| WonderCam display | 2.0IPS, resolution 320x240 |
| WonderCam built-in function | Facial recognition, image classification, feature learning, color recognition, visual line following, tag recognition, number recognition and landmark recognition |
| WonderCam dimension | 52mmx50mm |
| WonderCam display dimension | 41mmx31mm |
| WonderCam weight | 24g |
Questions & Answers
Have a Question?
-
Do you also export this product in india world
Yes, we could ship the product to India
-
Does this waste separator come in separate peices? And do I have to program it myself?
Hello,
Yes, you will need to assemble it yourself, but don't worry! We provide simple assembly instructions, along with all the necessary programs to get your robot up and running. You can find everything you need here: https://drive.google.com/drive/folders/1rsxhiJCImJ0r6khIY6cqXJ1JN--YSpKc?usp=sharing
-
Pls is modal ka pura synopsis send kre
Pls check this link: https://drive.google.com/drive/folders/1rsxhiJCImJ0r6khIY6cqXJ1JN--YSpKc?usp=sharing
-
Pls send me video make the waste segration model
Pls check this link: https://drive.google.com/drive/folders/1rsxhiJCImJ0r6khIY6cqXJ1JN--YSpKc?usp=sharing
-
Hello to you, I cannot find the programming of the microbit. Could you give it to me ?
Please check this link: https://drive.google.com/drive/folders/1rsxhiJCImJ0r6khIY6cqXJ1JN--YSpKc?usp=sharing
