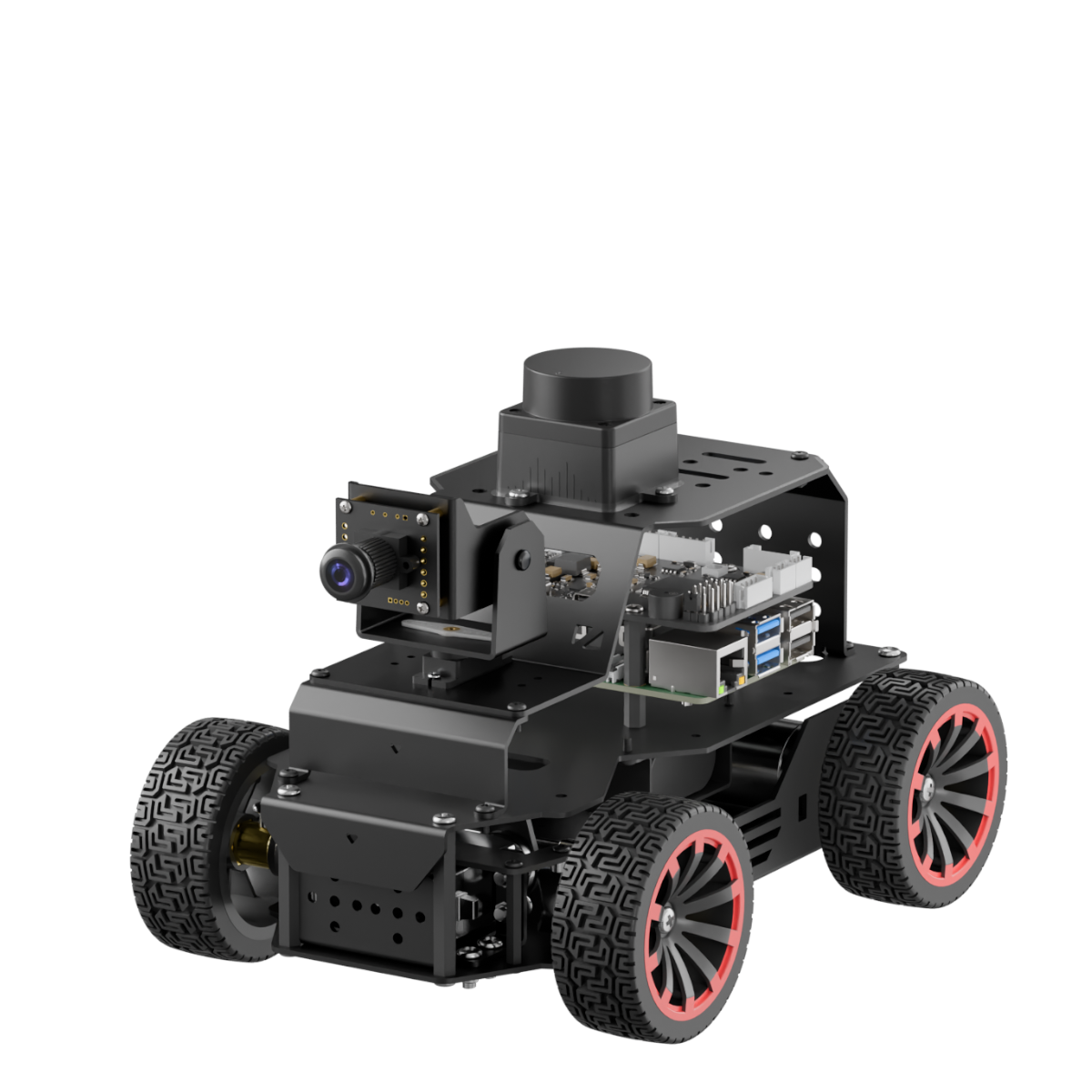

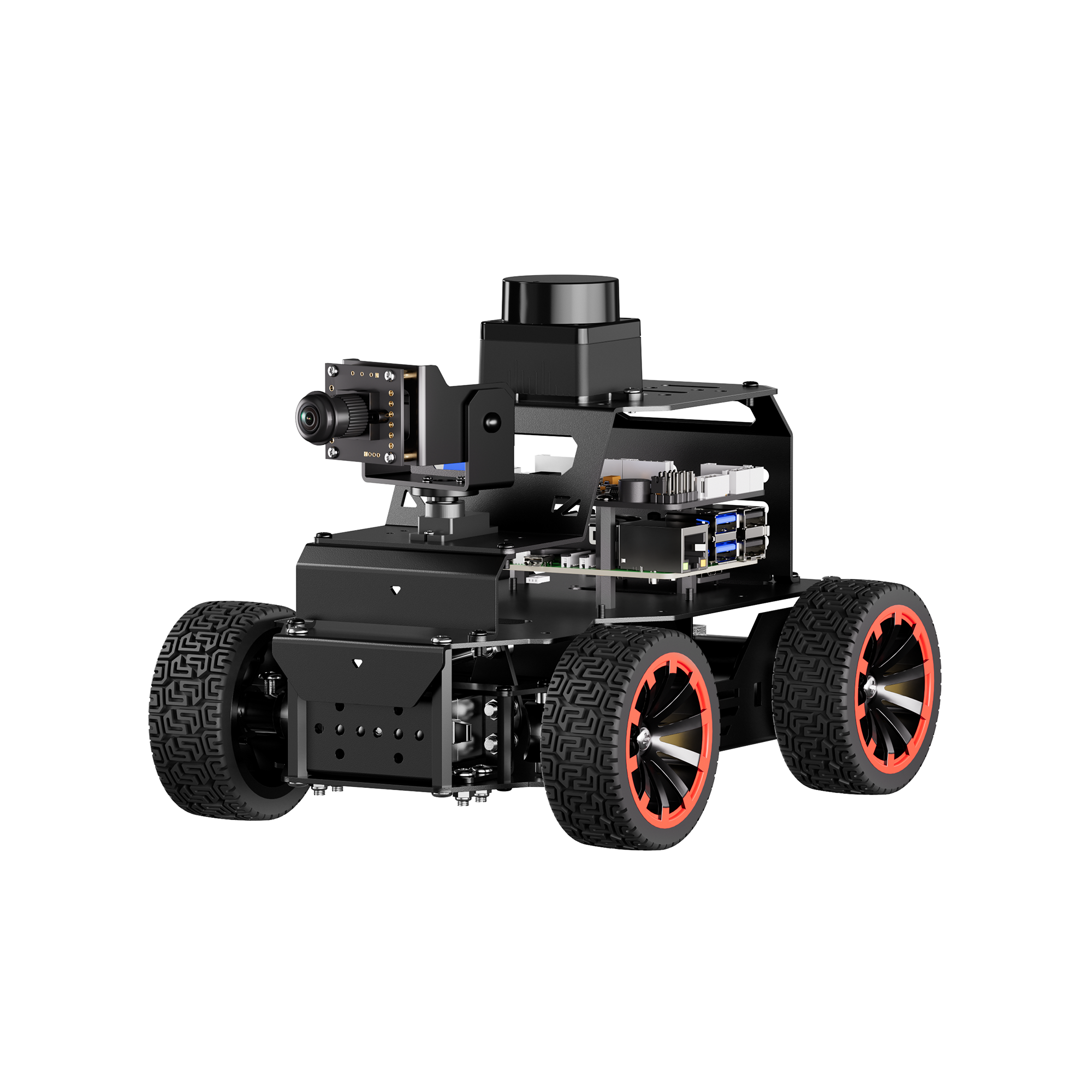

Hiwonder MentorPi A1 Raspberry Pi 5 Robot Car, Ackerman Chassis 2DOF Monocular Camera ROS2-HUMBLE Support SLAM and Autonomous Driving
【Raspberry Pi 5 & ROS2 Robot Car】 MentorPi A1 robot is powered by Raspberry Pi 5, compatible with ROS2, and programmed in Python, making it an ideal platform for AI robot development.
【Advanced AI Capabilities】 Supports SLAM mapping, path planning, multi-robot coordination, vision recognition, target tracking, and more, covering a wide range of AI applications.
【Autonomous Driving with Deep Learning】 Utilizes YOLOv11 model training to enable road sign and traffic light recognition, along with other autonomous driving features, helping users explore and develop autonomous driving technologies.
【High-Performance Hardware】 Equipped with closed-loop encoder motors, TOF lidar, 2DOF monocular camera, high-torque servos, and other advanced components to ensure optimal performance and efficiency.
Master the process in MentorPi A1 Robot Tutorials: https://docs.hiwonder.com/projects/MentorPi/en/latest/.
Product Description
MentorPi AI robot is an intelligent robot car built on the Raspberry Pi 5 and fully compatible with ROS2. Featuring high-speed closed-loop encoder motors, Lidar, a 2DOF monocular vision camera, and high-torque servos, it delivers robust performance in SLAM mapping, path planning, visual recognition, and autonomous navigation. With built-in YOLOv11 model training support, Hiwonder MentorPi A1 car accurately detects road signs and traffic lights. Hiwonder supplies complete ROS2 tutorials and video guides to accelerate learning. Ideal for next-level AI and robotics applications.

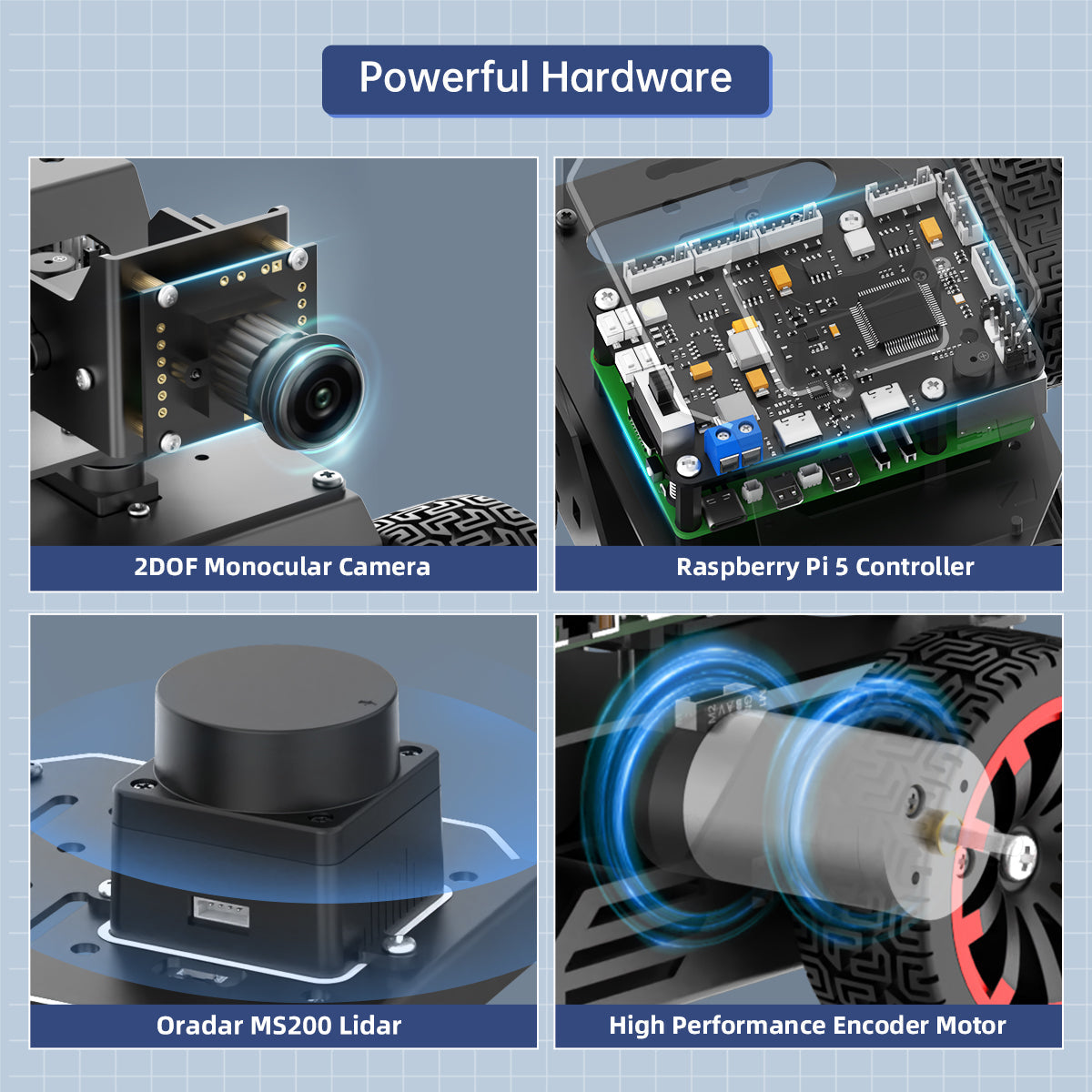

2DOF Monocular Camera
MentorPi A1 car features a 2DOF monocular camera and a LFD-01 anti-blocking servo, working together with its flexible chassis to deliver seamless 360° vision with zero blind spots.
Raspberry Pi 5 Controller
MentorPi is powered by Raspberry Pi 5 controller, allowing you to embark on motion control, machine vision, and OpenCV projects.
COIN-D6 LiDAR

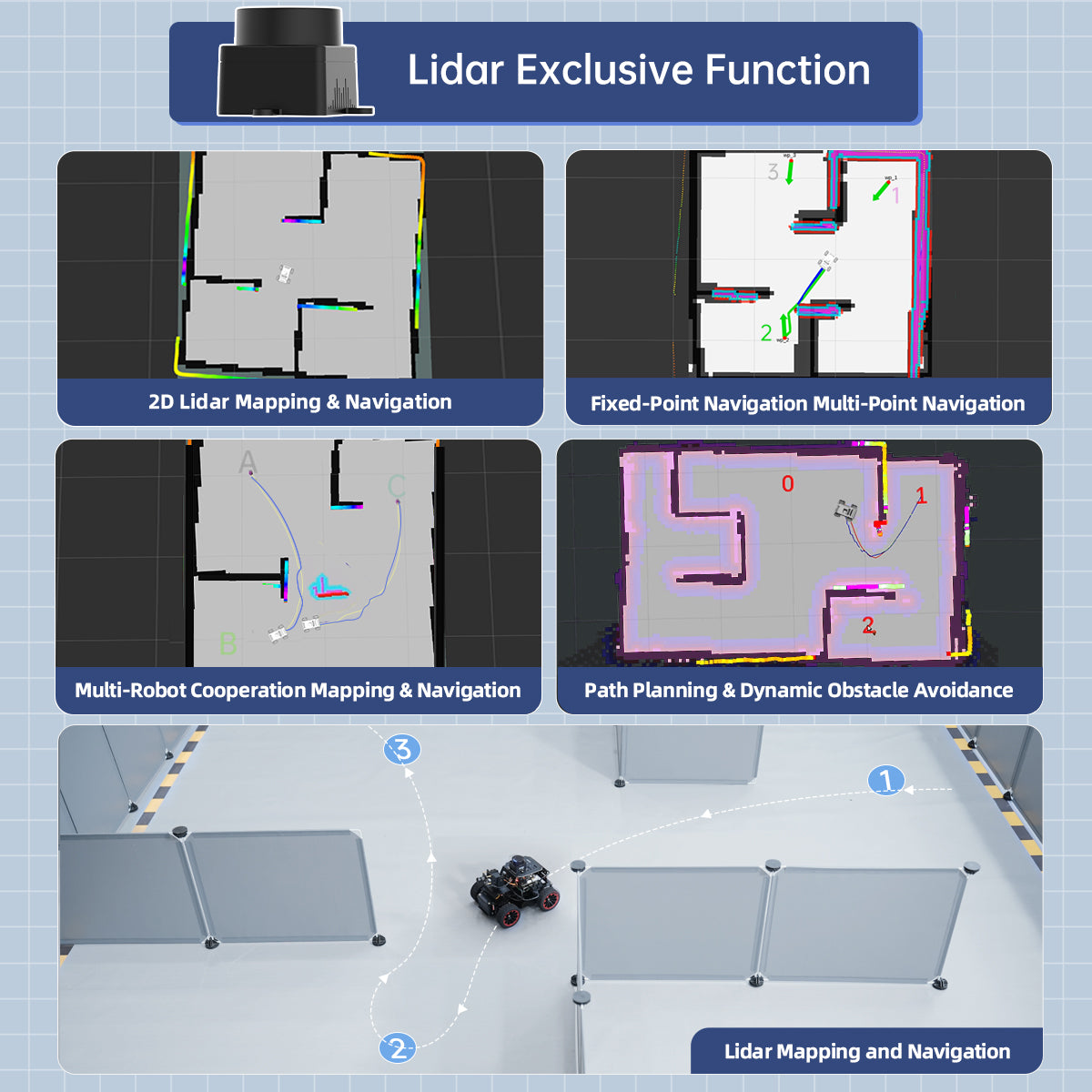

MentorPi is equipped with a LiDAR for obstacle avoidance, target following, fixed-point and multi-point navigation, as well as path planning and global task navigation.
High Performance Encoder Motor
It offers robust force, has a high-precision encoder, and includes a protective end shell to ensure an extended service life.
Dual-Controller Design for Efficient Collaboration
Function List

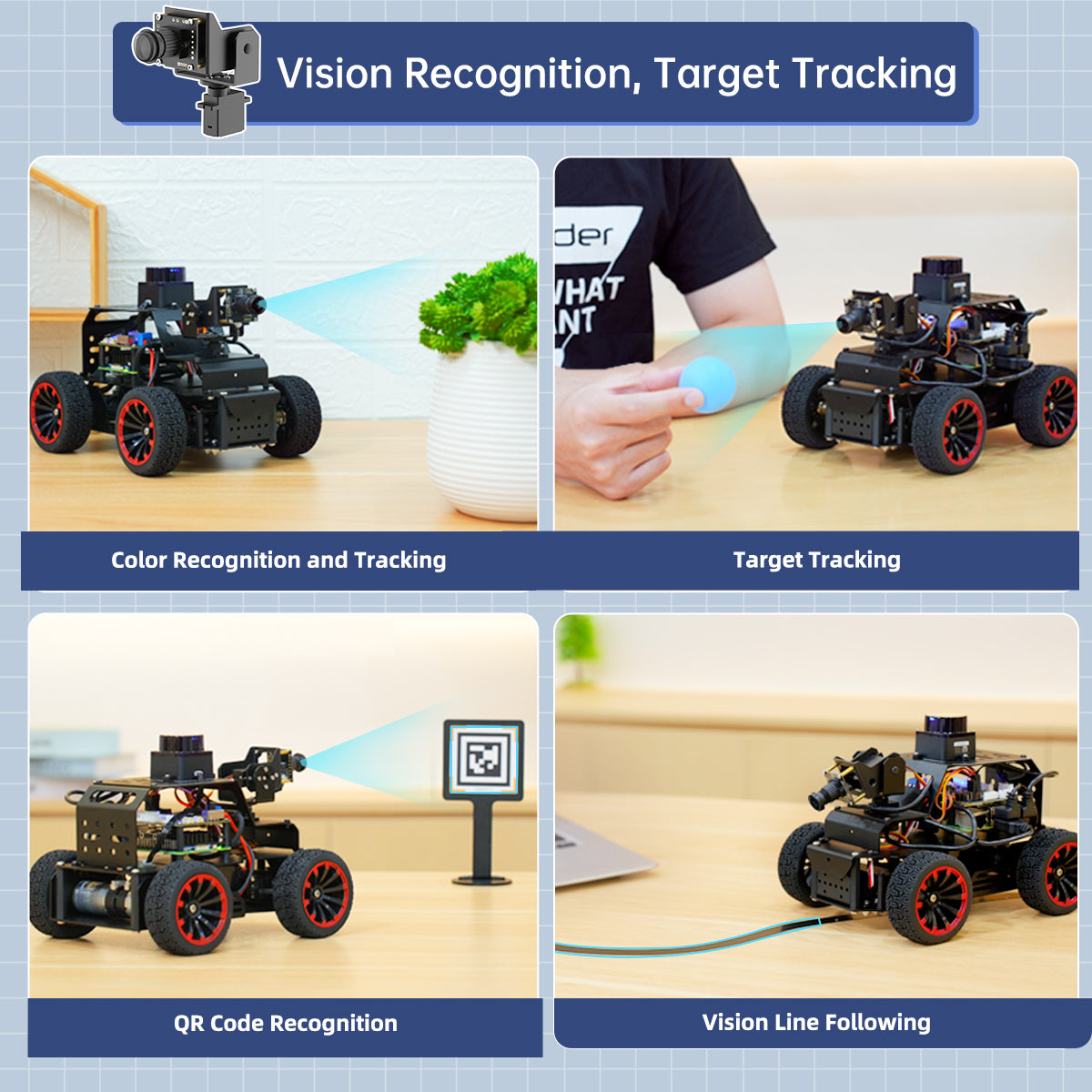

Color Recognition and Tracking
MentorPi ros2 robot uses OpenCV to track colors in real time. Simply select a color in the app, and the robot will emits light of corresponding color and follow the object in that color.
Target Tracking
Using vision positioning, Hiwonder MentorPi precisely targets and tracks objects with enhanced accuracy.
QR Code Recognition
MentorPi A1 raspi car recognizes custom QR codes and instantly displays the decoded content.
Vision Line Following
MentorPi Raspberry Pi Robot lets you choose custom colors—then instantly identifies and tracks color-based lines with precision.
YOLO Object Recognition
Powered by the YOLO network algorithm and deep learning models, MentorPi delivers fast and accurate object recognition.
MediaPipe Development, Upgraded Al Interaction
MentorPi uses the MediaPipe framework to deliver advanced capabilities including fingertip recognition, human body recognition, 3D detection, and 3D face detection.

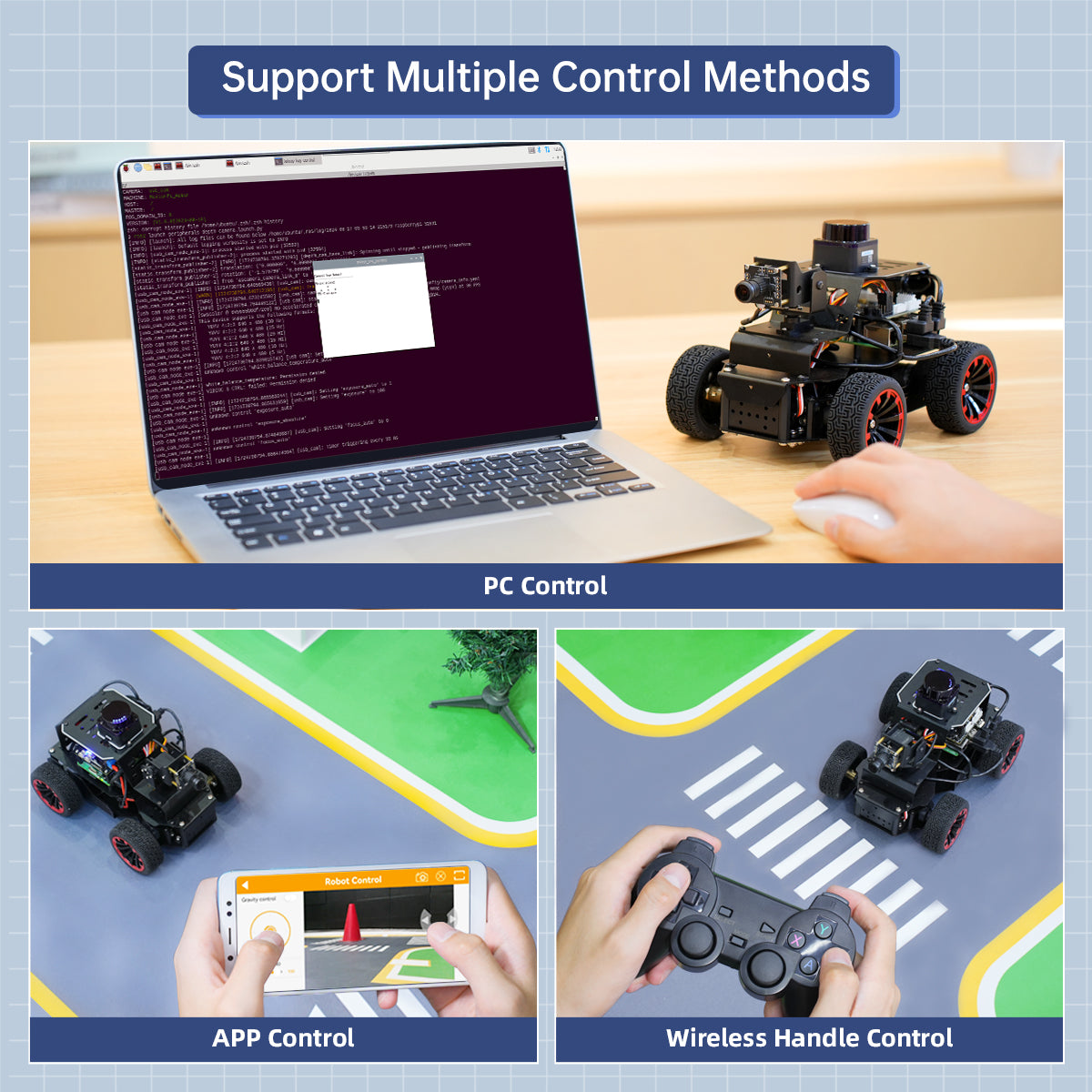

Wireless Handle Control
MentorPi supports wireless handle control and can connect to the robot via Bluetooth to control the robot in real time.
APP Control
WonderPi APP supports Android and iOS. Switch game modes easily and quickly to experience various AI games.
ROS Robot Operating System
Global Popular Robotic Communication Framework
ROS is an open-source meta operating system for robots. It provides some basic services, such as hardware abstraction, low-level device control, implementation of commonly used functionality, message-passing between processes, and package management. And it also offers the tools and library functions needed to obtain, compile, write, and run code across computers. It aims at providing code reuse support for robotics research and development.
| Monocular Camera Parameters | |
| Resolution | 30W(640*480) |
| Light-sensitive chip | GC0308(gcoreinc) |
| Camera type | HS-256-650(HS) |
| Aperture | 2.0 |
| Focus | 1.7mm |
| Focal field of view angle | 170° |
| Distortion | -83% |
| Camera interface | USB |
| Size | 30*27*25mm |
| LFD-01 Servo Parameters | |
| Rotation speed | ≤0.11sec/60° 6V |
| Anti-blocking protection | Power cut protection after 5 seconds of stall |
| Rotation range | 0-180 degrees |
| Communication method | PWM pulse-width control |
| Gear type | Plastic shaft |
| Working voltage | 4.8-6V |
| Maximum torque | ≥1.4kg.cm 6V |
| No-load speed | ≤0.11sec/ 60° 6.0V |
| Size | 22.3x12.0x23.2mm |
Wrapped Rear Tail Shell
It can effectively protect the PCB circuit and magnetic ring at the end of the motor from external influences, effectively improving the safety and service life of the motor.
Permanent Magnet Brushed Motor
The permanent magnet DC motor has fast starting response speed, large starting torque and smooth speed change.
High-precision Magnetic Encoder
The motor is equipped with a high-precision magnetic encoder, has strong horsepower, high precision, and strong anti-interference ability.
Durable Metal Gear
The motor incorporates a full metal gear and metal output shaft, reducing power consumption and extending the motor's service life.
Hall Encoder Geared Motor
The Hall speed measurement module uses magnetic encoder discs and Hall-effect sensors to generate AB-phase pulse signals, detecting both motor speed and rotation direction with high accuracy.
7.4V 2200mAh 10C LiPo Battery
This LiPo battery uses premium 18650 cells and includes built-in protection against overcharge, overcurrent, overdischarge, and short circuits. It delivers extended service life with 300+ recharge cycles.

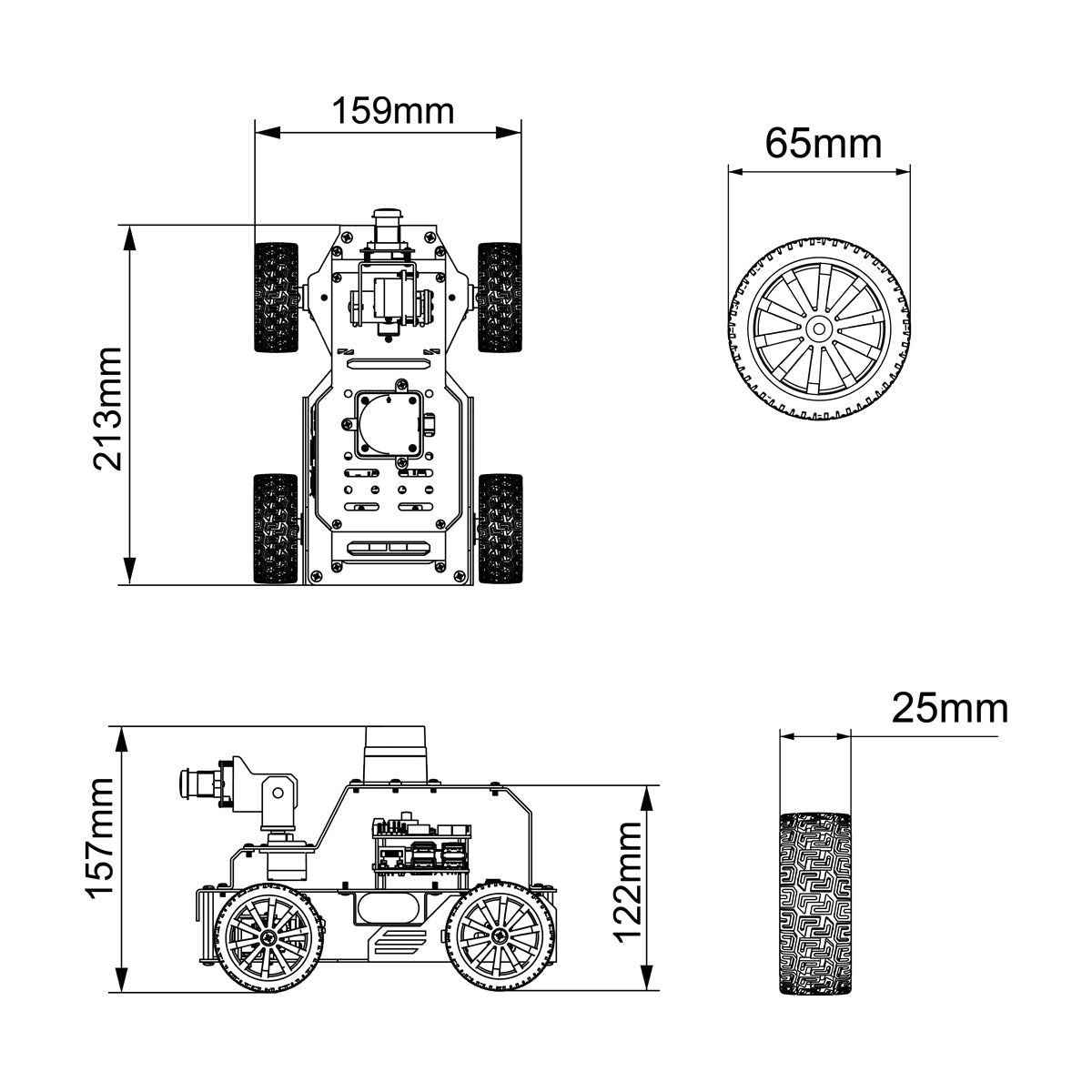

| Size | 212*171*147mm |
| Weight | 1.2kg |

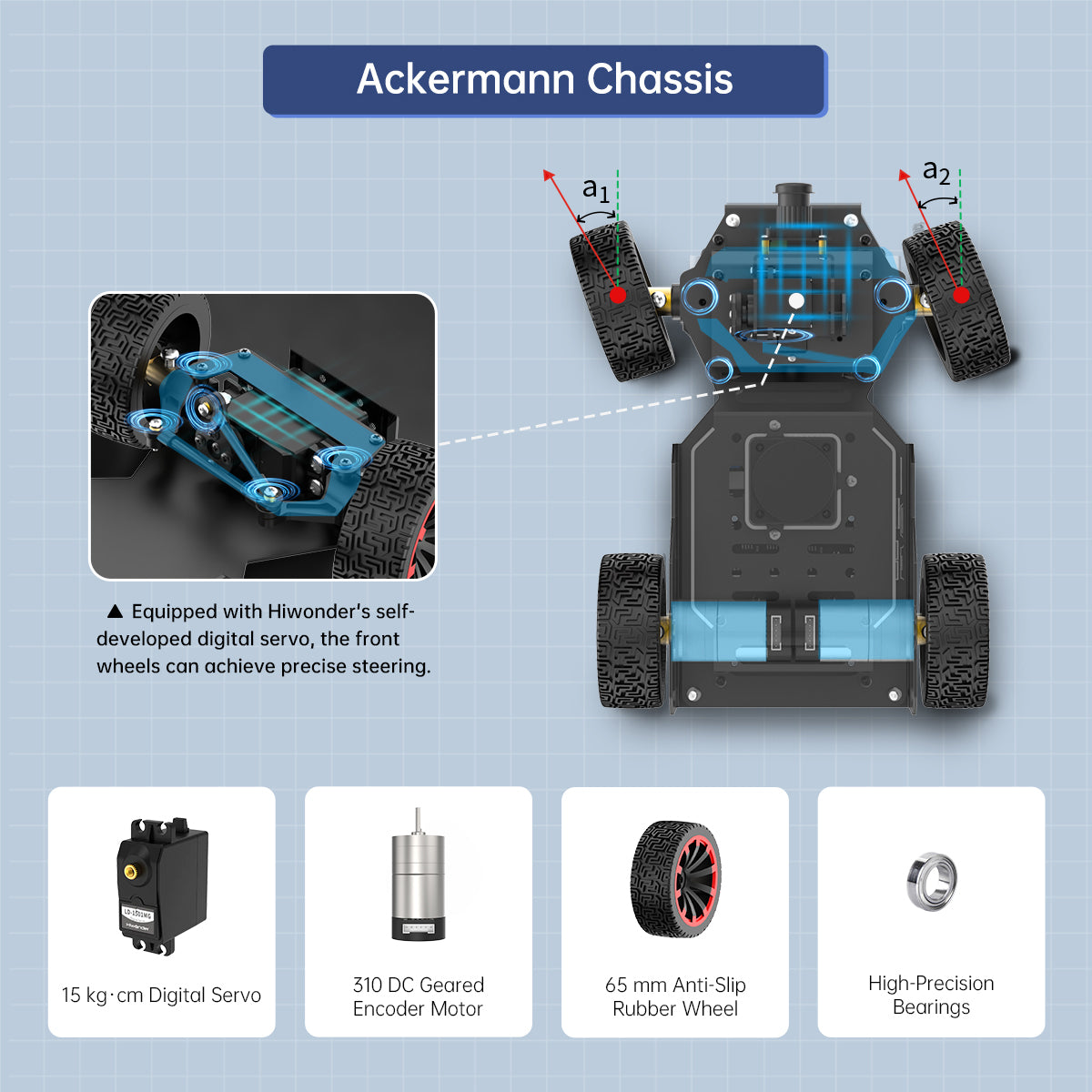

| Chassis type | Ackermann chassis |
| Motor | 310 metal gear geared motor |
| Encoder | AB-phase high-accuracy quadrature encoder |
| Material | Full metal aluminum alloy chassis, anodizing process |
| ROS controller | RRC Lite controller + Raspberry Pi 5 controller |
| Control method | App, wireless handle and PC control |
| Camera | 2DOF monocular camera |
| Lidar | COIN-D6 LiDAR |
| Battery | 7.4V 2200mAh 10C LiPo battery |
| OS | Raspberry Pi OS + Ubuntu 22.04 LTS + ROS2 Humble (Docker) |
| Software | iOS/ Android app |
| Communication method | WiFi/ Ethernet |

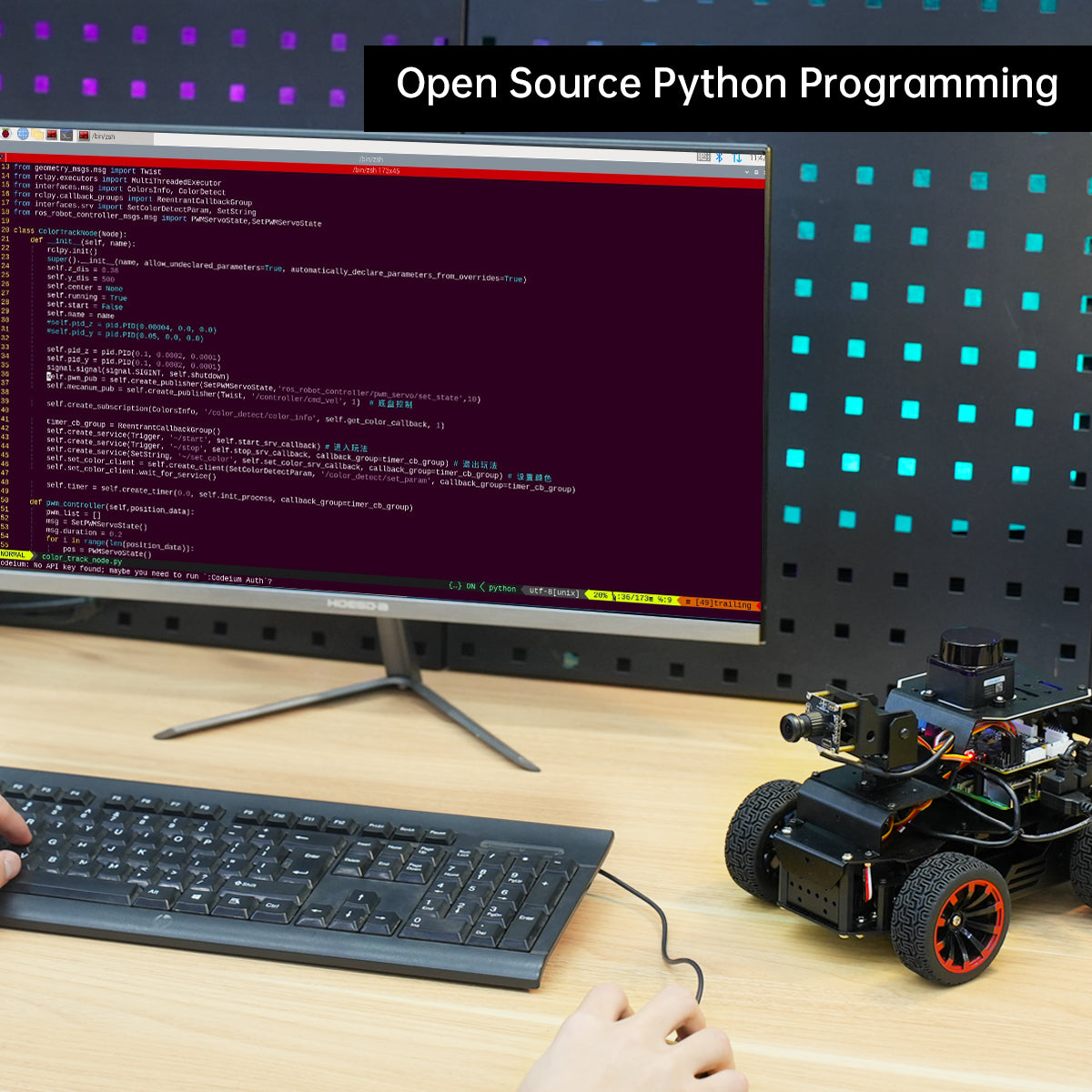

| Programming language | Python/ C/ C++/ JavaScript |
| Storage | 64GB TF card |
MentorPi A1 Packing List(Monocular Camera Version)
Videos
MentorPi Open Source Robot Car: ROS2 & Raspberry Pi 5 >>>
Speak with Your Hands, and Let the Robot Do the Rest! 🖐️🤖 >>>
Blog
《MentorPi Joins the ROS2 Series: An Ideal Entry-Level Robot Car》
《How Ackermann Steering Improves Vehicle Control and Handling》
| Item | Specification |
| Model | Ackermann chassis version |
| Weight | 1.2kg |
| Size | 212*171*147mm |
| Chassis type | Ackermann chassis |
| Motor | 310 metal gear geared motor |
| Encoder | AB-phase high-accuracy quadrature encoder |
| Material | Full metal aluminum alloy chassis, anodizing process |
| ROS controller | RRC Lite controller + Raspberry Pi 5 controller |
| Control method | App, wireless handle and PC control |
| Camera | 2DOF monocular camera |
| Lidar | COIN-D6 LiDAR |
| Battery | 7.4V 2200mAh 10C LiPo battery |
| OS | Raspberry Pi OS + Ubuntu 22.04 LTS + ROS2 Humble (Docker) |
| Software | iOS/ Android app |
| Communication method | WiFi/ Ethernet |
| Programming language | Python/ C/ C++/ JavaScript |
| Storage | 64GB TF card |
| Package size | 41*22*18cm |
| Package weight | About 2.1kg |
