Raspberry Pi 5 Active Heat Sink with PWM Variable Speed Fan Aluminium Alloy Base Pi5 Dedicated Heat Sink
Product SKU: 19010108
- Superior Cooling Performance Compared to the Official Version
- High-Efficiency PWM Variable Speed Fan
- Integrated Aluminum Alloy Heat Sink Base
- High-Quality Silicone Thermal Pad
- Efficient Airflow Cooling
Available:
Only 990 items in stock
In stock
In stock
Out of stock
Back in stock
Price:
$19.99
Save
% $-19.99
- Description
- Specifications

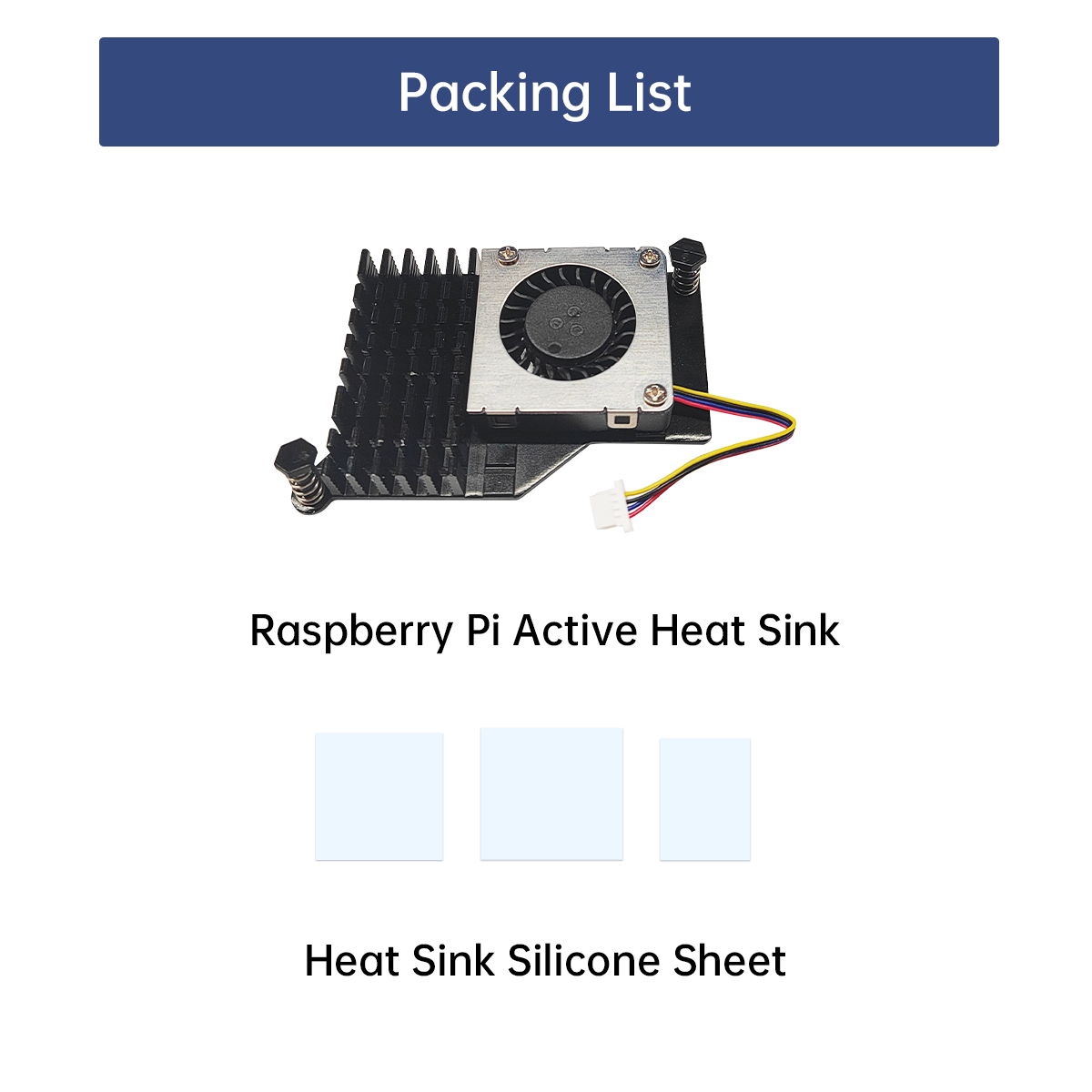

- Accessories
Superior Cooling Performance Compared to the Official Version
High-Efficiency PWM Variable Speed Fan
The PWM variable-speed fan enhances air circulation, maintaining specific air pressure to aid in hot air dissipation. Its speed can be adjusted based on temperature for quieter operation and targeted temperature reduction in specific areas.
Integrated Aluminum Alloy Heat Sink Base
Crafted from aluminum alloy with a low deformation coefficient, the integrated base is manufactured using aluminum extrusion technology to augment both heat dissipation area and thermal conductivity. Its surface undergoes anodic oxidation treatment to enhance hardness, wear resistance, corrosion resistance, and insulation properties.
High-Quality Silicone Thermal Pad
Crafted from high-quality thermal conductive silicone material, it boasts a higher heat transfer efficiency compared to standard thermal conductive silicone.
Efficient Airflow Cooling
Air enters from the top and exits from the side. Hot air efficiently flows from the aluminum alloy base to the heat sink, ensuring effective air circulation.

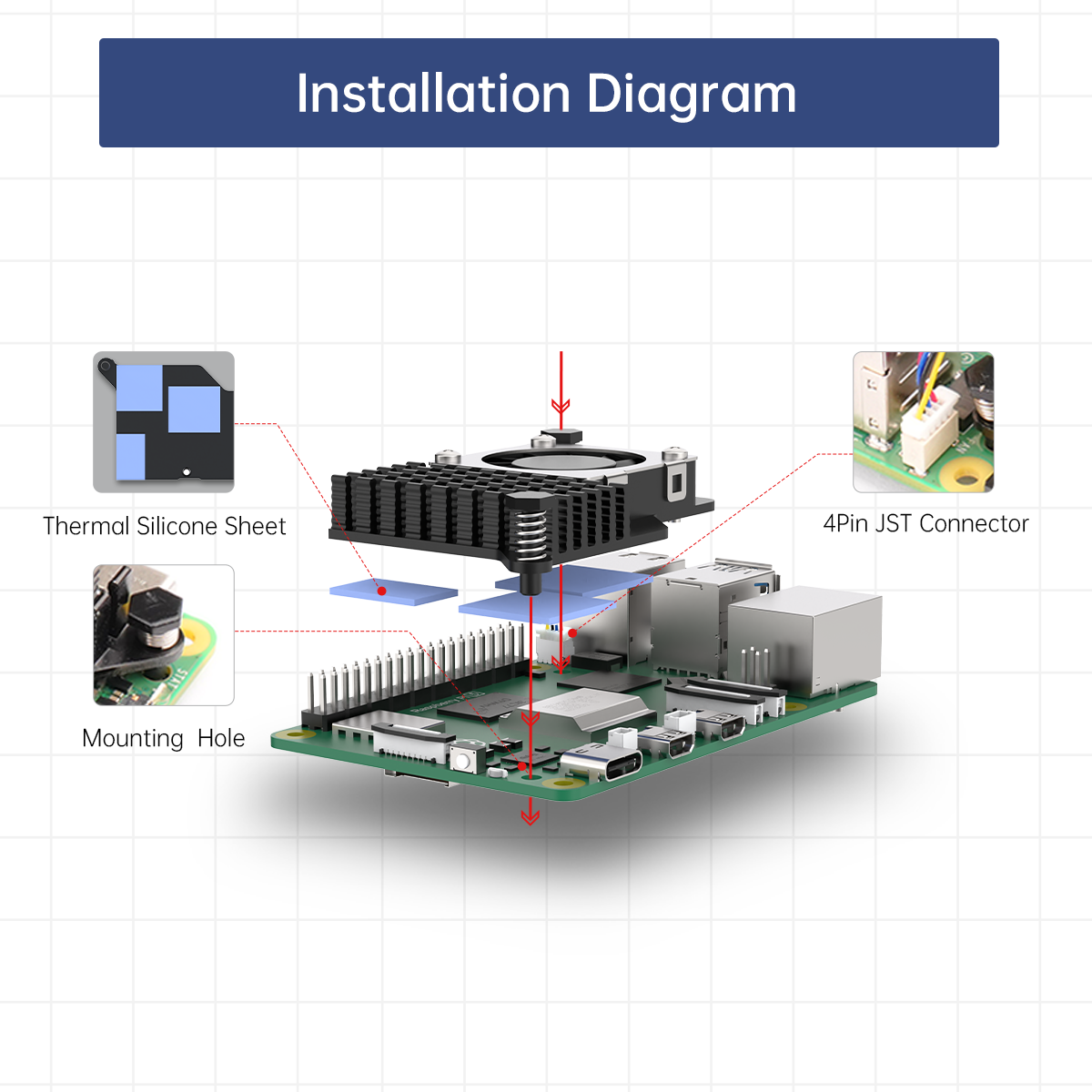

Installation Diagram
Linked to the Raspberry Pi 5 through two mounting holes, the PWM variable-speed fan connects to the four-pin JST connector.
Use Notice
- 1.This product is exclusively compatible with Raspberry Pi 5.
- 2.Ensure usage in a well-ventilated environment. If using a case, ensure it does not obstruct airflow.
- 3.Prevent electrical contact and short circuits by ensuring this product does not touch any sub-components or accessories on the Raspberry Pi 5.
- 4.Before usage, verify the presence and integrity of the silicone thermal pad. Replace lost or damaged thermal pads before using this product.
- 5.Exercise caution during usage as the metal components of the product may become hot during operation.
Raspberry Pi 5 Active Heat Sink Parameter | |||
Aluminium alloy material | 6063-T5 | Surface treatment | Anodic oxidation |
Fan size | 30*31mm | Fan cable length | 7800 RPM +/- 15% |
Connector type | SH1.0-4P | Control method | PWM |
Rated voltage | DC-5V | Rated current | 0.24A |

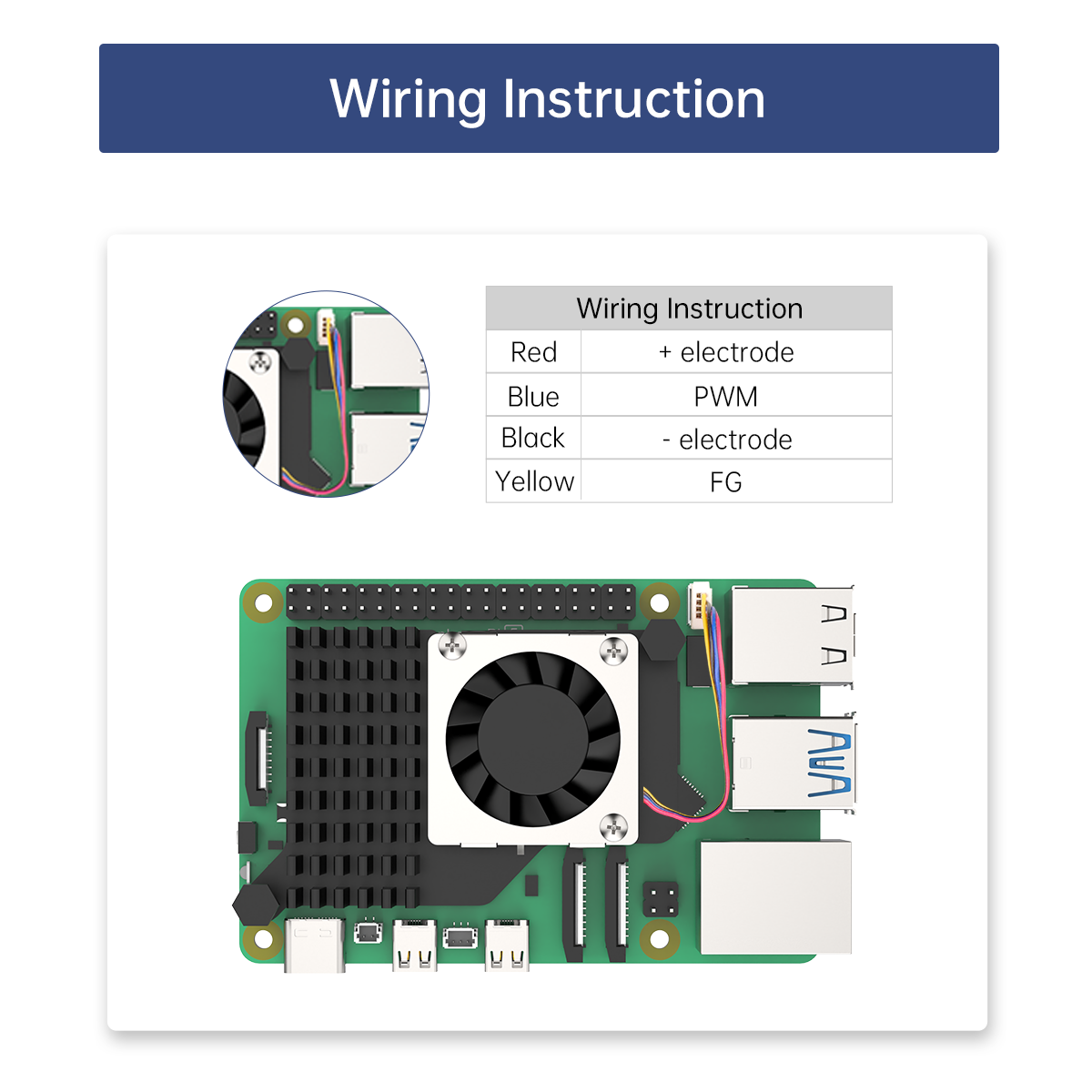

Fan speed | 5000±10%rpm | Wiring instruction | Red+, blue: PWM; black: -; yellow: FG |
Air volume | 8.82CFM | Wind pressure | 4.56mmH2O |
Noise | 38.62dB | Operating temperature | -10℃~+80℃ |

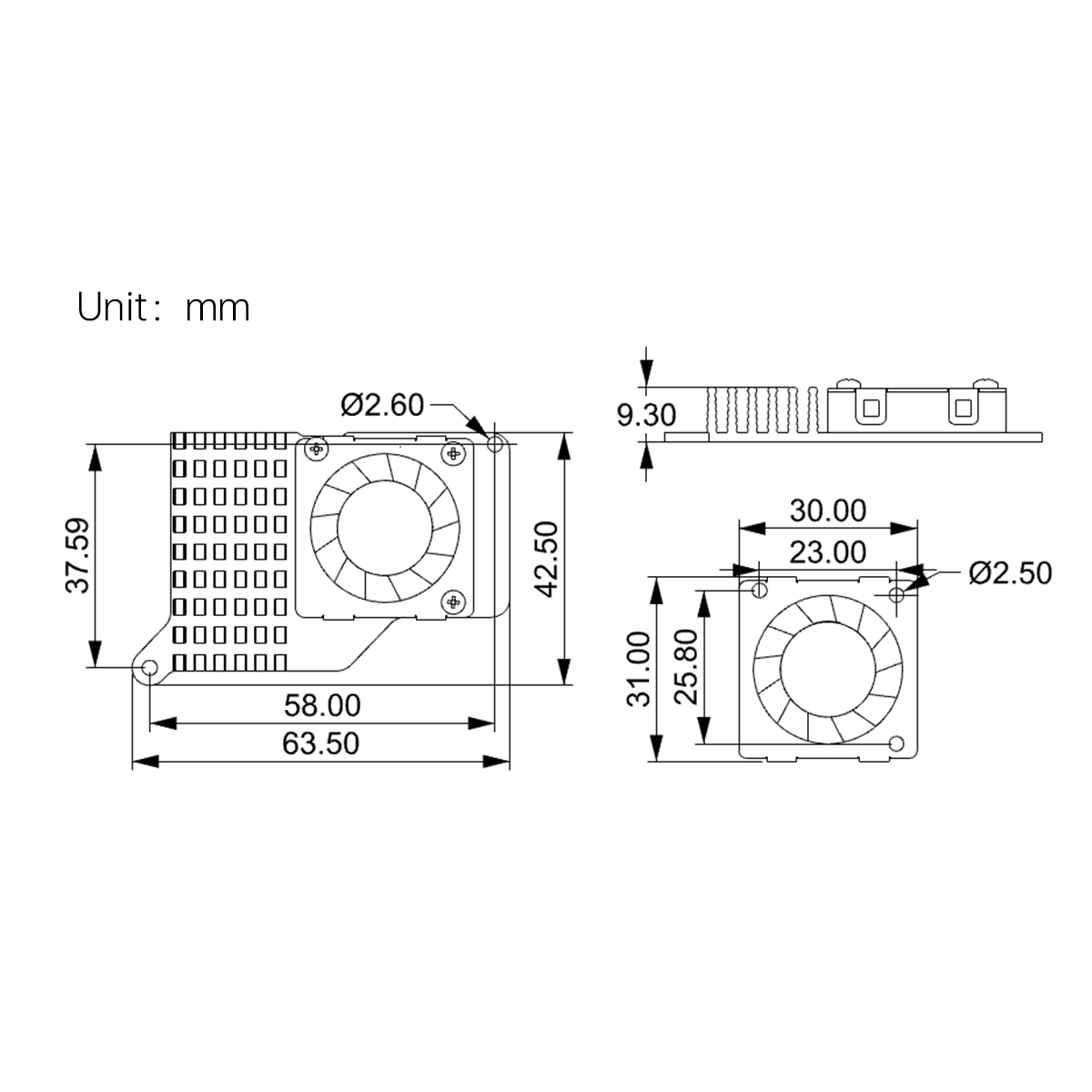

Size | 63.5x42.5x9.3mm | Weight | 23.8g |
Aluminium alloy material | 6063-T5 |
Surface treatment | Anodic oxidation |
Fan size | 30*31mm |
Fan cable length | 7800 RPM +/- 15% |
Connector type | SH1.0-4P |
Control method | PWM |
Rated voltage | DC-5V |
Rated current | 0.24A |
Fan speed | 5000±10%rpm |
Wiring instruction | Red+, blue: PWM; black: -; yellow: FG |
Air volume | 8.82CFM |
Wind pressure | 4.56mmH2O |
Noise | 38.62dB |
Operating temperature | -10℃~+80℃ |
Size | 63.5x42.5x9.3mm |
Weight | 23.8g |
Application Scenario
Item | Specification |
Aluminium alloy material | 6063-T5 |
Surface treatment | Anodic oxidation |
Fan size | 30*31mm |
Fan cable length | 7800 RPM +/- 15% |
Connector type | SH1.0-4P |
Control method | PWM |
Rated voltage | DC-5V |
Rated current | 0.24A |
Fan speed | 5000±10%rpm |
Wiring instruction | Red+, blue: PWM; black: -; yellow: FG |
Air volume | 8.82CFM |
Wind pressure | 4.56mmH2O |
Noise | 38.62dB |
Operating temperature | -10℃~+80℃ |
Size | 63.5x42.5x9.3mm |
Weight | 23.8g |
