Light Sensor: Hiwonder Robot Sensor Compatible with Arduino/ Raspberry Pi/ Jetson Nano/ micro:bit
Product SKU: 21090019
- Voltage: DC 5V
- Current: 5mA
- Size: 50mm × 20mm
- 4 Pin wire port. Connecting wire is provided. Easy to connect
- The holes are compatible with LEGO bricks
Available:
Only 976 items in stock
In stock
In stock
Out of stock
Back in stock
$3.99
Save
% $-3.99
Description
Hiwonder light sensor can be applied to the detection of ambient light intensity and can output brightness value. It mainly includes QT523C photodiode and LM358 chip voltage comparator. It works by converting light signal into electrical signal, then the electrical signal is transformed into a voltage of 0-5 V which can be received by date collector through A/D converter.
For more information, refer to https://www.hiwonder.com.cn/store/learn/63.html.

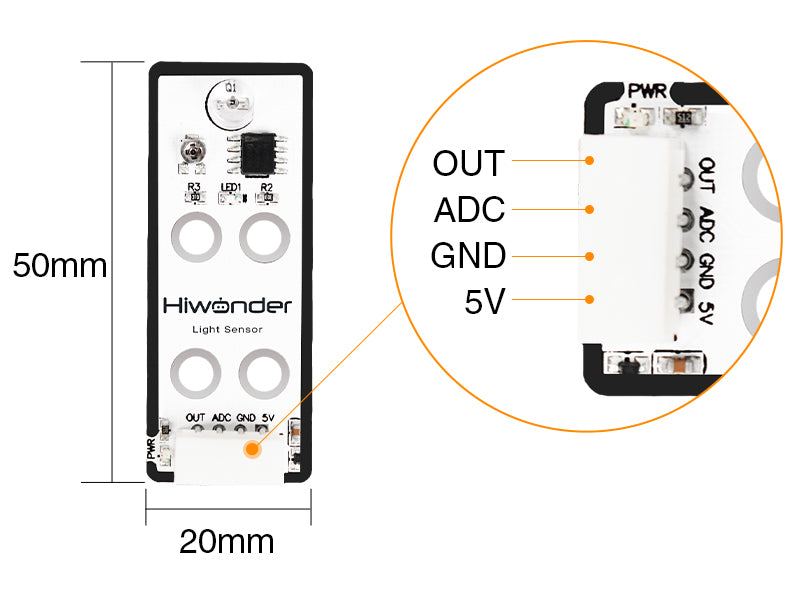

Dimensional Diagram
| Voltage | DC 5V |
| Current | 5mA |
| Port type | 5264-4AW |
| Size | 50mm×20mm |
| PWR instruction | Lighting up after powering |
| LED1 instruction | The LED1 will light up when the ambient light intensity exceeds the set threshold |
Product Parameters
Support Multiple Controller/Expansion Boards

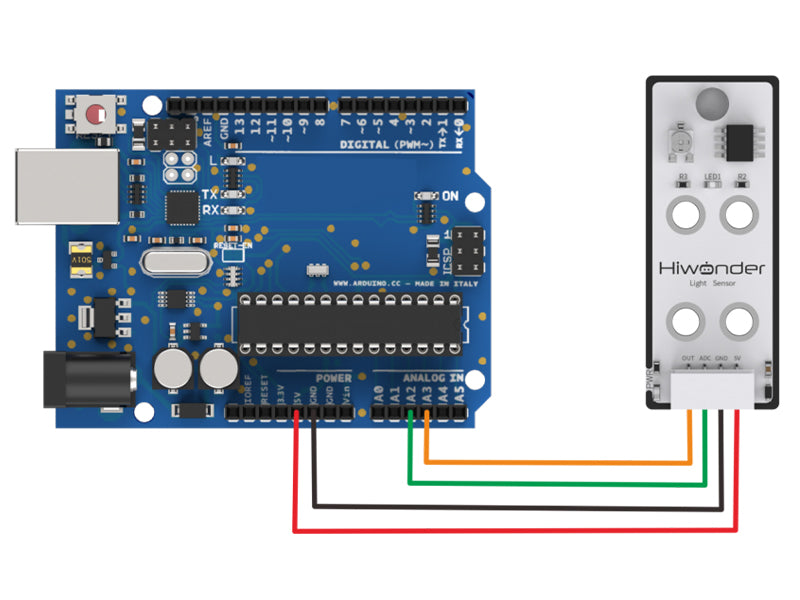

Light Sensor Connection Arduino
Light Sensor Connection Raspberry Pi
Scenario Application
| Item | Specification |
| Voltage | DC 5V |
| Current | DC 5V |
| Port type | 5264-4AW |
| Size | 50mm×20mm |
| PWR instruction | Lighting up after powering |
| LED1 instruction | The LED1 will light up when the ambient light intensity exceeds the set threshold |
