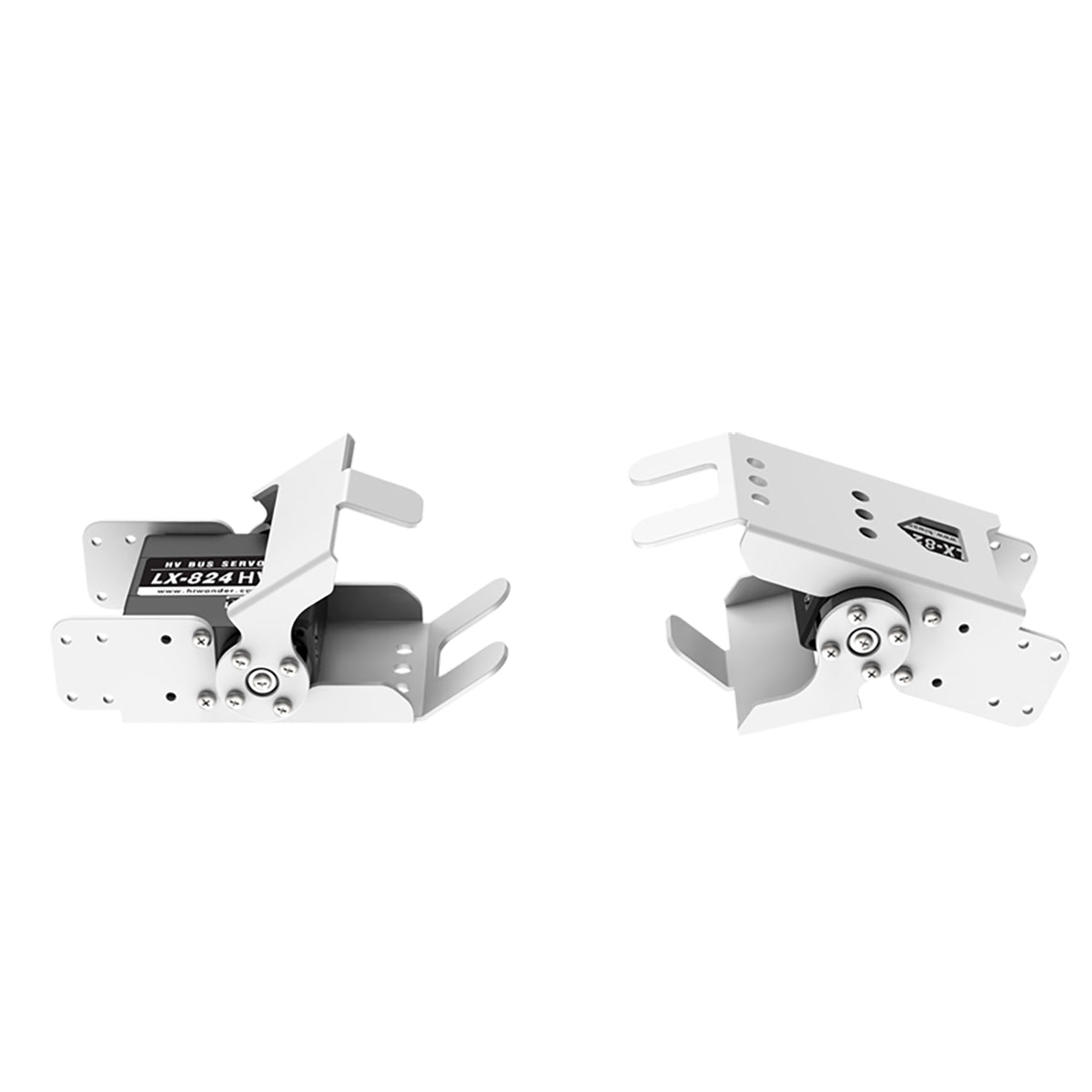

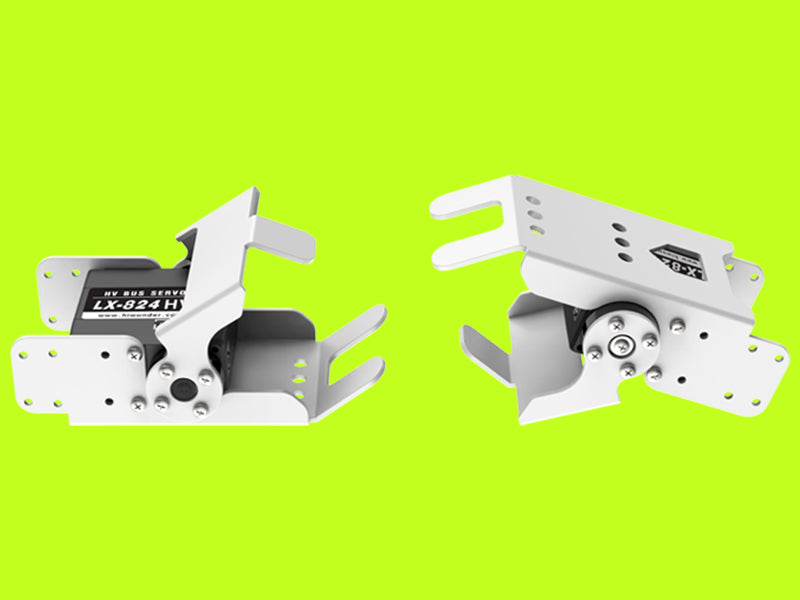

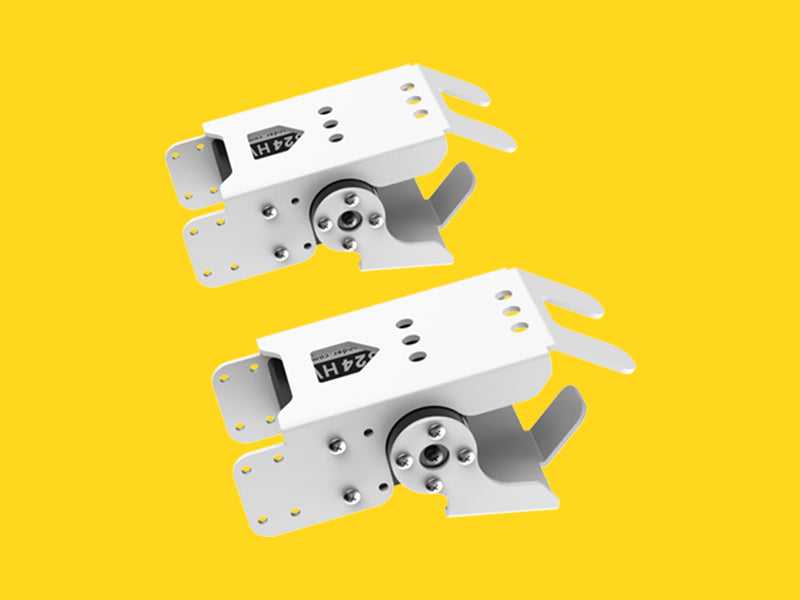

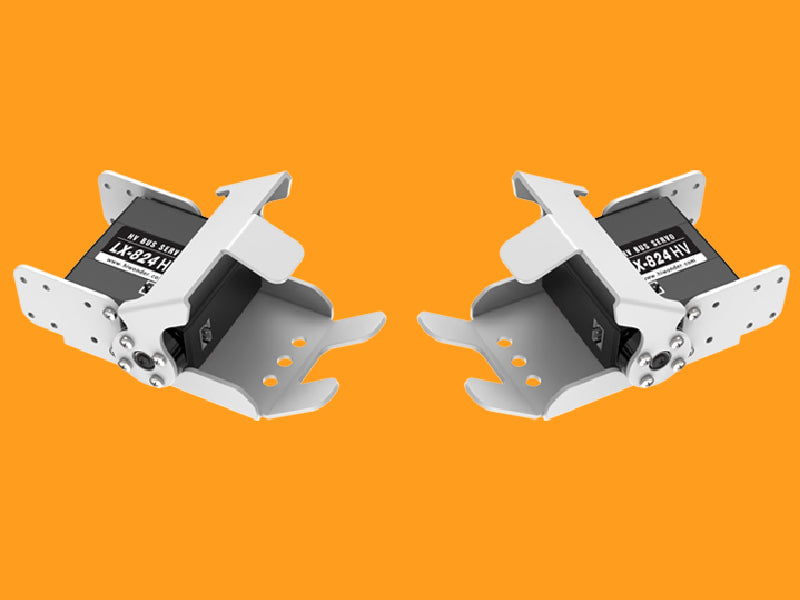

Robotic Hands: Hiwonder Humanoid Robot Hands with LX-824HV Serial Bus Servo Flexible Opening for DIY
Product SKU: 21100228
- Applicable to bionic robots
- Loaded with high voltage serial bus servos
- 66mm maximum opening making it easy to pick object of various shape
Available:
Only 978 items in stock
In stock
In stock
Out of stock
Back in stock
$39.99
Save
% $-39.99
Robotic Hand Parameter
LX-824HV High Voltage Serial Bus Servo

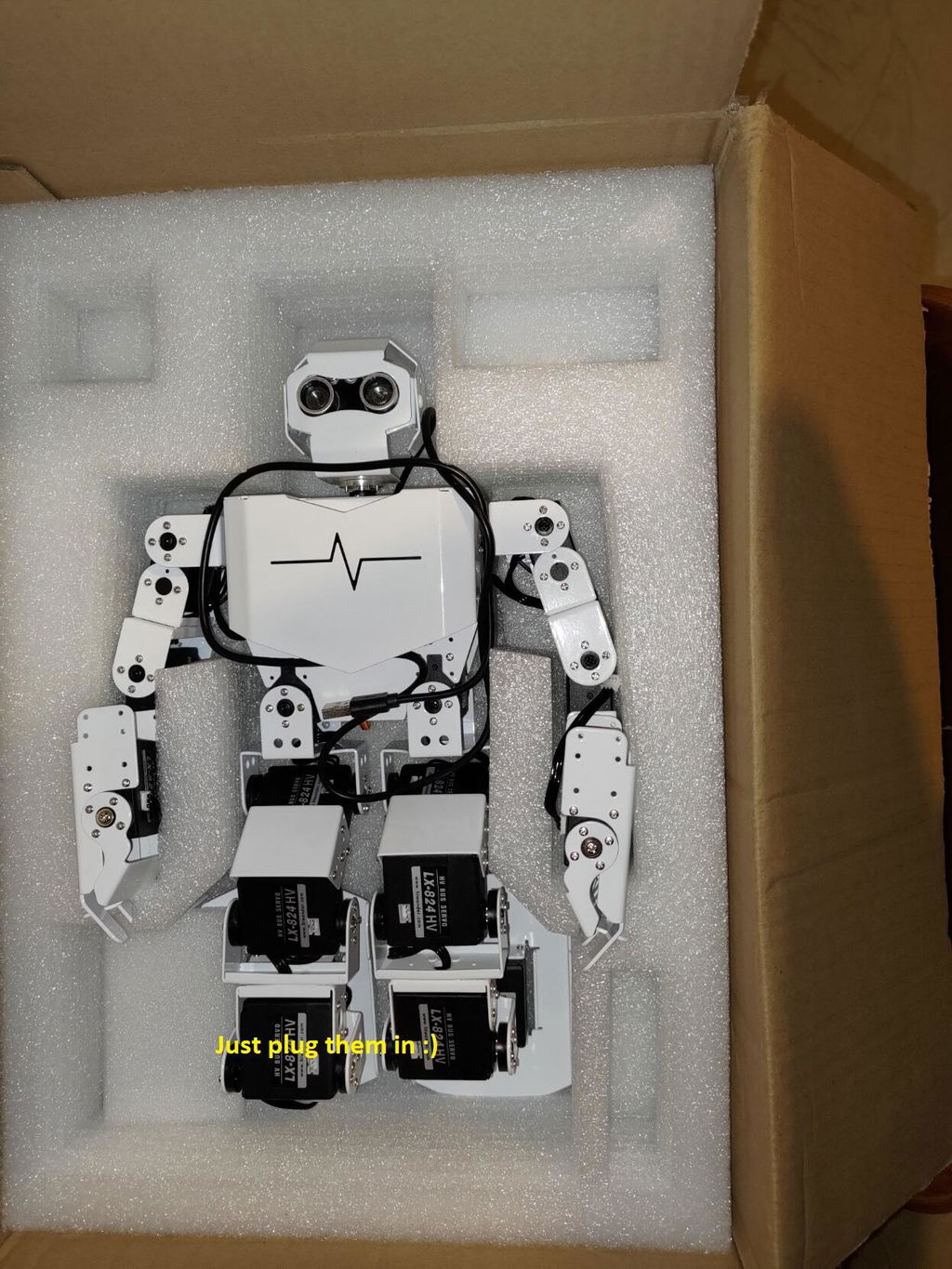

Application Scenario
Package List
| Robotic hands | 1 pair | Servo wire (7cm) | 2 pcs |
Package List
Robotic hands*1 pair
Servo wire (7cm)*2
Servo wire (7cm)*2
| Item | Specification |
| Robotic hand parameter | Material: hard aluminum alloy bracket Servo: LX-824HV high voltage serial servo Dimension: 95 x 54 x 56mm Weight: 91g (one) |
| Servo parameter | Name: LX-824HV high voltage serial bus servo Control method: UART serial command Brand: Hiwonder Weight: 57g Dimension: 40 x 20.14 x 51.1mm Working voltage: 9-12.6V Rotation speed: 0.20sec/ 60°11.1V Stall torque: 17kg.cm 11.1V Rotation range: 0-240° No-load current: 100mA Communication baud rate: 115200 Storage: save data during power failure Servo ID: can be set to 0~253. 1 by default Read function: read angle Protection: stall prevention/ over-temperature Data feedback: temperature, voltage, position Working mode: servo mode and geared |
| Package list | Robotic hands*1 pair Servo wire(7cm)*2 |
