Hiwonder
Raspberry Pi 4B 4G Board For Python Programming AI Vision Deep Learning Linux Development Board
Product SKU: HW2019279
- 1.5GHz 64-bit quad-core CPU
- Support AI vision Development and AI Deep Learning
- Powerful Raspberry Pi expansion board for secondary development
- Several kits for your different development requirements
Available:
Only 999 items in stock
In stock
In stock
Out of stock
Back in stock
$249.99
Product Description
The Raspberry Pi 4B is the latest product in the Raspberry Pi range, boasting an updated 64-bit quad-core processor running at 1.5GHz with built-in metal heatsink, USB 3 ports, dual-band 2.4GHz, and 5GHz wireless LAN, faster Gigabit Ethernet, and PoE capability via a separate PoE HAT.
NOTE: This version comes with 4GB of RAM
You can still use all your favorite Raspbian or PIXEL software with this update. You MUST make sure to upgrade your Raspbian operating system install to the latest version so that the firmware can support the new chips! Old SD cards from previous releases will not work without an upgrade!
The dual-band wireless LAN comes with modular compliance certification, that's the metal tin in the corner of the Pi, with the logo stamped on it. This allows the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
Please note, the Pi 4 is a significant redesign and Raspberry Pi 1/2/3 cases and power supplies will not fit unless you have an adapter.
NOTE: This version comes with 4GB of RAM
You can still use all your favorite Raspbian or PIXEL software with this update. You MUST make sure to upgrade your Raspbian operating system install to the latest version so that the firmware can support the new chips! Old SD cards from previous releases will not work without an upgrade!
The dual-band wireless LAN comes with modular compliance certification, that's the metal tin in the corner of the Pi, with the logo stamped on it. This allows the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
Please note, the Pi 4 is a significant redesign and Raspberry Pi 1/2/3 cases and power supplies will not fit unless you have an adapter.
The Raspberry Pi 4 is the latest product in the Raspberry Pi range, boasting an updated 64-bit quad-core processor running at 1.5GHz with built-in metal heatsink, USB 3 ports, dual-band 2.4GHz, and 5GHz wireless LAN, faster Gigabit Ethernet, and PoE capability via a separate PoE HAT.
NOTE: This version comes with 4GB of RAM
You can still use all your favorite Raspbian or PIXEL software with this update. You MUST make sure to upgrade your Raspbian operating system install to the latest version so that the firmware can support the new chips! Old SD cards from previous releases will not work without an upgrade!
The dual-band wireless LAN comes with modular compliance certification, that's the metal tin in the corner of the Pi, with the logo stamped on it. This allows the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
Please note, the Pi 4 is a significant redesign and Raspberry Pi 1/2/3 cases and power supplies will not fit unless you have an adapter.
NOTE: This version comes with 4GB of RAM
You can still use all your favorite Raspbian or PIXEL software with this update. You MUST make sure to upgrade your Raspbian operating system install to the latest version so that the firmware can support the new chips! Old SD cards from previous releases will not work without an upgrade!
The dual-band wireless LAN comes with modular compliance certification, that's the metal tin in the corner of the Pi, with the logo stamped on it. This allows the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.
Please note, the Pi 4 is a significant redesign and Raspberry Pi 1/2/3 cases and power supplies will not fit unless you have an adapter.
Feature
-
1.5GHz 64-bit quad-core CPU
-
2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
-
2x USB 3.0 ports; 2x USB 2.0 ports.
-
Raspberry Pi standard 40 pin GPIO header
-
2 × micro-HDMI ports (up to 4kp60 supported)
-
2-lane MIPI DSI display port
-
2-lane MIPI CSI camera port
-
4-pole stereo audio and composite video port
-
265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
-
OpenGL ES 3.0 graphics
-
Micro-SD card slot for loading operating system and data storage
-
5V DC via USB-C connector (minimum 3A*)
-
5V DC via GPIO header (minimum 3A*)

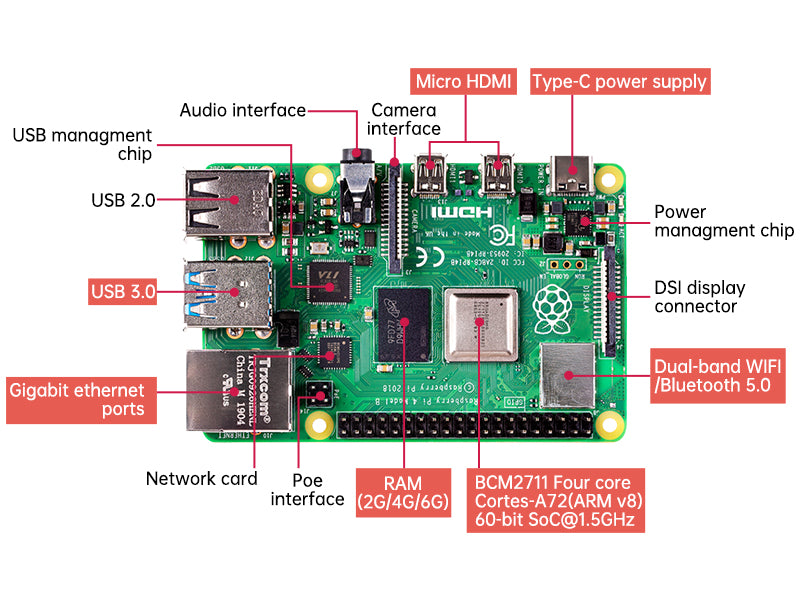

Raspberry Pi Function Introduction
Raspberry Pi Function Introduction
Heat Sink Usage
Heat Sink Usage

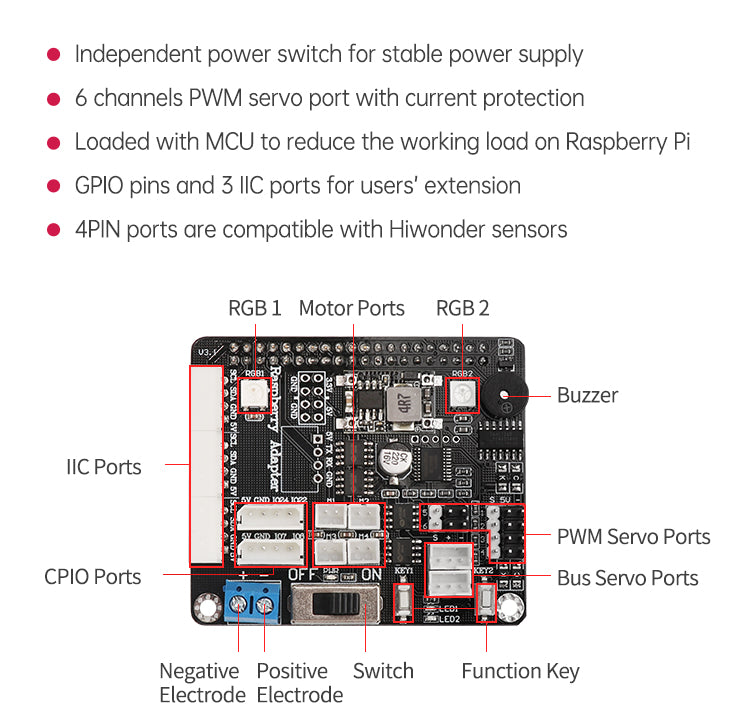

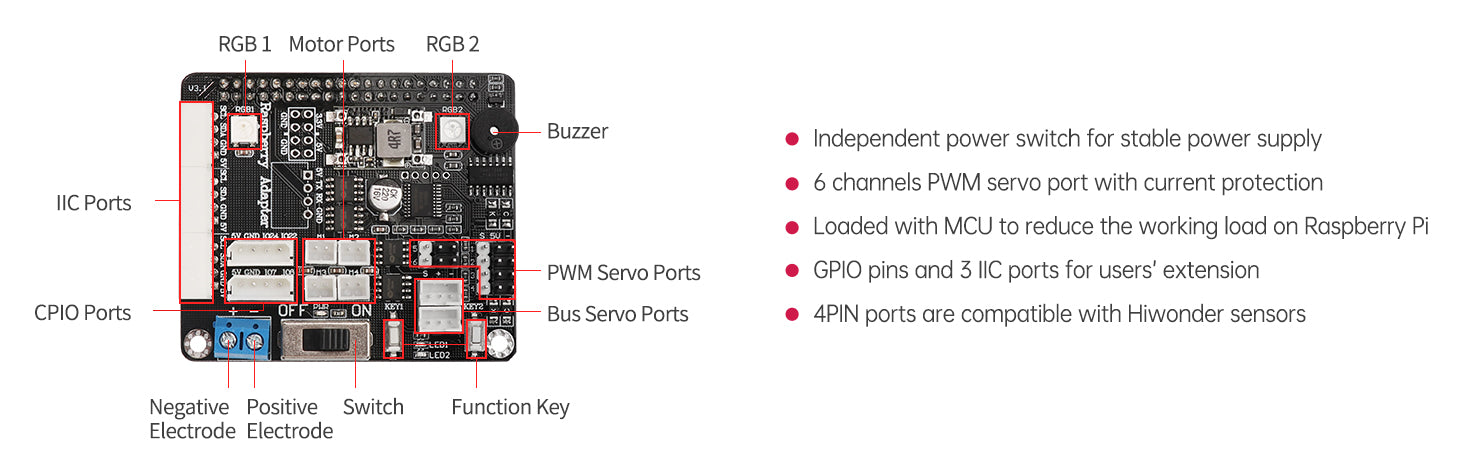

Raspberry Pi Extension Board
Raspberry Pi Extension Board

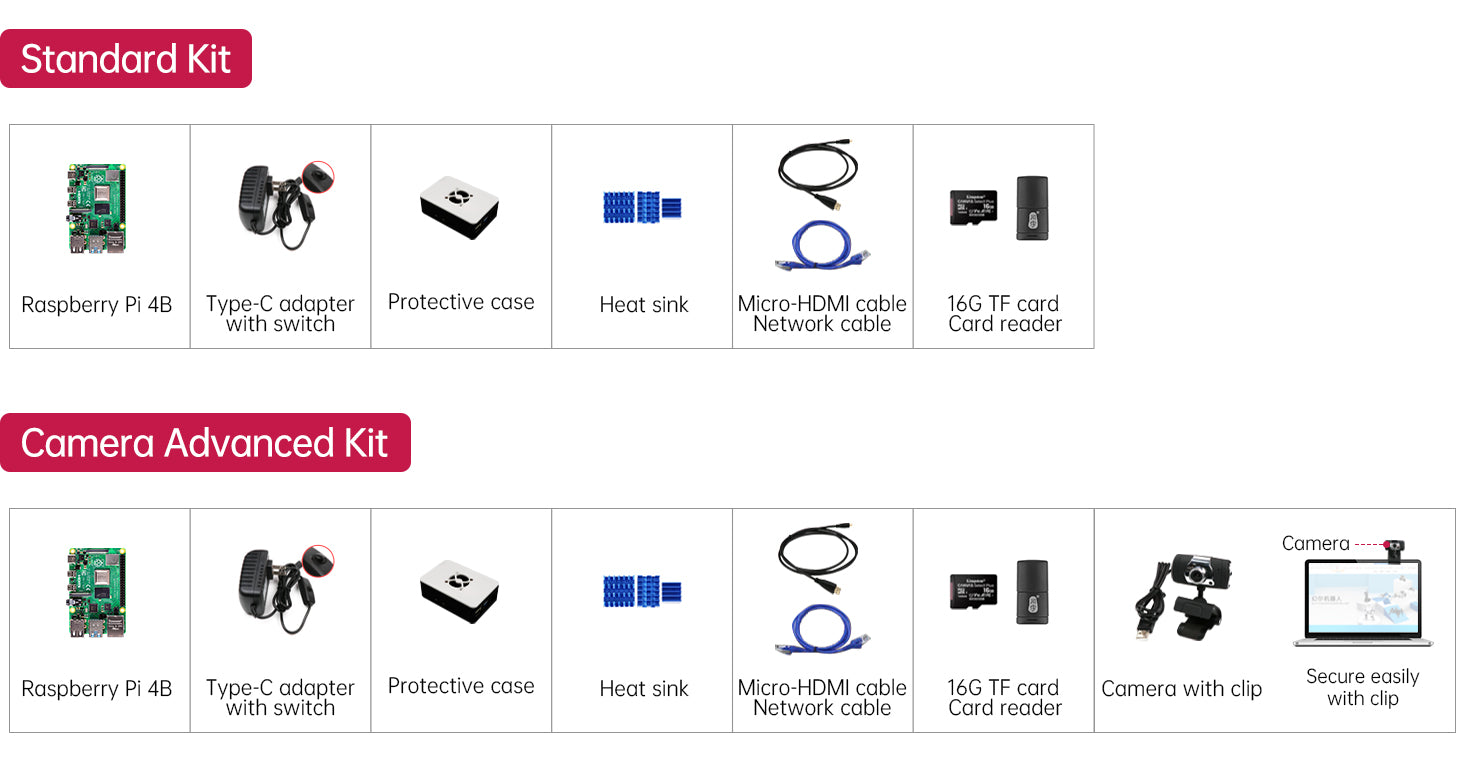

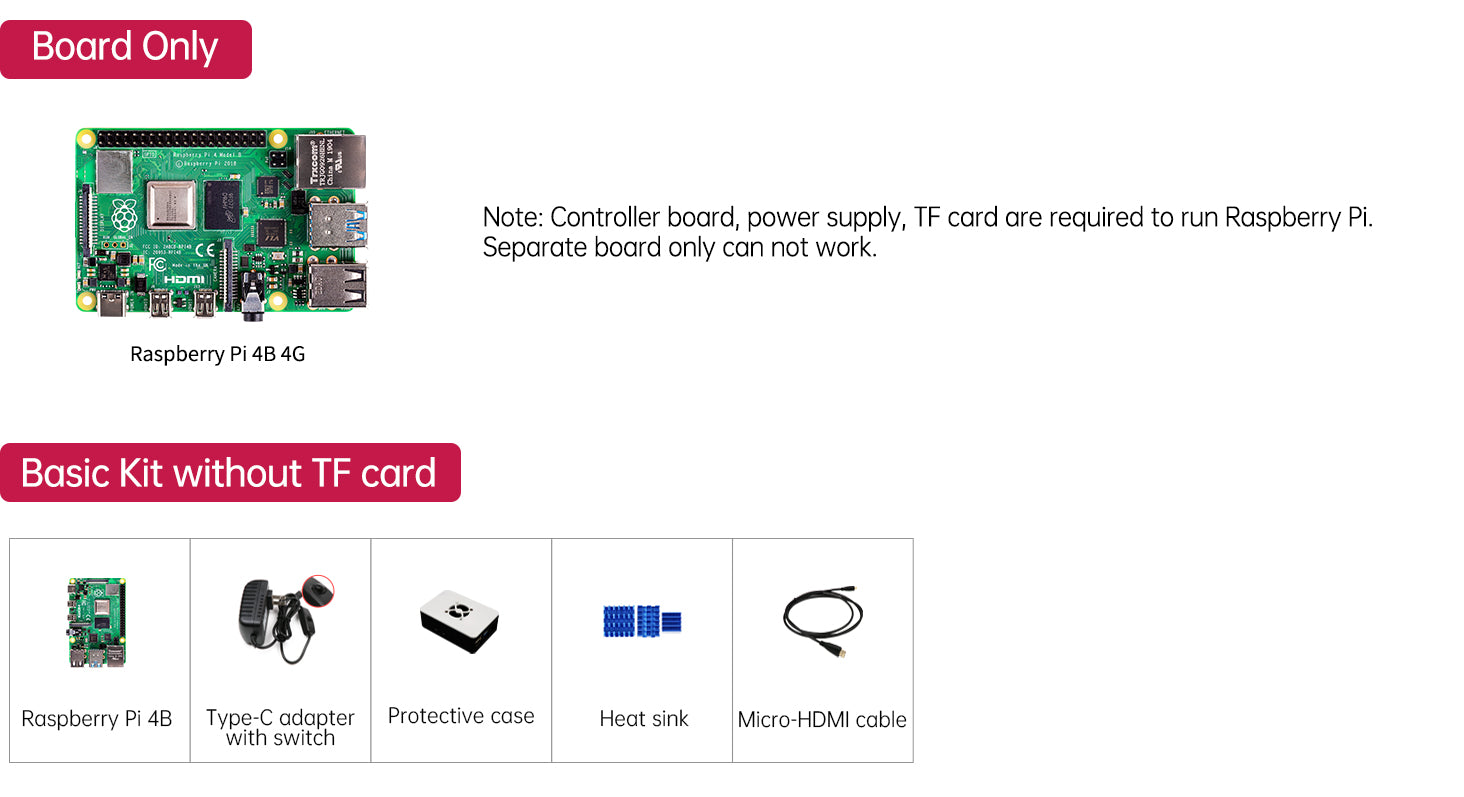

Raspberry Pi Kit Options
Raspberry Pi Kit Options
| Item | Specification |
| Raspberry Pi 4B | Processor: Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz Memory: 1GB, 2GB or 4GB LPDDR4(depending on model) Connectivity: 2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless LAN, Bluetooth 5.0, BLE Gigabit Ethernet 2 × USB 3.0 ports 2 × USB 2.0 ports GPIO: Standard 40-pin GPIO header(fully backwards-compatible with previous boards) Video & Sound: 2 × micro HDMI ports (up to 4Kp60 supported) 2-lane MIPI DSI display port 2-lane MIPI CSI camera port 4-pole stereo audio and composite video port Multimedia: H.265 (4Kp60 decode) H.264 (1080p60 decode, 1080p30 encode) OpenGL ES, 3.0 graphics SD card support: Micro SD card slot for loading operating system and data storage Input power: 5V DC via USB-C connector (minimum 3A) 5V DC via GPIO header (minimum 3A) Power over Ethernet (PoE)–enabled(requires separate PoE HAT) Environment: Operating temperature 0–50ºC |
| Raspberry Pi Extension Board | The built-in over-current protection of 8 channel PWM port prevents the servo from damage. Built-in single bus serial electric circuit can directly control the serial servo Two-channel programmable LED lights, clearly show the working status of the system Two-channel programmable buttons for more conveniently setting the system Reserved IIC and UART ports, which can be compatible with various sensors |
