Hiwonder HPS-0618SG Micro High Speed Coreless Digital Servo Stainless Steel Gear for Quadruped Robot Dog
Product SKU: 21100017
- Stainless steel gear
- 180 degree rotation
- Built--in high speed coreless motor
- Quick response, high efficiency and long service life
Available:
Only 876 items in stock
In stock
In stock
Out of stock
Back in stock
$31.99
Save
% $-31.99

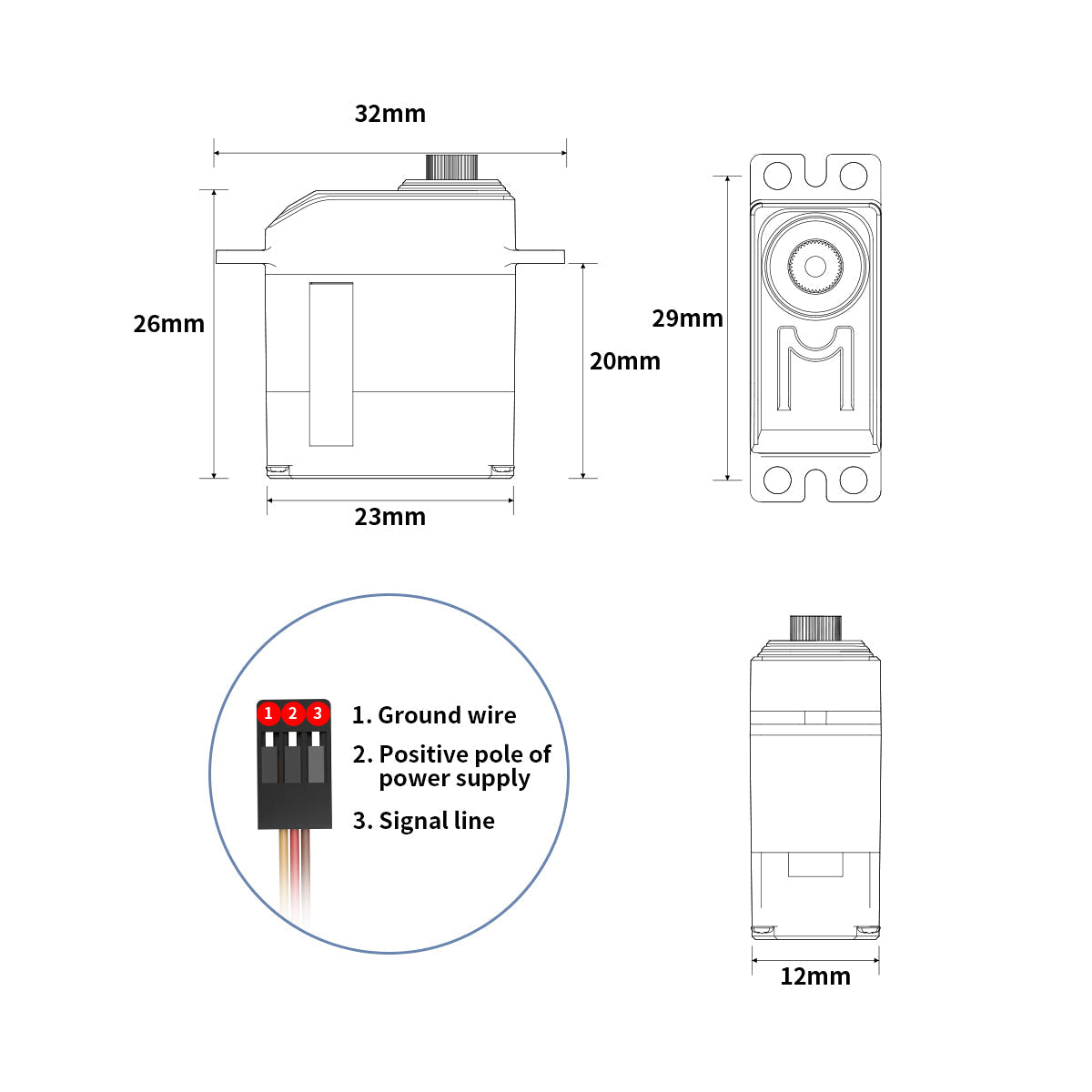

Dimensional Diagram
| Product weight | 14.5g |
| Product size | 32*12*26mm |
| Working voltage | 6-8.4V |
| Rotation speed | ≤0.06sec / 60° 8.4V |
| Stalled rotor torque | 6KG.cm 8.4V |
| Rotation range | 0~180° |
| Quiescent current | ≤25mA |
| Locked rotor current | ≤2.5A |
| Communication method | PWM pulse width control |
| PWM pulse width range | 500~2500us, corresponding to 0~180° |
| Line length | 180mm |
| Gear type | stainless steel gear |
Parameters

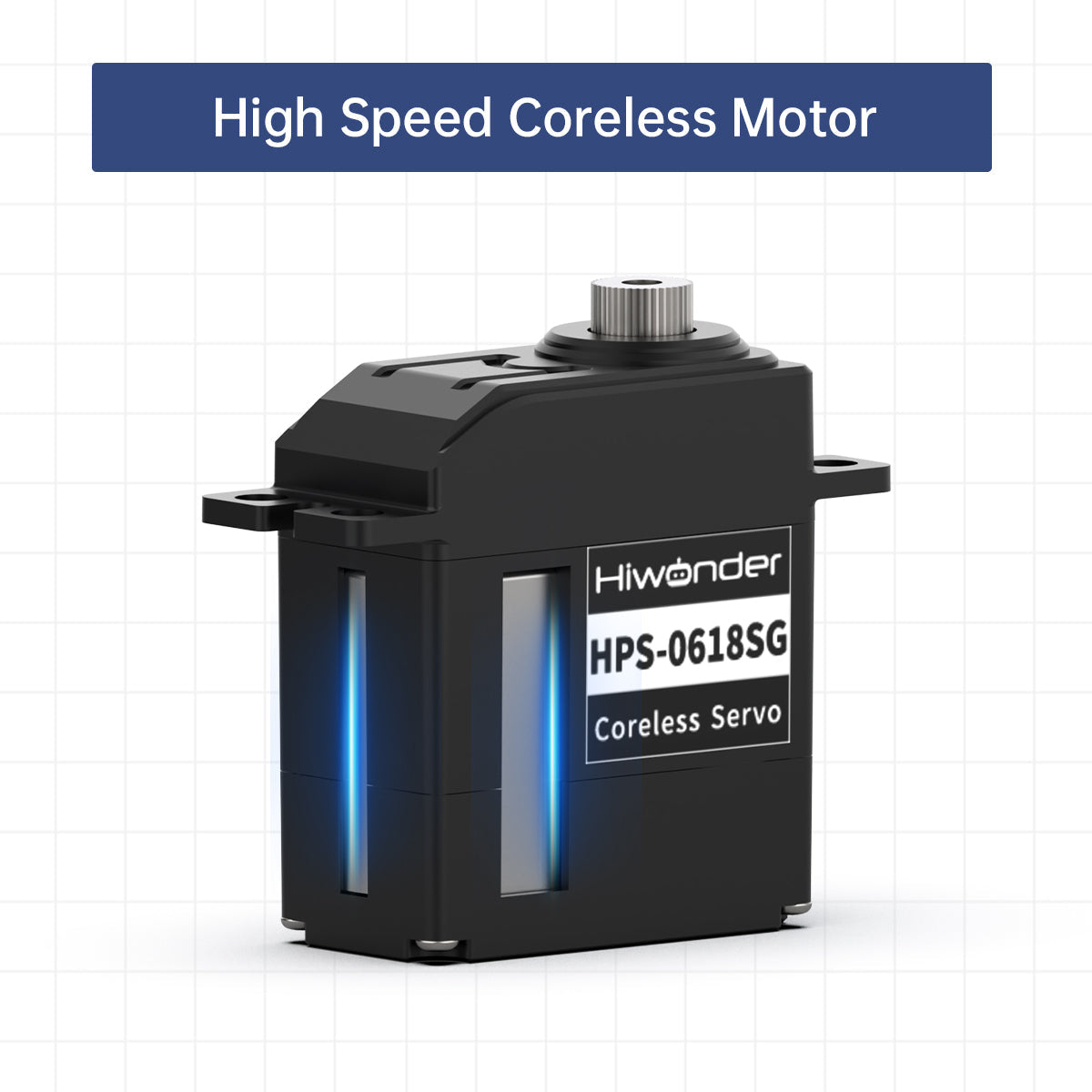

High Speed Coreless Motor
Leveraging coreless motor as the power source offers a range of advantages such as absence of iron core, low rotor inductance, excellent responsiveness, compact size, and easy acquisition of high torque.

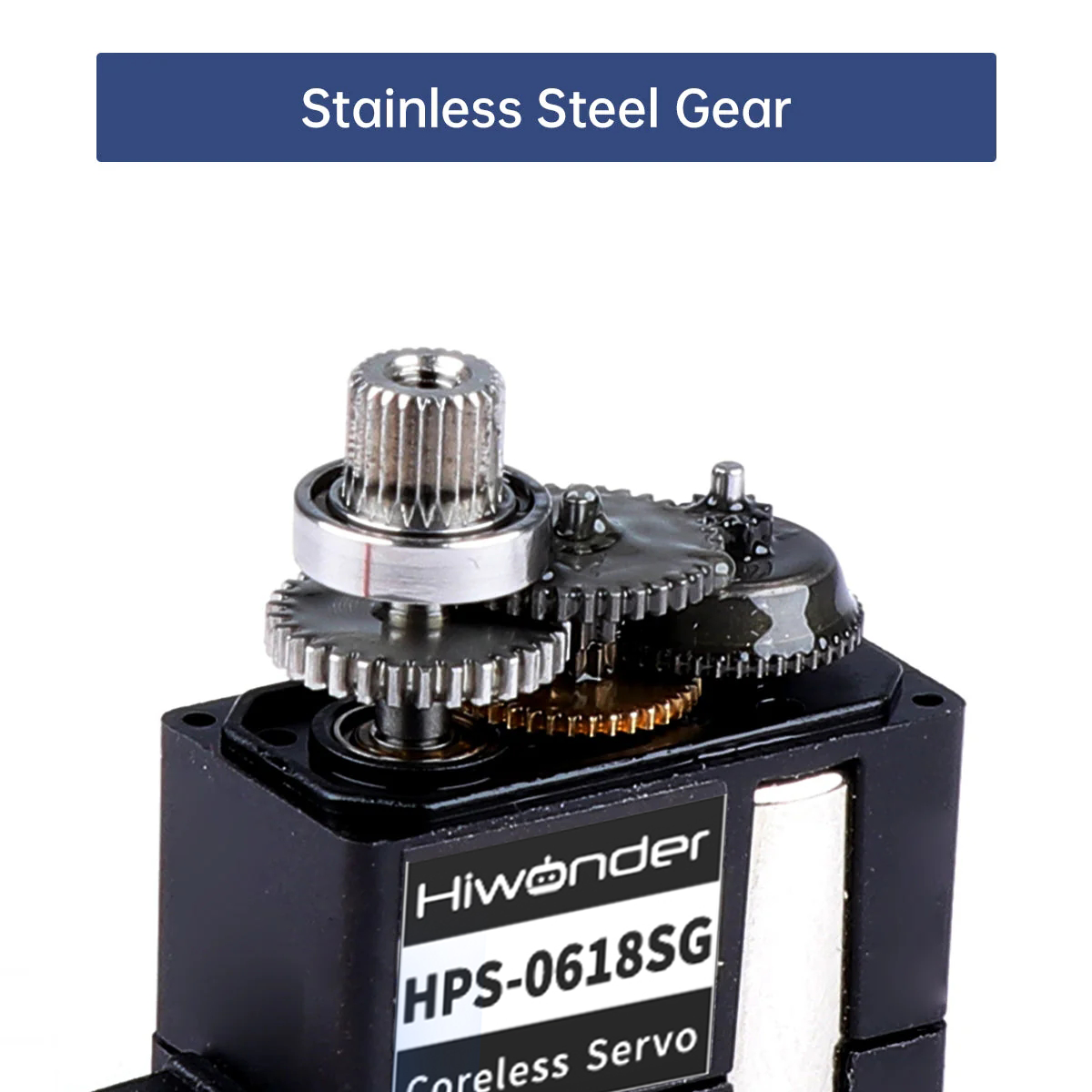

Stainless Steel Gear
At high speed, the copper teeth provides excellent wear resistance and self-lubrication.At low speed, the stainless steel teeth enhance the strength of the reduction gears, extending the lifespan of the servo.

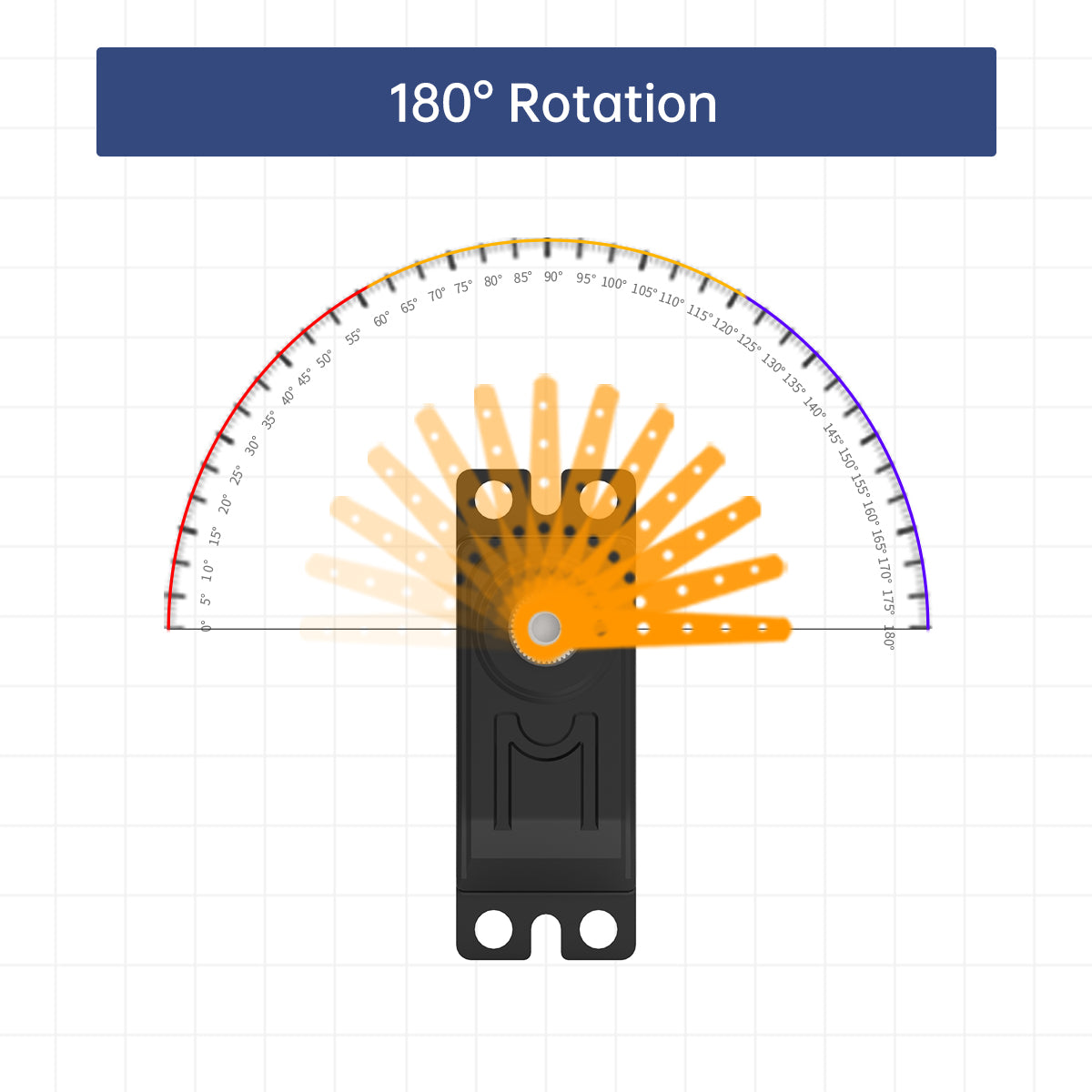

180° Rotation
Featuring large controllable angle range, outstanding linearity and precise control, it offers seamless 360-degree rotation even in the event of power loss.

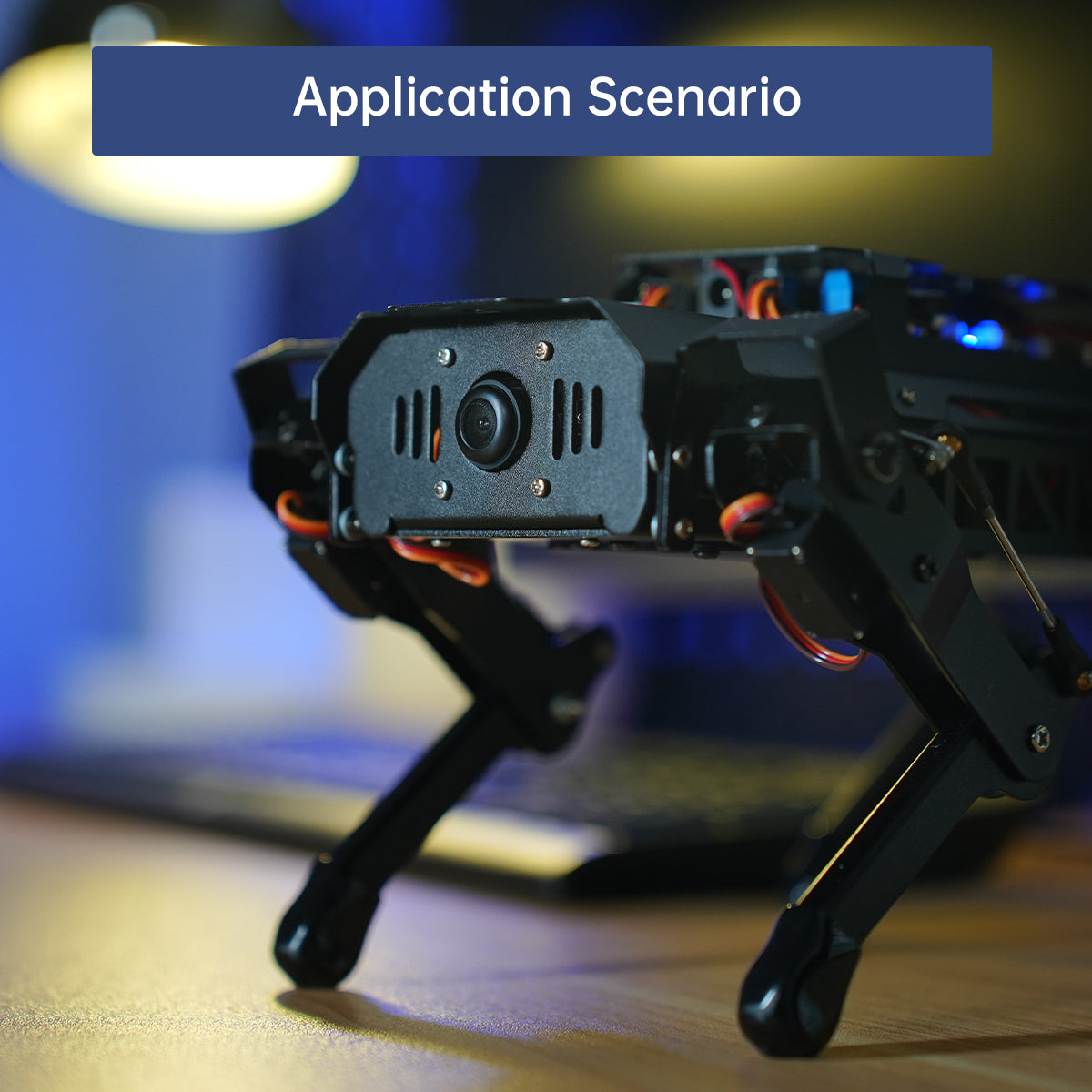

Application Scenario
Application Scenario
| Item | Specification |
| Product parameter | Name: HPS-0618SG servo Rotation range: 0-180° Quiescent current: ≤25mA Weight: 14.5g Anti-blocking current: ≤2.5A Size: 32*12*26mm Communication method: PWM pulse width control Working voltage: 6-8.4V PWM pulse width range: 500-2500us, corresponding to 0-180° Rotation speed: ≤0.06sec/ 60°8.4V Servo wire: 18cm Anti-blocking torque: 6KG.cm 8.4V Gear: stainless steel gear Motor: coreless motor Applicable to: joints of bionic robot |

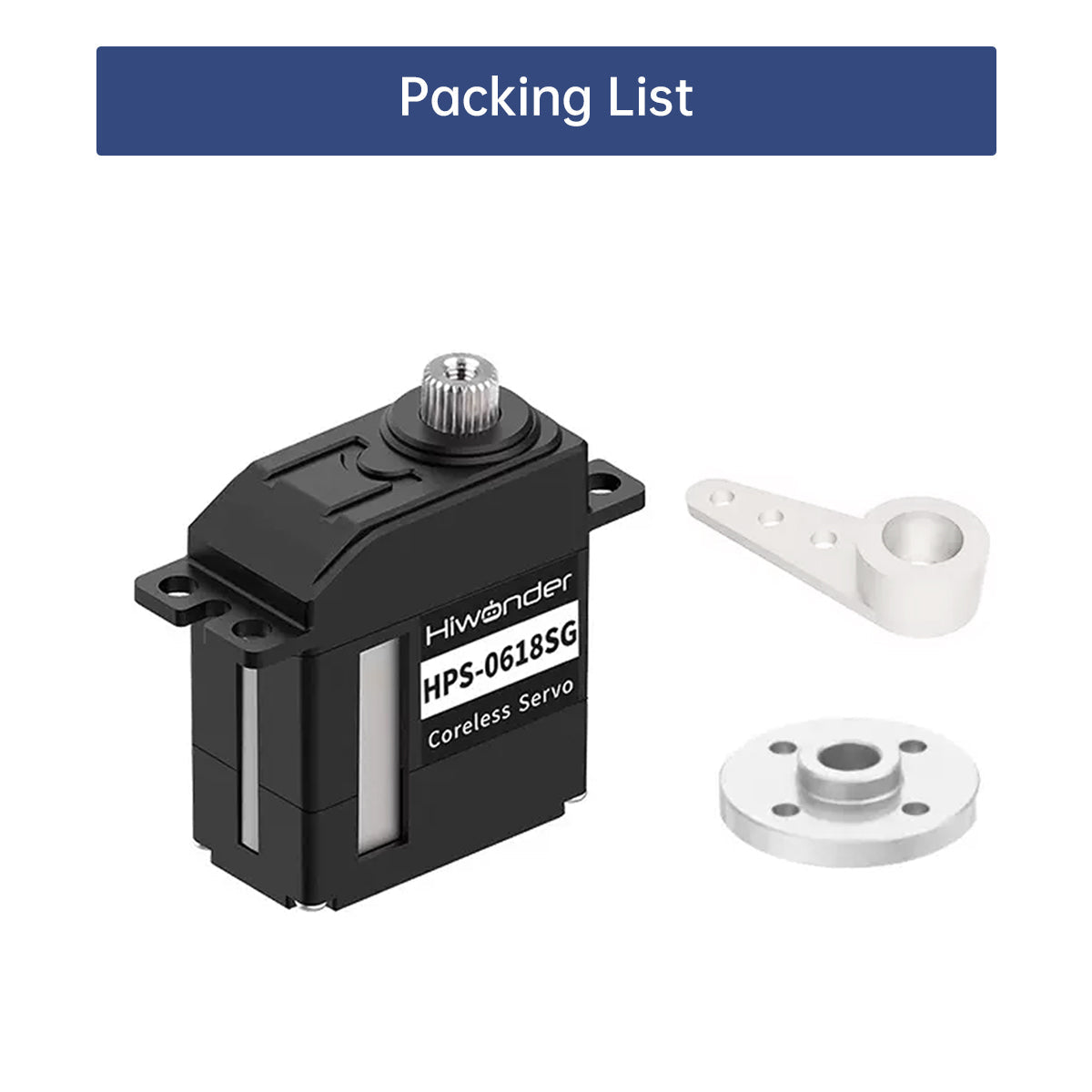

| Packing List | HPS-0618SG servo x 1 Servo horn and arm x 1set (metal) Screw bag x 1 |
