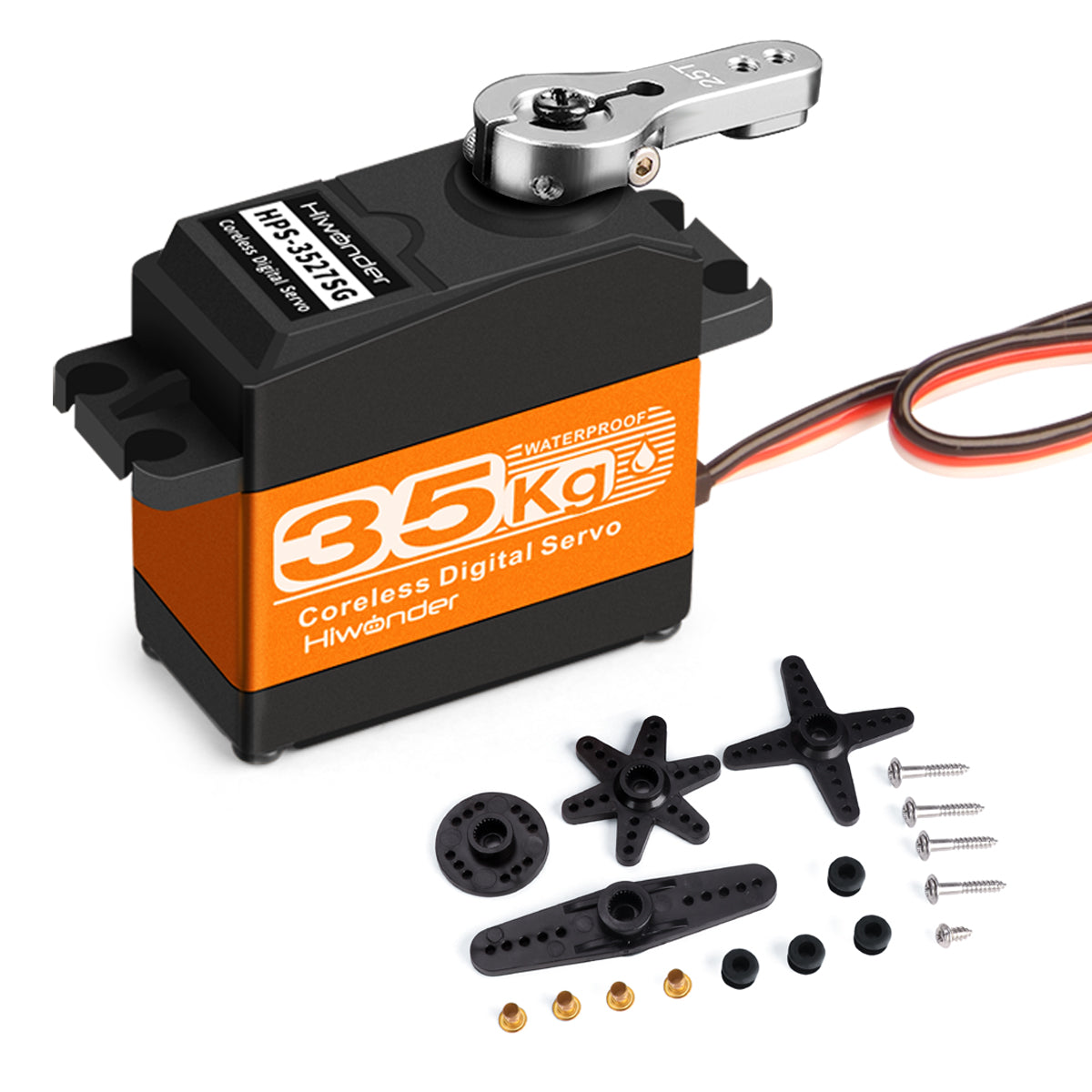

Hiwonder HPS-3527SG High-Speed Coreless Servo 35KG High Torque, Stainless Steel Gear, Waterproof, Suitable for Robot DIY and RC Cars, with 270° Controllable Angle
- 【High-Speed Coreless Servo】Equipped with a high-speed coreless motor and stainless steel gear, this servo delivers 35KG.cm of torque and a 270° rotation range. It offers quick response and is ideal for robot DIY.
- 【Outstanding Performance and Durability】The aluminum alloy shell improves heat dissipation and extends the servo's lifespan. With IP66 waterproof protection, it operates reliably in splash-prone conditions.
- 【Versatile Compatibility and Applications】This servo is compatible with 1/6, 1/8, 1/10, and 1/12 scale RC cars, robots, as well as various car, boat, and airplane models, and DIY projects, making it a flexible choice for different needs.
| Weight | 60g |
| Size | 40*20*38mm |
| Working voltage | 5-8.4V |
| Rotation speed | 0.13sec/60° 7.4V |
| Motor | Coreless motor |
| Gear type | Stainless steel gear |
| Gear ratio | 342 |

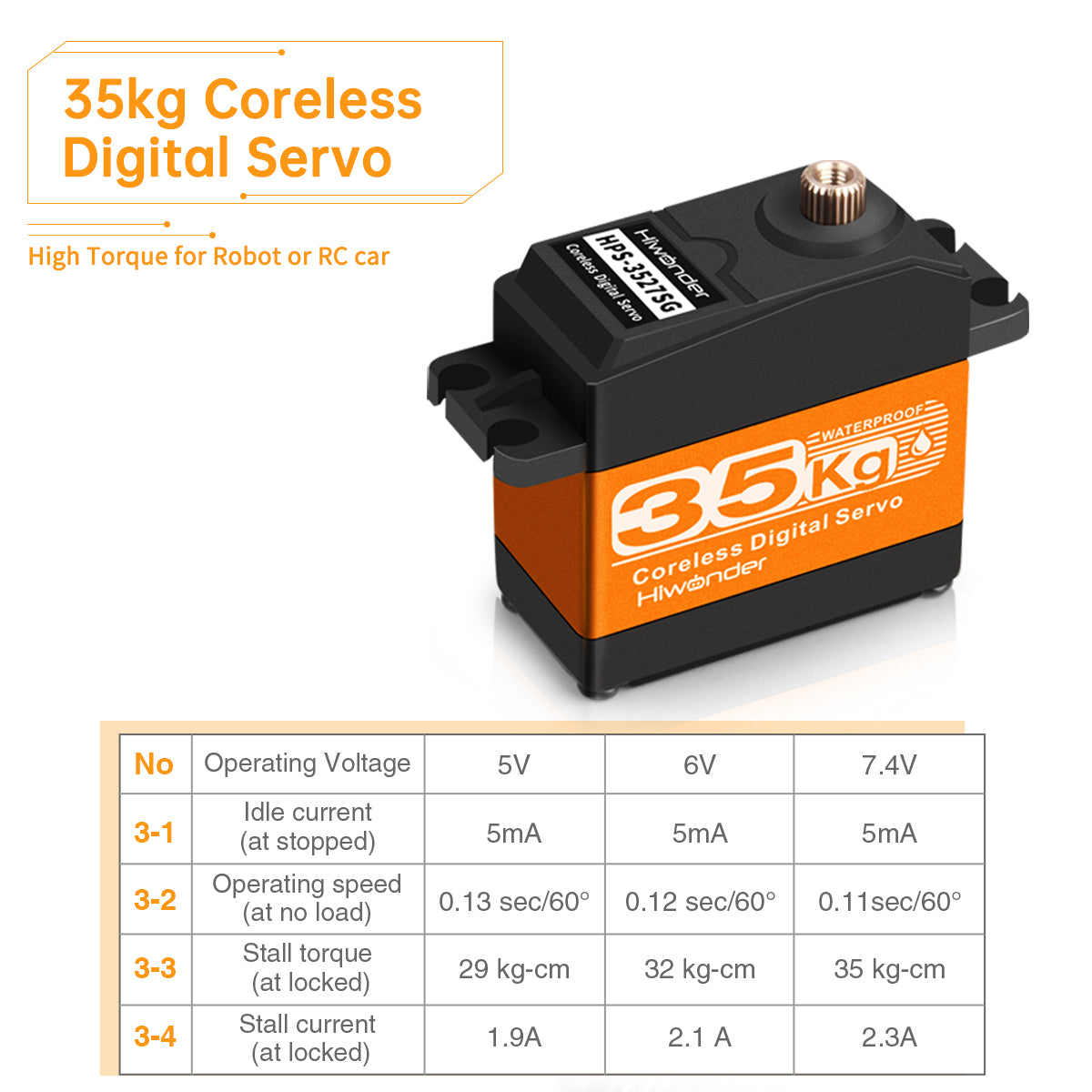

| Stall Torque | 29KG·cm 5V; 30KG·cm 7.4V; 35KG·cm 8.4V |
| Standby current | 5mA |
| Stalled current | 2.2-3.2A |
| Control accuracy | 2 μsec |
| Rotation range | 0~270° |
| PWM pulse width range | 500~2500 µsec, corresponding to 0~270° |
| Wire length | 300mm |
35kg Large Torque
This servo provides 35KG·CM of high torque at 8.4V, making it ideal for demanding robotic applications.
High-Speed Coreless Servo
Uses a coreless motor as the power source. This design eliminates the iron core, resulting in low rotor inductance, improved responsiveness, high efficiency, and a compact size that delivers high torque.
Aluminum Alloy Shell
Its aluminum alloy shell enhances heat dissipation, reduces power consumption, and has a sleek design.
High-Performance Potentiometer
This potentiometer offers exceptional accuracy and linearity, ensuring precise motion control. It is designed to meet the demands of robotics applications and help you achieve optimal performance in your designs.

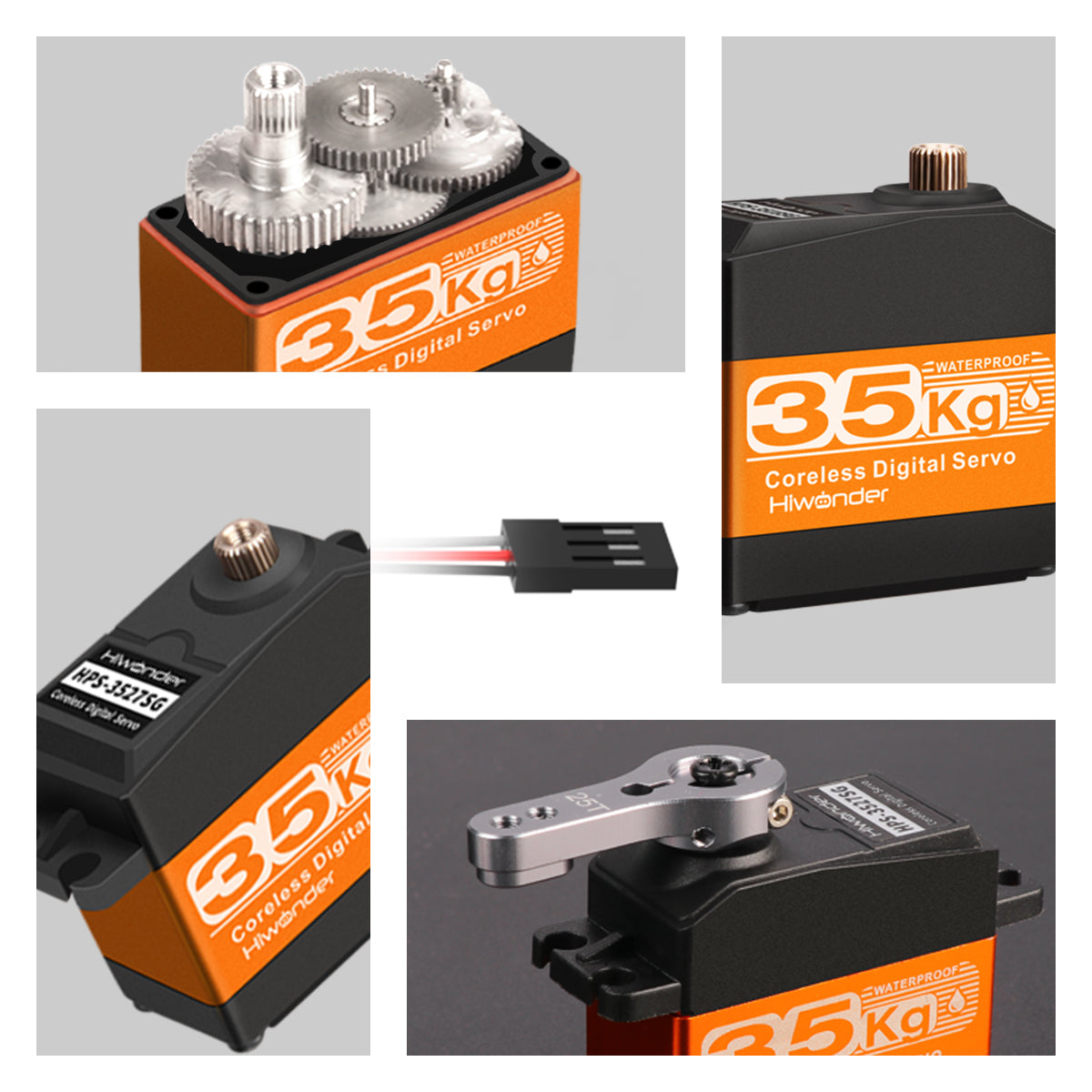

Stainless Steel Gear
The stainless steel gears ensure high durability and greatly extend the servo's lifespan.

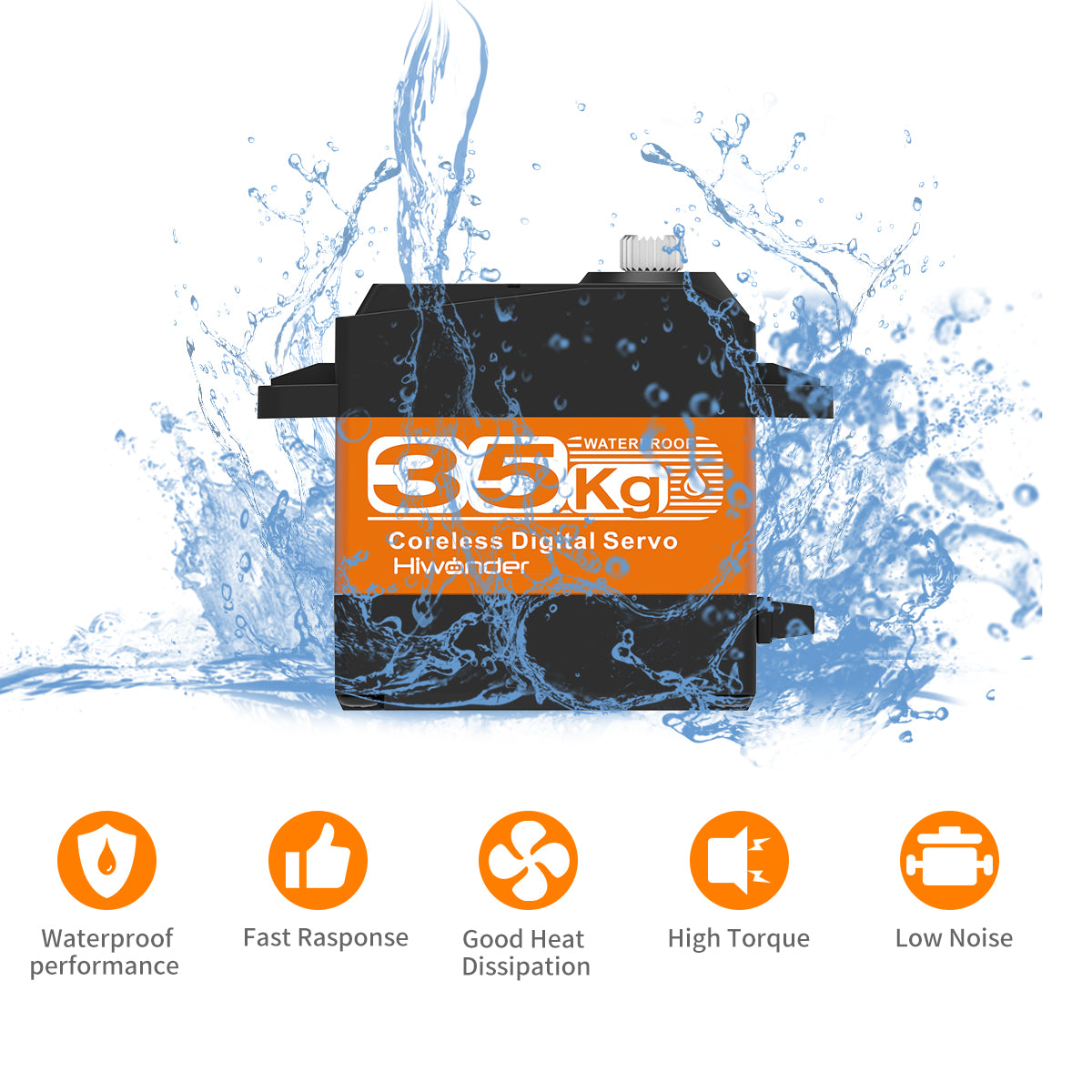

Waterproof Protection
Crafted with high precision and thorough sealing, this servo provides an exceptional level of water resistance. This allows it to operate even in the presence of water splashes.
| Item | Specification |
| Weight | 60g |
| Size | 40*20*38mm |
| Working voltage | 5-8.4V |
| Rotation speed | 0.13sec/60° 7.4V |
| Motor | Coreless motor |
| Gear type | Stainless steel gear |
| Gear ratio | 342 |
| Stall Torque | 29KG·cm 5V; 30KG·cm 7.4V; 35KG·cm 8.4V |
| Standby current | 5mA |
| Stalled current | 2.2-3.2A |
| Control accuracy | 2 μsec |
| Rotation range | 0~270° |
| PWM pulse width range | 500~2500 µsec, corresponding to 0~270° |
| Wire length | 300mm |
