Hiwonder HX-35HM Serial Bus Servo with 360 Degrees Magnetic Encoder Double Shaft, 35KG Strong Torque and Data Feedback Function
Product SKU: HW2019258
- Easy to install and long service life
- Use 12 bit high precision non-contact magnetic encoder
- Absolute angle control accuracy reaches 360 degrees
- High torque up to 30kg.cm 11.1V
- Support temperature, voltage and position feedback
Available:
Only 782 items in stock
In stock
In stock
Out of stock
Back in stock
$35.99
Save
% $-35.99
Product Description

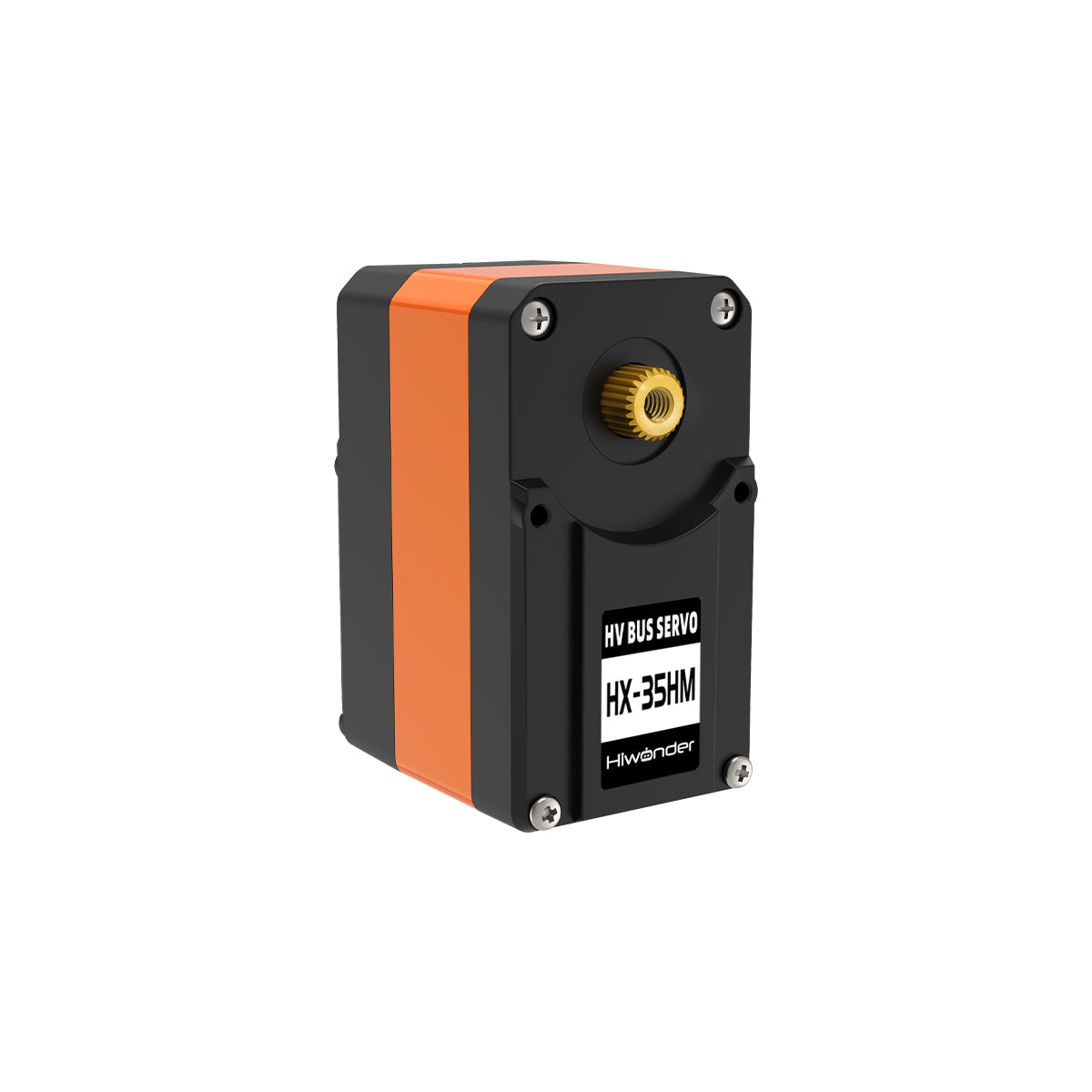

Hiwonder HX-35HM is a magnetic encoder bus servo with data feedback, which can be used in different robot joints. With the high-precision metal gear and outer shell, it has solid body and long service life. Compared with the potentiometer servo, it is easy to be adjusted. The control angle ranges 0°-360°.
Feature
-
Non-contact magnetic encoder feedback for long service time
-
Easy to install and adjust servo
-
Servo rotation angle ranges between 0 to 360 degrees
-
High-precision magnetic encoder for more stable operation
-
Provide 51, Arduino, STM32, Raspberry Pi control source codes

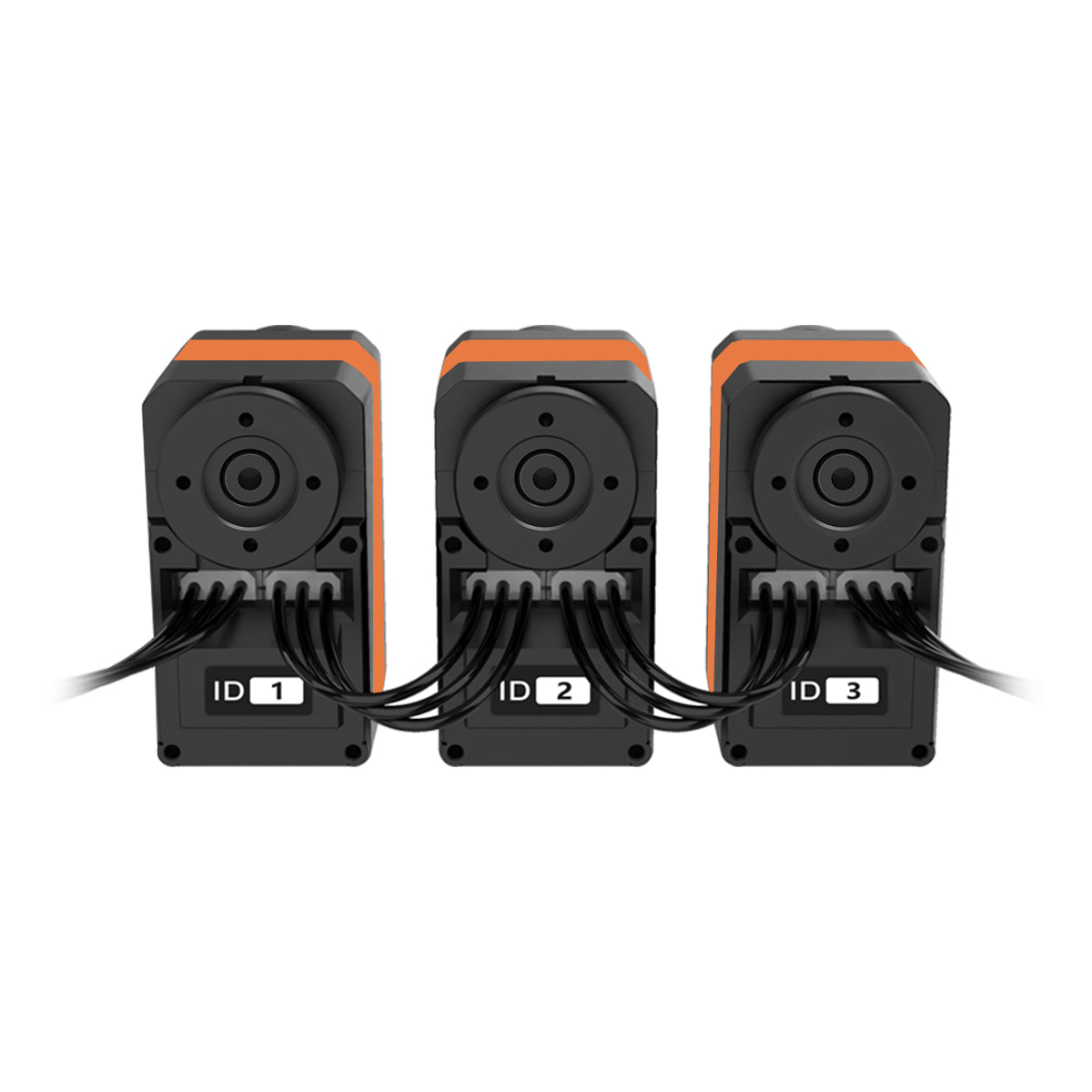

Serial Bus Connection
Serial Bus Connection
Servos can be connected in series through interfaces. There is an I/O port for serial servos on Hiwonder controller, which makes the project have clean wiring and beautiful outlook.
Servos can be connected in series through interfaces. There is an I/O port for serial servos on Hiwonder controller, which makes the project have clean wiring and beautiful outlook.
CNC Precision Machining Metal Shell
CNC Precision Machining Metal Shell
HX-35HM servo features high accuracy and excellent heat-conducting property with aluminium alloy shell. Through anodic oxidation processing, it has strong resistance to corrosion.
HX-35HM servo features high accuracy and excellent heat-conducting property with aluminium alloy shell. Through anodic oxidation processing, it has strong resistance to corrosion.
360 Degrees Magnetic Encoder Feedback
360 Degrees Magnetic Encoder Feedback
Non-contact Magnetic Encoder Feedback
Instead of position feedback from potentiometer, HX-35HM servo uses non-contact magnetic feedback for long service life, small size and shock resistance.
High precision Magnetic Encoder
Compared with potentiometer, the 12-bit high precision angle magnetic encoder angle sensor can extend its angle to 360 degrees with 4096-bit absolute position accuracy.
360 Degrees Adjustable Range
HX-35HM servo can be adjusted within 360 degrees. Using with servo controller, the control accuracy reaches 360/1500=0.24°. (0°-360°rotation angle corresponds to the value of 0-1500 in servo PC software).
Easy Middle Position Adjustment
HX-35HM servo can return to the middle position at any position, which greatly improves the assembly efficiency and lower the maintenance cost. (The traditional potentiometer servo must be adjusted to the middle position before assembly.)

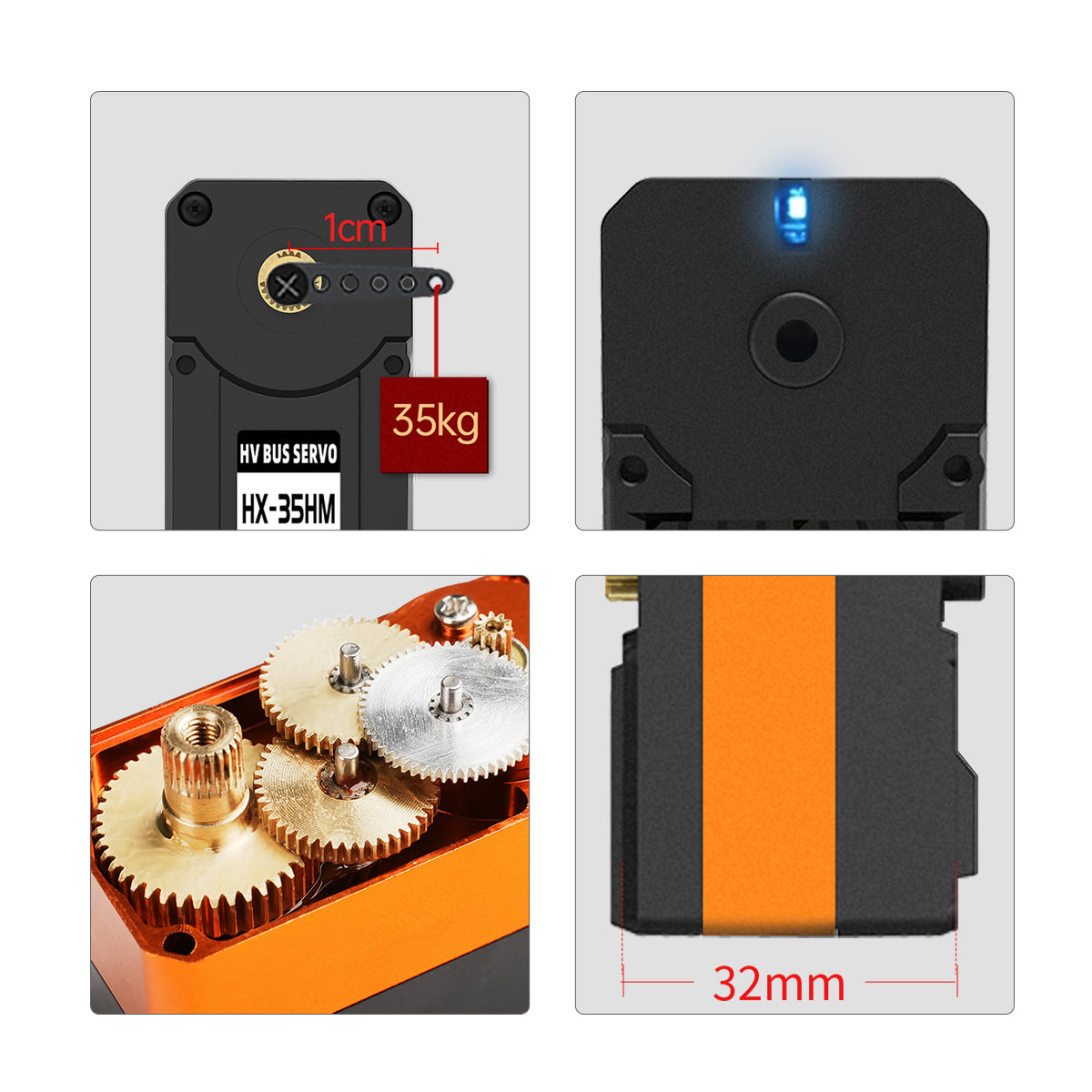

35KG Strong Torque
35KG Strong Torque
ID Identification, Bus Communication
ID Identification, Bus Communication
Angle Readback
Angle Readback
Temperature/ Voltage Feedback
Temperature/ Voltage Feedback
Two Operation Modes
Two Operation Modes

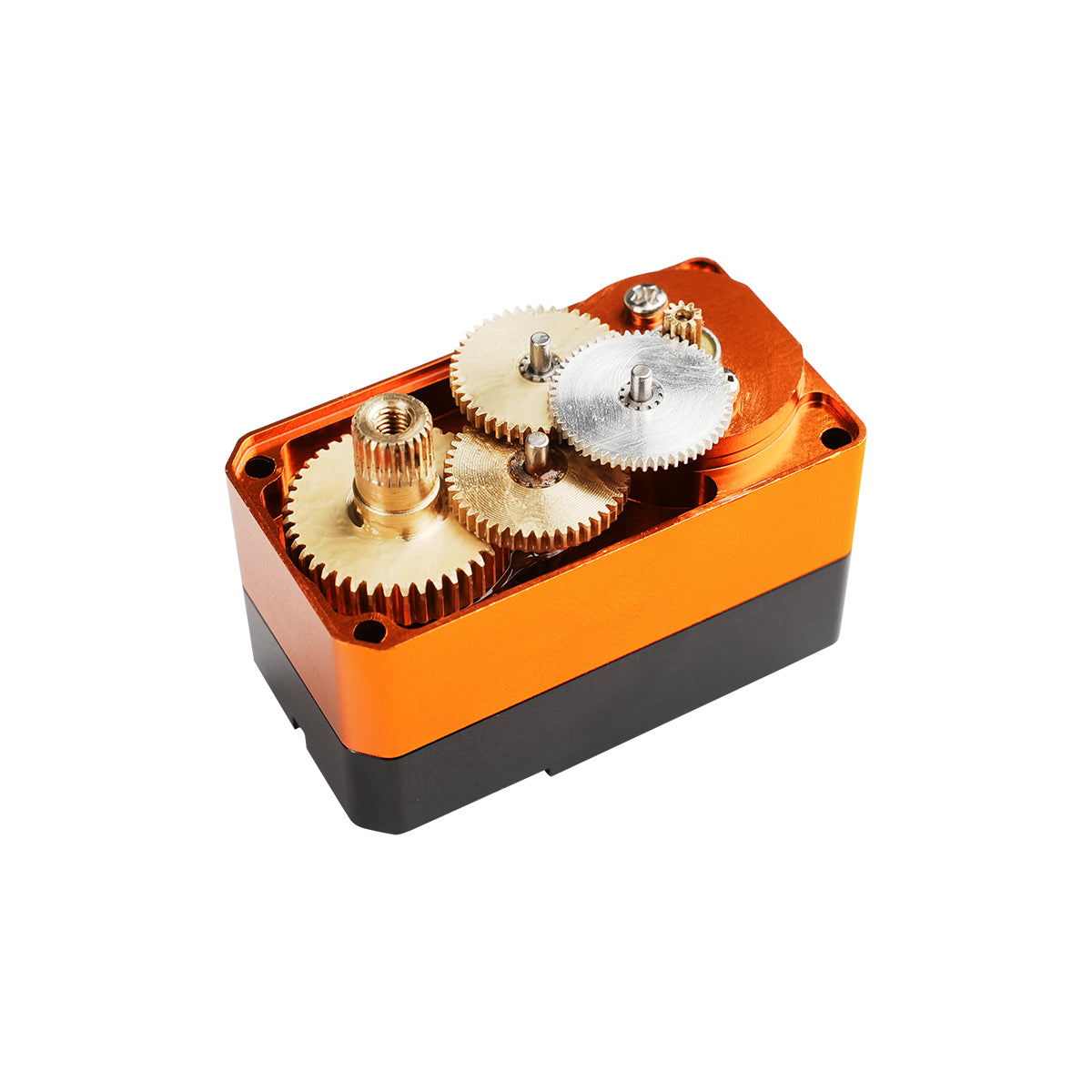

Metal Gear
Metal Gear
Short and Compact
Short and Compact
Metal Servo Horns
Metal Servo Horns

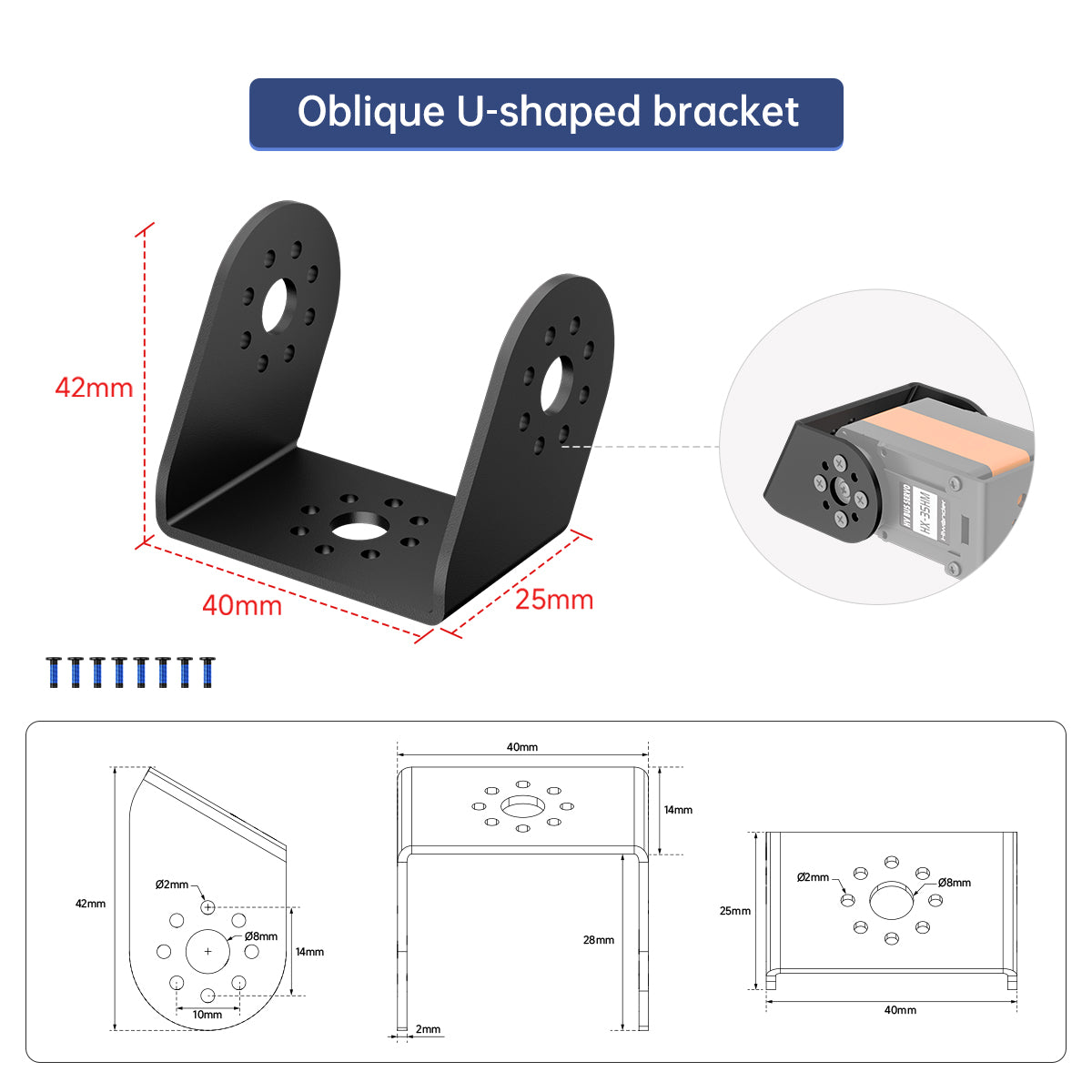

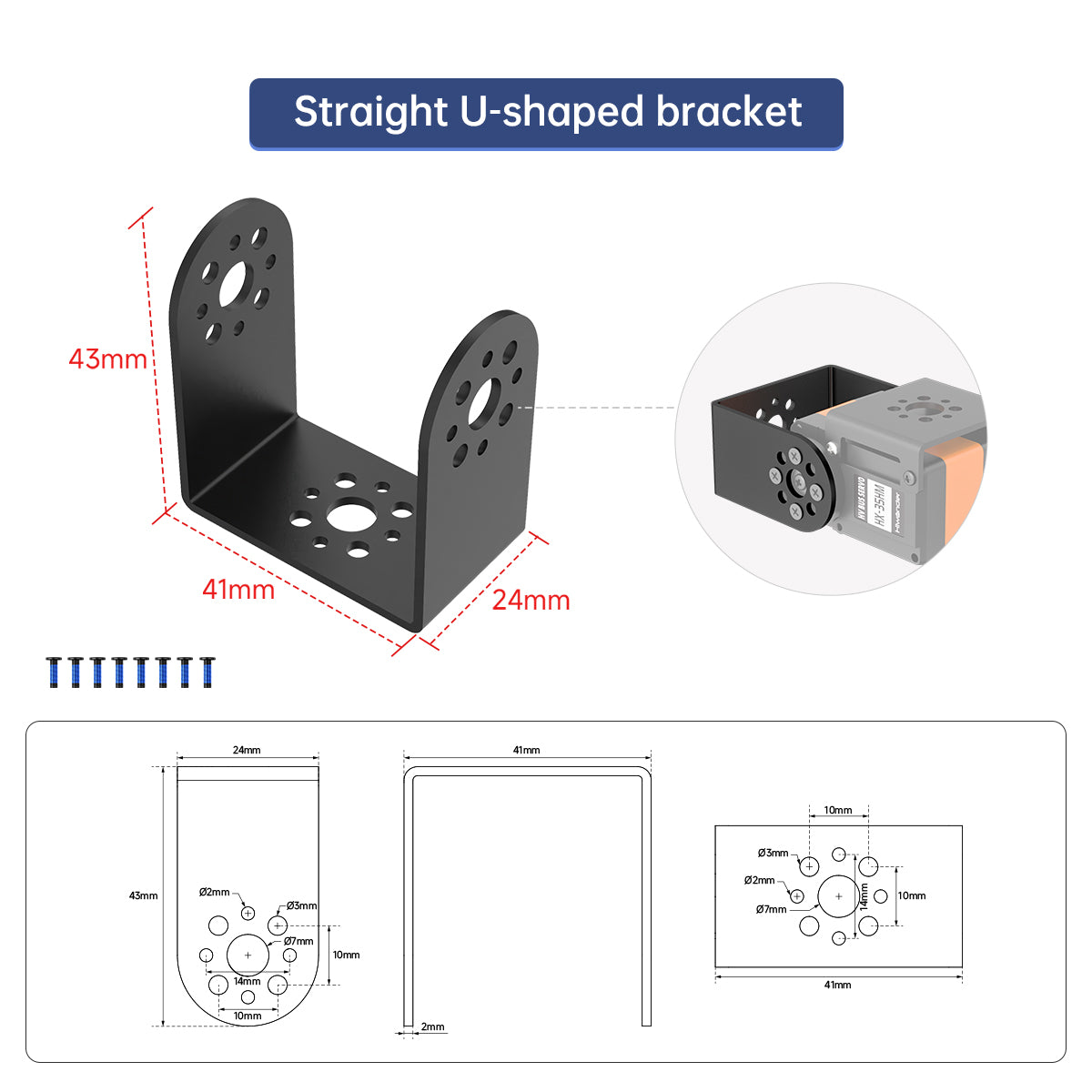

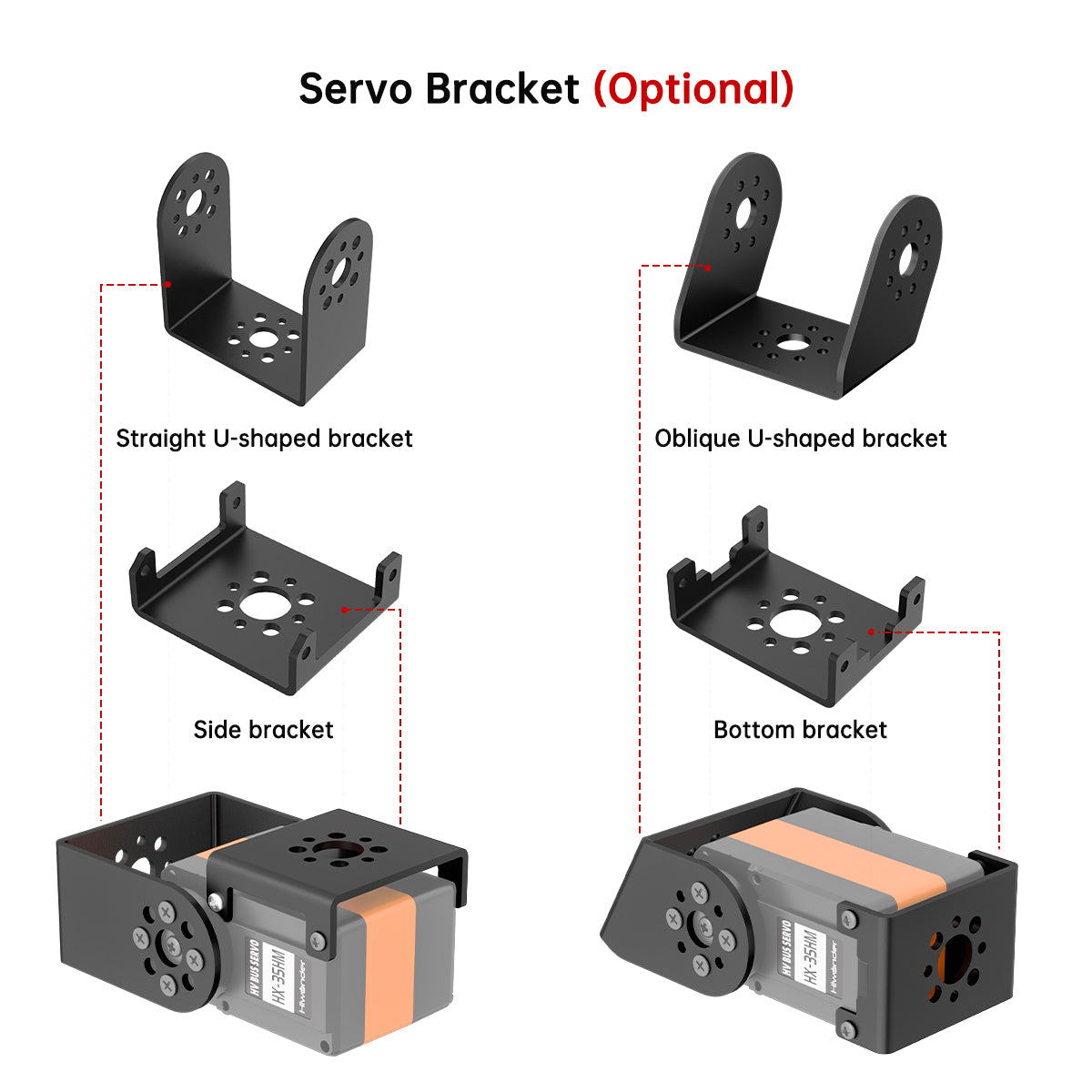

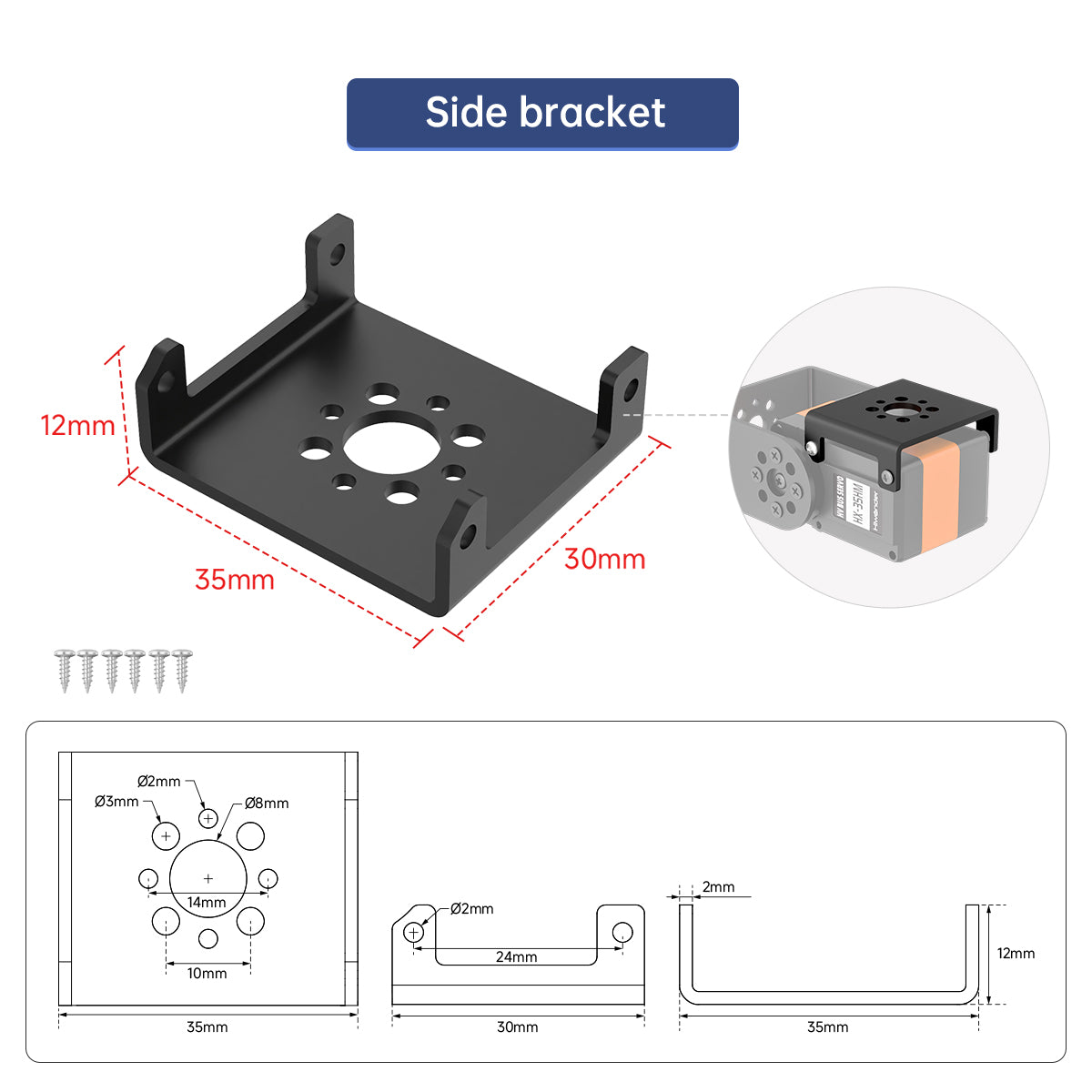

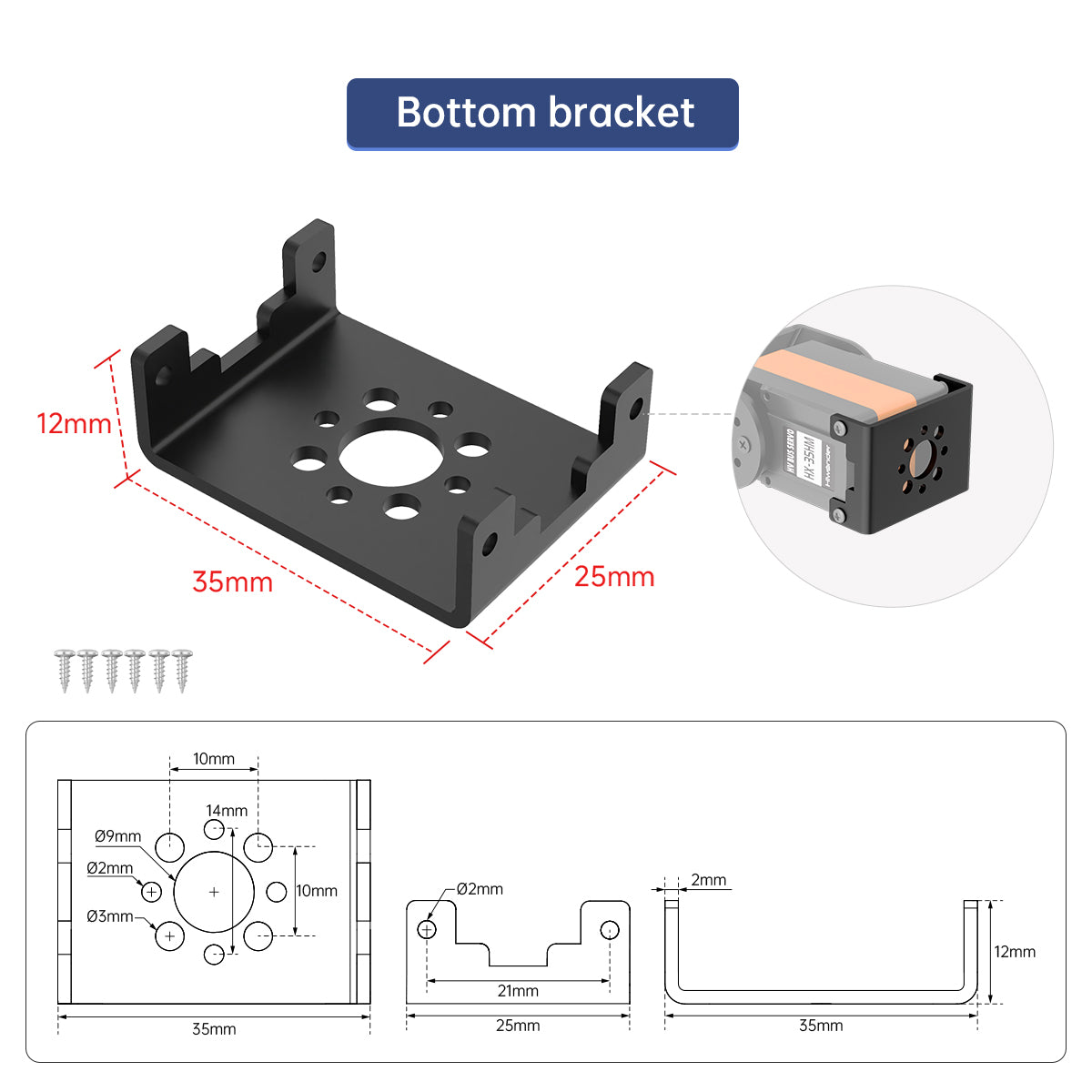

Bracket Set for More Create
Bracket Set for More Create
Servo Debugging System
Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm, stalling alarm and voltage alarm for servos.
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light,temperature alarm, stalling alarm and voltage alarm for servos.
The Functions of TTL/USB Debugging Board

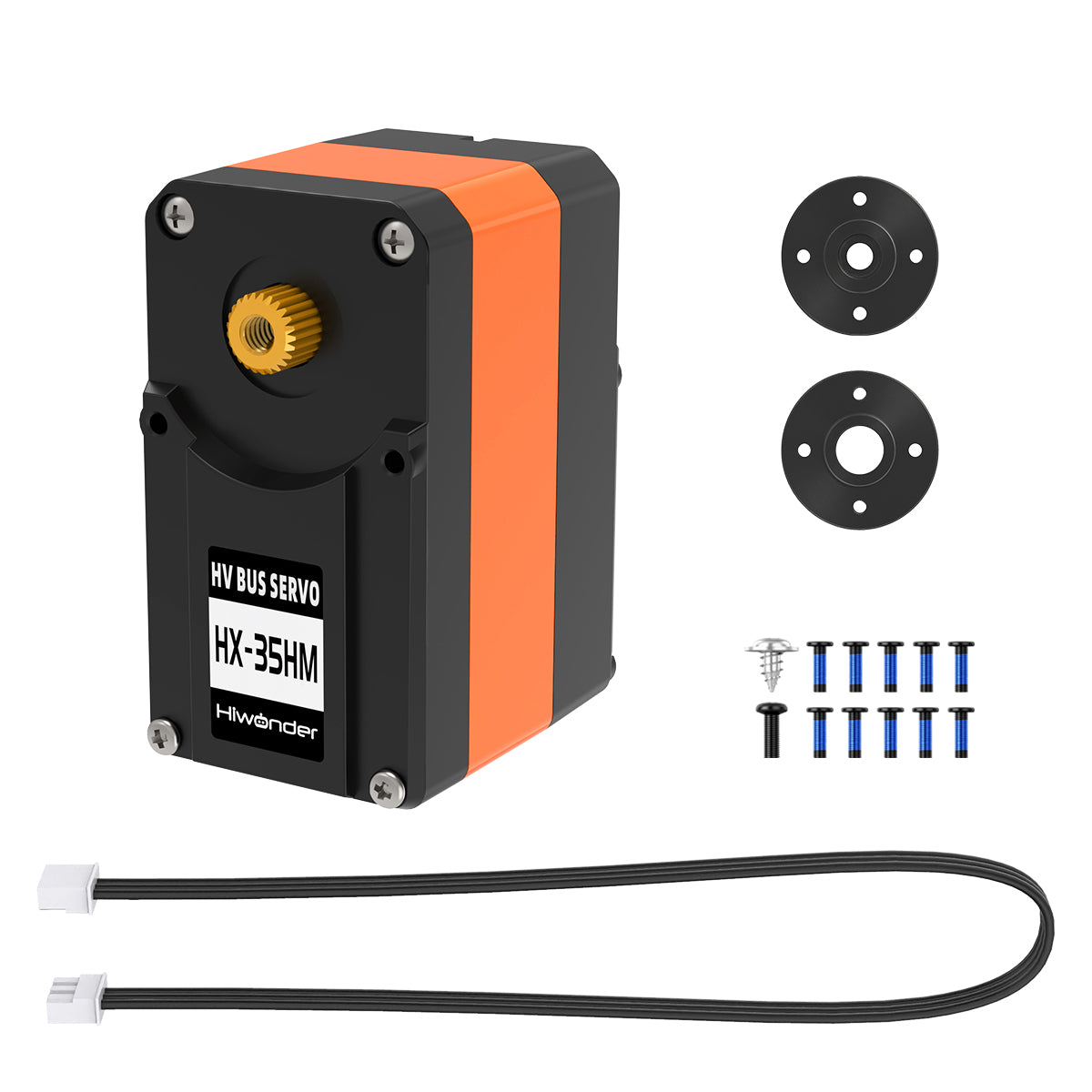

Package List
Package List
1 x HX-35HM servo
1 x Plastics main servo horn
1 x Plastics assistant servo horn
1 x Servo cable (20cm)
1 x Screw bag
1 x Servo bracket pack (optional)
1 x Metal servo horn pack (optional)
1 x Plastics main servo horn
1 x Plastics assistant servo horn
1 x Servo cable (20cm)
1 x Screw bag
1 x Servo bracket pack (optional)
1 x Metal servo horn pack (optional)

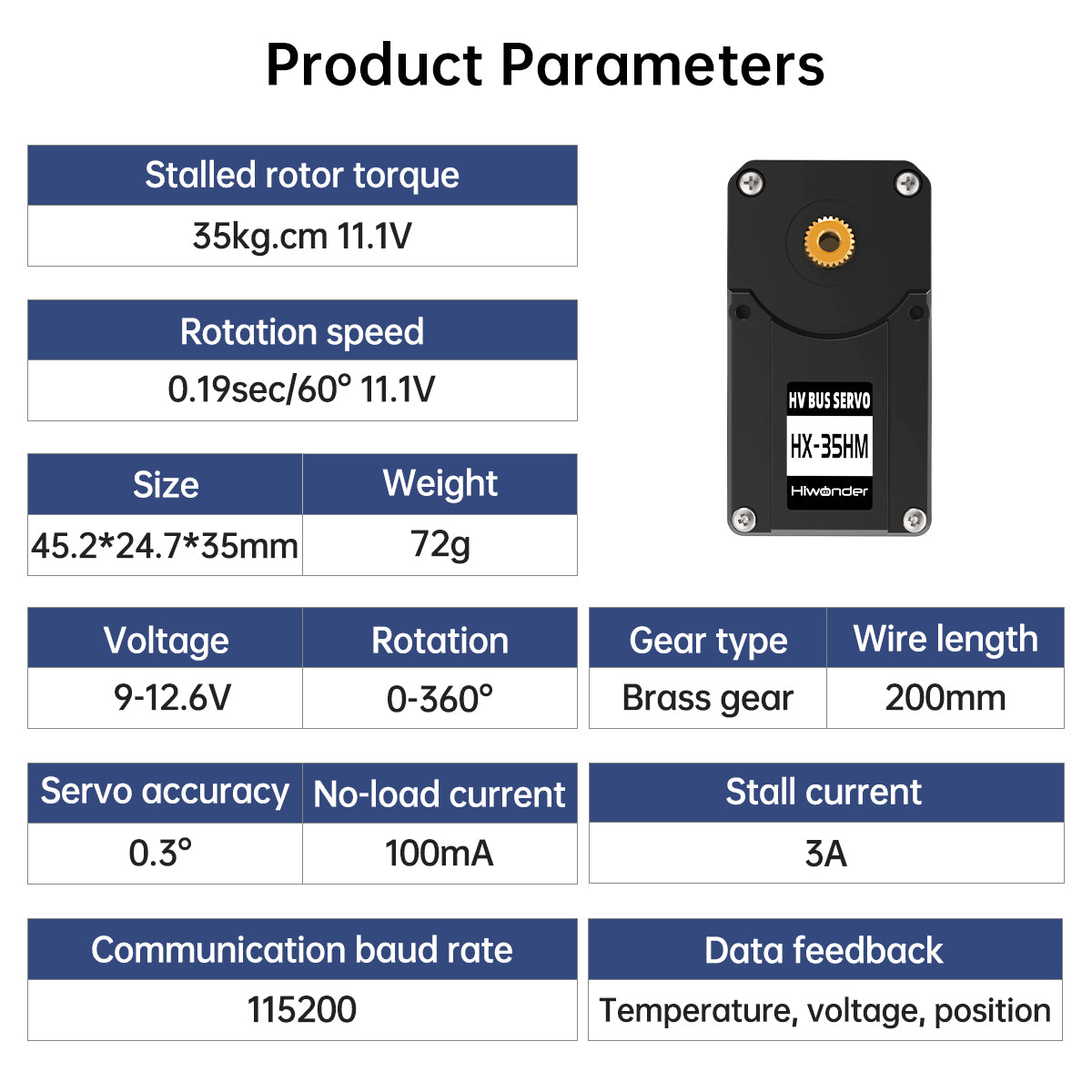

| Item | Specification |
| Name | HX-35HM Magnetic Encoder Bus Servo |
| Brand | Hiwonder |
| Weight | 71g |

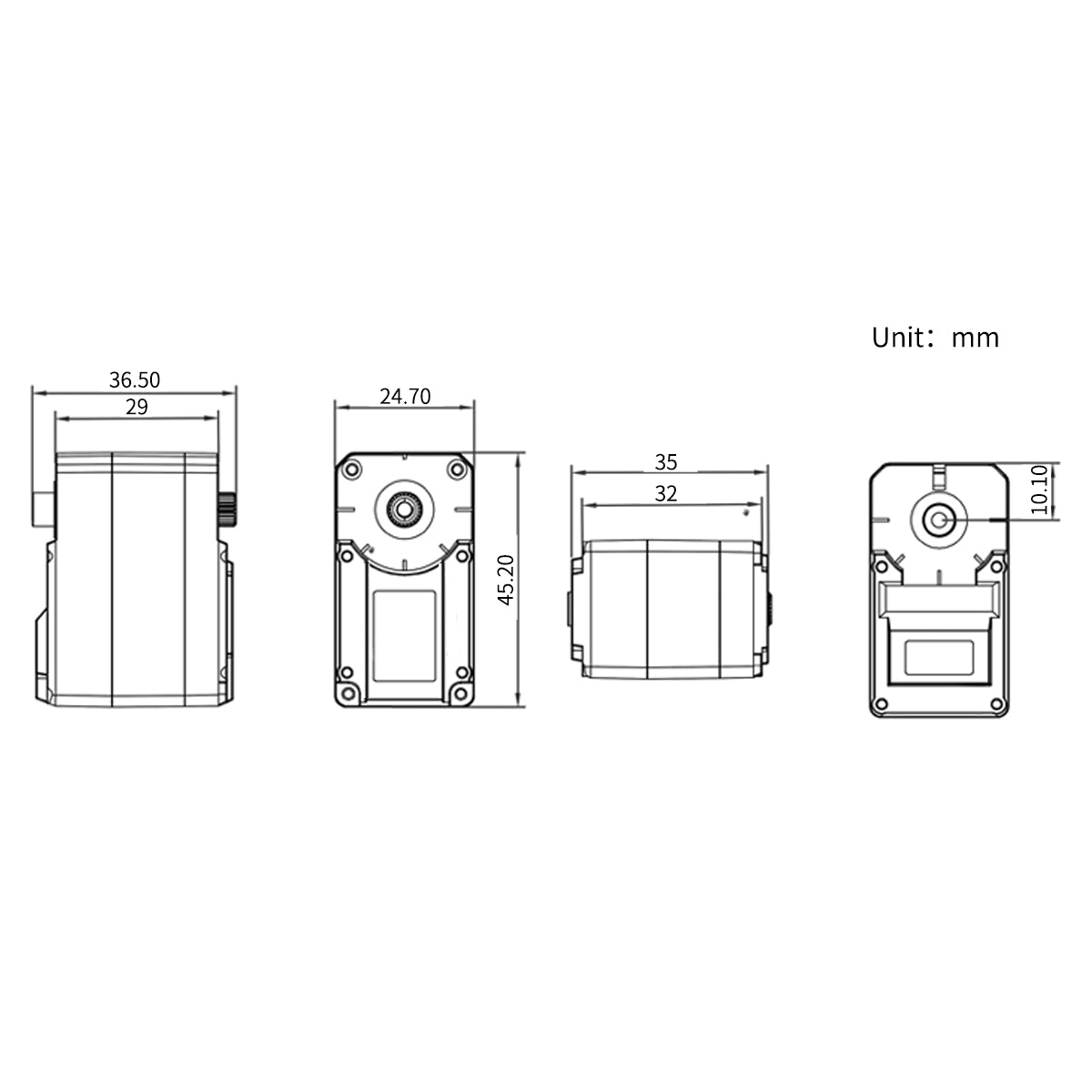

| Dimension | 45.2×24.7×35mm |
| Working voltage | 9-12.6V |
| Rotation speed | 0.19sec/60°11.1V |
| Rotation torque | 25kg.cm 11.1V |
| Static maximum torque | 35kg.cm 11.1V |
| Rotation range | 0°-360° |
| No-load current | 100mA |
| Stall current | 3A |
| Servo accuracy | 0.3° |
| Controllable angle range | 0~1500, corresponding to 0~360° |
| Control method | UART serial command |
| Communication baud rate | 115200 |
| Storage | Save data when power off |
| Servo ID | Can be set to 0~253, 1 by default |
| Angle read back function | Support |
| Protection | Avoid stalling and overheat |
| Date feedback | Temperature, voltage, position |
| Working mode | Servo mode and gear motor mode |
| Gear type | Metal gear |
| Servo wire length | 20cm |
| Connector | 5264-3P |
| Applicable to | Joints of bionic robots |
| Package List: | 1 x HX-35HM servo 1 x Plastics main servo horn 1 x Plastics assistant servo horn 1 x Servo cable (20cm) 1 x Screw bag 1 x Servo bracket pack (optional) 1 x Metal servo horn pack (optional) |
