Hiwonder HX-12H Serial Bus High Voltage Servo With Double Shaft, 12KG Torque and Data Feedback Function
Product SKU: 21100039
- Metal gear for higher accuracy and stronger torque
- Support temperature, voltage and position feedback
- Two working modes: servo mode and gear motor mode
- Provide 51, Arduino, STM32, Raspberry Pi source code
Available:
Only 784 items in stock
In stock
In stock
Out of stock
Back in stock
$16.99
Save
% $-16.99
Product Description

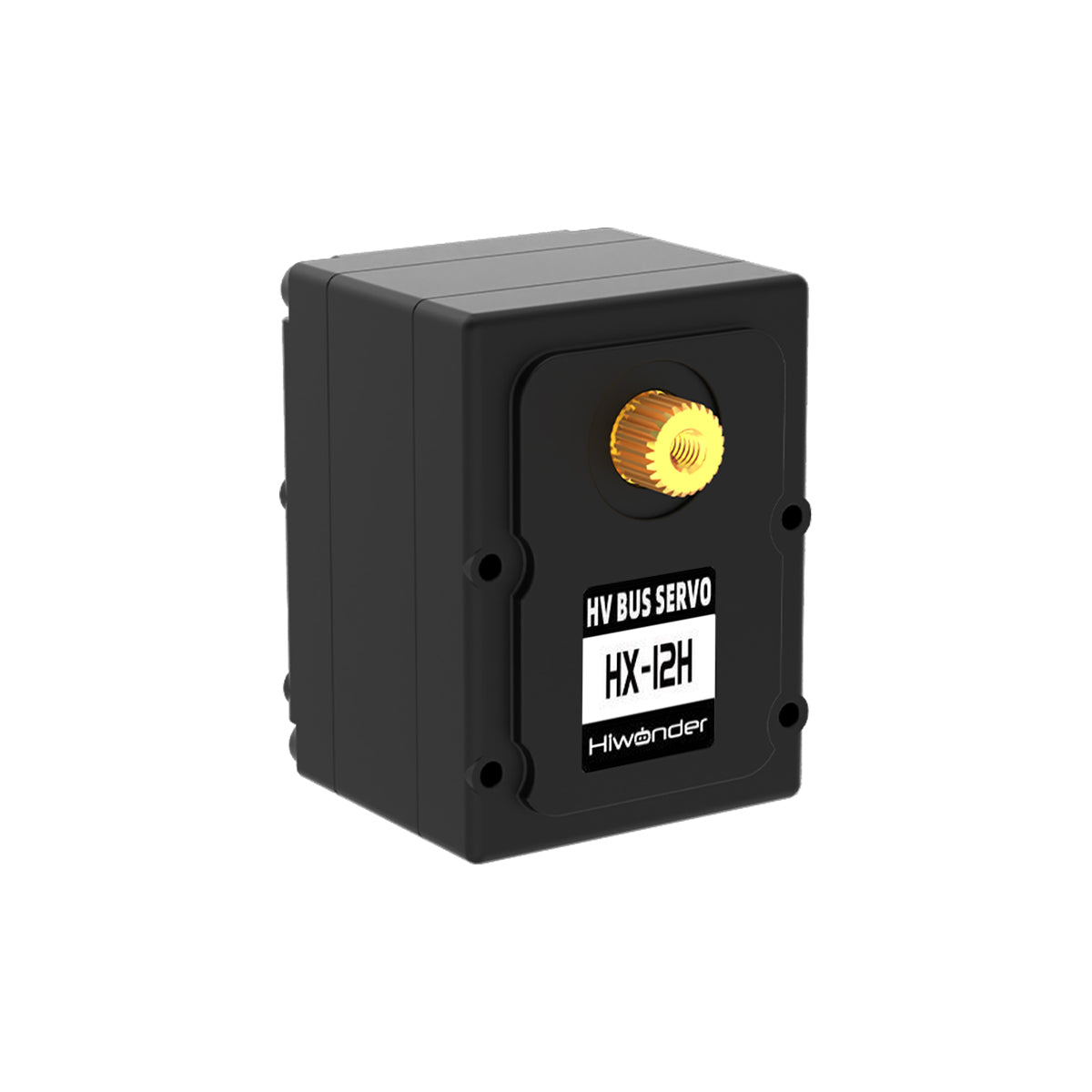

Hiwonder HX-12H is a serial bus high voltage servo with temperature, voltage and position feedback, which can be used in different robot joints. With the metal gear and aluminum alloy servo horn used in main shaft, it has solid body and long service life. The removable assistant shaft loaded with metal bearing gets smooth and stable!
Feature
-
Small size and high accuracy
-
High-precision potentiometer for more stable operation
-
Support position/temperature/voltage feedback for protecting the servo from burning
-
Support two working modes, including servo mode and gear motor mode
-
Provide 51, Arduino, STM32, and Raspberry Pi control source code
Clean Wiring
Clean Wiring
There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook.
There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook.
Serial Bus Port
Angle Readback
Two Operation Modes
Metal Gear
Short and Compact
Metal Bearing

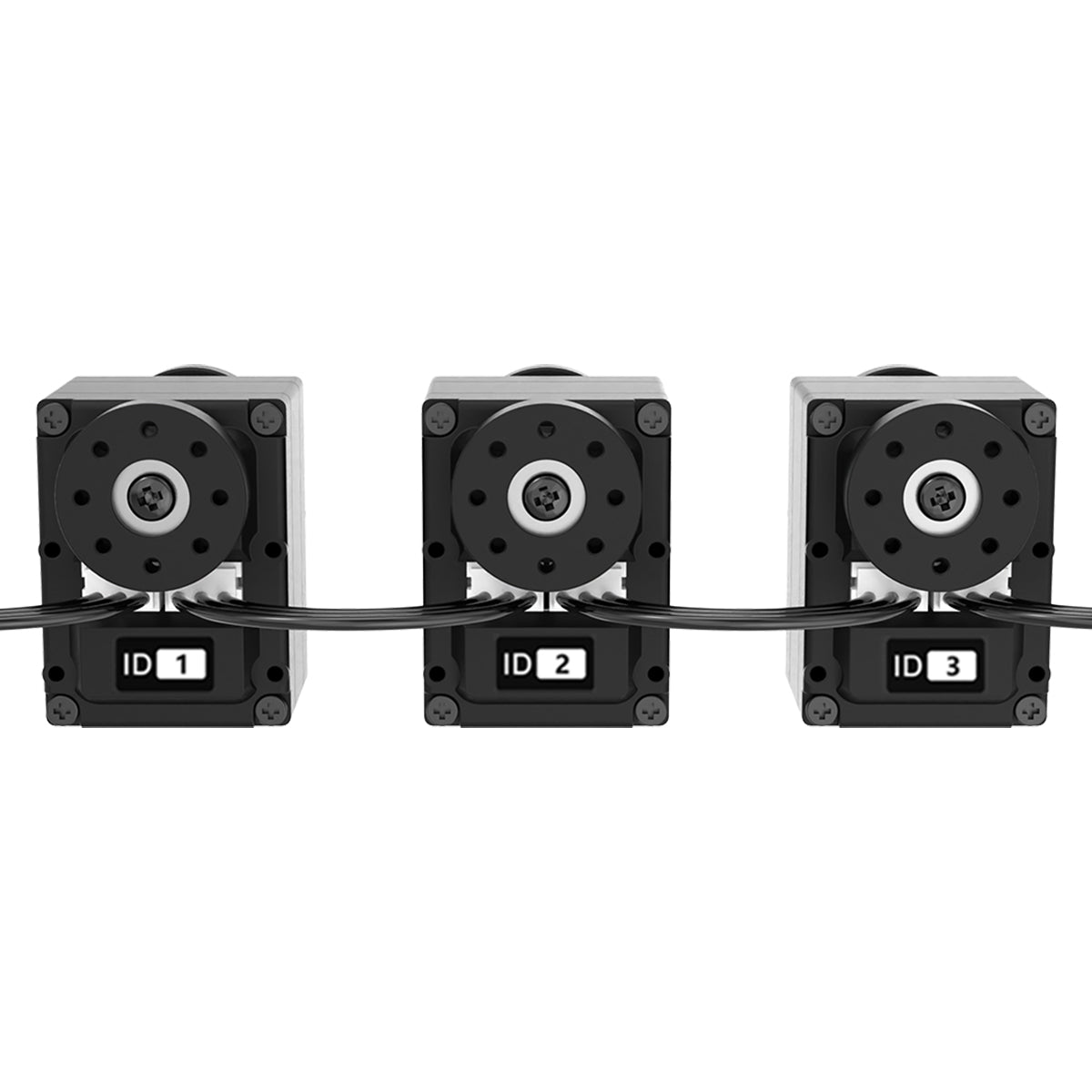

ID Identification, Bus Communication
High Accuracy Potentiometer
Position/Temperature/ Voltage Feedback
Support 11.1V Lithium Battery to Supply Power
Support 11.1V Lithium Battery to Supply Power

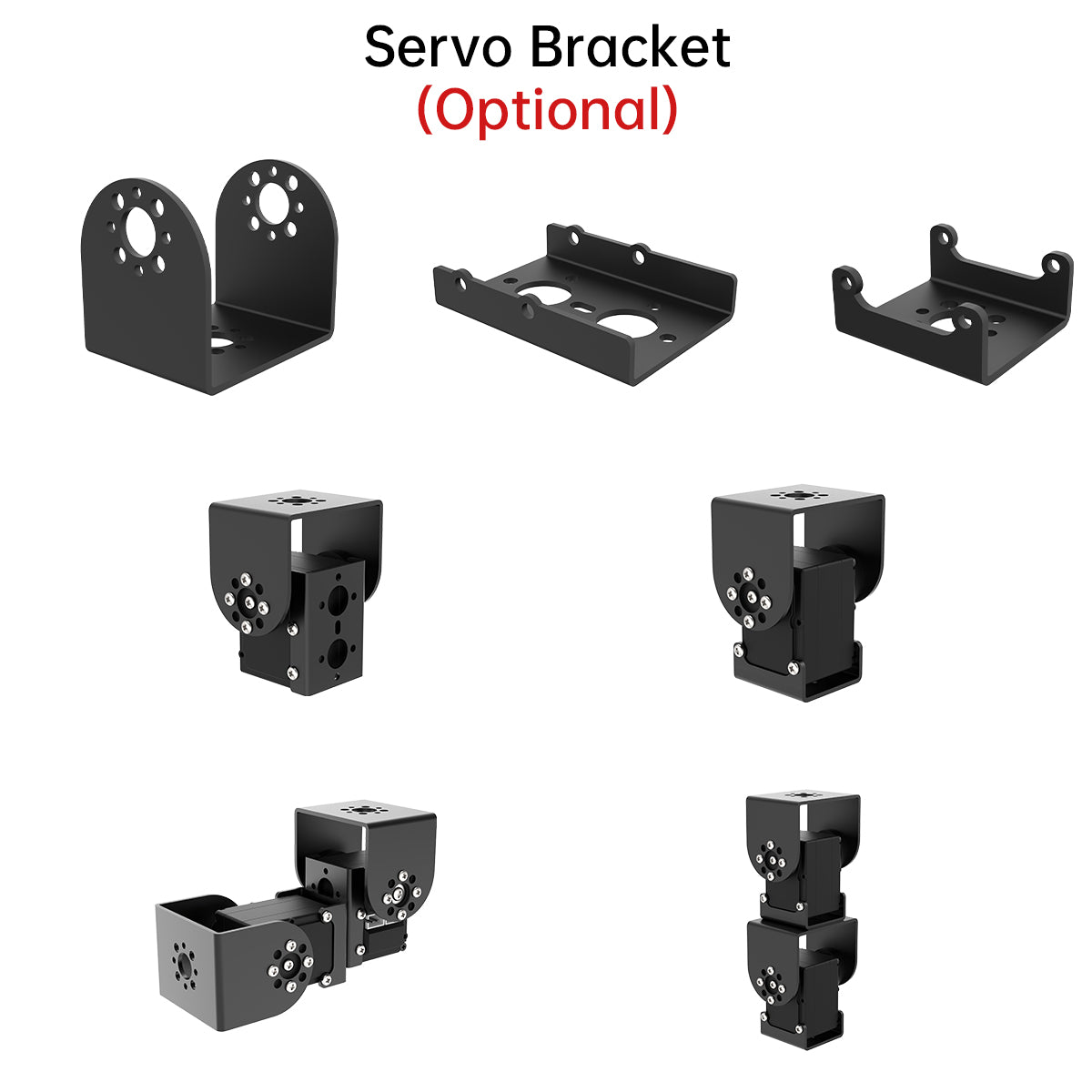

Bracket Set for More Create
Bracket Set for More Create

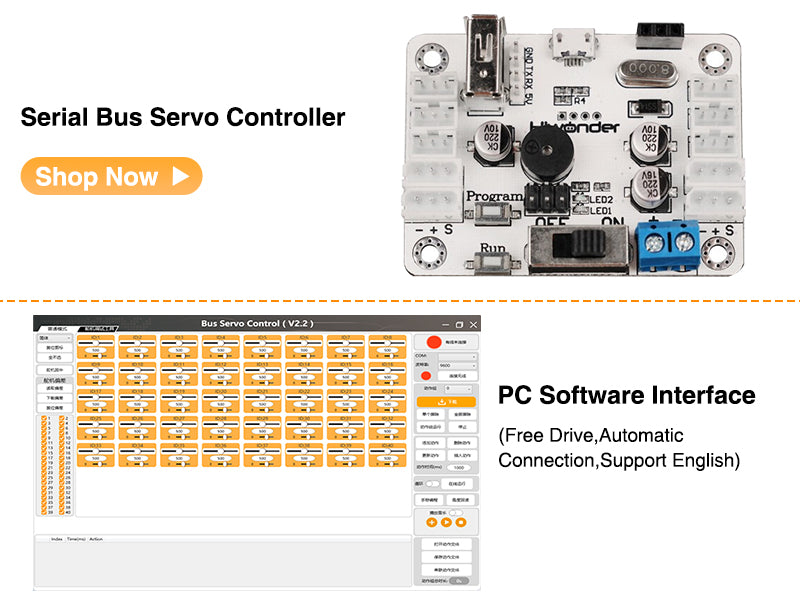

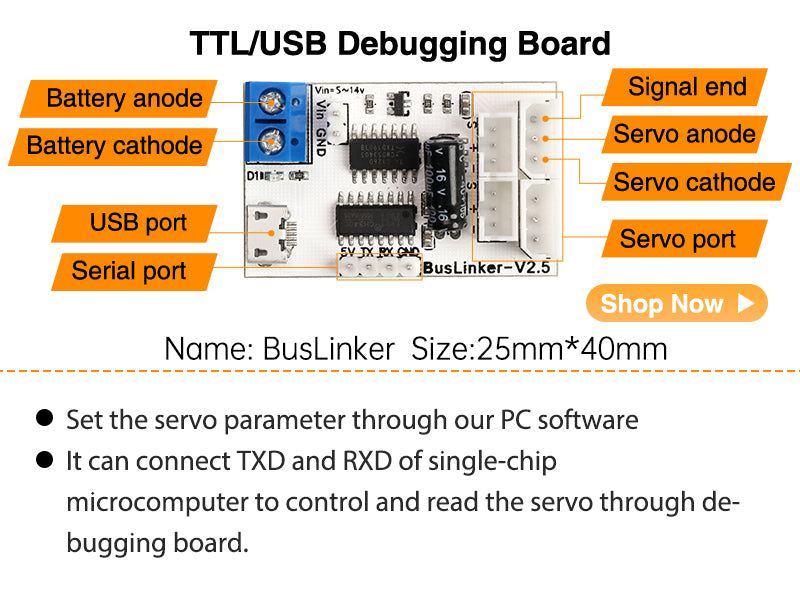

Servo Debugging System
Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm, stalling alarm and voltage alarm for servos.
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light,temperature alarm, stalling alarm and voltage alarm for servos.
Package List
Package List
1 x HX-12H servo
1 x Metal main servo horn
1 x 3*8*4 metal bearing
1 x Plastic assistant servo horn
1 x Servo wire (20cm)
1 x Screws
1 x Big U bracket (optional)
1 x Bottom bracket (optional)
1 x Side bracket (optional)
1 x Metal main servo horn
1 x 3*8*4 metal bearing
1 x Plastic assistant servo horn
1 x Servo wire (20cm)
1 x Screws
1 x Big U bracket (optional)
1 x Bottom bracket (optional)
1 x Side bracket (optional)
| Item | Specification |
| Name: | HX-12H serial bus high voltage servo |
| Brand: | Hiwonder |
| Weight: | 36.3g |
| Dimension: | 35.19×26.19×27.2mm |
| Working voltage: | 9-12.6V |
| Rotation speed: | 0.2sec/60°11.1V |
| Locked torque: | 12kg.cm 11.1V |
| Rotation range: | 0°-240° |
| No-load current: | 300mA |
| Stall current: | 1.3A |
| Servo accuracy: | 0.3° |
| Controllable angle range: | 0~1000, corresponding to 0~240° |
| Communication baud rate: | 115200 |
| Storage: | Save data when power off |
| Servo ID: | Can be set to 0~253, 1 by default |
| Angle read back function: | Support |
| Protection: | Avoid stalling and overheat |
| Date feedback: | Temperature, voltage, position |
| Working mode: | Servo mode and gear motor mode |
| Gear type: | Metal gear |
| Servo wire length: | 20cm |
| Connector: | 5264-3P |
| Applicable to: | Joints of bionic robots |
| Package List: | 1 x HX-12H servo 1 x Metal main servo horn 1 x 3*8*4 metal bearing 1 x Plastic assistant servo horn 1 x Servo wire (20cm) 1 x Screws 1 x Big U bracket (optional) 1 x Bottom bracket (optional) 1 x Side bracket (optional) |
