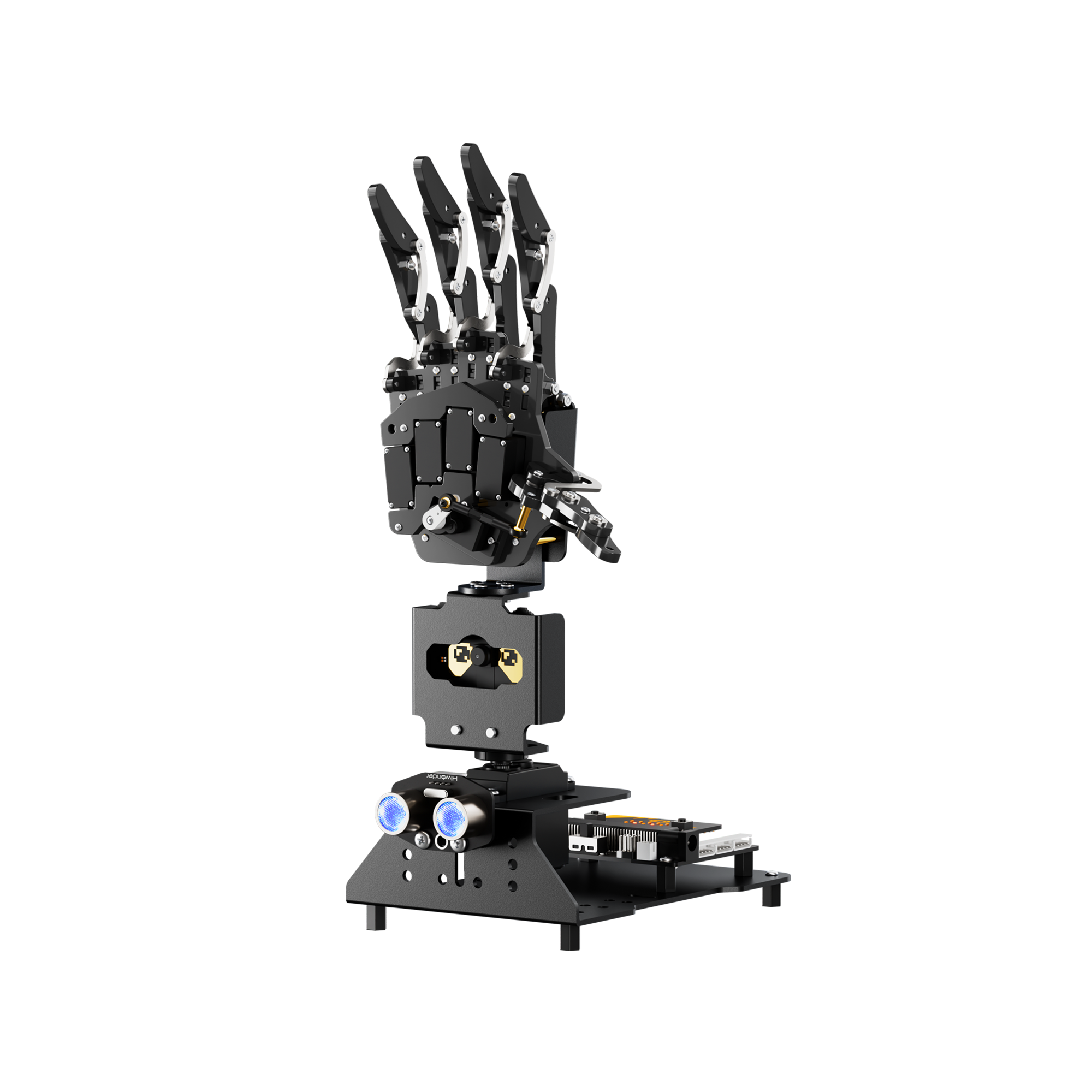

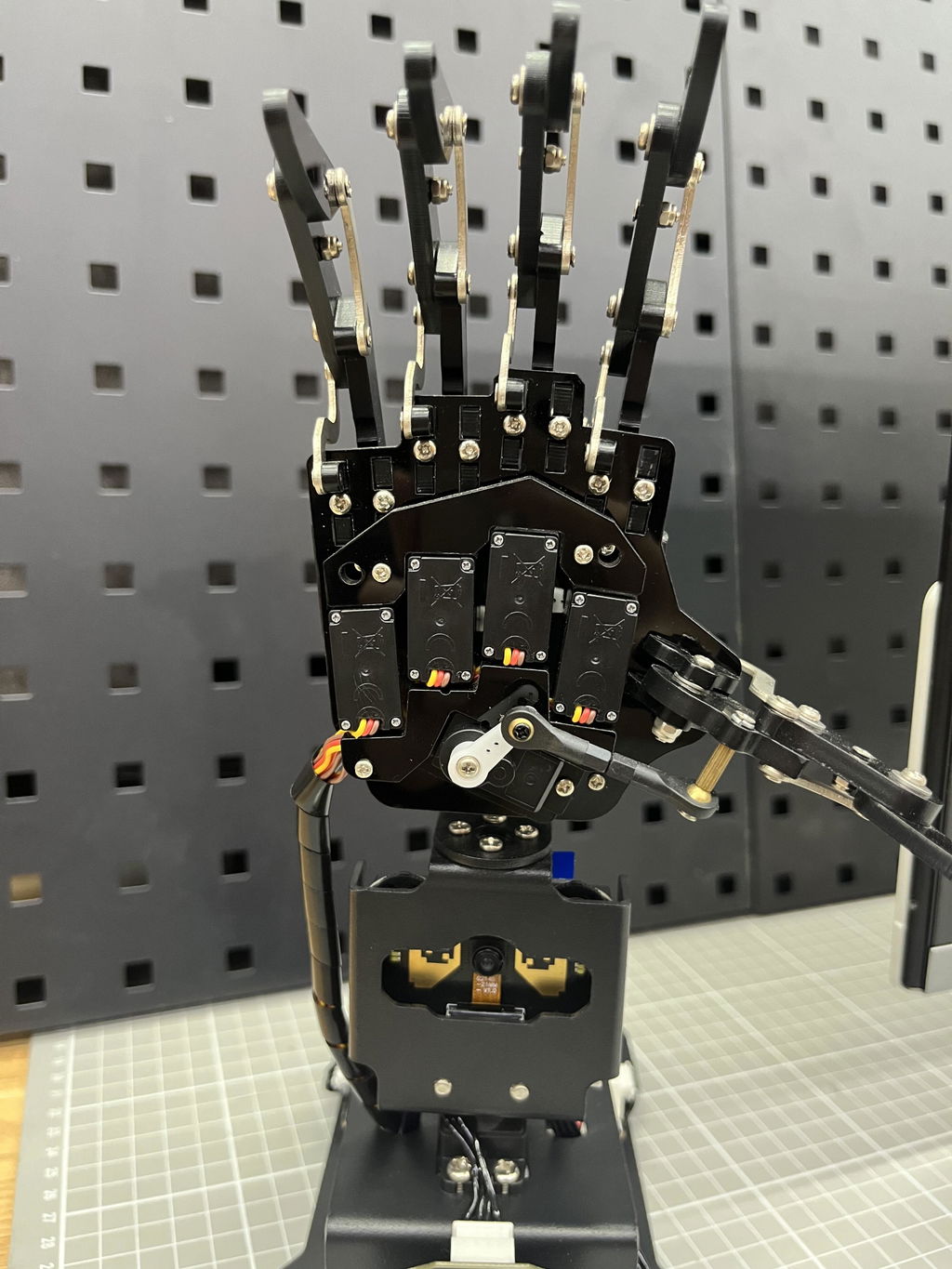

Open-Source Robotic Hand AiHand Powered by micro:bit V2 Programming Educational Robot, Support WonderCam AI Vision Module
- 【micro:bit Programming, AI Vision Robotic Hand】AiHand is an open-source robotic hand powered by micro:bit. AiHand features a high-performance WonderCam AI vision module with an integrated HD camera. This module enables various AI applications, including color recognition, tag recognition, and more.
- 【Powerful hardware, Support Secondary Development】AiHand is equipped with an AI vision module and a glowy ultrasonic sensor. AiHand has multiple expansion interfaces reserved to facilitate users to carry out secondary development of the robotic hand.
- 【One-click Training and Learning】AiHand's AI vision module is integrated with some learning algorithms, allowing it to complete diverse AI vision projects such as waste sorting and tag recognition.
- 【Various Control Methods&Makecode Programming】AiHand supports Android/ iOS APP control, micro:bit control.AiHand also supports Makecode programming.Drag and drop building block-style modules for programming,which is easy to learn.
Anti-blocking Servo
Equipped with built-in stall protection algorithm, ensuring the servo won't burn out due to blockage or collision,significantly extending its lifespan.
WonderCam Vision Module
WonderCam is a user-friendly AI vision module with eight built-in functions, which makes learning AI fun and easy to comprehend.
Glowy Ultrasonic Sensor
The luminescent ultrasonic sensor equipped with I2C interface can not only achieve sonic distance measurement, but also achieve sonic ball catching.
micro:bit Controller
micro:bit is a micro controller consisting of onboard Bluetooth, accelerometer, electronic compass, three buttons, and 5 x 5 LED dot matrix. The micro:bit comes with a built-in speaker, microphone, and capacitive touch sensor.
Button Control
Action Dance
Touch Control
Intelligent Voice Control
Tag Recognition
Using the WonderCam Al vision module, AiHand can acquire the coordinate position of tags and send the data to the controller.
Face Recognition
AiHand's WonderCam detects face and identifies if it matches according to conditions and image on its display.
Color Recognition
AiHand can identify the color of items through WonderCam, and once recognized, the item will be framed on the screen.
Waste Sorting
AiHand can recognize junk cards, broadcast the corresponding category of junk based on the recognition results, and display the corresponding dot matrix pattern.
ios/ Android App Control
Easily control the AiHand by tapping buttons or dragging sliders on the app, making it simple and intuitive toexecute actions.
micro:bit Control
AiHand is an open-source robotic hand powered by micro:bit.Consisting of onboard Bluetooth, accelerometer, electronic compass, three buttons, 5 x 5 LED dot matrix, it is only half the size of credit card and mainly used for programming education for teenagers.
Support Sensor Expansion
Expand the capabilities of AiHand with a variety of sensors and unlock endless possibilities for your project.
| Product size | 177*105*295mm |
| Product weight | about 0.73kg (main body + micro:bit + micro:bit expansion board) |
| Body material | acrylic, duralumin alloy |
| PTZ angle | 180° |
| Power supply | 7.5V 3A adapter (DC3.5*1.35) |
| Main control system | micro:bit + micro:bit expansion board |
| Software | iOS/Android mobile APP |
| Communication method | Bluetooth, USB |
| Servo model | LD-1501MG servo *1; LFD-01 servo *5 |
| Control method | APP Control (WonderCom) |
| Shipping size | 29*22*15(cm) |
| Overall weight | about 1kg (excluding packaging) |
| Item | Specification |
| Product size | 177*105*295mm |
| Product weight | about 0.73kg (main body + micro:bit + micro:bit expansion board) |
| Body material | acrylic, duralumin alloy |
| PTZ angle | 180° |
| Power supply | 7.5V 3A adapter (DC3.5*1.35) |
| Main control system | micro:bit + micro:bit expansion board |
| Software | iOS/Android mobile APP |
| Communication method | Bluetooth, USB |
| Servo model | LD-1501MG servo *1; LFD-01 servo *5 |
| Control method | APP Control (WonderCom) |
| Shipping size | 29*22*15(cm) |
| Overall weight | about 1kg (excluding packaging) |
