【Improved CPU Performance】Adopt Broadcom BCM2717 as processor. Upgrades the processor core from quad-core Cortex-A72 to quad-core Cortex-A76. Manufacturing process advances from 28nm (PI4B) to 16nm. Boosts basic frequency to 2.4GHz.
【Enhanced GPU Performance】Elevates the GPU from 600 MHz VideoCore V(6) to 800MHz VideoCore VII(7). Support OpenGL ES3.1, Vulkan 1.2.
【Enhanced Memory Speed】Upgrade from LPDDR4-3200 to LPDDR4X 4267.
【Elevated Power Supply & Card Slot】Type-C port for power supply at 5V 5A, supporting PD protocol. Support high-speed Micro SD cards of SDR104 mode.

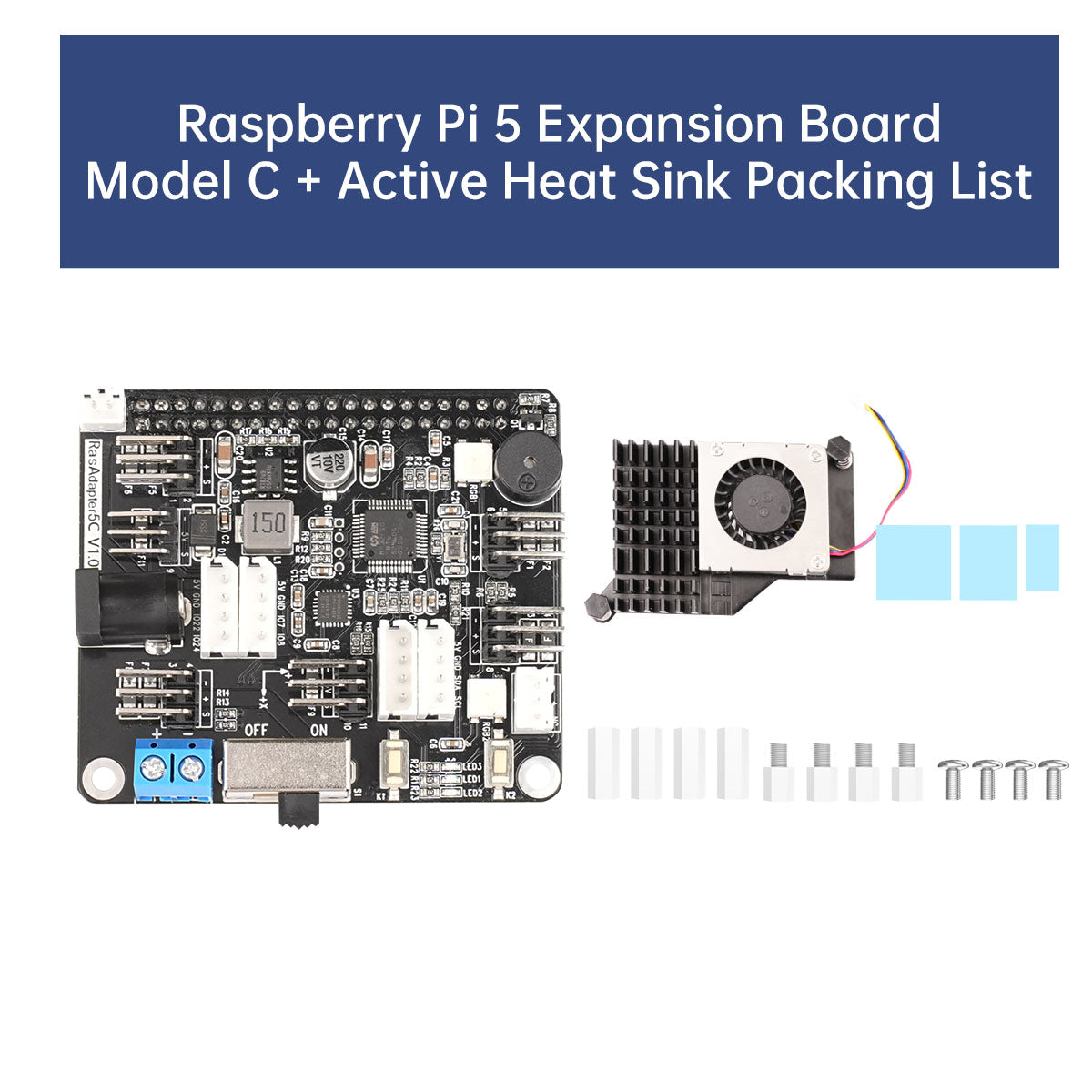

Compatible with both the latest Raspberry Pi 5 models, featuring identical interfaces. No external flat cables are required, and supports peripherals such as active heat sinks.
Leveraging a Cortex-M3 32-bit high-performance ARM chip, it communicates via the MCU serial port to independently drive peripherals such as servos and motors. This alleviates the workload of Raspberry Pi 5, significantly enhancing the processing efficiency and speed for Raspberry Pi robots.
Featuring a 6-axis attitude sensor MPU6050, it facilitates the initialization of IMU registers and printing of raw 6-axis IMU data, encompassing 3-axis accelerator and 3-axis gyroscope. The model A expansion board exclusively supports motors. Both model A and B accommodate PWM and bus servos. The Model C is tailored solely for PWM servo compatibility.
