- Hiwonder ROS2 Upgrade Pack for JetAcker, JetAuto, and JetAuto Pro Hiwonder ROS2 Upgrade Pack for JetAcker, JetAuto, and JetAuto Pro
Features
Videos
Options
Fast Delivery
Technical Support
Tutorials Provided
To know which one is right for you, ask our specialist.
- Provide ROS2 Compatible Programs
- Image Free Screw Pack
Available:
Only 999 items in stock
In stock
In stock
Out of stock
Back in stock
Price:
$89.99
Save
% $-89.99
- Description
- Accessories

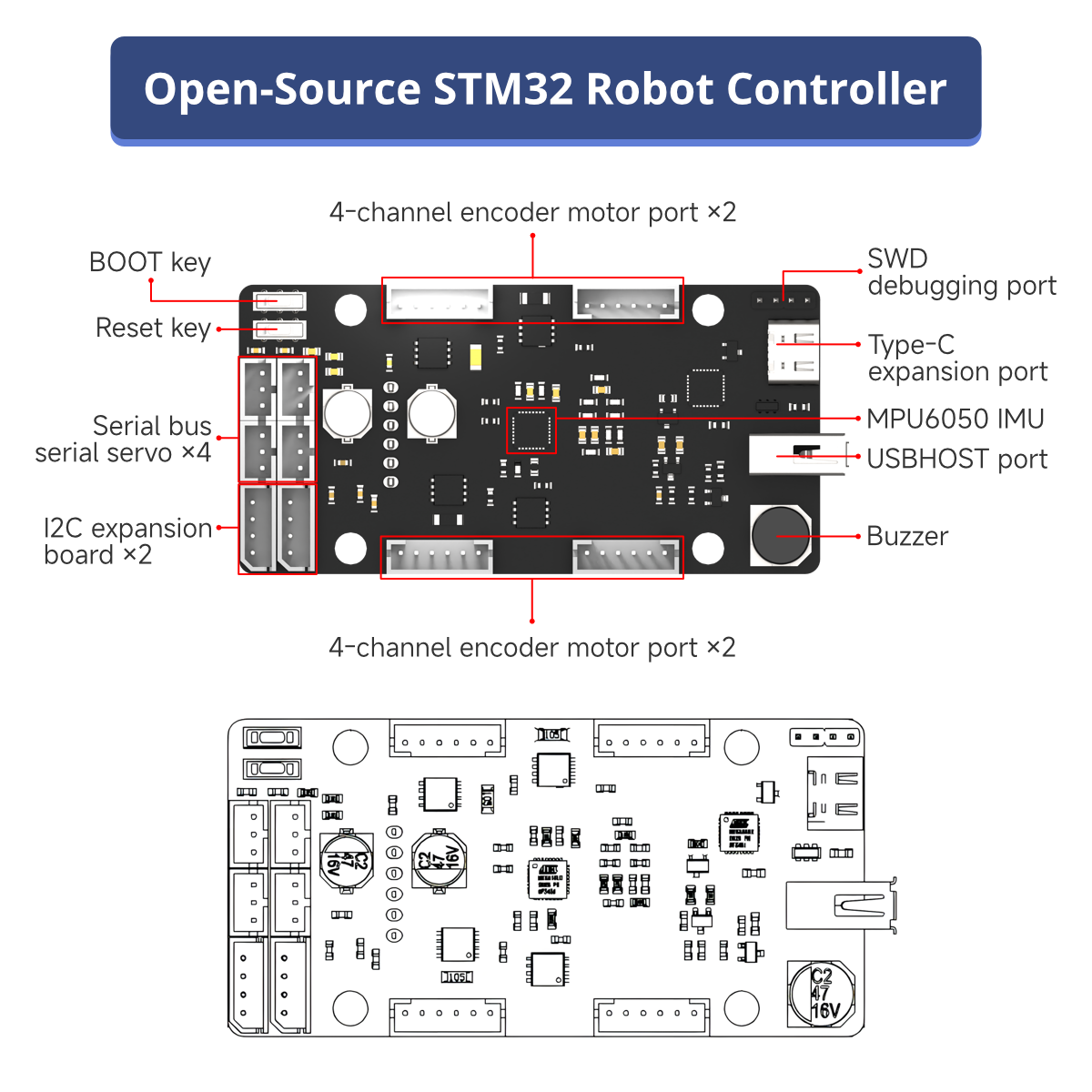

Open-Source STM32 Robot Controller
Product Parameter | |||
Controller chip | STM32F407VET6 (100PIN) | Motor driver chip | SA8339 |
IMU sensor | 3-axis accelerometer, 3-axis gyroscope | Motor port | 4-channel encoder motor port |
Servo port | 4-channel serial bus servo port | USB HOST | 1-channel USB HOST port supporting wireless handle and mouse |
USB serial port | 1-channel USB serial port (Type-C) | I2C port | 2-channel 4PIN port |
Responsive component | buzzer | Program flashing | SWD debugging interface |
Protection circuit | overheat, short circuit, overcurrent | Board layer | Industry-grade 4 layers |
Size | 78*39mm | Mounting hole spacing | 48*32mm |
Product Parameter | |
Controller chip | STM32F407VET6 (100PIN) |
Motor driver chip | SA8339 |
IMU sensor | 3-axis accelerometer, 3-axis gyroscope |
Motor port | 4-channel encoder motor port |
Servo port | 4-channel serial bus servo port |
USB HOST | 1-channel USB HOST port supporting wireless handle and mouse |
USB serial port | 1-channel USB serial port (Type-C) |
I2C port | 2-channel 4PIN port |
Responsive component | buzzer |
Program flashing | SWD debugging interface |
Protection circuit | overheat, short circuit, overcurrent |
Board layer | Industry-grade 4 layers |
Size | 78*39mm |
Mounting hole spacing | 48*32mm |

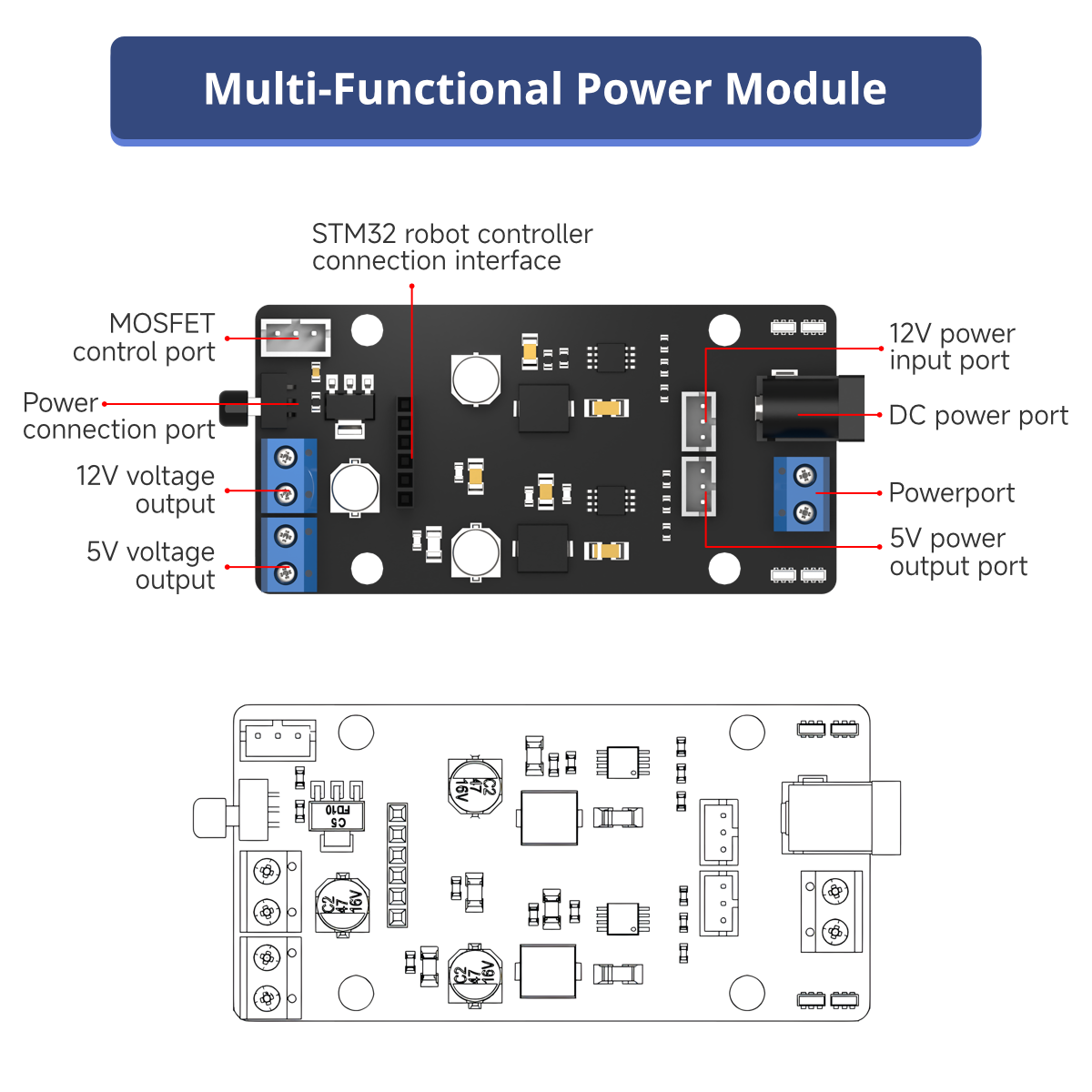

Multi-Functional Power Module
Product Parameter | |||
Switch | push-button switch | Power input | 6-14V wide voltage interface |
Power output | 25 channels of 5V power outputs, 2 channels of 12V power outputs | Board layer | Industrial-grade 4-layer board |
Mounting hole spacing | 48*32mm | Size | 78*39mm |
Product Parameter | |
Switch | push-button switch |
Power input | 6-14V wide voltage interface |
Power output | 25 channels of 5V power outputs, 2 channels of 12V power outputs |
Board layer | Industrial-grade 4-layer board |
Mounting hole spacing | 48*32mm |
Size | 78*39mm |

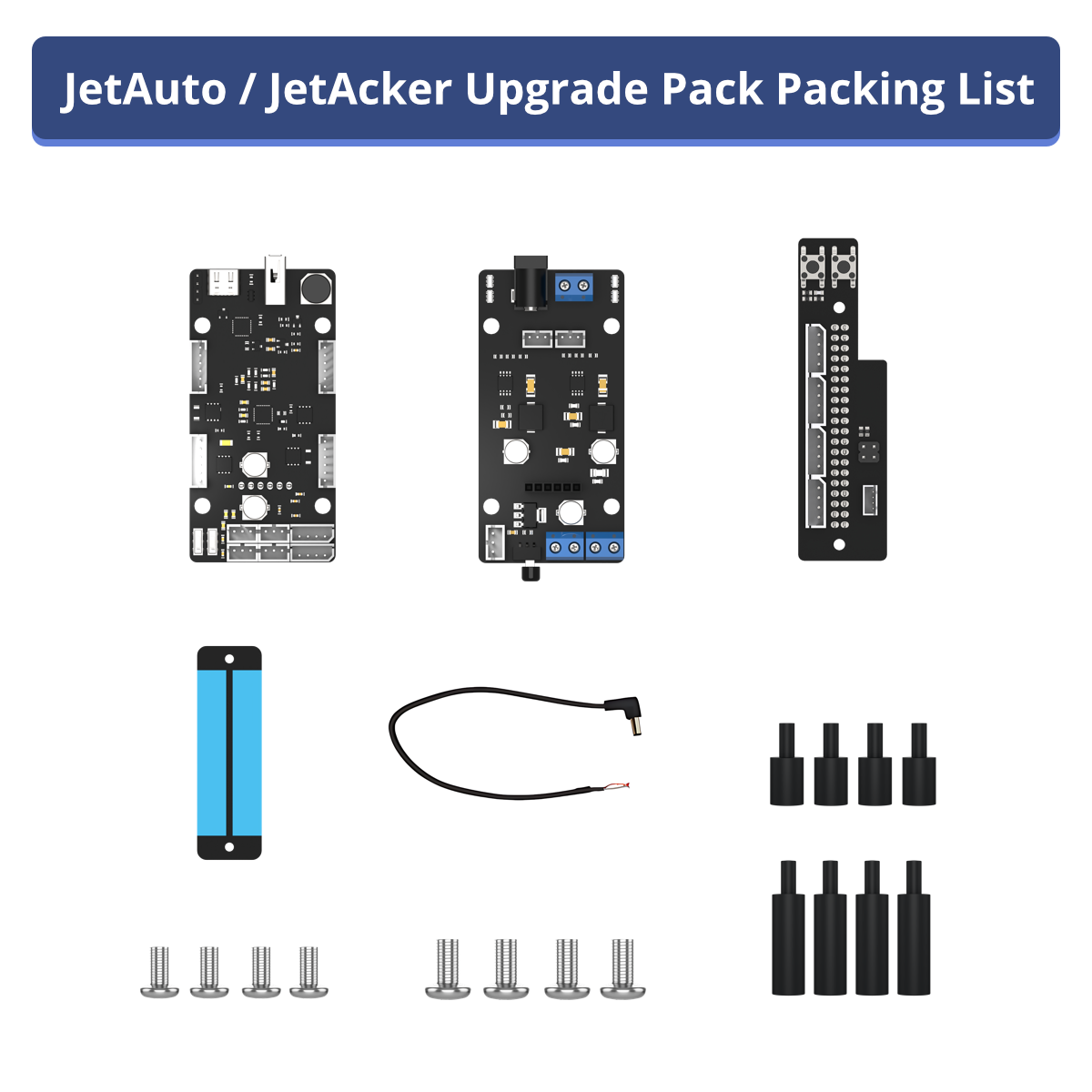

JetAuto/ JetAcker Upgrade Pack Packing List
JetAuto Pro Upgrade Pack Packing List
