Hiwonder

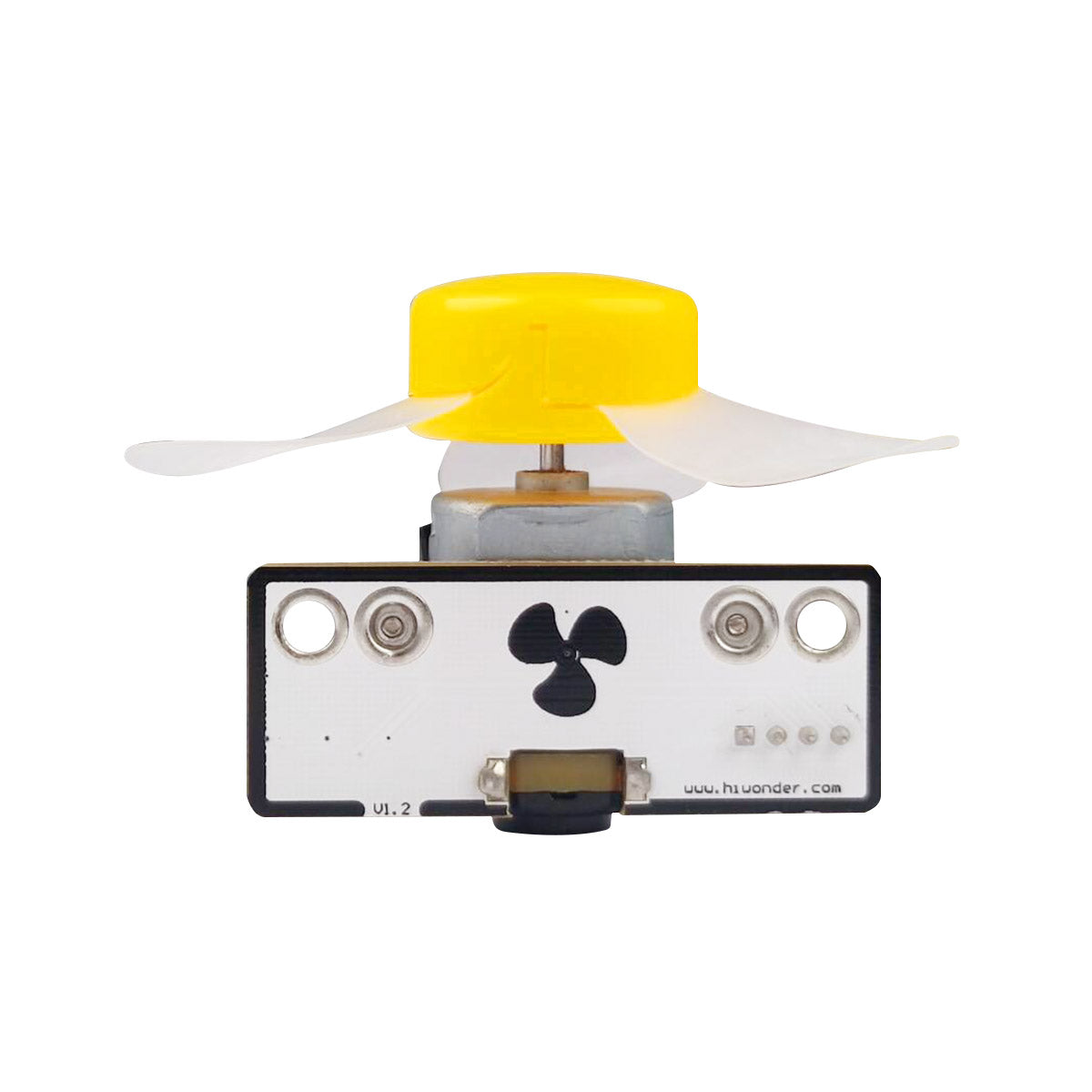

Fan Module Hiwonder Robot Sensor Compatible with Arduino/ Raspberry Pi/ Jetson Nano/ micro:bit
Product SKU: HW2019215
- Working voltage: DC 5V
- Max working current: 125mA
- Size: 48mm×48mm
- 4 Pin wire port. Connecting wire is provided. Easy to connect
- The holes are compatible with LEGO bricks
Available:
Only 1000 items in stock
In stock
In stock
Out of stock
Back in stock
$4.99
Product Description
Featuring adjustable speed, Hiwonder fan module is a component that requires no additional motor drive board. It can be combined with temperature sensor to make an intelligent fan device. The holes on the sensor are all compatible with Lego for more creative DIY designs.
Features
- Working voltage: 5V
- Port type: 5264-4AW
- Maximum working current: 125mA
- Size: 48mm × 48mm

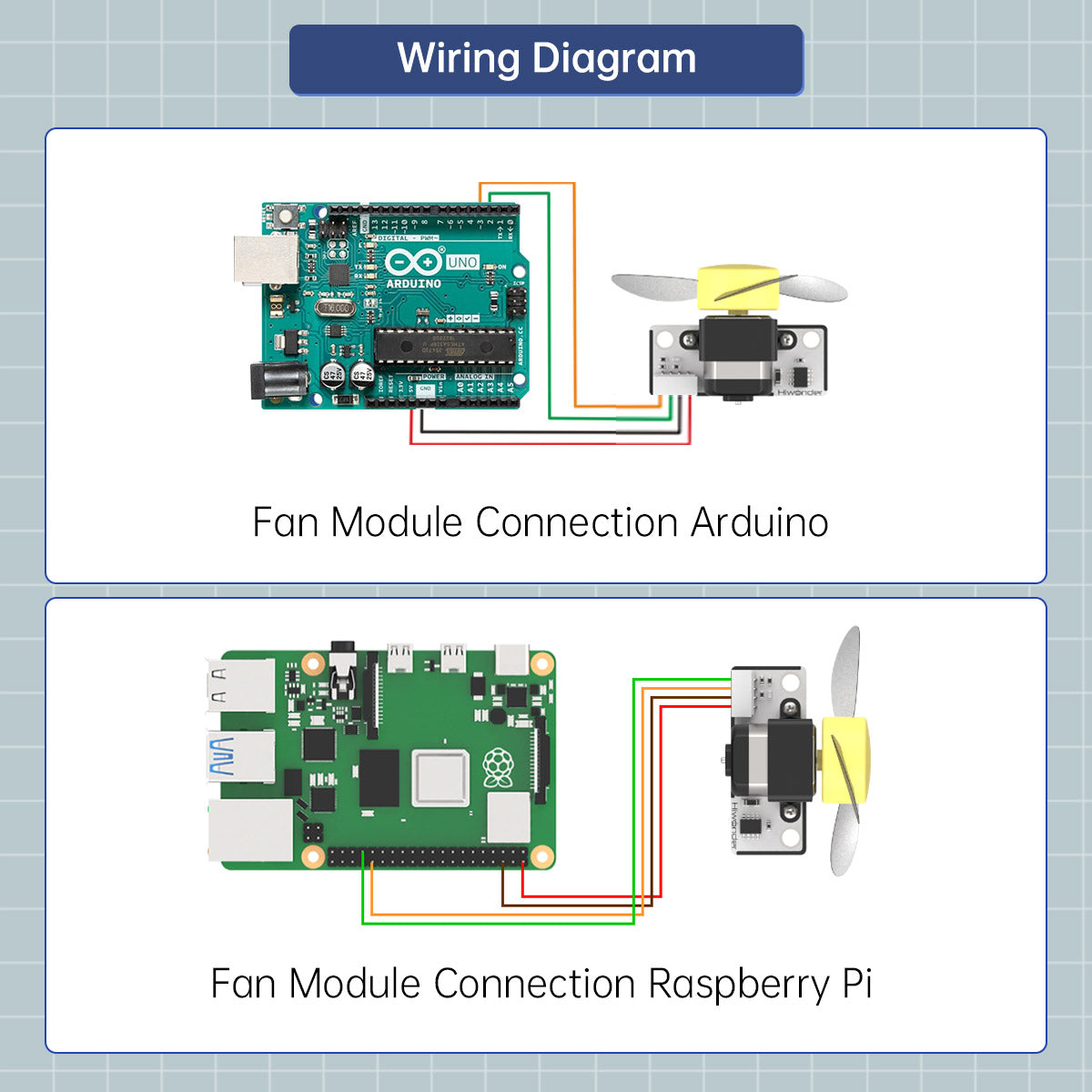

Arduino Connection

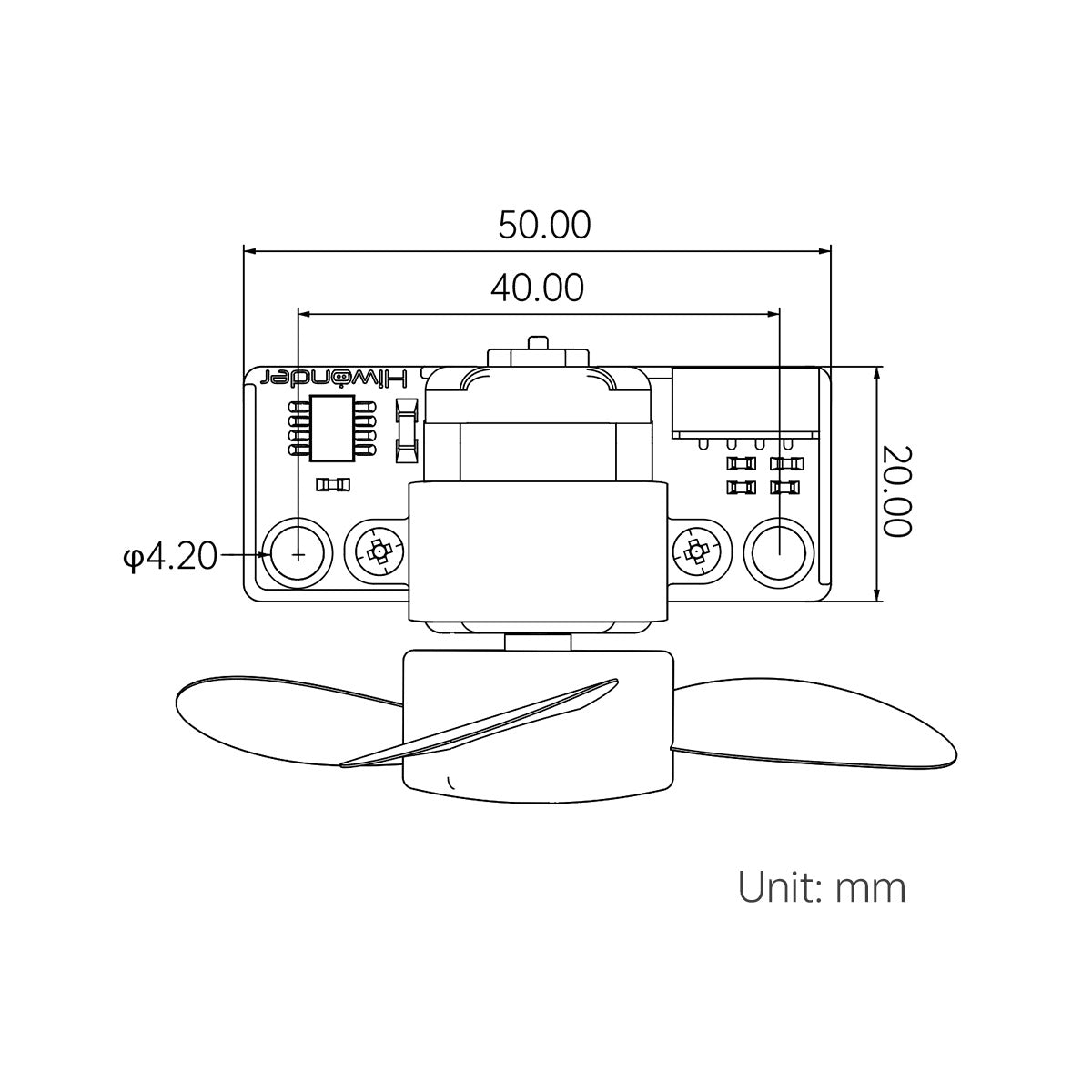

Dimension Drawing

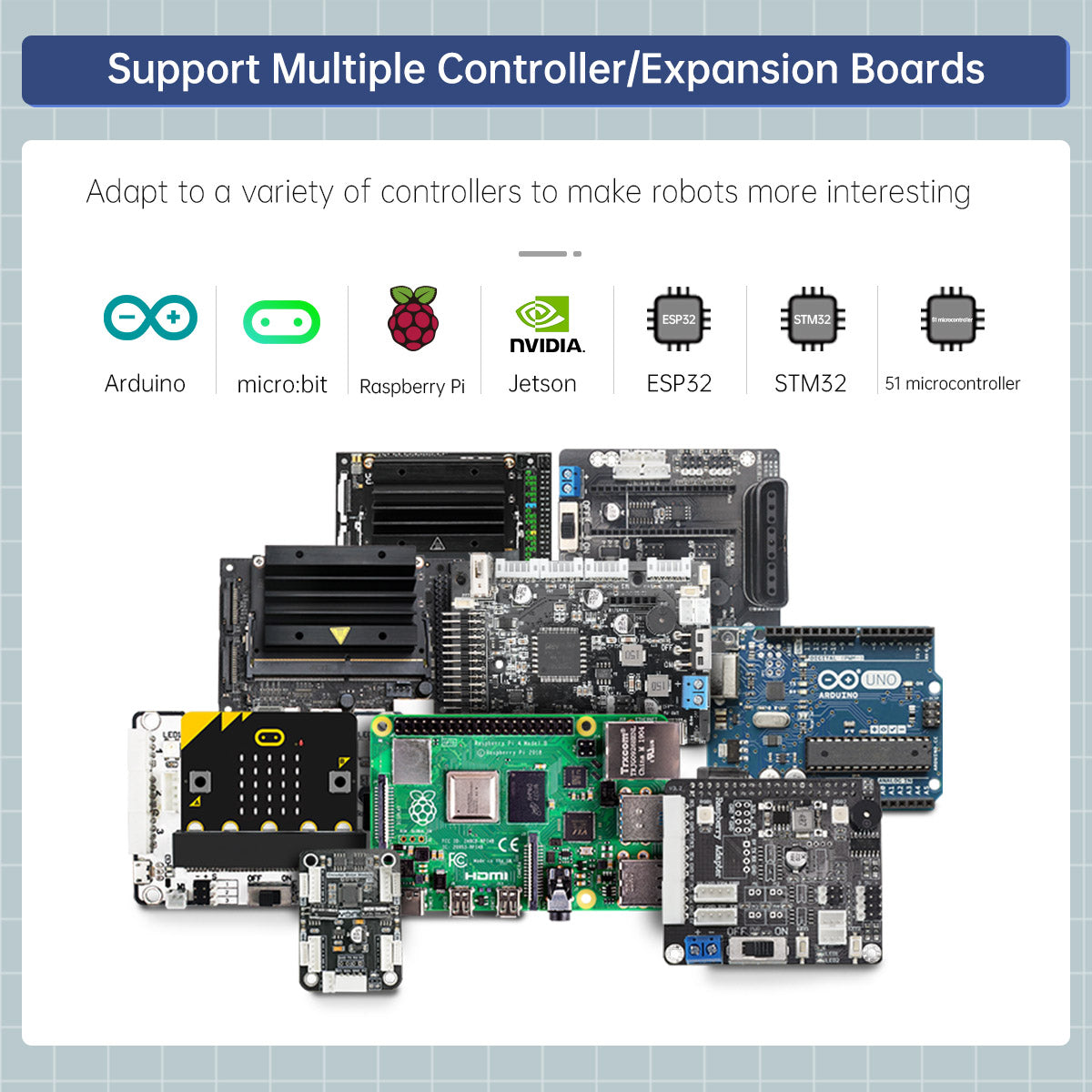

Compatible with micro:bit expansion board
Compatible with Arduino expansion board
Compatible with Raspberry Pi expansion board
Compatible with JETSON NANO expansion board
Packing List
1*Fan module
1*4PIN wire (20cm)
1*4PIN wire (20cm)
| Item | Specification |
| Working voltage | DC 5V |
| Port type | 5264-4AW |
| Non-working current | 3mA |
| Maximum working current | 125mA |
| Size | 50 × 20mm |
| PWR | lighting up after powering |
