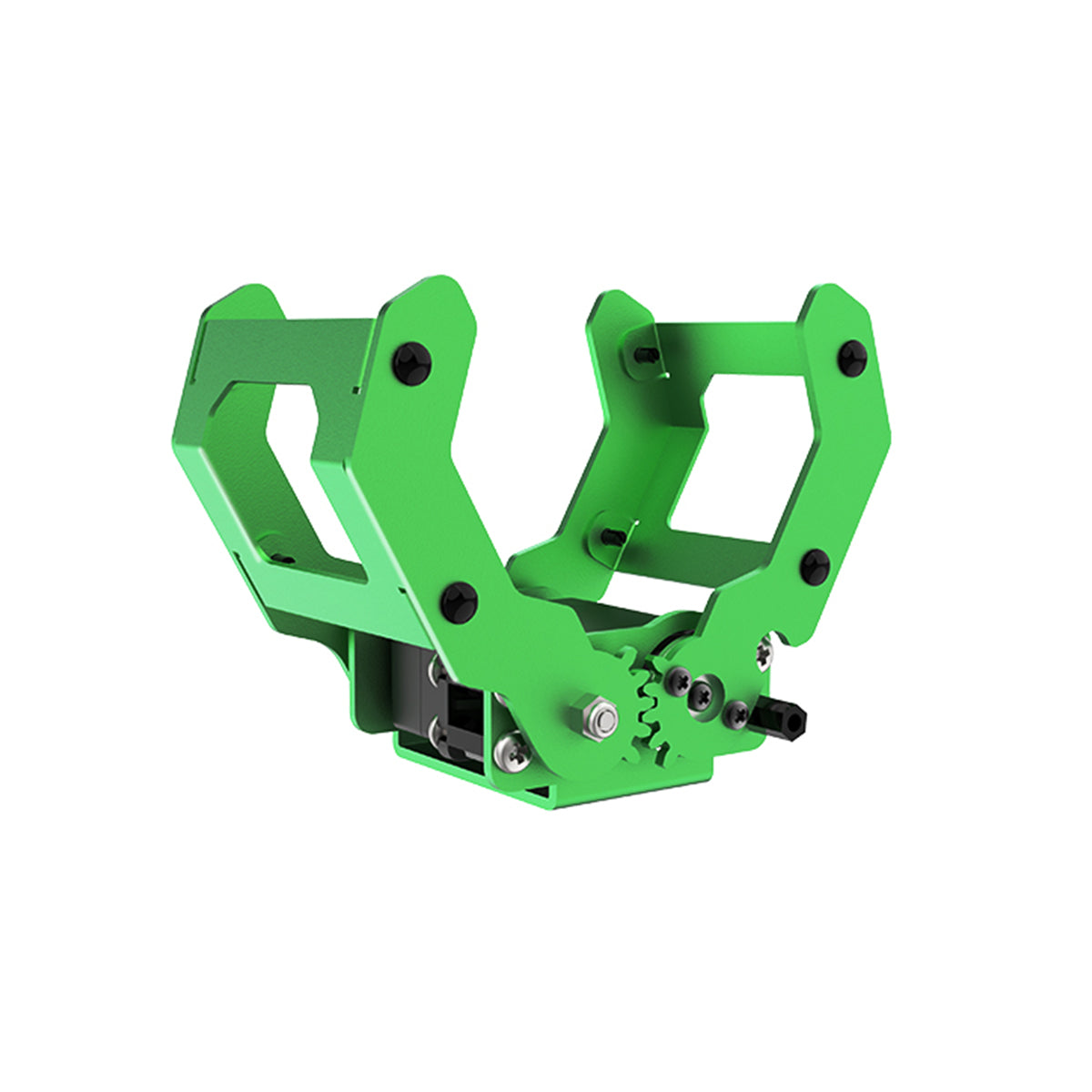

Hiwonder Green Robot Gripper Aluminium Alloy Flexible Opening and Closing for Robotic Arm
Product SKU: 20070002
- Applicable to robotic arm
- Loaded with burn-resistant anti-blocking servo
- Big in size for picking objects of different shapes stably
- High quality aluminium alloy material contributes to long service life
Other people want this. 6 people have this in their carts right now.
Available:
Only 9992 items in stock
In stock
In stock
Out of stock
Back in stock
$39.99
Save
% $-39.99
Features
- Big in size for simpler and more stable picking
- Reserve multiple M3 holes realizing DIY expansion
- Made of hard aluminum alloy. More lightweight and durable
- Loaded with burn-resistant anti-blocking servo of high torque getting access to firmer picking and easier control
- Parallel and symmetrical picking design making it convenient to control where to pick, and more adaptable to objects of different size
Gripper parameter
Servo parameter
Servo wire interface detail
Applicable to JetMax
Digital servo tester
Packing List
1 * Green robot gripper with wire
1 * Screw pack
1 * Screw pack
| Item | Specification |
| Gripper parameter | Material:hard aluminum alloy Maximun opening:132mm Weight(with servo):136g Dimension:88 × 57 × 60(mm) |
| Servo parameter | name:LDX-335MG digital servo Protection:anti-blocking Anti-blocking current:1.3A Weight:64g Rotation accuracy:0.3º Applicable to: mechanical gripper Anti-blocking torque:8KG.cm 7.4V Control method:PWM pulse width control Pulse width range: 500 2500us, corresponding to 0-180° Rotation speed:0.39sec/ 60°7.4V Dimension: 54.5x 20 x 47.5mm Working voltage:6-8.4V Gear: metal gear Servo wire length: 30cm Rotation range: 0-180° Empty load current: 100mA |
| Packing List | 1 * Green robot gripper with wire 1 * Screw pack |
