Hiwonder Mini Carrier Board for Jetson Orin Nano/NX, Ultra-Compact Size, for ROS2 Drones & Desktop Robots
【Ultra-Compact & Lightweight】The board's small-volume design significantly reduces space occupancy, tailored specifically for compact platforms like drones and mini-robots with stringent size and weight constraints.
【NVIDIA Module Compatibility】Fully compatible with official NVIDIA Jetson Orin Nano and Orin NX modules. Interchangeable core configurations allow you to scale edge AI computing power as needed.
【Versatile Connectivity】Features standard CSI camera ports, high-speed USB 3.0, an M.2 Wi-Fi slot, and a standard 40-pin GPIO array, offering plug-and-play integration for vision systems, LiDAR, and diverse peripherals.
【Clean & Stable Power】Optimized boot logic enables true headless operation without needing an HDMI dummy plug, ensuring pristine and stable power delivery even under heavy processing loads.
【Blazing-Fast Storage】Pre-flashed for instant startup, the 128GB SSD supercharges system response, leaving plenty of room to run complex AI models and store massive development logs.
Product Description
Designed by Hiwonder for edge AI and robotics, the NVIDIA Jetson Orin Nano/NX SUPER Mini carrier board kit features flexible switching between the two core modules. Its small-volume design cuts space occupancy for compact platforms like drones and robotic arms. Integrated with CSI, USB 3.0, M.2 Wi-Fi, a 40-pin GPIO header, and a 128GB SSD, it allows true headless operation without an HDMI dummy plug. Supporting full-stack ROS2 and large AI model inference, this kit streamlines the building of intelligent robots, from perception to execution.
Full-Stack ROS2 Development
Fully supports AI vision, large-model embodied AI, and TOF LiDAR interfacing, covering the entire development loop from cloud perception to local execution.
Dummy-Plug-Free Booting
Optimized boot logic allows standalone operation without an HDMI dummy plug, decluttering low-level wiring. Ensures clean power and stable performance even under heavy loads.

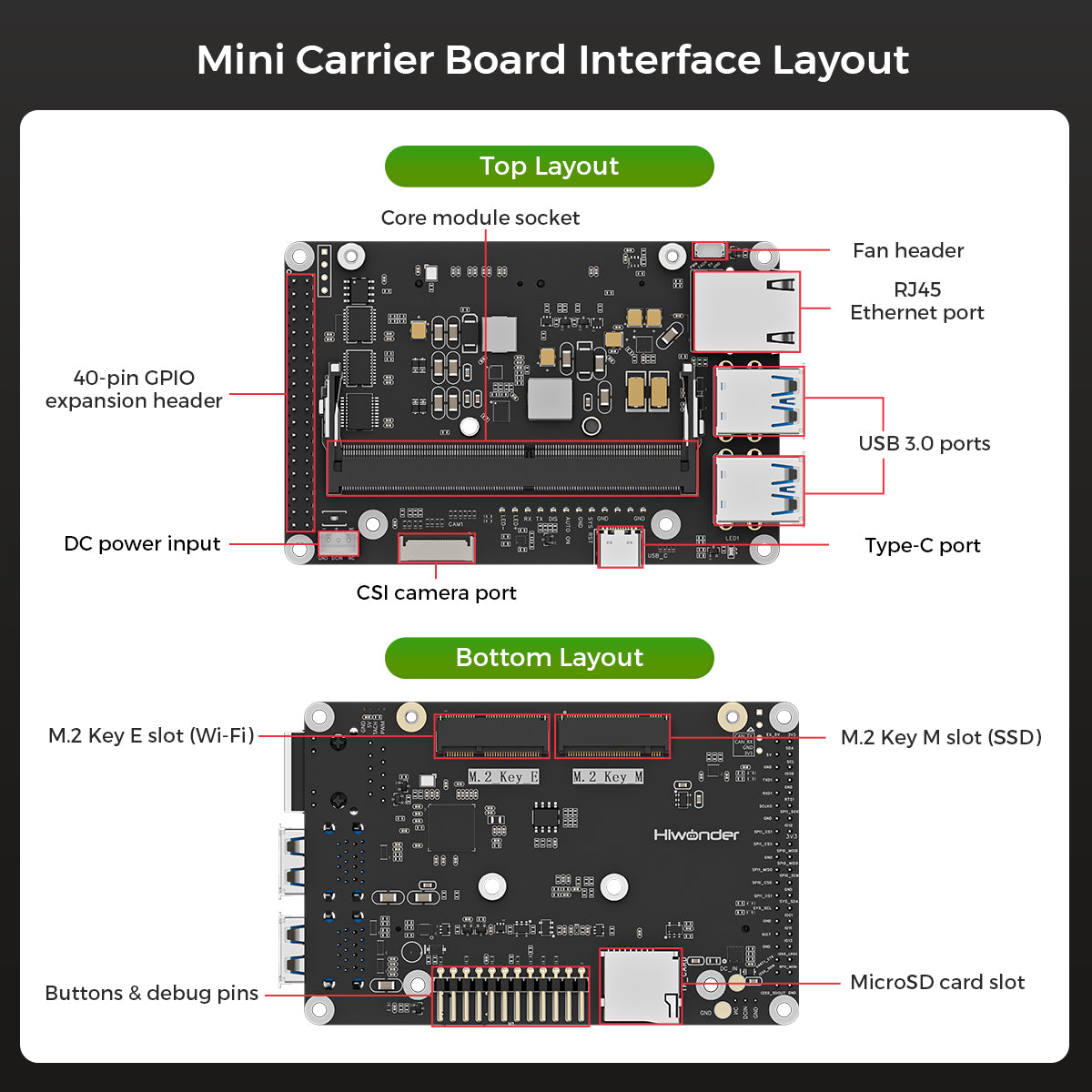

Mini Carrier Board Interface Layout
No dummy plug needed—this board delivers clean, stable power under heavy loads. Equipped with a CSI camera port and high-speed USB 3.0, it also accommodates an M.2 Wi-Fi card with a hidden antenna. A standard 40-pin GPIO header offers ample expansion for secondary development.

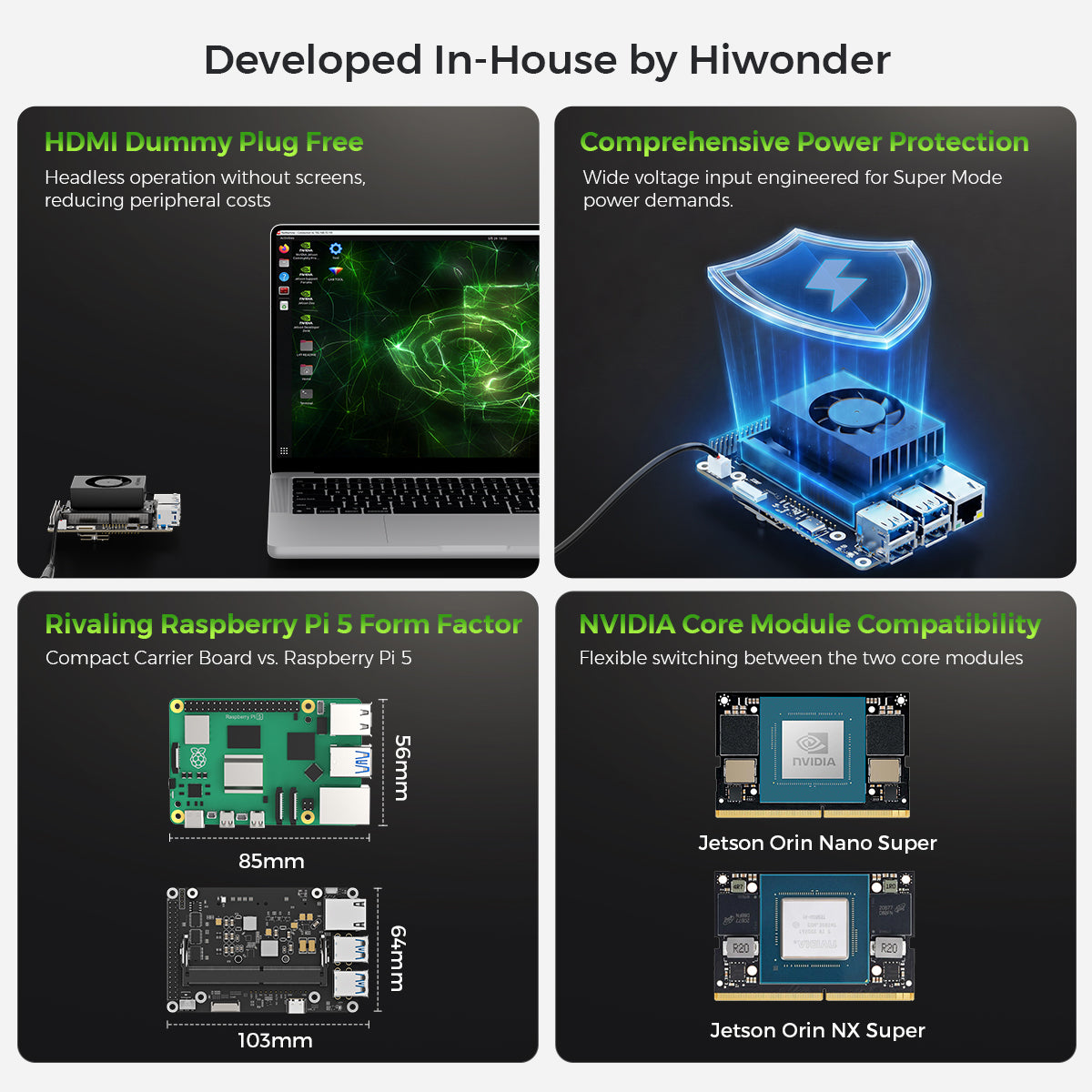

Hiwonder's compact carrier board dramatically slashes hardware footprint, helping you build smaller intelligent robots. Fully compatible with official NVIDIA Jetson Orin Nano and Orin NX modules, it supports seamless swapping.

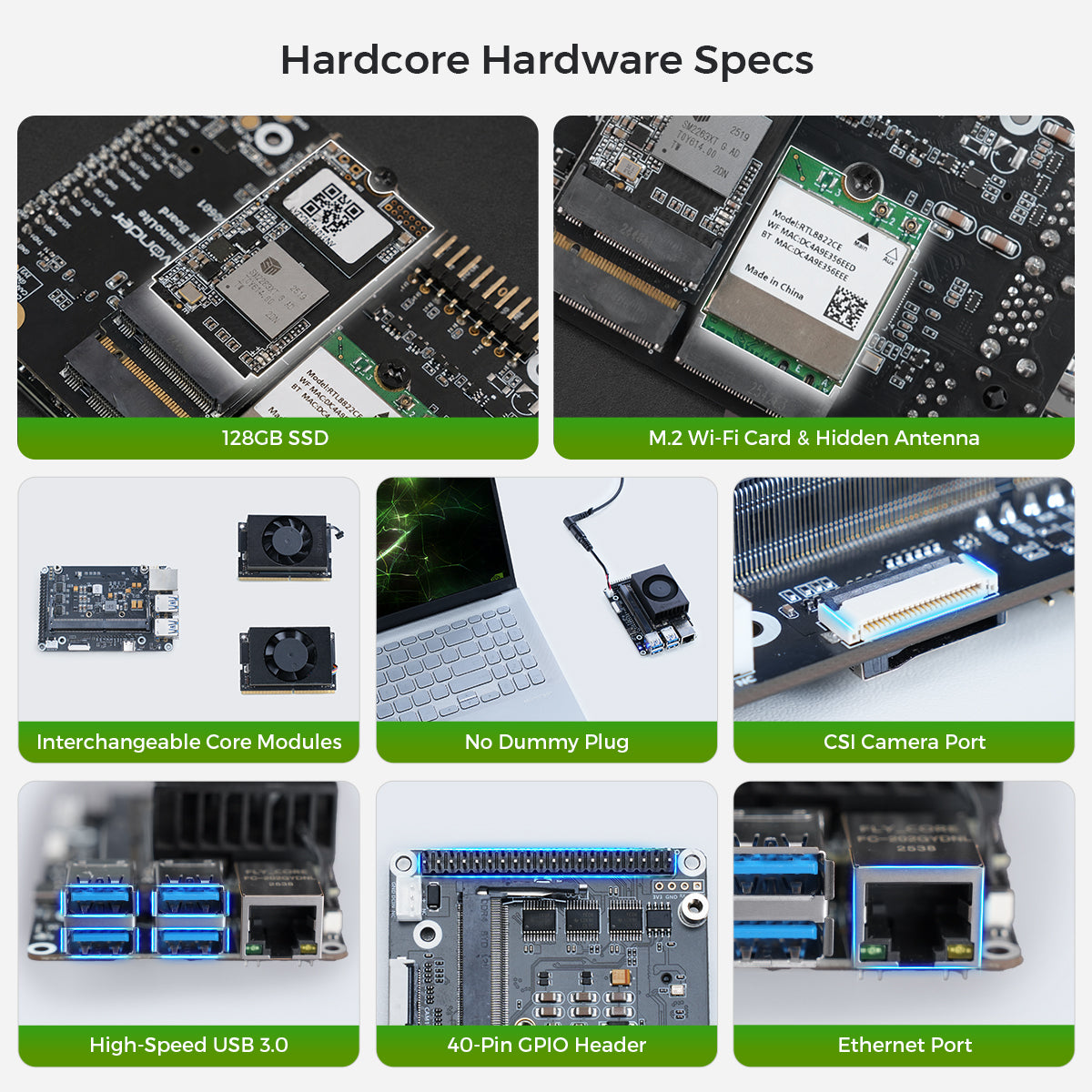

Hardware Features
128GB SSD
Pre-flashed with the OS image, this high-performance SSD boosts system responsiveness while effortlessly hosting complex AI models and massive development logs.
Seamless Module Swapping
Natively compatible with Orin NX and Orin Nano, this board enables seamless core swapping and compute scaling to drastically cut R&D cycles and hardware iteration costs.
CSI Camera Port
This standard HD CSI port supports a wide range of cameras, delivering high-frame-rate and low-latency feeds tailored for edge AI vision development.
High-Speed USB 3.0
High-speed USB 3.0 ports allow you to easily connect LiDAR and depth cameras, ensuring rapid, lag-free data exchange across multiple sources.
M.2 Wi-Fi & Hidden Antenna
The optional hidden Wi-Fi module and antenna maintain a sleek, low-profile layout while completing the wireless link for efficient remote tuning.
40-Pin GPIO Header
The standard 40-pin header exposes low-level communications and provides physical connections for diverse sensors, leaving ample room for custom expansion.
Ethernet Port
A built-in Ethernet port resists electromagnetic interference in complex environments, delivering rock-solid connectivity for multi-agent networking, log offloads, and system flashing.
Acrylic Protective Case
The optional acrylic protective case features precise cutouts for all interfaces, delivering robust protection for a safer, more convenient workflow.
Full-Stack ROS2 Development
Versatile Peripheral Expansion

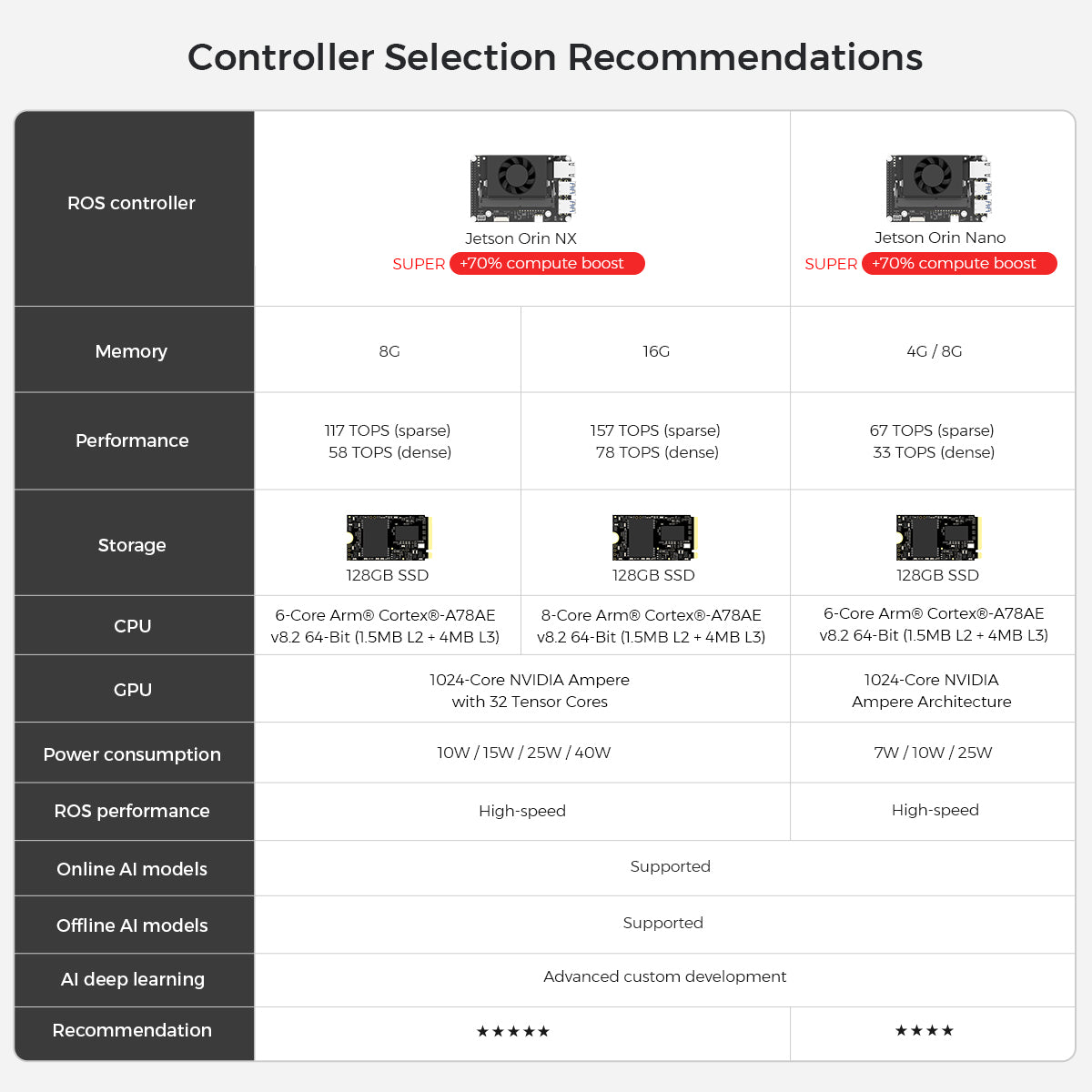

Recommended Low-Level Controllers
Recommended AI Vision Peripherals
Recommended Large AI Model Peripherals
Recommended Navigation & Obstacle Avoidance Peripherals

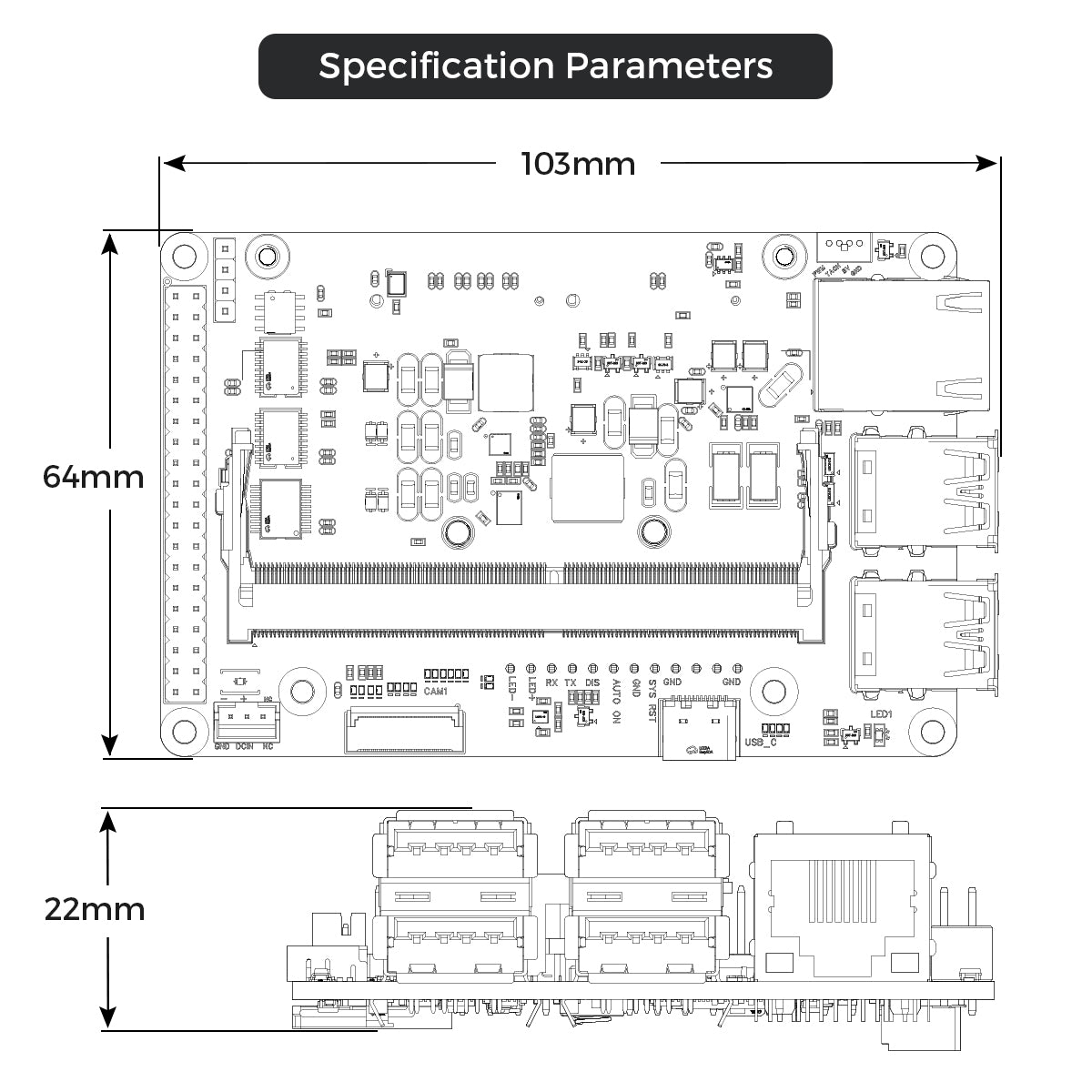

Specification Parameters
| Product Parameters | |
| Product name | Jetson series Mini carrier board |
| Dimensions | 103 x 64 x 22 mm |
| Weight | 77 g |
| Compatible modules | Jetson Orin Nano, Jetson Orin NX |
| Input voltage | 5–19V DC wide voltage input, fully meets SUPER board power demands |
| Protection features | Reverse polarity, under-voltage, over-voltage, and over-current protection |
| Onboard ports | 1x 22-pin MIPI CSI camera port, 4x USB 3.0 Type-A ports, 1x Gigabit RJ45 Ethernet port, 1x smart fan header, 1x Type-C power input port |
| Onboard resources | 40-pin standard GPIO expansion header, M.2 Key E slot (Wi-Fi), M.2 Key M slot (SSD), MicroSD card slot, buttons & debug pins |

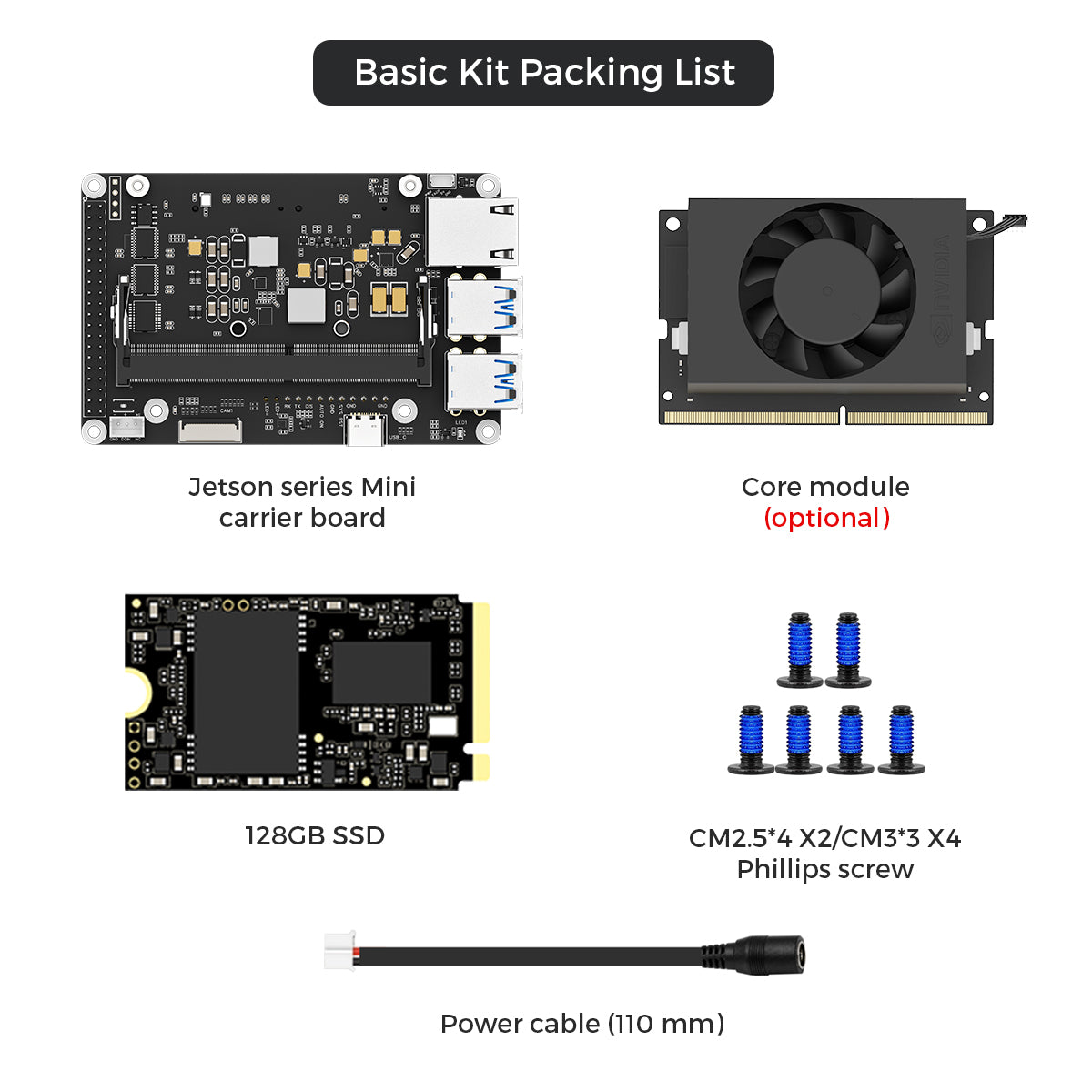

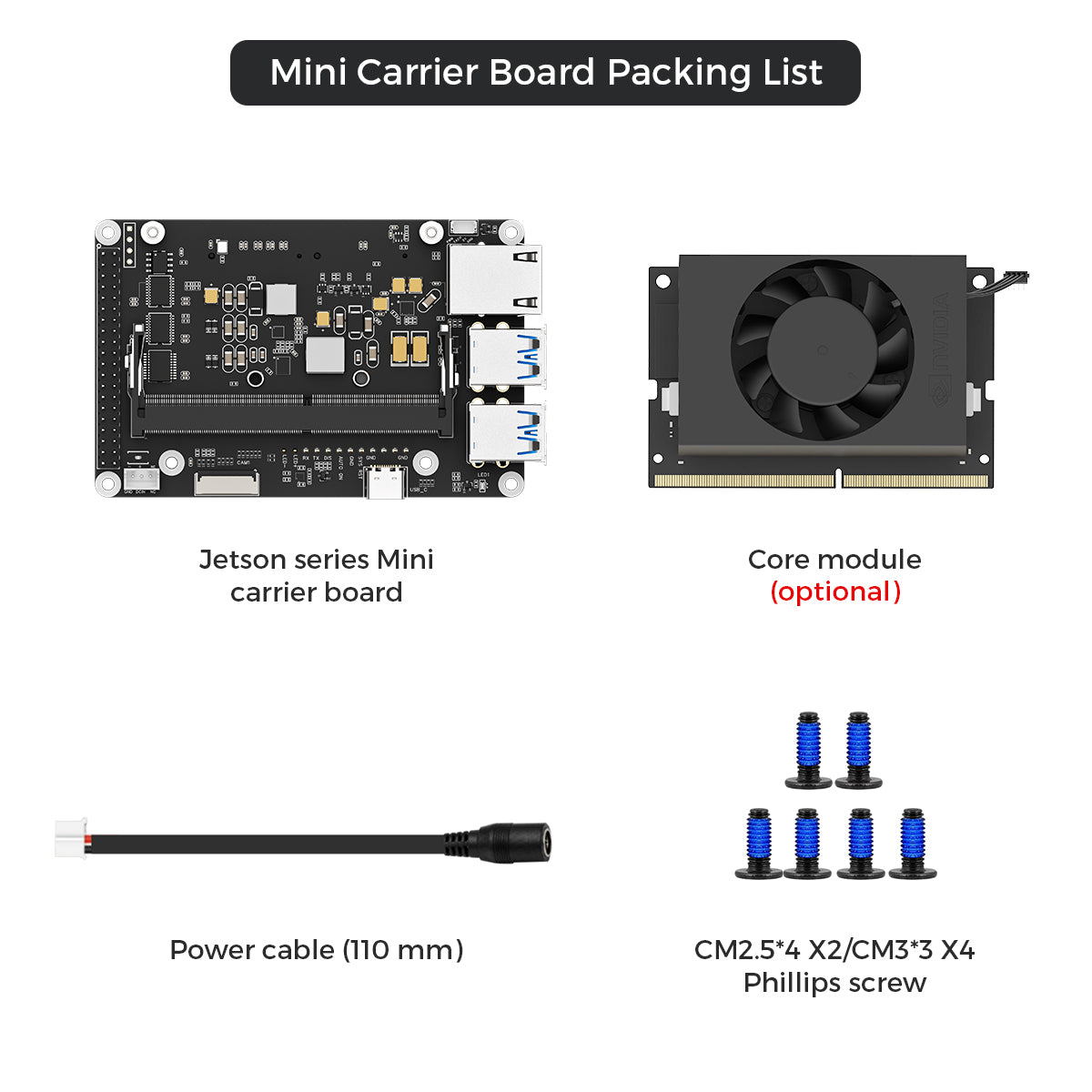

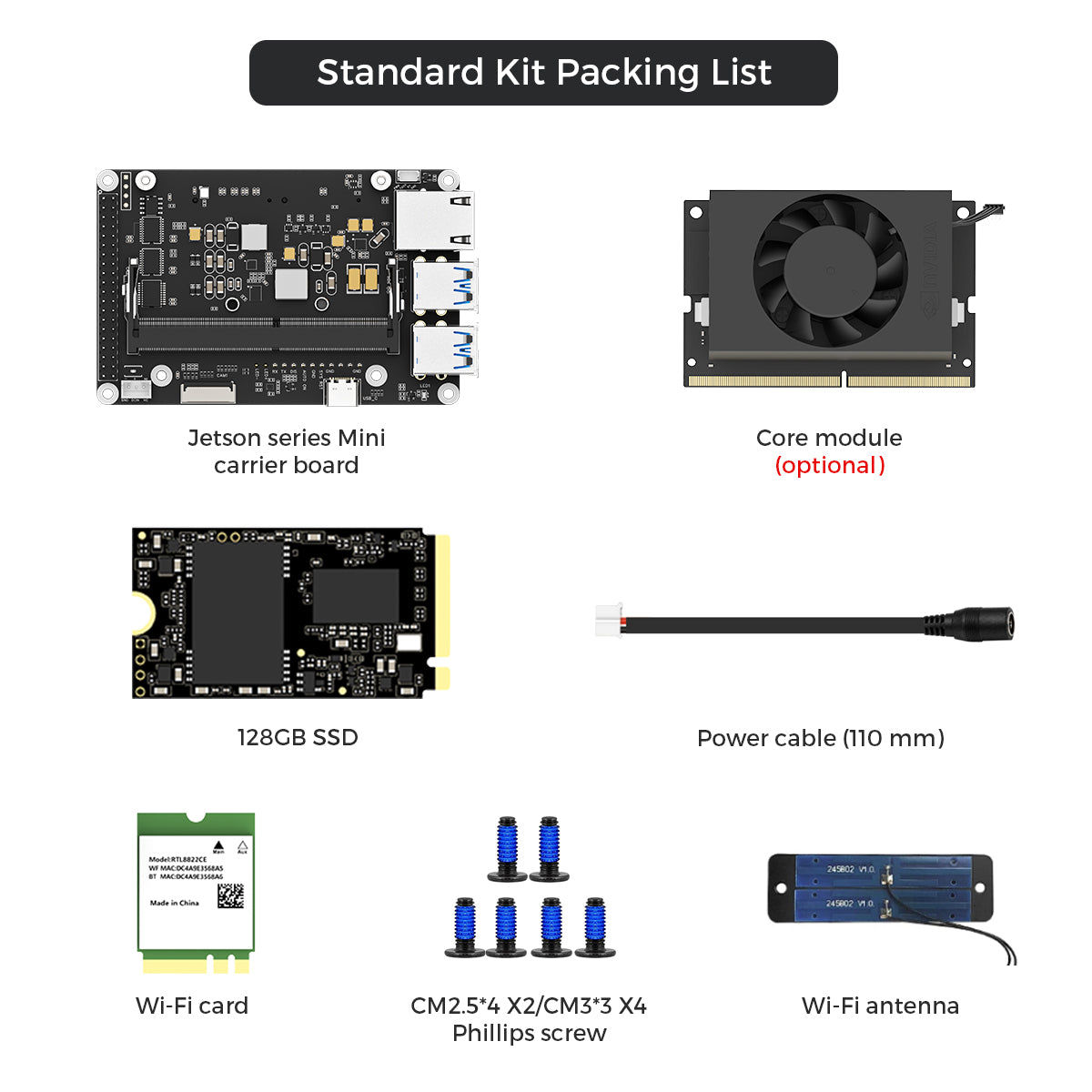

Packing List
| Product name | Jetson series Mini carrier board |
| Dimensions | 103 x 64 x 22 mm |
| Weight | 77 g |
| Compatible modules | Jetson Orin Nano, Jetson Orin NX |
| Input voltage | 5–19V DC wide voltage input, fully meets SUPER board power demands |
| Protection features | Reverse polarity, under-voltage, over-voltage, and over-current protection |
| Onboard ports | 1x 22-pin MIPI CSI camera port, 4x USB 3.0 Type-A ports, 1x Gigabit RJ45 Ethernet port, 1x smart fan header, 1x Type-C power input port |
| Onboard resources | 40-pin standard GPIO expansion header, M.2 Key E slot (Wi-Fi), M.2 Key M slot (SSD), MicroSD card slot, buttons & debug pins |
