Hiwonder
USB3.0 HUB Extender Compatible with Ros Robot/Car Raspberry Pi Jetson Series Boards
Product SKU: 19010125
- USB3.0 high-speed transmission up to 5120Mbps
- No driver required, plug and play
- Compatible with Win7/8/10, Linux, MacOS and Ubuntu
- Applicable to ROS robot/car, Raspberry Pi and Jetson series boards
- Support various peripherals connection
Available:
Only 991 items in stock
In stock
In stock
Out of stock
Back in stock
$7.99
Save
% $-7.99
Product Description
USB3.0 HUB extender aims to solve the inadequate ports on controller and insufficient power supply due to peripheral connections. It uses USB3.0 communication interface and four USB ports extended by HUB chip to ensure high-speed data transmission of the interface.
In addition to USB-A standard data interface for power supply, it also support 5V(micro-USB), 9-24V(DC interface/XH2.54 socket) wide voltage external power supply to maintain the normal power supply of peripherals. Support ROS robot/car, Raspberry Pi and Jetson series expansion boards and compatible with Win7/8/10, Linux, Ubuntu, MacOS system, no driver required, plug and play.
In addition to USB-A standard data interface for power supply, it also support 5V(micro-USB), 9-24V(DC interface/XH2.54 socket) wide voltage external power supply to maintain the normal power supply of peripherals. Support ROS robot/car, Raspberry Pi and Jetson series expansion boards and compatible with Win7/8/10, Linux, Ubuntu, MacOS system, no driver required, plug and play.
USB3.0 HUB extender aims to solve the inadequate ports on controller and insufficient power supply due to peripheral connections. It uses USB3.0 communication interface and four USB ports extended by HUB chip to ensure high-speed data transmission of the interface.
In addition to USB-A standard data interface for power supply, it also support 5V(micro-USB), 9-24V(DC interface/XH2.54 socket) wide voltage external power supply to maintain the normal power supply of peripherals. Support ROS robot/car, Raspberry Pi and Jetson series expansion boards and compatible with Win7/8/10, Linux, Ubuntu, MacOS system, no driver required, plug and play.
In addition to USB-A standard data interface for power supply, it also support 5V(micro-USB), 9-24V(DC interface/XH2.54 socket) wide voltage external power supply to maintain the normal power supply of peripherals. Support ROS robot/car, Raspberry Pi and Jetson series expansion boards and compatible with Win7/8/10, Linux, Ubuntu, MacOS system, no driver required, plug and play.

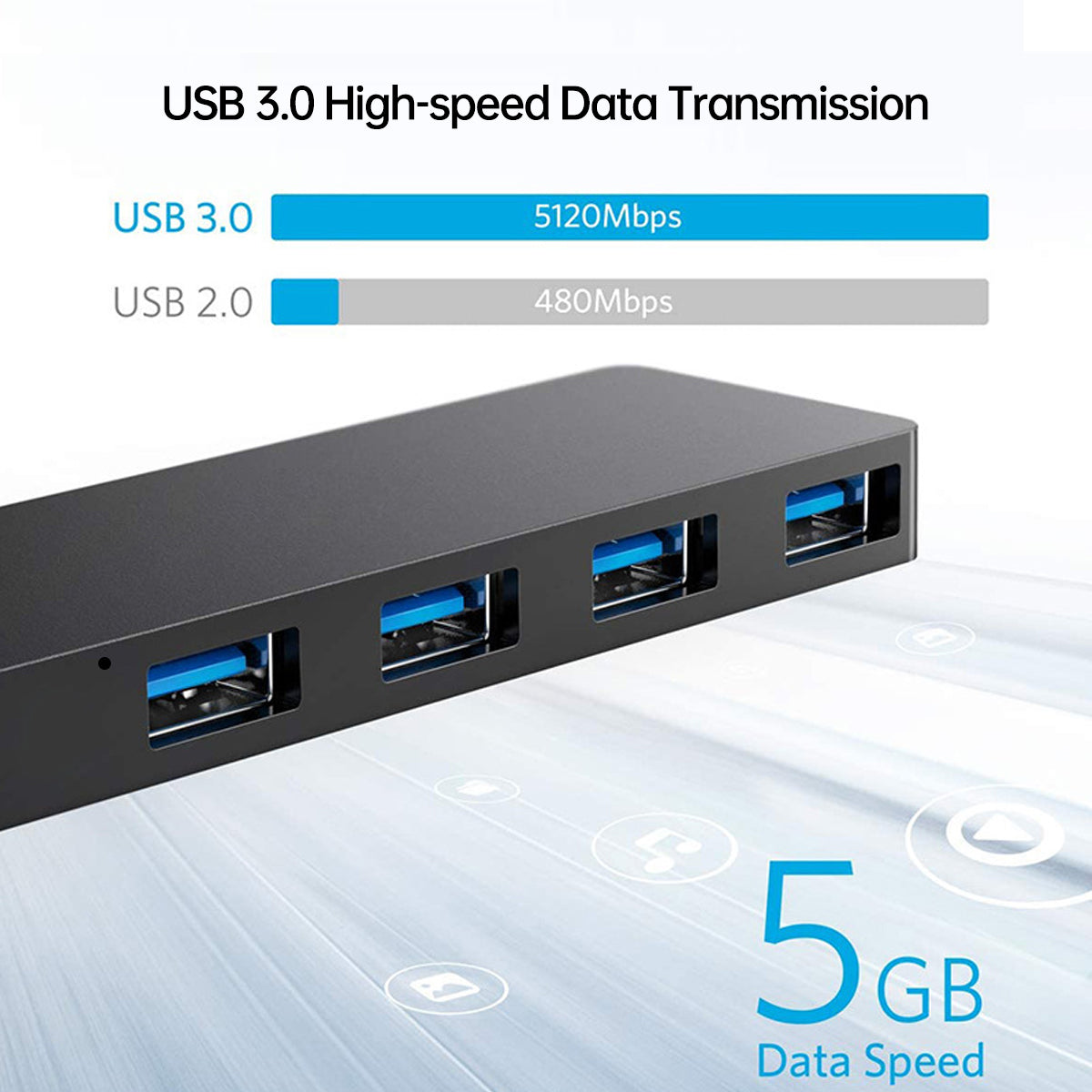

USB 3.0 High-speed Data Transmission
The specific data are related to the performance of the equipment used. The USB3.0 interface is compatible with USN2.0 and USB1.1.
One to Four Data Extension
The expansion of four ports greatly improves efficiency. When used with computer, it can connect with peripherals such as keyboard, mouse, camera and U disk. When used with robots, it can connect with Lidar, Bluetooth receiver, depth camera, etc.
USB 3.0 High-speed Data Transmission
The specific data are related to the performance of the equipment used. The USB3.0 interface is compatible with USN2.0 and USB1.1.
One to Four Data Extension
The expansion of four ports greatly improves efficiency. When used with computer, it can connect with peripherals such as keyboard, mouse, camera and U disk. When used with robots, it can connect with Lidar, Bluetooth receiver, depth camera, etc.

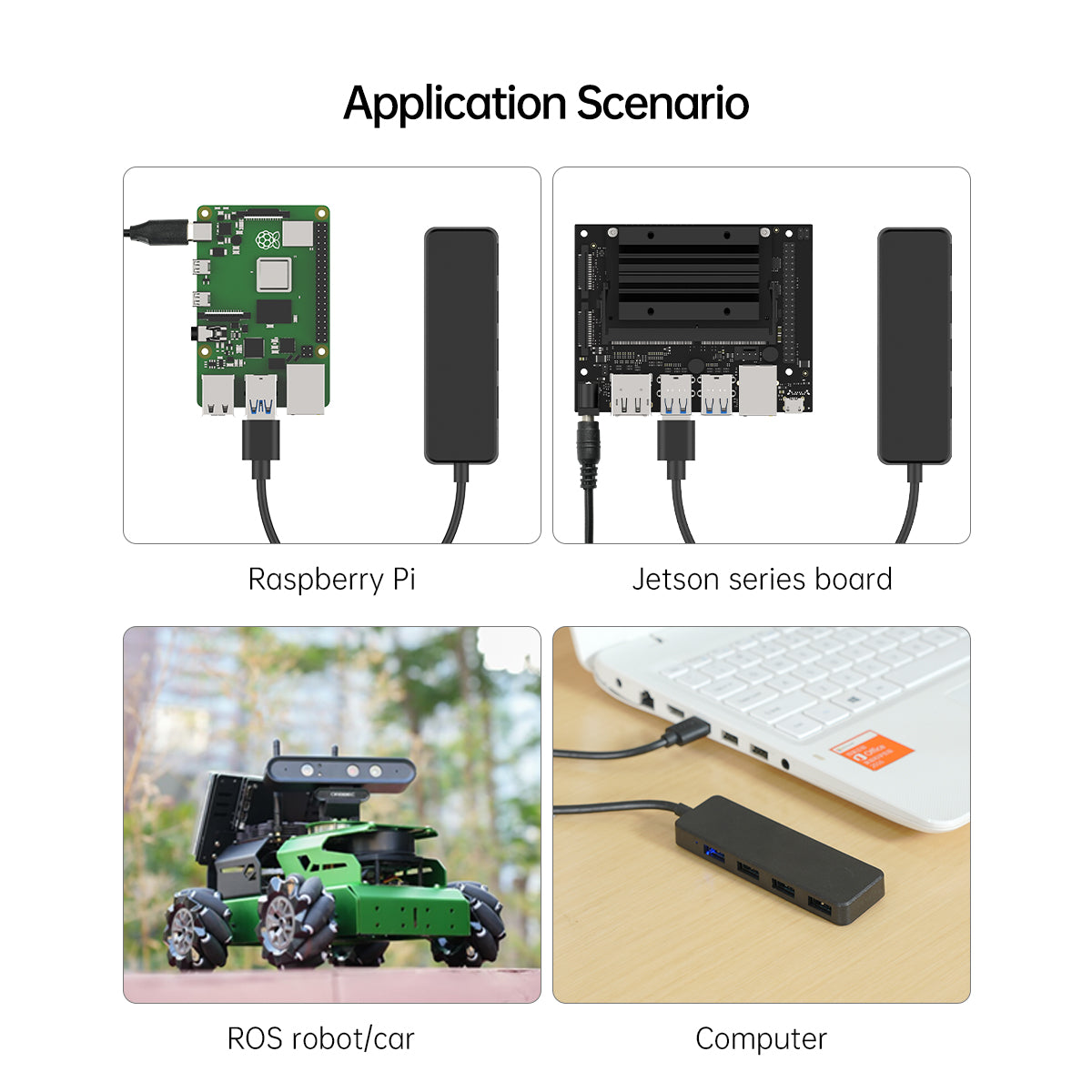

Application Scenario
Application Scenario
Support ROS robot, Raspberry Pi, Jetson series boards, PC, other boards, IPC,etc.
Support ROS robot, Raspberry Pi, Jetson series boards, PC, other boards, IPC,etc.
Raspberry Pi
Jetson series board
ROS robot/car
Computer
Product Parameter
Product Parameter
| Item | Specification |
| Product name | 4 Ports USB extender |
| Transmission speed | 5Gbps (subject to actual data) |
| Wire length | 300mm |
| Output interface | 4*USB3.03 interface |
| Interface compatibility | USB3.0/USB2.0/USB1.1 |
| Equipment | Support Ros robot/car, Raspberry Pi, Jetson series boards, PC, IPC |
| System | Compatible with Win7/8/10, Linux, MacOS, Ubuntu |
| Circuit Protection | Avoid over-current, over-voltage, short-circuit, over-heat, etc |
| Size | 680*30*10.5mm |
| Weight | 36g |
