Hiwonder Spiderbot Arduino Coding Robot with AI Voice Control and Expandable Sensors
【Arduino Programming, Open Source】Spiderbot is compatible with Arduino programming. The programs for Spiderbot are open-source, and learning tutorials and secondary development examples are available, making it easier for you to develop your robot.
【High Performance, Support Sensor Expansion】 Spiderbot is equipped with a glowy ultrasonic sensor, a Dot Matrix Module, intelligent bus servos, and other high-performance hardware. Moreover, it provides multiple expansion ports for sensor integration, including accelerometer, touch sensor, sound sensor, etc., empowering users to engage in secondary development.
【Versatile Control Options】Spiderbot supports pc software control, app control and wireless handle control.
Product Description

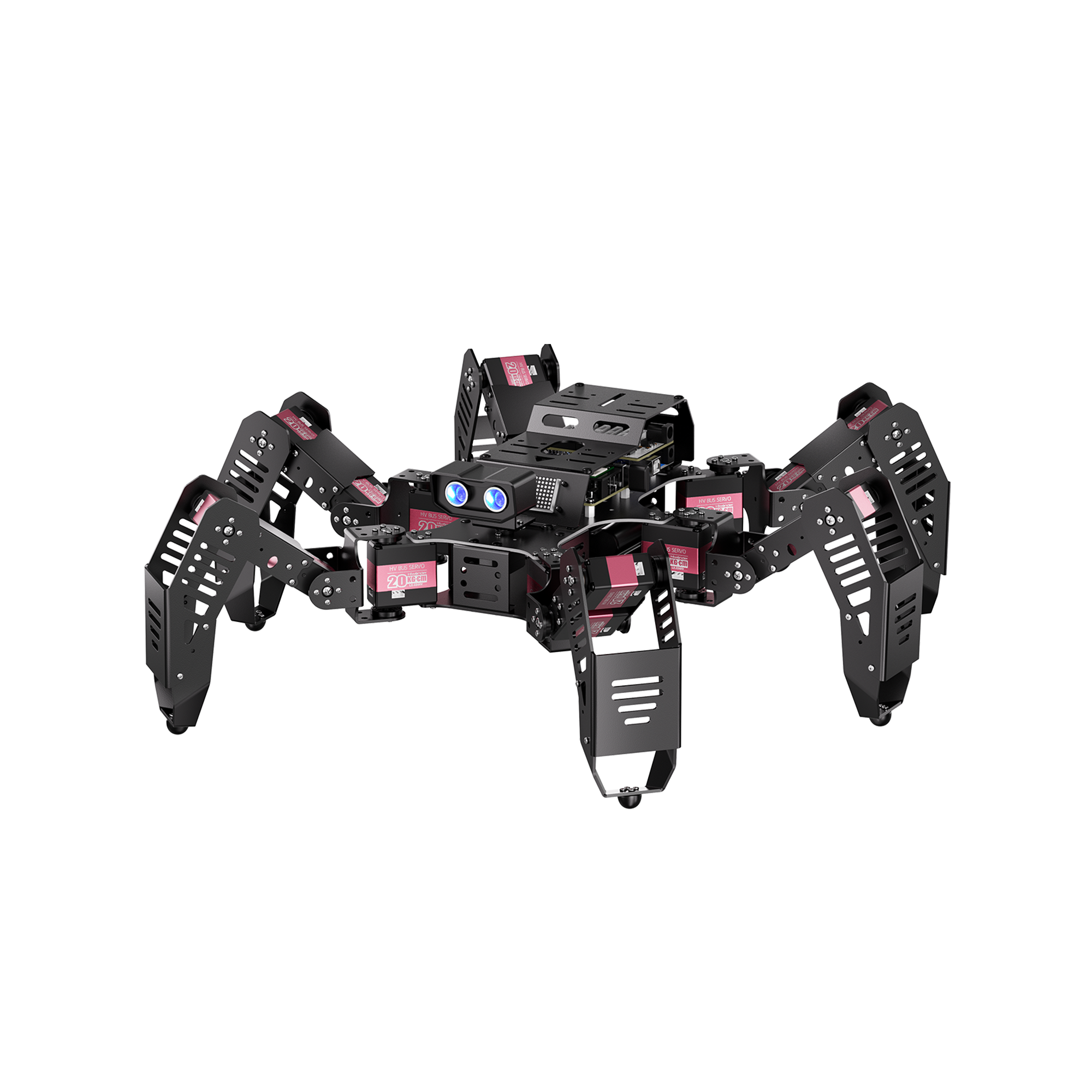

Spiderbot is a programmable hexapod robot with 18 DOF. Using the provided Android/iOS APP, it can easily achieve walking, climbing, dancing and etc. With sensor expansion kit version you can carry out the secondary development through Arduino programming. Detailed tutorials and open source are available for your learning.
Dual Control System
Spiderbot boasts a dynamic dual control system. By harnessing the power of a serial bus servo controller and an Arduino secondary development board, it unleashes a realm of boundless creative possibilities.
Tripod Gait Design
Spiderbot adopts tripod gait design, ensuring stable walking performance across diverse surfaces, seamlessly meeting the demands of various scenarios.
Equipped with High Voltage Bus Servo
Spiderbot is equipped with intelligent high-voltage serial bus servos, coupled with high-precision potentiometers, ensuring high accuracy and enhanced linearity. Furthermore, these servos employs durable metal gears, significantly extending the robot's operational lifespan.
Support Sensor Expansion
Spiderbot features an alloy back bracket designed with reserved holes specifically for electronic module expansion, allowing for greater creativity and development.
Barrier Crossing
Color Recognition
Maze Navigating
Flipped Walking
Autonomous Following
Fall Detection
Touch-Activated Defense
Ranging and Display
Sound Control
Voice Interaction
Voice Broadcasting
Voice Control
PC Software Control
Spiderbot comes with graphical PC software. Users can effortlessly control the robot's servos and design action groups by simply dragging sliders, eliminating the necessity for coding.
APP Control
Through the designated app, users can effortlessly control the robot, utilizing simple button clicks and slider adjustments.
Wireless Controller Control
Spiderbot supports wireless controller control and can connect to the robot via Bluetooth to control the robot in real time.
High Voltage Intelligent Bus Servo
Compared with 7.4V servos, 11.1V high-voltage bus servo reduces current by more than 60%, which improves the robot’s endurance. Less power consumption, longer service time.The bus servo can make the body wiring more beautiful.
| WonderEcho Parameters | |||
| Size | 48*24*10.5mm | Weight | 10g |
| Supplied voltage | DC 5V | RAM capacity | 60KByte |
| FLASH capacity | 2MByte | Recognition mode | Command wake-up |
| Communication method | IIC Communication, connect the main controller using a 4-pin cable | Indicator status | Supports iOS and Android mobile app, PS2 controller, and PC control |
| Recognition range | The maximum recognition range is 5 meters in quiet conditions and 1 meter in noisy environments. | Recognition requirement | Recognition is based on predefined entries, capable of identifying up to 255 phrases or short sentences. Custom recognition words can be modified as needed. |
| WonderEcho Parameters | |
| Size | 48*24*10.5mm |
| Weight | 10g |
| Supplied voltage | DC 5V |
| RAM capacity | 60KByte |
| FLASH capacity | 2MByte |
| Recognition mode | Command wake-up |
| Communication method | IIC Communication, connect the main controller using a 4-pin cable |
| Indicator status | Supports iOS and Android mobile app, PS2 controller, and PC control |
| Recognition range | The maximum recognition range is 5 meters in quiet conditions and 1 meter in noisy environments. |
| Recognition requirement | Recognition is based on predefined entries, capable of identifying up to 255 phrases or short sentences. Custom recognition words can be modified as needed. |
Compatible with Arduino Control System
The powerful combination of the serial bus servo controller and the compatible Arduino secondary development controller has reached a new level.
| Body size | leg: 255mm; Stretching size: 695*614mm |
| Body weight | about 2.35kg |
| Ultrasonic distance | 2~400cm |
| Rotation angle | 180° |
| Battery | 11.1V 2000mAh 10C lithium battery |
| Working hour | keep running about 70-100 mins |
| DOF | 3 DOF each leg*6 |
| Hardware | bus servo controller+ Arduino secondary development controller |
| Servo | LX-224HV high voltage bus servo |
| Control method | PC software control/ Android /iOS phone APP control |
| Package weight | about 3.65kg |
| Package size | 40*40*17cm |
Spiderbot Standard Kit Packing List
Spiderbot Advanced Kit Packing List
| Item | Specification |
| Body size | leg: 255mm; Stretching size: 695*614mm |
| Body weight | about 2.35kg |
| Ultrasonic distance | 2~400cm |
| Rotation angle | 180° |
| Battery | 11.1V 2000mAh 10C lithium battery |
| Working hour | keep running about 70-100 mins |
| DOF | 3 DOF each leg*6 |
| Hardware | bus servo controller+ Arduino secondary development controller |
| Servo | LX-224HV high voltage bus servo |
| Control method | PC software control/ Android /iOS phone APP control |
| Package weight | about 3.65kg |
| Package size | 40*40*17cm |
