GoGoPi Hiwonder Raspberry Pi 5 Intelligent Vision Robot Car Python Program
Product SKU: 21030008
- Powered by Raspberry Pi 4B/5 controller
- Support AI vision games
- Equipped with HD camera for realistic remote control
- Phone App and VNC remote desktop control
- Provide Python source code
- Not assembled. Detailed tutorials are provided
Available:
Only 975 items in stock
In stock
In stock
Out of stock
Back in stock
$79.99
Save
20% $20.00
Product Description

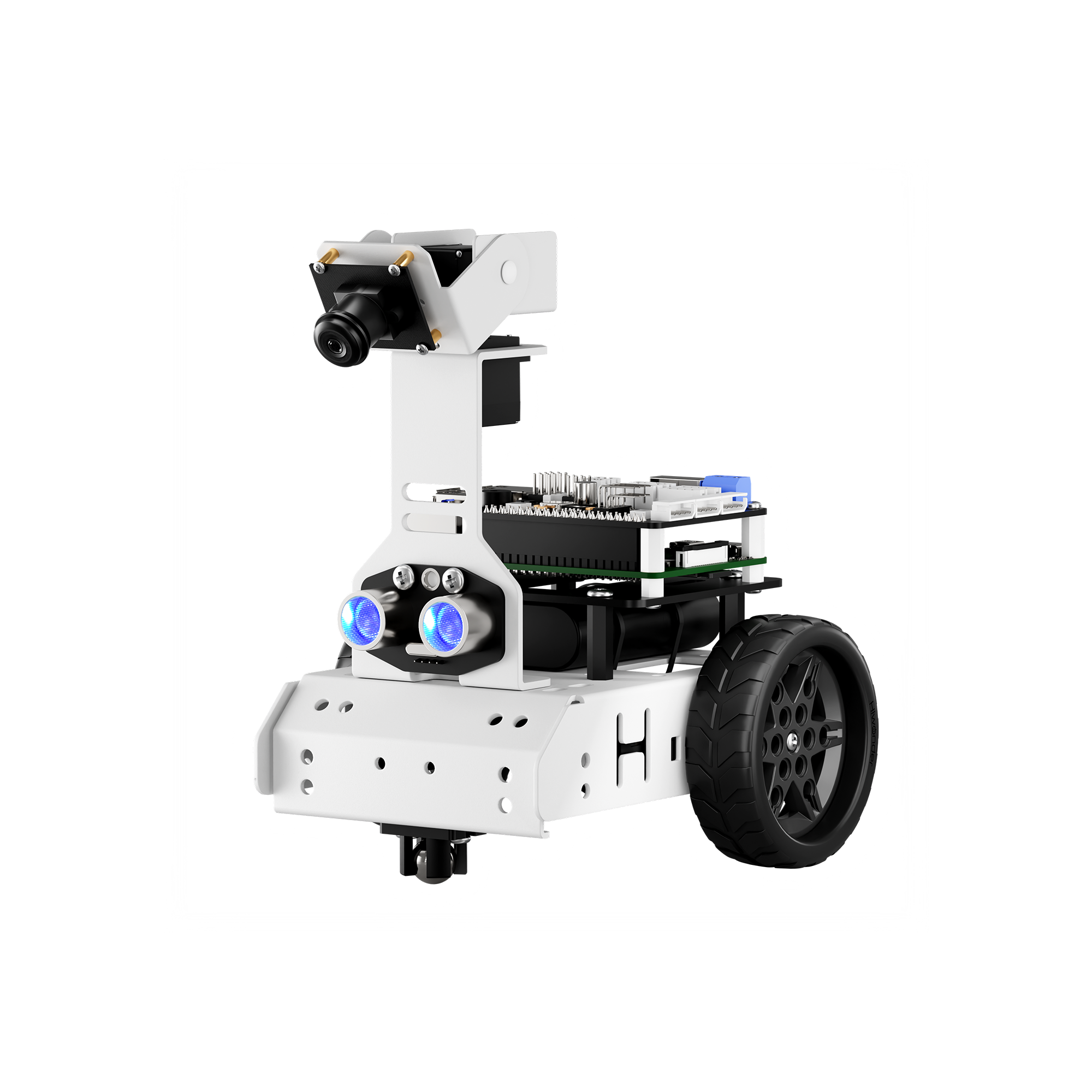

GoGoPi is an AI vision robotic vehicle kit based on Raspberry Pi. Equipped with pan-tilt of 2 degrees of freedom and HD camera, it can realize color tracking, face tracking, finger recognition, etc. GoGoPi is also loaded with RGB glowing ultrasonic which enables it to control the glowing light and avoid the obstacle intelligently.
In addition, various sensors can be installed on GoGoPi for more perception functions. It supports Python programming with detailed tutorials and is open source for your AI learning.
In addition, various sensors can be installed on GoGoPi for more perception functions. It supports Python programming with detailed tutorials and is open source for your AI learning.
GoGoPi is an AI vision robotic vehicle kit based on Raspberry Pi. Equipped with pan-tilt of 2 degrees of freedom and HD camera, it can realize color tracking, face tracking, finger recognition, etc.
GoGoPi is also loaded with RGB glowing ultrasonic which enables it to control the glowing light and avoid the obstacle intelligently.
In addition, various sensors can be installed on GoGoPi for more perception functions. It supports Python programming with detailed tutorials and is open source for your AI learning.
GoGoPi is also loaded with RGB glowing ultrasonic which enables it to control the glowing light and avoid the obstacle intelligently.
In addition, various sensors can be installed on GoGoPi for more perception functions. It supports Python programming with detailed tutorials and is open source for your AI learning.
Features
- Powered by Raspberry Pi 4B/5 controller
- HD camera is installed to catch real-time image
- 2DOF and up to 360 degrees vision
- Support Python programming and detailed tutorials are provided
- Support phone App and VNC remote desktop control
- Glowing ultrasonic sensor for precise obstacle detection and avoidance
Color Tracking
Through OpenCV, GoGoPi can intelligently track the target color which has been set in the APP, and light up in corresponding color.
Obstacle Avoidance
Equipped with glowing ultrasonic sensor, GoGoPi can detect and avoid obstacle smartly. Glowing color can be adjusted through the APP.
Finger Recognition
GoGoPi can identify the numbers of finger via OpenCV, and then interact with user, for example honking, turning, changing the light color, etc.
Remote Control
GoGoPi supports APP remote control. The HD camera returns the FPV image to the APP, which makes the remote control more exciting and realistic.
Face Tracking
Combining with OpenCV, GoGoPi can detect and track human face. Switch pan-tilt mode and car tracking mode via APP for flexible face tracking.
Attributed to DOF pan-tilt, its up and down view is up to 130°and rotation angle reaches 180°.
3 IIC and 2 GPIO interfaces for various sensor expansions give GoGoPi more perception functions.
Android/iOS APP control
GoGoPi supports Android and iOS smart phone APP remote control. Conveniently, users can start the AI vision games through the APP.
Python codes
Python codes for AI vision games are open source with annotations making it convenient for AI learning.
Product Parameter
Product Parameter
GoGoPi RaspberryPi 4B Packing List
GoGoPi RaspberryPi 5 Packing List
| Item | Specification |
| Weight | 0.5kg |
| Size | 145*138*187 mm |
| Material | metal bracket and Acrylic sheet |
| Camera resolution | 480P |
| Freedom degree | 2DOF |
| Battery | 7.4 V 2200mAh lithium |
| Battery life | 60min |
| Hardware | Raspberry Pi 4B/5 and Raspberry Pi expansion board |
| Software | VNC+iOS/Android APP |
| Connection | Wi-Fi/ Ethernet |
| Serial Command Control Method | serial command |
| Servo | LFD-01 anti-blocking servo Size: 32.5*12*29.85mm Torque: 1.8kg.cm 6V |
| Control method | phone control/ computer |
| Package size | 26*19*15 cm |
| Package weight | 1.2kg |
Customer Reviews
Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Got this kit at a great price.
The contents were well packaged and did contain all the hardware needed.
A
Very nice kit and very good seller.
j
simple and easy to use. great product for an introductory experience
D

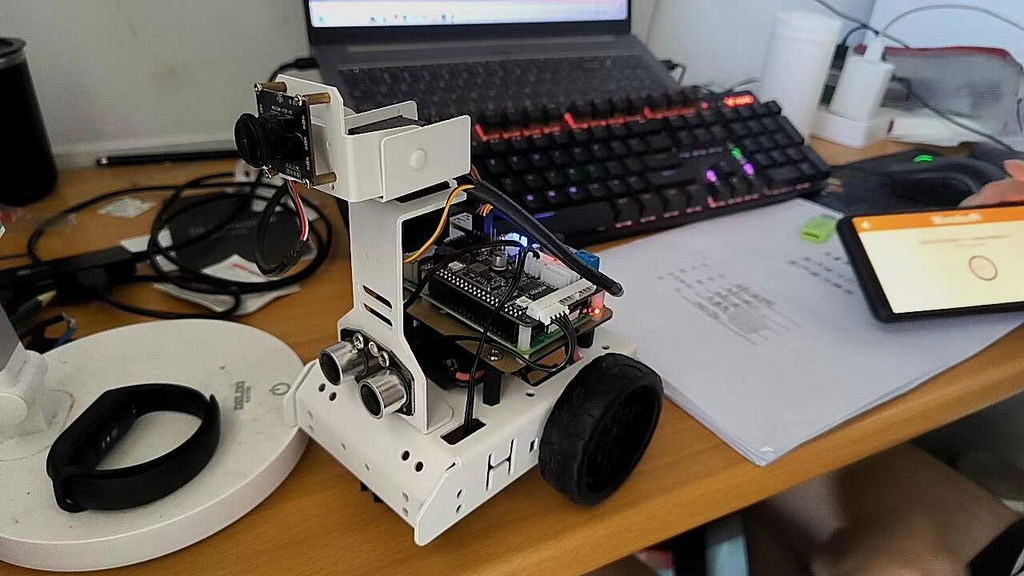

I have to say that I'm impressed by this car kit and so is a very happy 15 year old boy. We assembled it together.
J
very useful raspberry pi car kit
Detailed tutorials and information for easy reference for your own use
Highly recommended!
Questions & Answers
Have a Question?
-
I got a GogoPi, how can I add a new function on Android App? for example, I want to have a custom object tracking function, I want to have it on the current app. how to do it?
Hello,
App customization involves secondary development, which will require your own programming efforts. Our technical support is limited to the robot's built-in functions. We appreciate your understanding regarding this matter!
-
is there a motor driver in the kit?
Hi there, the motor driver is on the expansion board.
