Hiwonder HX-08LC Micro Coreless Intelligent Serial Bus Servo 8 kg·cm High Torque & Speed, Dual-Shaft Full Metal Gear Motor for Embodied AI Robots
-

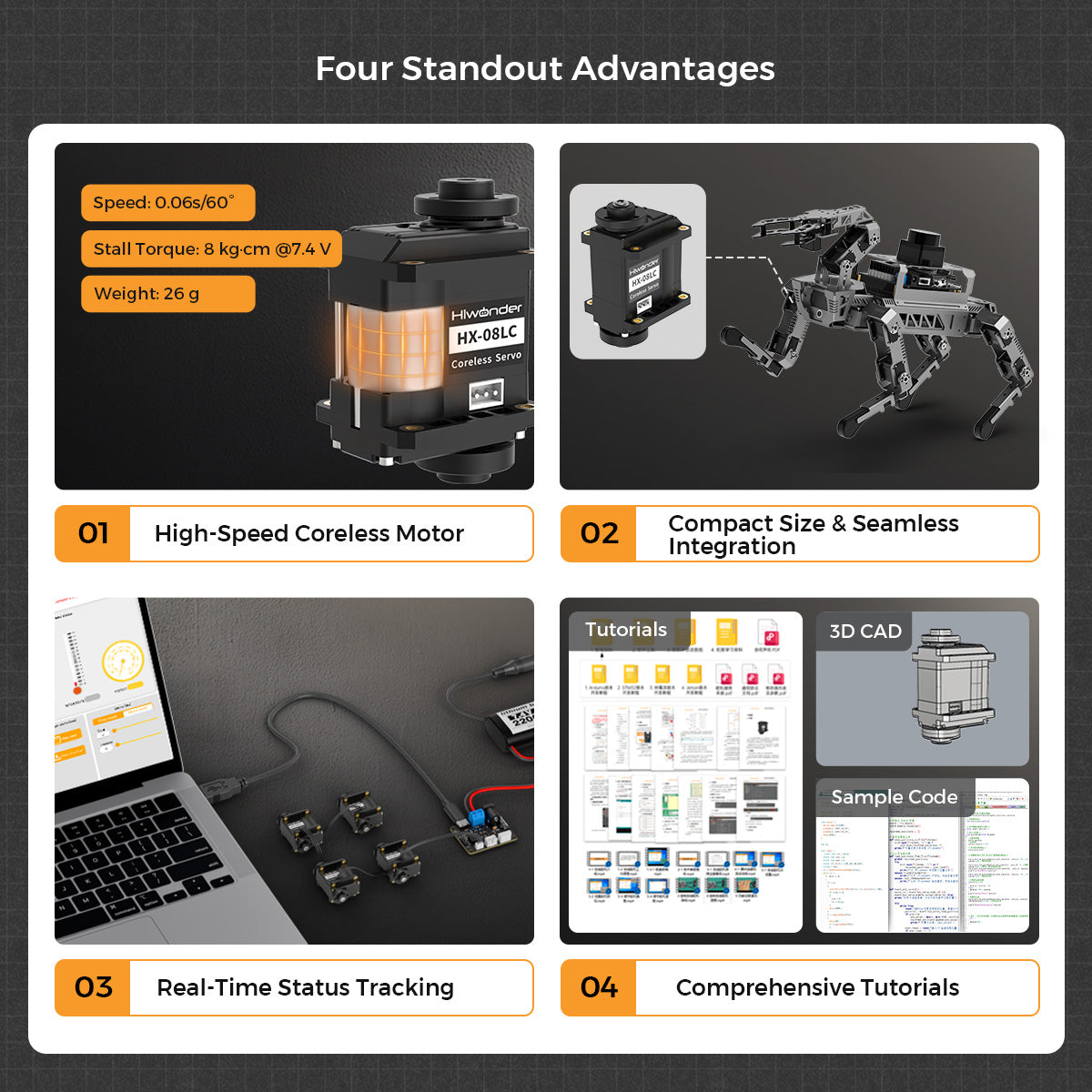

【Serial Bus Daisy-Chaining】Featuring a compact dual-shaft frame and dual 3-pin ports, the HX-08LC enables efficient TTL single-wire daisy-chaining. A single bus controls multiple servos, eliminating cable clutter for a clean, streamlined robot layout.
-

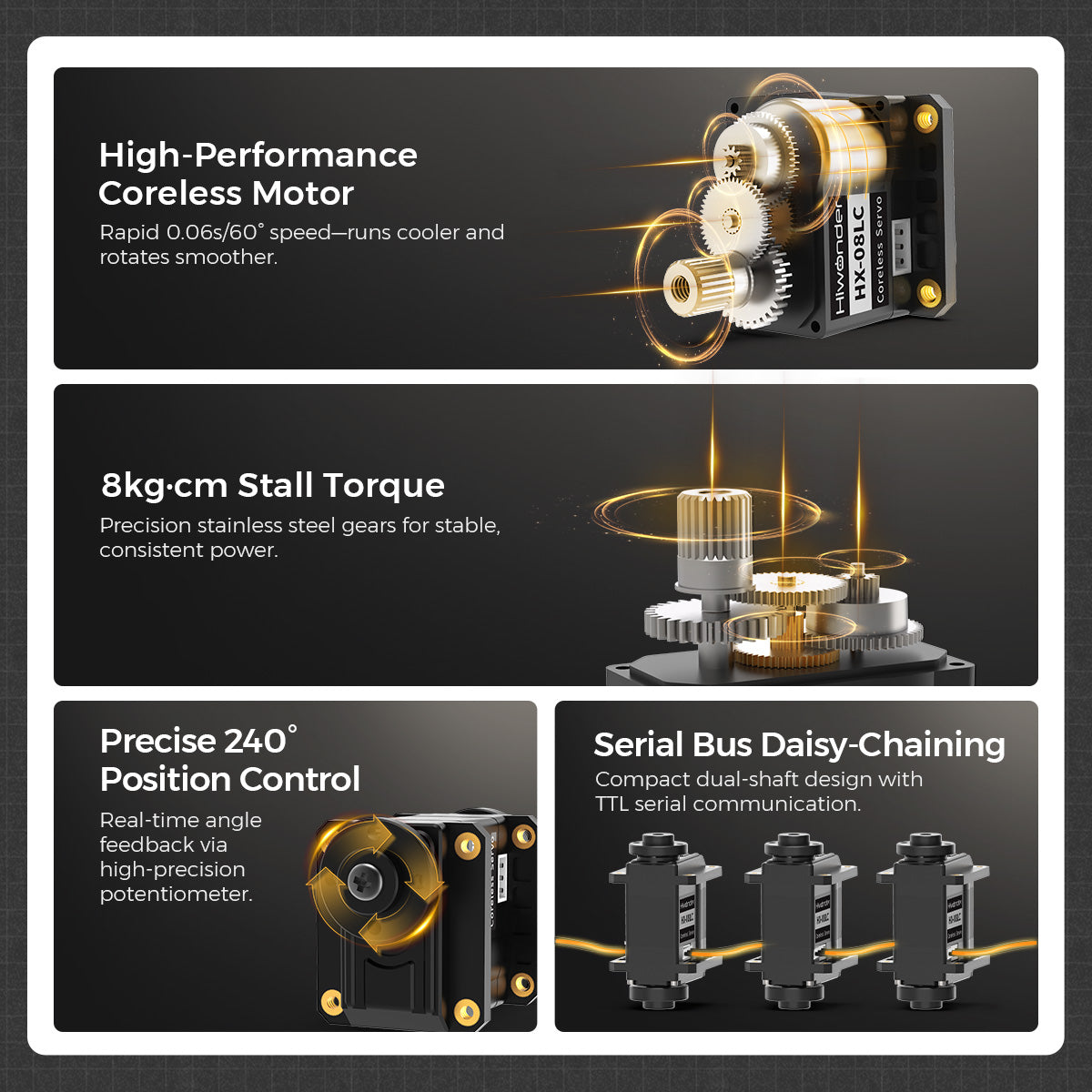

【8 kg·cm Torque & Millisecond Response】Driven by a high-performance coreless motor with precise 240° control, this servo delivers a swift 0.06 s/60° response and an 8 kg·cm stall torque, ensuring exceptionally precise, fluid robotic motion.
-
【Dual-Shaft Architecture】The HX-08LC utilizes a miniature dual-shaft design to minimize installation space while optimizing load distribution, ensuring balanced joint stress and highly stable operation under load.
-
【Precision Stainless Steel Gears】High-strength stainless steel gears paired with a low-heat coreless structure ensure smooth rotation, maximizing transmission precision and mechanical lifespan during high-load operations.
-
【Trapezoidal Motion Control】This servo enables rapid ID/mode configuration and data readback via PC software. Its built-in trapezoidal acceleration algorithm effectively eliminates inertial jitter, achieving smooth, flexible joint transitions.

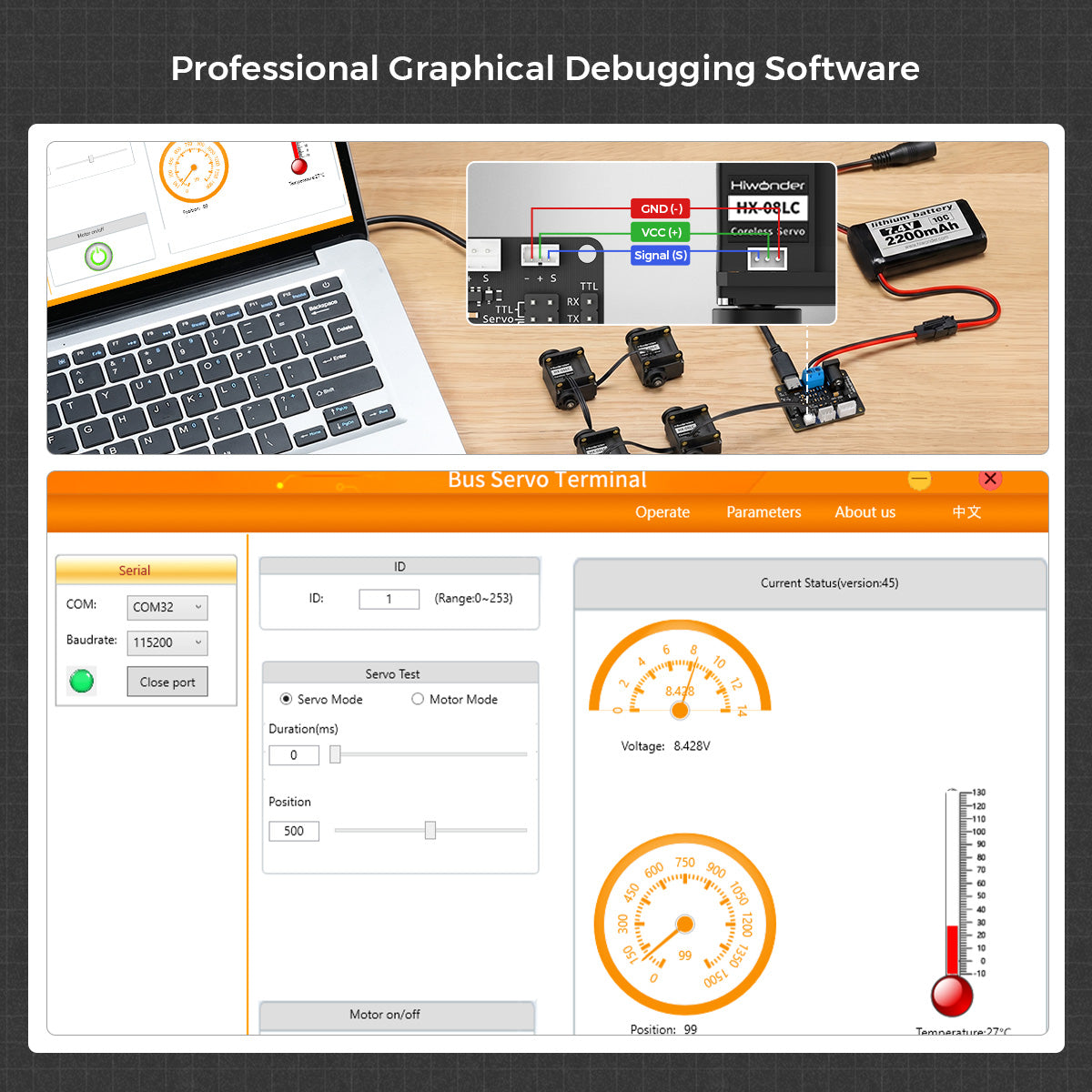

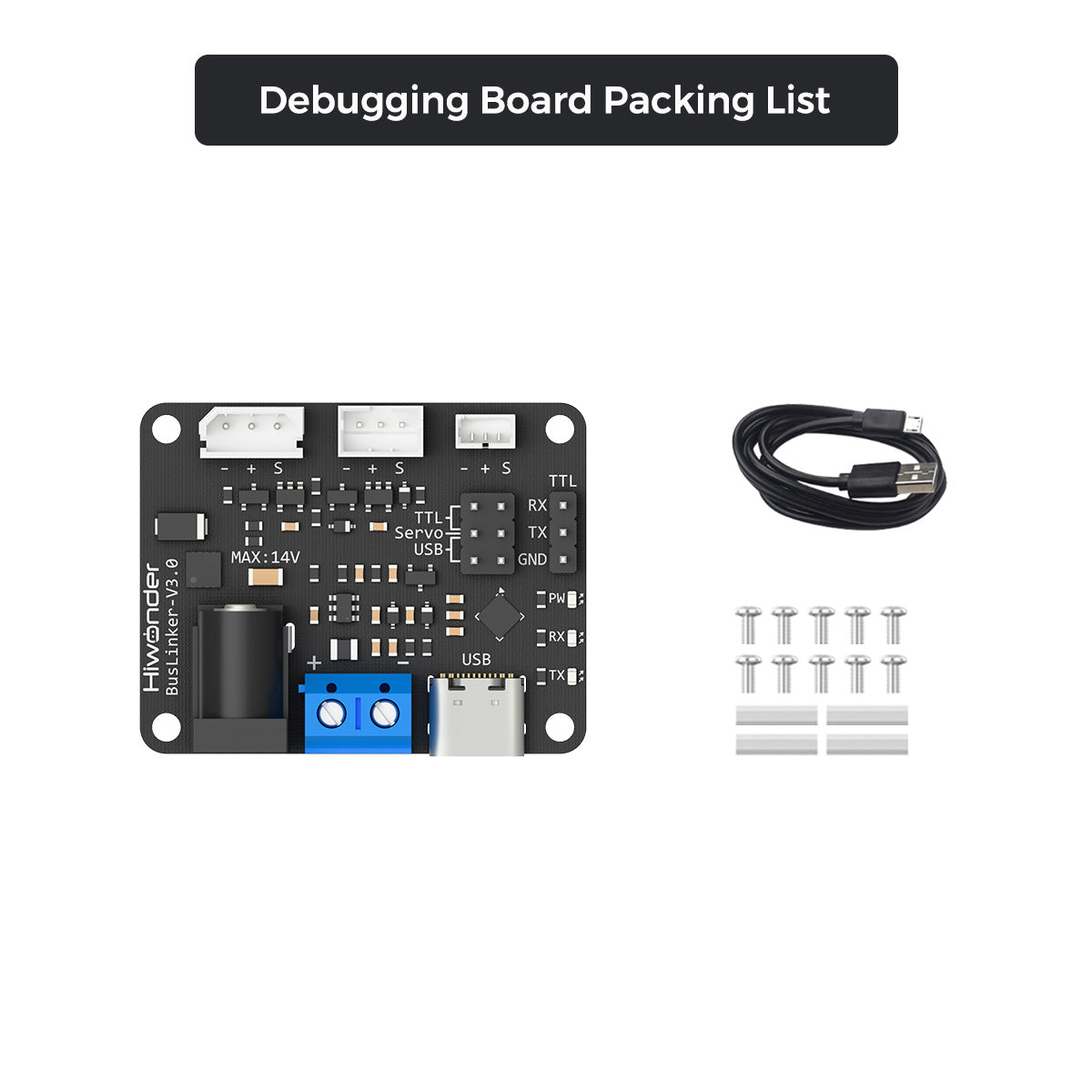

The servo includes professional PC software for adjustable start and stop acceleration. Comprehensive tutorials, including technical documentation, multi-controller sample code, and communication protocols, are also provided to streamline your learning curve and project development.
ID-Based Bus Communication
Each servo supports a customizable ID for individual identification. The default ID is 1 and can be easily reconfigured as needed.
High-Precision Potentiometer
Paired with a high-precision potentiometer to deliver a swift 0.06s/60° response alongside a stable 8 kg·cm torque output.
Millisecond Response
With a fast 0.06s/60° response and 0.3° control precision, robot commands trigger instant execution. This drives fluid, refined joint movements with near-zero latency.
Serial Bus Daisy-Chaining
Designed for space-constrained projects, this miniature dual-shaft servo supports efficient TTL serial communication and seamless daisy-chaining. Run multiple servos on a single bus to eliminate messy wiring and streamline your robot layout.
Precise 240° Position Control
A high-precision potentiometer delivers real-time angle readback for instant tracking. This enables effortless closed-loop control, meeting any high-precision motion choreography needs.
Integrated Drive IC
Operating at 7.4 V, the high-quality built-in H-bridge driver maximizes motor control efficiency. Its smooth, continuous, and reliable power delivery provides a robust electronic foundation for precise robotic actuation.
Multiple Protection Mechanisms
The servo integrates multiple protections, including stall, overheat, overload, overvoltage, and overcurrent, ensuring long-term, stable operation.
Compact Frame
The lightweight and compact miniature design ensures balanced load distribution and highly stable dual-shaft operation.

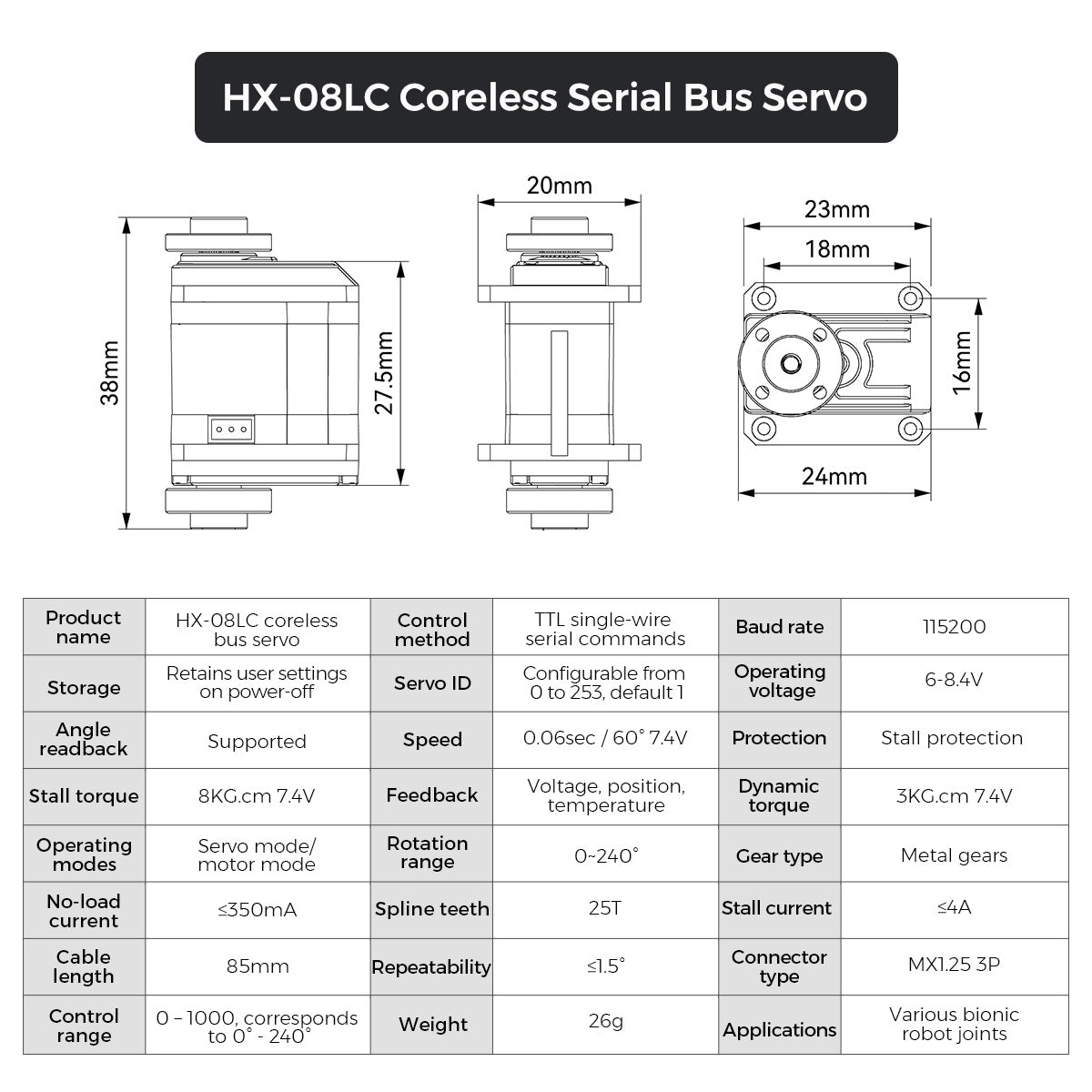

| Brand | Hiwonder | ||
| Product name | HX-08LC coreless bus servo | ||
| Control method | TTL single-wire serial commands | ||
| Baud rate | 115200 | ||
| Weight | 26 g | ||
| Storage | Retains user settings on power-off | ||
| Dimensions | 23 × 20 × 38 mm | ||
| Servo ID | Configurable from 0 to 253, default 1 | ||
| Operating voltage | 6 - 8.4 V | ||
| Angle readback | Supported | ||
| Speed | 0.06 s / 60° @ 7.4 V | ||
| Protection | Stall protection | ||
| Stall torque | 8 kg·cm @ 7.4 V | ||
| Feedback | Voltage, position, temperature | ||
| Dynamic torque | 3 kg·cm @ 7.4 V | ||
| Operating modes | Servo mode/motor mode | ||
| Rotation range | 0° - 240° | ||
| Gear type | Metal gears | ||
| No-load current | ≤ 350 mA | ||
| Spline teeth | 25 T | ||
| Stall current | ≤ 4 A | ||
| Cable length | 85 mm | ||
| Repeatability | ≤ 1.5° | ||
| Connector type | MX1.25 3P | ||
| Control range | 0 – 1000, corresponds to 0° - 240° | ||
| Applications | Various bionic robot joints | ||
