LSC-32: Hiwonder 32 Channel Digital Servo Controller with 16M Memory/ Arduino Compatible
Product SKU: 21090101
- 【High performance chip】CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer, which can control servo motion with high accuacy and adjustable speed.
- 【Easy wiring】 Servo controller only has positive and negative power pole.
- 【Support serial port communication】The servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.
- 【Free driver】 Support online debugging, install drivers automatically.
Available:
Only 969 items in stock
In stock
In stock
Out of stock
Back in stock
$32.99
Save
% $-32.99
Product Description

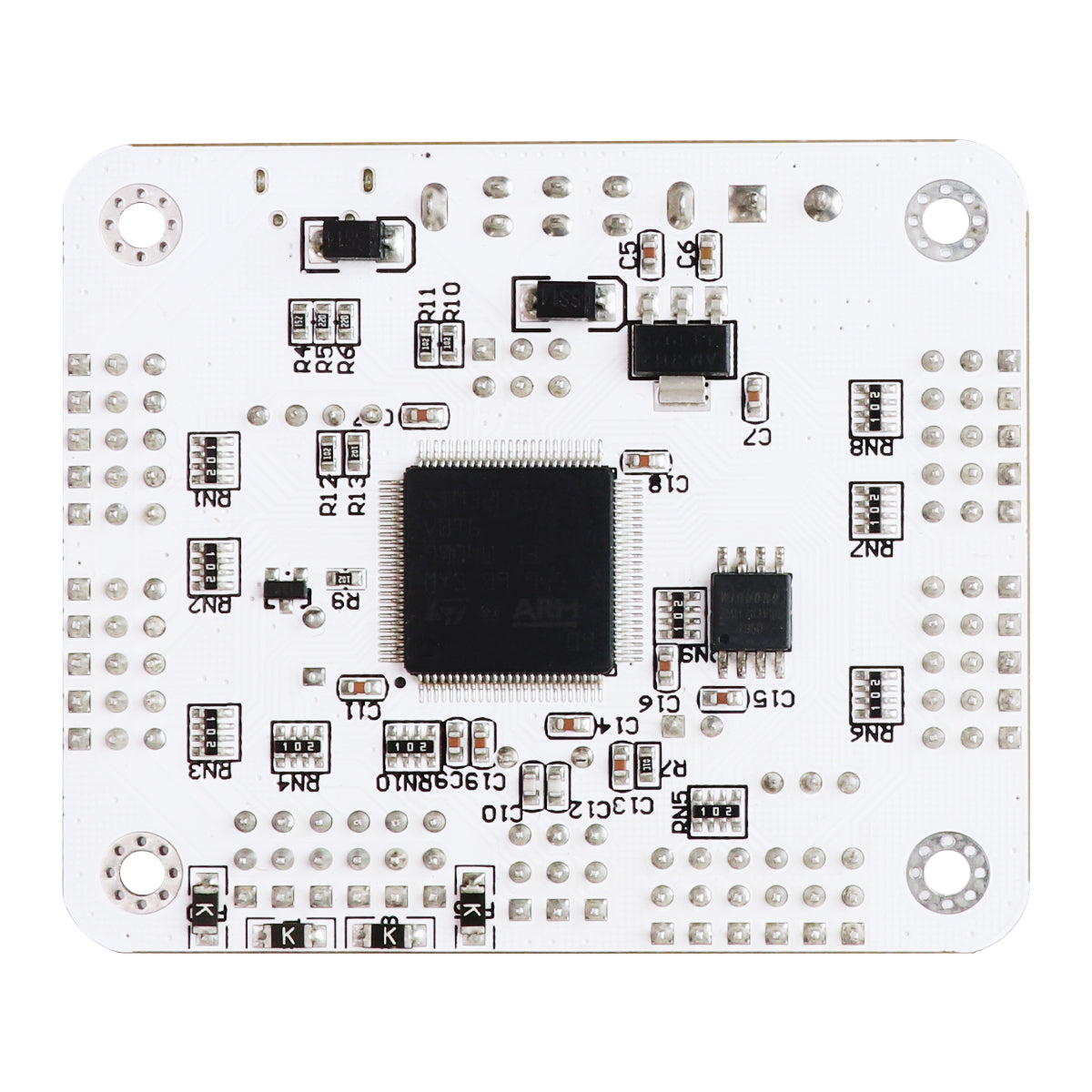

- The CPU of 32-channel servo controller uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer. It has 16M high-capacity memory, which can hold 230 action groups!
- The 32-channel servo controller has over-current protection, greatly prevents the servo from burning out because of the locked-rotor. Provide PC software which supports online graphical debugging.
- We provide PC software for online graphical debugging.

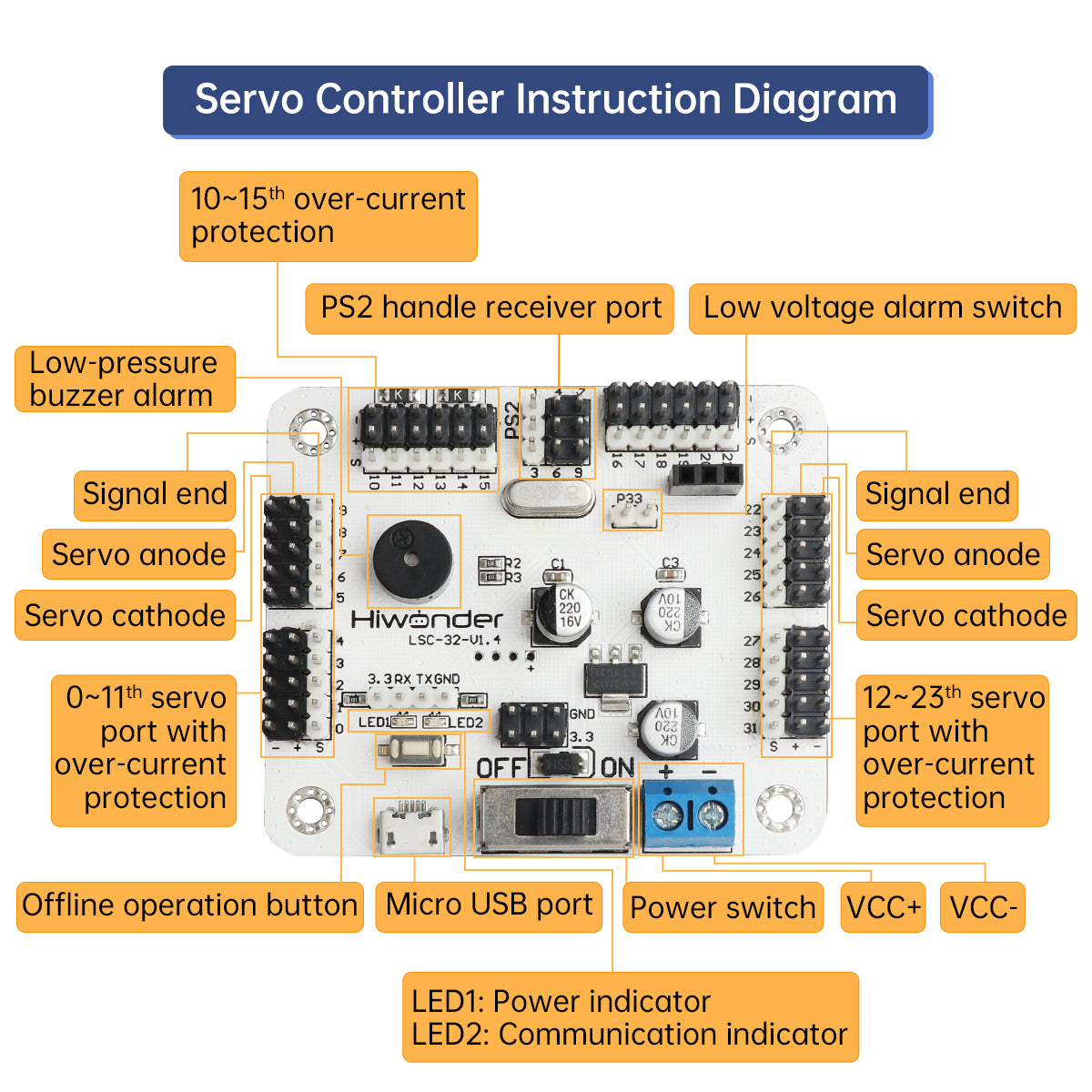

1.【High-performance Chip】The CPU adopts a high-performance STM32 microcontroller with ARM Cortex-M3 core, which controls motion with high precision and adjustable speed.
2.【Simple Wiring】The controller has built-in positive and negative power interfaces, which is simple to wire and easy to operate.
3.【Built-in Switch】The controller has a built-in switch, which is easy to use and reduces your wiring worries.
2.【Simple Wiring】The controller has built-in positive and negative power interfaces, which is simple to wire and easy to operate.
3.【Built-in Switch】The controller has a built-in switch, which is easy to use and reduces your wiring worries.
4.【Computer Driver-free】The controller supports online debugging without installing any driver.
5.【Large Capacity Memory】16M large capacity memory, which caninclude 230 action groups, and each actiongroup contains 510 actions!
6.【Low-voltage Alarm】When the positive voltage is lower than 5.6v, the buzzer will make a beep sound to remind users to charge the battery.
5.【Large Capacity Memory】16M large capacity memory, which caninclude 230 action groups, and each actiongroup contains 510 actions!
6.【Low-voltage Alarm】When the positive voltage is lower than 5.6v, the buzzer will make a beep sound to remind users to charge the battery.

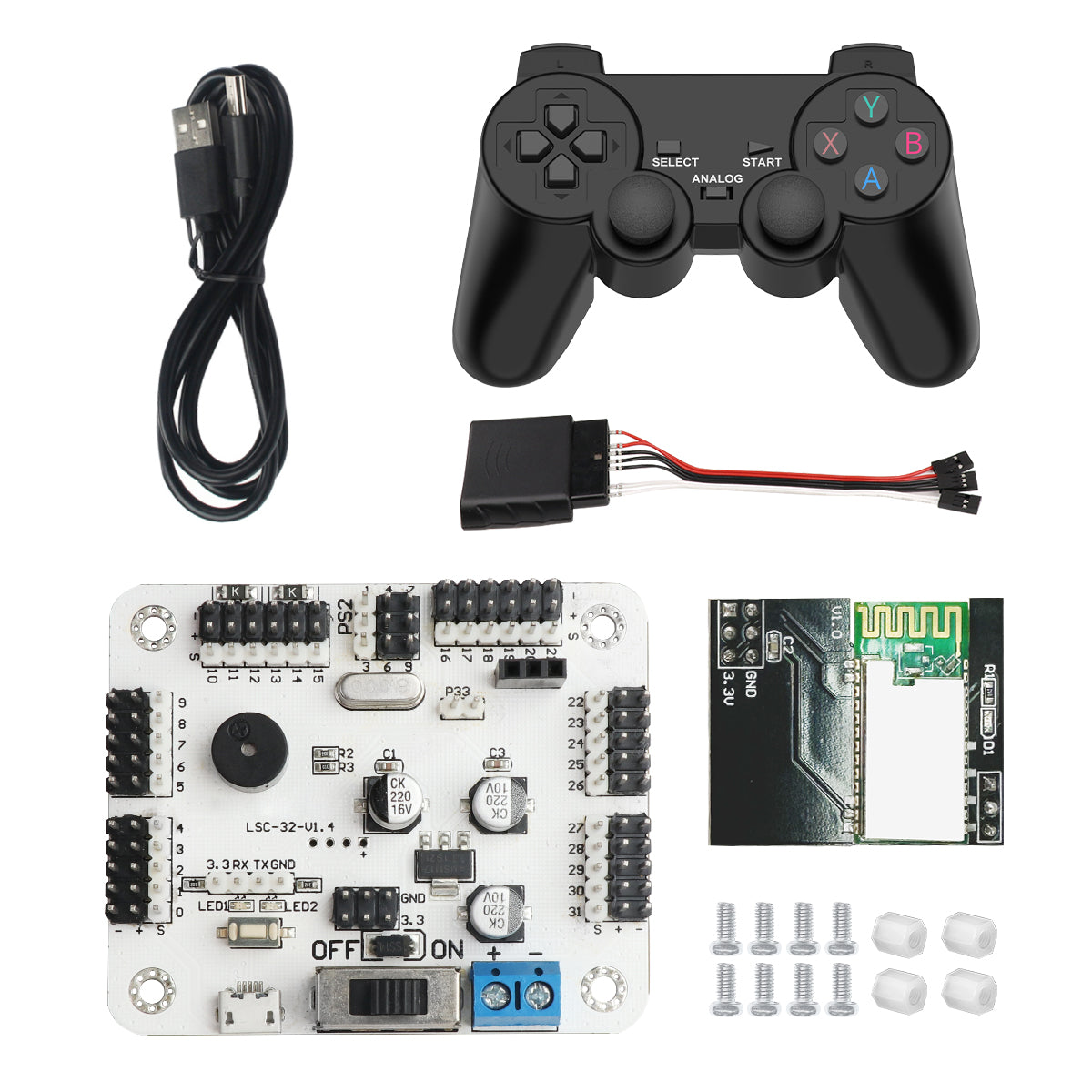

7.【PS2 Handle Interface】The controller supports PS2 handle control, which is simple and convenient to operate. The remote control distance is about 10 meters.
8.【Support External MP3 or Bluetooth Module】If you plug in the MP3 module, you can make the robot make sounds; if you plug in the Bluetooth module, you can control the robot through Bluetooth.
9.【Two Offline Operating Modes】The controller can be run offline once or cycled offline numerous times.
8.【Support External MP3 or Bluetooth Module】If you plug in the MP3 module, you can make the robot make sounds; if you plug in the Bluetooth module, you can control the robot through Bluetooth.
9.【Two Offline Operating Modes】The controller can be run offline once or cycled offline numerous times.
10.【Support Serial Port Communication】It can connect to other microcontroller and other microcontroller can send command to it.Communication protocols of 51, STM32 and Arduino microcontroller are provided.
11.【6 Channels Overload Protection】The controller is equipped with 6-channel overload protection, which greatly reduces the risk of steering gear stalling and burning out.
11.【6 Channels Overload Protection】The controller is equipped with 6-channel overload protection, which greatly reduces the risk of steering gear stalling and burning out.
1.【High-performance Chip】The CPU adopts a high-performance STM32 microcontroller with ARM Cortex-M3 core, which controls motion with high precision and adjustable speed.
2.【Simple Wiring】The controller has built-in positive and negative power interfaces, which is simple to wire and easy to operate.
3.【Built-in Switch】The controller has a built-in switch, which is easy to use and reduces your wiring worries.
2.【Simple Wiring】The controller has built-in positive and negative power interfaces, which is simple to wire and easy to operate.
3.【Built-in Switch】The controller has a built-in switch, which is easy to use and reduces your wiring worries.
4.【Computer Driver-free】The controller supports online debugging without installing any driver.
5.【Large Capacity Memory】16M large capacity memory, which caninclude 230 action groups, and each actiongroup contains 510 actions!
6.【Low-voltage Alarm】When the positive voltage is lower than 5.6v, the buzzer will make a beep sound to remind users to charge the battery.
5.【Large Capacity Memory】16M large capacity memory, which caninclude 230 action groups, and each actiongroup contains 510 actions!
6.【Low-voltage Alarm】When the positive voltage is lower than 5.6v, the buzzer will make a beep sound to remind users to charge the battery.
7.【PS2 Handle Interface】The controller supports PS2 handle control, which is simple and convenient to operate. The remote control distance is about 10 meters.
8.【Support External MP3 or Bluetooth Module】If you plug in the MP3 module, you can make the robot make sounds; if you plug in the Bluetooth module, you can control the robot through Bluetooth.
9.【Two Offline Operating Modes】The controller can be run offline once or cycled offline numerous times.
8.【Support External MP3 or Bluetooth Module】If you plug in the MP3 module, you can make the robot make sounds; if you plug in the Bluetooth module, you can control the robot through Bluetooth.
9.【Two Offline Operating Modes】The controller can be run offline once or cycled offline numerous times.
10.【Support Serial Port Communication】It can connect to other microcontroller and other microcontroller can send command to it.Communication protocols of 51, STM32 and Arduino microcontroller are provided.
11.【6 Channels Overload Protection】The controller is equipped with 6-channel overload protection, which greatly reduces the risk of steering gear stalling and burning out.
11.【6 Channels Overload Protection】The controller is equipped with 6-channel overload protection, which greatly reduces the risk of steering gear stalling and burning out.

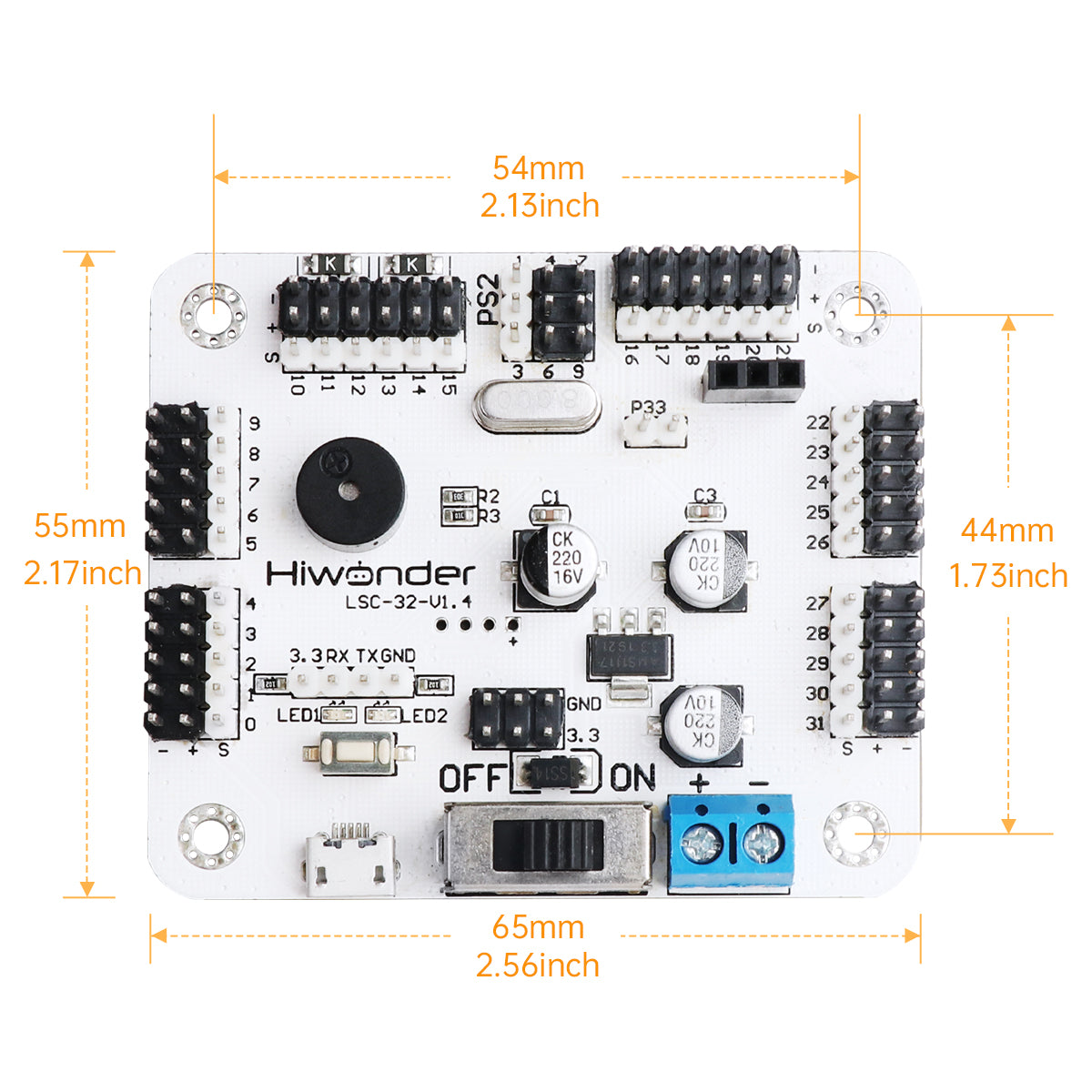

| Product dimension | 65*55mm (2.56*2.17inch) | Hole spacing | 54*44mm (2.13*1.73inch) |
| Product weight | 26.2g | USB control | support |
| PS2 handle | support | Maximum controlling quantity | 32 servos |
| Storage | 16M | Low-voltage alarm | support |
| Built-in switch | support | Over-current protection | support |
| Signal isolation protection | support | External MP3/ Bluetooth module | support |
| Secondary Development | support | Communication baud rate | 9600 |

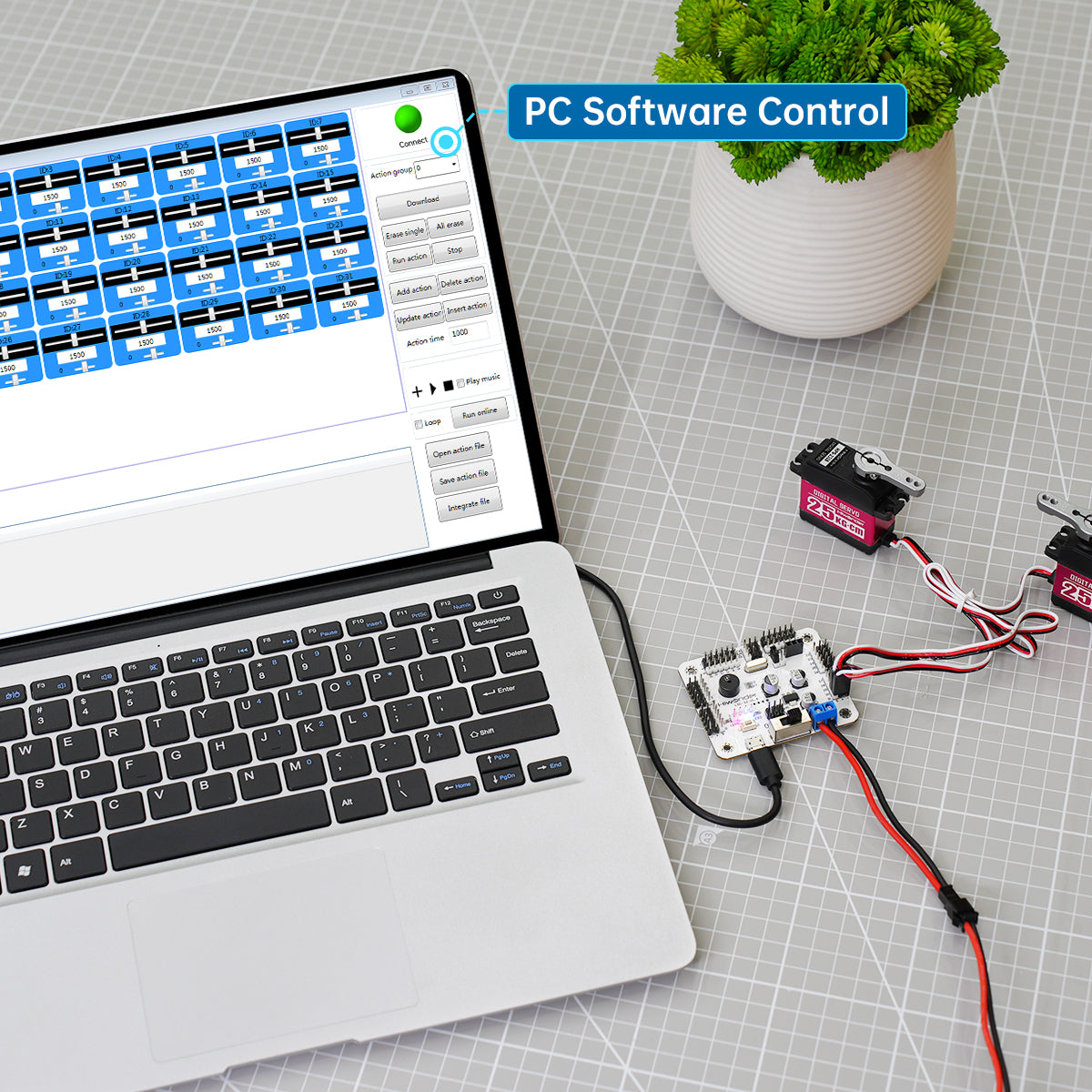

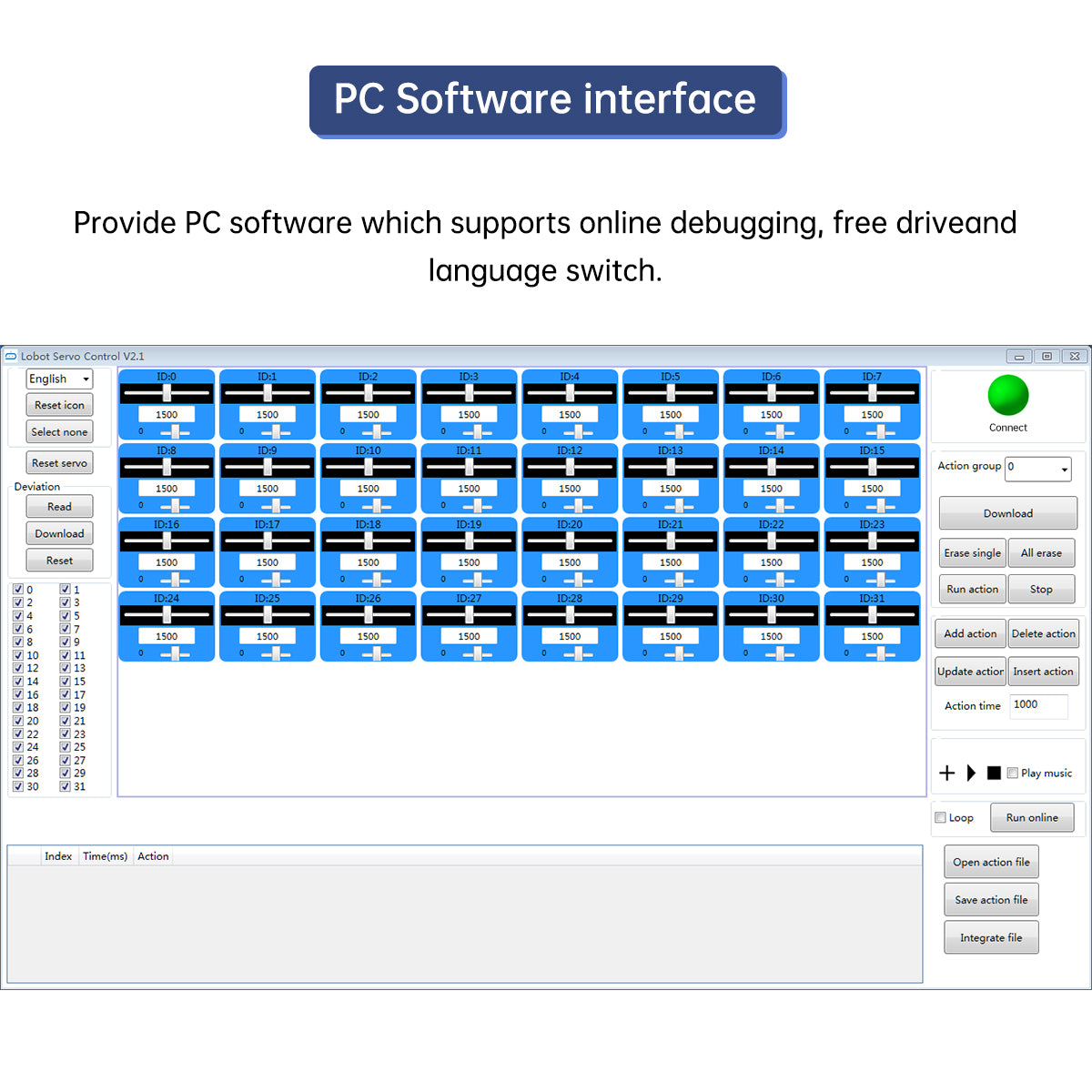

PC Software Interface
- We provide PC software that supports online debugging, driver-free, automatic connection, and language switching.
- You can debug it through PC software without coding. Drag the slider to control the rotation of the servo. Quick debugging will make your project run successfully.
How to use debugging
- The 32-channel servos can be controlled individually.
- We need to provide the 32-channel servo debugging board with 5-8.4V voltage.

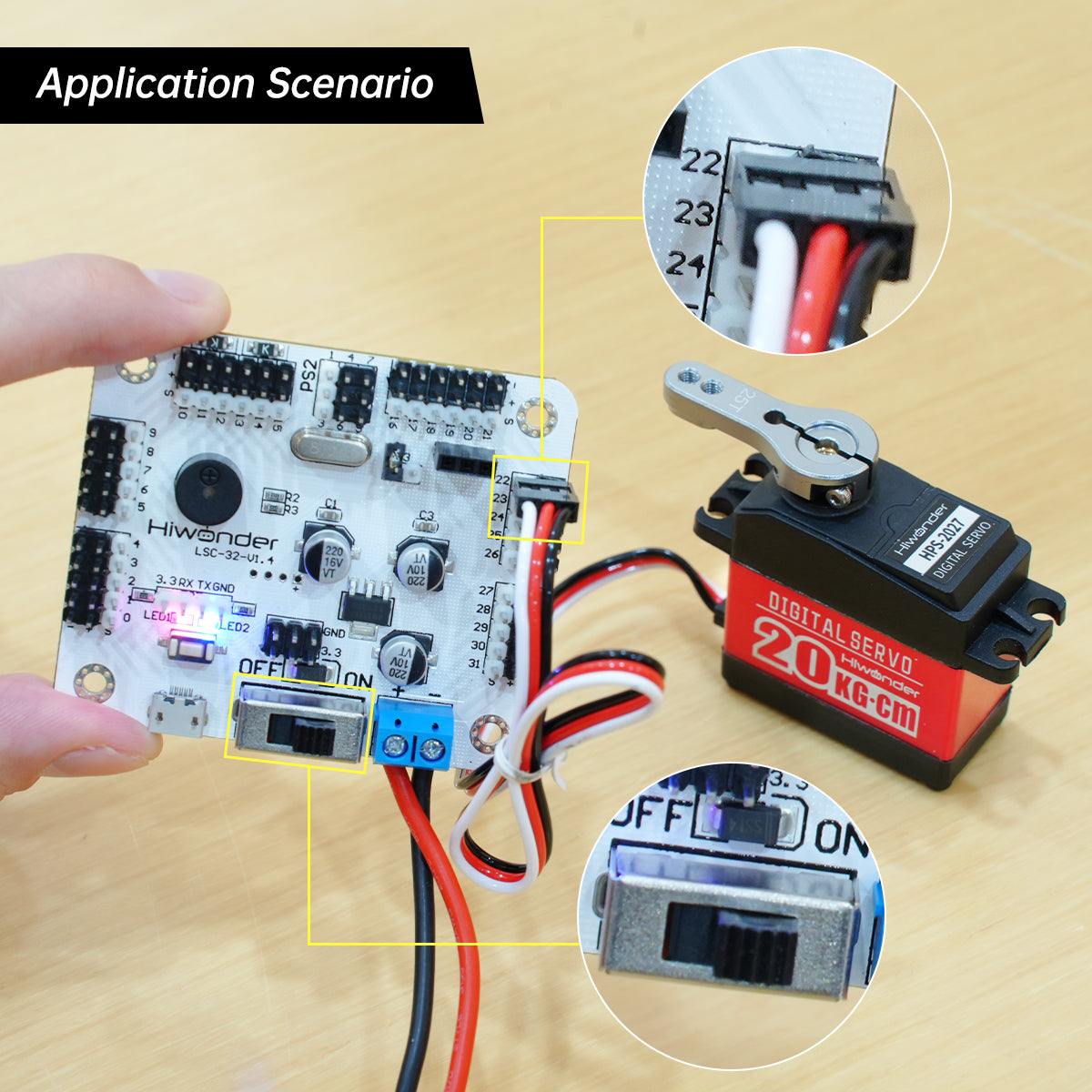

- Connect the servo to the S0-S31 interface. The development board can send commands through the serial port or lCI to control the corresponding servo.
Support Development Board Expansion

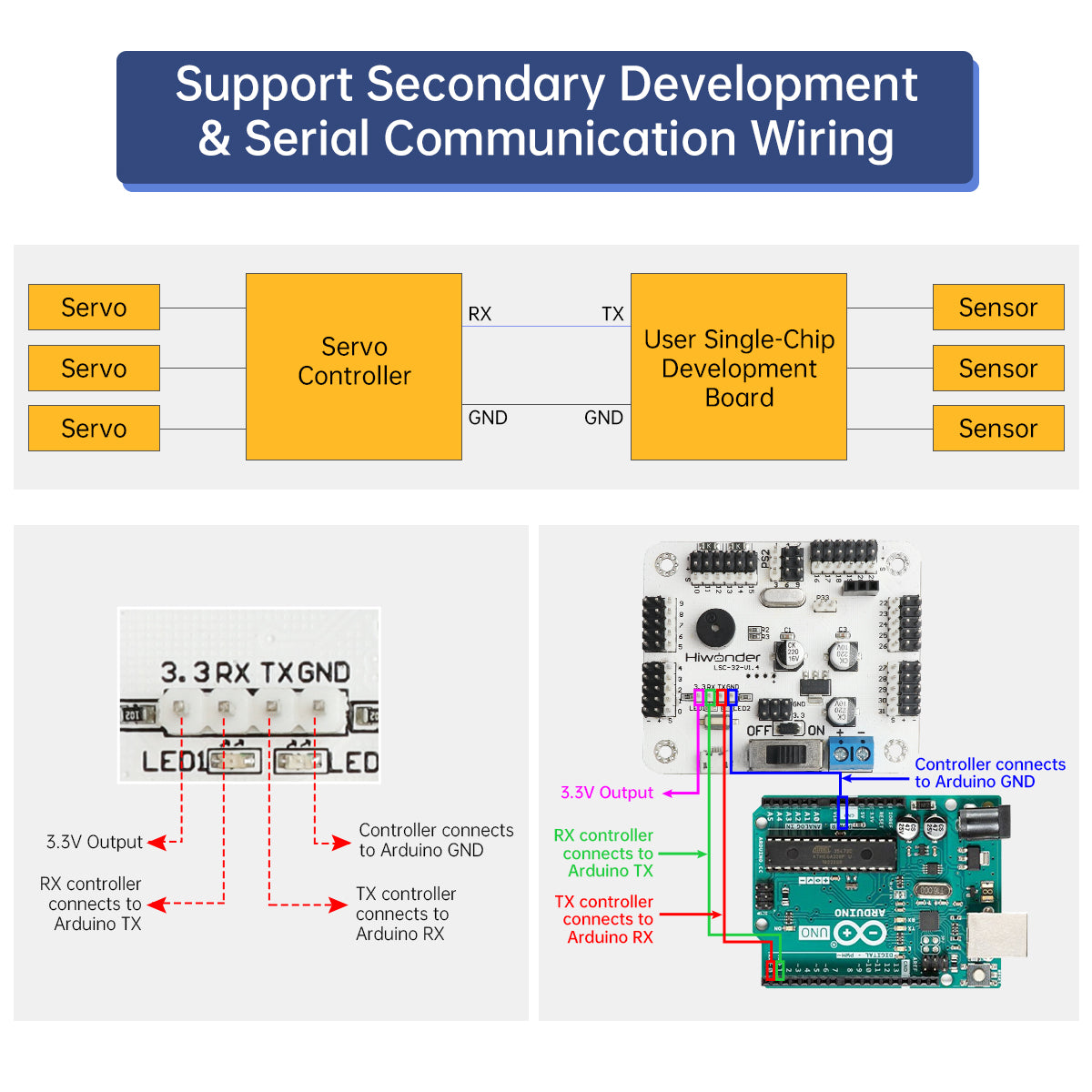

The servo controller has a reserved serial communication interface, which can conduct TTL serial communication with other development boards. The development board can send instructions to the controller to enable your robot to achieve intelligent control.
We provide three communication routines for Arduino, Raspberry Pi and Jetson Nano for your reference to facilitate your learning.
We provide three communication routines for Arduino, Raspberry Pi and Jetson Nano for your reference to facilitate your learning.
