Hiwonder SpiderPi: AI Intelligent Visual Hexapod Robot Powered by Raspberry Pi 5
【Raspberry Pi AI Robot】 An ideal platform for conducting research in motion control for hexapod robots, machine vision, OpenCV, deep learning, and various other fields.
【AI Vision for Infinite Creativity】 Feature a wide-angle HD camera and use OpenCV for various AI vision applications such as transportation.
【Support App Control】 Enjoy remote control of robot movements and access a live camera feed for first person view.
【Inverse Kinematics, Various Gait Modes】 SpiderPi utilizes inverse kinematics to enable a range of gait modes of tripod and quadruped gaits. And it offers adjustable height and speed, as well as the ability to make turns and change its motion direction.
For Hiwonder SpiderPi tutorials you can check: https://docs.hiwonder.com/projects/SpiderPi/en/latest/.
Product Description

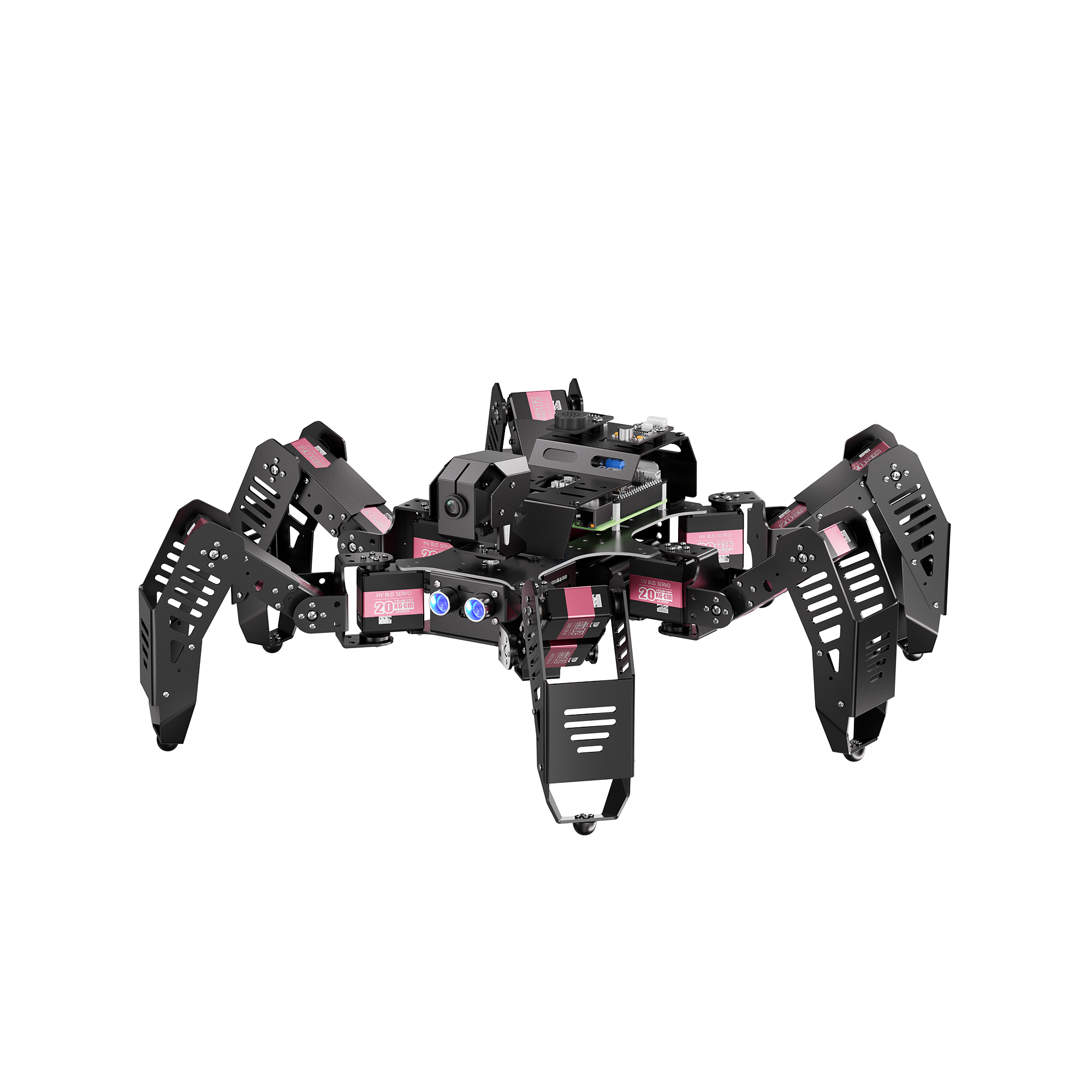

Hiwonder SpiderPi is an advanced hexapod robot integrated with AI vision and powered by Raspberry Pi. It features intelligent serial bus servos with a torque of 20KG, and can be programmed using Python. SpiderPi serves as an ideal platform for conducting research in motion control for hexapod robots, machine vision, OpenCV, deep learning, and various other fields.
2DOF Wide-angle Camera
SpiderPi spider robot is equipped with a HD wide-angle camera, which allows the robot's vision recognition range to be larger, and the camera supports manual focusing, which is more convenient to use.
Powered by Raspberry Pi
SpiderPi hexapod spider is powered by a Raspberry Pi 4B/5 controller that adjusts the body attitude. At the same time, we provide rich course materials to let you quickly experience motion control, machine vision and OpenCV projects.
Tag Recognition
SpiderPi performs actions according to the recognized tags. In addition to the provided tags, you're encouraged to program your own tags and actions.
Face Recognition
Use OpenCV to load the trained face detection model. SpiderPi will operate the greeting action when recognizes a face.
LFD-01M Servo Parameters
LX-224HV Servo Parameters
APP Control
WonderPi APP supports Android and iOS. Switch game modes easily and quickly to experience various AI games.
PC Remote Control
We can quickly connect the WonderPi configuration to the wireless LAN, which is more convenient for you to remotely connect and control SpiderPi.
High Voltage Bus Servo
The 20kg.cm 11.1V high-voltage servo has longer service time and less power consumption.
IMU Sensor
The core controller of the SpiderPi robot is equipped with IMU sensors, which can sense the robot's body attitude in real time and detect the direction of travel.
Specification Parameters
| Size: | Refer to the size chart below |
| Weight: | About 2400g |
| Material: | Metal and fiberglass panels |
| Camera pixel: | 480P |
| Ultrasonic distance: | 2~400cm |
| Rotation: | 2 DOF |
| Battery: | 11.1V 2500mAh 10C lithium battery |
| Working hour: | About 120mins |
| Leg | 3DOF (each leg) x6 |
| Hardware: | Raspberry Pi 4B/5 and Raspberry Pi expansion board |
| Software: | APP+PC software |
| Communication: | WiFi, Ethernet |
| Servo: | LX-224HV, LFD-01M |
| Package size: | 40*40*17cm |
| Package weight: | About 3.8kg |
HD Wide Angle Camera
Course Materials

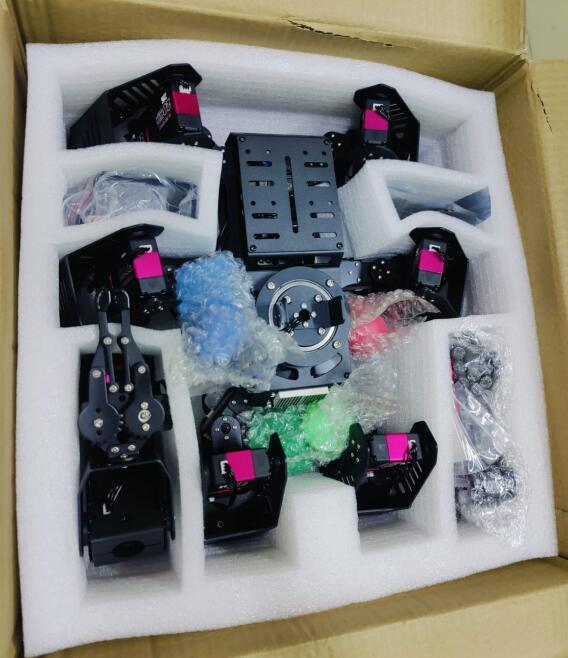

SpiderPi Standard Packing List
SpiderPi Advanced Packing List
SpiderPi Pro Packing List
view more ❯
view more ❯
| Item | Specification |
| Size | Refer to the size chart below |
| Weight | About 2400g |
| Material | Metal and fiberglass panels |
| Camera pixel | 480P |
| Ultrasonic distance | 2~400cm |
| Rotation | 2 DOF |
| Battery | 11.1V1 2500mAh 10C lithium battery |
| Working hour | About 120min |
| Leg | 3DOF (each leg) x6 |
| Hardware | Raspberry Pi 4B/5 and Raspberry Pi expansion board |
| Software | APP+PC software |
| Communication | Wi-Fi and Ethernet |
| Servo | LX-224HV high voltage, LFD-01M anti-blocking servo |
| Control method | PC software & smart phone APP |
| Shipping size | 40*40*17cm |
| Shipping weight | About 3.8kg |
