- Working voltage: DC 5V
- Port type: 5264-4AW
- Size: 50 x 20 mm
- 4 Pin wire port. Connecting wire is provided. Easy to connect
- The holes are compatible with LEGO bricks
Available:
Only 999 items in stock
In stock
In stock
Out of stock
Back in stock
$7.99
Product Description

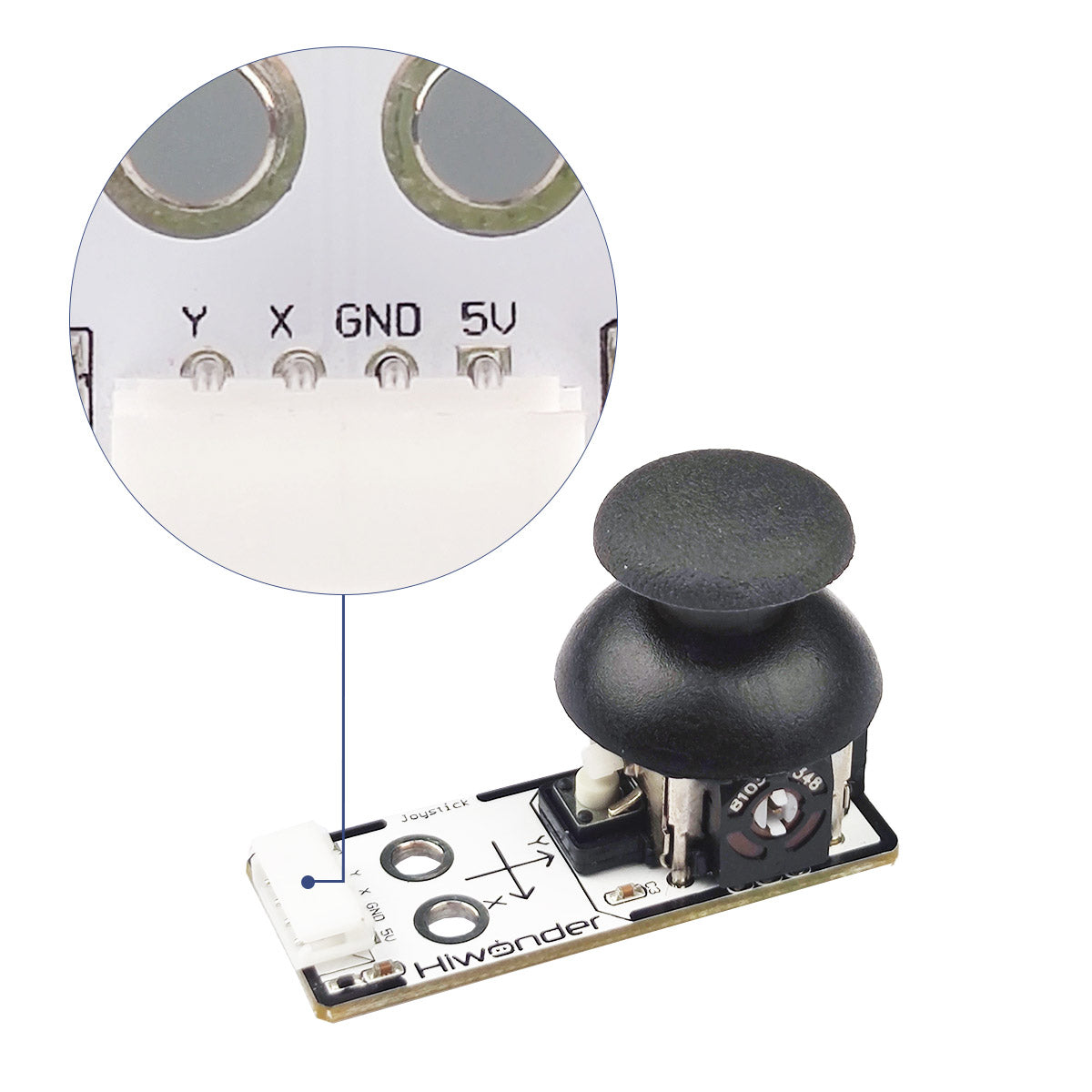

Hiwonder joystick module is constituted of two potentiometers which respectively correspond to X and Y axis of the joystick. When it is supplied with 5V power, the voltage of X and Y is about 2.5V in the original state.The voltage will increases or decreases in the range of 0 - 5 V when the joystick is pushed towards different directions.
Joystick module is widely applicable in controlling smart cars, robots, video games and other devices.
Joystick module is widely applicable in controlling smart cars, robots, video games and other devices.
Features
- Working voltage: DC 5V
- Port type: 5264-4AW
- Size: 50 x 20mm
- PWR: lighting up when the sensor is powered

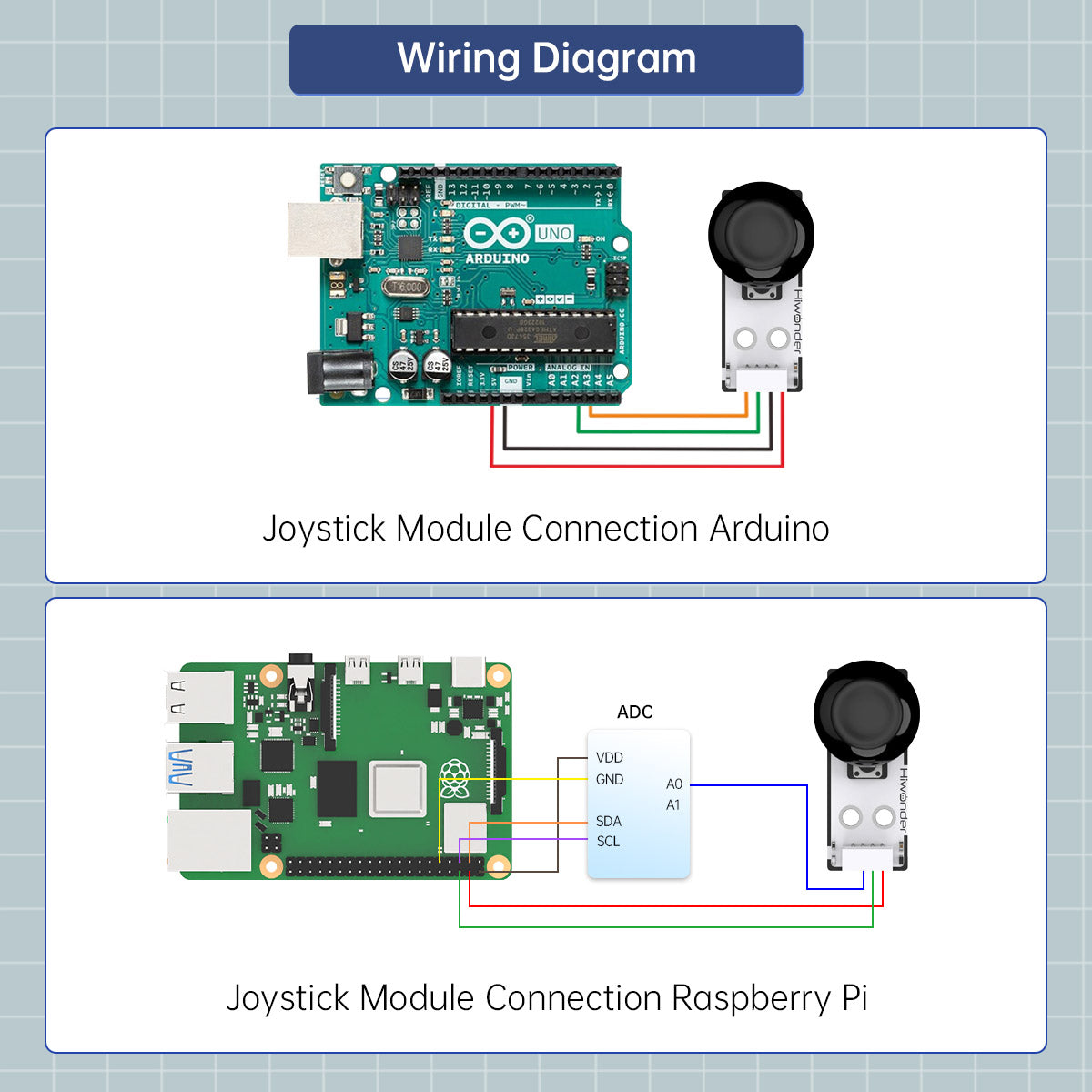

Arduino Connection

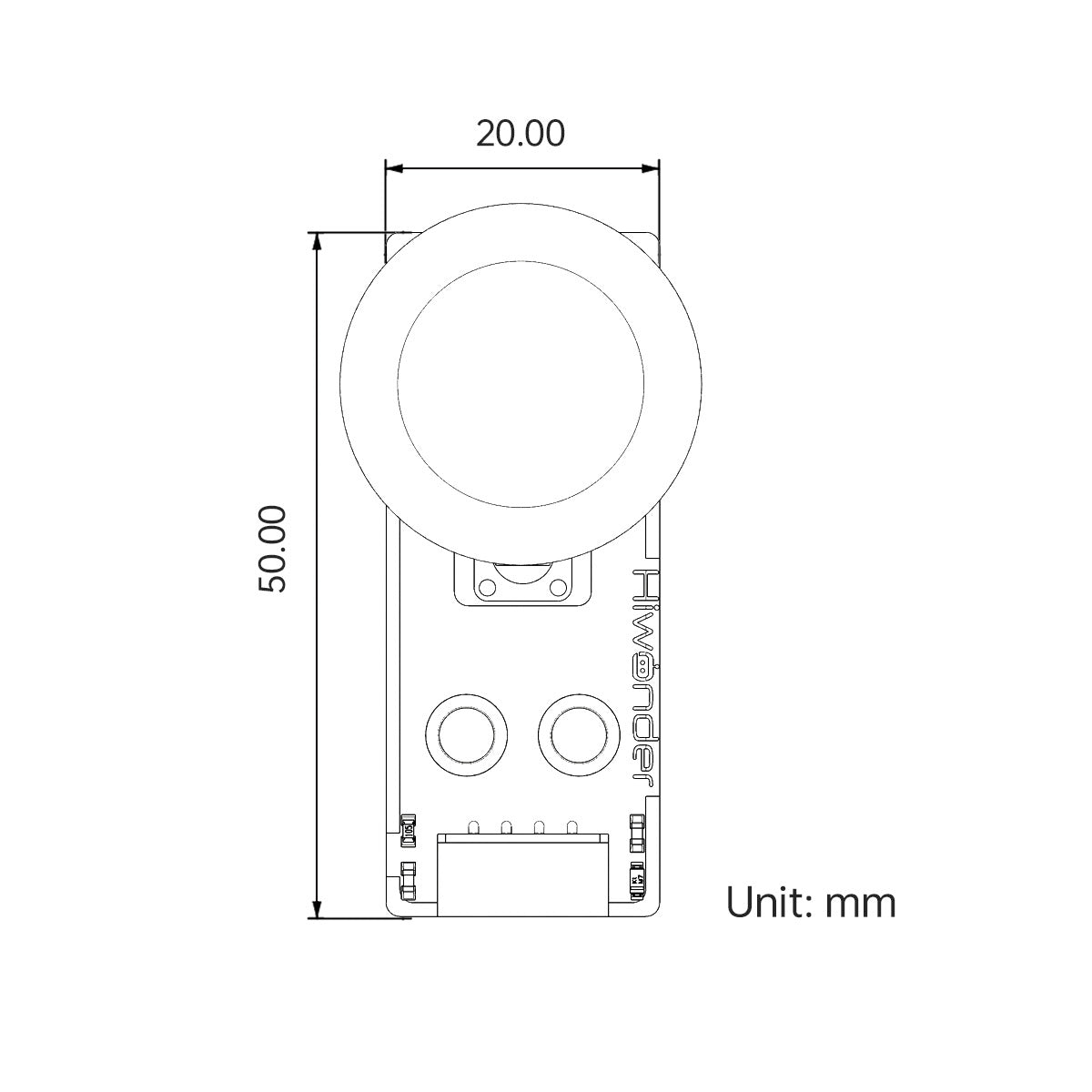

Dimension Drawing

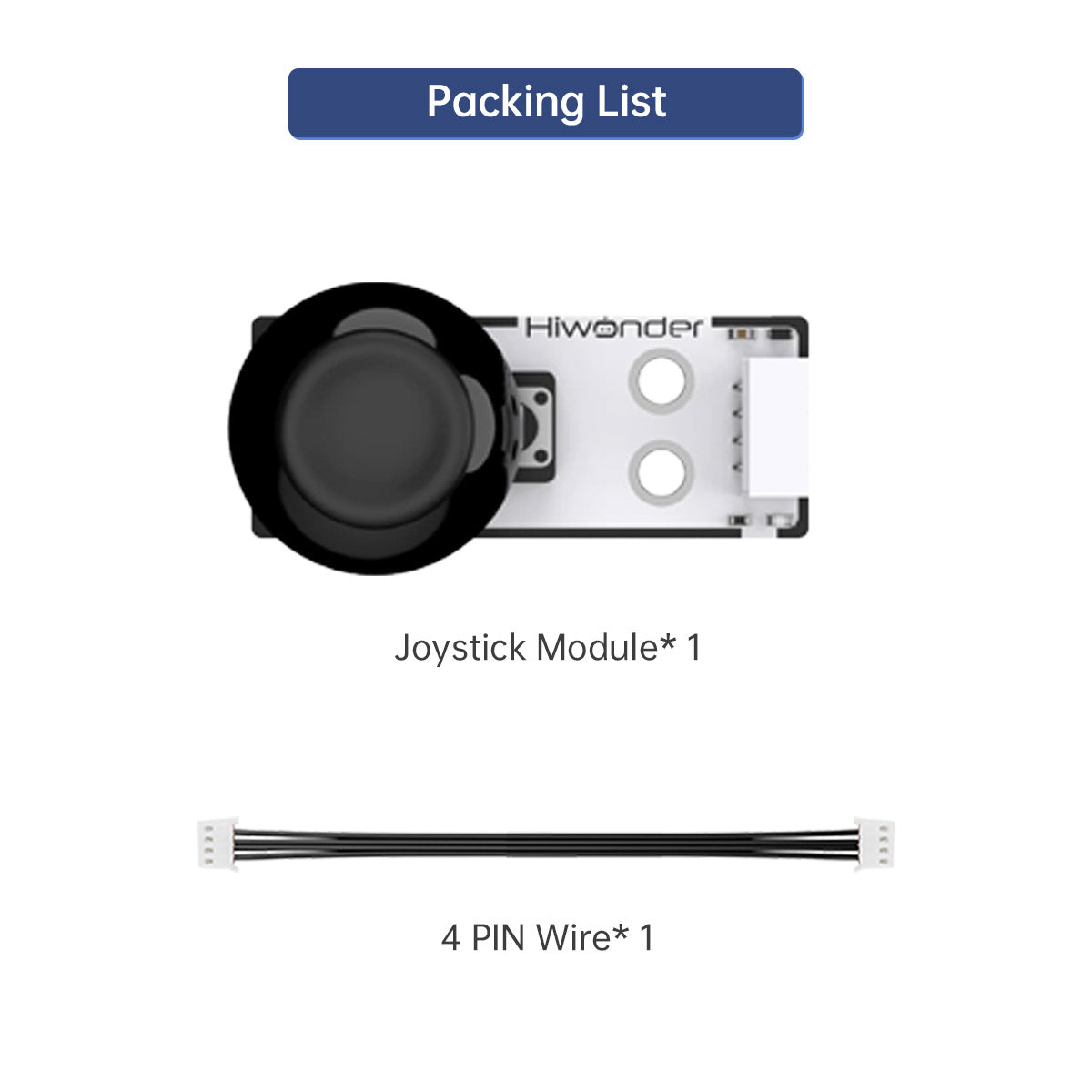

Packing List
1 * Joystick module
1* 4PIN wire (20cm)
1* 4PIN wire (20cm)
| Item | Specification |
| Working voltage | DC 5V |
| Port type | 5264-4AW |
| Size | 50 × 20 mm |
| PWR | lighting up when the sensor is powered |
