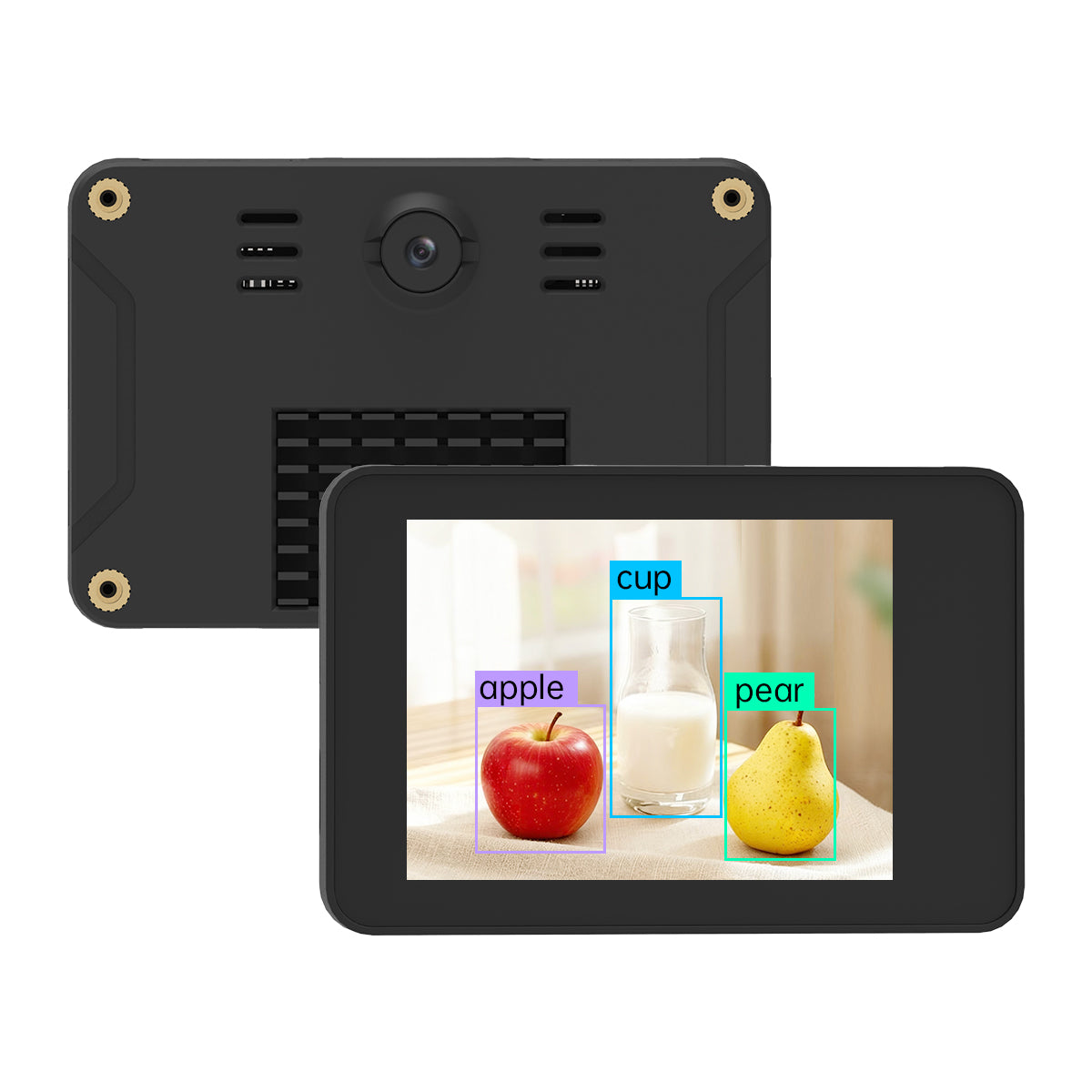

Hiwonder WonderMK K230 Vision Module 6TOPS Equivalent AI Performance, Large Model Development Board with CanMV Camera
【Drive by AI & Powered by K230】 Built on the K230 chip with 6TOPS equivalent AI performance—13.7× faster than K210—and supports 1-click AI training.

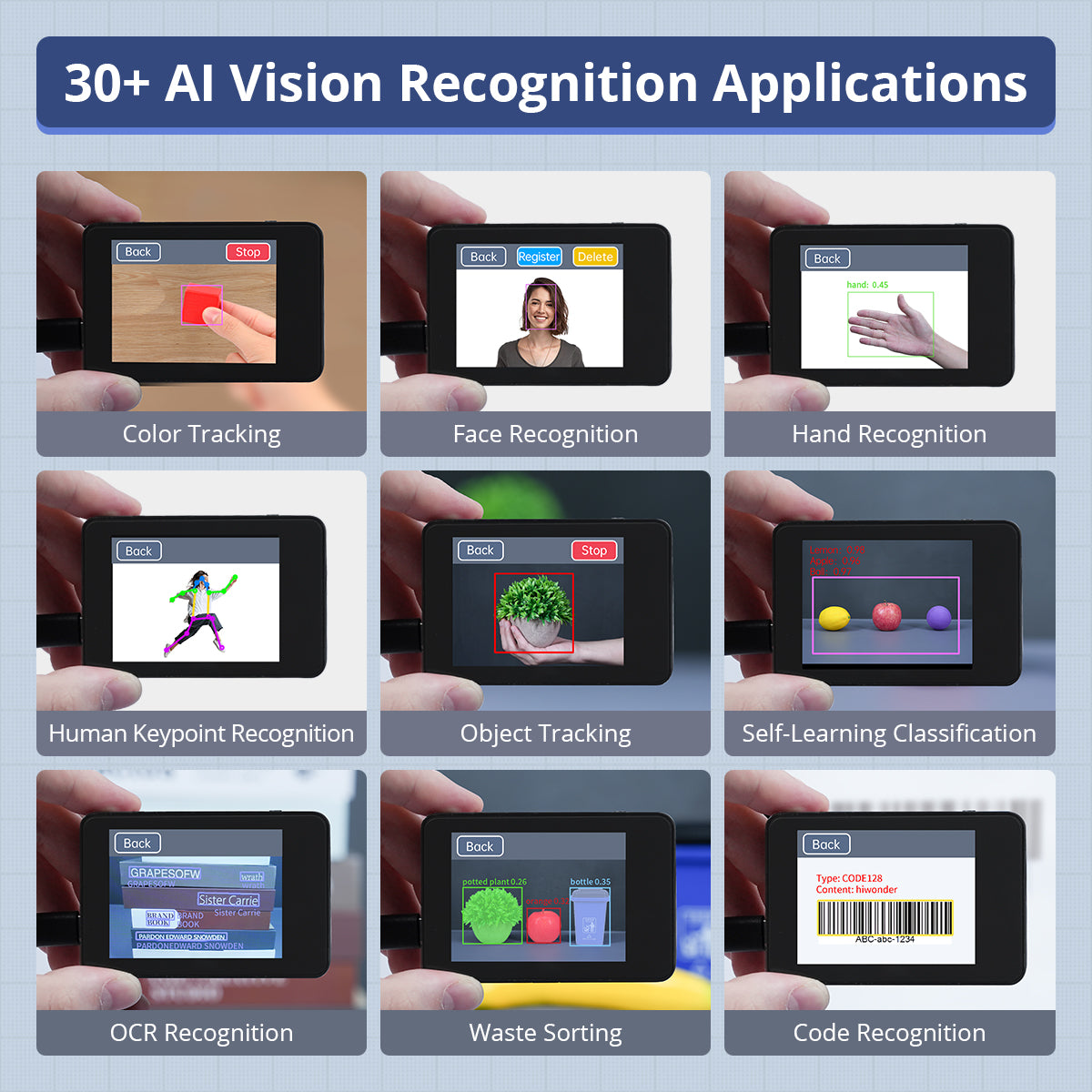

【30+ AI Vision Features】 Equipped with a 2MP HD camera and a touchscreen, the module can recognize objects, colors, humans, faces, digits, text, gestures, and more.
【Deploy AI Large Models】 Switch freely between Large Vision Models, Large Speech Models, and Large Language Models for smart chat, intelligent Q&A, text recognition, and image understanding.
【Multi-Controller Support】 Programmable with MicroPython and compatible with Arduino, Raspberry Pi, ESP32, and other controllers, supporting YOLOv11 deep learning for flexible AI expansion.
【Comprehensive Tutorials】 Packed with tutorials and AI project examples from beginner to advanced for fast hands-on learning.

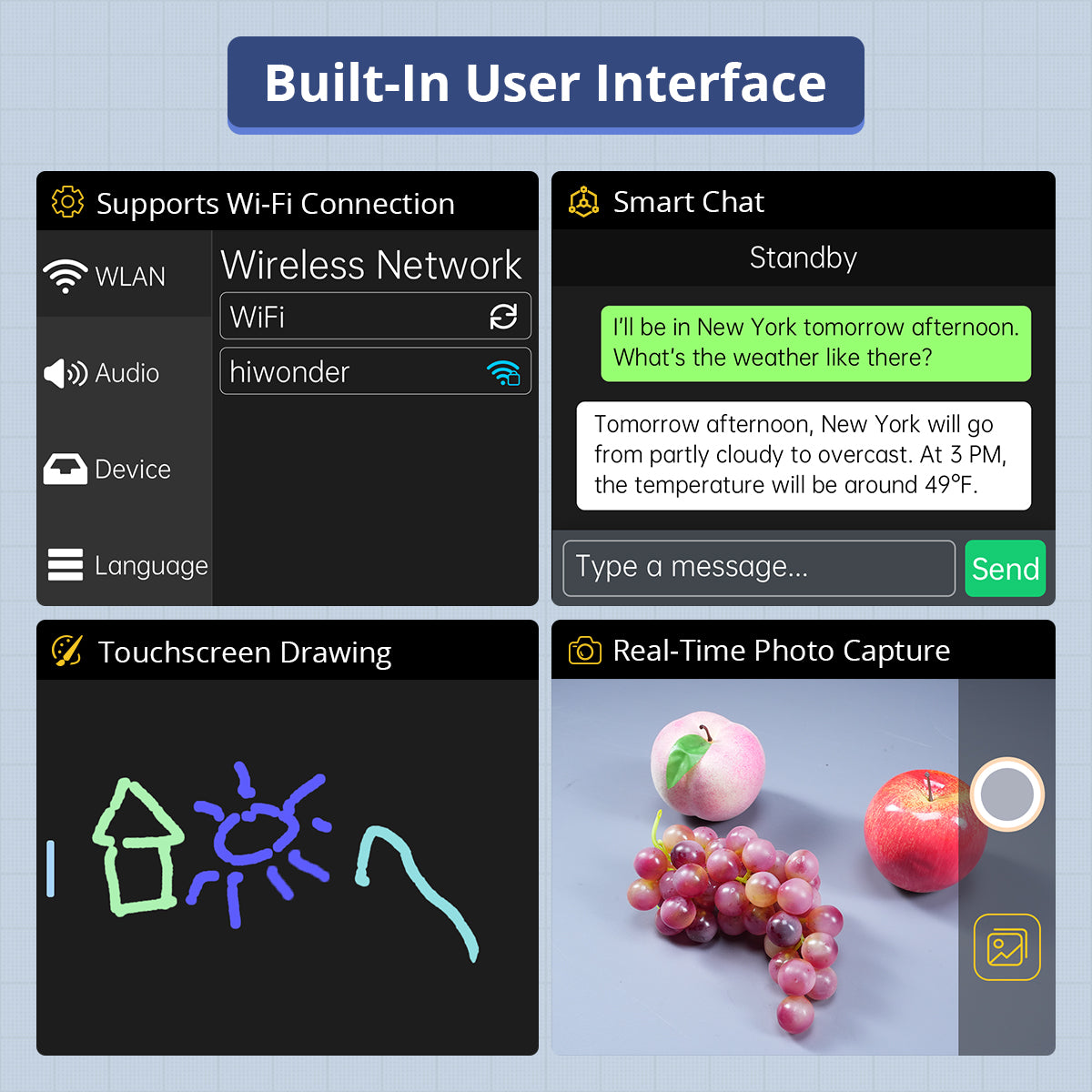

A built-in user interface supports 1-click AI training, color sampling & recognition, and multi-face recognition, removing complex training workflows and significantly shortening development cycles. Compatible with MicroPython and the official OpenMV libraries, the module enables over 30 AI vision applications, including color recognition, face recognition, human feature recognition, YOLO-based object detection and tracking, code recognition, digit recognition, and self-learning classification.
The WonderMK K230 vision module also supports multimodal large AI models with access to cloud-based LLM APIs such as Alibaba Qwen, allowing seamless switching between text, speech, and vision models. This makes it easy to implement speech recognition, speech synthesis, text recognition, and image understanding, providing robots with enhanced perception, reasoning, and action capabilities for advanced embodied intelligence.
High-Performance K230 Chip
Equipped with a dual-core RISC-V K230 processor and a 6 TOPS equivalent KPU, delivering performance approximately 13.7× higher than K210.
HD Camera
Features a 1080P@60fps digital camera for clearer imaging and improved recognition compared to OV5640/OV5647 cameras.
1GB Large Memory
Includes 1GB LPDDR4 memory, ideal for a wide range of AI vision applications and high-memory scenarios.

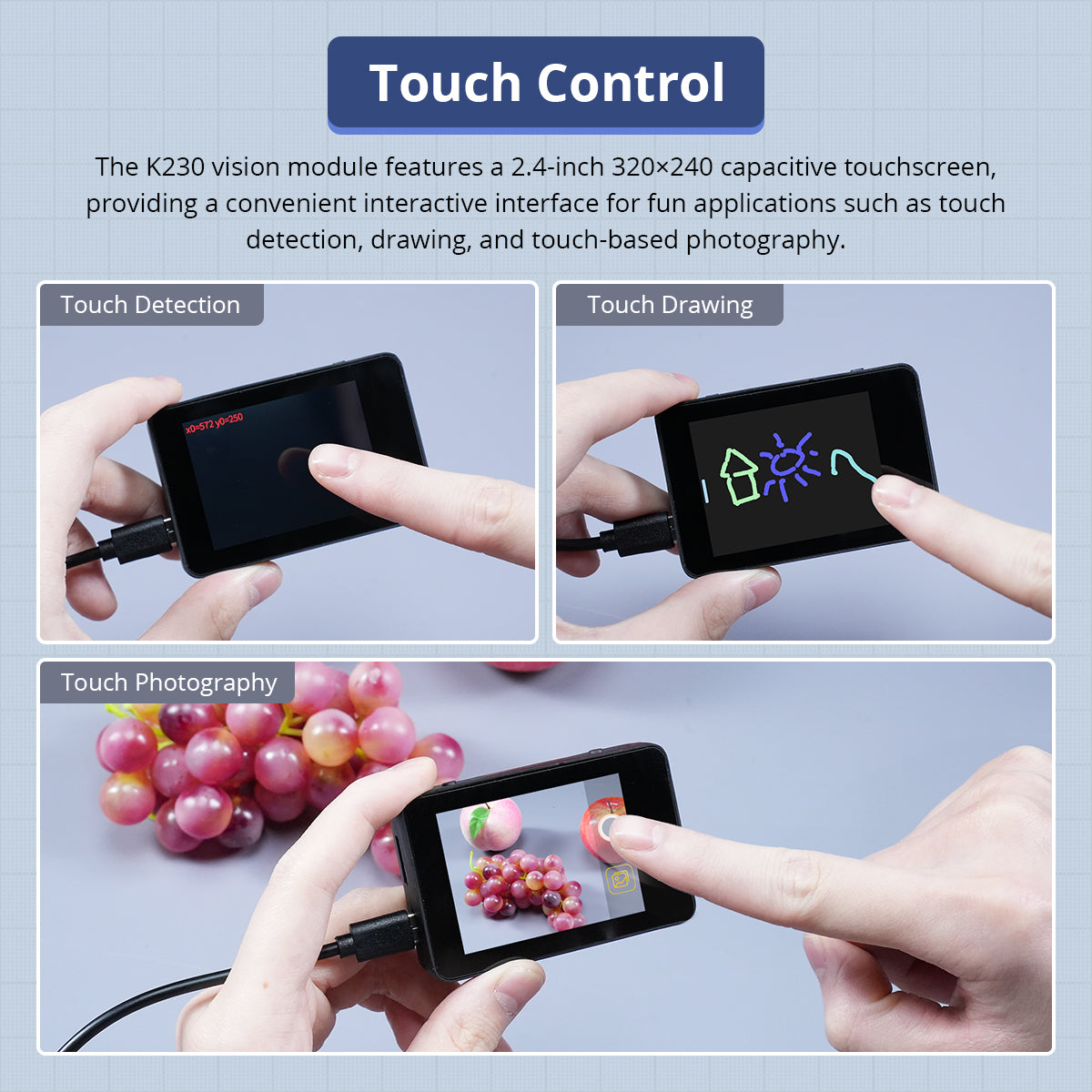

2.4-Inch Capacitive Touchscreen
Features a 2.4-inch capacitive touchscreen at 240×320 resolution with a user-friendly interface.
Built-in WiFi Module

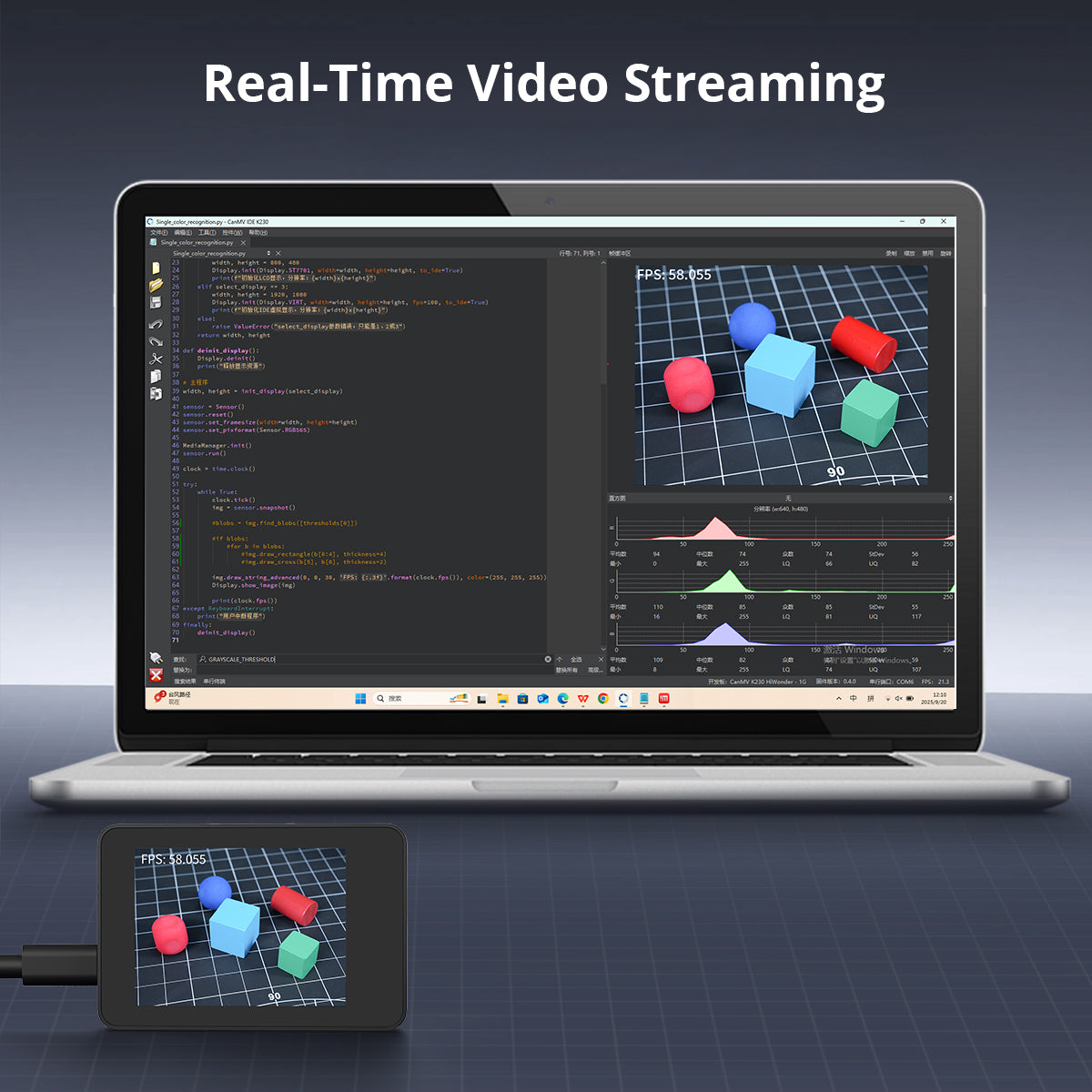

Connects to the network via the integrated WiFi module, supporting AIoT applications and real-time RTSP camera streaming.
Onboard Microphone
Includes a built-in microphone for capturing voice input, enabling large AI model-based conversations and providing intelligent interaction capabilities.
Aluminum Heat Sink
With optimized circuitry and thermal design, the K230 vision module maintains its chip temperature within the normal operating range under standard use.
GPIO Expansion Interface
Features an external 10-pin GPIO connector, allowing customizable pin functions and integration with various electronic modules.
| Product | WonderMK K230 Vision Module | Equivalent computing power | 6TOPS |
| Controller chip | K230 chip | Weight | 55g |
| Size | 74 x 19 x 49 mm | RAM | 1GB LPDDR4 |
| Camera | 2MP | Field of View (FOV) | 80° |
| Display screen | 2.4-inch LCD capacitive touchscreen | Operating voltage | Type-C (DC 5V) |
| Voice recognition mode | Command wake-up | Current/power | 3W/0.6A |
| Voice recognition range | Up to 5 meters in quiet settings, and 1 meter in noisy environments. | WiFi | 802.11b/g/n |
| Development environment | MicroPython, CanMVIDE | ||
| Onboard Interface | Speaker interface, I2C interface, Type-C port, serial port, GPIO interface, TF card slot | Onboard features | Microphone, buzzer, RGB LED, reset button and back button |
| K230 chip specifications | |
| Dimensions: | 283*130*461mm |
| CPU: | CPU1: RISC-V processor, 1.6GHz,32KB I-cache,32KB D-cache, 256KB L2 Cache,128-bit RVV 1.0 extension; CPU0: RISC-V processor, 800MHz,32KB I-cache,32KB D-cache,128KB L2 Cache. |
| KPU: | 6 TOPS equivalent computing power, Supports INT8 and INT16. Typical network performance: Resnet50 ≥ 85fps @ INT8; Mobilenet_v2 ≥ 670fps @ INT8; YOLO V5s ≥ 38fps @ INT8. |
| DPU: | Supports 3D structured light depth processing. Maximum resolution:1920x1080. |
| VPU: | Supports H.264 and H.265 video encoding/decoding. Maximum resolution: 4096x4096; Encoder performance:4K @ 20fps; Decoder performance: 4K @ 40fps;JPEG codec: up to 8K(8192x8192) resolution. |
| Image input: | Supports up to 3 MIPI CSI inputs:1x4-lane + 1x2-lane or 3x2-lane. |
| Display utput: | 1x MIPI DSI (1 x4-lane or 1x2-lane).Maximum resolution: 1920×1080. |
| Peripheral interfaces: | 5 x UART; 5 x 12C;1x12S;6 x PWM;64 x GPIO + 8 x PMU GPIO; 2 xUSB2.0 OTG; 2 x SD x C:SD3.0, EMMC 5.0; 3 x SPI: 1 x OSPI + 2 xQSPI; Timer/ RTC/ WDT. |
| Mini Pan-Tilt Servo Platform Specifications | |||
| Product model | Mini pan-tilt servo platform | Degrees of Freedom | 2 DOF |
| Servo | LD-1501MG / LDX-227 | Material | Metal bracket |
| Dimensions | 76 × 76 × 130 mm | Weight | 366g |
| Interface | Description | Interface | Description |
| 1 | TF card slot | 7 | RGB LED |
| 2 | 10-pin GPIO interface | 8 | Back button |
| 3 | Speaker interface | 9 | I2C interface |
| 4 | UART serial port | 10 | 2.4-inch capacitive LCD touchscreen |
| 5 | Type-C port | 11 | 2MP HD camera |
| 6 | Reset button | 12 | Aluminum heat sink |
| Dimensions: | 283*130*461mm |
| CPU: | CPU1: RISC-V processor, 1.6GHz,32KB I-cache,32KB D-cache, 256KB L2 Cache,128-bit RVV 1.0 extension; CPU0: RISC-V processor, 800MHz,32KB I-cache,32KB D-cache,128KB L2 Cache. |
| KPU: | 6 TOPS equivalent computing power, Supports INT8 and INT16. Typical network performance: Resnet50 ≥ 85fps @ INT8; Mobilenet_v2 ≥ 670fps @ INT8; YOLO V5s ≥ 38fps @ INT8. |
| DPU: | Supports 3D structured light depth processing. Maximum resolution:1920x1080. |
| VPU: | Supports H.264 and H.265 video encoding/decoding. Maximum resolution: 4096x4096; Encoder performance:4K @ 20fps; Decoder performance: 4K @ 40fps;JPEG codec: up to 8K(8192x8192) resolution. |
| Image input: | Supports up to 3 MIPI CSI inputs:1x4-lane + 1x2-lane or 3x2-lane. |
| Display utput: | 1x MIPI DSI (1 x4-lane or 1x2-lane).Maximum resolution: 1920×1080. |
| Peripheral interfaces: | 5 x UART; 5 x 12C;1x12S;6 x PWM;64 x GPIO + 8 x PMU GPIO; 2 xUSB2.0 OTG; 2 x SD x C:SD3.0, EMMC 5.0; 3 x SPI: 1 x OSPI + 2 xQSPI; Timer/ RTC/ WDT. |
