Color Sensor: Hiwonder Robot Sensor Compatible with Arduino/ Raspberry Pi/ Jetson Nano/ micro:bit
- Voltage: DC 5V
- Current: Max 100mA
- Recognizable distance: 2~100mm

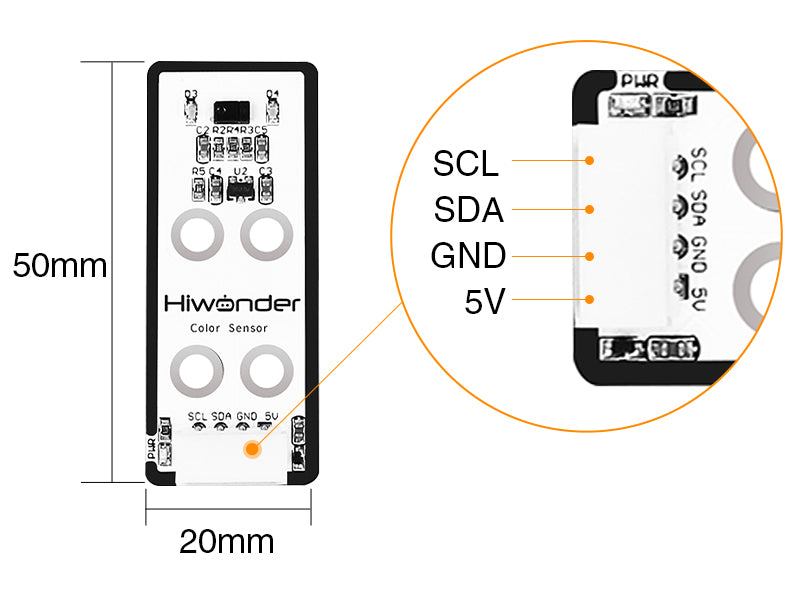

- 4 Pin wire port. Connecting wire is provided. Easy to connect
- The holes are compatible with LEGO bricks
The color sensor is applied to the detection of object color. It is mainly adopted APDS-9960 element. Integrating RGB color detection, it can recognize various object colors. Designed with ambient light detection, it can detect light intensity under various ambient light conditions. With built-in infrared LED light, it can realize object proximity detection. In addition, fitted with four directional diodes, it can recognize gestures such as up, down, left, and right.
For more information, refer to https://www.hiwonder.com.cn/store/learn/66.html.
| Parameters | |||
| Color detection and ambient light inspection | Recognize RGB colors and mixed colors | Programmable infrared LED | Detect light source, not affected by external ambient light |
| Recognizable light wavelength: 465-650mm | ADC value range: 1~255 | ||
| Identifiable through dark glass | Programmable infrared LED | ||
| Gesture action detection | Directional diode with four directions | Supply voltage | DC 5V |
| Recognize gestures such as "up, down, left, and right" | Data interface | I2C bus, the fastest clock frequency can reach 400kHz | |
| Programmable infrared LED | Recognizable distance | 2-100mm | |
| Recognizable angle | forward -20~20° | Indicator light (PWR) description | After power is supplied, the indicator light lights up |
| Interface model | 5264-4AW | Module size | 50*20mm |
| Parameters | |
| Color detection and ambient light inspection | Recognize RGB colors and mixed colors |
| Recognizable light wavelength: 465-650mm | |
| Identifiable through dark glass | |
| Programmable infrared LED | Detect light source, not affected by external ambient light |
| ADC value range: 1~255 | |
| Programmable infrared LED | |
| Gesture action detection | Directional diode with four directions |
| Recognize gestures such as "up, down, left, and right" | |
| Programmable infrared LED | |
| Supply voltage | Supply voltage |
| Data interface | I2C bus, the fastest clock frequency can reach 400kHz |
| Recognizable distance | 2-100mm |
| Recognizable angle | forward -20~20° |
| Indicator light (PWR) description | After power is supplied, the indicator light lights up |
| Interface model | 5264-4AW |
| Module size | 50*20mm |
| Item | Specification |
| Color detection and ambient light inspection | Recognize RGB colors and mixed colors |
| Recognizable light wavelength: 465-650mm | |
| Identifiable through dark glass | |
| Programmable infrared LED | Detect light source, not affected by external ambient light |
| ADC value range: 1~255 | |
| Programmable infrared LED | |
| Gesture action detection | Directional diode with four directions |
| Recognize gestures such as "up, down, left, and right" | |
| Programmable infrared LED | |
| Supply voltage | DC 5V |
| Data interface | I2C bus, the fastest clock frequency can reach 400kHz |
| Recognizable distance | 2-100mm |
| Recognizable angle | forward -20~20° |
| Indicator light (PWR) description | After power is supplied, the indicator light lights up |
| Interface model | 5264-4AW |
| Module size | 50*20mm |
