Sensor Module
Infrared Obstacle Avoidance Sensor：Hiwonder Robot Sensor Compatible with Arduino
Product SKU: HW2019068
- Working voltage: DC 5V
- Working current: 40mA
- Effective detection range: 2 ~ 25cm
- 4 Pin wire port. Connecting wire is provided. Easy to connect
- The holes are compatible with LEGO bricks
Available:
Only 944 items in stock
In stock
In stock
Out of stock
Back in stock
$3.99
Product Description

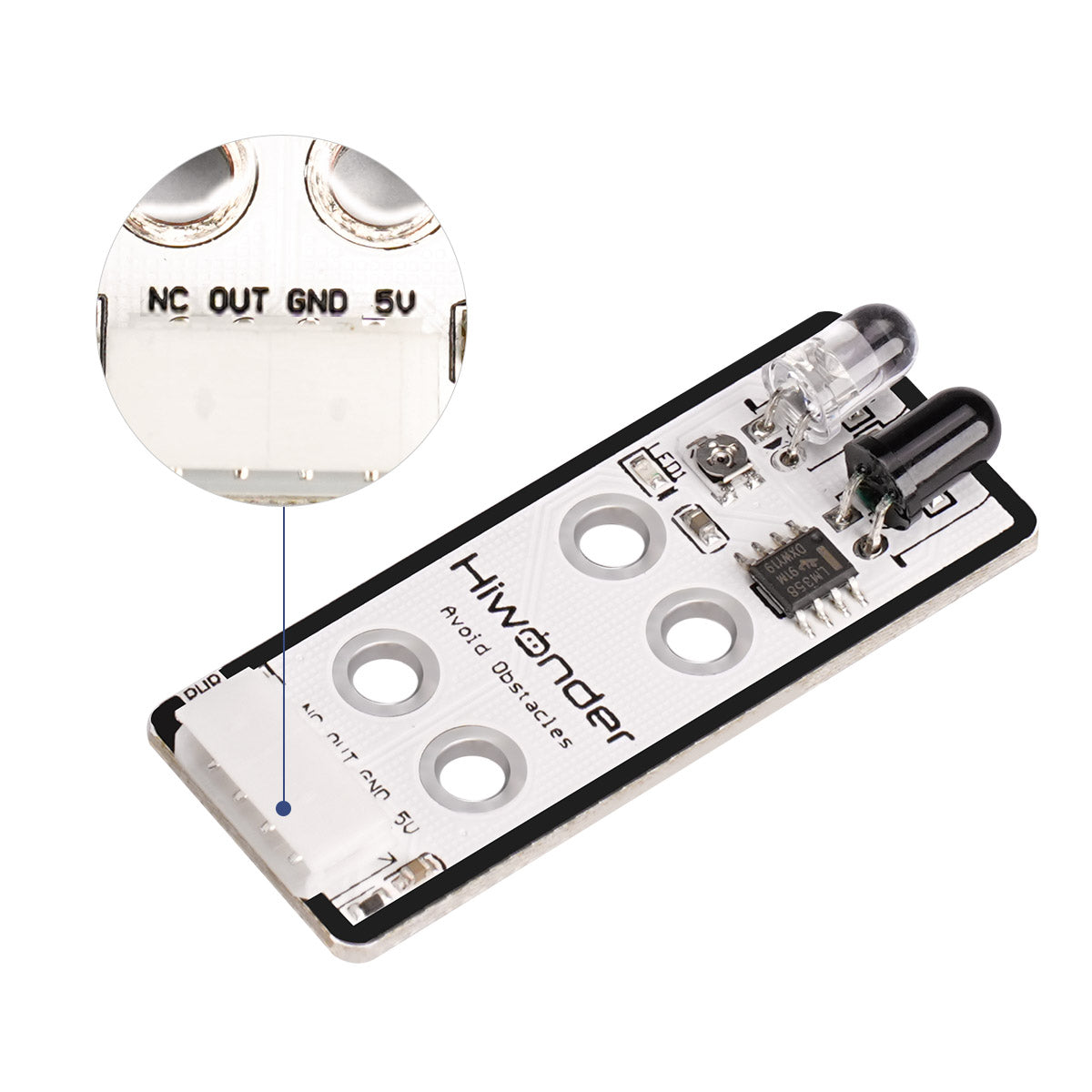

Hiwonder infrared obstacle avoidance sensor is used for detecting obstacle ahead. It is equipped with a pair of infrared transmitting and receiving tubes. Once it encounters obstacle, the infrared will be reflected, and then received by receiving tube, after which signal terminal OUT will output a low level signal. When receiving tube does not receive infrared, signal terminal OUT will output a high-level signal. User can judge whether there are obstacles ahead based on the condition of signal terminal OUT. The detection distance can be adjusted through a mini potentiometer on sensor.

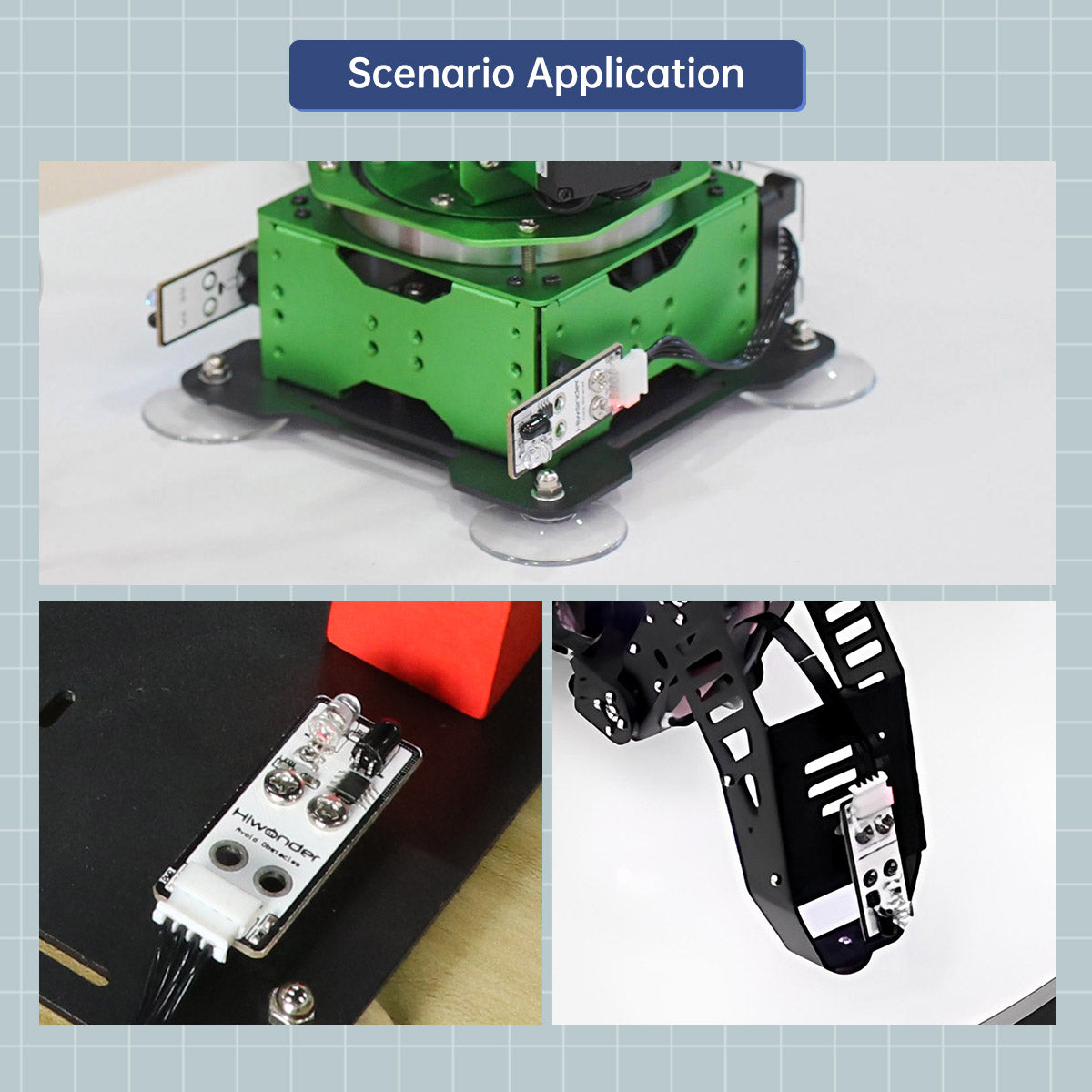

This sensor can be widely applicable in robot and smart car obstacle avoidance.
This sensor can be widely applicable in robot and smart car obstacle avoidance.
Features
- Working voltage: DC 5V
- Working current: 40mA
- Effective detection range: 2 ~ 25cm
- Port type: 5264 - 4AW
- Size: 50 × 20mm
- LED1: lighting up when obstacle is detected

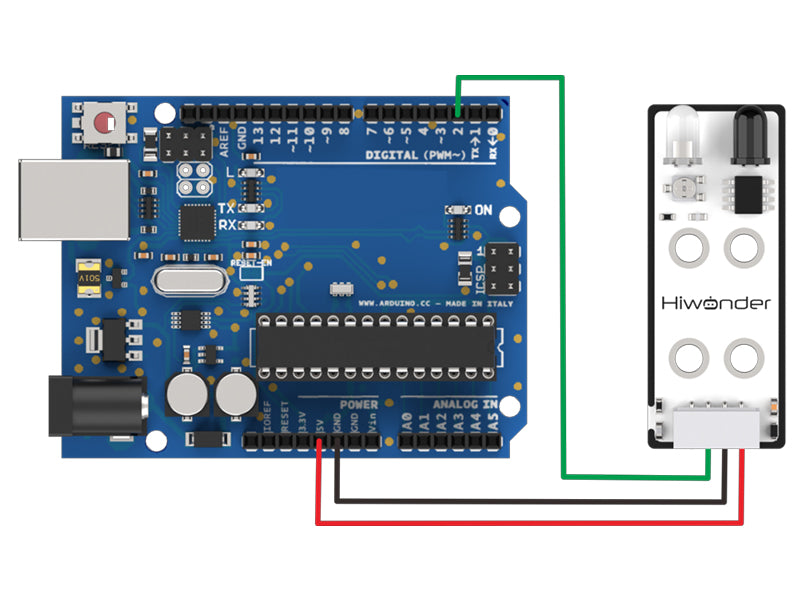

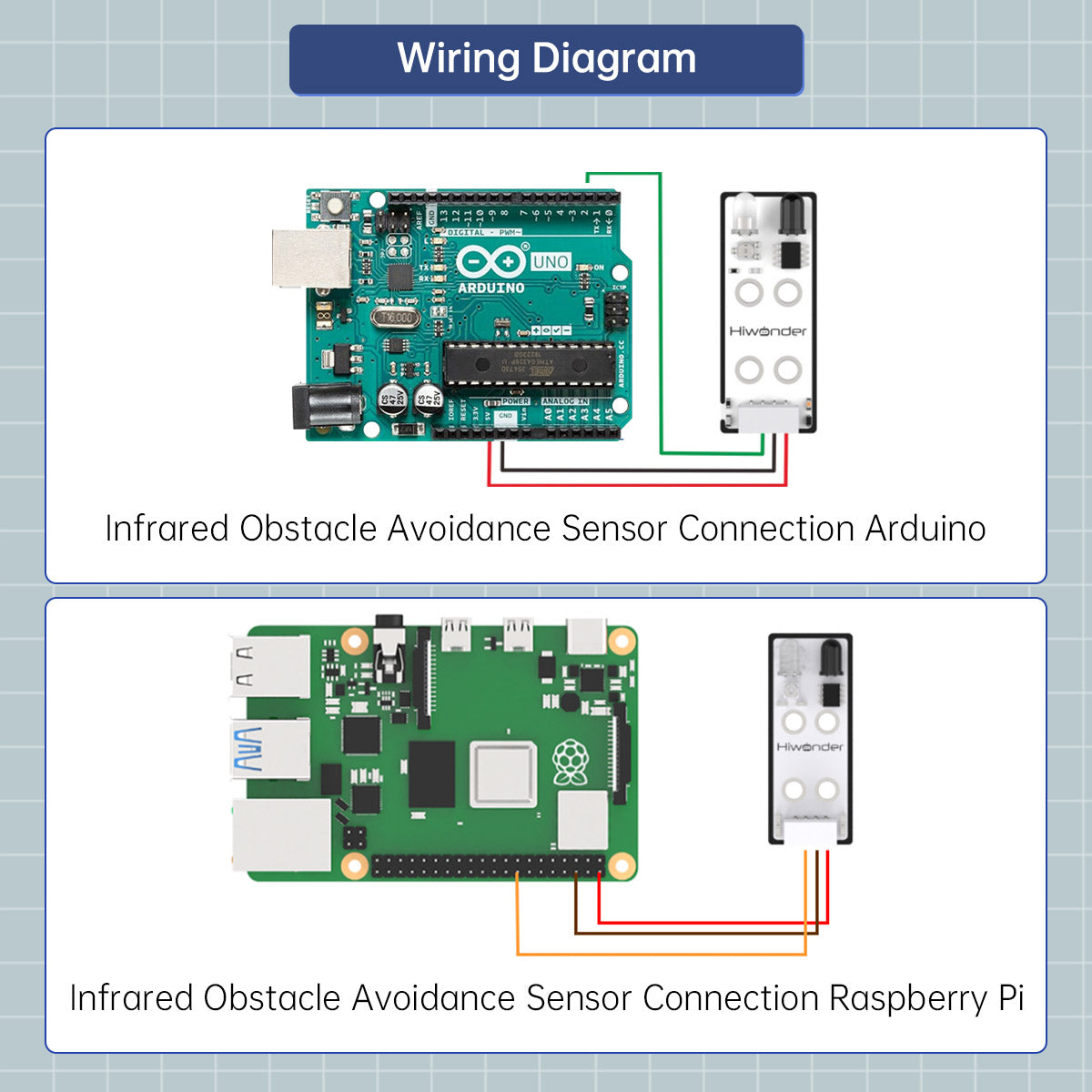

Arduino Connection

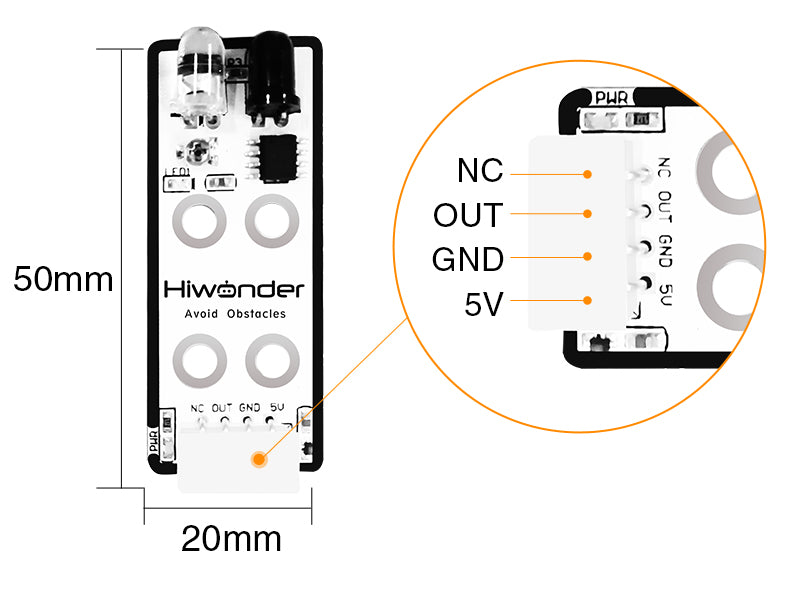

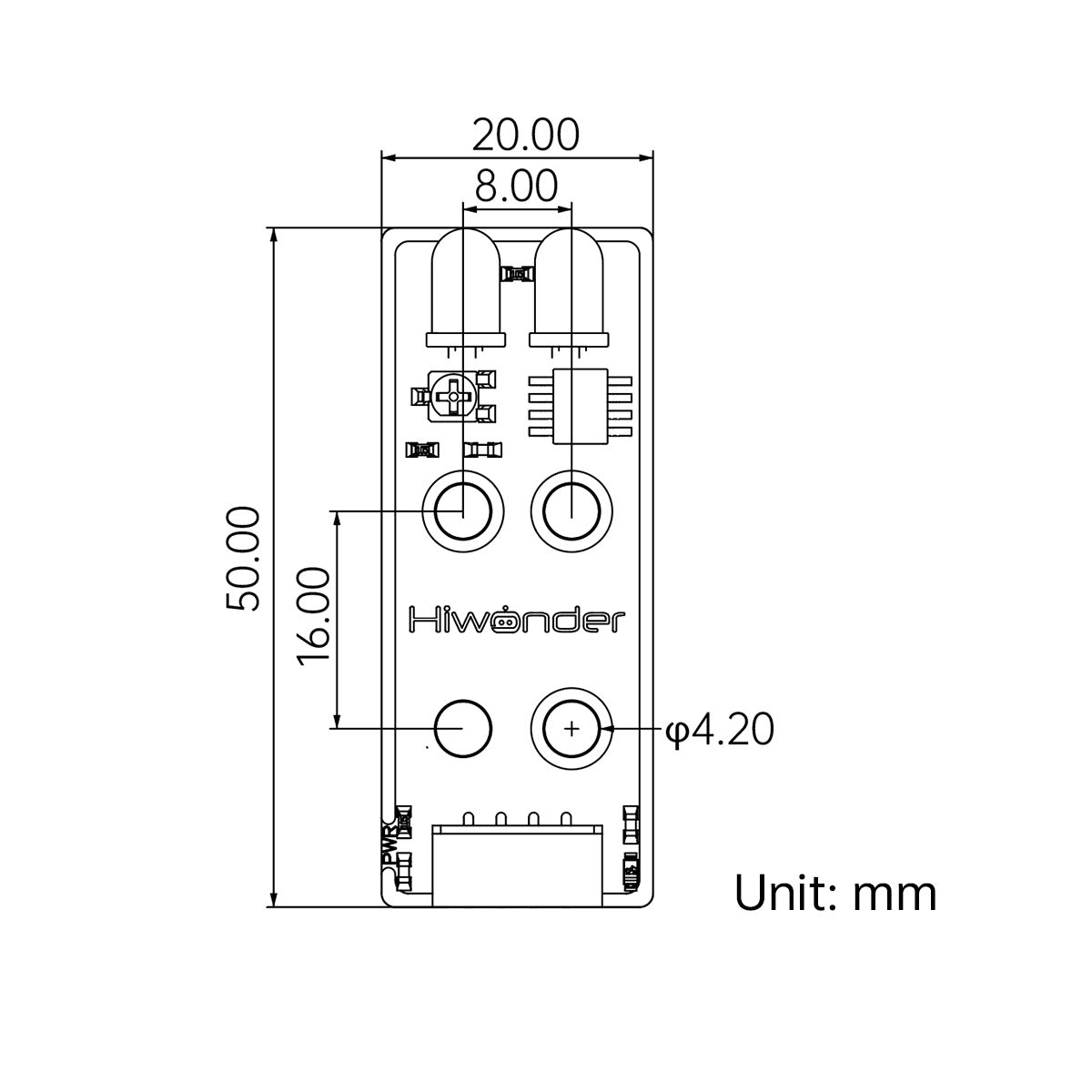

Dimension Drawing

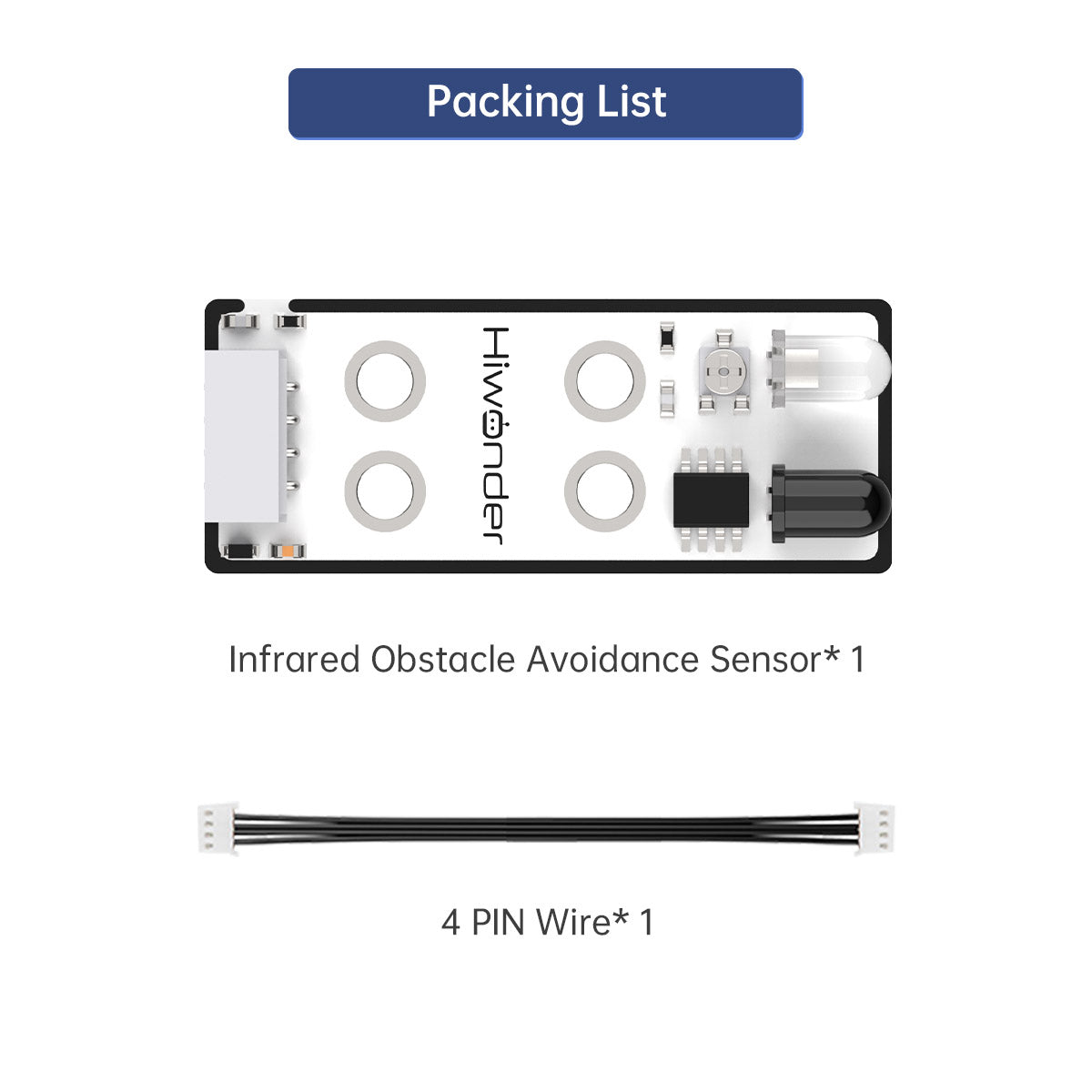

Packing List
1* Infrared obstacle avoidance sensor
1* 4PIN wire (20cm)
1* 4PIN wire (20cm)
| Item | Specification |
| Working voltage | DC 5V |
| Working current | 40mA |
| Effective detection range | 2 ~ 25cm |
| Port type | 5264 - 4AW |
| Size | 50 × 20mm |
| LED1 | lighting up when obstacle is detected |
