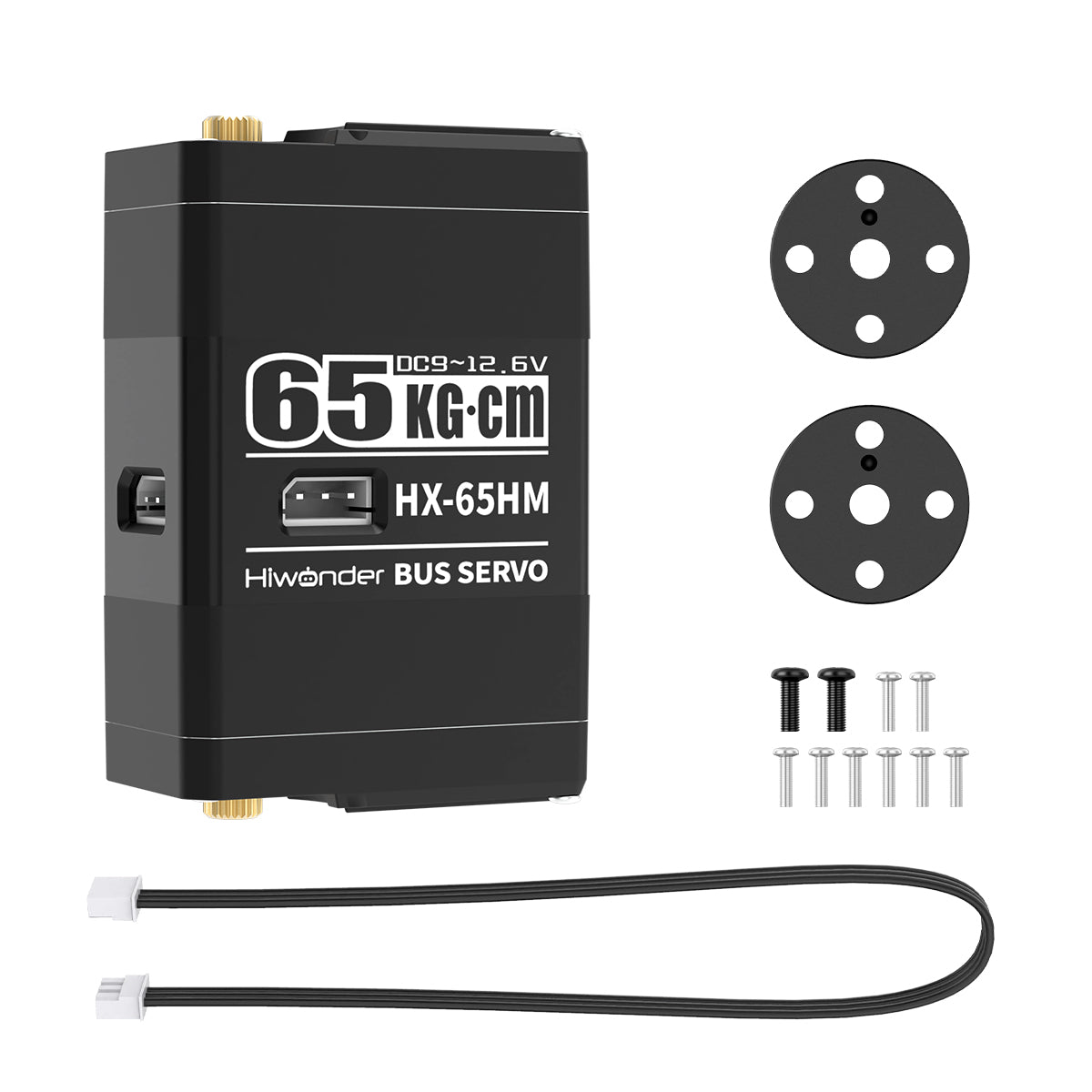

Hiwonder HX-65HM Intelligent Serial Bus Servo Full Metal Gear 65KG High Torque 0-360° Precision Control

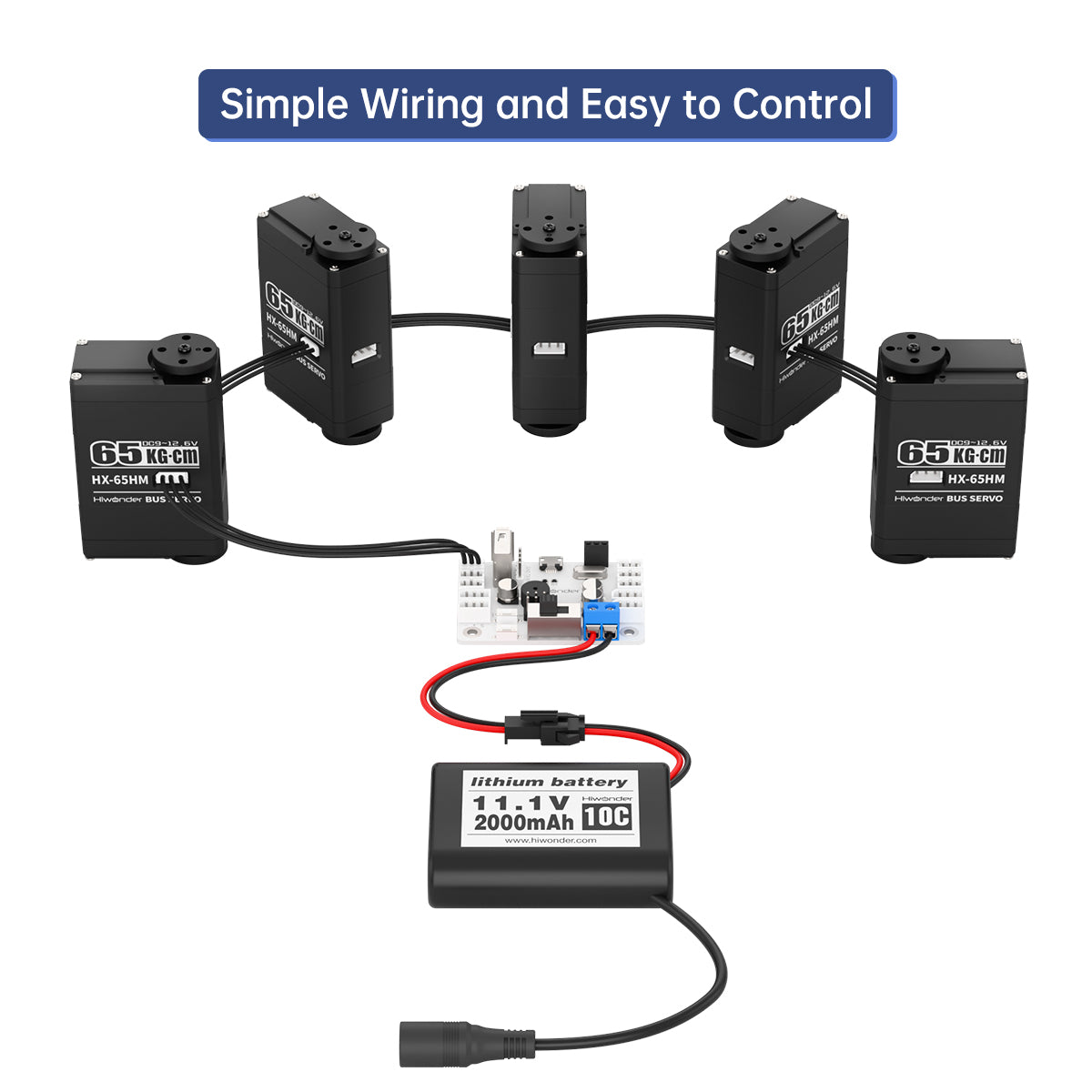

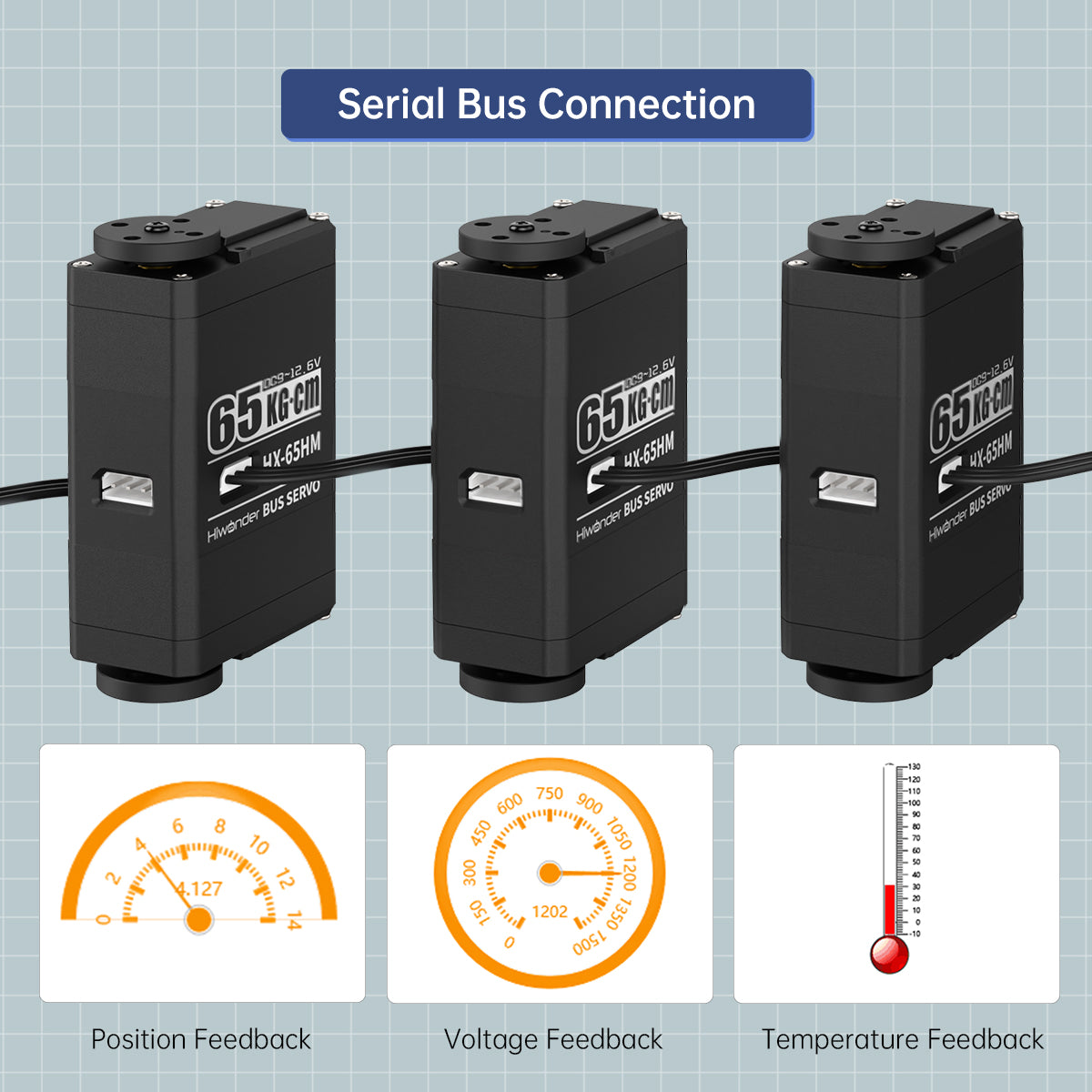

【Serial Bus Connection】The HX-65HM servo features a dual-interface serial bus connection, streamlining the wiring process and enhancing the product's neatness and aesthetic appeal.
【65KG High Torque & 360° Precision Control】 Utilizing 360° angle precision feedback and up to 65 kg·cm torque, the servo ensures exceptional accuracy and linearity, enhancing the robot's stability and extending the servo’s lifespan.

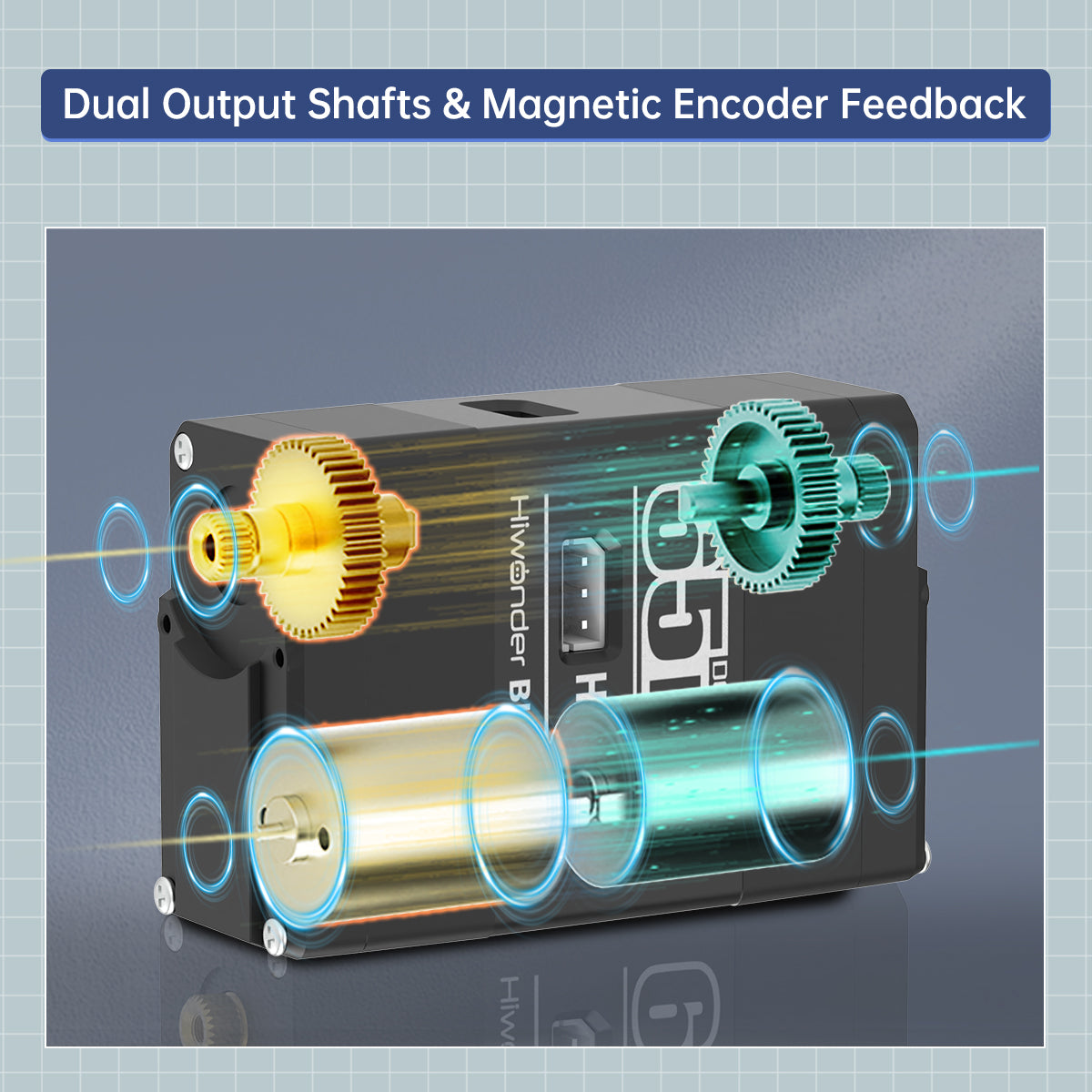

【Dual-Axis Structure】HX-65HM servo featuring a dual-axis stabilization design, the main shaft delivers power while the auxiliary shaft provides support. This dual-axis configuration ensures smooth and stable operation of robotic joints.

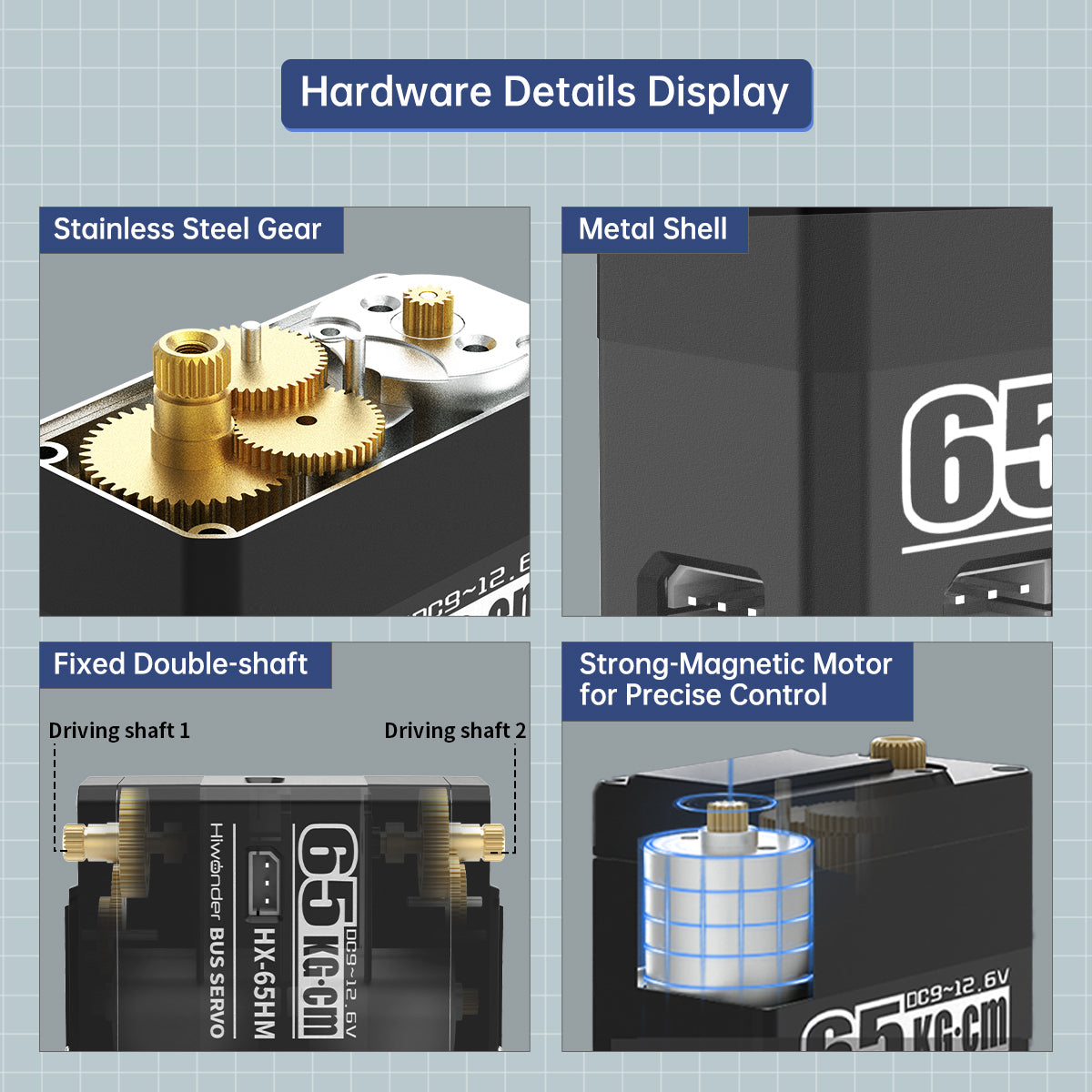

【Metal Gear & CNC Case】High-strength metal gears combined with a precision CNC metal case provide excellent durability, effective heat dissipation, and long-term reliability for demanding robotic tasks.
【Flexible Application】The servo supports ID-based bus communication for easy identification, and provides real-time monitoring with feedback on angle, temperature, and voltage. Additionally, it offers dual-mode functionality, supporting both servo mode and reduction motor mode.
HX-65HM combines outstanding durability with excellent heat dissipation, making it ideal for bionic robots, robotic arms, and precision instruments that require heavy-duty performance. The servo features an anti-stall algorithm and supports real-time feedback of temperature, voltage, position, and angle. It also includes stall, overheat, overload, and overvoltage protection for safe and reliable operation.
Multiple Protection Mechanisms
The HX-65HM servo includes multiple safeguards-stall, overheat, overload, overvoltage, and overcurrent protection-to ensure stable and reliable performance over the long term.
Angle Feedback & Readback

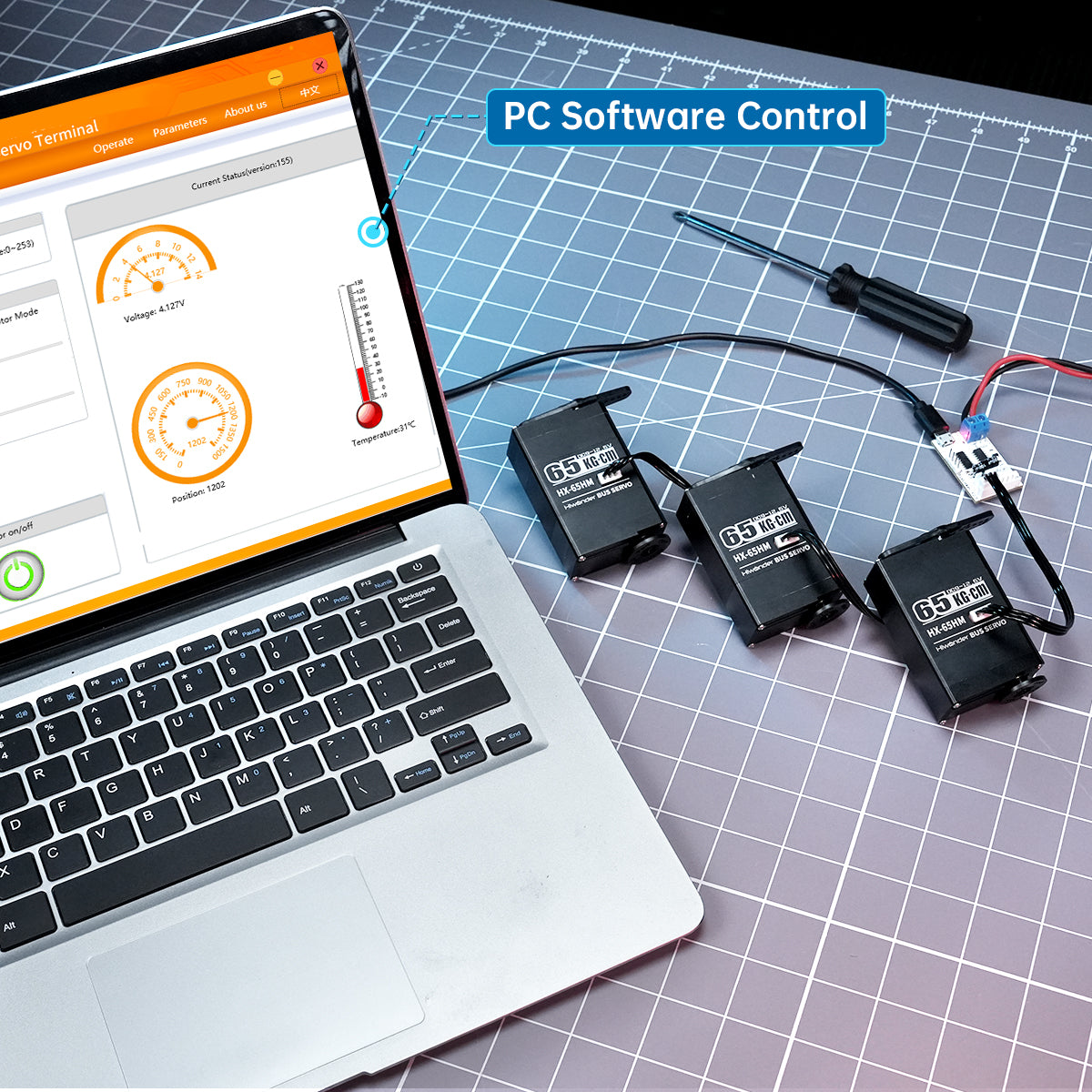

The bus servo supports real-time angle feedback, enabling quick angle readback to monitor servo positions and accurately capture robot joint movements.
ID Identification & Bus Communication
Each servo can be assigned an ID, with the default set to 1 and fully customizable.
Supports Servo Mode and Geared Motor Mode
In servo mode, you can control rotation and positioning within 360°. In geared motor mode, you can adjust rotation direction and speed.
Educational Robots
Automation Applications
AI Vision Interaction Solutions
Sensor Interaction Solutions
| Product Parameters | |||
| Product | HX-65HM Intelligent Bus Servo | Control method | UART serial command |
| Brand | Hiwonder | Communication baud rate | 115200 |
| Weight | 143.5g | Storage | Save data when power off |

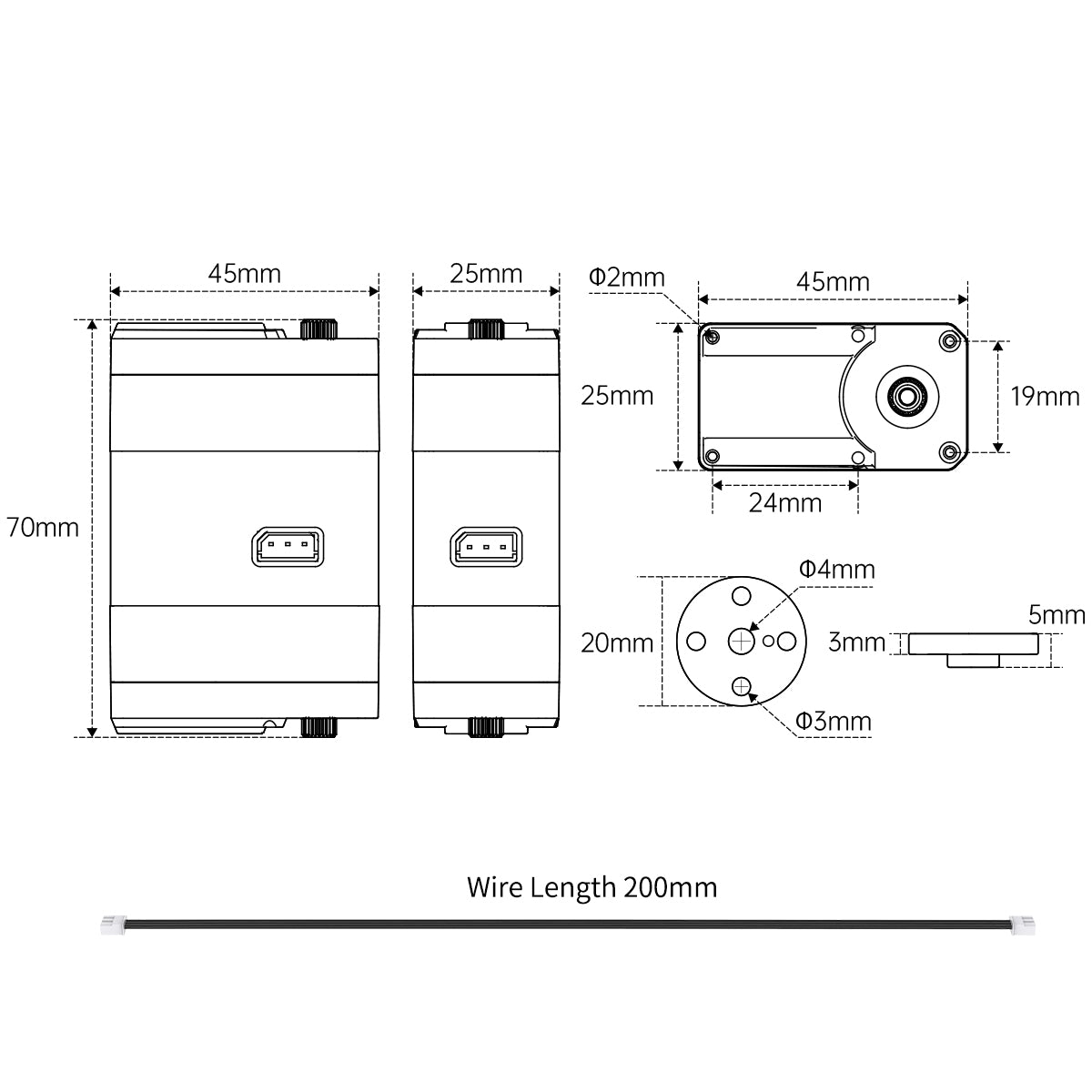

| Size | 45mm x 25mm x 70mm | Servo ID | Can be set to 0-253, 1 by default |
| Working voltage | 9-12.6V | Angle read back function | Support |
| Rotation speed | 0.19sec/60°11.1V | Protection | Stall and overheat prevention |
| Stall Torque | 65KG@12.6V, 50KG@9.6V | Data feedback | Temperature, voltage and position |
| Rated Torque | 50KG@12.6V, 35KG@9.6V | Working mode | Servo Mode and Geared Motor Mode |
| Rotation range | 0°~360° | Gear type | Metal gear |
| No-load current | 80mA | Gear Teeth | 25T |
| Stall current | 5A | Servo wire length | 20cm, other lengths available upon request |
| Servo accuracy | 0.3° | Connector | 5264-3P |
| Controllable angle range | 0~1500，corresponding to 0°~360° | Applicable to | Joints of bionic robots |
| Product Parameters | |
| Product | HX-65HM Intelligent Bus Servo |
| Control method | UART serial command |
| Brand | Hiwonder |
| Communication baud rate | 115200 |
| Weight | 143.5g |
| Storage | Save data when power off |
| Size | 45mm x 25mm x 70mm |
| Servo ID | Can be set to 0-253, 1 by default |
| Working voltage | 9-12.6V |
| Angle read back function | Support |
| Rotation speed | 0.19sec/60°11.1V |
| Protection | Stall and overheat prevention |
| Stall Torque | 65KG@12.6V, 50KG@9.6V |
| Data feedback | Temperature, voltage and position |
| Rated Torque | 50KG@12.6V, 35KG@9.6V |
| Working mode | Servo Mode and Geared Motor Mode |
| Rotation range | 0°~360° |
| Gear type | Metal gear |
| No-load current | 80mA |
| Gear Teeth | 25T |
| Stall current | 5A |
| Servo wire length | 20cm, other lengths available upon request |
| Servo accuracy | 0.3° |
| Connector | 5264-3P |
| Controllable angle range | 0~1500，corresponding to 0°~360° |
| Applicable to | Joints of bionic robots |
| Item | Specification |
| Product | HX-65HM Intelligent Bus Servo |
| Control method | UART serial command |
| Brand | Hiwonder |
| Communication baud rate | 115200 |
| Weight | 143.5g |
| Storage | Save data when power off |
| Size | 45mm x 25mm x 70mm |
| Servo ID | Can be set to 0-253, 1 by default |
| Working voltage | 9-12.6V |
| Angle read back function | Support |
| Rotation speed | 0.19sec/60°11.1V |
| Protection | Stall and overheat prevention |
| Stall Torque | 65KG@12.6V, 50KG@9.6V |
| Data feedback | Temperature, voltage and position |
| Rated Torque | 50KG@12.6V, 35KG@9.6V |
| Working mode | Servo Mode and Geared Motor Mode |
| Rotation range | 0°~360° |
| Gear type | Metal gear |
| No-load current | 80mA |
| Gear Teeth | 25T |
| Stall current | 5A |
| Servo wire length | 20cm, other lengths available upon request |
| Servo accuracy | 0.3° |
| Connector | 5264-3P |
| Controllable angle range | 0~1500，corresponding to 0°~360° |
| Applicable to | Joints of bionic robots |
