- Indoor and outdoor availability
- Support ROS1/ROS2
- Binocular structured light
- Small measurement blind spot
- Support Raspberry Pi/ JETSON/ Windows
Support ROS1/ ROS2
The depth camera is compatible with both ROS1 and ROS2 systems and includes SDKs tailored for these platforms.

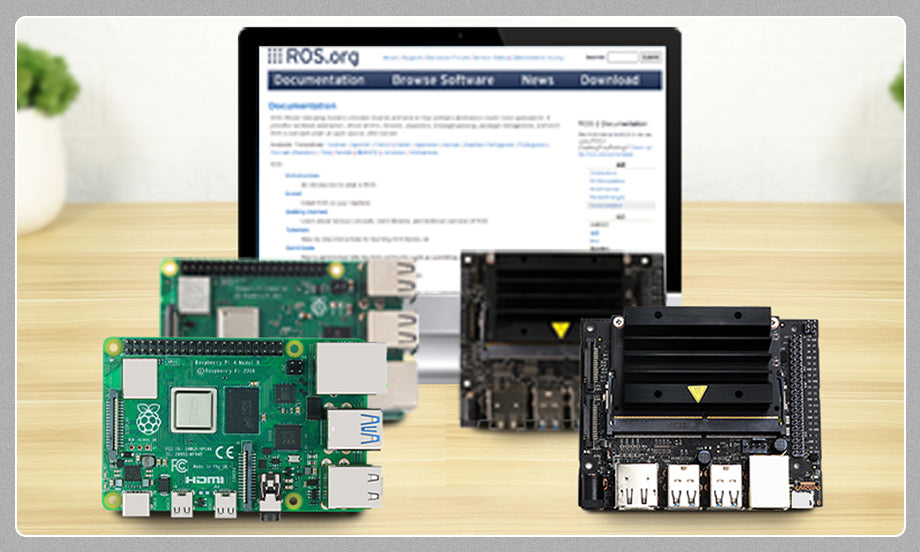

Compatible with Multiple Controllers
Support Raspberry Pi, NVIDIA Jetson Series controller, PC computer, industrial personal computer.

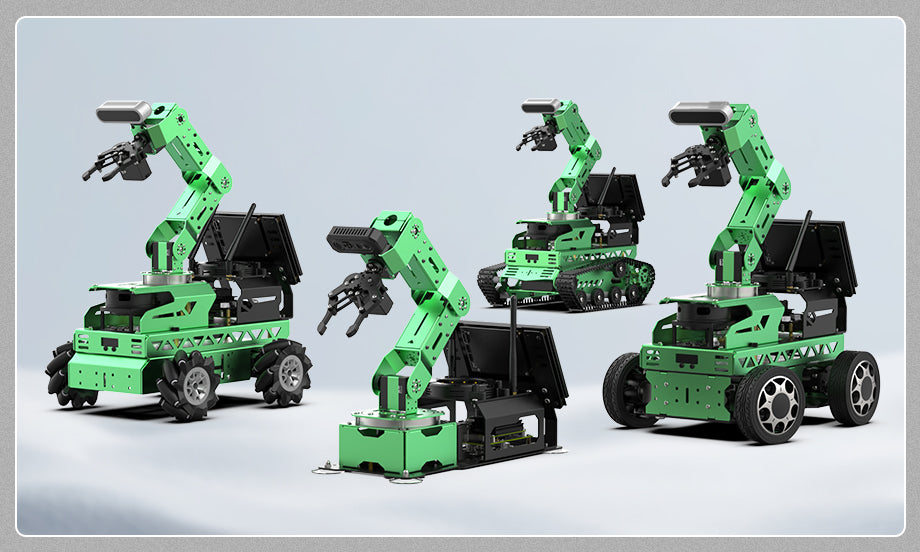

Support Multiple Robots
Support ROS/ Raspberry Pi/ Jetson robots.

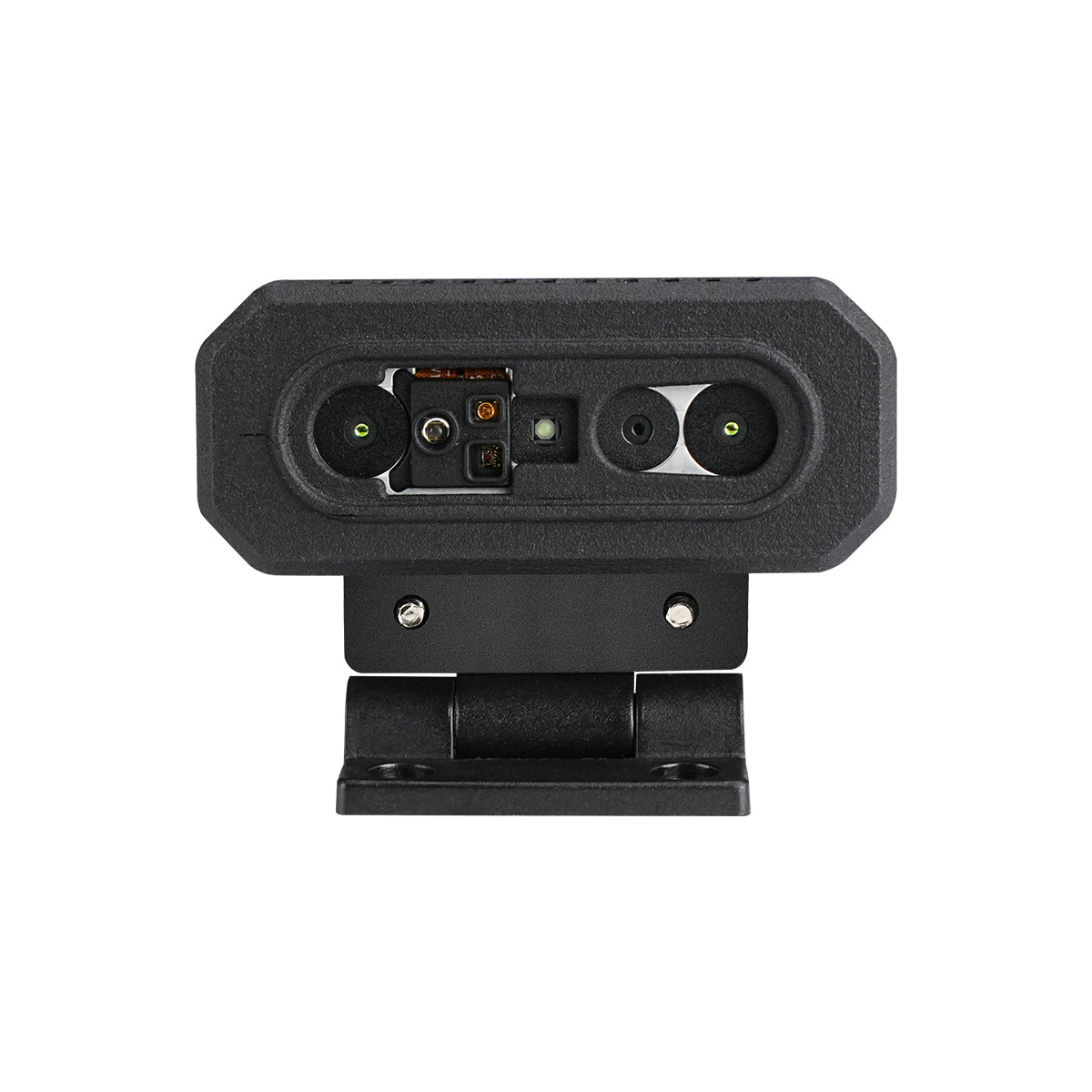

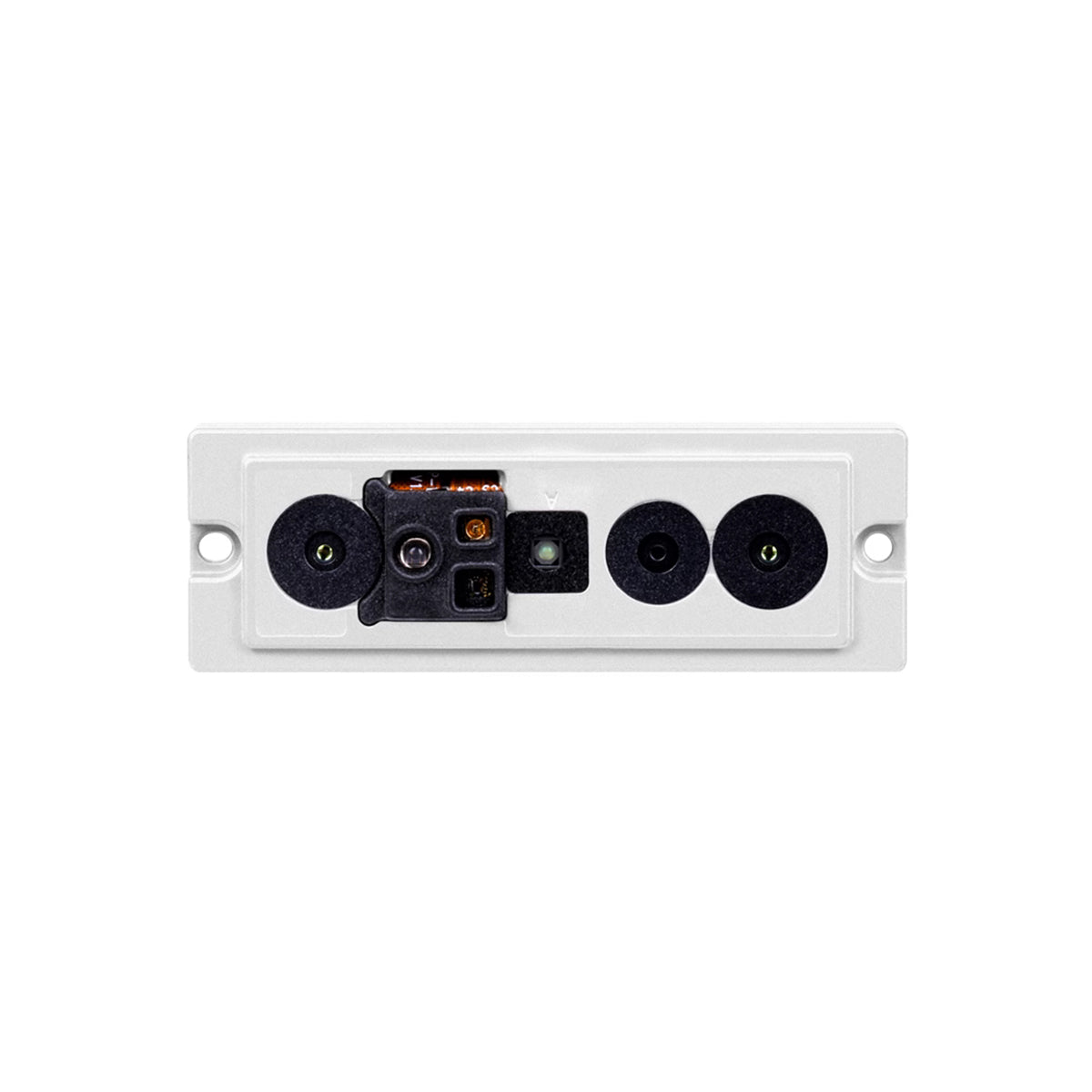

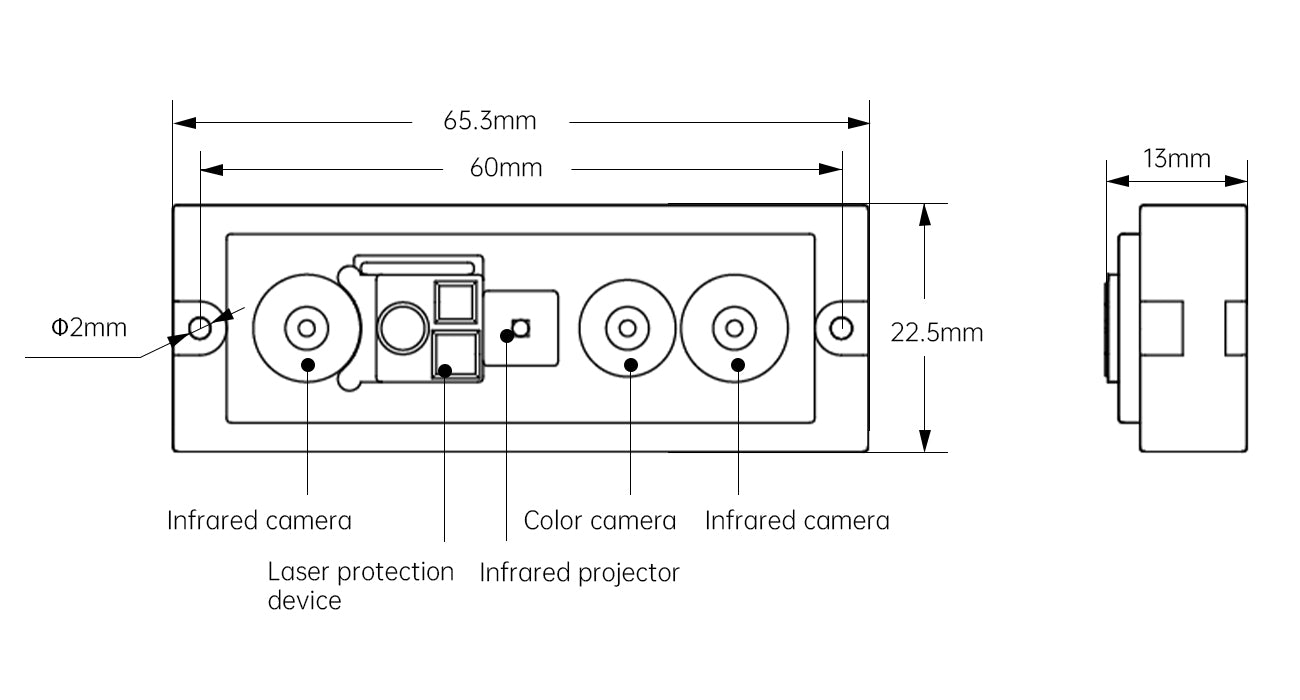

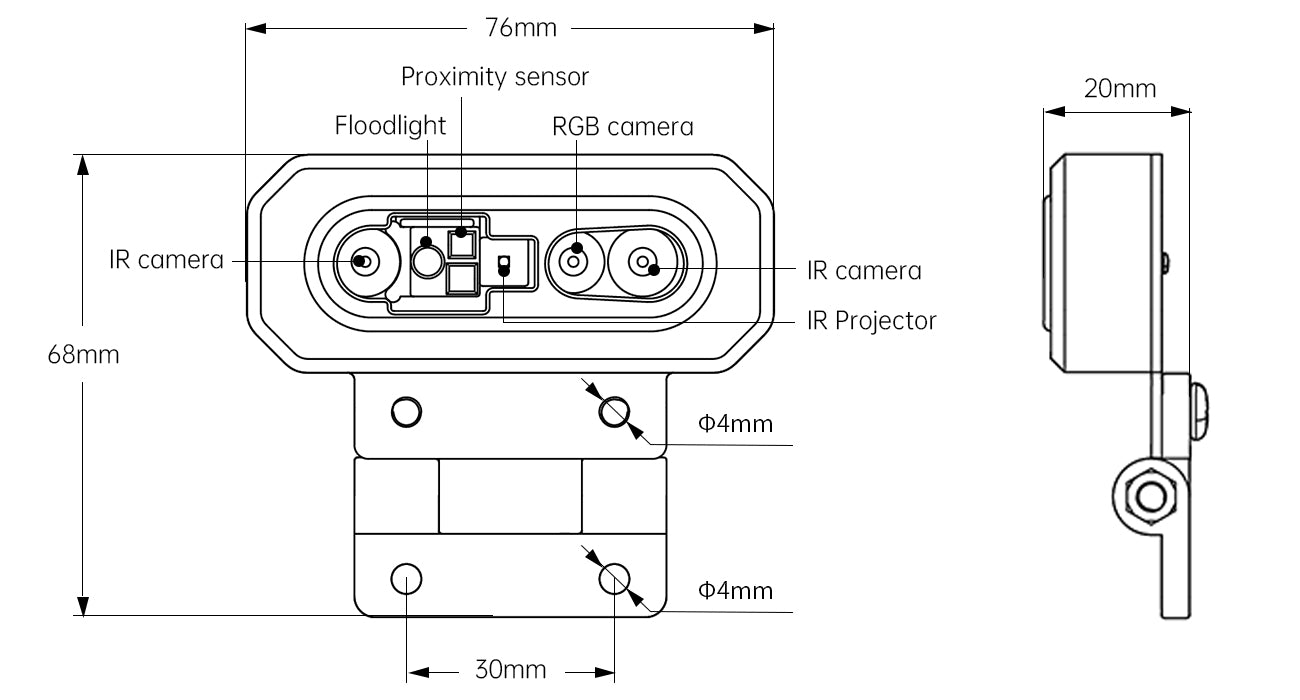

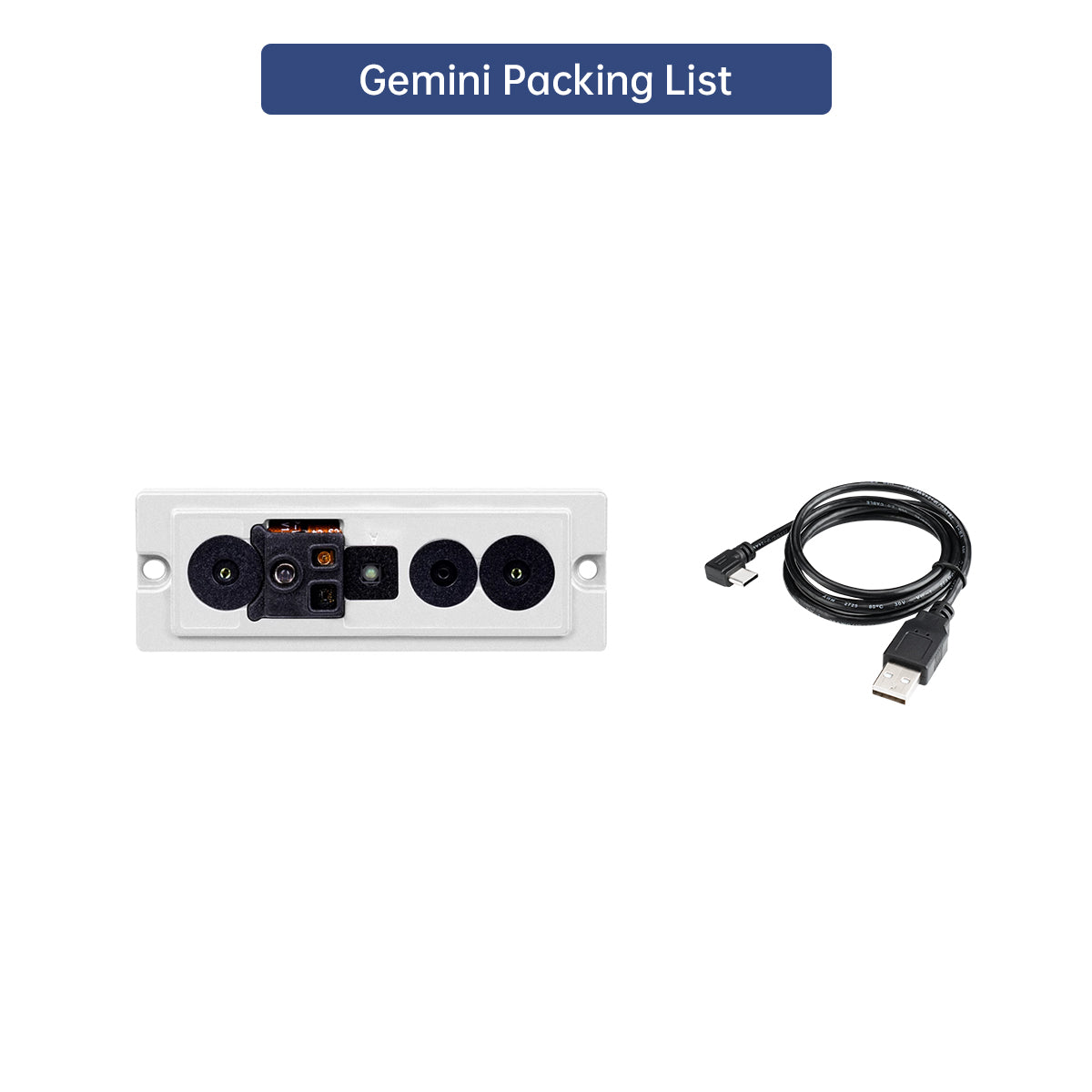

| Gemini Plus Binocular Structured Light Depth Camera Kit | ||
| Depth camera parameter | Model | Gemini |
| Depth processing chip | MX6000 | |
| 3D technology | Orbbec active binocular structured light technology | |
| Operating range | 0.25-2.5m | |
| Field of view | H 67.9° V 45.3° | |
| Resolution@ frame rate | USB2.0 mode: 1280x800@7FPS 640x400@30FPS USB3.0 mode: 1280x800@30FPS 640x400@60FPS |
|
| Accuracy | 5mm @1m | |
| RGB image parameter | Filed of view | H 71° V 56.7° |
| Resolution@ frame rate | USB2.0 mode: 1280x720@7FPS 640x480@30FPS USB3.0 mode: 1920x1080@30FPS 1280x720@30FPS 640x480@30FPS 640x480@60FPS |
|
| UVC | Support | |
| Overall parameter | Data port | USB3.0 |
| Microphone | / | |
| Close-range protection | Support | |
| Power consumption | <2.2W | |
| Operating temperature | 10℃-40℃ | |
| Safety | Class1 laser | |
| Supporting OS | Android/ Linux/ Windows7/ Windows10 | |
| Item | Specification |
| Depth camera parameter | Model: Gemini; Depth processing chip: MX6000; 3D technology: Orbbec active binocular structured light technology; Operating range: 0.25-2.5m; Field of view: H 67.9° V 45.3°; Resolution@frame rate: USB2.0 mode: 1280x800@7FPS; 640x400@30FPS; USB3.0 mode: 1280x800@30FPS; 640x400@60FPS; Accuracy: 5mm @1m; |
| RGB image parameter | Filed of view: H 71° V 56.7°; Resolution@ frame rate: USB2.0 mode: 1280x720@7FPS; 640x480@30FPS; USB3.0 mode: 1920x1080@30FPS; 1280x720@30FPS; 640x480@30FPS; 640x480@60FPS; UVC: Support; |
| Overall parameter | Data port: USB3.0; Close-range protection: Support; Power consumption: <2.2W; Operating temperature: 10℃-40℃; Safety: Class1 laser; Supporting OS: Android/ Linux/ Windows7/ Windows10; |
