- Hiwonder LX-224 Serial Bus Servo with Three Connectors /20KG Large Torque Hiwonder LX-224 Serial Bus Servo with Three Connectors /20KG Large Torque

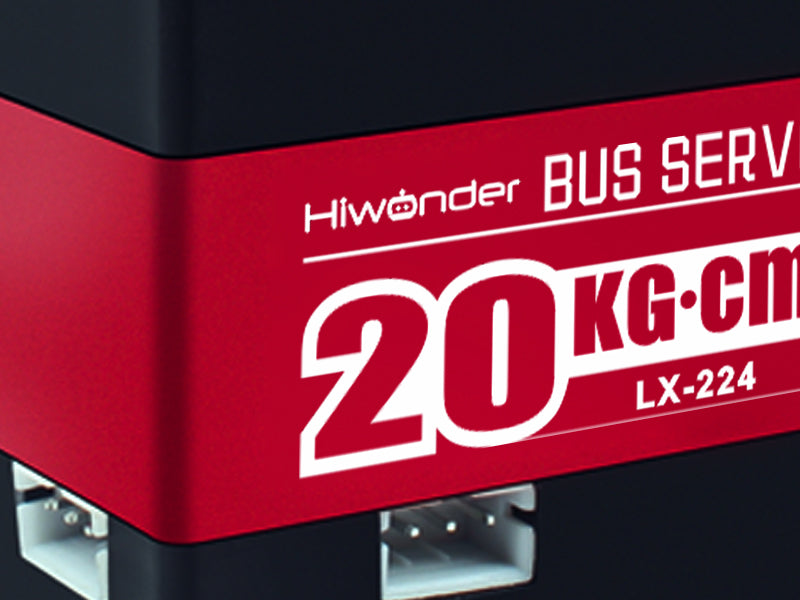

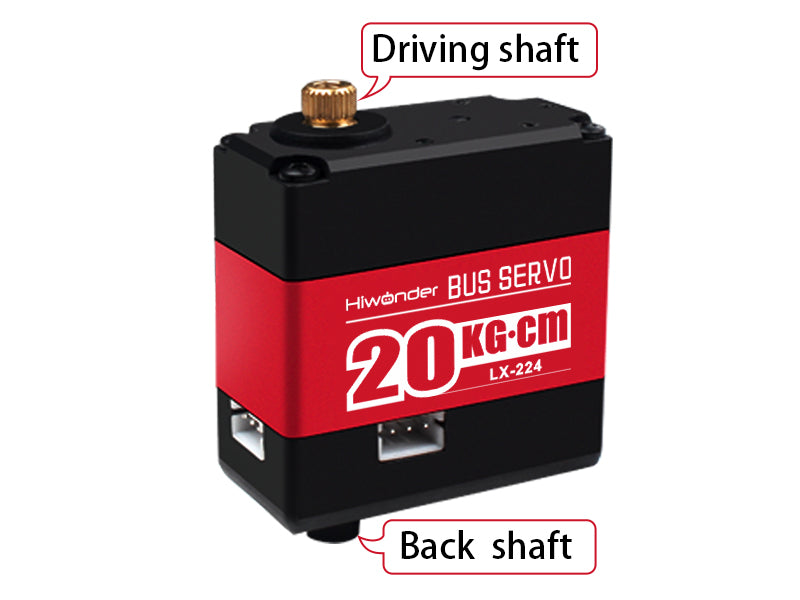

Hiwonder LX-224 Serial Bus Servo with Three Connectors /20KG Large Torque

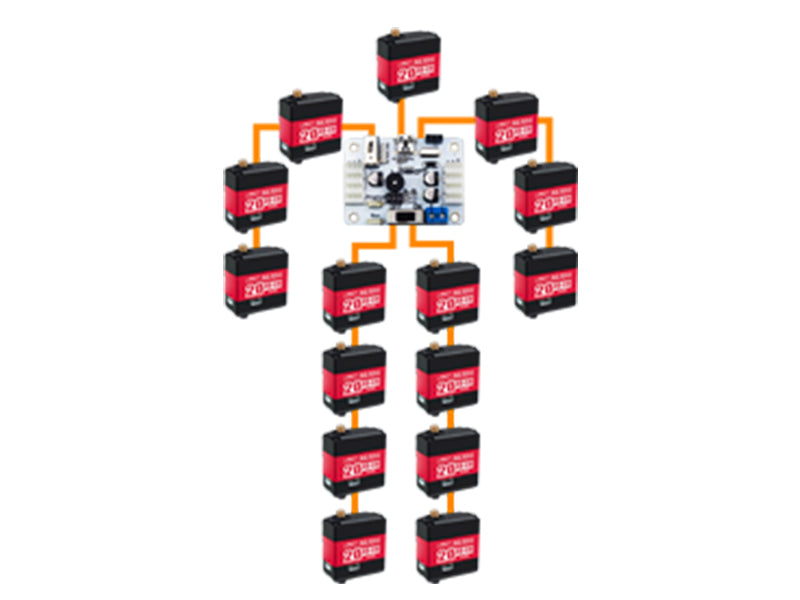

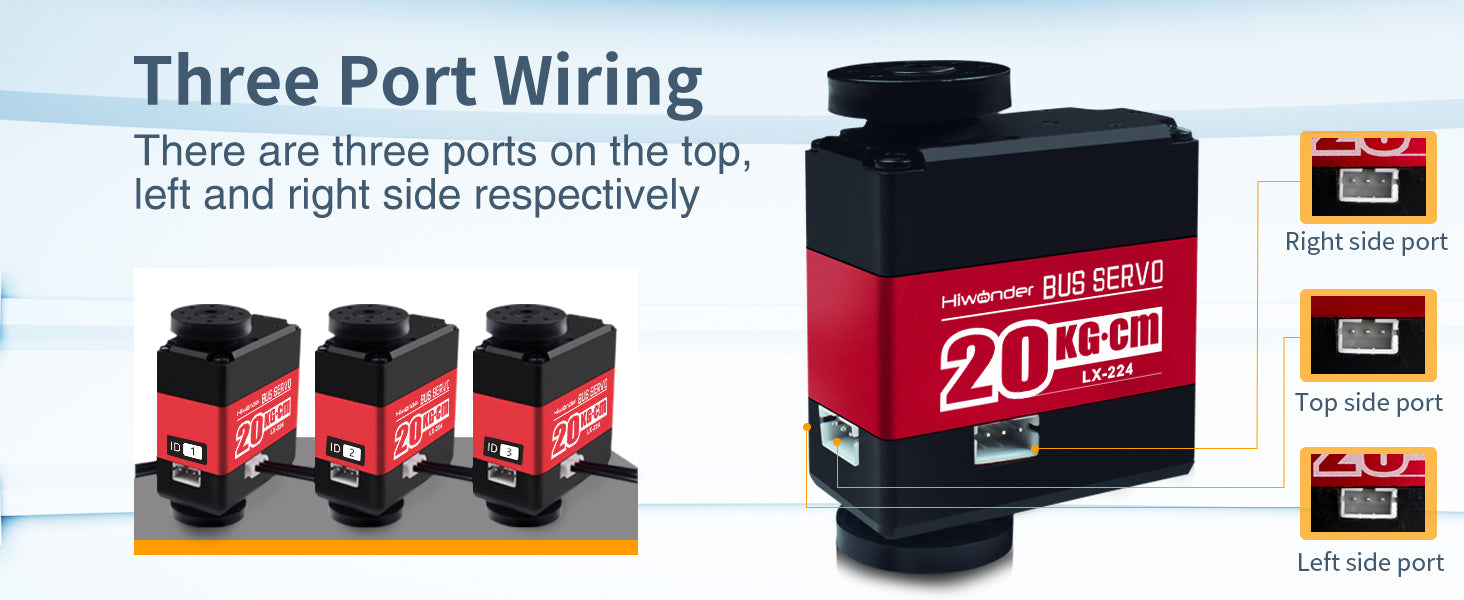

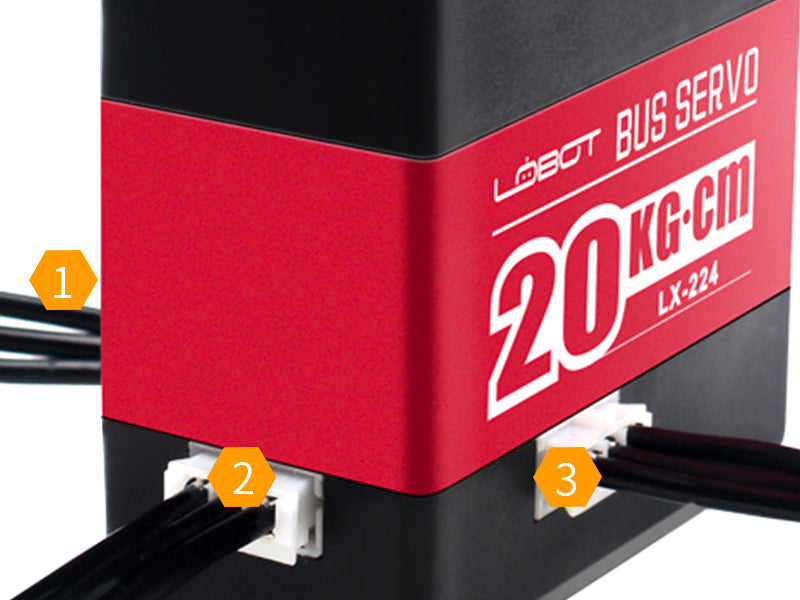

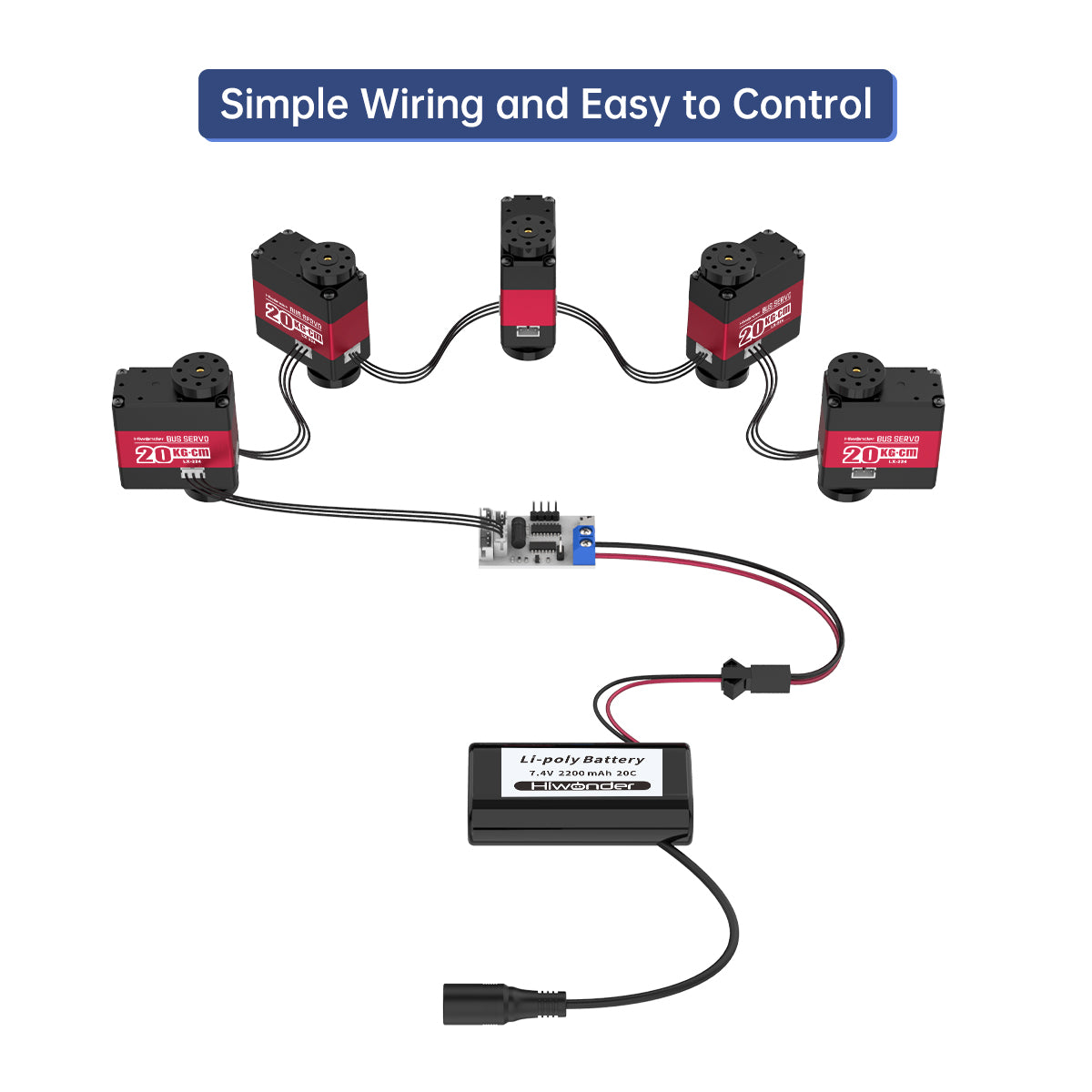

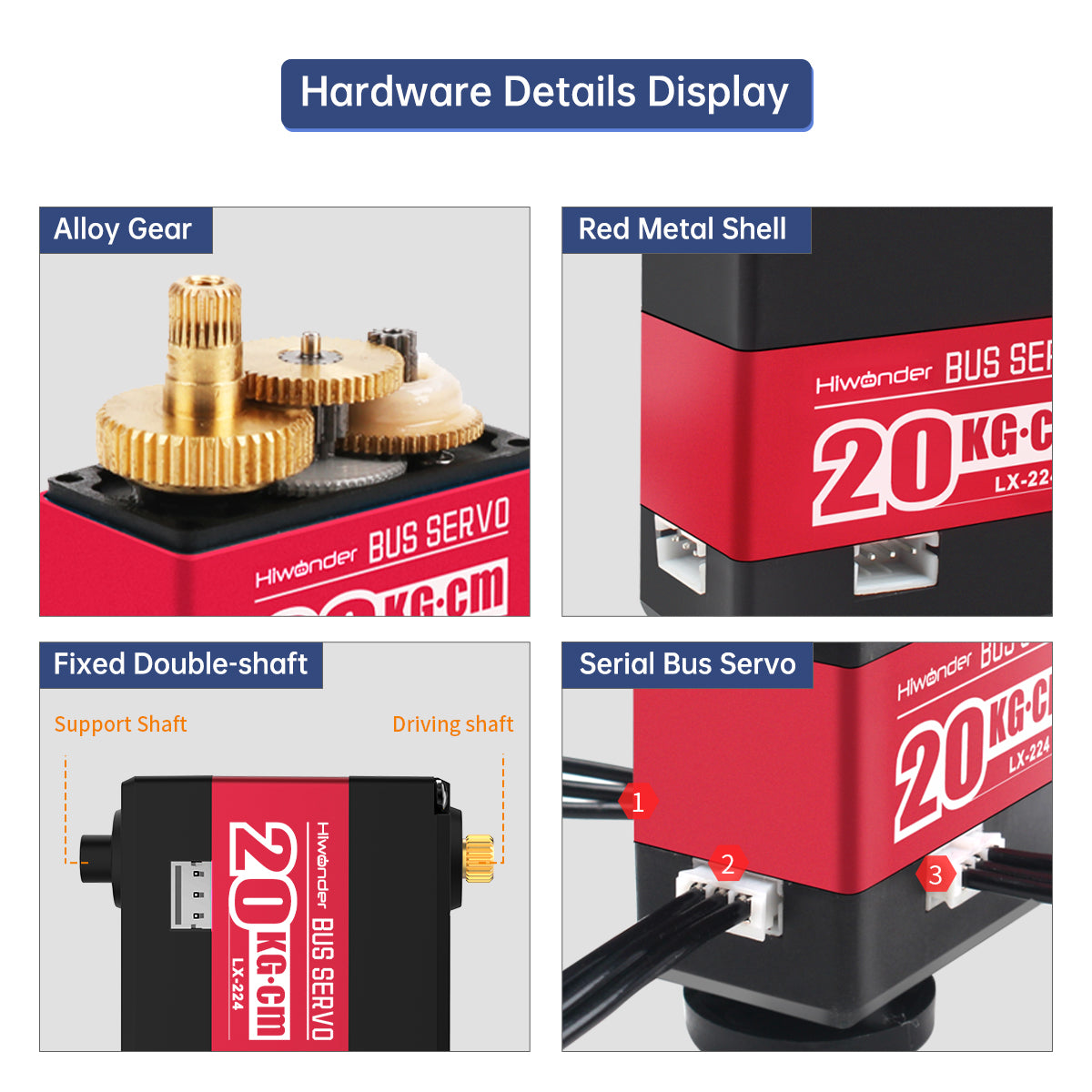

- Serial bus servo connector to connect the servo one by one
- High-precision potentiometer to feedback the angle position
- Equipped with position/temperature/voltage feedback
- Support two working mode: Servo mode and Gear motor mode

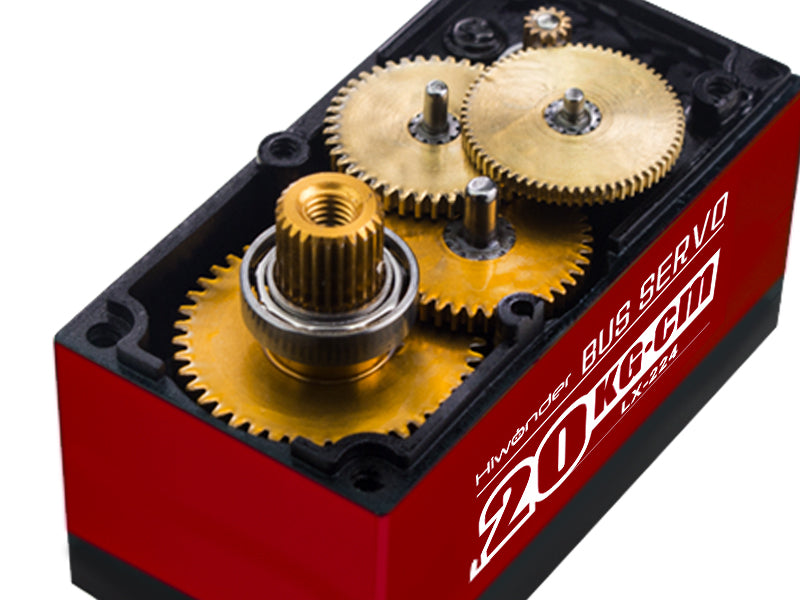

- 20KG large torque.Dual ball bearing
- Description

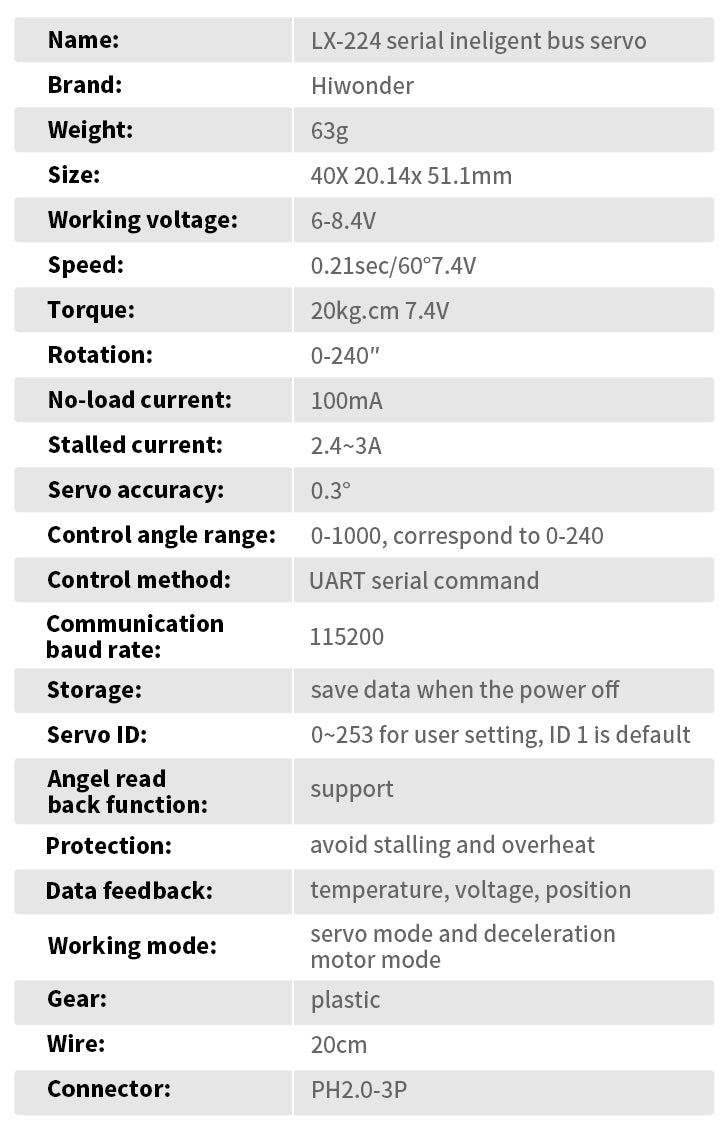

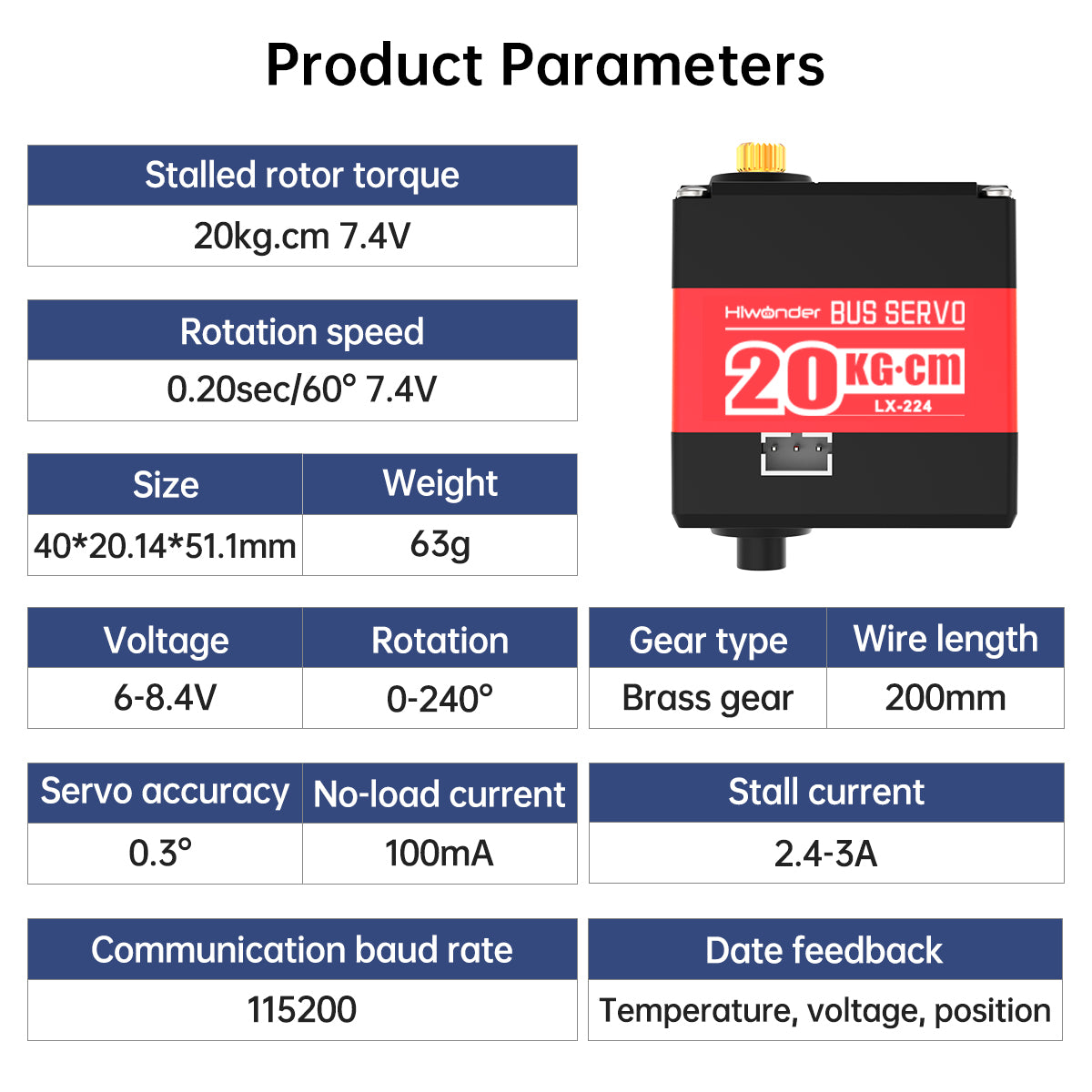

- Specifications
- Accessories
Product Description

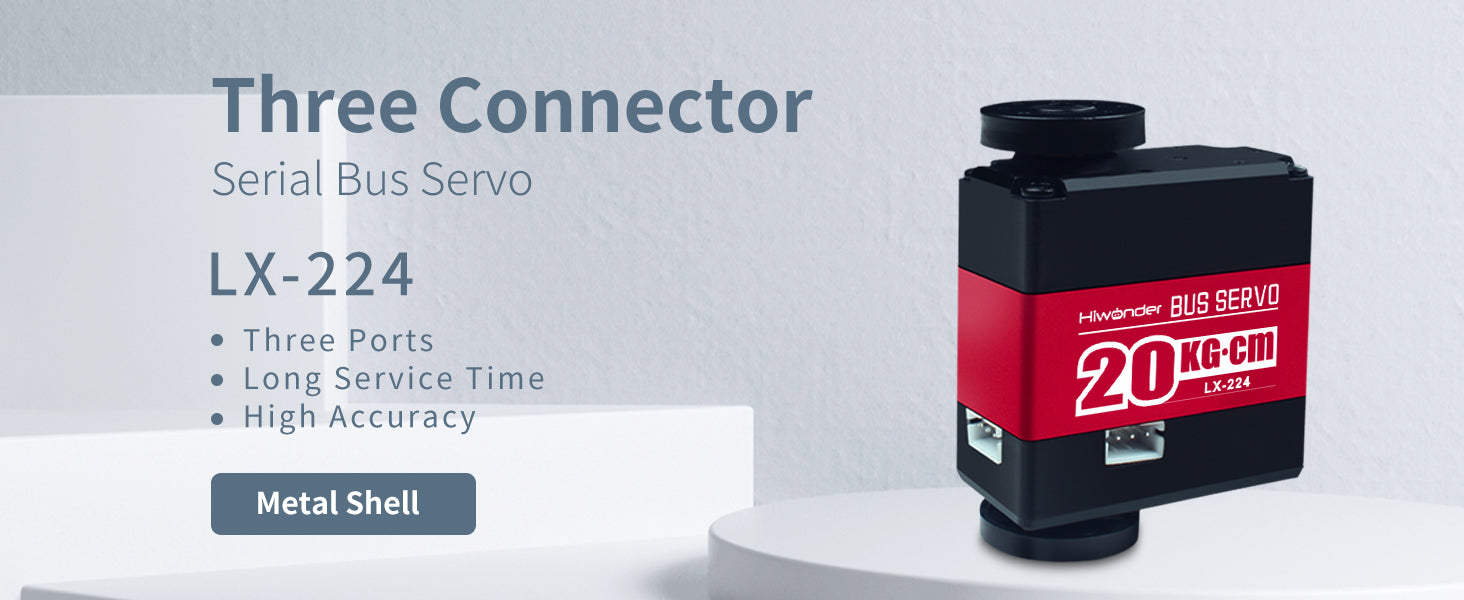

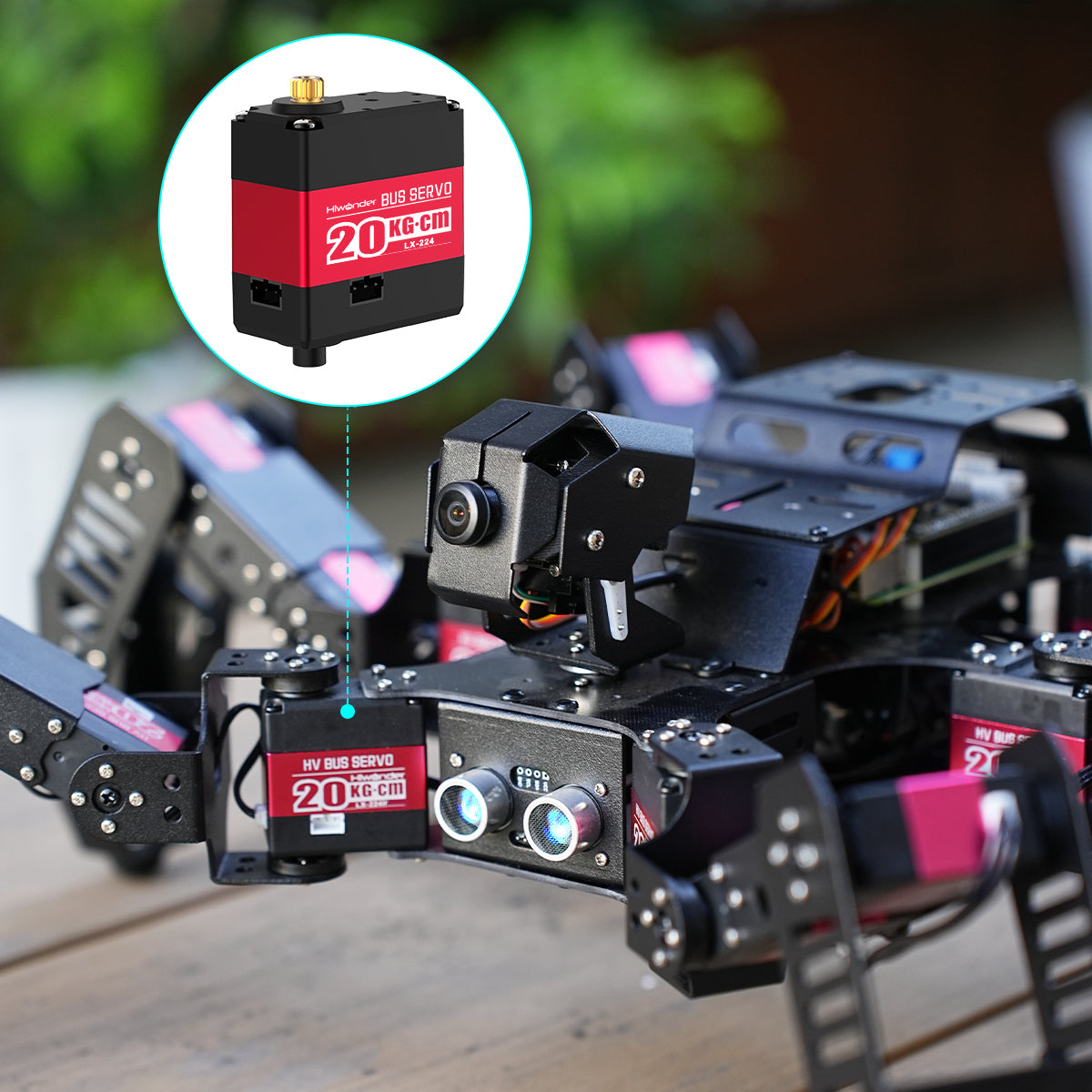

LX-224 servo is a full metal gearserial bus servo with three connectors. The servo can be connected in series, simplifying the wire connection.It can provide temperature, position feedback. LX-224 servo can be used in different bionic robot joints.
Packing List
- 1*LX-224 servo
- 1*Plastic main servo horn
- 1*Plastic assistant servo horn
- 1*Servo wire(200mm)
- 1*Screw package

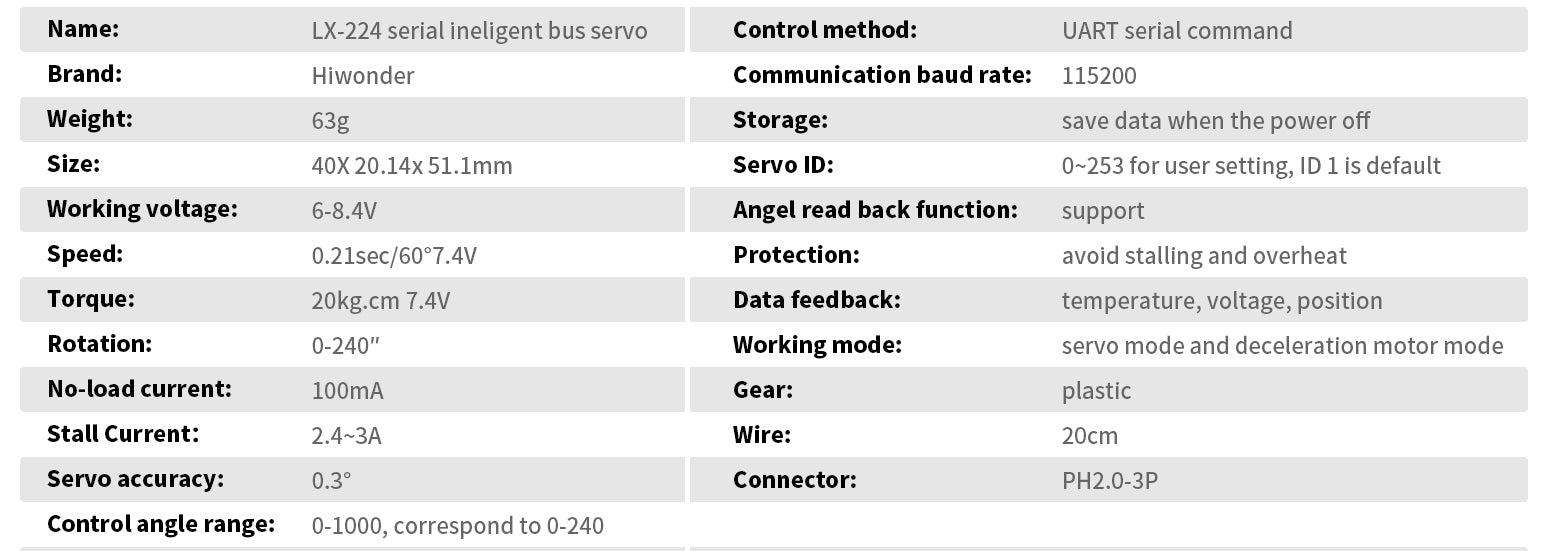

Weight | 63g |
Size | 40 x 20.14 x 51.1 mm |
Working voltage | 6-8.4V |
Speed | 0.20sec/60°7.4V |
Torque | 20kg.cm 7.4V |
Rotation | 0-240° |
No-load current | 100mA |
Stall Current | 2.4~3A |
Servo accuracy | 0.3° |
Control method | UART serial command |
Communication baud rate | 115200 |
Storage | Save data when the power off |
Servo ID | 0~253 for user setting, ID 1 is default |
Angel read back function | Support |
Protection | Avoid stalling and overheat |
Data feedback | Temperature, Voltage, Position |
Working mode | Servo mode and deceleration motor mode |
Control angle range | 0-1000, correspond to 0-240 |
Wire | 200mm |
Gear | Metal |

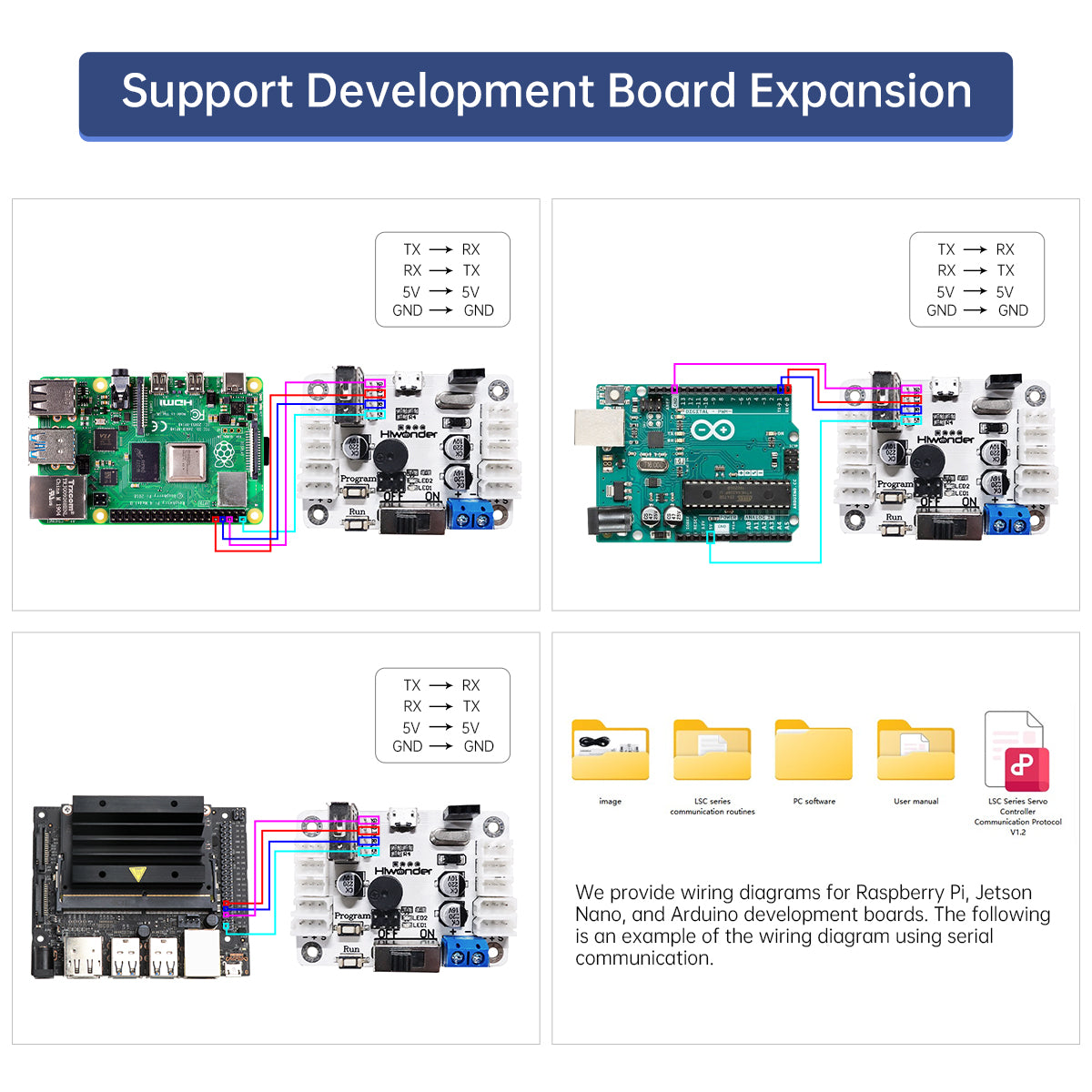

Bus Servo Communication
The user can set and assign an ID number to each servo, and use the controller to issue instructions to make the servo perform actions according to the instructions.
High Torque and Strong Power
The servo has a maximum torque of 20kg.cm 7.4V, which is powerful and gives your robot plenty of power.
High Quality Potentiometer
The servo adopts a high-precision potentiometer, which improves the accuracy and linearity, makes the operation more stable and prolongs the service life.

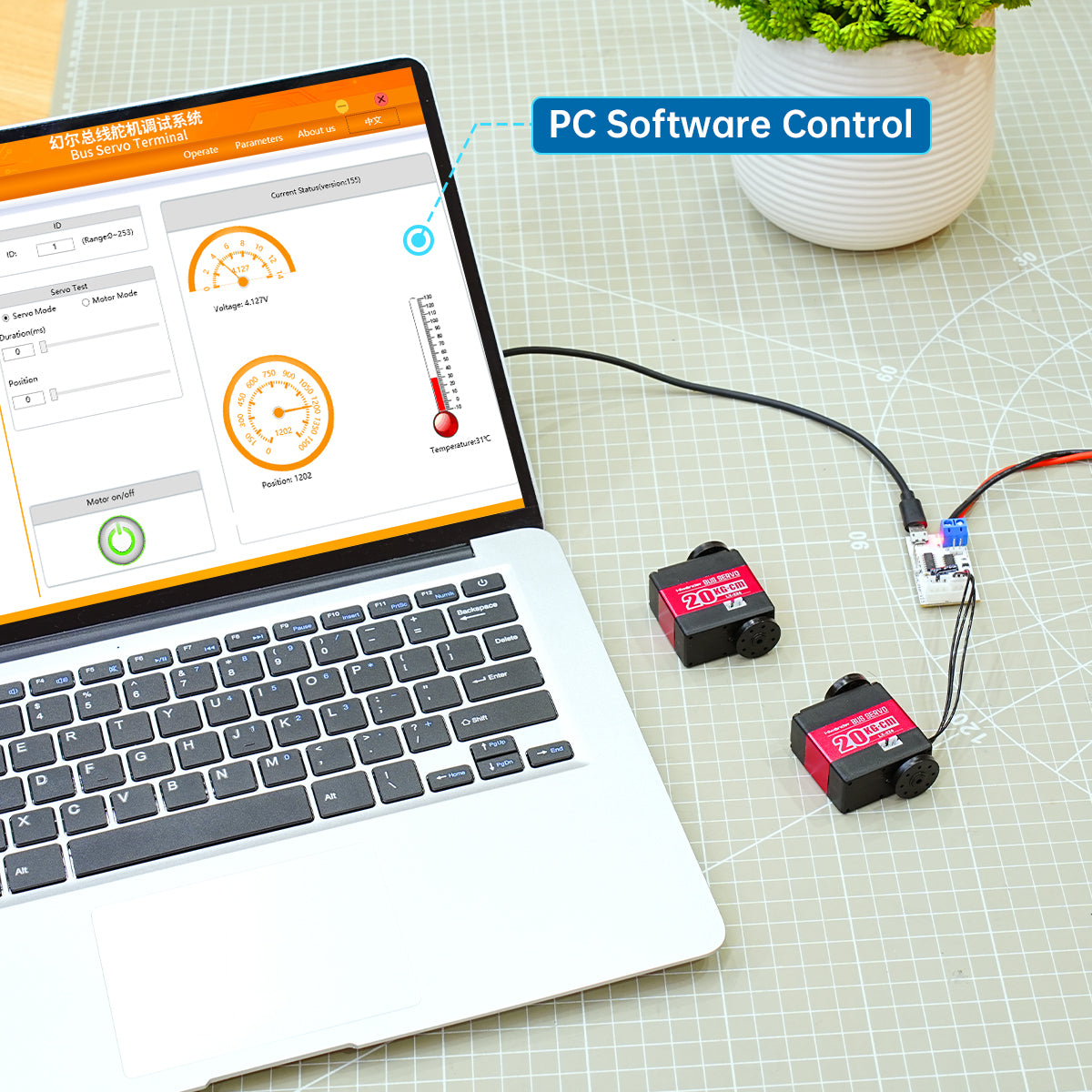

Intelligent Feedback and Two Working Modes
The servo supports servo mode and reduction motor mode, and has position, temperature and voltage feedback to protect the normal operation of the servo.
Item | Specification |
Weight | 63g |
Size | 40*20.14*51.1mm |
Working voltage | 6-8.4V |
Speed | 0.20sec/60°7.4V |
Torque | 20kg.cm 7.4V |
Rotation | 0-240° |
No-load current | 100mA |
Stall Current | 2.4~3A |
Servo accuracy | 0.3° |
Control method | UART serial command |
Communication baud rate | 115200 |
Storage | Save data when the power off |
Servo ID | 0~253 for user setting, ID 1 is default |
Angel read back function | Support |
Protection | Avoid stalling and overheat |
Data feedback | Temperature, Voltage, Position |
Working mode | Servo mode and deceleration motor mode |
Control angle range | 0-1000, correspond to 0-240 |
Wire | 200mm |
Gear | Metal |
I recently tried out the Hiwonder LX-224 servo, and here's my honest take. The servo works for various robot joints, which is pretty cool. It uses a serial bus servo connector, and I appreciate that it has a high-precision potentiometer to track the angle position. Plus, it has this feedback thing for position, temperature, and voltage. That's smart because it helps protect the servo from overheating. Overall, the LX-224 servo seems like a solid choice for bionic robot joints. It does what it says, and I appreciate the thought put into its design and functionality.
Please note that the board's output driver may have limitations with baud rates above approximately 115200. However, I found a solution to control Dynamixel servos effectively by adjusting their baud rate through alternative methods. Personally, I connected the RX pin directly to the Dynamixel bus and sent a broadcast write command to prevent response conflicts. Once you navigate these considerations, the board performs reliably, and I'm satisfied with the results.
Even though there's a time gap between the US and China, Hiwonder's support team quickly fixed my problem. I really like their helpful service and the servo works great!
Although Something wrong with my servo, it was solved by seller quickly. They sent me a new servo as soon as possible. Seller very engaged in customer satisfaction and quality. Servo ends up working great!
Product looks to be above average. User friendly operation to set the servo value. Works better than ever.
Questions & Answers
Have a Question?
-
What is the screw size for the LX244 servo?
2*5 self-tapping screw
