Hiwonder LX-824 Intelligent Three-Connectors Serial Bus Servo with Powerful Feedback Functions
Product SKU: HW2019049
- Serial bus servo connector to connect the servo one by one
- High-precision potentiometer to feedback the angle position
- Equipped with position/temperature/voltage feedback
- Support two working mode: Servo mode and Gear motor mode
- 17KG large torque.Dual ball bearing
Available:
Only 976 items in stock
In stock
In stock
Out of stock
Back in stock
$18.99
Save
% $-18.99
Product Description

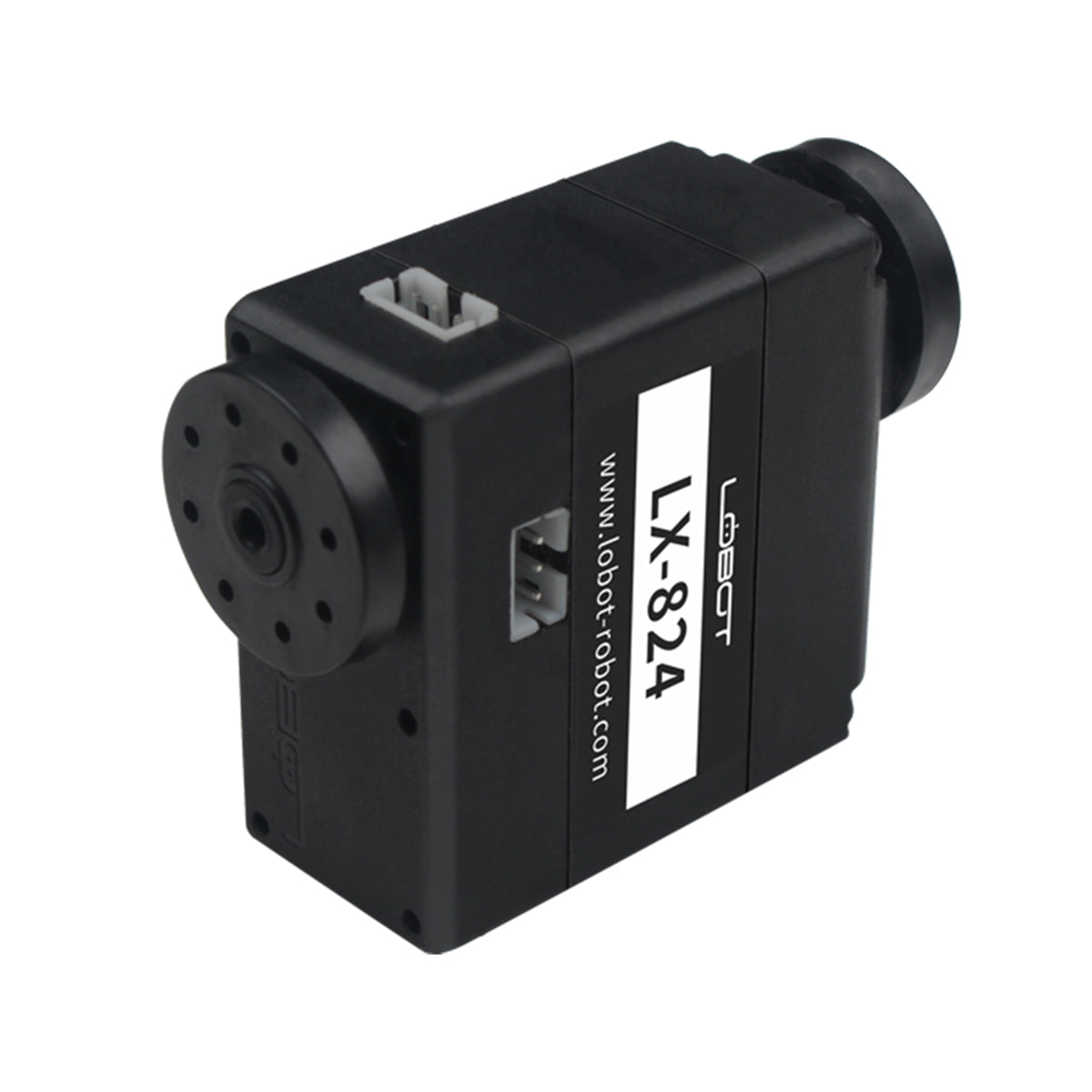

Hiwonder LX-824 servo/motor is a serial bus servo with three connectors. The servo can be connected in series, simplifying the wire connection. LX-824 servo can be used in different bionic robot joints.
Feature
- Use serial bus servo connector to connect the servo one by one, beautify the looking and facilitate the wiring
- Use high-precision potentiometer to feedback the angle position
- Equipped with position/temperature/voltage feedback, protect the servo from burning
- Support two working mode: Servo mode ( rotation range: 0-240) and Gear motor mode (rotation range: 0-360)
- Use metal gear to extend the service time
- 17KG large torque and dual ball bearing
Clean Wiring
There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook.
Serial Bus Servo
High Accuracy Potentiometer
Temperature/Voltage Feedback /RGB Indicator
Two Operation Modes
Metal Bearing
Large Torque
Fixed Double-shaft

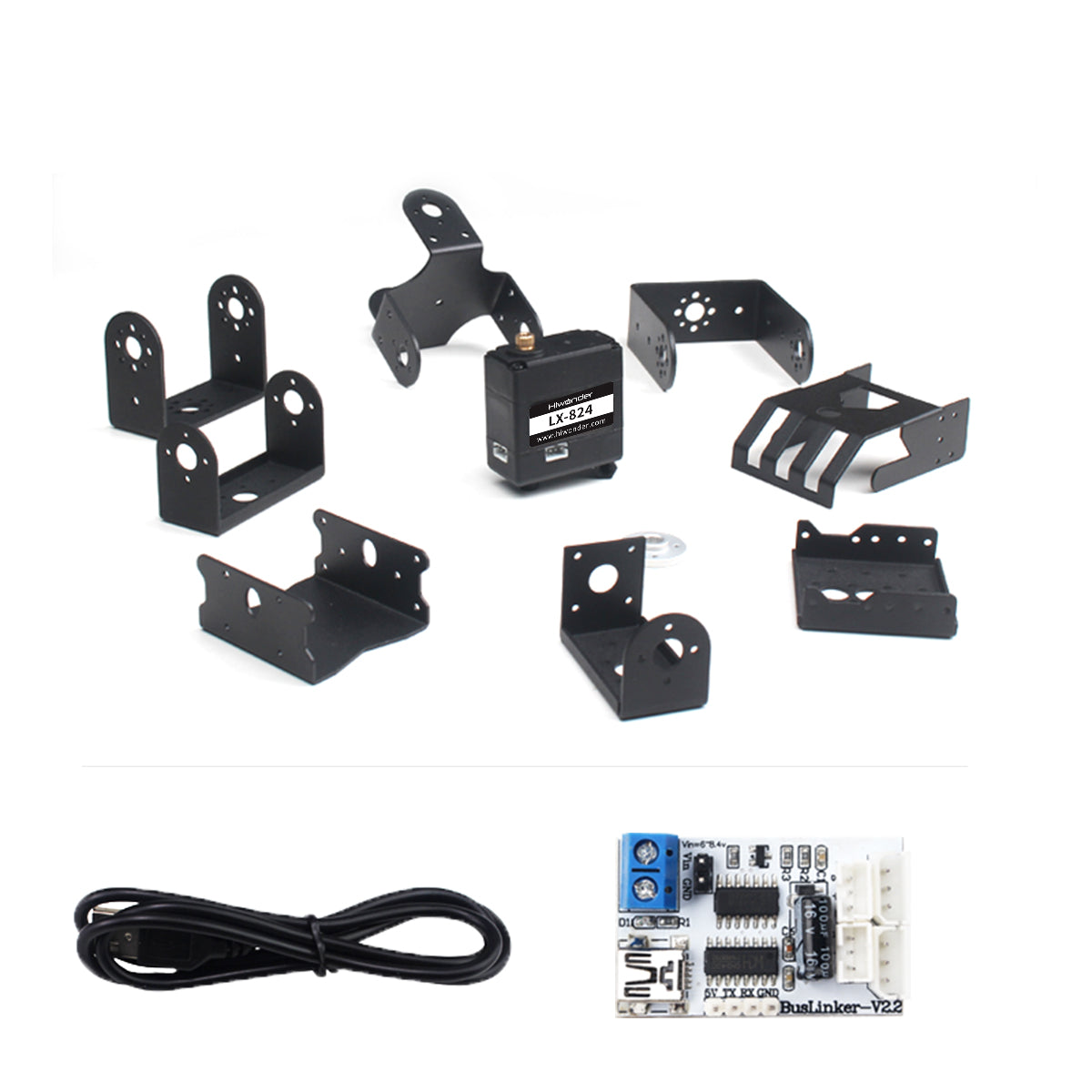

Compatible with Various Frame
ID ldentification, Bus Communication

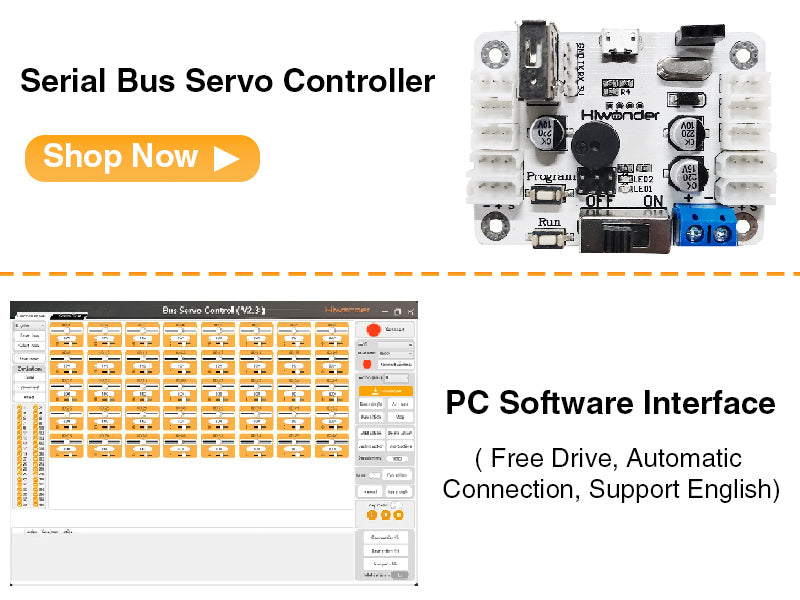

Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos.

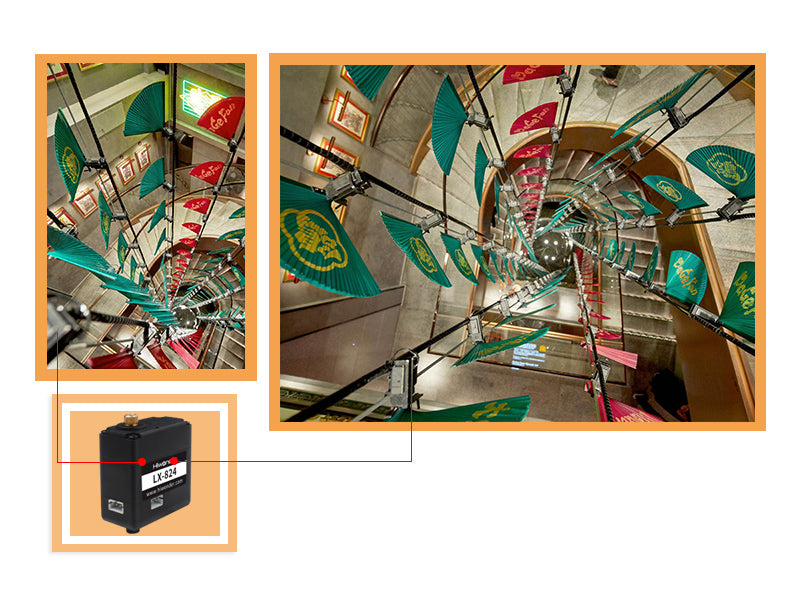

Application
LX-824 servo combined with different types of frames can support your outstanding robot creativity!
Packing List
1* LX-824 serial bus servo
1* Main senvo horn
1* Assistant servo horn
1* Servo wire
2* Main assistant screw
15* Self tapping screw
1* Main senvo horn
1* Assistant servo horn
1* Servo wire
2* Main assistant screw
15* Self tapping screw
Serial Bus Servo
Metal Bearing
High AccuracyPotentiometer
Large Torque
Fixed Double-shaft
Compatible withVarious Frame
Two Operation Modes
ID ldentification, Bus Communication
Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm and voltage alarm for servos.
Application

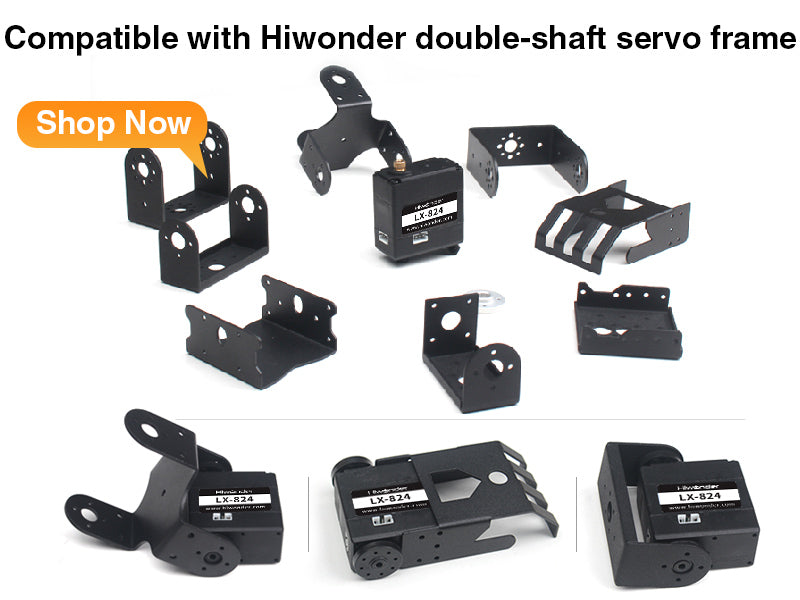

Three Connectors Intelligent Bus Servo are used in ArmPi FPV for stable and better performance! Compatible with Hiwonder double-shaft servo brackets.
Packing List
1* LX-824 serial bus servo
1* Main senvo horn
1* Assistant servo horn
1* Servo wire
2* Main assistant screw
15* Self tapping screw
1* Main senvo horn
1* Assistant servo horn
1* Servo wire
2* Main assistant screw
15* Self tapping screw
| Item | Specification |
| Weight | 57g(2.02OZ) |
| Dimension | 40.00mm*20.14mm*51.10mm (1.57inch*0.8inch*2.02inch) |
| Speed | 0.20sec/60°(7.4V) |
| Accuracy | 0.3° |
| Torque | 17 kg·cm (236 oz·in) @7.4V |
| Working Voltage | 6-8.4V |
| MIn Working Current | 1A |
| No-load Current | 100mA |
| Stall Current | 2.4~3A |
| Cornor Range Control | 0~1000 correspond to 0°~240° |
| Serial Command Control Method | serial command |
| Communication Baud Rate | 115200 |
| Servo ID | 0~253,user configurable,default ID 1 |
| Data Feedback | Temperature; voltage; location |
| Save Setting | Save data when the power off |
| Features Stall protection | Overheat Protection |
| Supporting Readback Function | Support |
| Default Wire | 20cm(7.9inch) in length |
| Package List | 1* bus servo 1* 20cm servo wire 1* primary servo horn(4mm/0.157in thick) 1* assistant servo horn(2mm/0.078in thick) 15* M2*5 self-tapping screws |
|
|
|
