Hiwonder LDX-227 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot(Control Angle 270)
- 17kg large torque. 15 kg·cm (208 oz·in) @6V
- 17 kg·cm (236 oz·in) @7.4V
- Full metal gear
- 270 degree rotation
- Using high-precision potentiometer with new design
- Convenient plug-in wire
- 17kg large torque. 15 kg·cm 6V; 17 kg·cm 7.4V
- Full metal gear significantly improves servo’s accuracy and extends its service time
- Dual ball bearing: one is the driving ball bearing, the other is the assistant ball bearing
- Use high-precision potentiometer in a new design
- Accuracy and linearity have been greatly improvedAccurate movement can help you build up robots

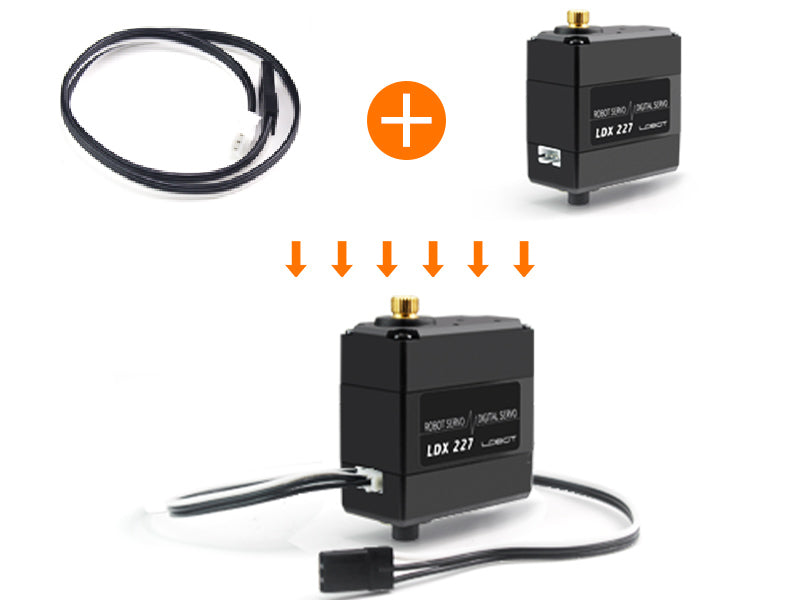

- Convenient plug-in wire.It is very convenient for you to replace the servo and the wiring will become much easier
1* 30cm servo wire
1* primary servo horn(4mm/0.157in thick)
1* Assistant servo horn(2mm/0.078in thick)
15* M2*5 self-tapping screws
2* Bracket
| Item | Specification |
| Weight | 57g(2.01OZ) |

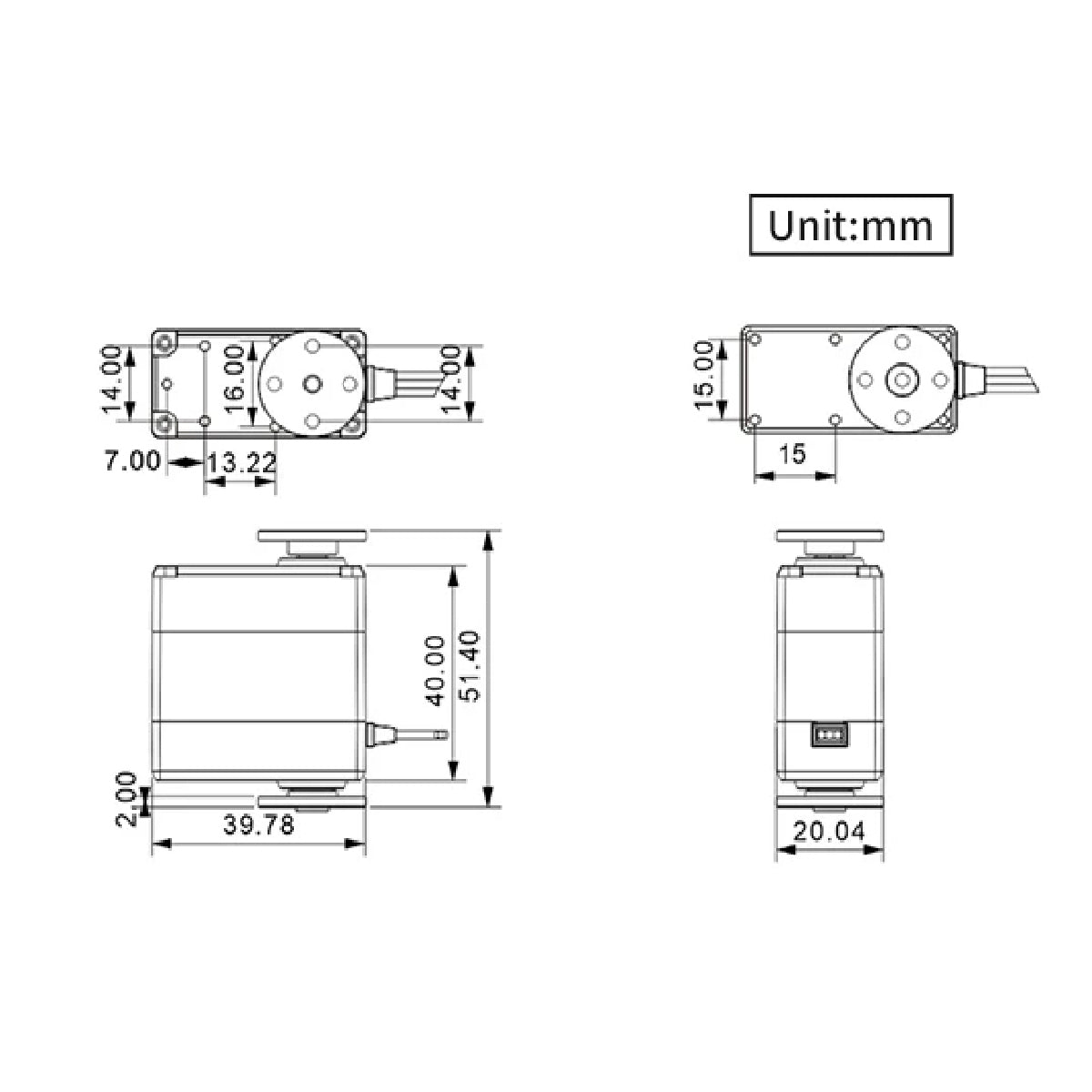

| Dimension | 40mm*20mm*51.4mm (1.57inch*0.78inch*2.02inch) |
| Speed | 0.16sec/60°(7.4V) |
| Accuracy | 0.4° |
| Torque | 17kg large torque. 15 kg·cm 6V; 17 kg·cm 7.4V |
| Working Voltage | 6-8.4V |
| Min Working Current | 1A |
| No-load Current | 100mA |
| Spline | 25T(6mm diameter) |
| Default Wire | 30cm(13.78inch) in length |
| Control Method | PWM |
| Pulse Width | 500~2500us,to (0~270deg) |
| Duty Ratio | 0.5ms~2.5ms |
| Pulse Period | 20ms |
| Package List | 1* digital servo 1* 30cm servo wire 1* primary servo horn (4mm/0.157in thick) 1* assistant servo horn (2mm/0.078in thick) 15* M2*5 self-tapping screws 2* bracket |
180-degree rotation. Controllable angle range from 0 to 270 degrees, Excellent linearity, precised control. Able to rotate from 0 to 360 degrees when power off. Please make sure that the duty cycle of the controller you used is confirmed to our specifications. Otherwise, the servo can't turn up to a claimed degree.
Important Notes
-
Please use Li-Po battery to power the servo, Do Not use the dry battery, otherwise, the servo will slow down the movement or even stop. (our servo has higher torque, it needs more power to drive).
-
Please use a short and thick power cord, Do Not use Dupont cord.
-
Our servo can be controlled by Arduino, please refer to the Arduino library.
