Hiwonder MaxArm Open Source Robot Arm Powered by ESP32 Support Python and Arduino Programming Inverse Kinematics Learning
【Advanced ESP32 microcontrol】 MaxArm is powered by a high-performance ESP32 microcontroller, making it a versatile open source robot arm for learning robot arm programming with both Arduino and Python.
【Linkage Mechanism, Perfect for STEAM Education】 This desktop robot arm features a robust linkage mechanism and integrates with a sliding rail, simulating real-world industrial automation right on your desk.
【AI Vision Module Ready with Hiwonder Ecosystem】 Unlock advanced capabilities as an AI robotic arm. MaxArm is fully compatible with Hiwonder sensors like the WonderCam AI vision module, enabling exciting projects in mask recognition, object sorting, and etc.
【All-in-One STEAM Education Powerhouse】 As the ultimate STEAM education platform, Hiwonder MaxArm offers a complete toolkit to bridge theory and practice in coding, robotics, and AI for all learning levels.

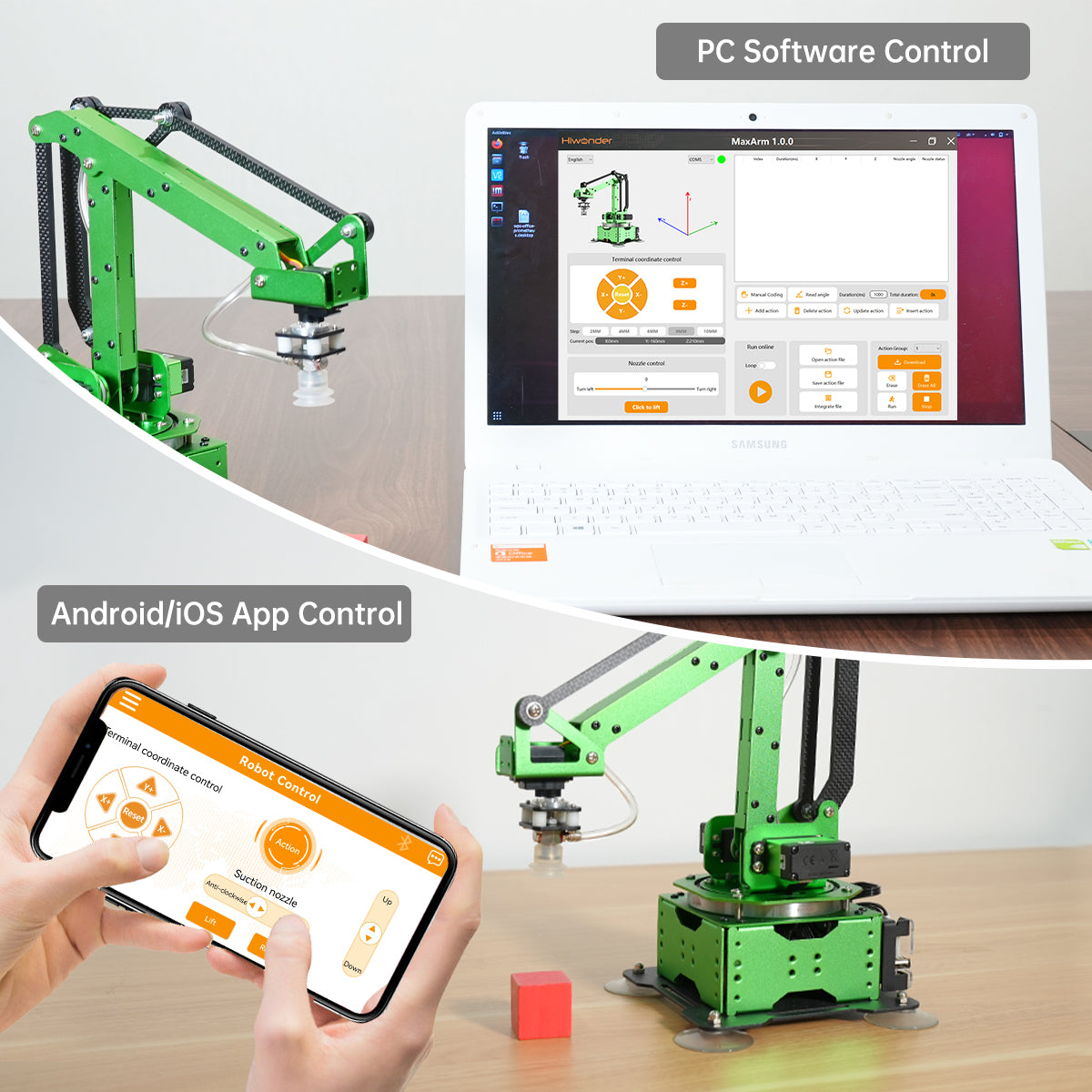

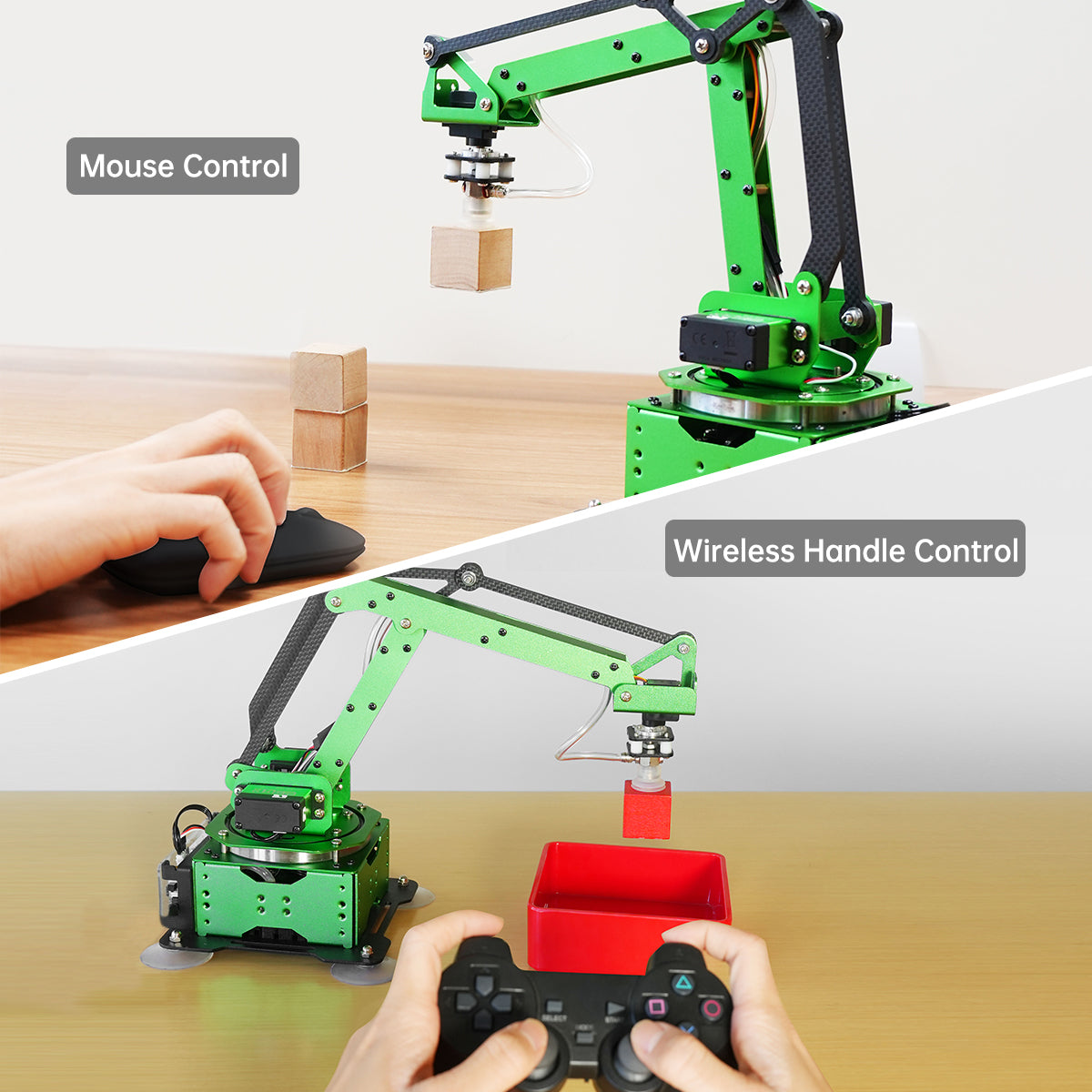

【Multi-Control Flexibility】 Command your programming robotic arm with unparalleled flexibility. Choose from a dedicated mobile app, PC software, a wireless gamepad, or even mouse control for precise operation.
Unlock complete MaxArm resources: schematics, codes, video tutorials, and projects. https://docs.hiwonder.com/projects/MaxArm/en/latest/.

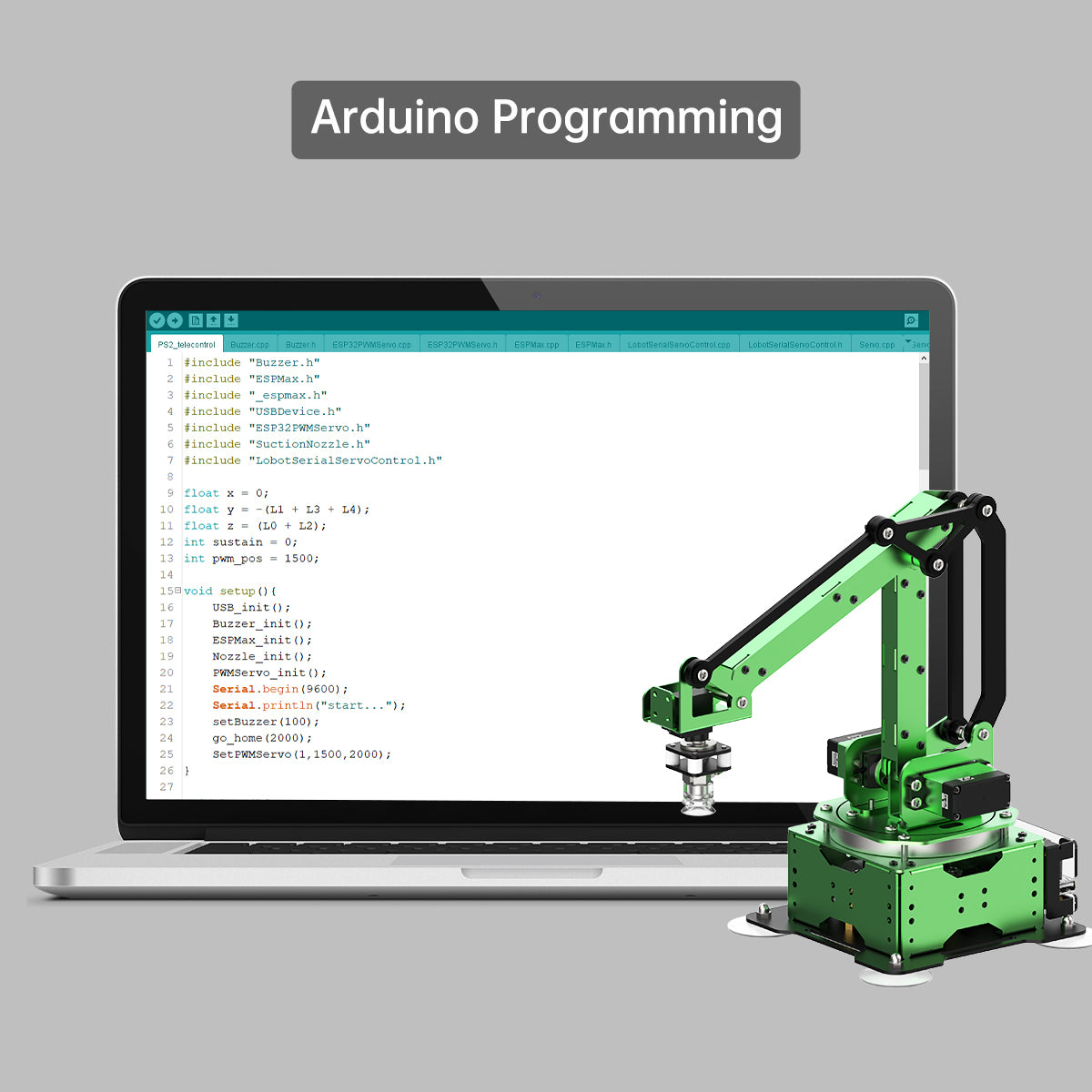

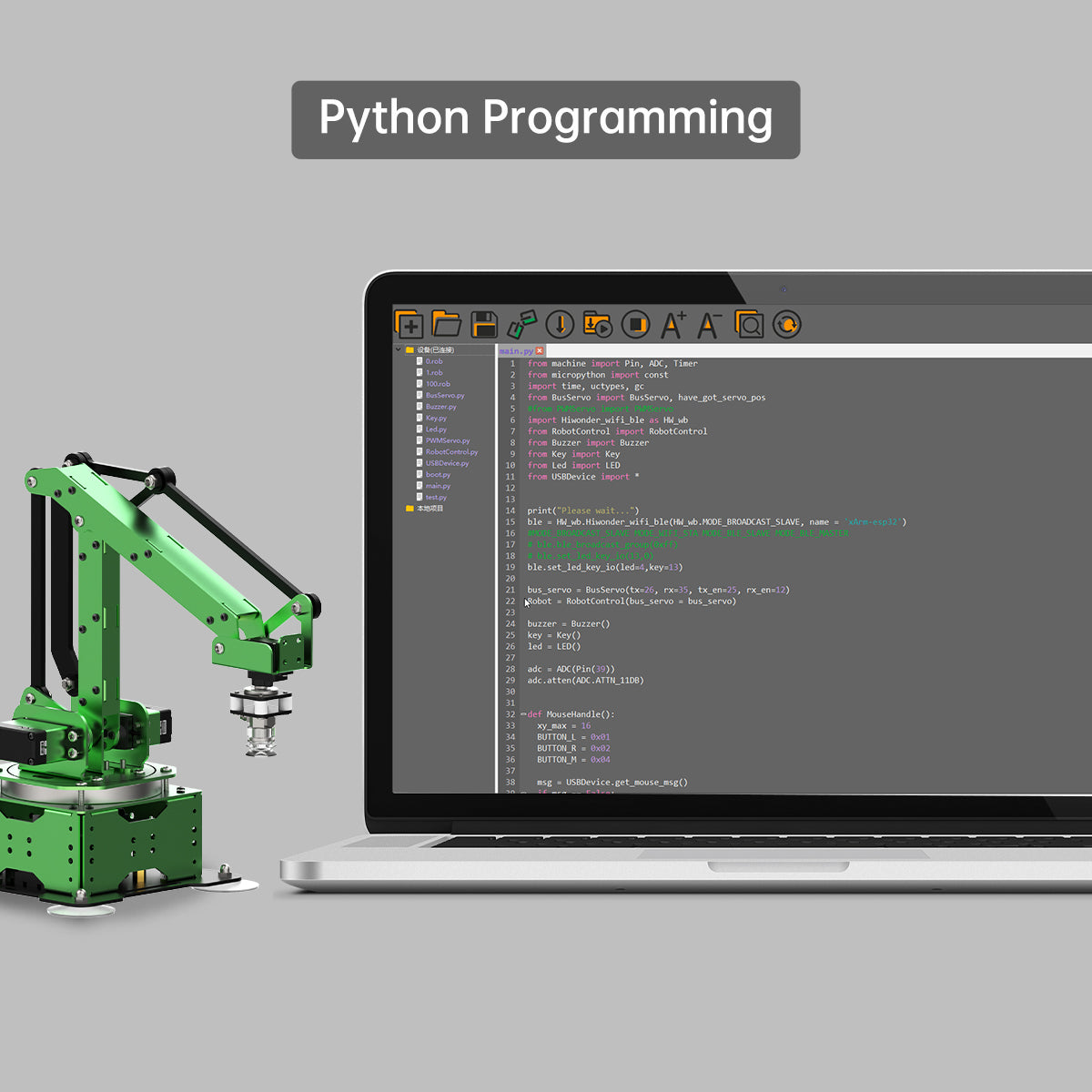

Supporting Python and Arduino programming and Wi-Fi and Bluetooth communications, MaxArm can also be controlled by App, PC software, wireless remote controller and mouse control. This AI robotic arm also supports variety of sensors to turn your creative AI ideas into reality!
| Item | Specification |
| Product dimension | 158*160*260mm (length*width*height) |
| Weight | 1.3kg |
| Material | Metal and fiber glass board |
| DOF of robotic arm | 4DOF |
| Power | 12V 5A DC adaptor |

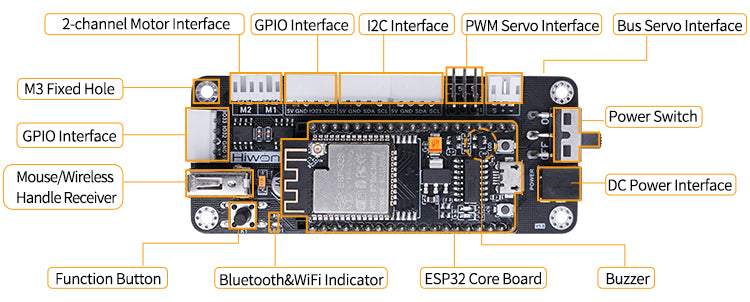

| Controller system | ESP32 open source controller |
| Software | PC software, iOS/ Android APP |
| Communication method | WiFi and Bluetooth |

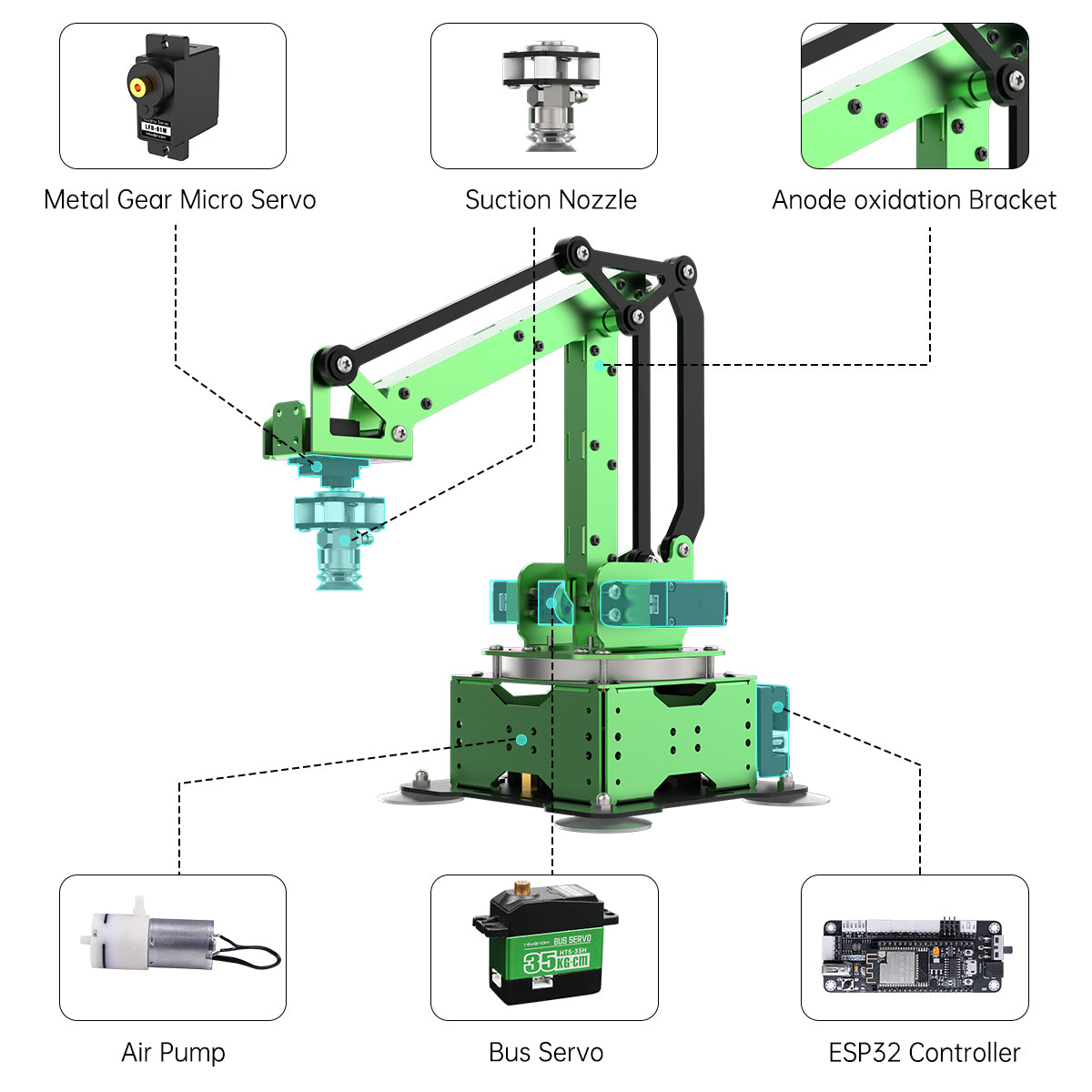

| Servo | HTS-35H bus servo and LFD-01M micro servo |
| Control method | Computer/ phone/ wireless handle/ mouse control |
| Package size | 298*210*175mm (length*width*height) |
| Package weight | About 2kg |

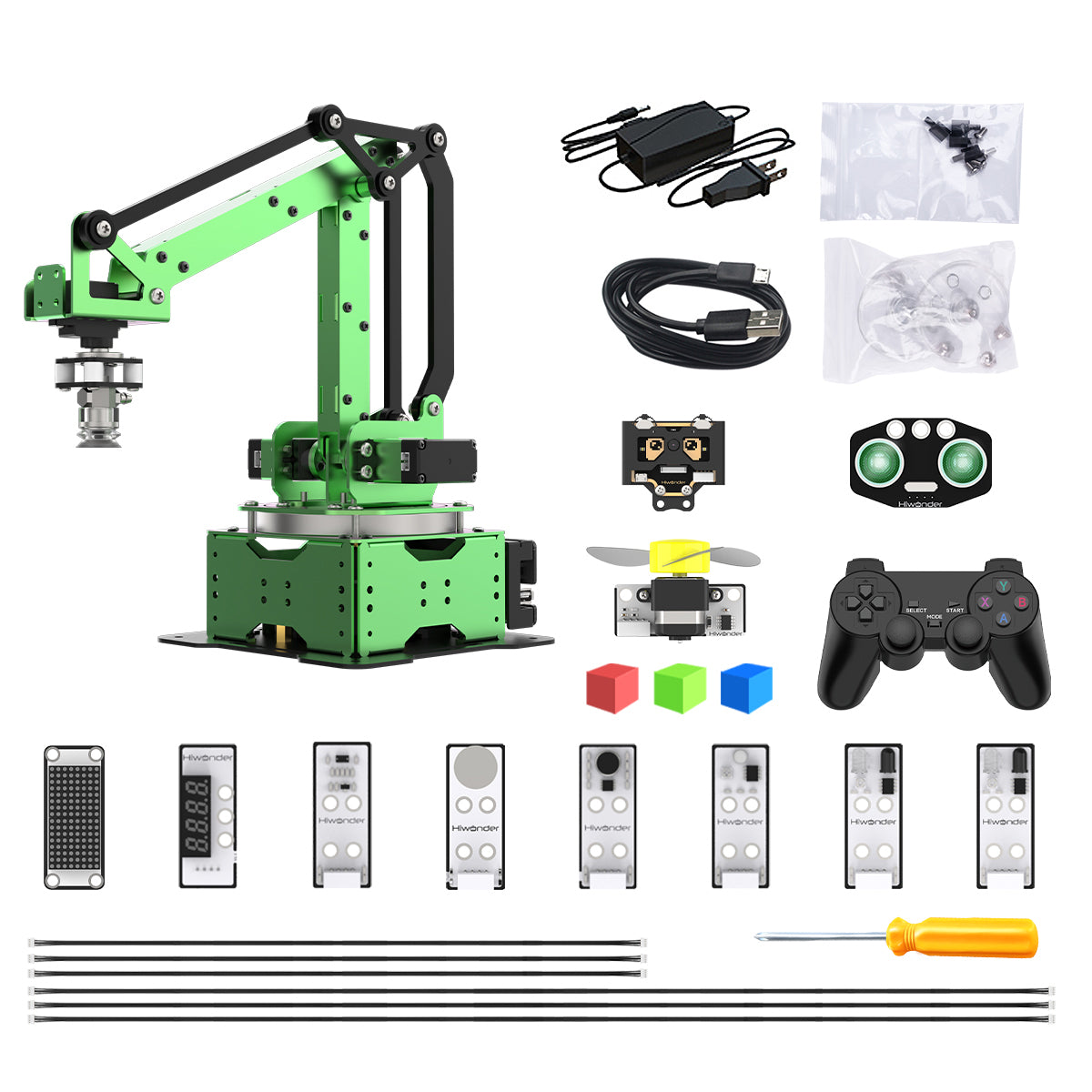

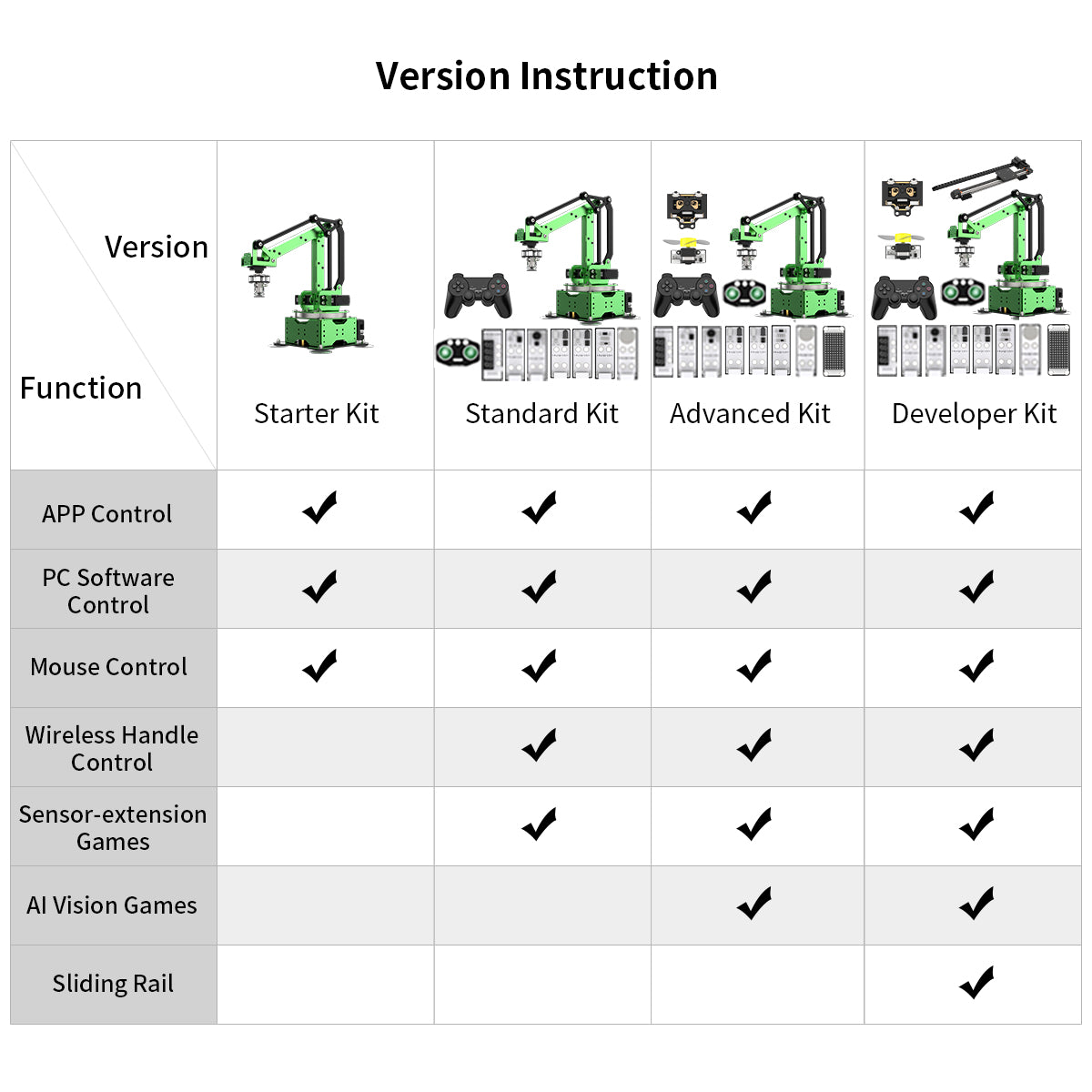

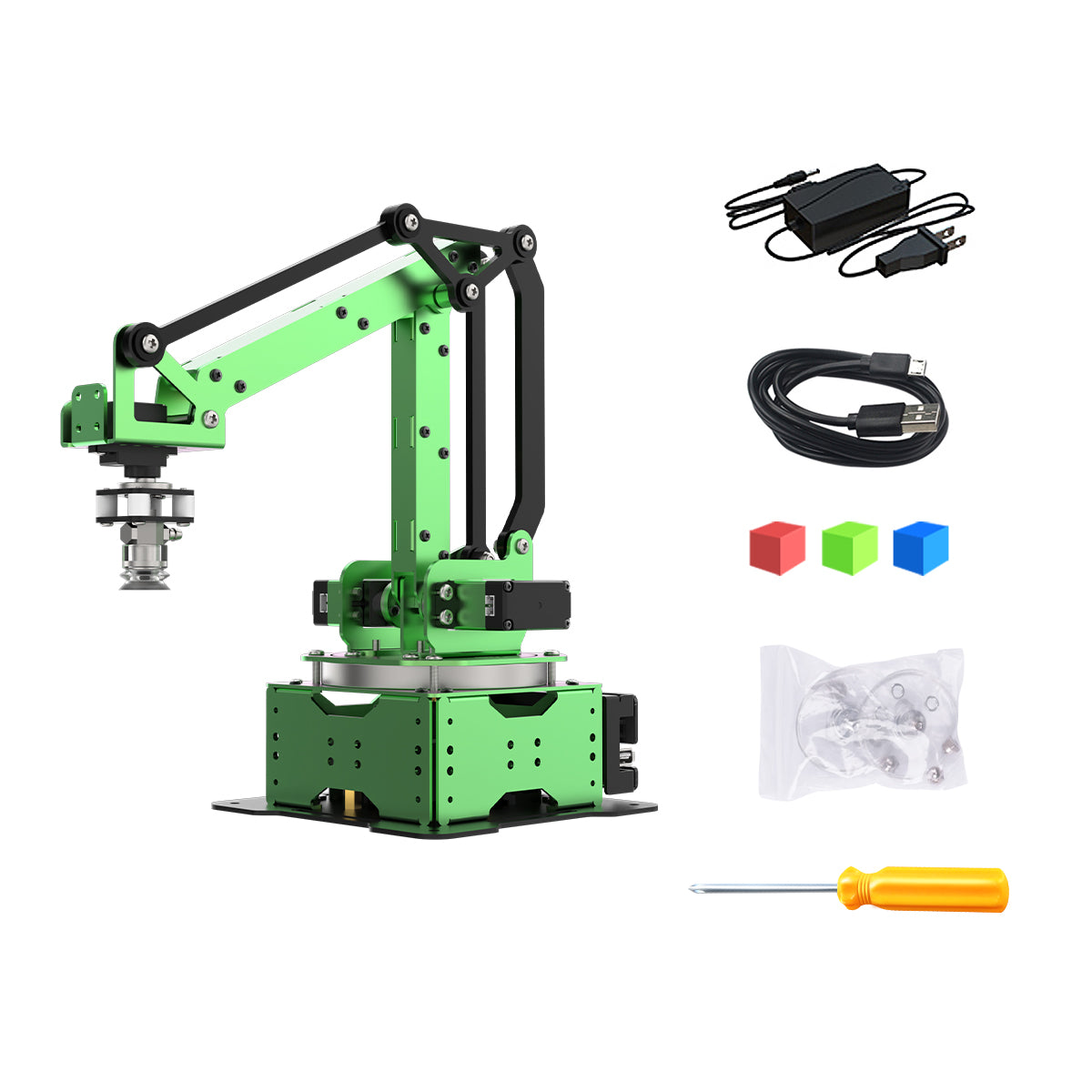

| Starter kit | Robotic arm (assembled) * 1 12V 5A power adapter * 1 Blocks (3*3cm) * 1 USB cable * 1 Suction cup * 4 Screwdriver * 1 |

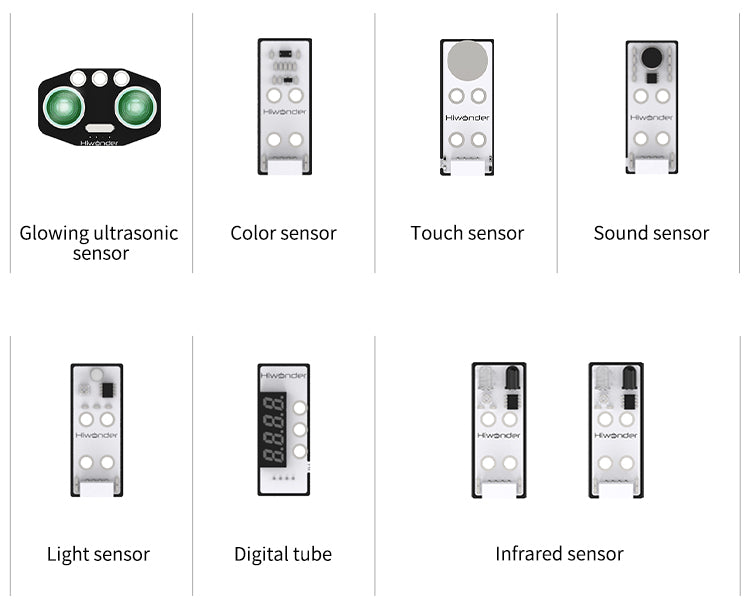

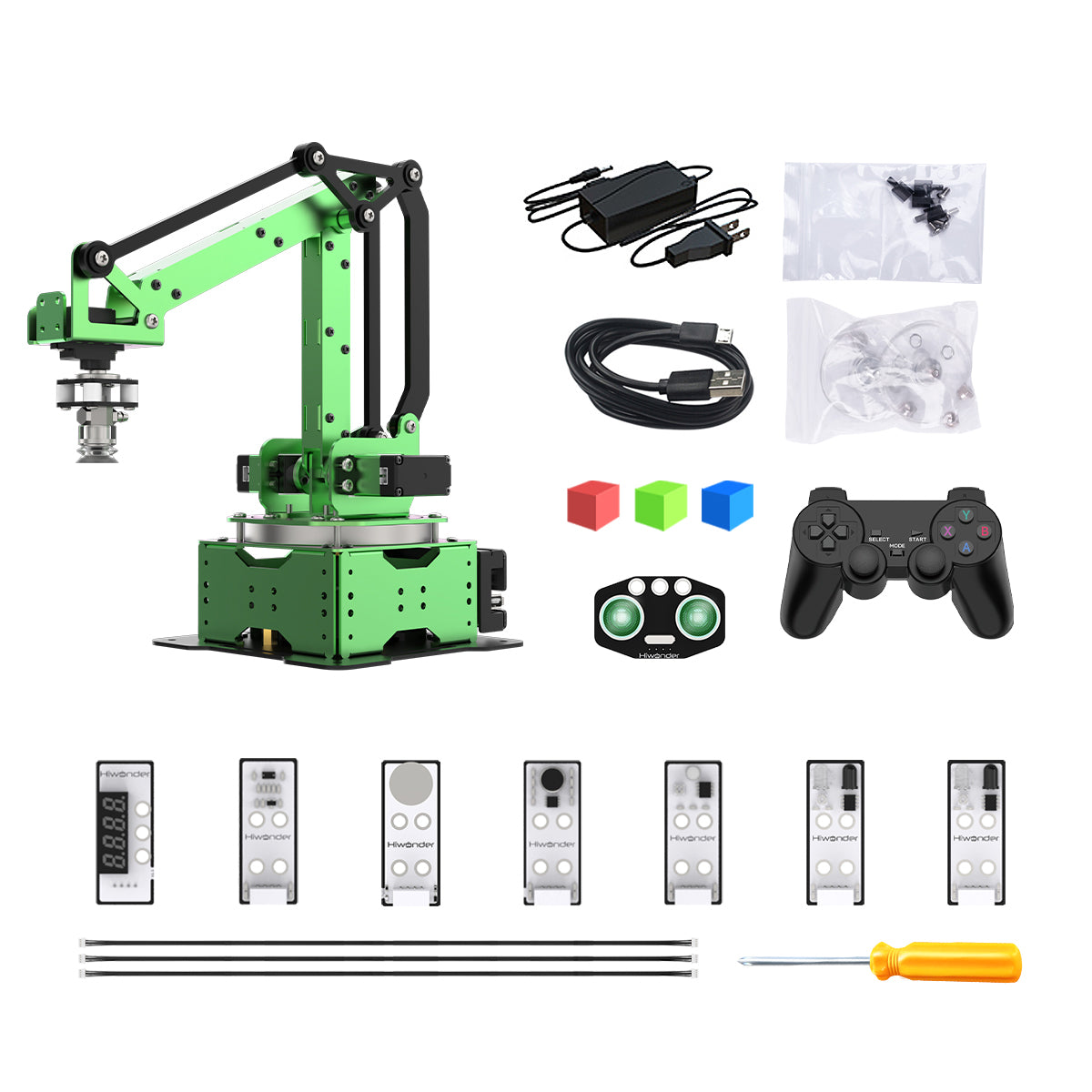

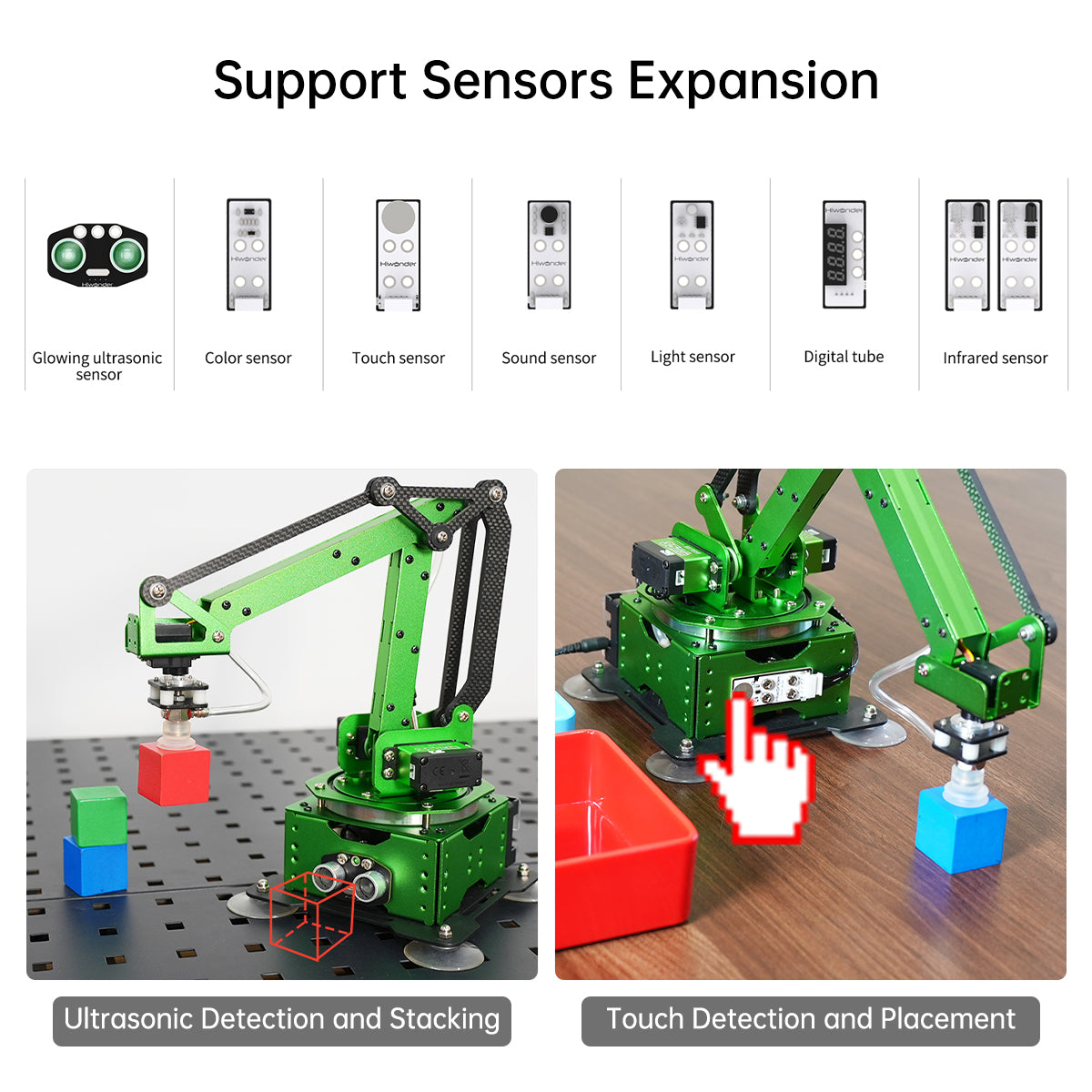

| Standard kit | Starter kit *1 Wireless handle controller * 1 Glowing ultrasonic sensor * 1 Color sensor * 1 Touch sensor * 1 Sound sensor * 1 Light sensor * 1 Digital tube * 1 Infrared sensor * 2 4 PIN wire (30cm) * 3 Screw bag * 1 |

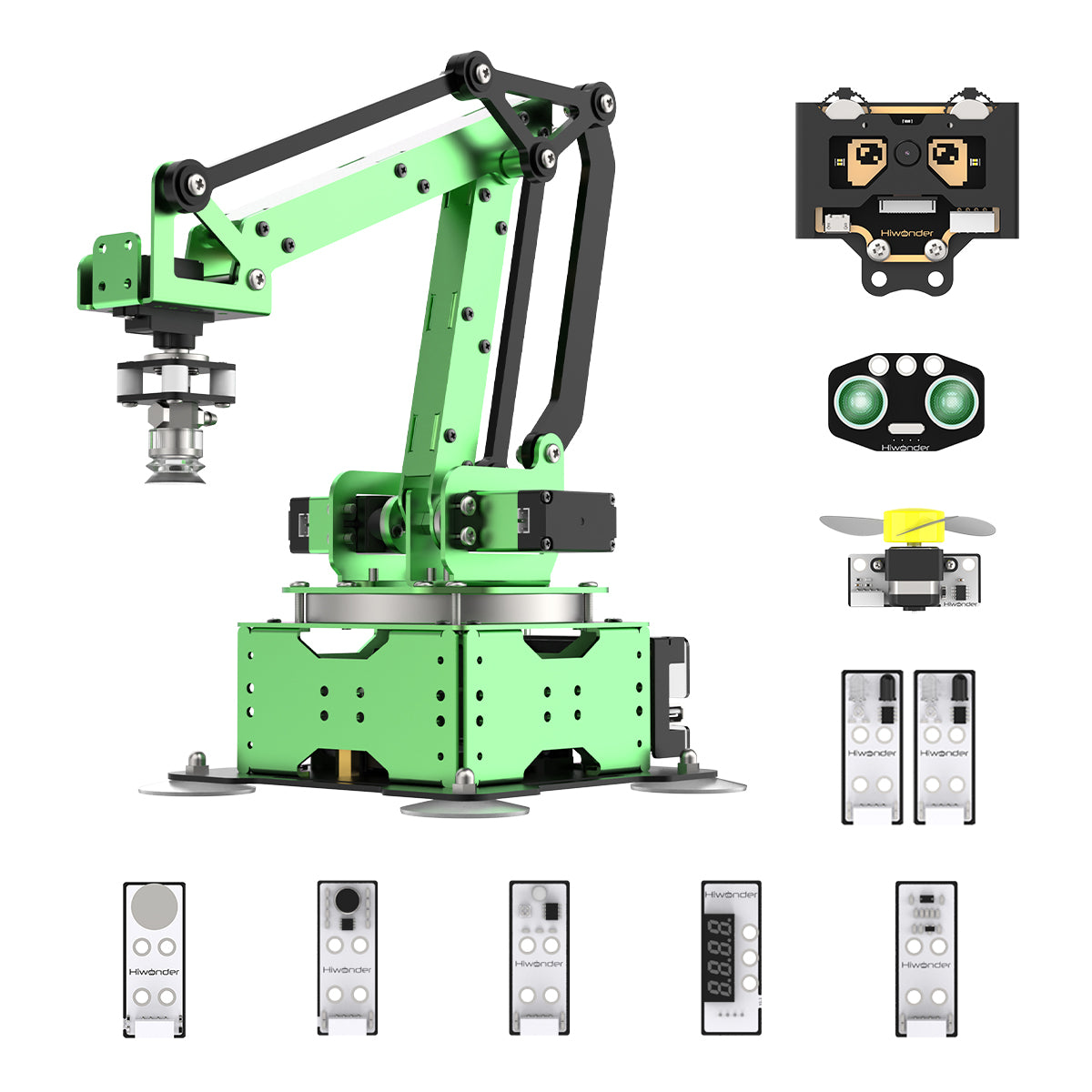

| Advanced kit | Standard kit *1 WonderCam AI vision module * 1 (metal brackets included) Fan module * 1 Dot matrix module * 1 4 PIN wire (50cm) * 3 |

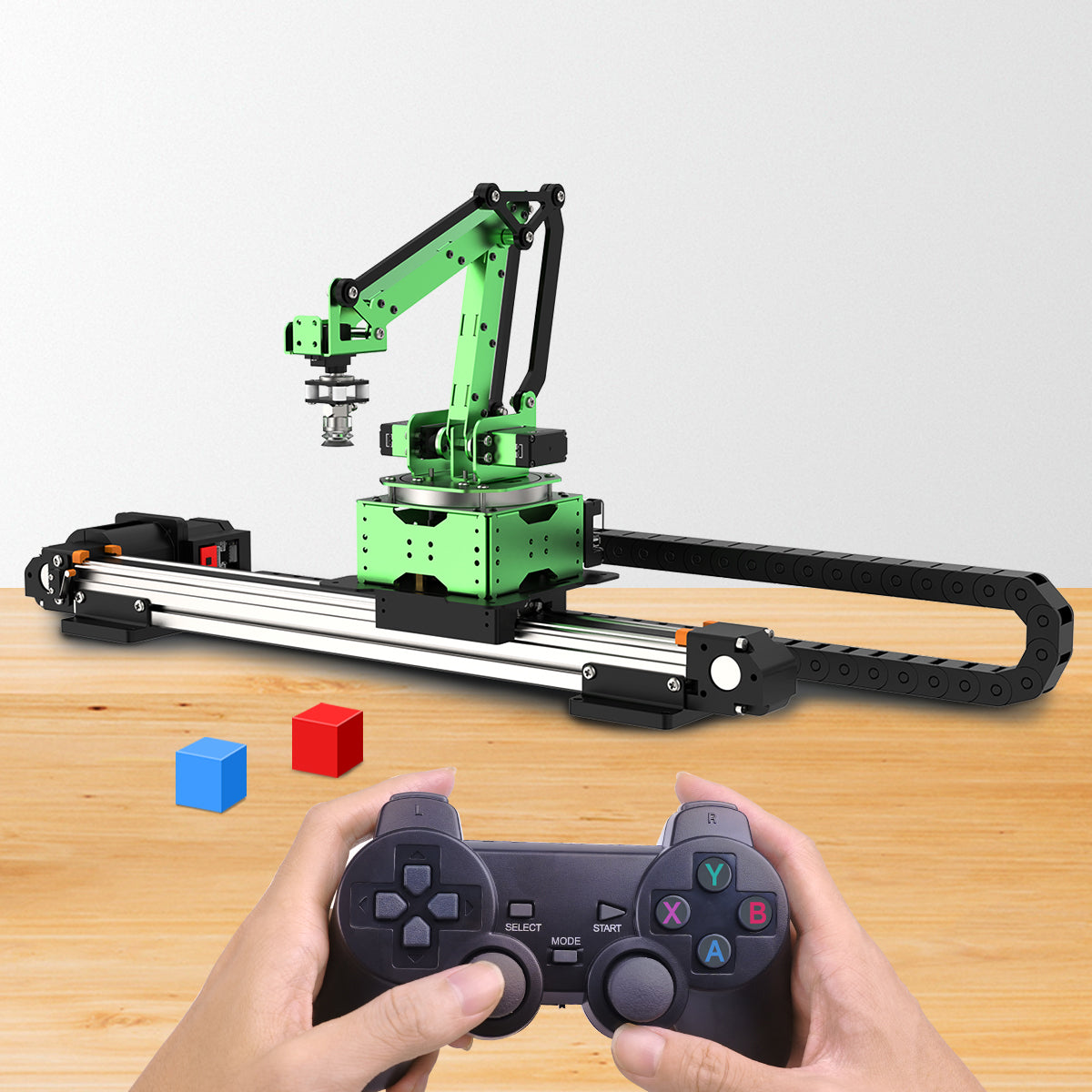

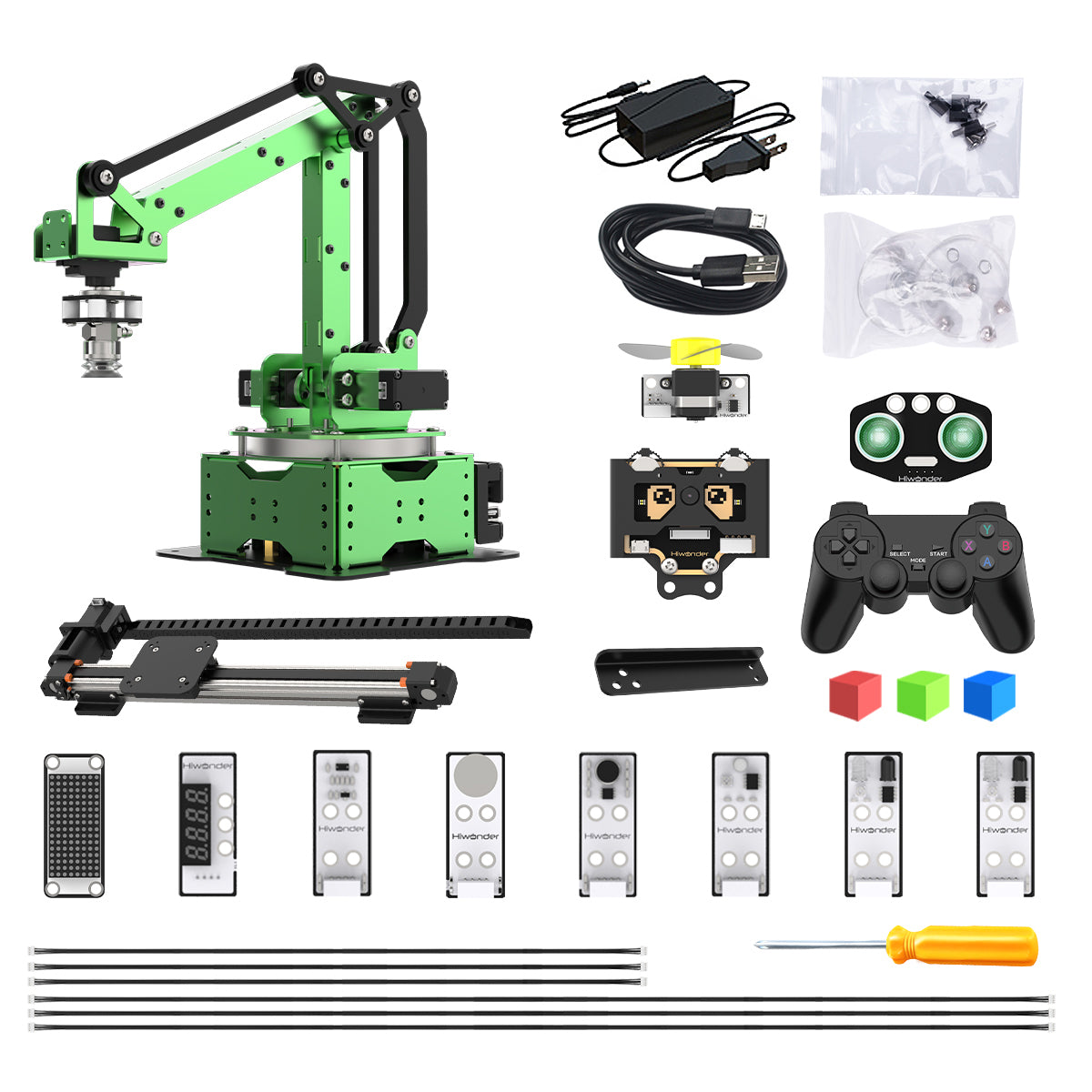

| Developer kit | Advanced kit *1 Sliding rail bracket * 1 Sliding rail * 1 |
Questions & Answers
Have a Question?
-
Where can I buy another Hiwonder Esp32 microcontroller? I damaged the one that came with my open source Hiwonder Maxarm Kit.
Hi there, please contact our support team for the help and purchase. Email: support@hiwonder.com
-
Hi, I can change the suction nozzle for a claw, is there an example of how to use the claw? Thanks.
The end effector can be replaced, but MaxArm does not offer specific examples for doing so, meaning you will need to explore and handle the process yourself.
-
I want to test for ocr detection and object detection, will it fully help me or not. if i take Starter kit, will there be available for camera setup in board. so please guide I want to mpurchase it.
Hi there, it's mainly used for programming and robot learning, but you can have a try.
-
Do you have a tutorial on how to build a simulator for this version of the robot ARM. I see the jetArm has the virtual simulator. It would be good exercise for the student and customers that have this arrm.
Hi there,
MaxArm is a robot arm for beginners, so it does not use ROS. However, because it is not based on ROS, the simulator be synchronized with the real object in real time. JetArm will be perfect if you want to build a simulator.
Many Thanks,
Hiwonder -
Does the MaxArm have a simulator? I came across this Robot Arm call JetArm. I initially thought the JetArm might be an extension of the MaxArm. The JetArm has a Unified Robot Description Format (URDF) simulator, I started thinking does the MaxArm has a virtual Simulator that may have been created. You can see the simulator for the JetArm at 1:24 in this video. It looks somewhat similar to the MaxArm. Again,Is there a virtual simulator available for the MaxArm? Here’s the link to the video: https://www.youtube.com/watch?v=sDDF6Tyi4U0 .
Currently, MaxArm doesn't have a virtual simulator
-
my robot is not stable; the suction air pump sometimes doesn't work, please show me how to fix or change the air pump if any
Please send your request to support@hiwonder with a video, and our technical support team will provide support
-
Can it be operated by an external signal via a digital I/O ? . such as a push button.

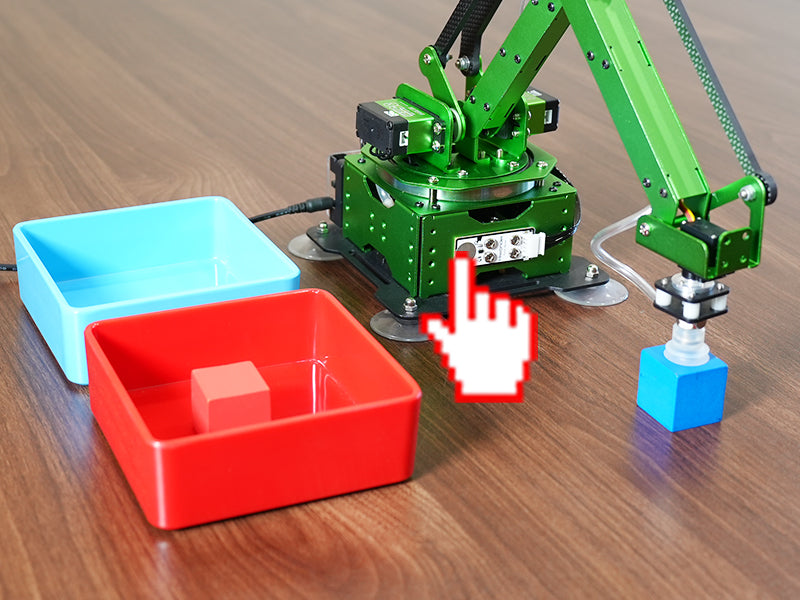

Yes, it supports offline running through a push button
-
How much is it for the MaxArm charger? I misplaced mine and I just got it a few weeks ago.
Please check this link: https://www.hiwonder.com/products/power-supply-adapter-12v-5a?_pos=2&_sid=0204aeae2&_ss=r
-
Is there any PC software for mac for the MaxArm. If not can you please make one because I just ordered a arm and now I'm not sure if it will even work with my macbook
Sorry, the PC software for mac is not available yet
