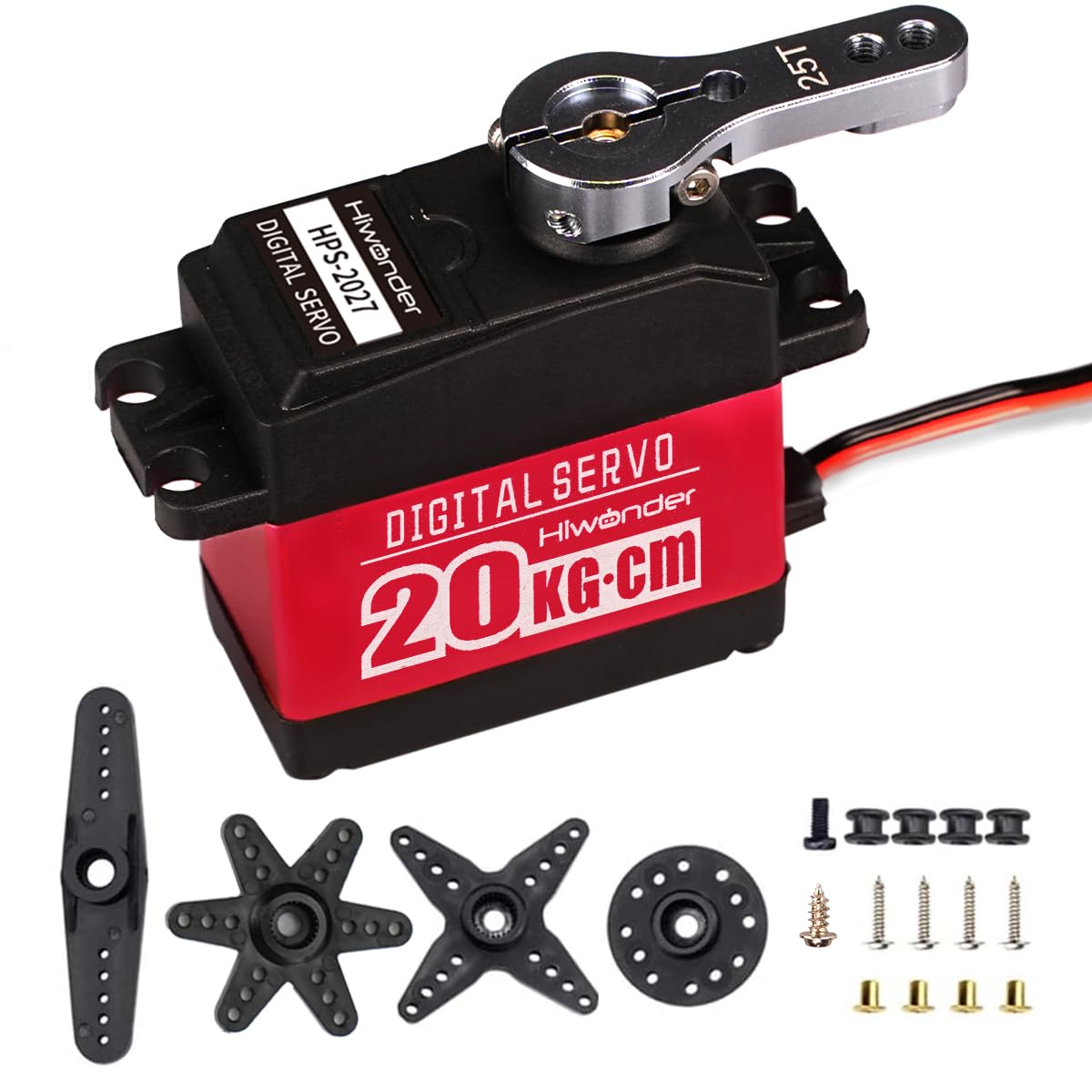

Hiwonder HPS-2027 20KG High Torque Digital Servo Motor Full Metal Gear Supports Robotic Arm/RC Car/Single Shaft

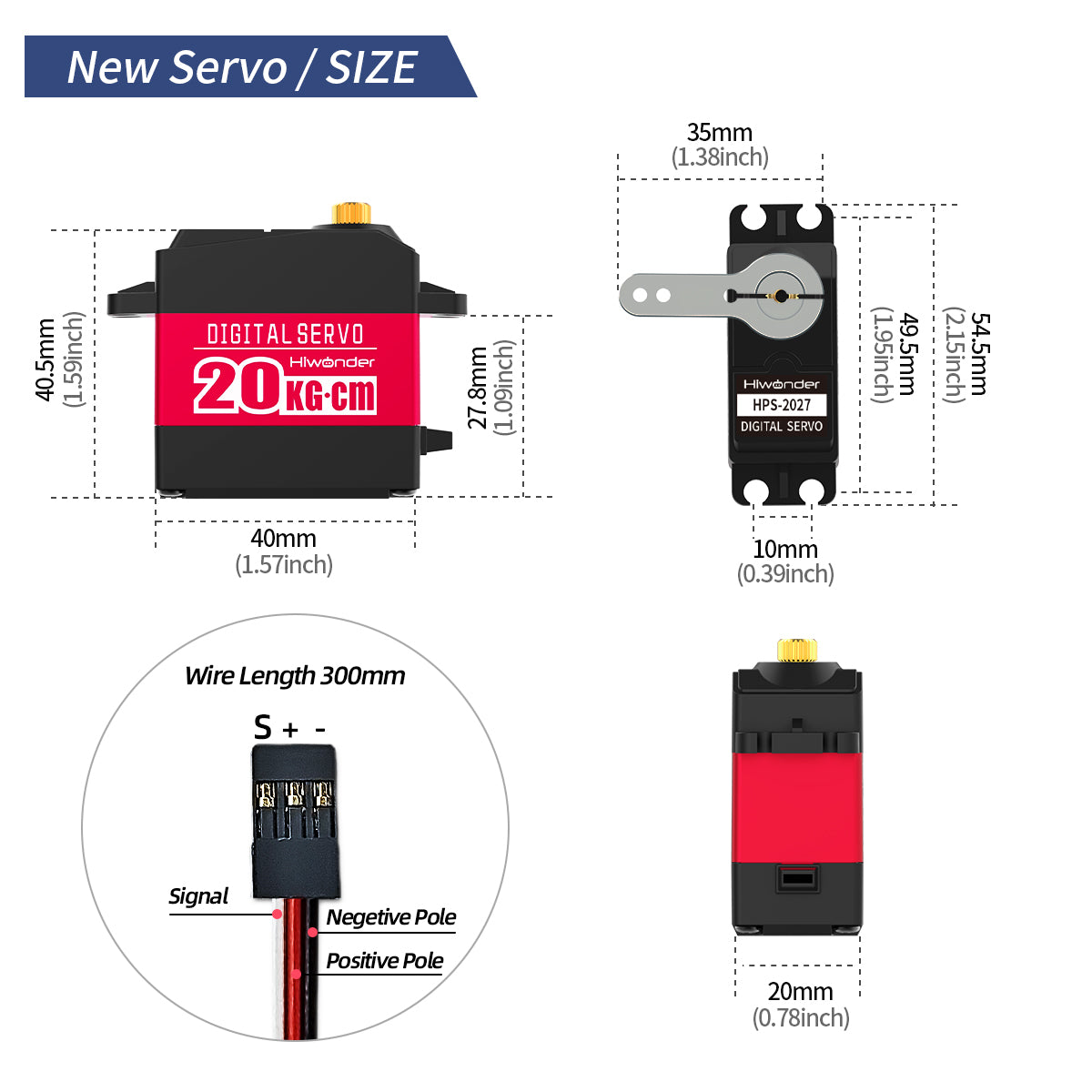

- 【Size & Weight】Size: 40*20*40.5mm (1.57*0.8*1.59inch); Weight: 68g (0.15 pound).

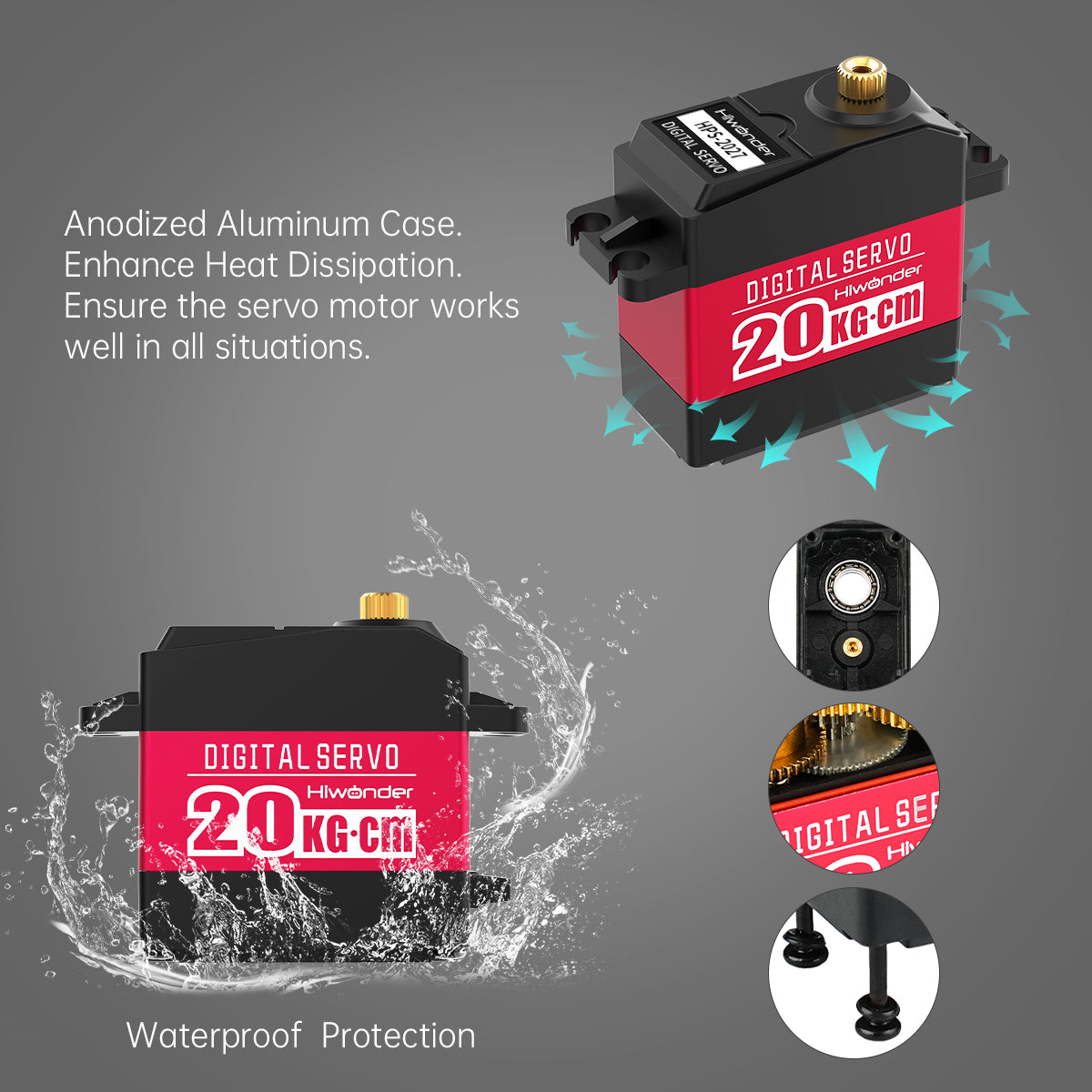

- 【20kg-270°High Torque Servo Motor】This rc servo boasts a maximum torque of 20KG.CM 7.4V, enhanced by its accompanying metal servo arm. Delivering robust power, it is housed within an anodized aluminum case that facilitates excellent heat dissipation and effectively reduces power consumption.

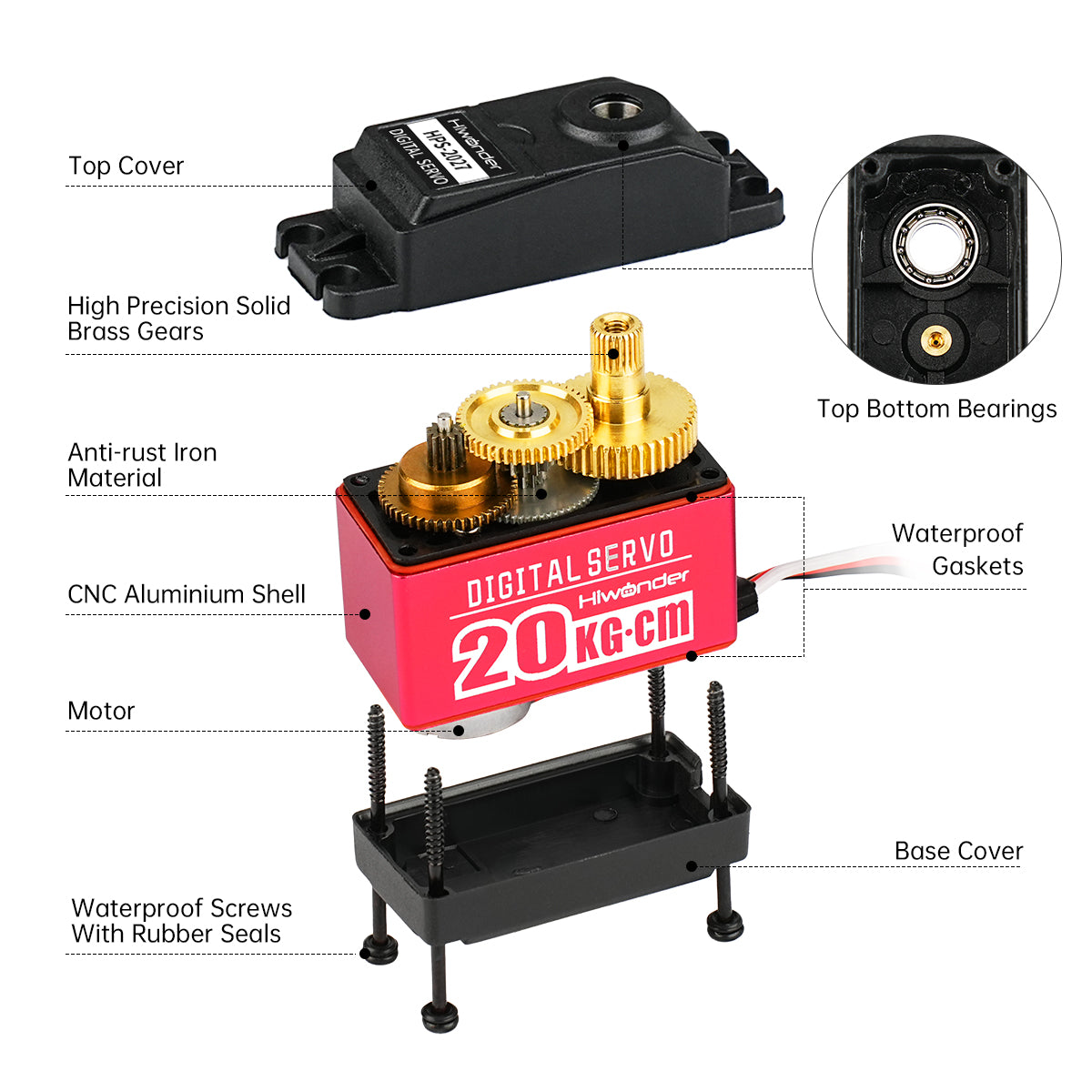

- 【Superior Quality & High Performance】This digital RC servo comes with metal gear and dual-ball bearings, which are well-made with exceptional performance, stability, and minimal noise output. By integrating a high-precision potentiometer, its accuracy and linearity are greatly enhanced leading to an extended service life.
- 【Perfect Servo for Model DIY & IP67 Waterproof】It fits 1/6 1/8 1/10 1/12 RC cars, robots, vehicle/boat/airplane models, and any DIY. Crafted with high precision and thorough sealing, this rc servo provides IP67 water resistance, which allows it to operate even in the presence of water splashes.
- 【Excellent After-sale Service】We value all customer's shopping experiences. If you come across any issues with our products, please don't hesitate to reach out to us, and we will try our best to help within 24 hours. Order today with peace of mind!
| Product weight | 0.15Ib / 66g |
| Product size | 1.57*0.8*1.59inch / 40*20*40.5mm |
| Rotation speed | 0.20sec/60°(7.4V) |
| Stall torque | 20 kg·cm (277.6 oz·in) @7.4V |
| Working Voltage | 6-8.4V |
| Stall current | 2.4~3A |
| No-load Current | 100mA |
| Servo Horn | 25T |
| Servo Wire | 30cm(11.8inch) in length |
| Control Method | PWM pulse width control |

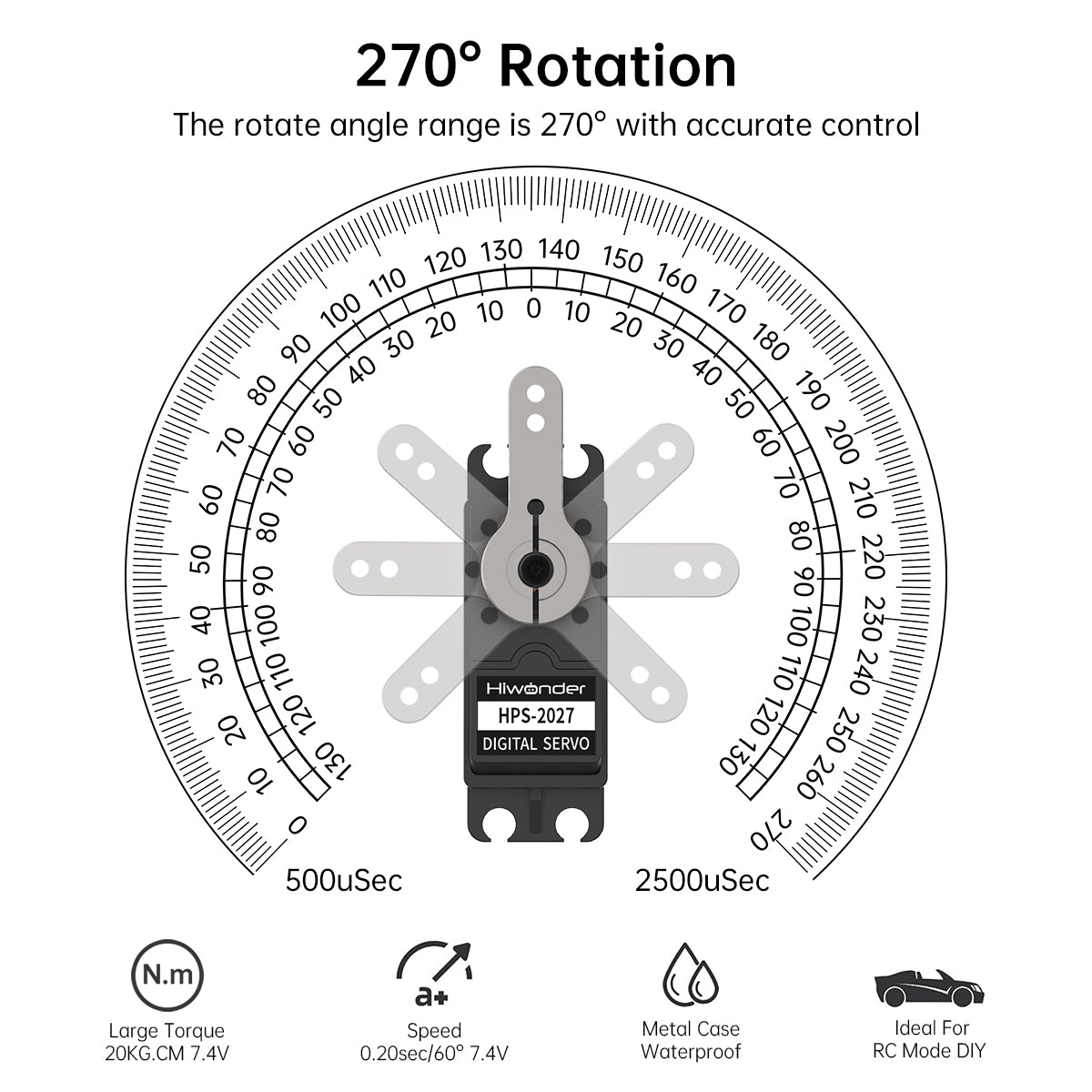

| PWM pulse width range | 500~2500us, corresponding to 0~270° |
| Duty Ratio | 0.5ms~2.5ms |
| Pulse Period | 20ms |
| Wire Layout | red wire: +; black wire: GND; white wire: PWM/signal |
| Rotation range | 0~270° |
| Servo accuracy | 0.4° |
20kg Large Torque
This servo boasts an impressive maximum torque of 20KG.CM 7.4V, enhanced by its accompanying metal servo arm. Delivering robust power, it is housed within an aluminum alloy casing that facilitates excellent heat dissipation, thereby effectively reducing power consumption.
All Metal Gear
This product showcases exceptional performance, minimal noise output, and the inclusion of metal gear and dual-ball bearings. By integrating a high-precision potentiometer, its accuracy and linearity are greatly enhanced leading to an extended service life.
Waterproof Protection
The controllable angle range of the steering gear is 270 degrees, with good linearity and accurate control. It can be rotated 360 degrees when the power is off.

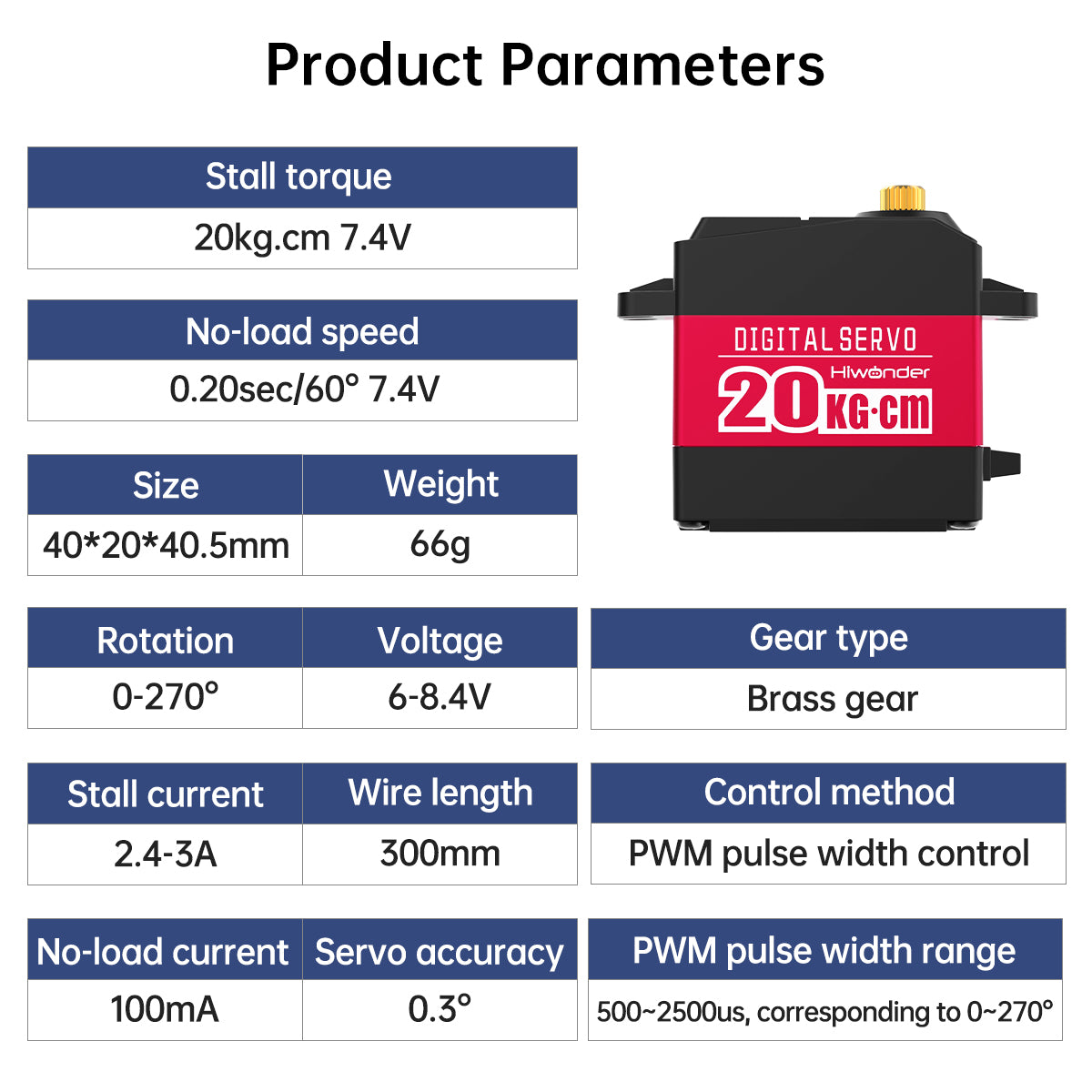

| Item | Specification |
| Product weight | 0.15Ib/ 66g |
| Product size | 1.57*0.8*1.59inch/ 40*20*40.5mm |
| Rotation speed | 0.20sec/ 60°(7.4V) |
| Stall torque | 20 kg·cm (277.6 oz·in) @7.4V |
| Working Voltage | 6-8.4V |
| Stall current | 2.4~3A |
| No-load Current | 100mA |
| Servo Horn | 25T |
| Servo Wire | 30cm(11.8inch) in length |
| Control Method | PWM pulse width control |
| PWM pulse width range | 500~2500us, corresponding to 0~270° |
| Duty Ratio | 0.5ms~2.5ms |
| Pulse Period | 20ms |
| Wire Layout | red wire: +; black wire: GND; white wire: PWM/signal |
| Rotation range | 0~270° |
| Servo accuracy | 0.4° |
