Sensor Module
Infrared Receiver: Hiwonder Robot Sensor Compatible with Arduino/ Raspberry Pi/ Jetson Nano/ micro:bit
Product SKU: 21090037
- Working voltage: DC 5V
- Receiving distance: 10 - 15m
- Receiving angle: ±35°
- 4 Pin wire port. Connecting wire is provided. Easy to connect
- The holes are compatible with LEGO bricks
Available:
Only 993 items in stock
In stock
In stock
Out of stock
Back in stock
$3.99
Save
% $-3.99
Description
The working principle of Hiwonder infrared receiver is that its infrared receiving tube converts light signal emitted by infrared transmitting tube into weak electrical signal, and then decode the signal to original code emitted by remote control.
This sensor is widely applicable in audio-visual equipment, domestic appliances, wireless remote control, etc.
For more information, refer to https://www.hiwonder.com.cn/store/learn/68.html.

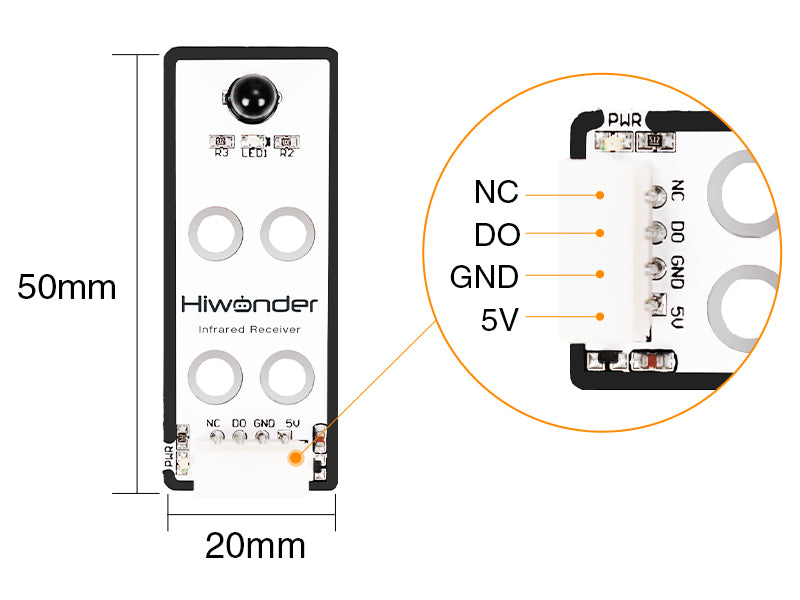

Dimensional Diagram
| Working voltage | DC 5V |
| Size | 50 × 20mm |
| Receiving angle | ±35° |
| Port type | 5264 - 4AW |
| Working frequency | 38KHz |
| Receiving distance | 10 - 15m |
Product Parameters
Support Multiple Controller/Expansion Boards

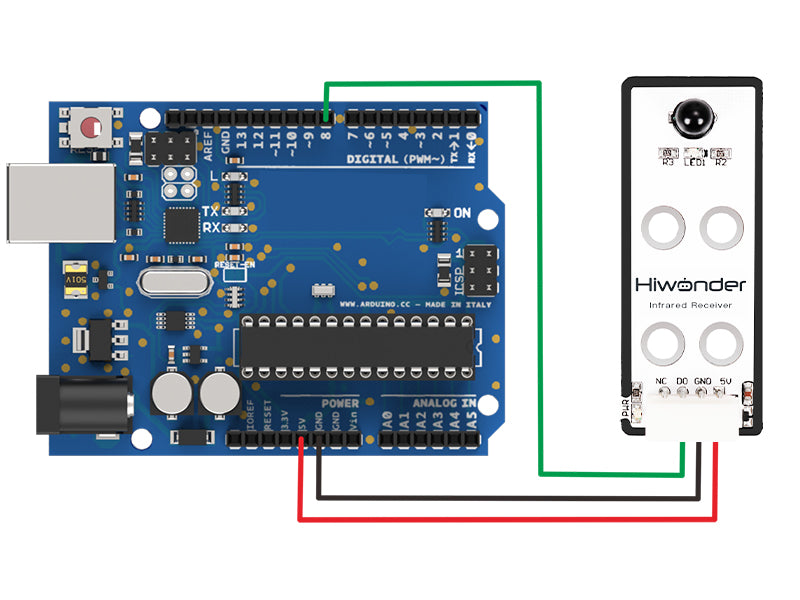

Infrared Receiver Sensor Connection Arduino
Infrared Receiver Sensor Connection Raspberry Pi
Scenario Application
| Item | Specification |
| Working voltage | DC 5V |
| Size | 50 × 20mm |
| Receiving angle | ±35° |
| Port type | 5264 - 4AW |
| Working frequency | 38KHz |
| Receiving distance | 10 - 15m |
