Sensor Module
Raindrop Sensor for Automatic Watering System Compatible with Arduino/ micro:bit/ Raspberry Pi
Product SKU: HW2019127
- Working voltage is 5V
- AD converter digits is 10 digits
- AD value: 0~400 (no rain environment); 400~1000 (rainy environment)
- 4 Pin wire port. Connecting wire is provided. Easy to connect
- The holes are compatible with LEGO bricks
Available:
Only 1000 items in stock
In stock
In stock
Out of stock
Back in stock
$5.99

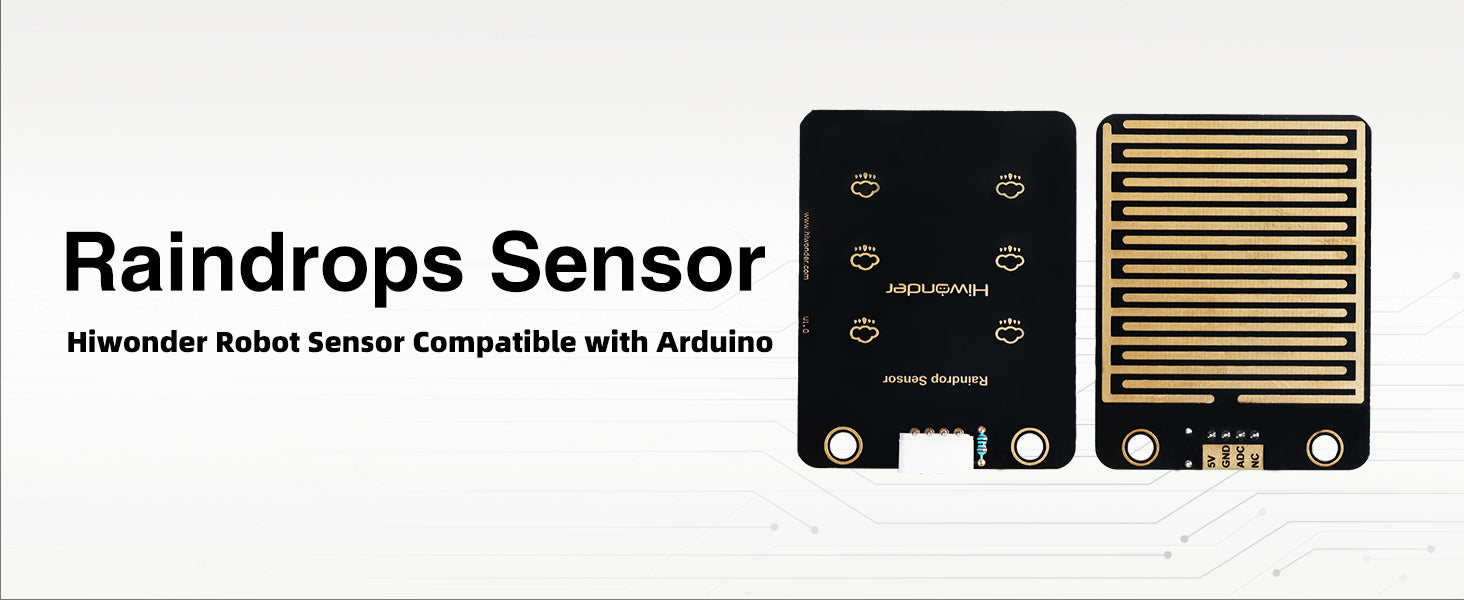

Product Description
High-quality FR-04 double-sided material with a large area of 62*48mm, which is more conducive to raindrop detection. The surface is treated with immersion gold, which has excellent performance in anti-oxidation, conductivity and service life.
Feature
- Voltage: 5V
- AD converter digits: 10 digits
- AD voltage: 5V
- AD value: 0~400 (no rain environment); 400~1000 (rainy environment)
- Size: 62mm*48mm
- Support: compatible with Lego series

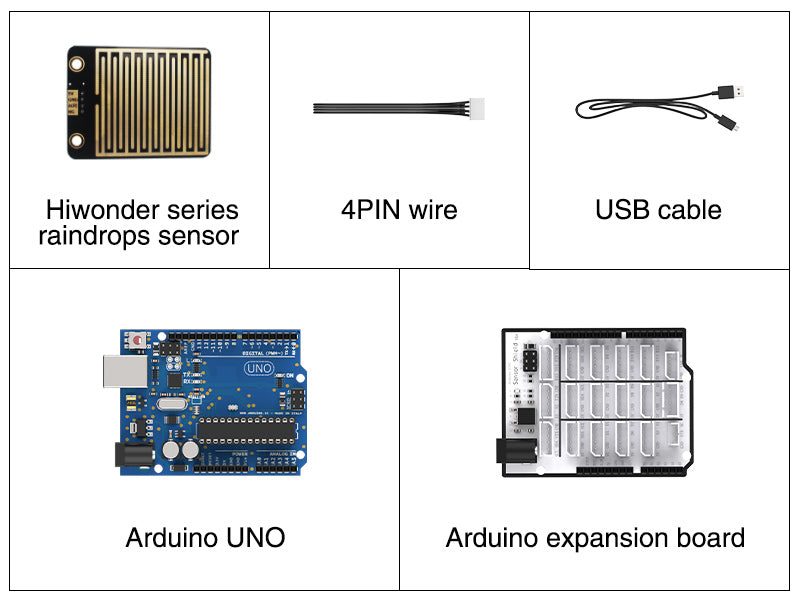

Hardware preparation
Software preparation

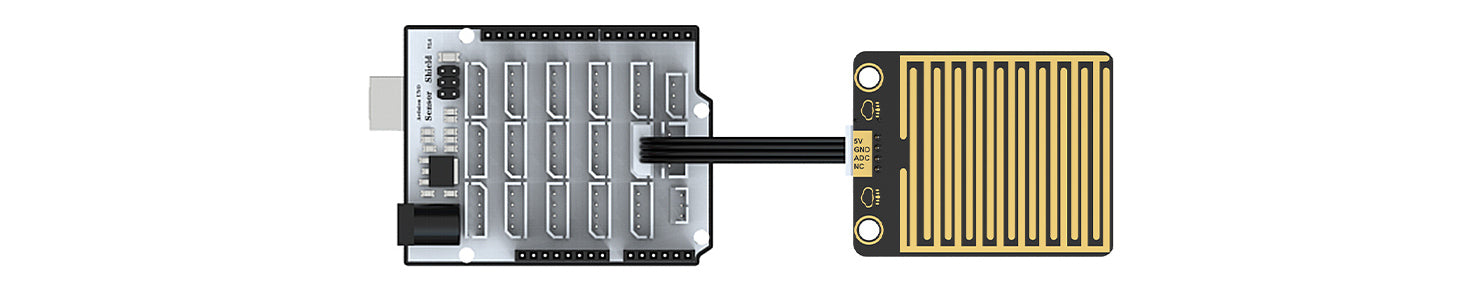

Wiring preparation
Arduino UNO+Arduino expansion board. Use the 4PIN wire to connect the sensor to the A2 port on the Arduino expansion board.
Note: If you do not use the Arduino expansion board, please use DuPont cable to connect the sensor to the Arduino development board
Note: If you do not use the Arduino expansion board, please use DuPont cable to connect the sensor to the Arduino development board

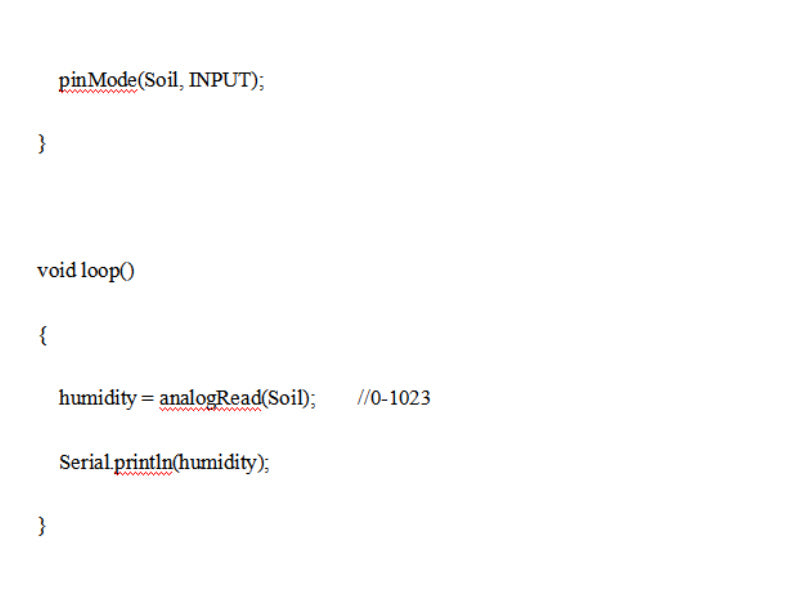

Arduino programming code
- Connect the Arduino UNO development board with the expansion board to the computer through the USB cable
- Use Arduino IDE to open the program
- Select the corresponding development board and open the connection port
- Open the serial port monitor and set the baud rate to 9600, upload the program
- Insert the sensor into the soil with different humidity and observe the data changes
Packing List
1* Raindrops module
1* 4PIN wire (20cm)
1* 4PIN wire (20cm)
| Item | Specification |
| Voltage | 5V |
| AD converter digits | 10 digits |
| AD voltage | 5V |
| AD value | 0~400 (no rain environment); 400~1000 (rainy environment) |
| Size | 62mm*48mm |
| Support | compatible with Lego series |
