MasterPi Hiwonder AI Vision Robot Arm with Mecanum Wheels Car Powered by Raspberry Pi 5 Open Source Robot Car

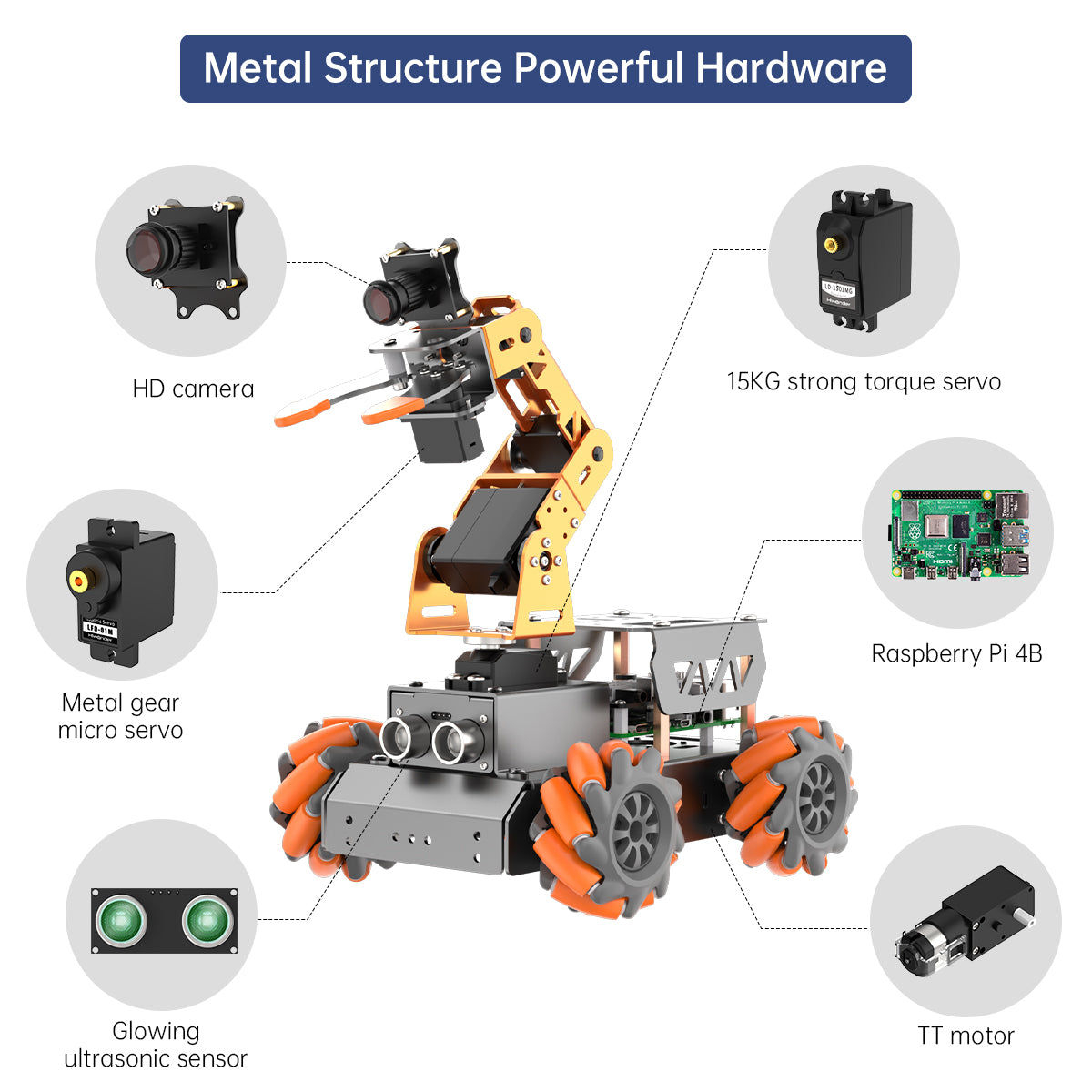

- 【RPi AI Vision Robot】Support Python programming. Built on a Mecanum-wheel chassis, high-quality metal gear servos and HD camera.
- 【Vision Robot Arm】5DOF robot arm and HD camera to locate and pick items.
- 【360° Omnidirectional Movement】Advanced omnidirectional Mecanum wheels enable flexible 360° motion.
- 【App Remote Control】 MasterPi offers ultimate control over its motion, gripping, and transportation with a dedicated app.
- 【Extensive Tutorials】Access detailed guides on motion control, AI vision, PC software programming, OpenCV, and more.
Line Following
Color Recognition
Color Sorting
PC Software Control
With the graphical PC software, you can control the rotation of the robot servo by dragging slider without code, and can edit the robot action group.
Threshold Adjustment Tool
MaterPi is equipped with a color threshold adjustment tool that allows you to visually fine-tune the LAB color space.
APP Control
WonderPi APP supports Android and iOS. Switch game modes easily and quickly to experience various AI games.
Easy to build
MasterPi is easy to build with instruction. You can enjoy the fun of building by build a robot.
Powered by Raspberry Pi
MasterPi is powered by Raspberry Pi 4B or 5 controller allowing you to embark on motion control, machine vision, and OpenCV projects.
Hard Aluminium Alloy
It protects the core control board from shattering and shocking and can bear bigger load!
High-performance Metal Servo
LDX-218 is a full metal gear standard digital servo with 17kg high torque and dual ball bearing forthe robot.The control angle is 180 degree.
| Product dimension: | 185*162*343mm |
| Weight: | 1100g |
| Body material: | Metal bracket |
| Camera resolution: | 480P |
| Robotic arm DOF: | 4DOF+gripper |
| Battery: | 18650 lithium battery |
| Battery life: | work for 60min continuously |
| Hardware | Raspberry Pi 4B/5 and Raspberry Pi expansion board |
| Software: | PC software, iOS/Android APP |
| Communication: | Wi-Fi and Ethernet |
| Servo: | LD-1501MG digital servo & LFD-01M micro servo |
| Control method: | PC and phone control |
| Package size: | 33*29*9cm (length*width*height) |
| Package weight: | About 1.6kg |
| Item | Specification |
| Product dimension | 185*162*343mm |
| Product weight | 1100g |
| Body material | metal bracket |
| Camera resolution | 480P |
| Robotic arm DOF | 4DOF+gripper |
| Battery | 18650 lithium battery |
| Battery life | work for 60min continuously |
| Hardware | Raspberry Pi 4B/5 and Raspberry Pi expansion board |
| Software | PC software, iOS/Android APP |
| Communication | Wi-Fi and Ethernet |
| Servo | LD-1501MG digital servo & LFD-01M micro servo |
| Control Method | PC and phone control |
| Package Size | 33*29*9cm (length*width*height) |
| Package Weight | About 1.6kg |
Customer Reviews
Initially the robot works as intended and is a nice high-quality robot. I am looking through the literature and while I can find how to manipulate the various functions/tasks that are preprogramed, I am having trouble finding how to run multiple tasks/functions at the same time. Ideally, I would like to line/path follow grab a block at a time and put into a sorting bin. Is there literature or videos that show how to do this. Is the robot capable of this? Any help would be greatly appreciated.
The robot is good in term it does what it says. However, it may need some additional adjustments and calibration to work as expected. Also the bundling and tieing of the cables can be improved. What I like the most are the detail and easy to follow documentation and the tech support.
Recommend buying one of this.
Thank you dear Bayron! And let me feedback to our team regarding the cables. Thank you for your suggestion!
Many Thanks,
Hiwonder
>>
Hi! 500g normally
This hobby bot was exactly what I was looking for. Able to access the onboard raspberry pi and start programming. Company’s tutorials are good for a starting point, although some of the code comments etc are in Chinese. Tech support was responsive when I reached out to them with a question. Of course I’ve hit some snags along the way since I’m just a beginner programmer. But I’m very impressed with the quality of the chassis, all metal parts, etc. I will definitely purchase from this company again
n the realm of robotics, HiWonder has established itself as a benchmark for excellence. My personal collection is a testament to the brand's commitment to quality, featuring several of their robots, each exemplifying top-notch performance. What sets HiWonder apart is their dedication to not only refining the aesthetic appeal of their products but also enhancing their functionality over time. Their control software stands unparalleled, offering an intuitive and powerful platform for users to command their robots.
My interactions with their customer support team have been nothing short of positive. Queries are met with prompt and helpful responses, ensuring any issues are swiftly addressed. The MasterPi robot, in particular, represents a pinnacle of this innovative spirit. It is designed for expansion, inviting users to unlock its full potential. Leveraging ChatGPT, alongside the initial Python code provided by HiWonder, allows enthusiasts to imbue the MasterPi with new capabilities, fully realizing the vision HiWonder had for this product.
HiWonder doesn't just sell you a robot; they offer a foundation upon which to innovate. This philosophy is the cornerstone of their existence, encouraging users to explore, modify, and enhance. The MasterPi is a clear embodiment of this ethos, serving not just as a tool for learning and development but as a gateway to the vast possibilities of robotics.
Questions & Answers
Have a Question?
-
Can you program it directly in python? can it do vnc so a student can access an editor on the pi?
Hi there, yes and this is the tutorials for your reference: https://docs.hiwonder.com/projects/MasterPi/en/latest/
-
Does the MasterPI kit with Raspberry PI have the Software image already installed on the included SD card?
Hi! Yes if you order the kit with Raspberry Pi, image is already installed.
-
What is the lengths of each link and the joints' degree of freedom?
The robot arm of the MasterPi features 4DOF+gripper. For more details, please check below:
-
what is the impact and benefits of it?
MasterPi is highly effective for programming education due to its:
-
Hands-On Learning: Allows students to engage directly with hardware, reinforcing programming concepts through practical application.
-
User-Friendly Interface: Simplifies learning with an intuitive programming environment suitable for beginners.
-
Interactive Projects: Provides real-world projects that enhance problem-solving skills and make learning more engaging.
Overall, MasterPi offers an accessible and interactive platform for developing essential programming and robotics skills.
-
-
What is the difference between the MasterPi kit for the Pi 4 and the Pi 5 other than the Pi itself? Also, what parts besides the Pi are not included if I buy one of the kits without a Pi? Is there any advantage with the Pi 5? What can the Pi 5 kit do that the Pi 4 can't?
1. Differences between the Raspberry Pi 4 and 5 versions: cooling accessories and expansion board.
2. The version without Raspberry Pi does not include cooling accessories or a TF card.
3. The Raspberry Pi 5 offers significantly better computing power compared to the Raspberry Pi 4.
4. Please refer to the table below to compare the Raspberry Pi 5 with the Raspberry Pi 4.
-
Compatible with ROS2 ?
Hi! MasterPi is designered for Raspberry Pi beginners so it cannot support ROS. We will release a new kit soon which can meet your requiement. I will let you know once it's availbale.
Many Thanks,
Hiwonder -
Can I buy the arm of the master pi AI Vision robot car?
Sorry, it cannot be purchsed separately
-
The screw holes are different in my metal case than in the assembly video.
Could you kindly provide the pictures and send them to support@hiwonder.com?
-
Is it possible to integrate it with Ros2? Which operating system is installed on the raspberry?
Currently, the MasterPi is not compatible with ROS2
-
I bought this robot hit from amazon, I already had a RB 4 b board so I didn't need the kit with the Raspberry PI. I came to Hiwonder.com to download the image and support files, and you have to contact support@hiwonder.com and request it if you bought the robot without the Raspberry PI. support@hiwonder.com was yet to respond, So now I have a $300 paperweight
Hi there, yes please send messgae to our support email so that we can share the link with you. System image is not public and share with order number only
-
Hi I bought the MasterPi Hiwonder AI Vision Robot Arm with Mecanum Wheels Car Powered by Raspberry Pi Open Source Robot Car of of amazon without the raspberry pi 4 because I already had one. Where do I get the MasterPi image file from? image.png
Please share your order number to support@hiwonder.com
-
Is I get only the parts or i get the tutorial as well for coding and assemblyu2019s
To access the detailed tutorials, please visit this link: https://drive.google.com/drive/folders/19wOOF4T_N37y_SSklHbo7DnL76_P_NWb?usp=sharing
-
Would this work with a Raspberry Pi 5?
It only works with Raspberry Pi CM4 or 4B
-
Will This work with a Raspberry Pi 5?
This robot only work with Raspberry Pi 4B or CM4
-
can I run the robot on a raspberry pi 3B
No. The robot is only compatible with Raspberry Pi 4B
-
Hi, I recently bought the MasterPi Hiwonder AI Vision Robot Arm and installed on Rpi4. I couldnt find instructions on how to get the Masterpi PC software on my Rpi, please help
Please refer to these tutorials: https://drive.google.com/drive/folders/1-v7XB-PY7dZJNoO2BRBiYRqumCpkvmev?usp=sharing
-
how fast is masterpi?
100mm/s
-
Does this robot come with instructioins on how to build it?
Yes, we offer assembly document and video
-
can I have the cad files for the MasterPi kit
Sorry, we cannot offer cad files for MaterPi, but we offer stp., source code and system image for it:)
