% $-3.99
- Working voltage: DC 5V
- Working current: 5mA
- Size: 50 × 20 mm
- 4 Pin wire port. Connecting wire is provided. Easy to connect
- The holes are compatible with LEGO bricks
Available:
Only 992 items in stock
In stock
In stock
Out of stock
Back in stock
$3.99
Product Description
Hiwonder knob module is composed of potentiometer. By rotating the knob, you can adjust resistance value to change output voltage value. 5V GND terminal will input DC 5V voltage while ADC terminal will output 0 - 5 V voltage when working.
Knob module can be used with many modules to realize various functions, for example, fan speed control, light brightness control and so on. The rotating arrow is printed on it for user convenience.
Knob module can be used with many modules to realize various functions, for example, fan speed control, light brightness control and so on. The rotating arrow is printed on it for user convenience.
Features
- Working voltage: DC 5V
- Working current: 5mA
- Port type: 5264-4AW
- Size: 50 × 20mm
- PWR: lighting up after supplying power

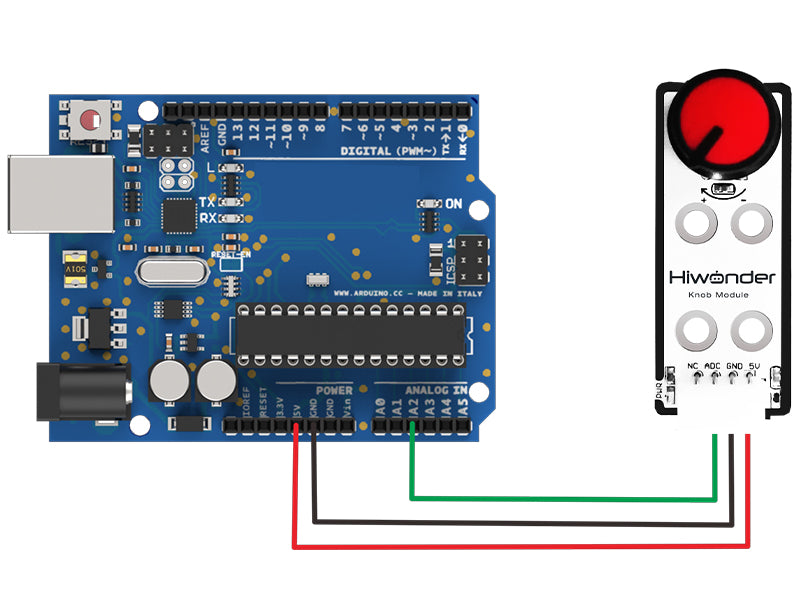

Arduino Connection

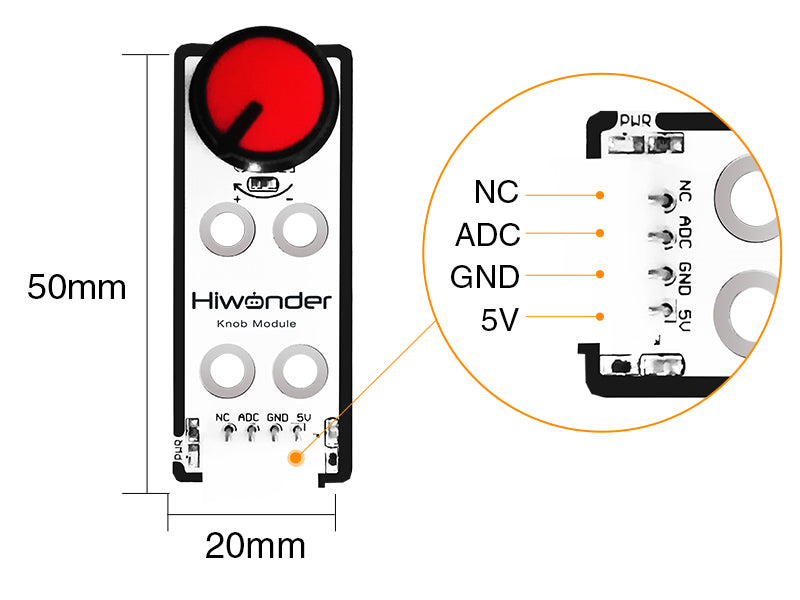

Dimension Drawing
Packing List
1* Knob module
1* 4PIN wire (20cm)
1* 4PIN wire (20cm)
| Item | Specification |
| Working voltage | DC 5V |
| Working current | 5mA |
| Port type | 5264-4AW |
| Size | 50 × 20mm |
| PWR | lighting up after supplying power |
