Hiwonder AiNova Intelligent Vision Robot Car Graphical Python/ Scratch Program

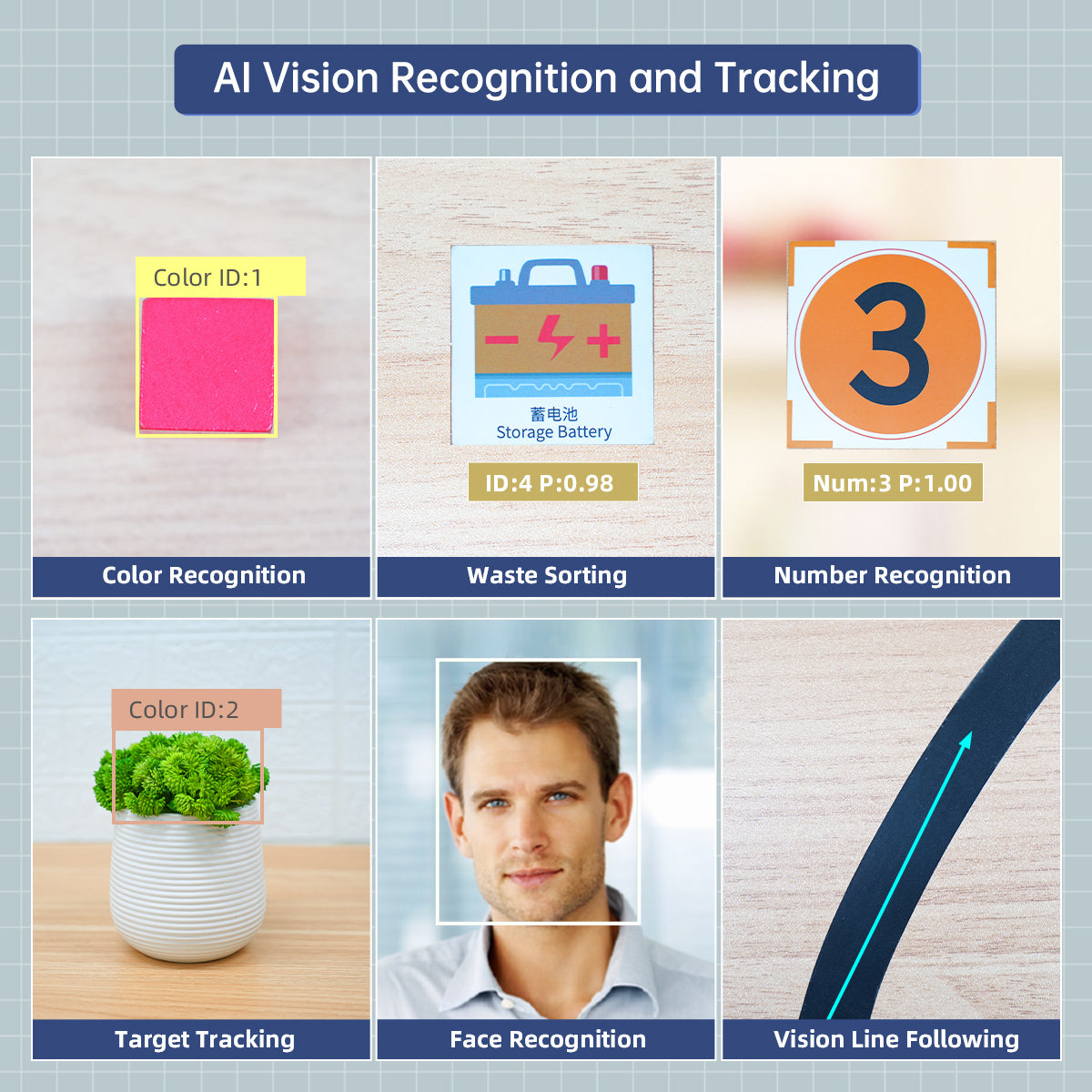

- 【Scratch Programming, AI Vision Robot】AiNova is AI smart robot car powered by scratch. AiNova features a high-performance WonderCam AI vision module with an integrated HD camera. This module enables various AI applications, including color recognition, vision line following, target tracking, and more.

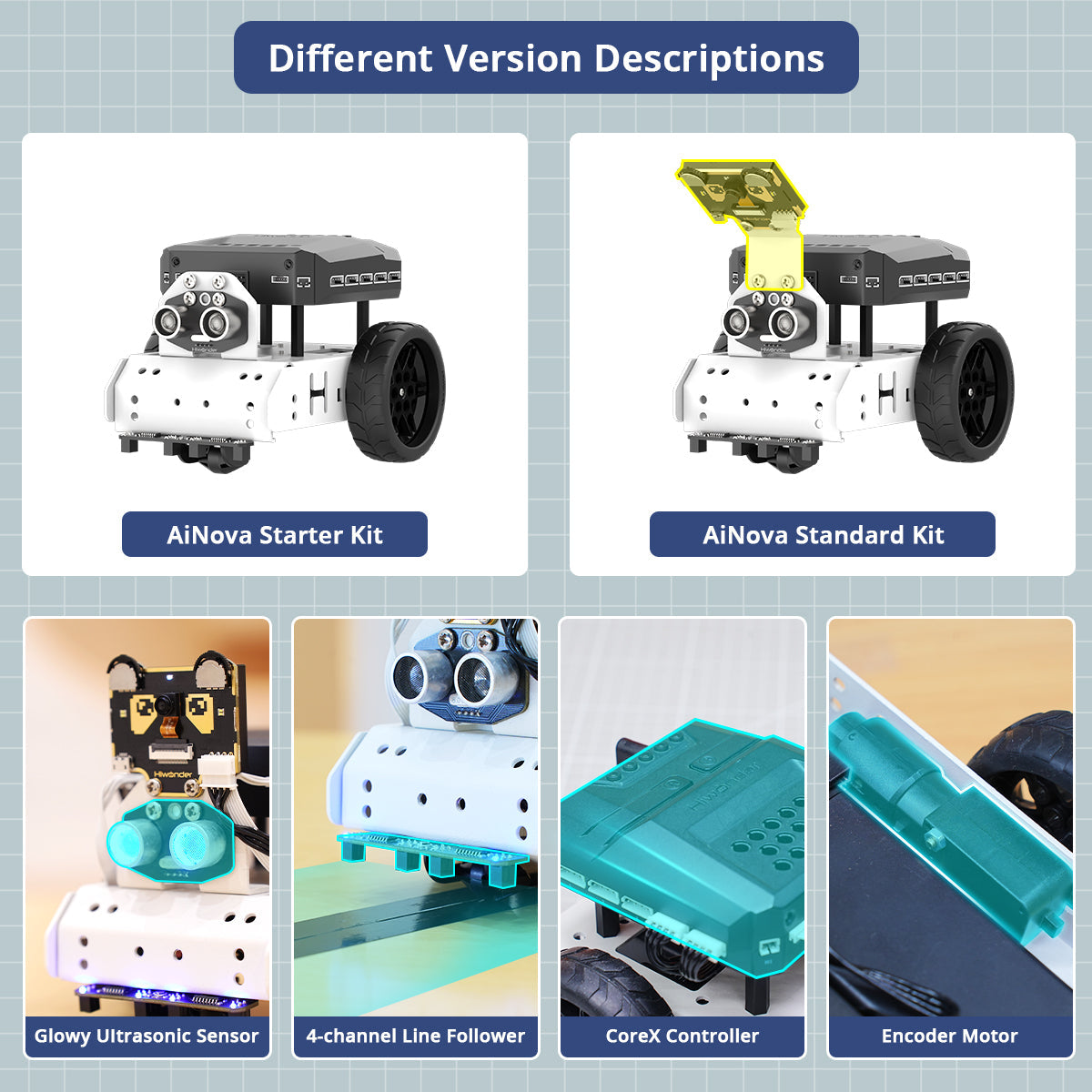

- 【Powerful hardware】AiNova boasts an impressive array of features within its compact body, including a high-precision 4-channel line follower, an AI vision module, a glowy ultrasonic sensor, encoder motor, an infrared receiver, RGB lights, and other electronic components.
- 【One-click Training and Learning】AiNova's AI vision module is integrated with some learning algorithms, allowing it to complete diverse AI vision projects such as image classification and feature learning.
- 【Support Various Programming】AiNova supports scratch programming and python programming. Graphical programming is beginner-friendly and ideal for those starting out. For more experienced users, Python language is available to delve into the coding world.
AI Vision HD Camera
AiNova is equipped with a WonderCam AI vision module, featuring a built-in 2-megapixel HD camera designed to implement various AI creative games.
Built-in Screen One-click Learning
AiNova has a built-in 2.0-inch high-definition IPS screen, offering a user-friendly interface and elevating the overall user experience.
Adaptable Viewing Angle
AiNova's viewing angle can be flexibly adjusted using the metal bracket, allowing for seamless transitions between flat view and top view to meet various game requirements.
Face Tracking
AiNova's WonderCam detects face and identifies if it matches according to conditions and image on its display. The controller performs facial detection, recognition, tracking etc program from the image presented, position and size.
Color Tracking
Utilizing the WonderCam AI vision module, AiNova can retrieve the coordinate position of colors and transmit the data to the controller. With programming, AiNova can effectively achieve color tracking.
Tag Tracking
Using the WonderCam AI vision module, AiNova can acquire the coordinate position of tags and send the data to the controller. By incorporating programming, AiNova can effectively achieve tag tracking.
Vision Line Following with
WonderCam Al Vision Module
AiNova can retrieve the position, offset, angle and other data of lines
within the screen to realize smooth vision line following.
Following with 4-channel
Line Follower
With the high quality 4 way infrared probes, the module can detect
the black line of large-angle turns in advance to finish line following.
Encoder Motor
AiNova is equipped with a DC deceleration encoded motor, which can detect the direction and speed of motor rotation, making it suitable for smart cars.
Metal Protective Shell
WonderCam vision module supports the installation of a metal protective shell to protect the vision module. The shell has mounting holes, which does not affect the assembly and use of the module.
Path Planning
With 2 high-precision encoder motors, AiNova detects the motor speed in real time for path planning.
| Product size | 172*140*146mm |
| Product weight | About 0.5kg |
| Main control hardware | CoreX controller |
| CPU | ESP32 |
| Camera | WonderCam Al Vision Module |
| Motor | DC geared encoded motor |
| Material | Metal bracket |
| Wheel material | Silicone tyre |
| Power supply | 1200mAh 18650 lithium battery |
| Supply voltage | 6~8.4V |
| Programming software | WonderCode (Scratch, Micropython) + iOS/Android mobile app |
| Control method | Computer/mobile phone APP control |
| APP | WonderCom |
| Luminous ultrasonic detection distance2cm-400cm | |
| Processor | Kendryte K210 |
| Camera | 2 megapixel |
| Supply voltage | 5.0V |
| Working current | 300mA (Typical working condition: facial recognition,100% backlight, fill light off) |
| Connectors | I2C |
| Display | 2.0IPS, resolution 320x240 |
| Built-in function | Facial recognition, image classification, feature learning, color recognition, vision line following, tag recognition, number recognition. |
| Dimension | 52mmx50mm |
| Display dimension | 41mmx31mm |
| Item | Specification |
| Product size | 172*140*146mm |
| Product weight | About 0.5kg |
| Main control hardware | CoreX controller |
| CPU | ESP32 |
| Camera | WonderCam Al Vision Module |
| Motor | DC geared encoded motor |
| Material | Metal bracket |
| Wheel material | Silicone tyre |
| Power supply | 1200mAh 18650 lithium battery |
| Programming software | WonderCode (Scratch, Micropython) + iOS/Android mobile app |
| APP | WonderCom |
| Luminous ultrasonic detection distance | 2cm-400cm |
