Servo Controller
LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module RC Robot Toy for Children
Product SKU: HW2019036
- Built-in power switch
- High-performance CPU
- 16M high-capacity memory
- Built in Bluetooth 4.0 module
- Support TTL serial communication
Available:
Only 930 items in stock
In stock
In stock
Out of stock
Back in stock
$25.00
Save
% $-25.00
Product Description
Hiwonder 6 Channel servo controller has built in Bluetooth 4.0 module,which can be used in robotic arm or biped robot. It has over-current protection, as well as support Android phone and PS2 handle control.
Feature
- CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer.
- Built in Bluetooth 4.0 module. Support Android App control.
- Built-in power switch, easy to use.
- 16M high-capacity memory, which is able to hold 230 action groups! Each action group can hold up to 1020 actions!
- Support TTL serial communication, the servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.
- Equipped with 6 channel over-current protection, prevent servo from burning out.
12 Product Features
Android Phone APP Operation Interface
About Wiring
Android Phone APP Operation Interface
About Wiring
Secondary Development

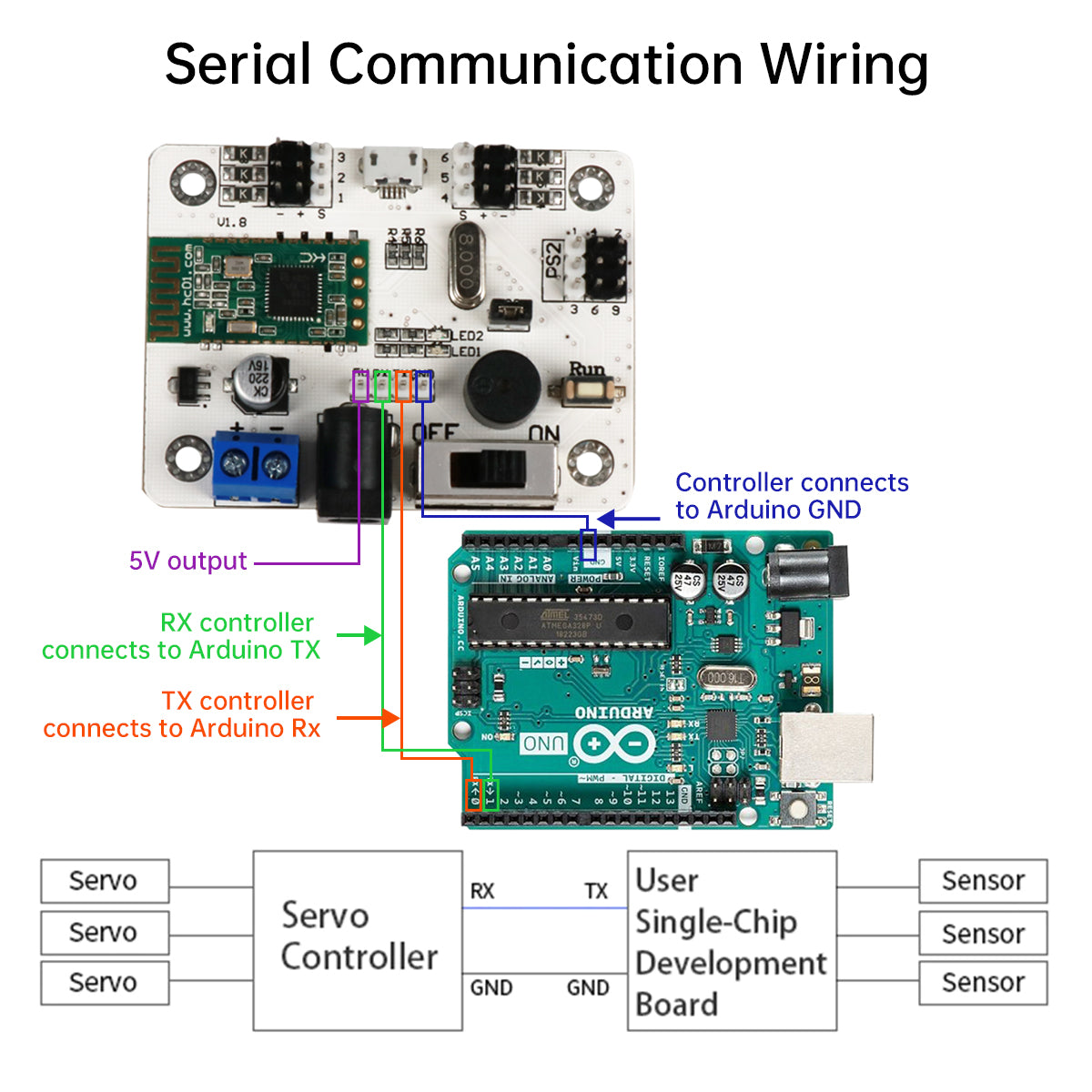

About Serial Communication Wiring
About PS2 Handle Connection
Product Parameter
Packing List
1* servo controller
1* user manual
1* mini USB cable
4* M3*8 nylon columns
4* M3*6 machine screws
1* user manual
1* mini USB cable
4* M3*8 nylon columns
4* M3*6 machine screws
| Item | Specification |
| Outline Area Size | 2.28inch*1.65inch |
| Mounting Hole Size | 1.93inch*1.34inch |
| Bluetooth Moudle | 4.0 version |
| Graphical Programming | support |
| Wireless Handle Control | support |
| The Maximum Number of Controlling Servo | 6 |
| Memory | 16M |
| Current-limiting Protection | support |
| External Single-chip(Secondary Development) | support |
| Low Voltage Alarm | support |
| Over-current Protection | support |
| Net Weight | 20 grams |
| Package List | 1* servo controller 1* user manual 1* mini USB cable 4* M3*8 nylon columns 4* M3*6 machine screws |
Questions & Answers
Have a Question?
-
Bonjour, j'ai une version 13 d'Android et je ne peux pas installer l'application App Android pour contrôler de le LSC 6 . Lorsque j'ai essayé de la télécharger sur le play store , on me dit que ma version n'est pas compatible. Quelle est la solution ? Merci.
Please share your issue with order number and video to support@hiwonder.com
-
Can we connect to your LSC-6 board via Bluetooth from a Raspberry Pi and send serial-like commands over the Bluetooth interface? Thanks for your help, R
Yes
