% $-16.99
- Wave design of the gripper makes the clamping more stable
- Symmetric gripping is easy to judge the object position
- Equipped with strong-torque and burn-resistant servo, gripper can grab object weighing up to 500g
- M2 and M3 holes at the end of claw are left for the DIY extension
- Limited copper pillars to prevent pinching
Available:
Only 9999 items in stock
In stock
In stock
Out of stock
Back in stock
$16.99
Product Description
Equipped with strong-torque and burn-resistant servo, Hiwonder black metal mechanical gripper can grab the item weighing up to 500g. Symmetric gripping design makes it easy for the gripper to judge the object location, and wave design of its internal edge can make the clamping more stable.
Multiple M2 and M3 holes are reserved in the end of gripper to support DIY extension. For safe using experience, limited posts are added to prevent hands from pinching.
Multiple M2 and M3 holes are reserved in the end of gripper to support DIY extension. For safe using experience, limited posts are added to prevent hands from pinching.
Gripper Features
- Material: hard aluminum alloy + glass fiber
- Maximum opening distance: 125mm
- Product size: 120 * 58mm
- Weight with servo: 206 grams
- Weight without servo: 147 grams
LDX-335MG Servo Features
- Weight: 64g
- Size: 54.5 * 20 * 47.5 mm
- Speed: 0.39sec/ 60°7.4V
- Locked-rotor torque: 8kg. cm 7.4V
- Working voltage: 6-8.4V
- No-load current: 100mA
- Wire length: 30cm

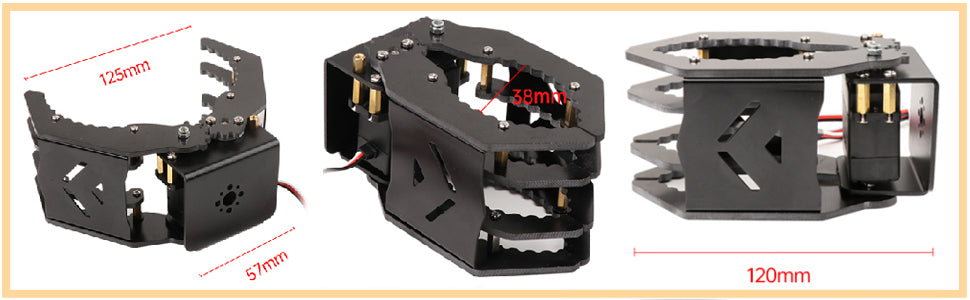

Dimension Drawing
Packing List
1* Black gripper with servo/ without servo
1* Screw bag
1* Screw bag
| Item | Specification |
| Material | hard aluminum alloy + glass fiber |
| Max opening size | 125mm |
| Product size | 120 * 58mm |
| Weight with servo | 206 grams |
| Weight without servo | 147 grams |
