Hiwonder HTD-35H High Voltage Serial Bus Servo 35KG Torque with Three Connectors and Data Feedback
Product SKU: HW2019201
- Three connectors for clean wiring
- High precision and strong torque
- With real-time temperature, voltage and position feedback
- Provide 51, Arduino, STM32 and Raspberry Pi control source code
Available:
Only 9944 items in stock
In stock
In stock
Out of stock
Back in stock
$23.99
Product Description
This three connectors serial bus smart servo possess 35KG torque and adopts all-metal gears inside, strong and durable. It can be controlled by serial port commands, connected to multiple servos at the same time, which can help us create robotic arms and bionic robots. Compared with ordinary servos on the market, it can read back the angle and faceback voltage, temperature position parameter.
This three connectors serial bus smart servo possess 35KG torque and adopts all-metal gears inside, strong and durable. It can be controlled by serial port commands, connected to multiple servos at the same time, which can help us create robotic arms and bionic robots. Compared with ordinary servos on the market, it can read back the angle and faceback voltage, temperature position parameter.
Feature
- Suppot position/temperature/voltage feedback for protecting the servo from burning
- With the TTL/USB debugging board, you can set the servo through the provided PC software
- High-precision potentiometer for more stable operation
- Provide 51, Arduino, STM32, and Raspberry Pi control source code
- Suppot position/temperature/voltage feedback for protecting the servo from burning
- With the TTL/USB debugging board, you can set the servo through the provided PC software
- High-precision potentiometer for more stable operation
- Provide bus servo communication protocol, 51, Arduino and STM32 source code

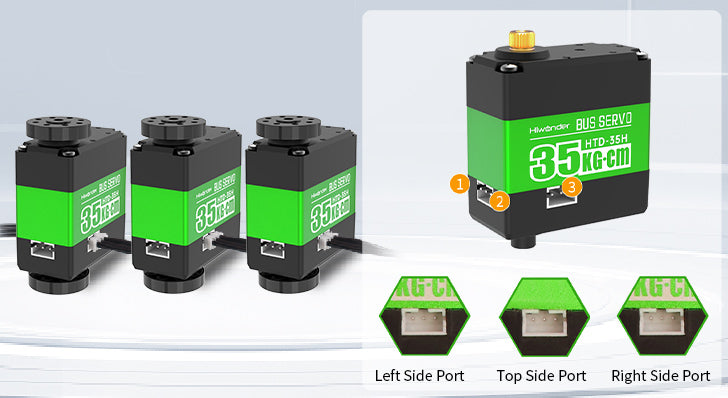

Clean Wiring
Clean Wiring
There are 3 ports for you to connect which makes the project have clean wiring and beautiful outlook.
Powerful Torque
All Metal Gear
Metal Shell
High Voltage
Serial Bus Port
Data Feedback
Two Operation Modes
Double Shaft
ID Identification, Serial Communication
Powerful Torque
All Metal Gear
Metal Shell
High Voltage
Serial Bus Port
Data Feedback
Two Operation Modes
Double Shaft
ID Identification, Serial Communication
Servo Debugging System
In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm, stalling alarm and voltage alarm for servos.
Packing List
Packing List
| Item | Specification |
| Name | HTD-35H serial bus high voltage servo |
| Brand | Hiwonder |
| Weight | 64g |
| Dimension | 51.1 X 20.14 X 40mm |
| Working voltage | 9-12.6V |
| Rotation speed | 0.18sec/ 60°11.1V |
| Rotation torque | 35kg.cm 11.1V |
| Static maximum torque | 35kg.cm 11.1V |
| Rotation range | 0-240° |
| No-load current | 100mA |
| Stall current | 3A |
| Servo accuracy | 0.3° |
| Controllable angle range | 0-1000,corresponding to 0-240° |
| Control method | UART serial command |
| Communication baud rate | 115200 |
| Storage | save data when power off |
| Servo ID | can be set to 0-253.1 by default |
| Angle read back function | support |
| Protection | avoid stalling and overheat |
| Data feedback | temperature, voltage, position |
| Working mode | servo mode and gear motor mode |
| Gear tape | metal gear |
| Servo wire length | 20cm |
| Connector | PH2.0-3P |
| Applicable to | joints of bionic robots |
| Package List |
1* HTD-35H servo 1* Plastic main servo horn 1* Plastic assistant servo horn 1* Servo wire(20cm) 1* Screw bag |
