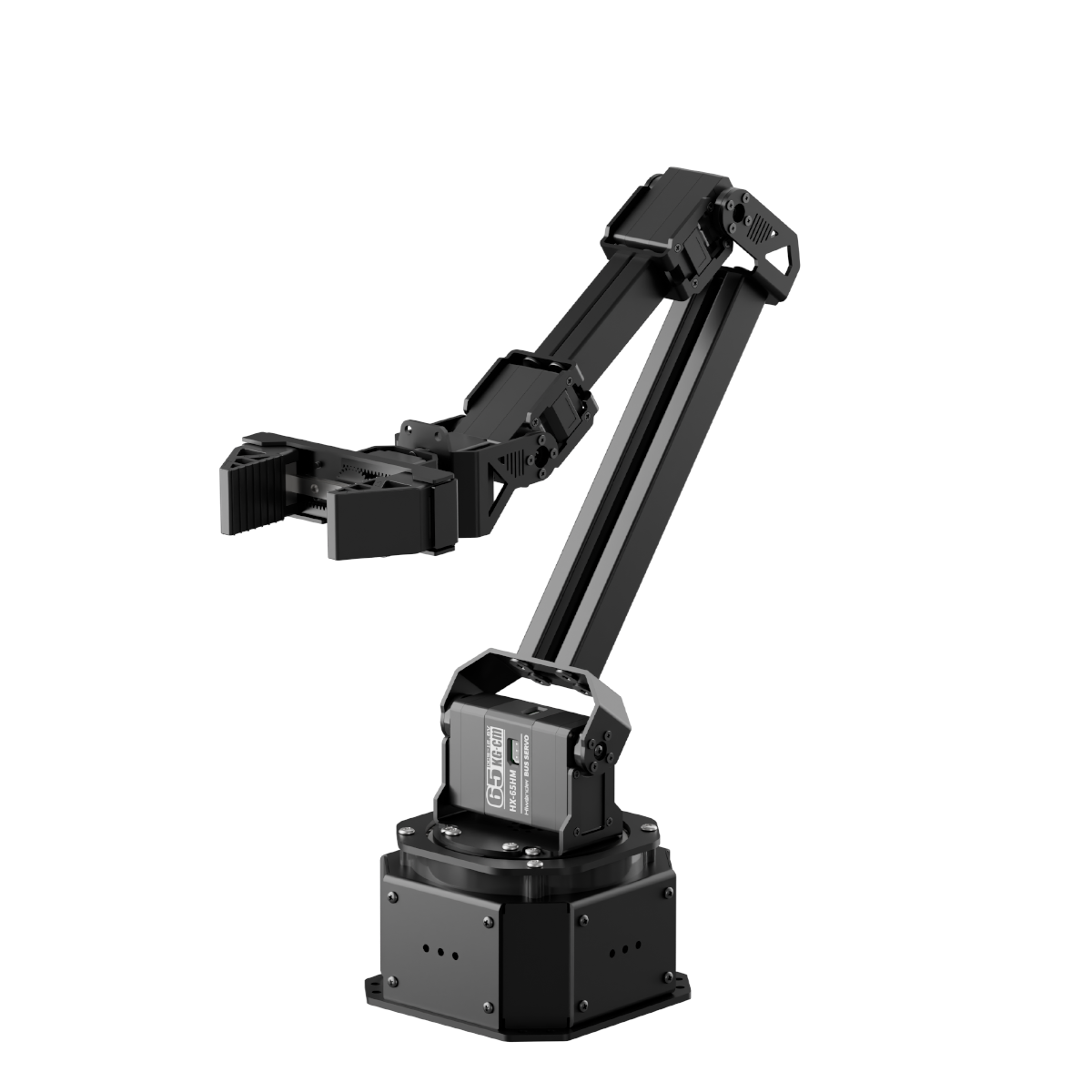

Hiwonder NexArm Open-Source Embodied AI Robotic Arm with ESP32 & AT32 Dual-Chip Design, AI Vision, Large AI Model, and K230 Vision Module
-

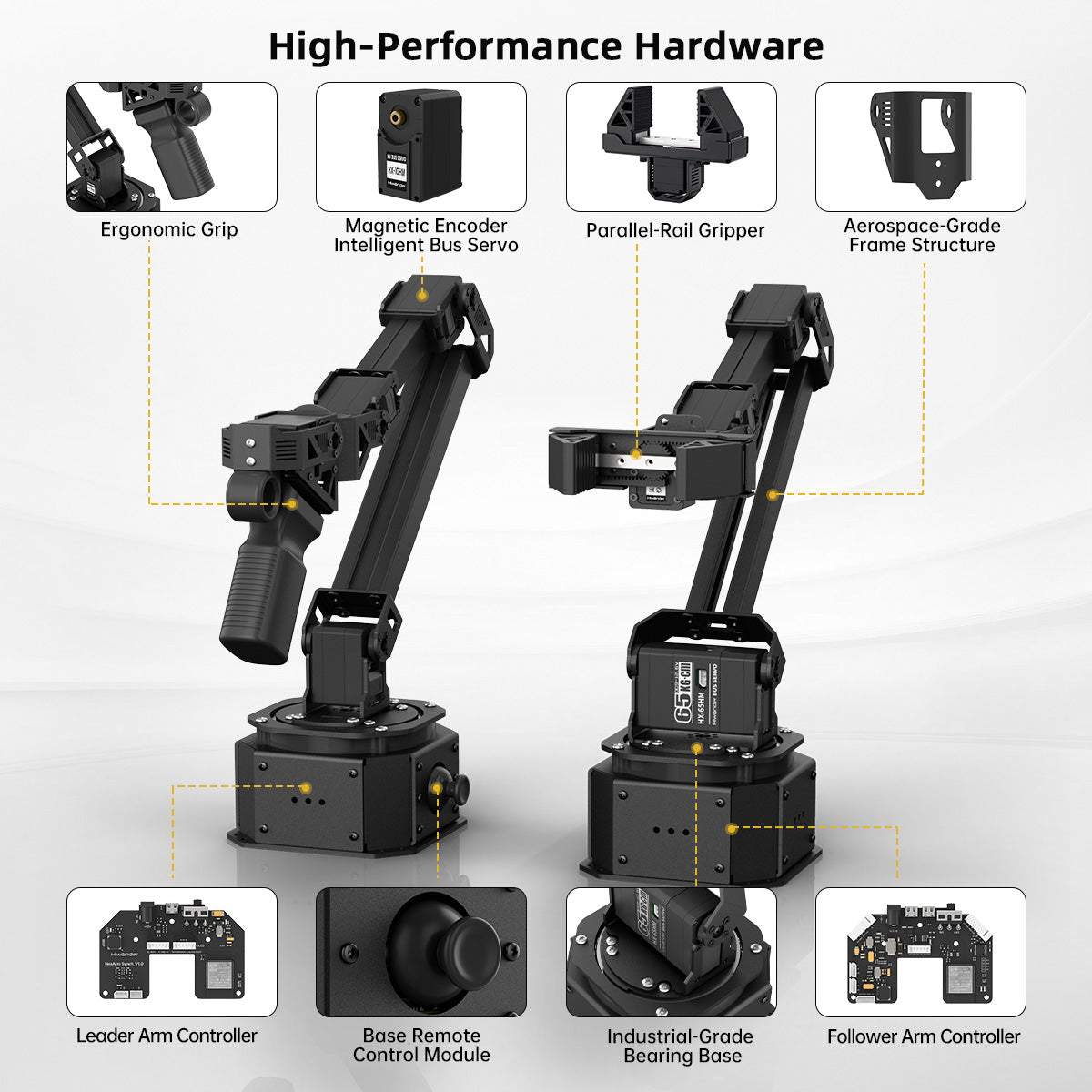

【Next-Gen Embodied AI Robotic Arm】Built on an ESP32 + AT32 dual-chip architecture, with an industrial-grade all-metal body and advanced inverse kinematics algorithms, NexArm delivers a full-stack solution from low-level hardware to end-to-end large-model validation.
-
【Deep Compatibility with the Hugging Face LeRobot Ecosystem】Supports millisecond-level synchronization between the leader arm and follower arm, with direct access to community pre-trained models, demonstration datasets, and simulation environments for fast validation of imitation learning and reinforcement learning algorithms.
-

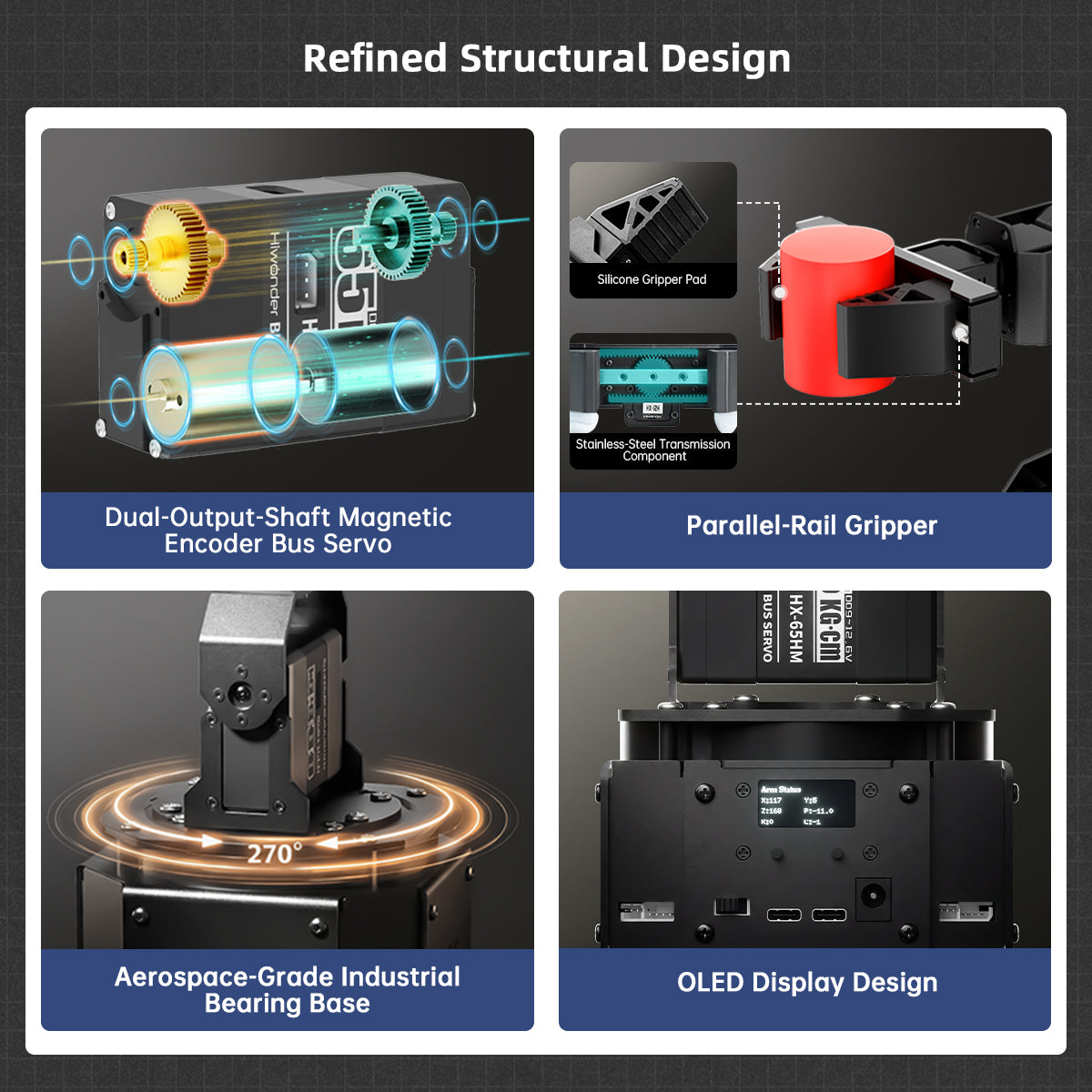

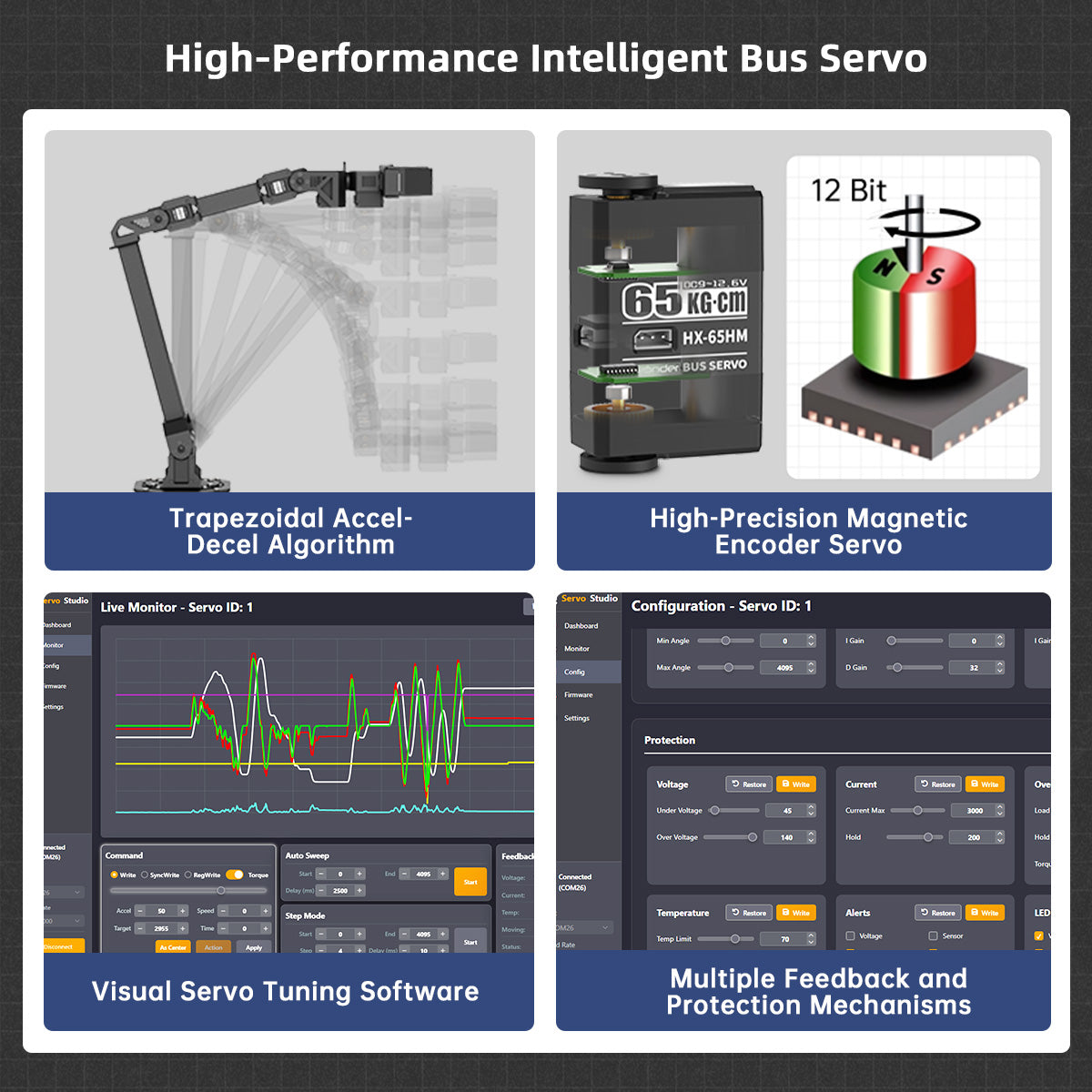

【65 kg·cm High-Torque Magnetic Encoder Bus Servos】Industrial-grade high-precision magnetic encoder bus servos, combined with trapezoidal acceleration/deceleration and curve-smoothing algorithms, reduce start-stop jitter, enable smooth motion, and deliver ±2 mm repeatability.
-
【6 TOPS K230 Vision Module】Equipped with the K230 AI vision module, with 30+ built-in AI vision features including color, face, and gesture recognition, waste sorting, and more. Supports multimodal large-model interaction and hand-eye coordinated grasping.
-

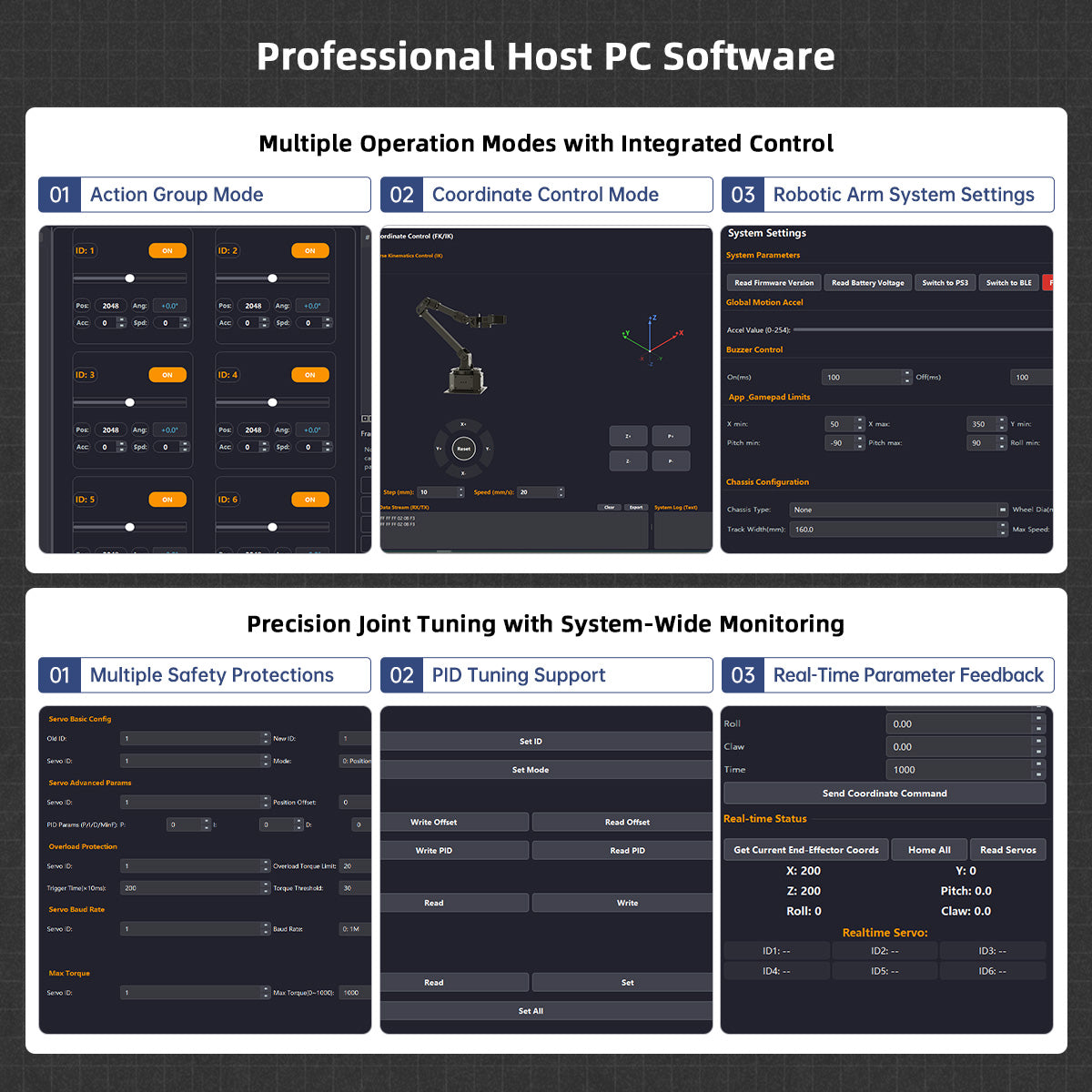

【Open-Source and Multi-Mode Control】Open-source code and schematics, plus PC software, app control, secondary development examples, and structured tutorials, significantly lower the barrier to embodied AI development.
Color Recognition
NexArm can accurately identify objects of different colors within its field of view, with different preset actions triggered through programming.
Face Recognition
Backed by the K230 chip's 6 TOPS of equivalent compute, NexArm can recognize and remember different faces, then trigger different programmed responses.
Gesture Recognition
Using the K230 vision module's YOLO algorithm, NexArm can accurately recognize different hand gestures and respond with different actions.
AI Waste Sorting
Powered by deep learning on the K230 vision module, NexArm can recognize different waste cards and sort them to designated locations based on instructions.
Visual Object Tracking
With large vision model analysis, NexArm can track and lock onto any object within its field of view.
Complex Task Management
NexArm can break down complex voice commands on its own and place items in the corresponding areas to complete complex handling tasks.
Smart Home Assistant
NexArm can send the live scene in view to a large vision model and combine it with instructions to generate matching language responses and actions.
Intelligent Sorting
With support from a large vision model, NexArm can identify target objects in view, adjust its posture in real time based on instructions, and pick and sort them into designated locations.
| Product Parameters | ||
| Brand | Hiwonder | |
| Product name | NexArm open-source embodied AI robotic arm | |
| Material | Metal frame | |

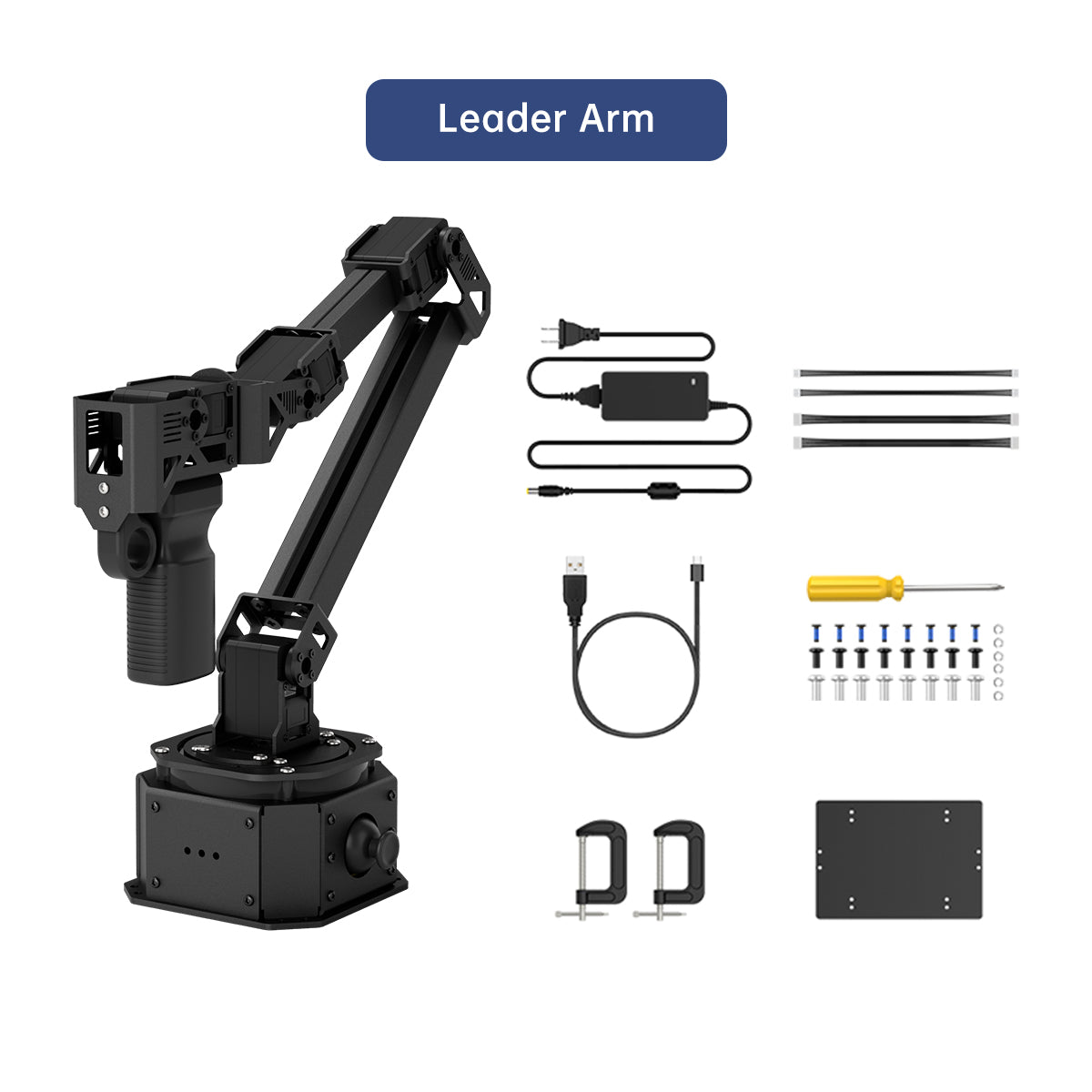

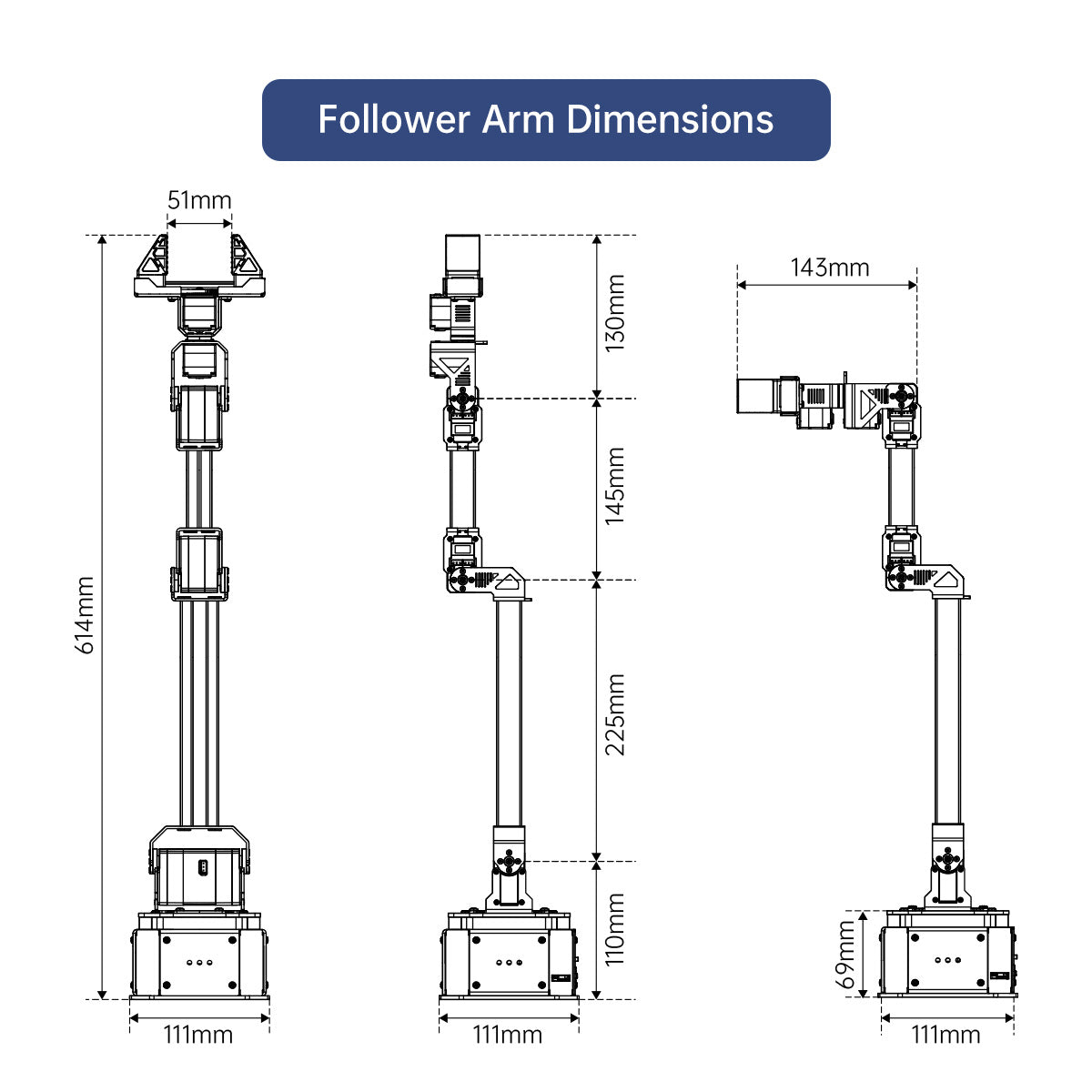

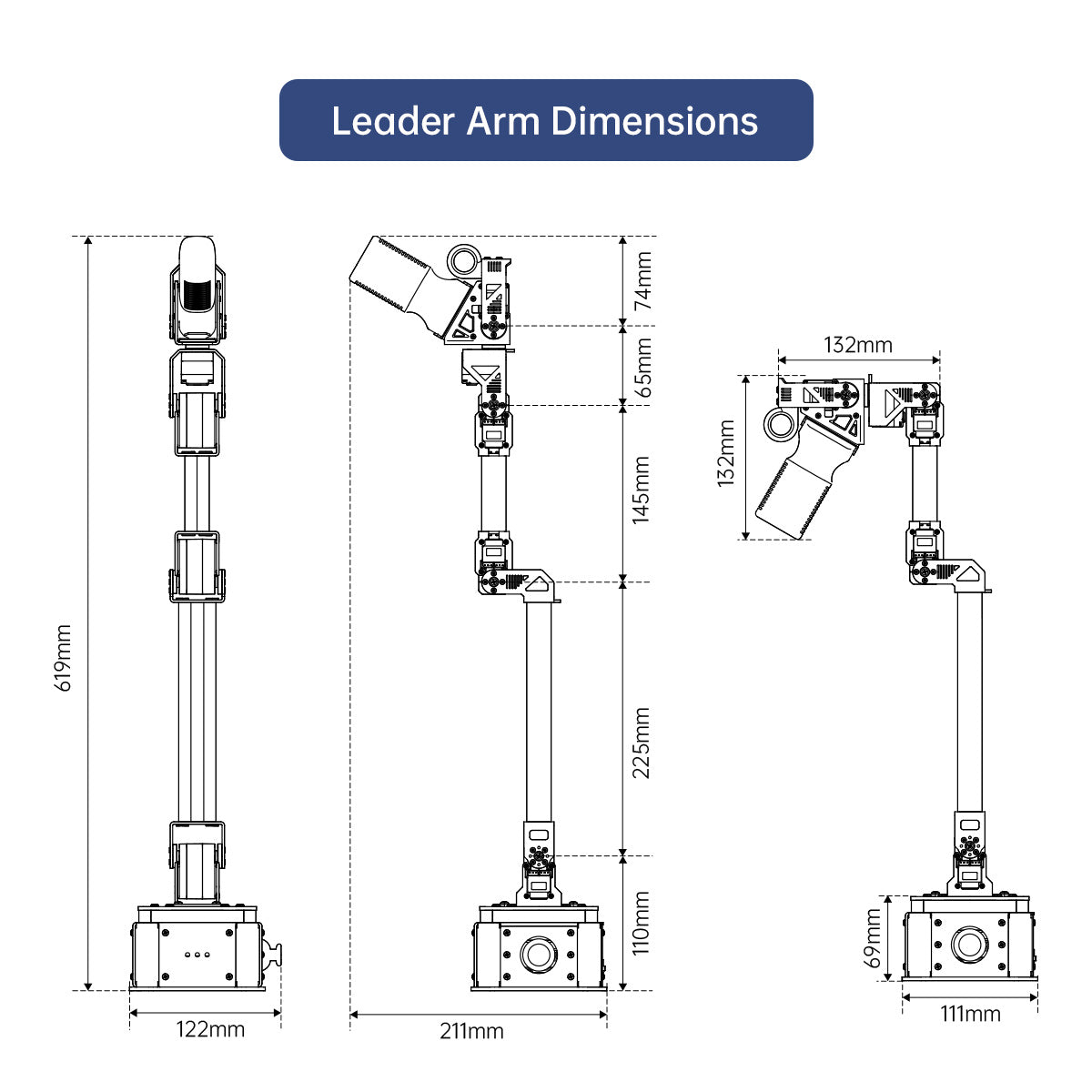

| Dimensions | Leader arm: 111 × 216 × 619 mm | Follower arm: 111 × 111 × 614 mm |
| Weight | Leader arm: 1.2 kg | Follower arm: 1.3 kg |
| Servos | Leader arm: HX-10HM × 5 + HX-12H × 1 servo | Follower arm: HX-12H × 2 + HX-30HM × 3 + HX-65HM × 1 servo |
| Controller | NexArm follower arm controller, NexArm leader arm controller | |
| Power supply | 12V 5A DC 5.5 × 2.5 | |
| Operating system | Windows / Linux / macOS | |

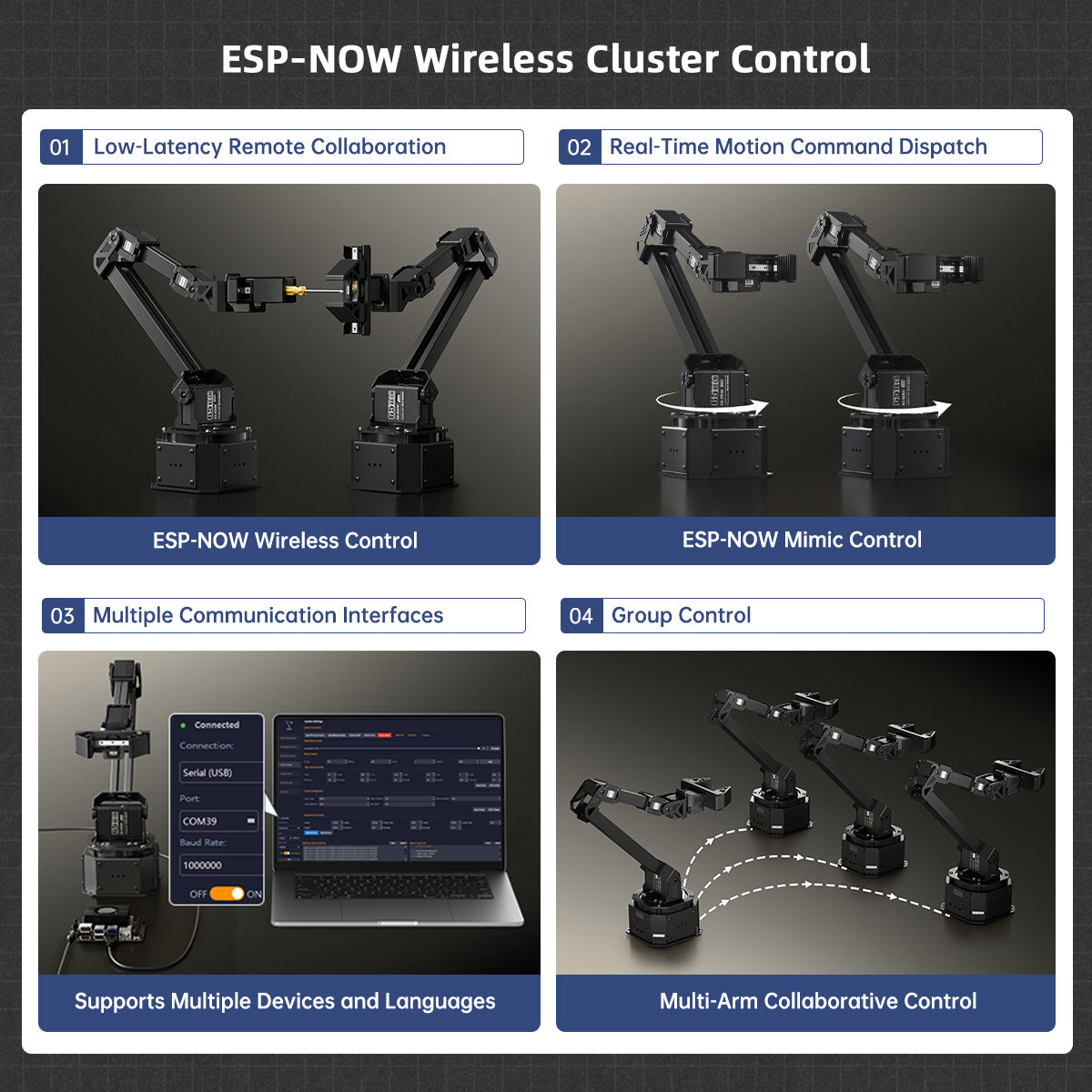

| Control method | USB serial / Bluetooth / Wi-Fi | |
| Programming tool | Arduino IDE | |

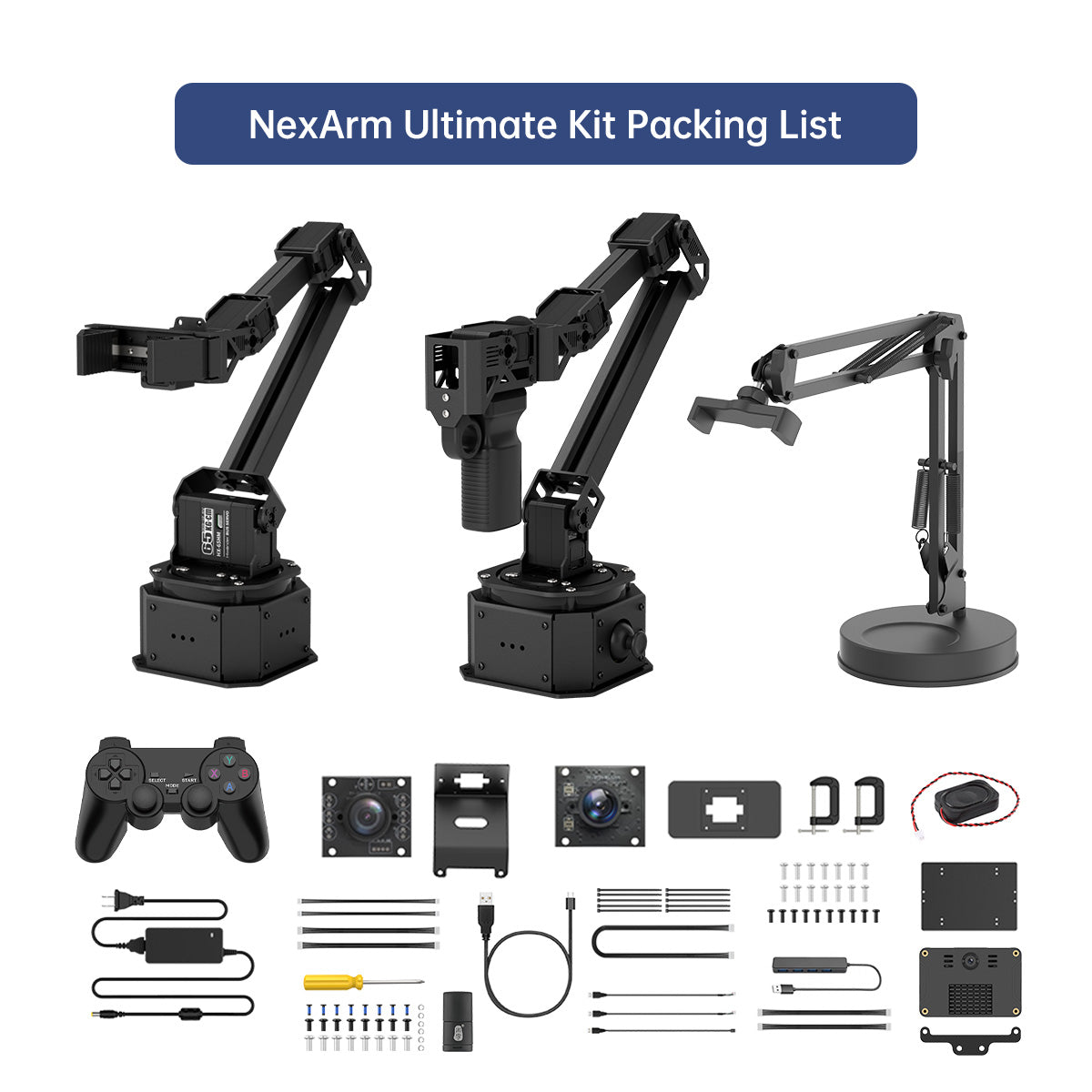

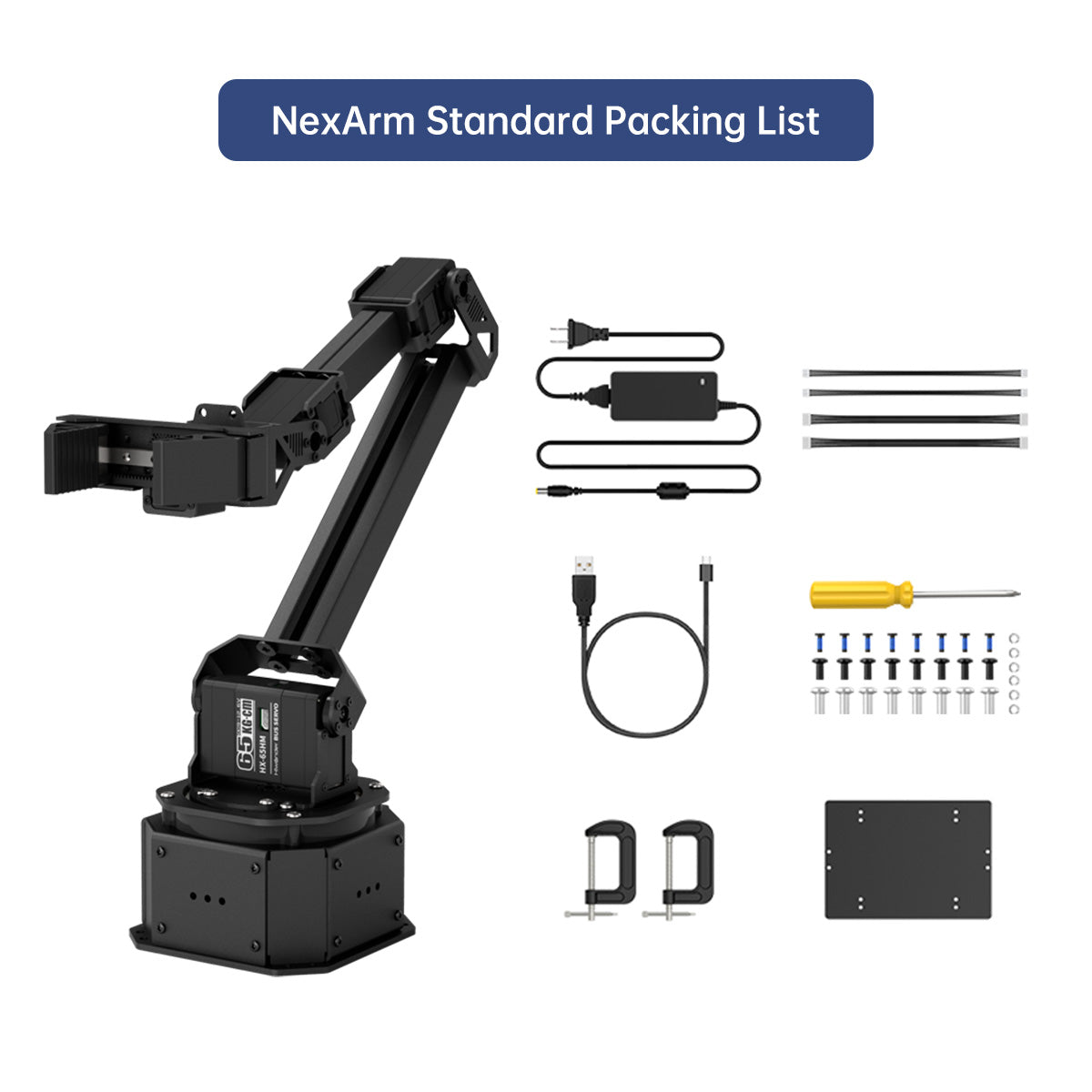

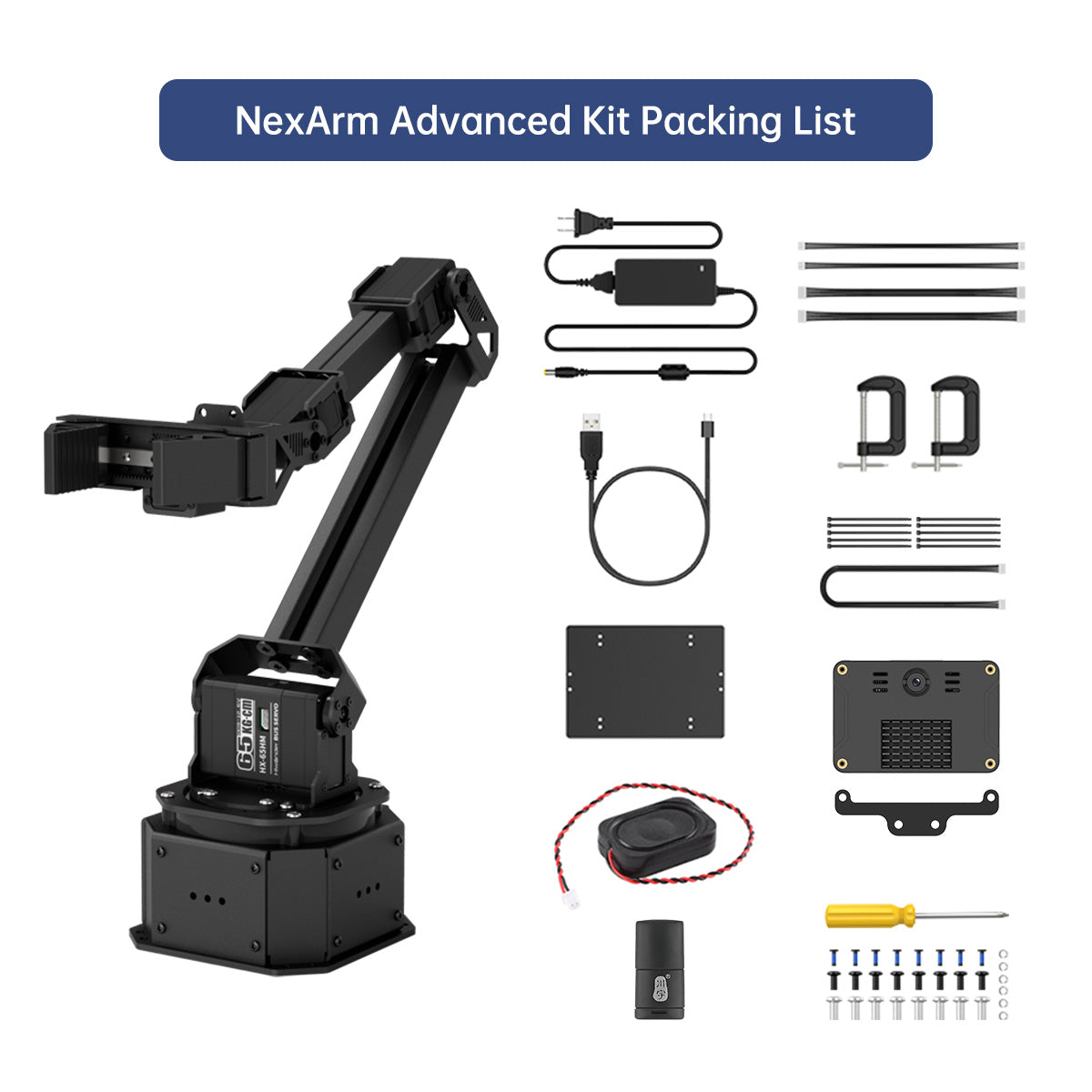

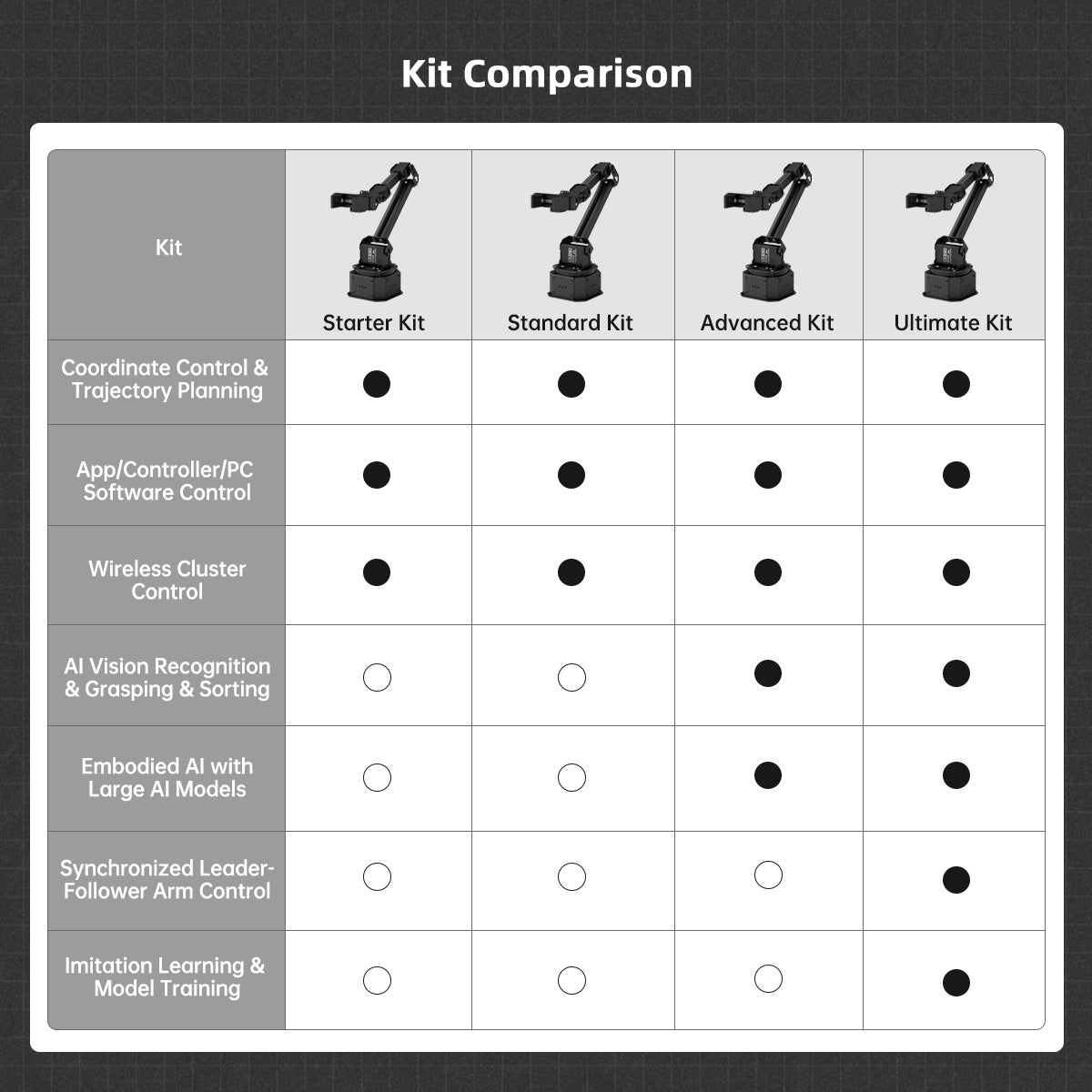

| Packaging weight and volume | Starter Kit: 2kg, 345 × 158 × 220 mm Standard Kit: 3.2kg, 345 × 158 × 220 mm Advanced Kit: 3.3kg, 345 × 158 × 220 mm Ultimate Kit: 8kg, 487 × 290 × 195 mm |
|
| Product Parameters | ||
| Brand | Hiwonder | |
| Product name | NexArm open-source embodied AI robotic arm | |
| Material | Metal frame | |
| Dimensions | Leader arm: 111 × 216 × 619 mm | Follower arm: 111 × 111 × 614 mm |
| Weight | Leader arm: 1.2 kg | Follower arm: 1.3 kg |
| Servos | Leader arm: HX-10HM × 5 + HX-12H × 1 servo | Follower arm: HX-12H × 2 + HX-30HM × 3 + HX-65HM × 1 servo |
| Controller | NexArm follower arm controller, NexArm leader arm controller | |
| Power supply | 12V 5A DC 5.5 × 2.5 | |
| Operating system | Windows / Linux / macOS | |
| Control method | USB serial / Bluetooth / Wi-Fi | |
| Programming tool | Arduino IDE | |
| Packaging weight and volume | Starter Kit: 2kg, 345 × 158 × 220 mm Standard Kit: 3.2kg, 345 × 158 × 220 mm Advanced Kit: 3.3kg, 345 × 158 × 220 mm Ultimate Kit: 8kg, 487 × 290 × 195 mm |
|
| Item | Specification | |
| Brand | Hiwonder | |
| Product name | NexArm open-source embodied AI robotic arm | |
| Material | Metal frame | |
| Dimensions | Leader arm: 111 × 216 × 619 mm | Follower arm: 111 × 111 × 614 mm |
| Weight | Leader arm: 1.2 kg | Follower arm: 1.3 kg |
| Servos | Leader arm: HX-10HM × 5 + HX-12H × 1 servo | Follower arm: HX-12H × 2 + HX-30HM × 3 + HX-65HM × 1 servo |
| Controller | NexArm follower arm controller, NexArm leader arm controller | |
| Power supply | 12V 5A DC 5.5 × 2.5 | |
| Operating system | Windows / Linux / macOS | |
| Control method | USB serial / Bluetooth / Wi-Fi | |
| Programming tool | Arduino IDE | |
| Packaging weight and volume | Starter Kit: 2kg, 345 × 158 × 220 mm Standard Kit: 3.2kg, 345 × 158 × 220 mm Advanced Kit: 3.3kg, 345 × 158 × 220 mm Ultimate Kit: 8kg, 487 × 290 × 195 mm | |
