Servo & Controller
Servo Controller
LSC-32: Hiwonder 32 Channel Digital Servo Controller with 16M Memory/ Arduino Compatible
- 【High performance chip】CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer, which can control servo motion with high accuacy and adjustable speed.
- 【Easy wiring】 Servo controller only has positive and negative power pole.
- 【Support serial port communication】The servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.
- 【Free driver】 Support online debugging, install drivers automatically.
Servo Controller
LSC-24: Hiwonder 24 Channel Digital Servo Controller with 16M Memory/Arduino Compatible
- 【High performance chip】CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer, which can control servo motion with high accuacy and adjustable speed.
- 【Easy wiring】 Servo controller only has positive and negative power pole.
- 【Support serial port communication】The servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.
- 【Free driver】 Support online debugging, install drivers automatically.
Servo Controller
LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module RC Robot Toy for Children
- Built-in power switch
- High-performance CPU
- 16M high-capacity memory
- Built in Bluetooth 4.0 module
- Support TTL serial communication
- Serial bus servo connector to connect the servo one by one
- High-precision potentiometer to feedback the angle position
- Equipped with position/temperature/voltage feedback
- Support two working mode: Servo mode and Gear motor mode
- 20KG large torque.Dual ball bearing
Bus Servo
Hiwonder LX-824 Intelligent Three-Connectors Serial Bus Servo with Powerful Feedback Functions
- Serial bus servo connector to connect the servo one by one
- High-precision potentiometer to feedback the angle position
- Equipped with position/temperature/voltage feedback
- Support two working mode: Servo mode and Gear motor mode
- 17KG large torque.Dual ball bearing
PWM Servo
Hiwonder LDX-227 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot(Control Angle 270)
- 17kg large torque. 15 kg·cm (208 oz·in) @6V
- 17 kg·cm (236 oz·in) @7.4V
- Full metal gear
- 270 degree rotation
- Using high-precision potentiometer with new design
- Convenient plug-in wire
PWM Servo
Hiwonder LDX-218 Full Metal Gear Digital Servo with Dual Ball Bearing for Robot (Control Angle 180)
- 17kg large torque. 15 kg·cm (208 oz·in) @6V
- 17 kg·cm (236 oz·in) @7.4V
- Full metal gear
- 180 degree rotation
- Using high-precision potentiometer with new design
- Convenient plug-in wire
- 17kg large torque. 15 kg·cm (208 oz·in) 6V
- 17 kg·cm (236 oz·in) 7.4V
- Full metal gear
- 270 degree rotation
- Using high-precision potentiometer with new design
- Dimension: 54.5mm*20mm*47.5mm (2.14inch*0.78inch*1.87 inch)
PWM Servo
Hiwonder LD-220MG Full Metal Gear Digital Servo with Dual Ball Bearing,Metal Servo Horn, Metal Bracket for Robot
- 20kg large torque. 20 kg·cm (277.6 oz·in) @ 7.4V
- Full metal gear
- Aluminium case
- Come with 2 metal servo horn and 2 metal bracket
- Dual ball bearing
PWM Servo

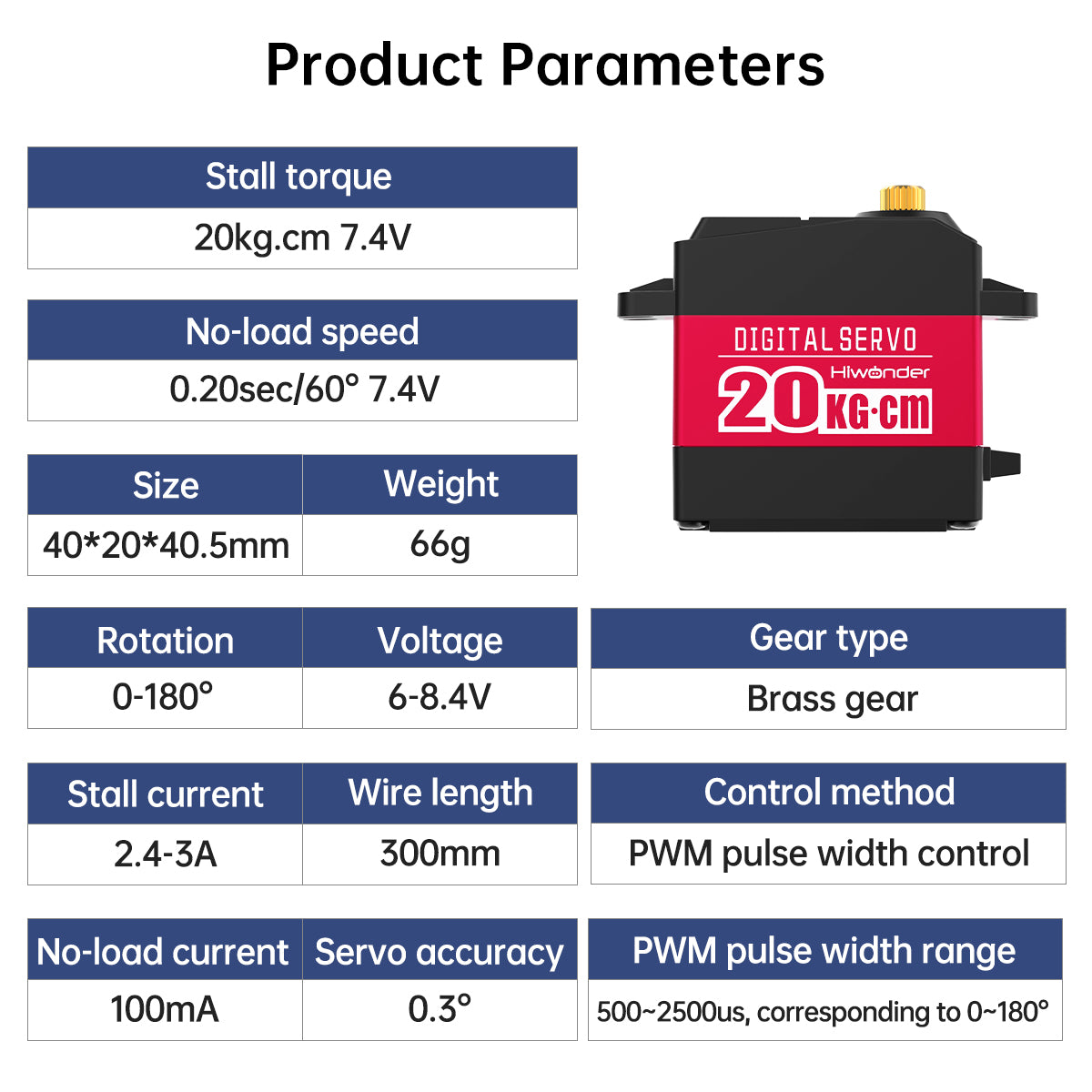

Hiwonder HPS-2018 Full Metal Gear Digital Servo with 20kg High Torque, Aluminium Case for Robot RC Car
- 【20kg-180°High Torque Servo Motor】This rc servo boasts a maximum torque of 20KG.CM 7.4V, enhanced by its accompanying metal servo arm. Delivering robust power, it is housed within an anodized aluminum case that facilitates excellent heat dissipation and effectively reduces power consumption.
- 【Superior Quality & High Performance】This digital RC servo comes with metal gear and dual-ball bearings, which are well-made with exceptional performance, stability, and minimal noise output. By integrating a high-precision potentiometer, its accuracy and linearity are greatly enhanced leading to an extended service life.
- 【Perfect Servo for Model DIY & IP67 Waterproof】It fits 1/6 1/8 1/10 1/12 RC cars, robots, vehicle/boat/airplane models, and any DIY. Crafted with high precision and thorough sealing, this rc servo provides IP67 water resistance, which allows it to operate even in the presence of water splashes.
- 【Excellent After-sale Service】We value all customer's shopping experiences. If you come across any issues with our products, please don't hesitate to reach out to us, and we will try our best to help within 24 hours. Order today with peace of mind!
- 【Size & Weight】Size: 40*20*40.5mm (1.57* 0.8* 1.59inch); Weight: 68g (0.15 pound).
Bus Servo
Hiwonder LX-15D Intelligent Serial Bus Servo with RGB Indicator for Displaying Robot Status
- Torque for LX-15D servo: 15 kg/cm (208 oz/in) 6V; 17 kg/cm (236 oz/in) 7.4V
- TTL / USB tester board is a servo debugger, which is able to connect the servo to the PC software or other devices and use them to adjust the parameter of servos
- Bus servo controller can be used in serial servo control and it can combine with PS2 wireless handle to realize servo remote control
- Details Tutorial: Provide bus servo communication protocol, 51 Arduino and STM32 source code
Bus Servo
Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)
- 17kg large torque. 15 kg/cm (208 oz/in) 6.6V; 17 kg/cm (236 oz/in) 7.4V. We provide communication protocol and detailed video tutorials
- Real-time feedback of position, temperature, voltage. The top of the servo has a warning light, and the indicator will flash if the internal of servo is abnormal
- Full metal gear. it's better for accuracy, service life has been greatly increased. Dual ball bearing: one is the driving ball bearing, one is the assistant ball bearing(support role)
- Using high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots
- The control board use a I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduce the use of serial ports. Simple wiring make product more simple, Exquisite, attractive
