Servo & Controller
- Upgraded Version -Three Channels on the top, left and right are easy for wiring.
- Large Torque - Maximum torque is up to 25kg.cm 7.4V. 270 degree rotation. 360 degree rotation when power-off, perfect for robot joint activities.
- Variable ID -The default number is 1 which is modifiable. It can be used to replace xArm ID5 servo.
- Details Tutorial - Provide bus servo communication protocol, Provide for Arduino and STM32 source code.
- Dimensions -1.57 x 0.79 x 2.01inch (40 x 20.14 x 51.1mm); Weight: 63g (2.22oz) only.
- Double shaft serial bus intelligent servo
- 60kg Strong Torque 60kg.cm 7.4V
- Metal shell for strong heat dissipation
- Single shaft serial bus intelligent servo
- 60kg Strong Torque 60kg.cm 7.4V
- Waterproof: fully sealed structure can effectively resist moisture
- Metal shell for strong heat dissipation

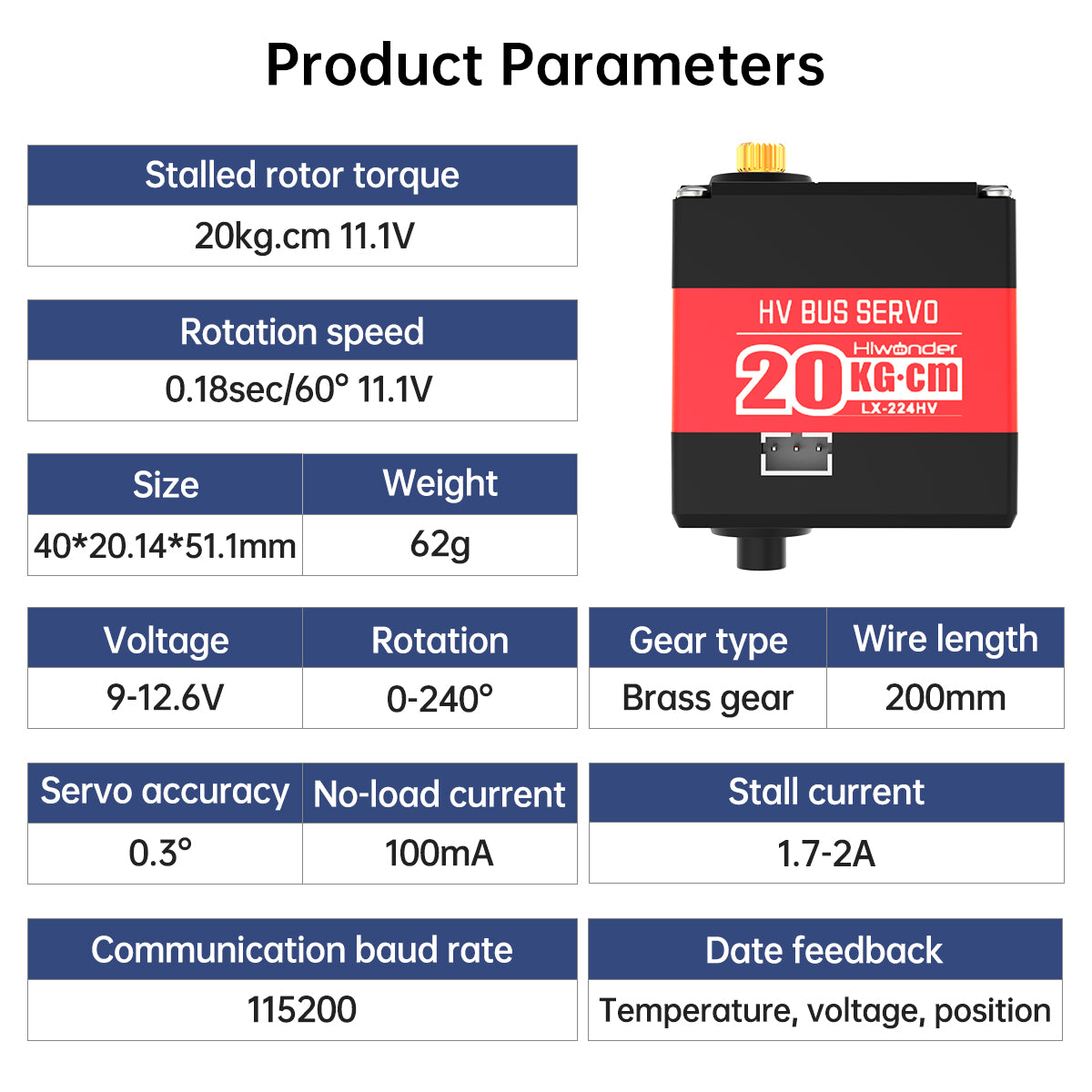

- Single shaft serial bus intelligent servo
- 20kg Strong Torque with metal gear
- Equipped with position/temperature/voltage feedback
- User-friendly connector
- Powerful PS2 signal receiver
- Simply designed button and remoter
- Support robotic arm and humanoid robot control
- Only compatible with Hiwonder Serial Bus Servo Controller
- U-shape Frame
- Side Frame
- Bottom Frame
- Screw Package
- Adjust the parameter of servo
- Able to connect PC software
- Read the angle of the servo
- Can connect TXD and RDX of single-chip
- User-friendly ports
- Extra-long battery life
- High precision servo
- Support phone, handle and computer control
- Integrated structure sinificantly strengthen the robot body
- User-friendly ports
- Extra-long battery life
- High precision servo
- Support phone, handle and computer control
- Integrated structure sinificantly strengthen the robot body
- Light plastic frame significantly reduce weight of robot"
- Various form allow infinite expansion
- Compatible with Hiwonder all series double-shaft servo
- Bottom Bracket
- Inclined U-shape bracket
- Side bracket
- Straight U-shape bracket
- Screw Package
- Powerful PS2 signal receiver
- Simply designed button and remoter
- Support robotic arm and humanoid robot control
- Only compatible with Hiwonder channel servo controllers
- 【High Precision & Adjustable Speed Servo Tester】CPU uses a high-performance STM32 microcontroller with ARM Cortex-M3 core to control 16-channel servo movement with high precision and adjustable speed. With signal isolation protection, the servo output is isolated from the CPU to avoid servo current surge damage to the CPU.
- 【16-channel Intelligent Servo Controller】Support serial communication, the 16-channel servo controller can communicate with other microcontrollers through TTL-level serial communication, and other microcontrollers can send commands to the control board. So that your robot can realize intelligent control, you can play sound control, body sensing, tracking, light chasing, and obstacle avoidance with it.
- 【With Over-current Protection】Simple wiring. Built-in switch, easy to use, reduces wiring troubles. All 8-channel servo ports have over-current protection! It greatly prevents the servo from being burnt out due to block.
- 【Large Capacity Memory】16M large capacity memory, enough for your use. Can hold 230 action groups, each action group can hold 510 actions.
- 【2 Control Modes】Support online debugging, no need to install a driver. Support two offline running modes, you can run offline for 1 time or cycle offline countless times.
- 【Specifications】Size: 2*1.4inch / 50*35mm, Weight: 0.03 lb / 13.5g
- 【Voltage display】This controller operates on a voltage range of 5-8.4V and features a real-time voltage display.
- 【Manual Adjustment】The controller has 2-channel PWM digital servo port, adopts high-accuracy potentiometer for precise servo control and provides servo reset function.
- 【Support PWM Servo Support】It supports a wide variety of PWM servos, allowing manual angle adjustments without the need for coding.
- 【Controller Accuracy】Its accuracy can reach up to 0.09° (with a 1us PWM limit for minimal changes)
- 【Versatile Applications】It can be applied in grippers, AI robots, robot arms and more.
- 【Excellent After-sale Service】We value all customer's shopping experiences. If you come across any issues with our products, please don't hesitate to reach out to us, and we will try our best to help within 24 hours. Order today with peace of mind!
- 【Specifications】76mm*53mm(2.99in*2.09in); Weight: 37g (1.31oz)
- 【Power Supply】This controller can be powered by either a Lipo battery or a power adapter, operating within a voltage range of 5-8.4V.
- 【Manual Adjustment】The controller has 6-channel PWM digital servo port, adopts high-accuracy potentiometer for precise servo control and provides servo reset function.
- 【Support PWM Servo】It supports a wide variety of PWM servos, allowing manual angle adjustments without the need for coding.
- 【Controller Accuracy】Its control accuracy can reach up to 0.09° (with a 1us PWM limit for minimal changes)
- 【Overcurrent protection】The controller offers 3-channel overcurrent protection to prevent damage to the servo.
- 【Versatile Applications】It can be applied in gripper, AI robot, robot arm and more.
Servo Controller
Serial Bus Servo Controller: Hiwonder Serial Bus Servo Controller Communication Tester
- 16M high-capacity memory, which is able to hold 230 action groups! Each action group can hold up to 510 actions!
- CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer.
- Support online debugging, no need computer drive.
- Support PC graphical debugging and TTL serial port communication.
- This controller is compatible with Hiwonder bus servo.
