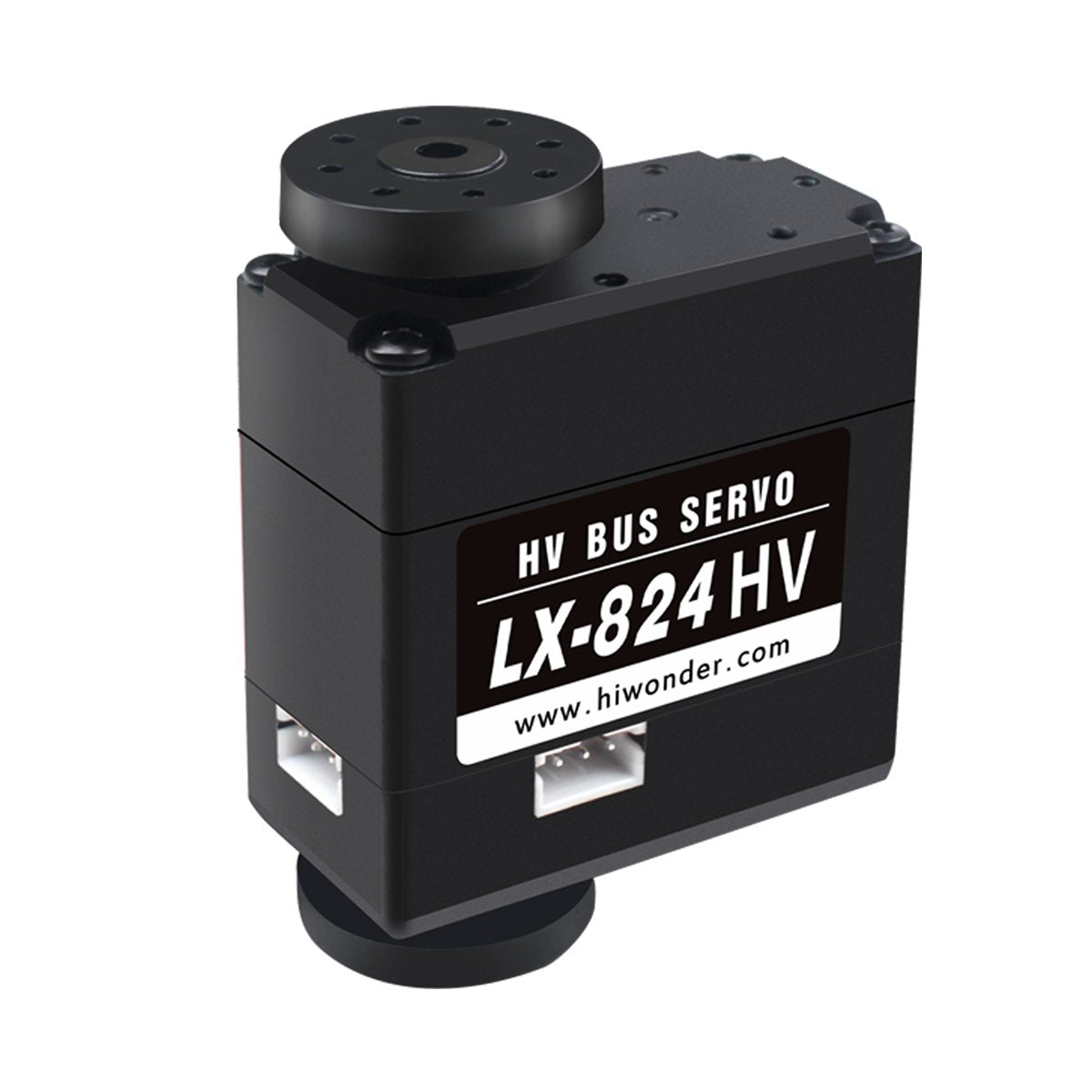

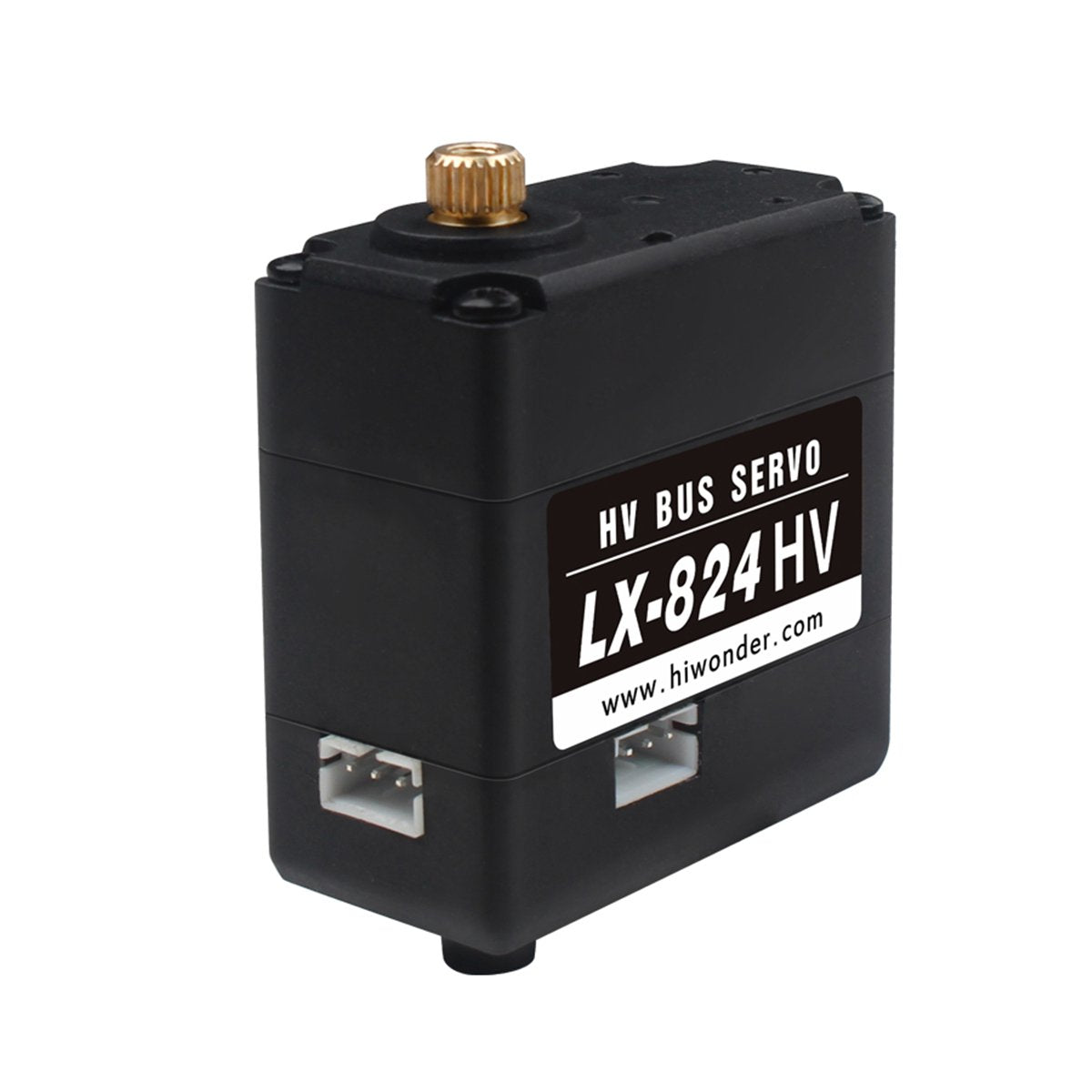

- Hiwonder LX-824HV Three Connectors High Voltage Bus Servo Hiwonder LX-824HV Three Connectors High Voltage Bus Servo














- User-friendly ports
- Extra-long battery life
- High precision servo
- Support phone, handle and computer control

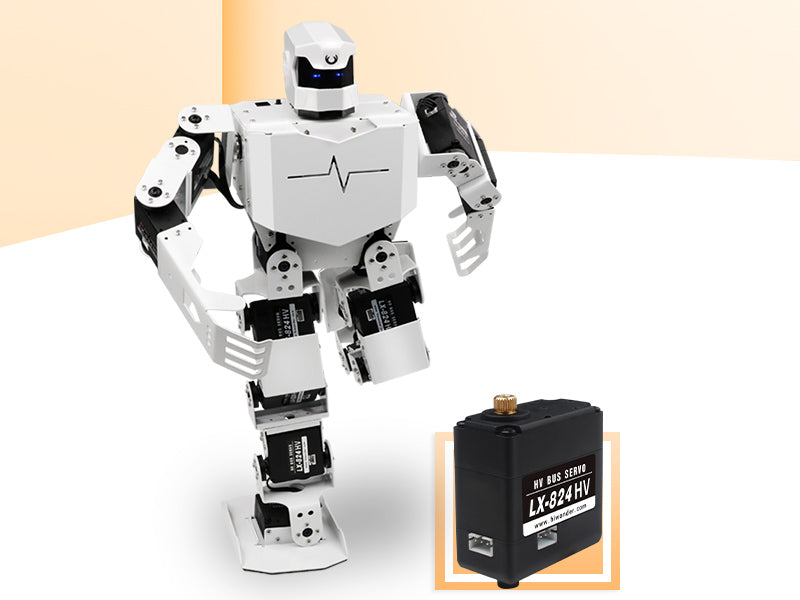

- Integrated structure sinificantly strengthen the robot body
- Description
- Specifications
- Accessories

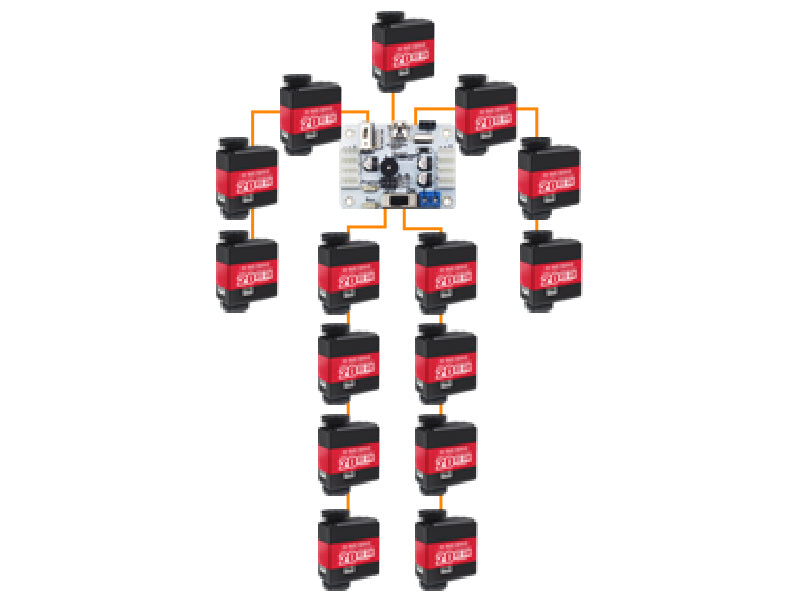

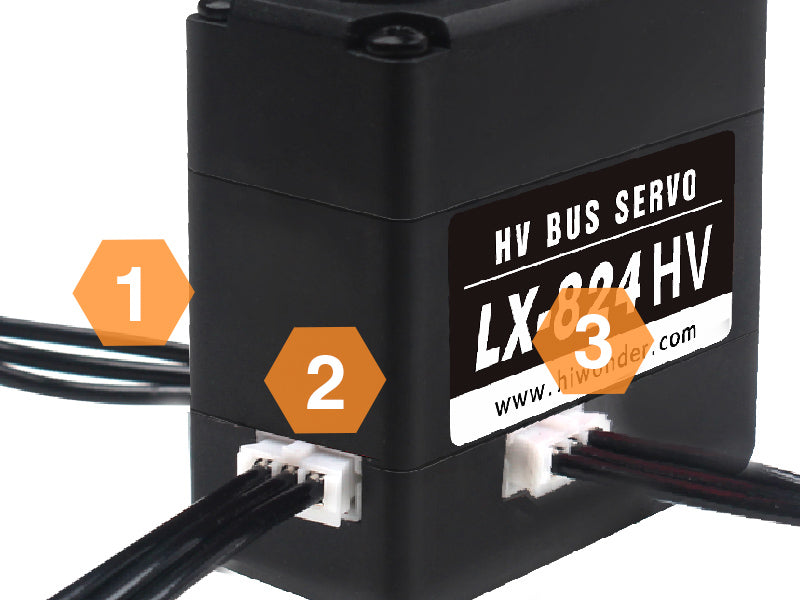

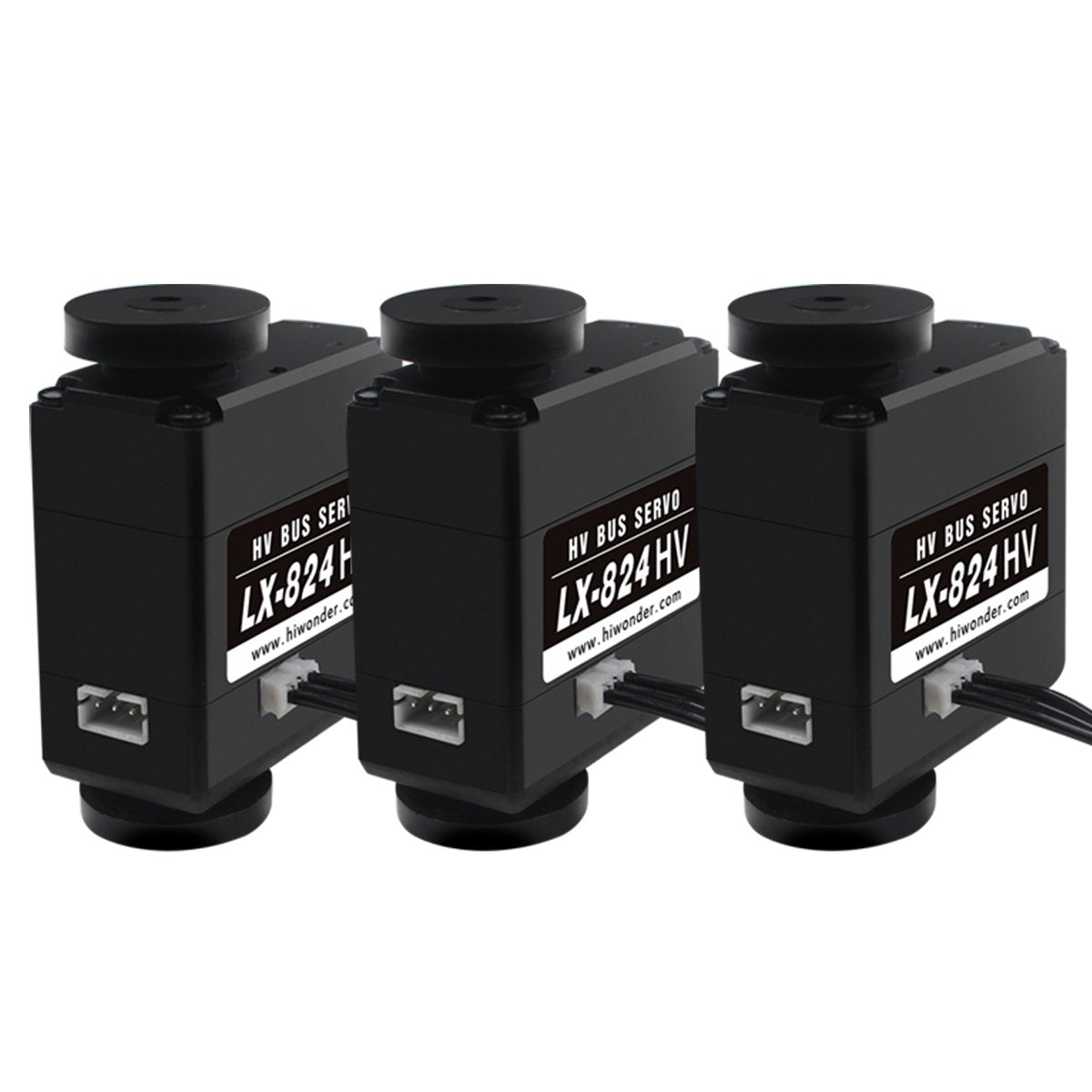

- Use serial bus servo connector to connect the servo one by one which facilitates the wiring

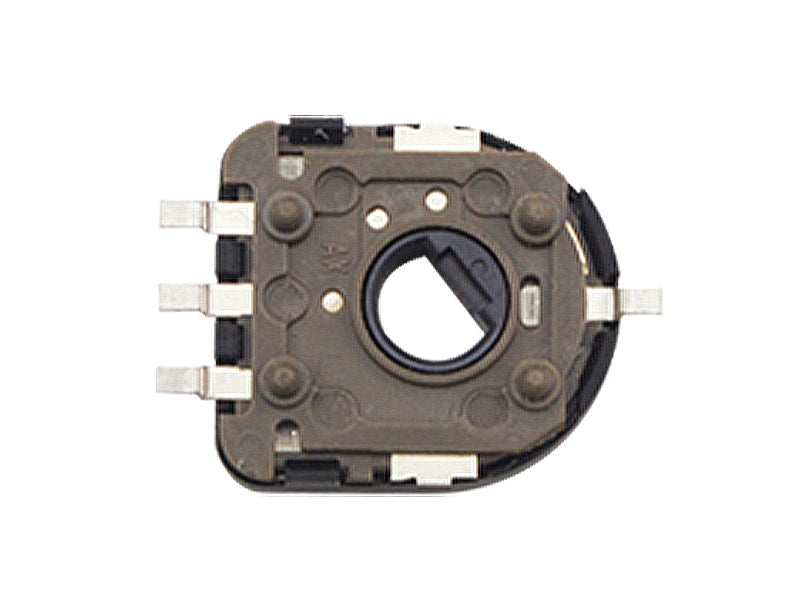

- Internal high precision potentiometer supports angle feedback

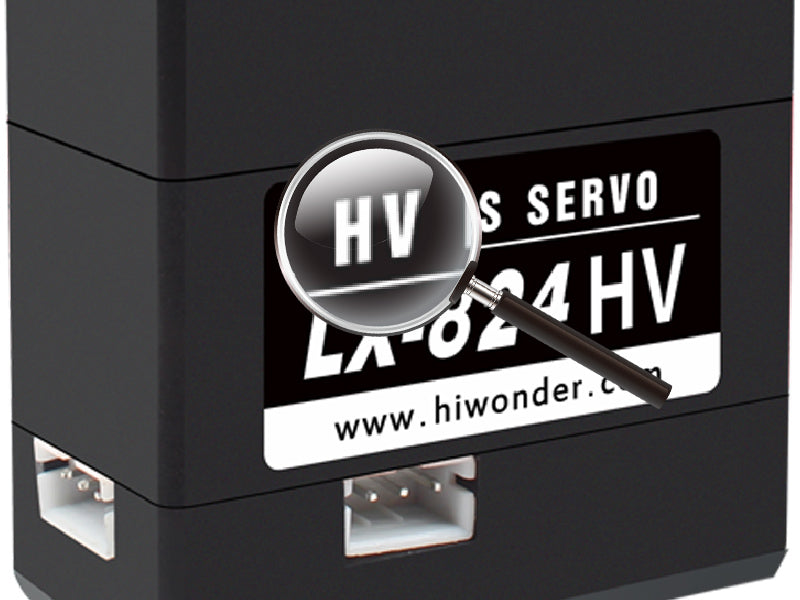

- Significantly reduce the power consumption and increase service time

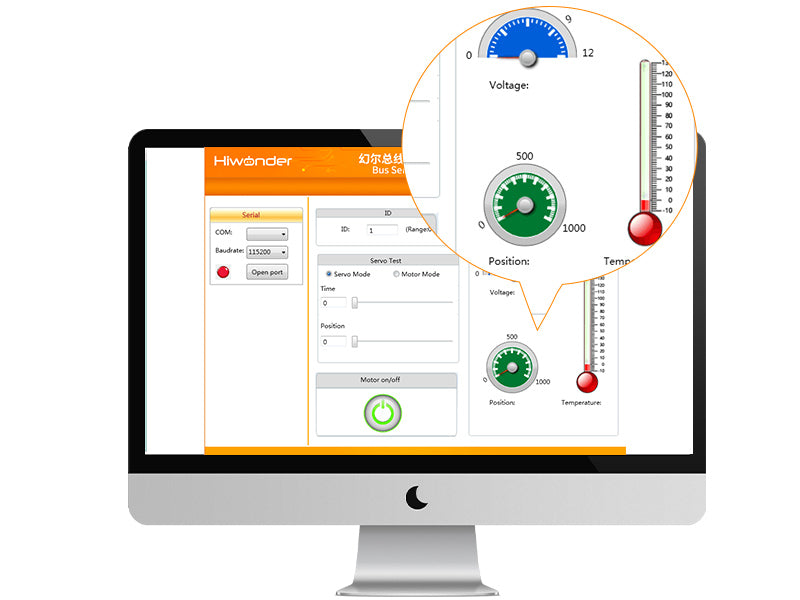

- Support position/temperature/voltage feedback, protect the servo from burning

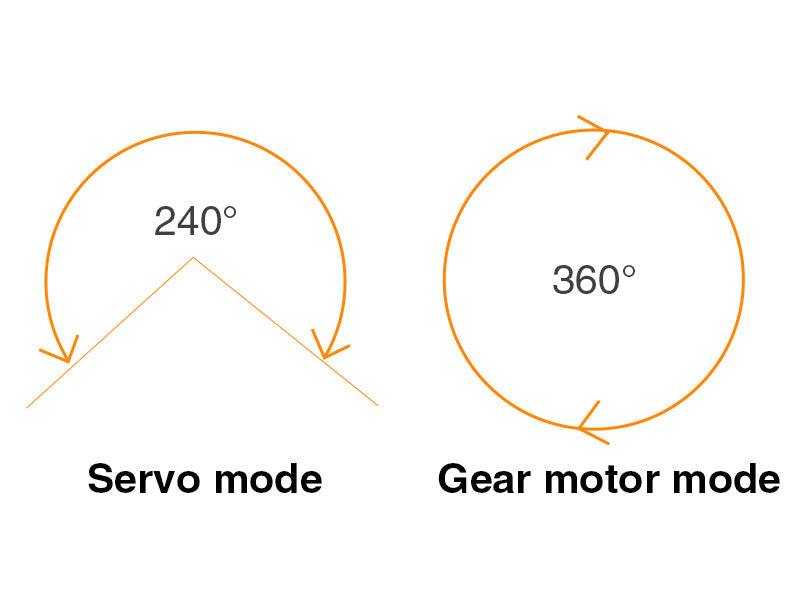

- Two working mode: Servo mode ( rotation range: 0-240) and Gear motor mode ( rotation range: 0-360)

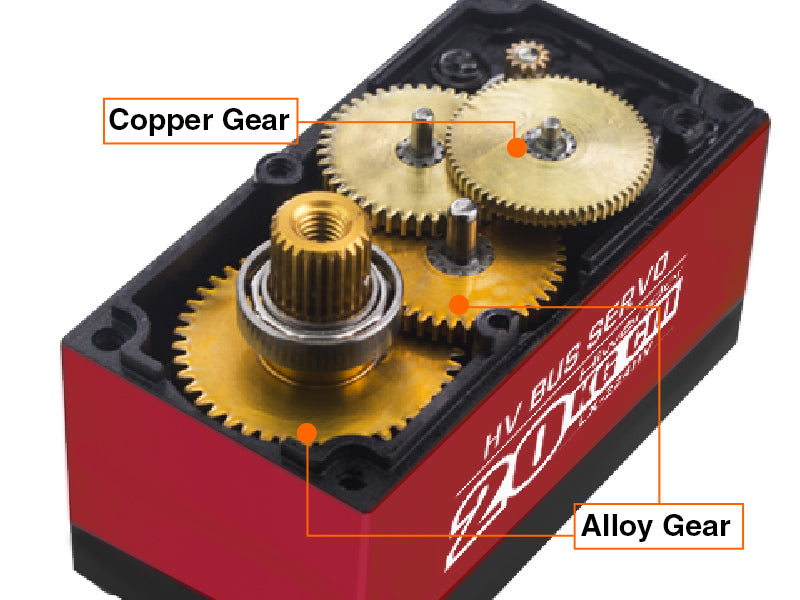

- Use metal gear to extend the service time

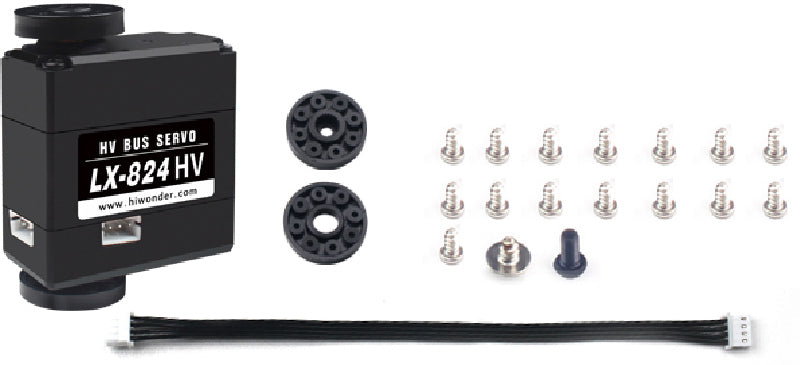

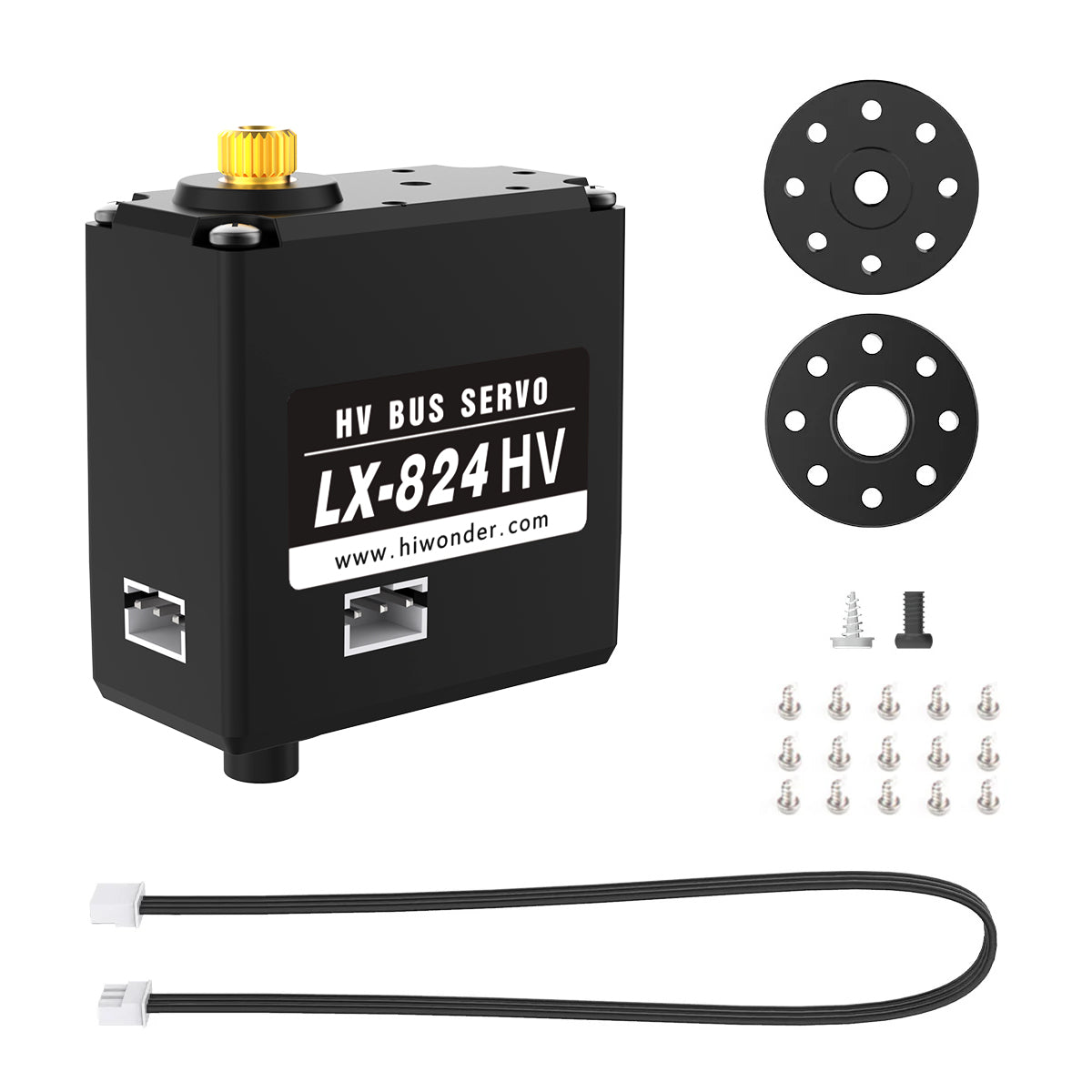

1* LX-824HV high voltage bus servo | 1* Main servo horn |
1* Assistant servo horn | 1* Servo wire |
15* Self tapping screw | 2* Main assistant screw |










1* LX-824HV high voltage bus servo | 1* Main servo horn |
1* Assistant servo horn | 1* Servo wire |
15* Self tapping screw | 2* Main assistant screw |
1* Assistant servo horn
15*Self tapping screw
1* Main servo horn
1* Servo wire
2* Main assistant screw

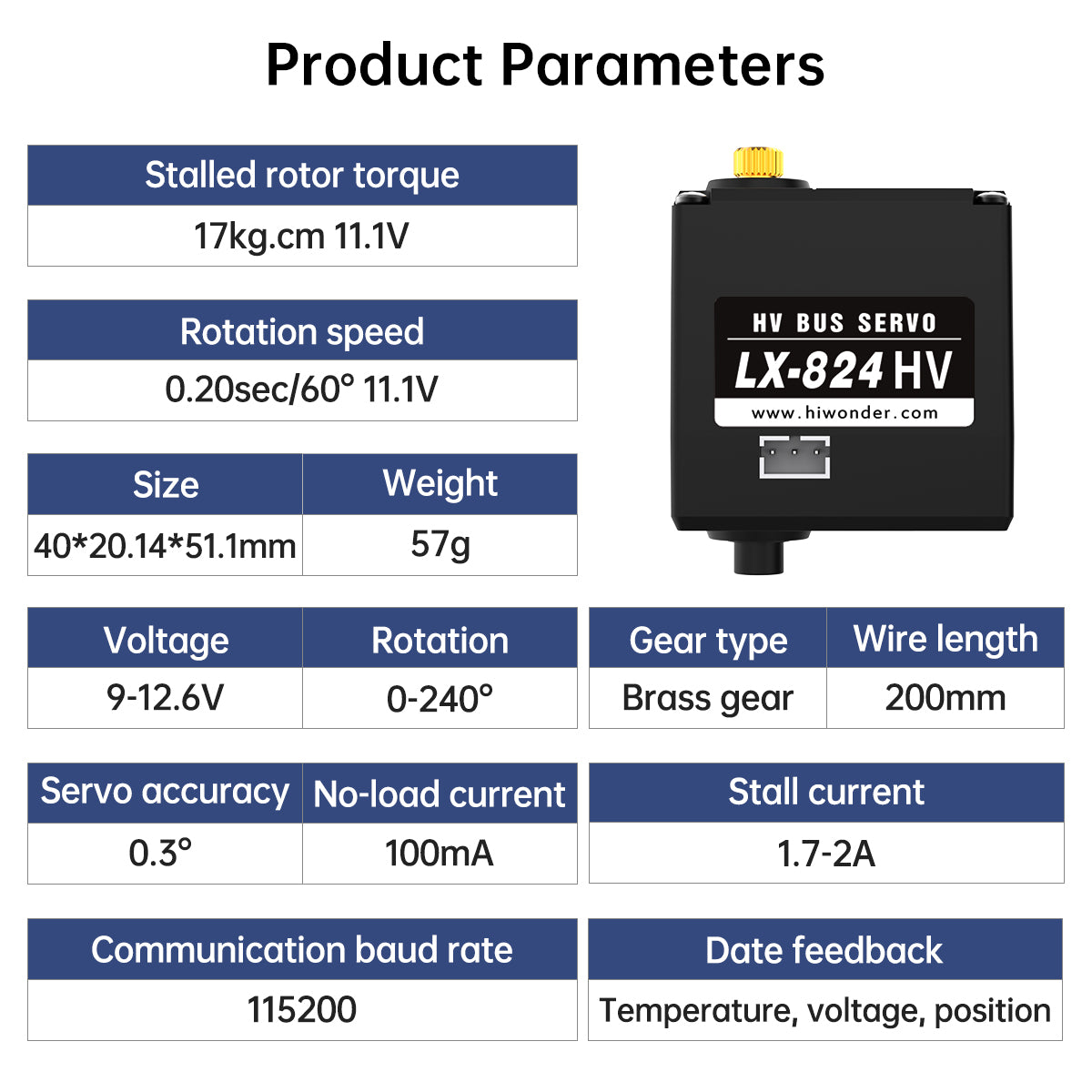

Item | Specification |
Weight | 57g(LX-824HV) |

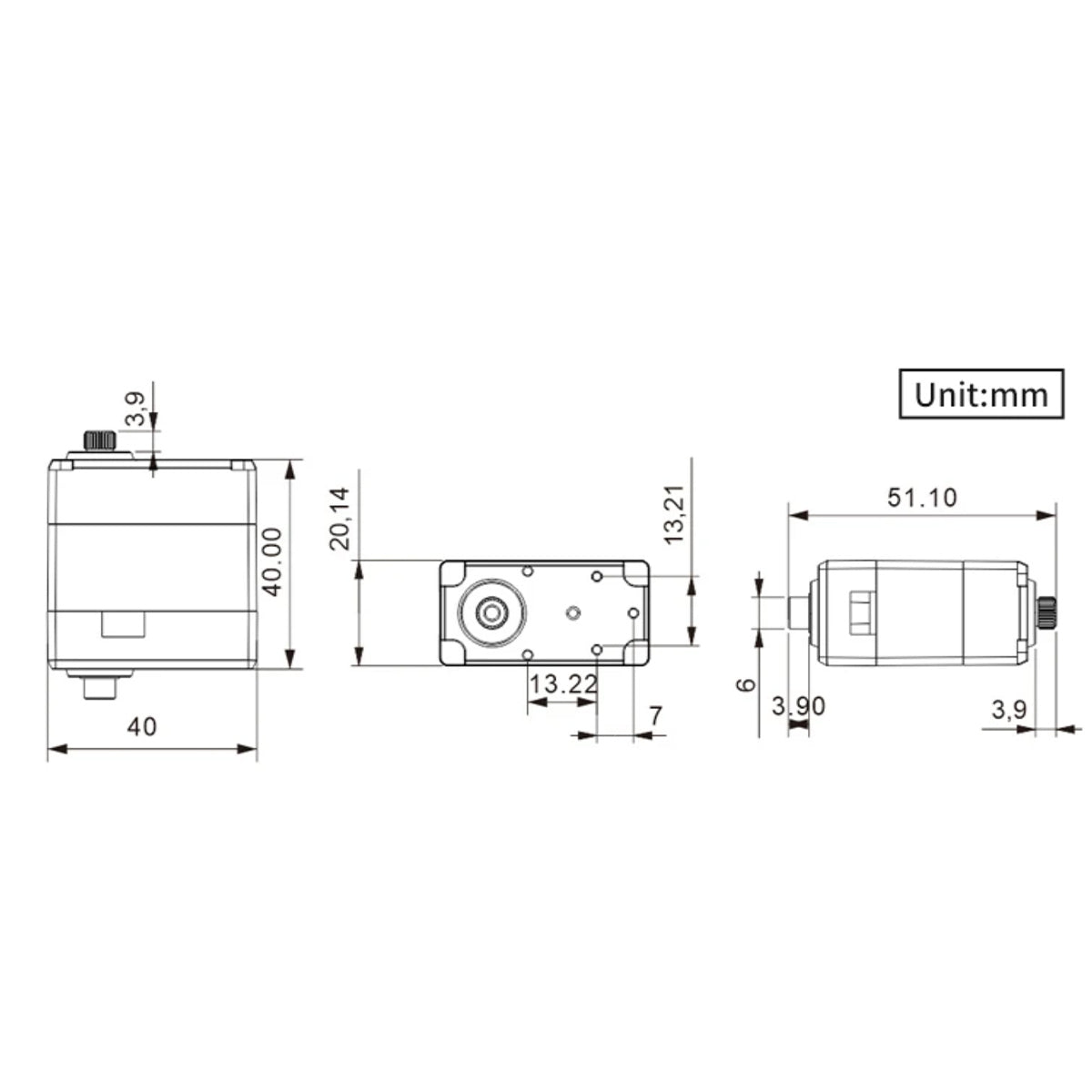

Dimension | 40.00mm*20.14mm*51.10mm(1.57inch*0.8inch*2.02inch) |
Speed | 0.20sec/60°(11.1V) |
Accuracy | 0.3° |
Torque | 17kg.cm/11.1V(LX-824HV) |
Working Voltage | 9-12.6V |
Nominal Voltage | 11.1V |
Stall Current |
1.7~2A |
Cornor Range Control |
0~1000 correspond to 0°~240° |
Serial Command Control Method |
serial command |
Communication Baud Rate |
115200 |
Servo ID |
0~253,user configurable,default ID 1 |
Data Feedback |
Temperature; voltage; location |
Save Setting |
Save data when the power off |
Features Stall protection |
Overheat Protection |
Default Wire | 20cm(7.9inch) in length |
LX-824HV Servo Package List |
1* LX-824 HV bus servo 1* 20cm servo wire 1* primary servo horn(4mm/0.157in thick) 1* assistant servo horn(2mm/0.078in thick) 15* M2*5 self-tapping screws 2* primary assistant screws |
The internal high precision potentiometer of the LX-824HV adds a touch of smartness by supporting angle feedback. I appreciate the position, temperature, and voltage feedback options that act as a safeguard, protecting the servo from potential burning issues. It's like having a servo with a built-in safety net.
Connecting the LX-824HV servos in series is a breeze with the serial bus servo connector. This not only simplifies the wiring but also makes the setup cleaner. It's a thoughtful feature that saved me from the usual cable clutter hassle.
This servo is a power-saving champ. Compared to traditional 7.4V servos, this high-voltage wonder reduces current by over 60%. It's like upgrading without draining the battery. I noticed a significant increase in service time, making it a smart choice for my robotics projects.
Servos are inexpensive and reliable. The design of three channels is good for simple wiring. Perfect upgrade for my robot so five stars for servo itself.
Honestly, it is more Sophisticated than i expected when i got it. strong torque and high speed. Btw customer service is supper good. Before using, read the instructions carefully about using method, voltage, etc.
