- User-friendly ports
- Extra-long battery life
- High precision servo
- Support phone, handle and computer control
- Integrated structure sinificantly strengthen the robot body
- Use serial bus servo connector to connect the servo one by one which facilitates the wiring
- Internal high precision potentiometer supports angle feedback
- Significantly reduce the power consumption and increase service time
- Support position/temperature/voltage feedback, protect the servo from burning
- Two working mode: Servo mode ( rotation range: 0-240) and Gear motor mode ( rotation range: 0-360)
- Use metal gear to extend the service time
| 1* LX-224HV high voltage bus servo | 1* Main servo horn |
| 1* Assistant servo horn | 1* Servo wire |
| 15*Self tapping screw | 2* Main assistant screw |
1* Assistant servo horn
15*Self tapping screw
1* Main servo horn
1* Servo wire
2* Main assistant screw
| Item | Specification |
| Weight | 62g |
| Dimension | 40mm*20.14mm*51.10mm(1.57inch*0.8inch*2.02inch) |
| Speed | 0.18sec/60°(11.1V) |
| Accuracy | 0.24° |
| Torque | 20kg.cm/11.1V |
| Nominal Voltage | 11.1V |
| Working Voltage | 9-12.6V |
|
No-load Current |
100mA |
|
Stall Current |
1.7~2A |
|
Cornor Range Control |
0~1000 correspond to 0°~240° |
|
Serial Command Control Method |
serial command |
|
Communication Baud Rate |
115200 |
|
Servo ID |
0~253,user configurable,default ID 1 |
|
Data Feedback |
Temperature; voltage; location |
|
Save Setting |
Save data when the power off |
|
Features |
Stall Protection / Over-temperature Protection |
| Default Wire | 20cm(7.9inch) in length |
| LX-224HV Servo Package List | 1* LX-224HV bus servo 1* 20cm servo wire 1* primary servo horn(4mm/0.157in thick) 1* assistant servo horn(2mm/0.078in thick) 15* M2*5 self-tapping screws 2* primary assistant screws |
Customer Reviews
I recently purchased the LX-224HV along with the debug board to explore its capabilities. So far, I am satisfied with its performance. Upon opening the box, I found limited information readily available about the servo and its control. However, there's a link guiding users to a Google Drive folder containing software and PDF downloads, offering more detailed. The servo's position can be read from anywhere, even beyond the commendable position control mode.
I have had a robot from these folks which they eventually replaced due to several broken servos. The new unit has less than 30 min run time now 7 more have stopped working. look elsewhere, I am...
Hi Richard, may I know what kind of project you used with the servos?

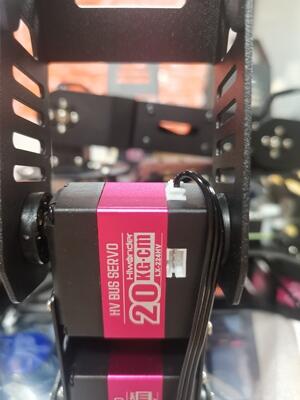

Work well with Hiwonder communication. Servo performs well with strong torque. It fitted very easy and the cable is simple！
Excellent servo for the price. It was useful for replace the servo on my robotic arm. This servo is powerful and smoother. Installed with no issues. I am going to buy a new one for the future. Recommend it.
It is what I was looking for good construction. so far so good. No issues have presented at all. Simple wiring and good performance for my robot. It's a great buy and Very pleased so far!
