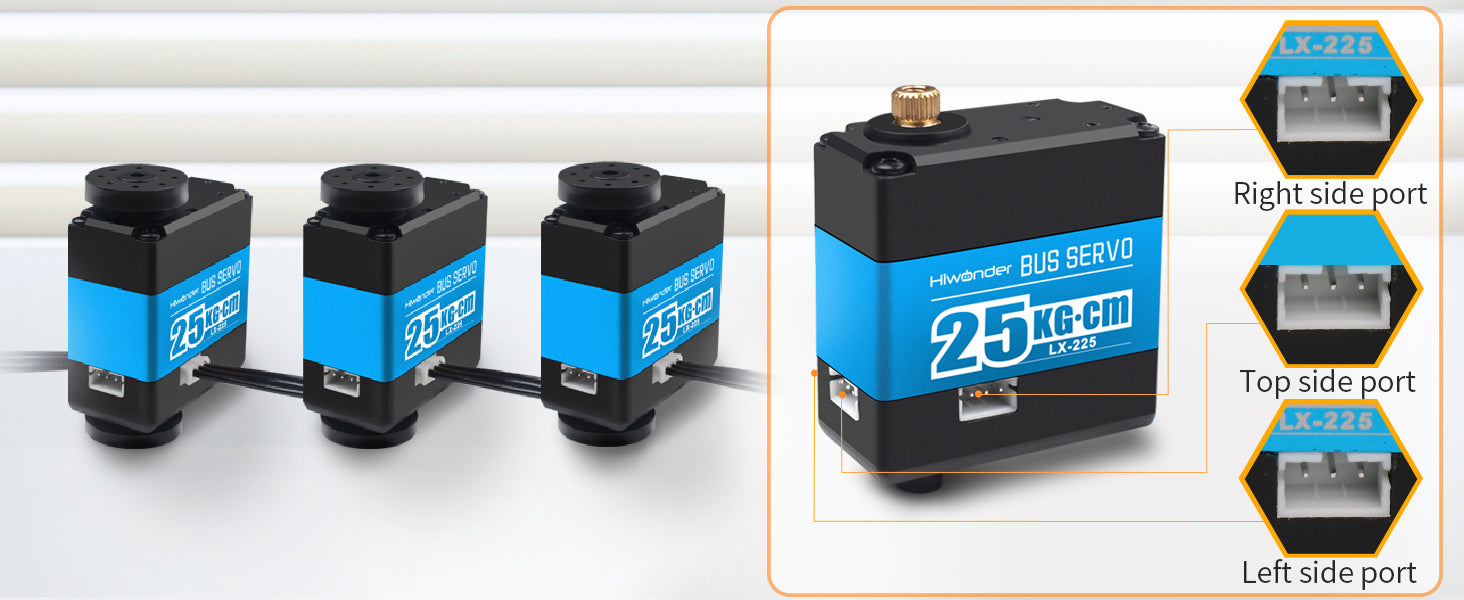

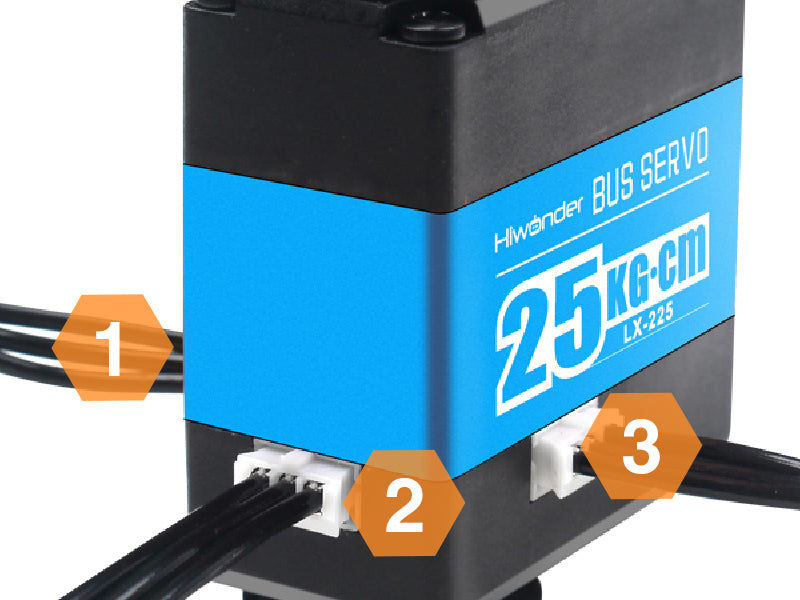

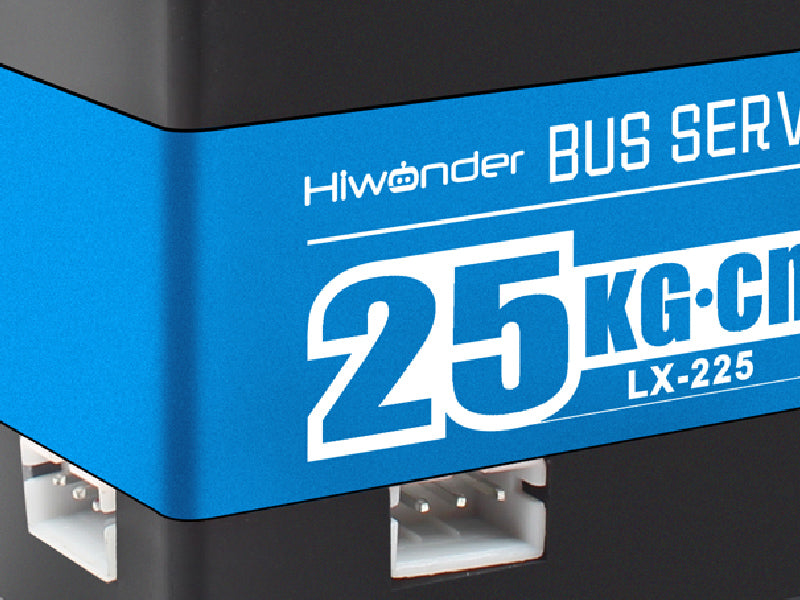

- Upgraded Version -Three Channels on the top, left and right are easy for wiring.

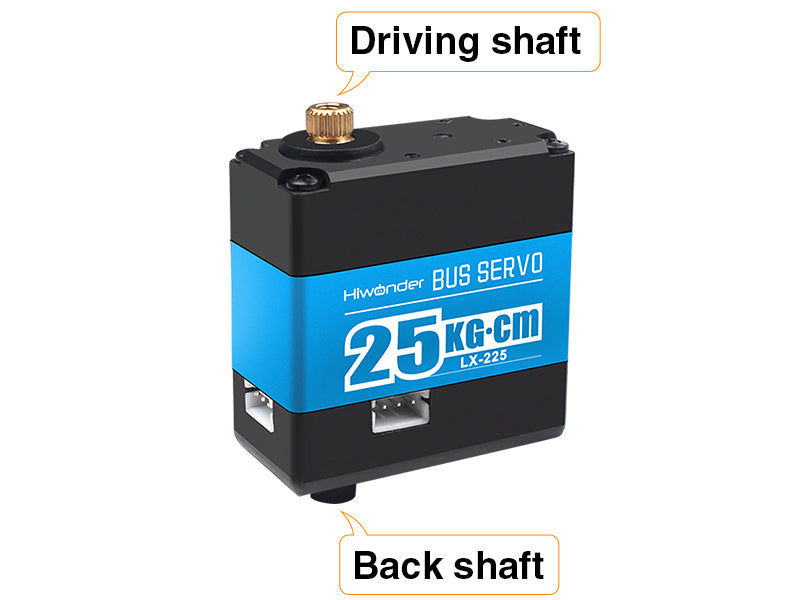

- Large Torque - Maximum torque is up to 25kg.cm 7.4V. 270 degree rotation. 360 degree rotation when power-off, perfect for robot joint activities.

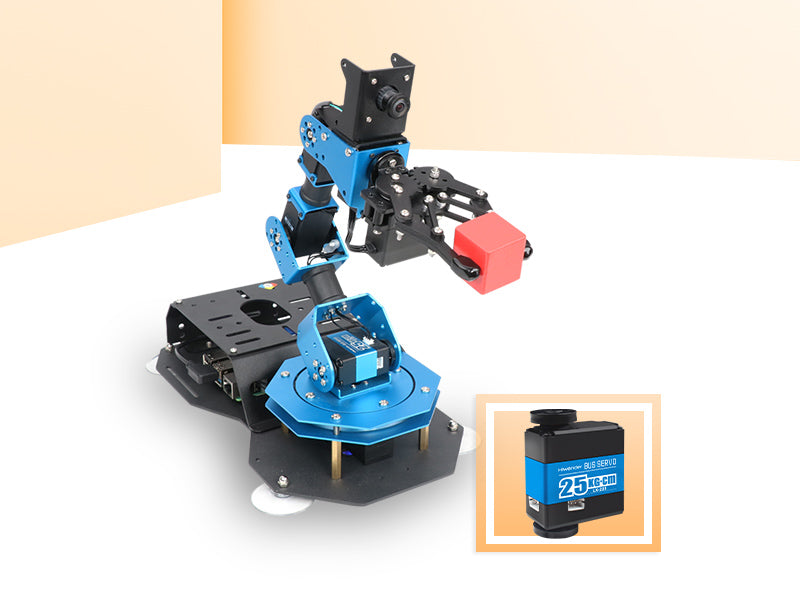

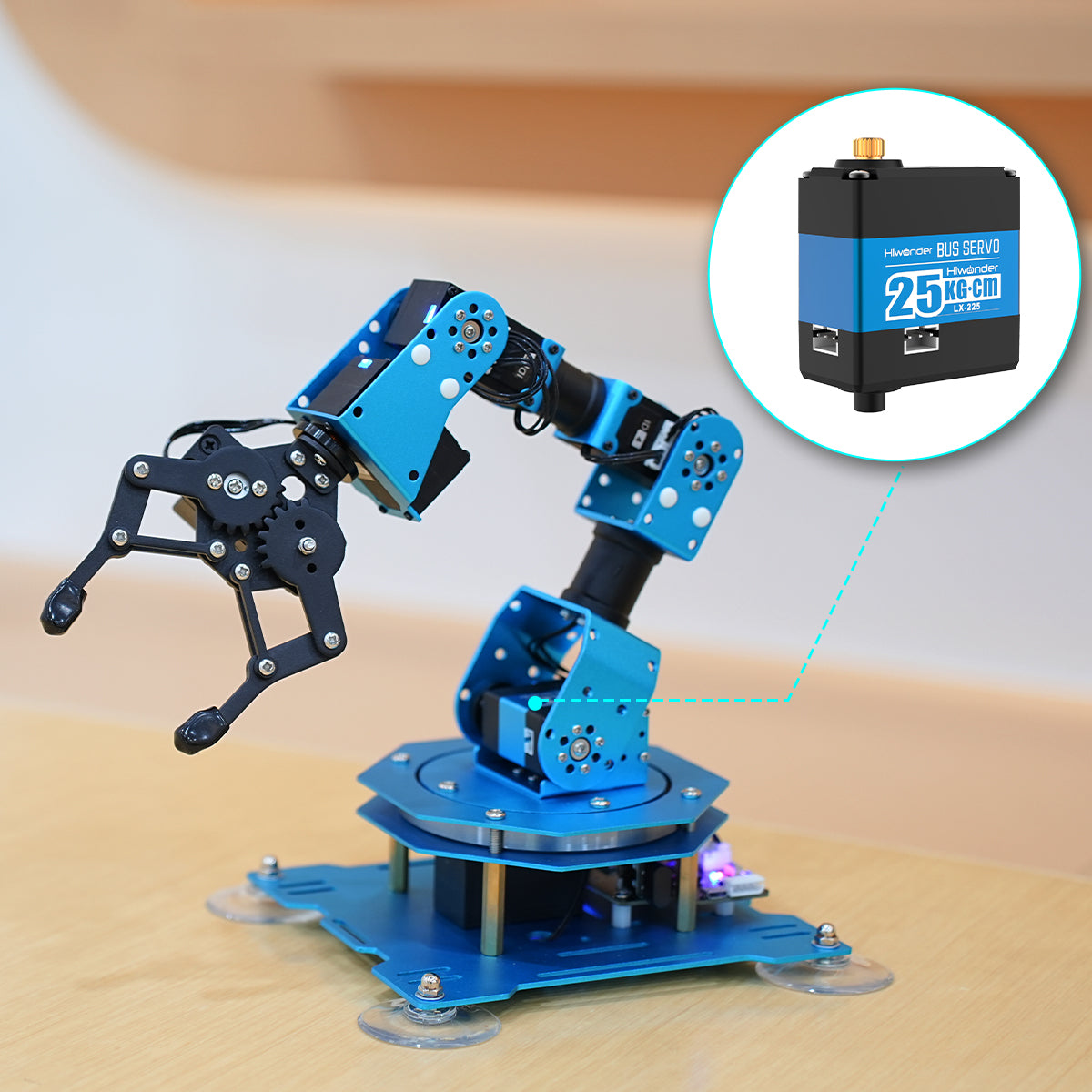

- Variable ID -The default number is 1 which is modifiable. It can be used to replace xArm ID5 servo.
- Details Tutorial - Provide bus servo communication protocol, Provide for Arduino and STM32 source code.

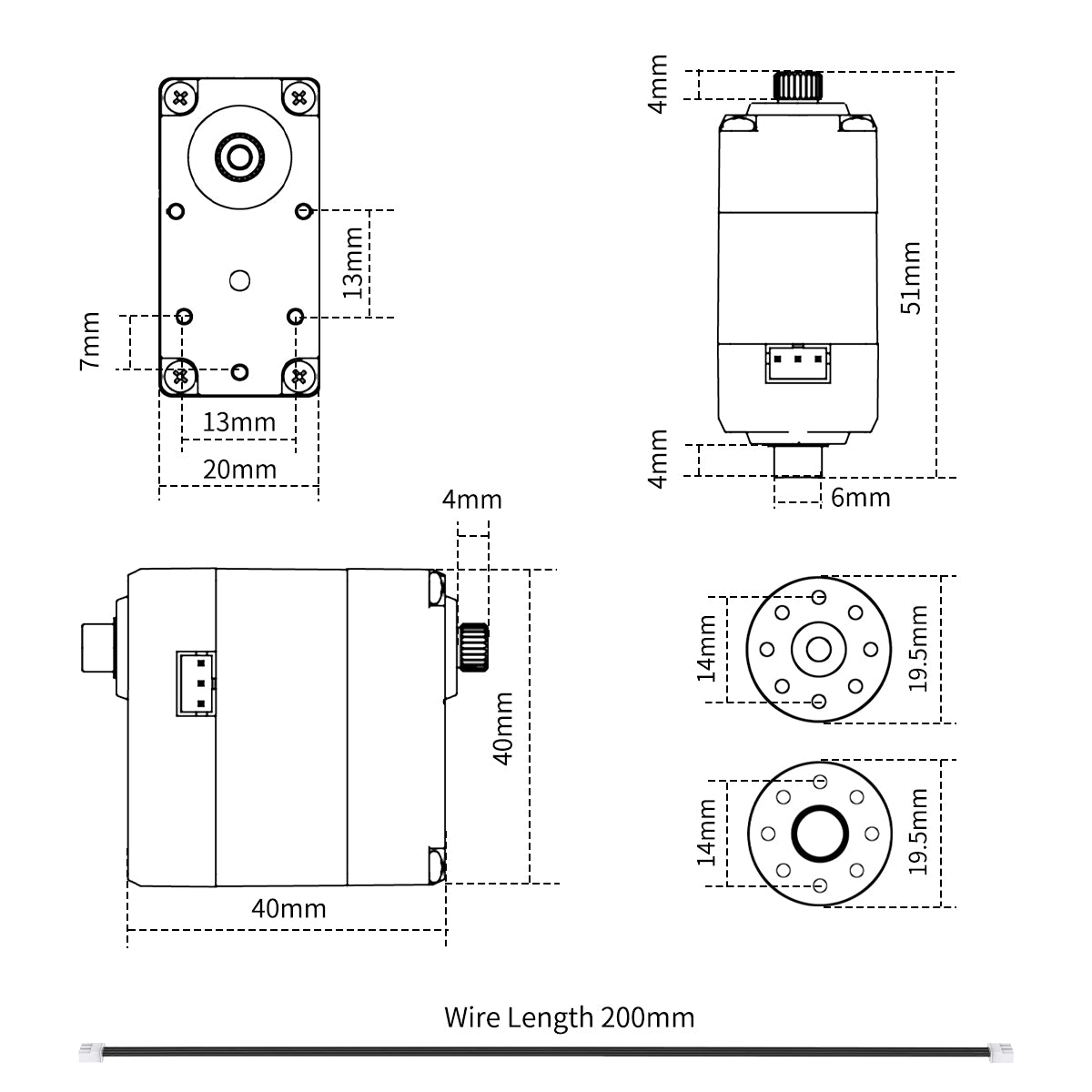

- Dimensions -1.57 x 0.79 x 2.01inch (40 x 20.14 x 51.1mm); Weight: 63g (2.22oz) only.
Product Description

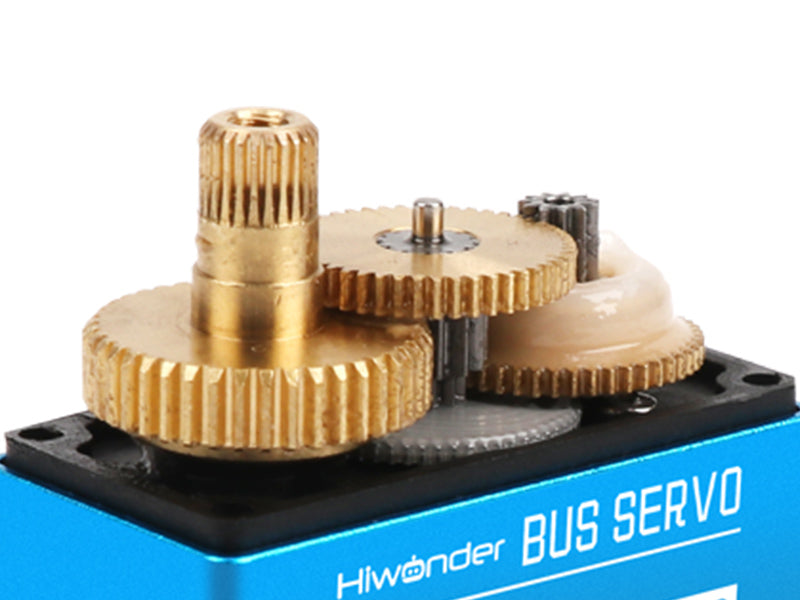

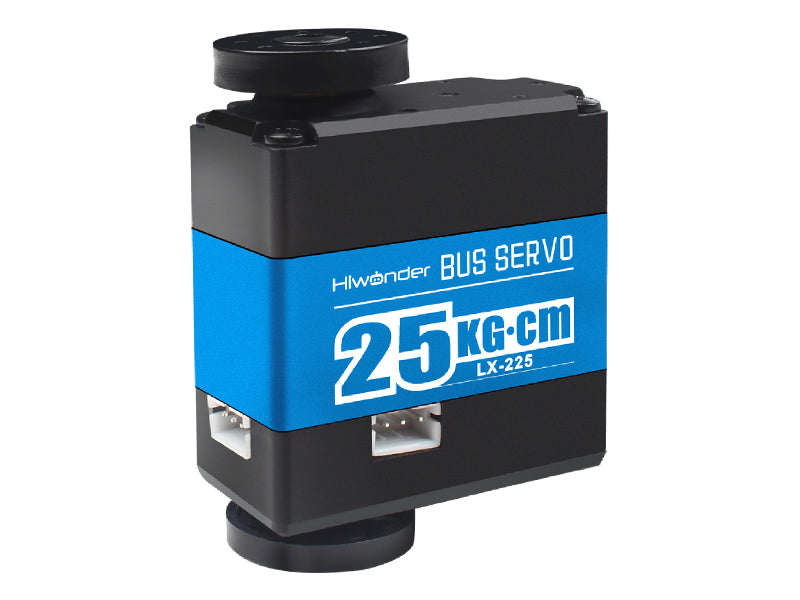

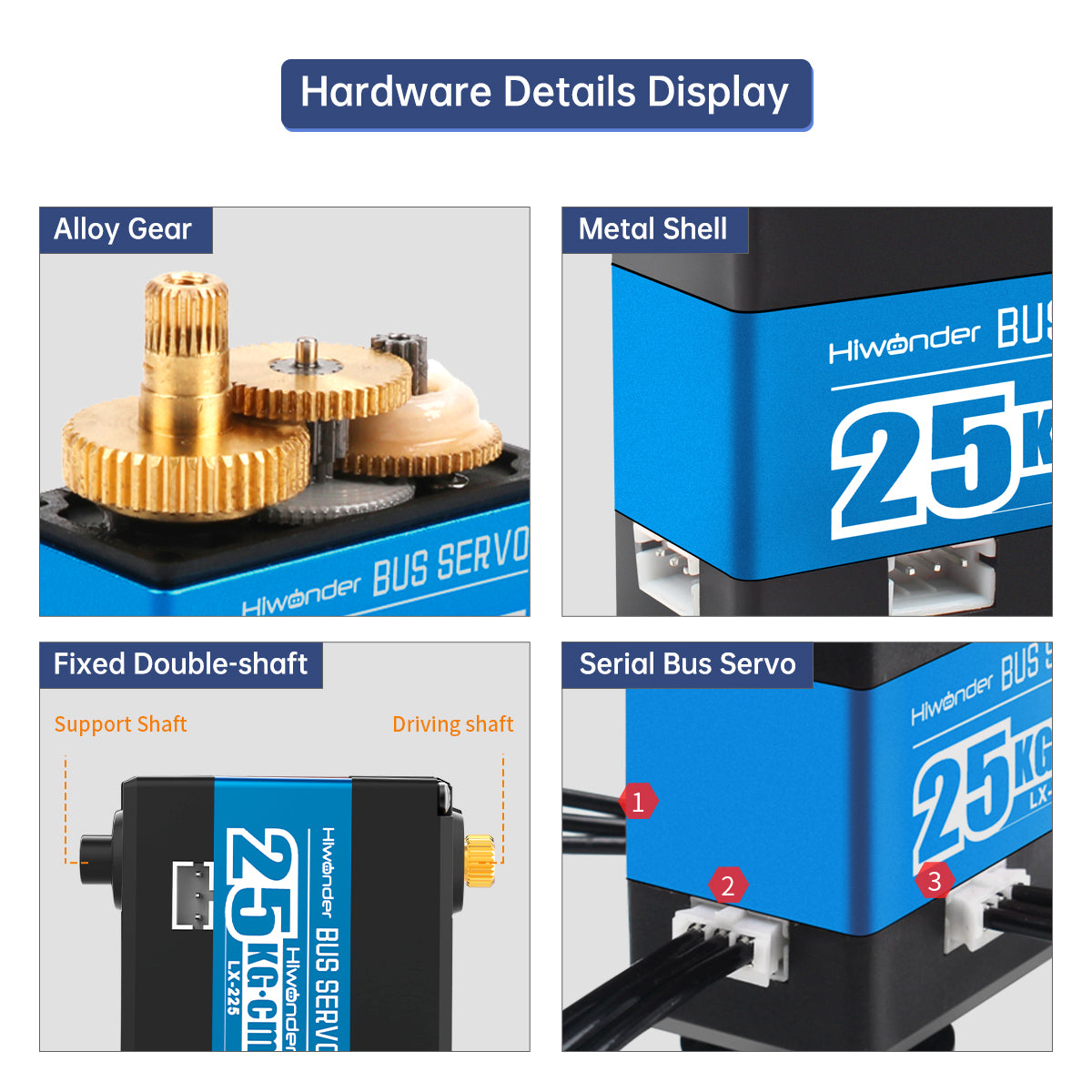

LX-225 servo is a full metal gearserial bus servo with three connectors. The servo can be connected in series, simplifying the wire connection.It can provide temperature, position feedback. LX-225 servo can be used in different bionic robot joints.

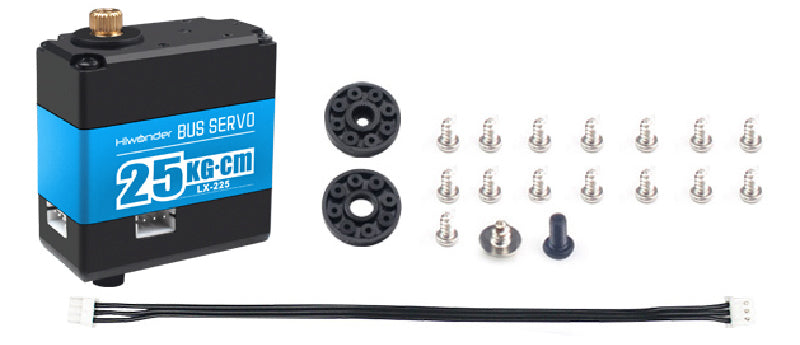

Packing List
- 1*LX-225 servo
- 1*Plastic main servo horn
- 1*Plastic assistant servo horn
- 1*Servo wire(200mm)
- 1*Screw package

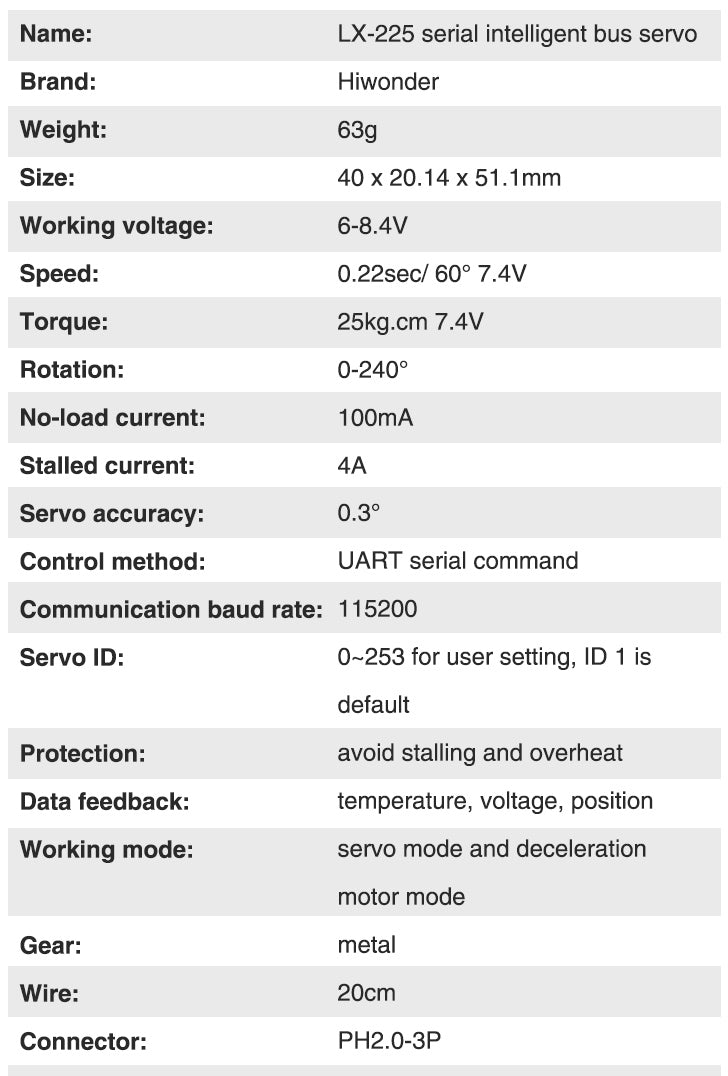

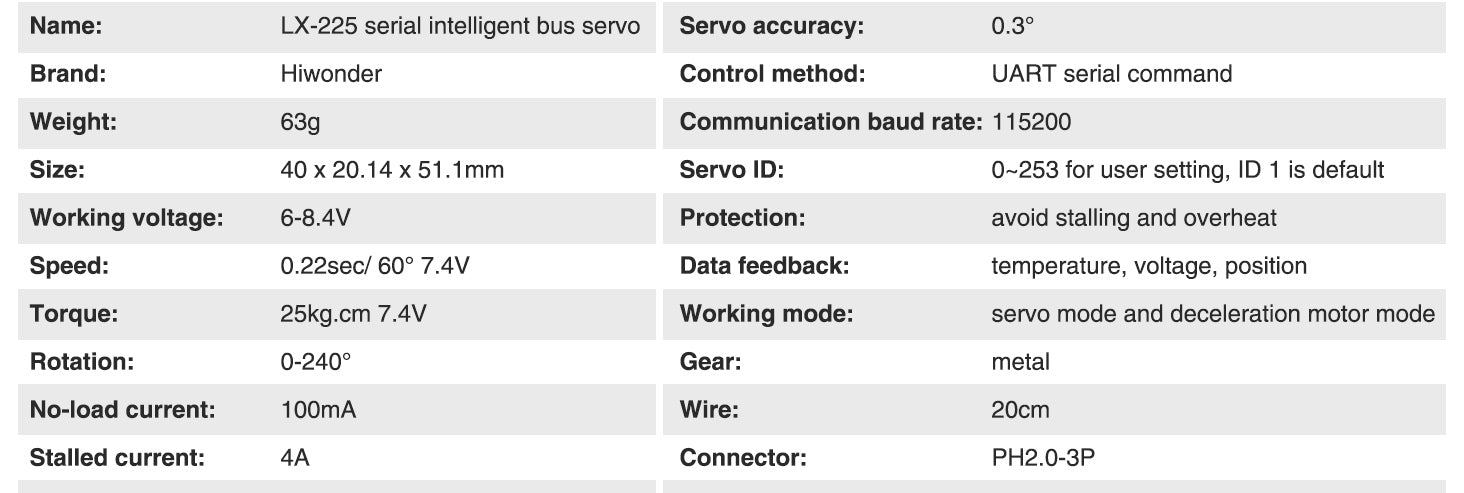

| Weight | 63g |
| Size | 40x20.14x51.1mm |
| Working voltage | 6-8.4V |
| Speed | 0.20sec/60°7.4V |
| Torque | 25kg.cm 7.4V |
| Rotation | 0-240° |
| No-load current | 100mA |
| Stall Current | 4A |
| Servo accuracy | 0.3° |
| Control method | UART serial command |
| Communication baud rate | 115200 |
| Storage | Save data when the power off |
| Servo ID | 0~253 for user setting, ID 1 is default |
| Angel read back function | Support |
| Protection | Avoid stalling and overheat |
| Data feedback | Temperature, Voltage, Position |
| Working mode | Servo mode and deceleration motor mode |
| Control angle range | 0-1000, correspond to 0-240 |
| Wire | 200mm |
| Gear | Metal |

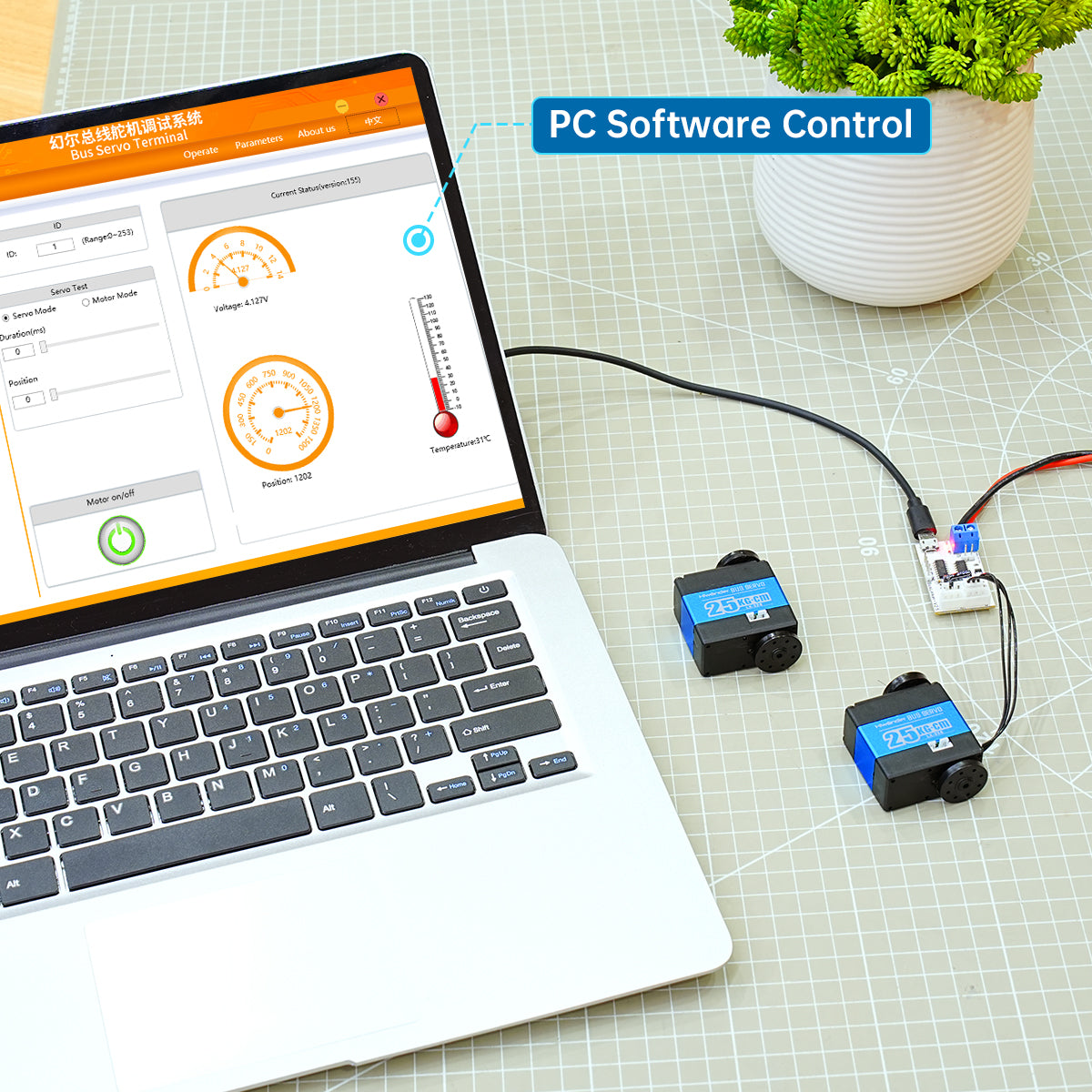

Bus Servo Communication

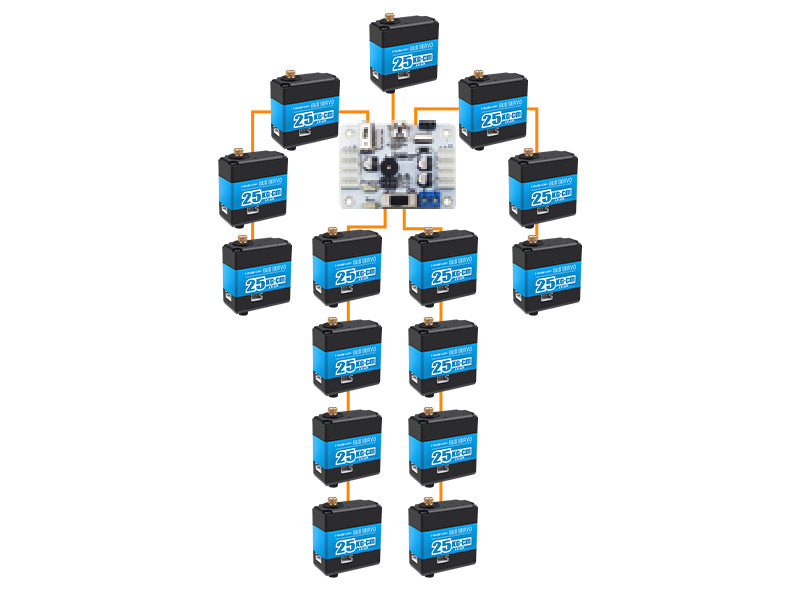

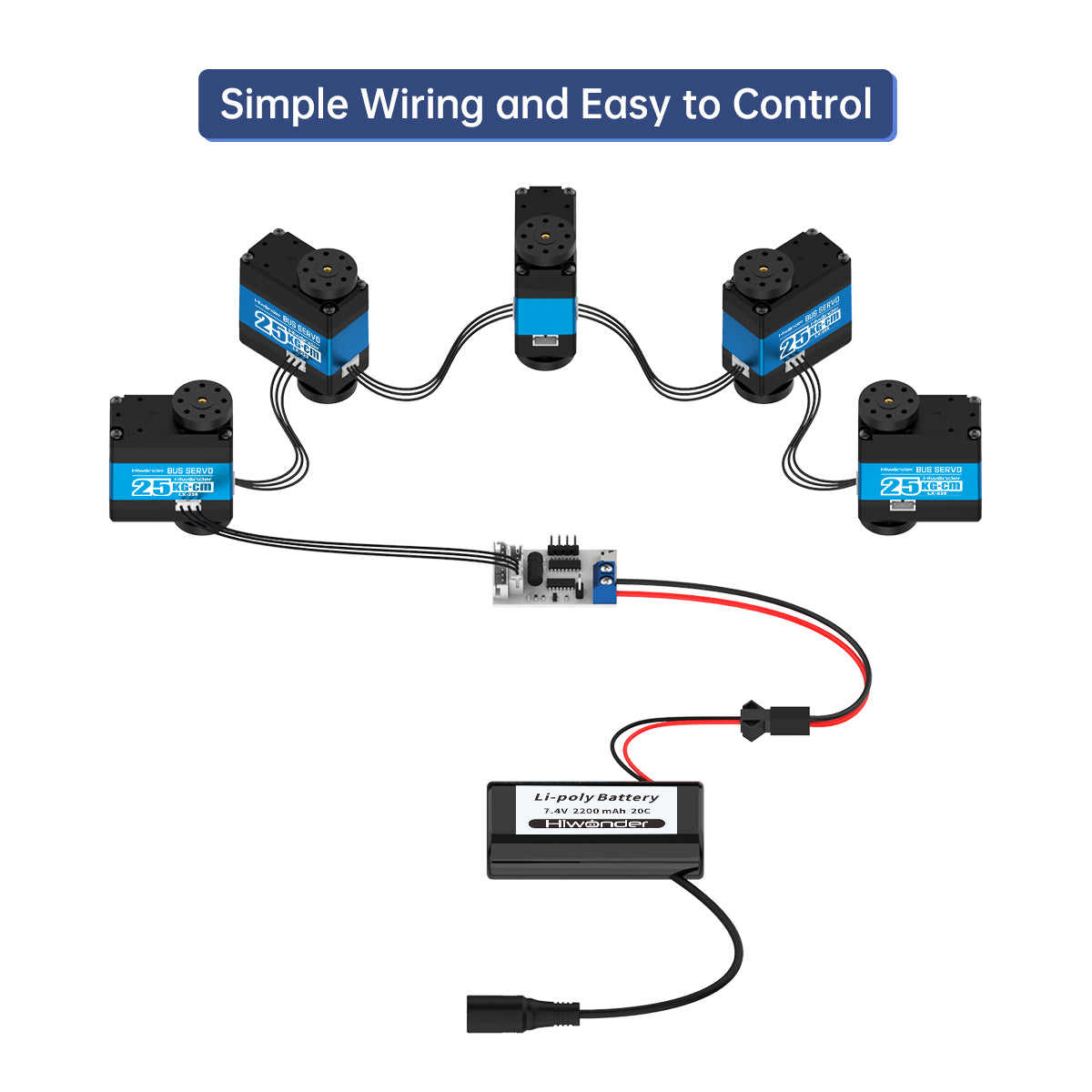

The user can set and assign an ID number to each servo, and use the controller to issue instructions to make the servo perform actions according to the instructions.
High Torque and Strong Power
The servo has a maximum torque of 25kg.cm 7.4V, which is powerful and gives your robot plenty of power.
High Quality Potentiometer
The servo adopts a high-precision potentiometer, which improves the accuracy and linearity, makes the operation more stable and prolongs the service life.

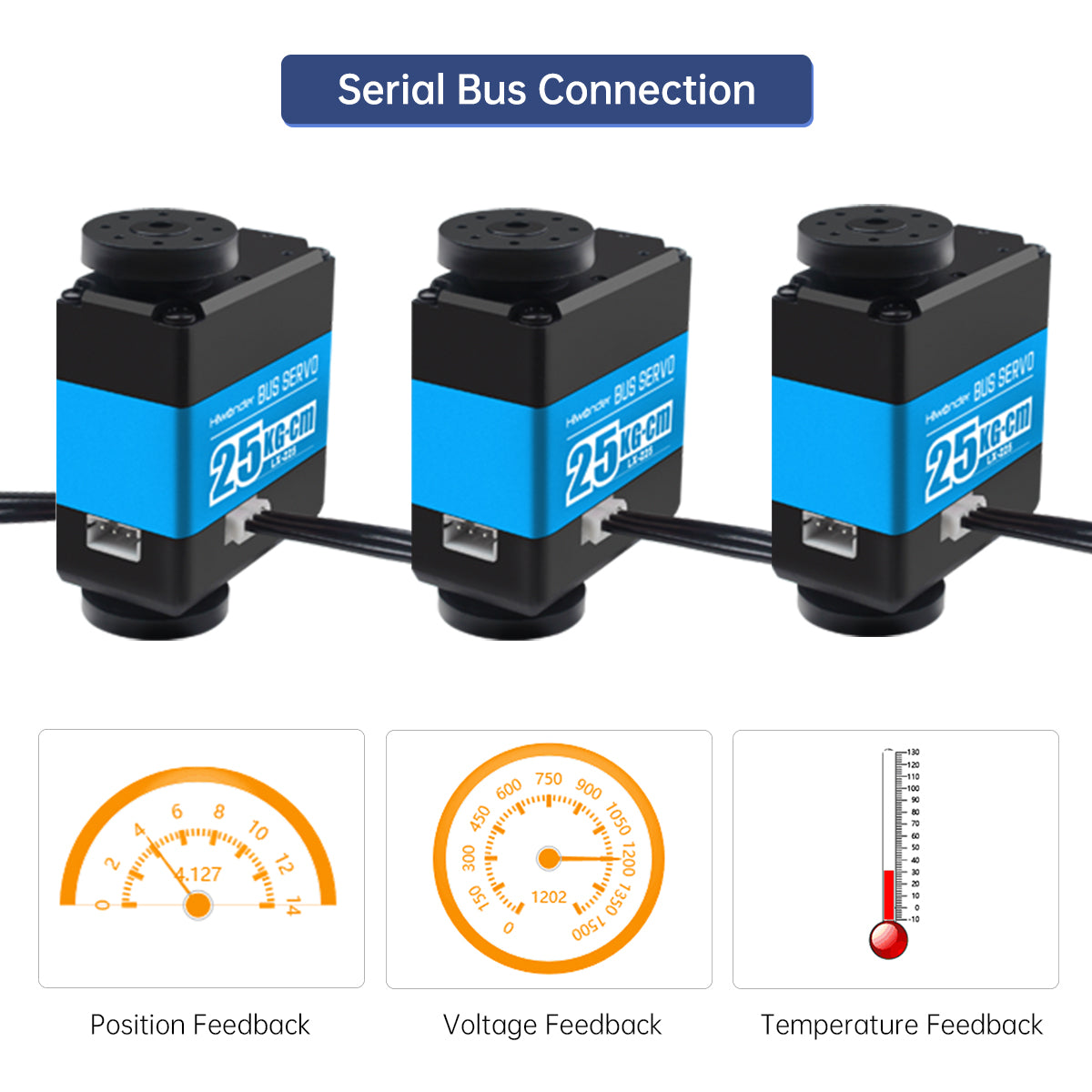

Intelligent Feedback and Two Working Modes
The servo supports servo mode and reduction motor mode, and has position, temperature and voltage feedback to protect the normal operation of the servo.
| Item | Specification |
| Weight | 63g |
| Size | 40*20.14*51.1mm |
| Working voltage | 6-8.4V |
| Speed | 0.20sec/60°7.4V |
| Torque | 25kg.cm 7.4V |
| Rotation | 0-240° |
| No-load current | 100mA |
| Stall Current | 4A |
| Servo accuracy | 0.3° |
| Control method | UART serial command |
| Communication baud rate | 115200 |
| Storage | Save data when the power off |
| Servo ID | 0~253 for user setting, ID 1 is default |
| Angel read back function | Support |
| Protection | Avoid stalling and overheat |
| Data feedback | Temperature, Voltage, Position |
| Working mode | Servo mode and deceleration motor mode |
| Control angle range | 0-1000, correspond to 0-240 |
| Wire | 200mm |
| Gear | Metal |
