- User-friendly 1/1 scale bionic fingers
- LFD-01 anti-blocking servos are used for the movement of fingers
- Acrylic and aluminum alloy brackets contribute to structure and high performance
- Support secondary development for your robots
Specification
Robot Hand Five Fingers
- Product size: 6.5*3.54inch/165*90mm
- Product weight: 0.42Lb/191g
- Product material: Acrylic and aluminum alloy
- Drive: Anti-block servos
- Application Scenario: matched with different brackets, suitable for secondary development of robots
About Servo:
- Servo Model: LFD-01M Servo (9G Micro Servo)
- Operating Voltage:4.8V-6V
- Torque:1.5kg.cm(4.8v); 1.8kg.cm(6v)
- Speed: 0.12sec/60° (4.8v); 0.10sec/60°(6V)
- No-load Current: 50mA
- Weight: 0.317oz / 9g
- Size: 0.88*0.47*0.9inch / 22.3*12*23.2mm
- Wire Length: 10.24in / 26cm

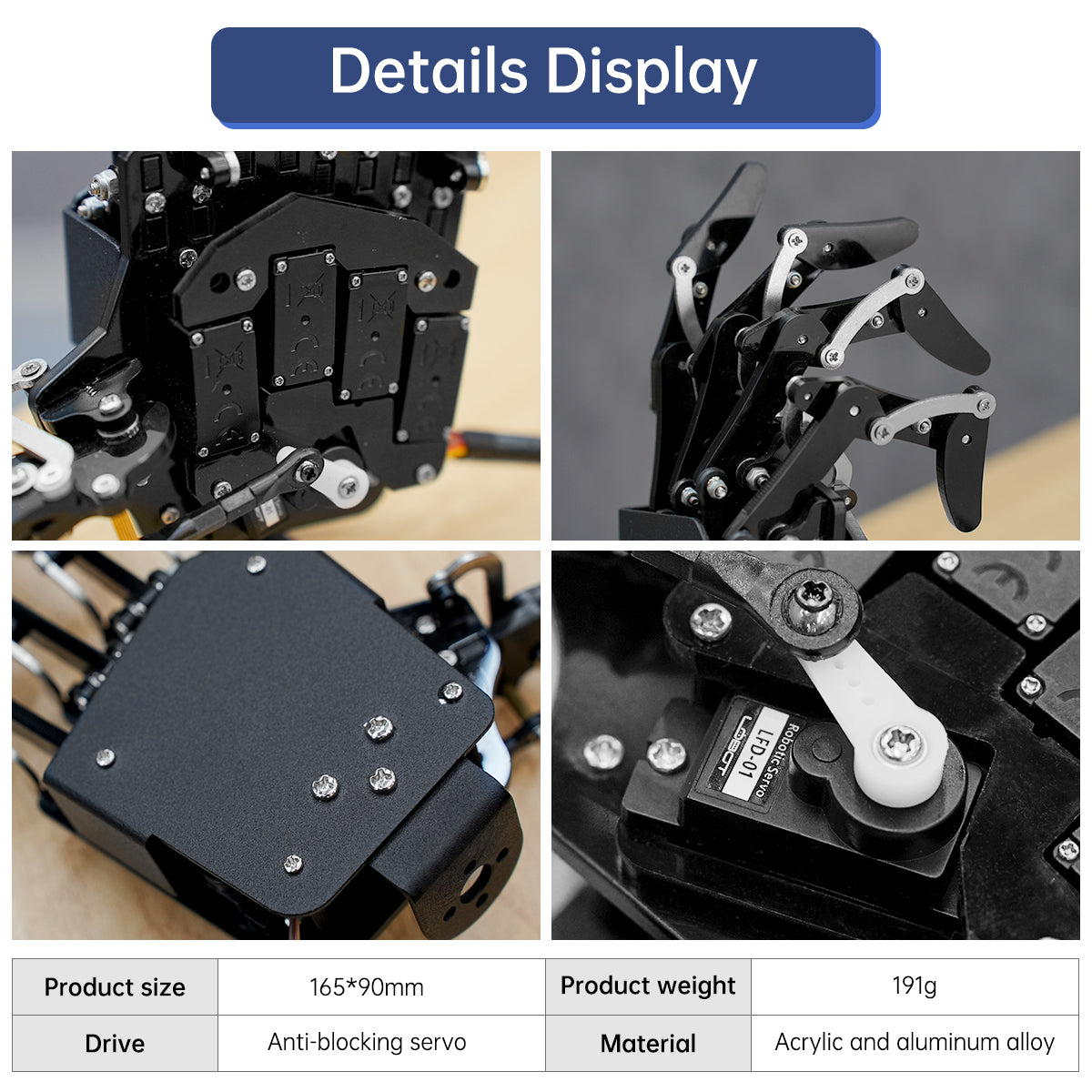

Acrylic and Aluminum Alloy
uHand is made of acrylic and aluminum alloy as the bracket, with a delicate structure.
Mounting Holes
uHand has multiple mounting holes, which is convenient for users to DIY expansion.
Tie Rod Structure
The mechanical hand is designed with a tie rod structure, which increases the joint angular velocity and expands the range of rotation.
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Digital Servo Tester | LFD-01M Servo | Black Gripper | Full-metal Gripper | BigClaw Mechanical Gripper | Plastic Gripper | |
| Feature | Servo Tester | For Robot DIY | For Robot DIY | For Robot DIY | For Robot DIY | For Robot DIY |
| Product weight | 1.31 oz/ 37g | 0.14LB/ 64g | 0.46LB/207g (with servo);0.31LB/140g (without servo) | 0.42LB/191g (with servo);0.27LB/120g (without servo) | 0.36LB/162g (with servo);0.21LB/96g (without servo) | 0.10LB/ 49g (without servo); 0.25LB/ 117.5g (with servo) |
| Maximum Grab Weight | 1.54LB/ 700g | 1.1LB/ 500g | 1.1LB/ 500g | 1.76LB/ 800g | ||
| Close & Open Range | 0-7.6in/193.5mm | 0-9.1in/230mm | 0-3.4in/86mm | 0-2.1in/ 54mm |
| Item | Specification |
| Material | Hard aluminum alloy + glass fiber |
| Opening and closing size | 193.5mm |
| Product size | 119*69*60mm |
| Weight with servo | 207 grams |
| Weight without servo | 140 grams |
