Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)
- 17kg large torque. 15 kg/cm (208 oz/in) 6.6V; 17 kg/cm (236 oz/in) 7.4V. We provide communication protocol and detailed video tutorials
- Real-time feedback of position, temperature, voltage. The top of the servo has a warning light, and the indicator will flash if the internal of servo is abnormal
- Full metal gear. it's better for accuracy, service life has been greatly increased. Dual ball bearing: one is the driving ball bearing, one is the assistant ball bearing(support role)
- Using high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots
- The control board use a I/O port to connect the serial servo, servos are connected in series through a dual interface, which reduce the use of serial ports. Simple wiring make product more simple, Exquisite, attractive
Product Description
LX-16A is a full metal gear serial bus servo with high torque. It can provide temperature, position feedback. LX-16A Bus Servo uses our private serial protocol so that it is necessary to use our TTL/USB debug board (compatible for Arduino) to control bus servo.
Packing List
- 1*LX-16A servo
- 1*Plastic main servo horn
- 1*Plastic assistant servo horn
- 1*Servo wire(200mm)
- 1*Screw package
| Weight | 54g |
| Dimension | 45.22 x 24.72 x 36.3 mm |
| Speed | 0.19sec/60°7.4V |
| Servo accuracy | 0.3° |
| Torque | 17kg.cm 6V; 20kg.cm 7.4V |
| Stall Current | 1.1~1.9A |
| Working voltage | 6-8.4V |
| Servo ID | 0~253 |
| Readback function | Support angle readback |
| Wire length | 200mm |
| Rotation | 0-240° |
| No-load current | 100mA |
| Control method | UART serial command |
| Communication baud rate | 115200 |
| Protection | Avoid stalling and overheat |
| Data feedback | Temperature, Voltage, Position |
| Indicator | LED |
| Working mode | Servo mode and deceleration motor mode |
| Storage | Save data when the power off |
| Gear | Metal |
Bus Servo Communication

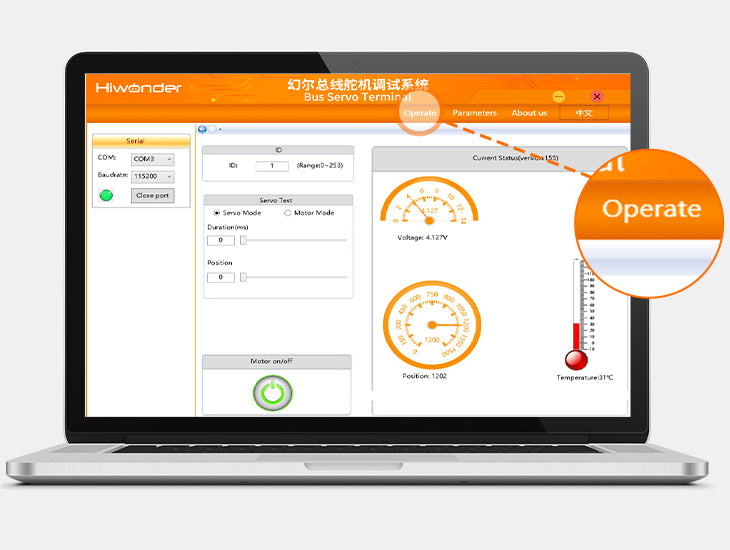

The user can set and assign an ID number to each servo, and use the controller to issue instructions to make the servo perform actions according to the instructions.
High Torque and Strong Power
The servo has a maximum torque of 19.5kg.cm 7.4V, which is powerful and gives your robot plenty of power.
High Quality Potentiometer
The servo adopts a high-precision potentiometer, which improves the accuracy and linearity, makes the operation more stable and prolongs the service life.
Intelligent Feedback and Two Working Modes
The servo supports servo mode and reduction motor mode, and has position, temperature and voltage feedback to protect the normal operation of the servo.
| Item | Specification |
| Weight | 53g |
| Dimension | 45.22*24.72*36.3mm |
| Speed | 0.19sec/60°7.4V |
| Servo accuracy | 0.3° |
| Torque | 17kg.cm 6V; 20kg.cm 7.4V |
| Stall Current | 1.1~1.9A |
| Working voltage | 6-8.4V |
| Servo ID | 0~253 |
| Readback function | Supports angle readback |
| Wire length | 200mm |
| Rotation | 0-240° |
| No-load current | 100mA |
| Control method | UART serial command |
| Communication baud rate | 115200 |
| Protection | Avoid stalling and overheat |
| Storage | Save data when the power off |
| Data feedback | Temperature, Voltage, Position |
| Indicator | LED |
| Working mode | Servo mode and deceleration motor mode |
| Gear | Metal |
Questions & Answers
Have a Question?
-
How long does it take to reach INDIA
Hello; It takes 5-8 business days:)
-
How do i use these servos without the buslinker with an arduino only
Hi there, yes. You can use Dupont wire directly
-
Is there a technical specification that I can access for this product. I'd like to know what size screws are included and in best case a model file of the included parts. Thank you.
Please visit this link: https://drive.google.com/drive/folders/1H7DQVLx-yqxvMG5PAA20qnfxalvlcOth?usp=sharing
