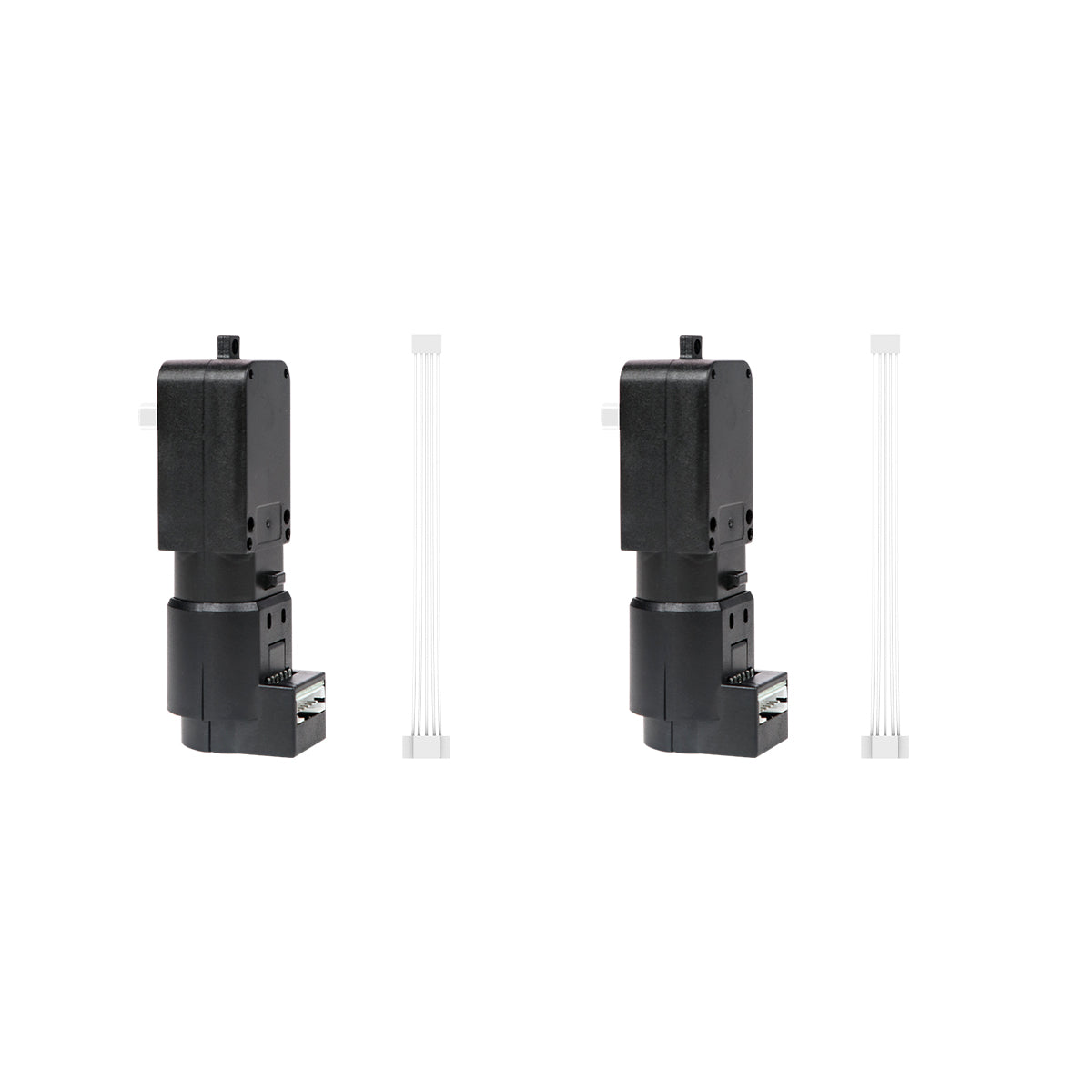

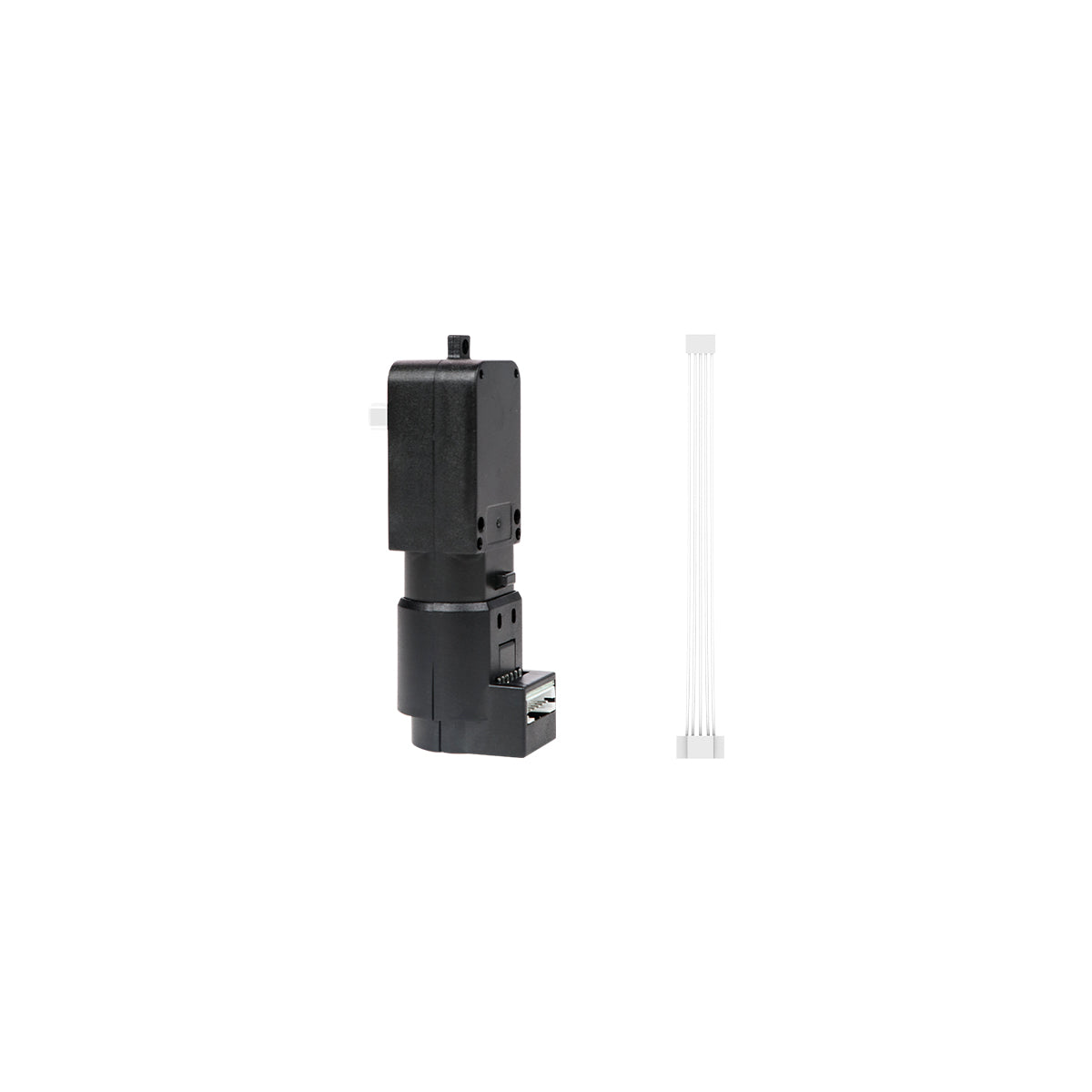

TT Gear Motor Hall Encoder with Plastic Shaft 3V-12V 150RPM Ratio 1:42 Suitable for Robot Car
Product SKU: 21100132
- 【High Performance】The motor is equipped with a high-precision Hall encoder and a premium three-wire strong magnetic speed measurement disc, accurately providing pulse signals, ensuring stable motor performance.
- 【TT DC Gear Motor】 Working voltage: DC 3-12V, no-load speed: 150 RPM, ratio 1:42, torque: 1.2 kg·cm.
- 【Application】This TT DC gear motor can be used for DIY car projects and smart robots.
Available:
Only 987 items in stock
In stock
In stock
Out of stock
Back in stock
$6.99
Save
% $-6.99
High-Accuracy Hall Encoder
High-Quality Strong Magnetic Carbon Brushed Motor
Features

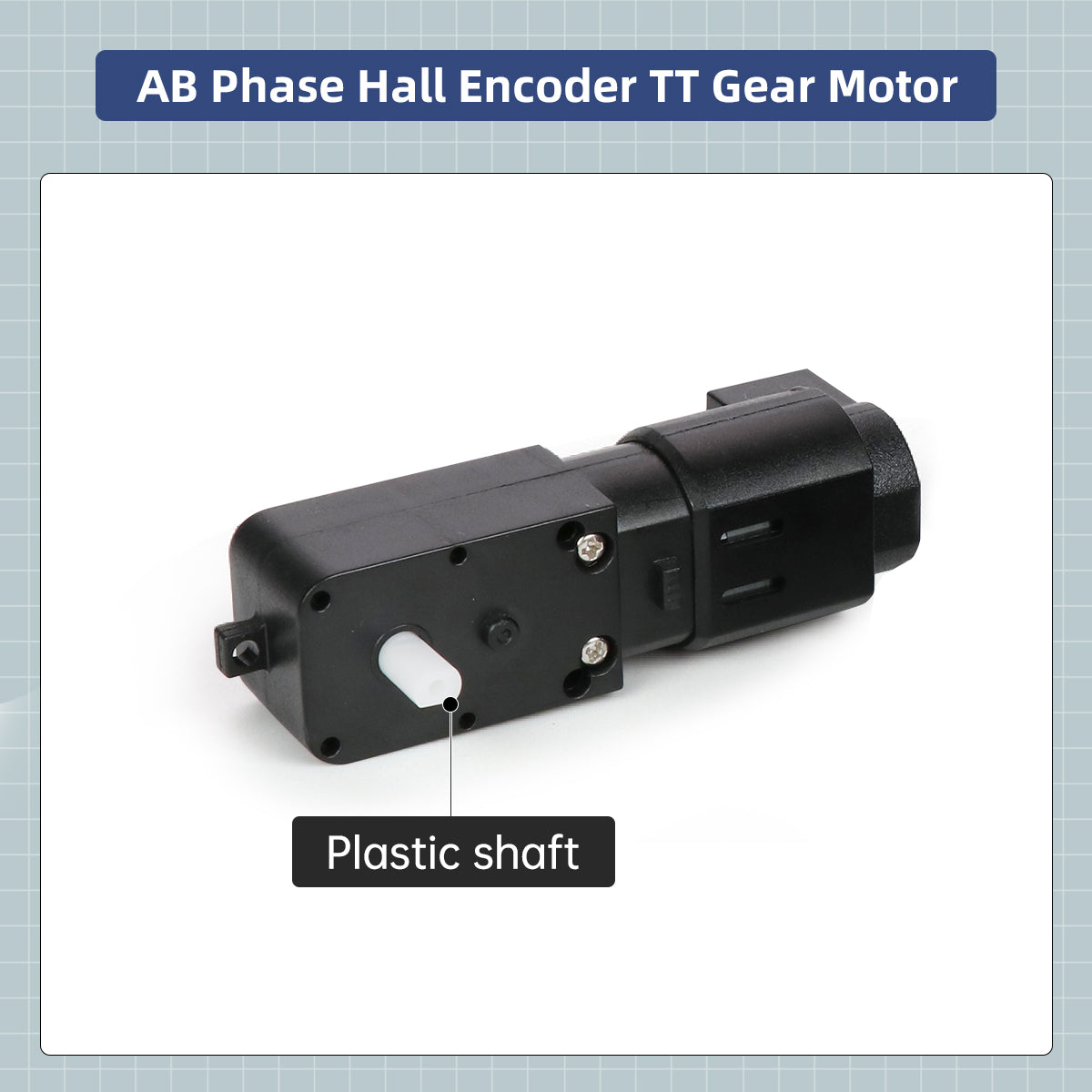

- Name: AB phase magnetic hall TT geared motor
- Working voltage: DC 3V-12V (Recommend 6V-9V)
- No load rotation speed: 150 rpm (plastic shaft)
- Ratio: 1: 42 (plastic shaft)
- Torque: 1.2kg.cm (plastic shaft)
- Nominal voltage: DC6V
- No load current: 100mA
- Stall current: 1.2A

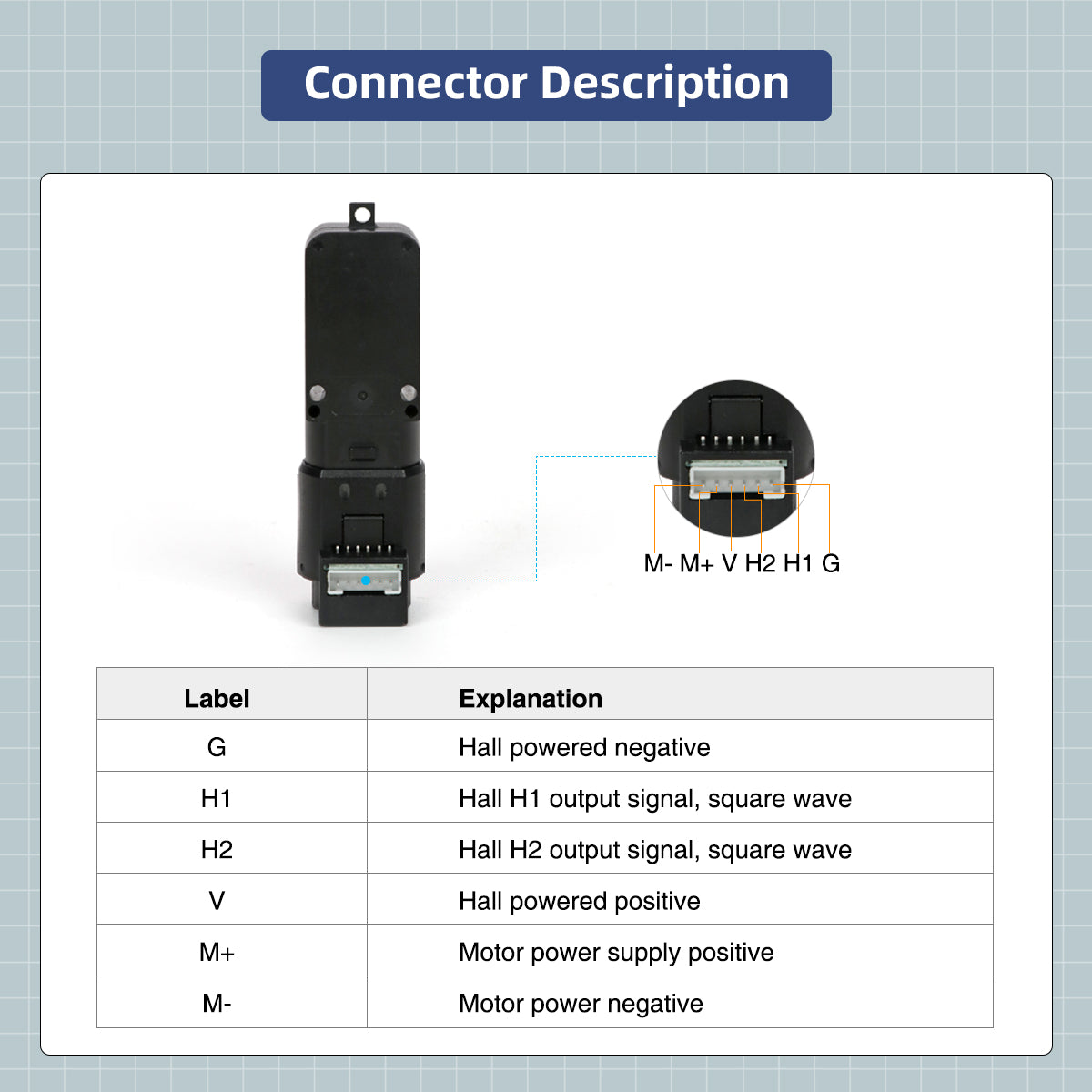

- Interface type: PH2.0-6PIN
- Magnetic ring single-turn pulse count: 6
- Wheel single-turn pulse count: single-phase count: magnetic ring single-turn pulse count * gear ratio = 252
- Fourfold frequency count: magnetic ring single-turn pulse count * gear ratio * 4 = 1008

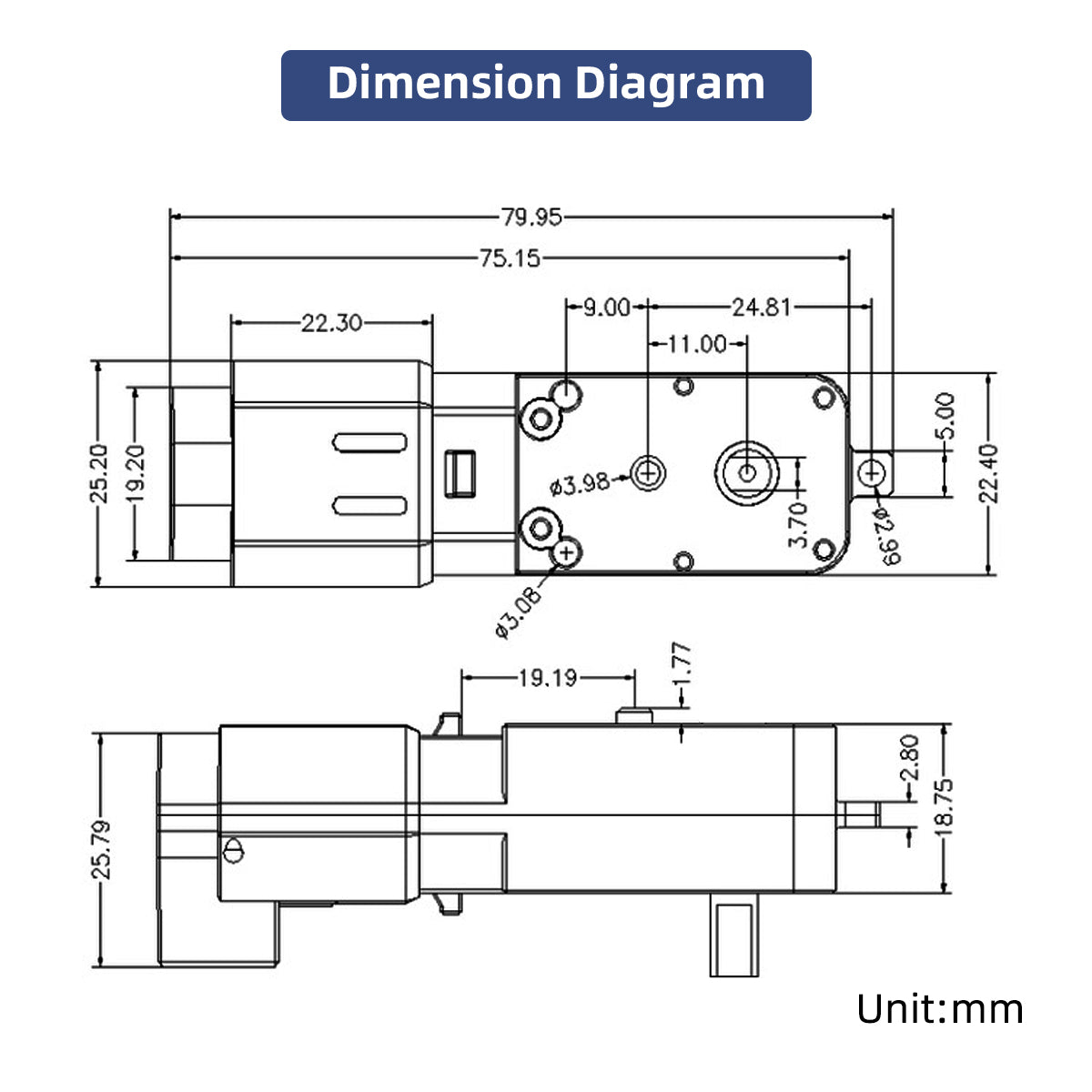

- Size: 79.95 * 22.4 * 25.79mm
- Weight: 34g (plastic shaft)
| Item | Specification |
| Name | AB phase magnetic hall TT geared motor |
| Working voltage | DC 3V-12V (Recommend 6V-9V) |
| No load rotation speed | 150 rpm (plastic shaft) |
| Ratio | 1: 42 (plastic shaft) |
| Torque | 1.2kg.cm (plastic shaft) |
| Nominal voltage | DC6V |
| No load current | 100mA |
| Stall current | 1.2A |
| Interface type | PH2.0-6PIN |
| Magnetic ring single-turn pulse count | 6 |
| Wheel single-turn pulse count | single-phase count: magnetic ring single-turn pulse count * gear ratio = 252; Fourfold frequency count: magnetic ring single-turn pulse count * gear ratio * 4 = 1008 |
| Size | 79.95 * 22.4 * 25.79mm |
| Weight | 34g (plastic shaft) |
